IEC 61000-4-41:2024

(Main)

Electromagnetic compatibility (EMC) - Part 4-41: Testing and measurement techniques - Broadband radiated immunity tests

Electromagnetic compatibility (EMC) - Part 4-41: Testing and measurement techniques - Broadband radiated immunity tests

IEC 61000-4-41:2024 relates to broadband radiated disturbances generated by, for example, communication devices or services, transmitters or industrial electromagnetic sources or any other devices capable of generating such a signal.
The object of this document is to establish a common reference for evaluating the immunity of electrical and electronic equipment when subjected to broadband radiated electromagnetic fields.
This document specifies testing in the frequency ranges above 80 MHz, limited only by the capabilities of commercially available test instrumentation.
It forms Part 4-41 of IEC 61000. It has the status of a basic EMC publication in accordance with IEC Guide 107.

Compatibilité électromagnétique (CEM) - Partie 4-41: Techniques d'essai et de mesure - Essais d'immunité aux rayonnements à large bande

IEC 61000-4-41:2024 concerne les perturbations rayonnées à large bande générées, par exemple, par des dispositifs ou des services de communication, des émetteurs ou des sources électromagnétiques industrielles, ou tout autre dispositif capable de générer un tel signal.
Le présent document a pour objet d'établir une référence commune d'évaluation des performances en matière d'immunité des matériels électriques et électroniques soumis à des champs électromagnétiques rayonnés à large bande.
Le présent document spécifie les essais dans les plages de fréquences au-dessus de 80 MHz, limitées uniquement par les capacités des instruments d'essai disponibles dans le commerce.
Elle constitue la Partie 4-41 de l'IEC 61000. Elle a le statut d'une publication fondamentale en CEM conformément au Guide 107 de l'IEC.

General Information

Status
Published
Publication Date
21-Nov-2024
ICS
33.100.20 - Immunity
Technical Committee
SC 77B - High frequency phenomena
Drafting Committee
WG 10 - TC 77/SC 77B/WG 10
Current Stage
PPUB - Publication issued
Start Date
13-Dec-2024
Completion Date
22-Nov-2024
Ref Project

Buy Standard

IEC 61000-4-41:2024 - Electromagnetic compatibility (EMC) - Part 4-41: Testing and measurement techniques - Broadband radiated immunity tests Released:22. 11. 2024 Isbn:9782832700198IEC 61000-4-41:2024 - Electromagnetic compatibility (EMC) - Part 4-41: Testing and measurement techniques - Broadband radiated immunity tests Released:22. 11. 2024 Isbn:9782832700198
PreviousNext
Standard
IEC 61000-4-41:2024 - Electromagnetic compatibility (EMC) - Part 4-41: Testing and measurement techniques - Broadband radiated immunity tests Released:22. 11. 2024 Isbn:9782832700198
English and French language
103 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

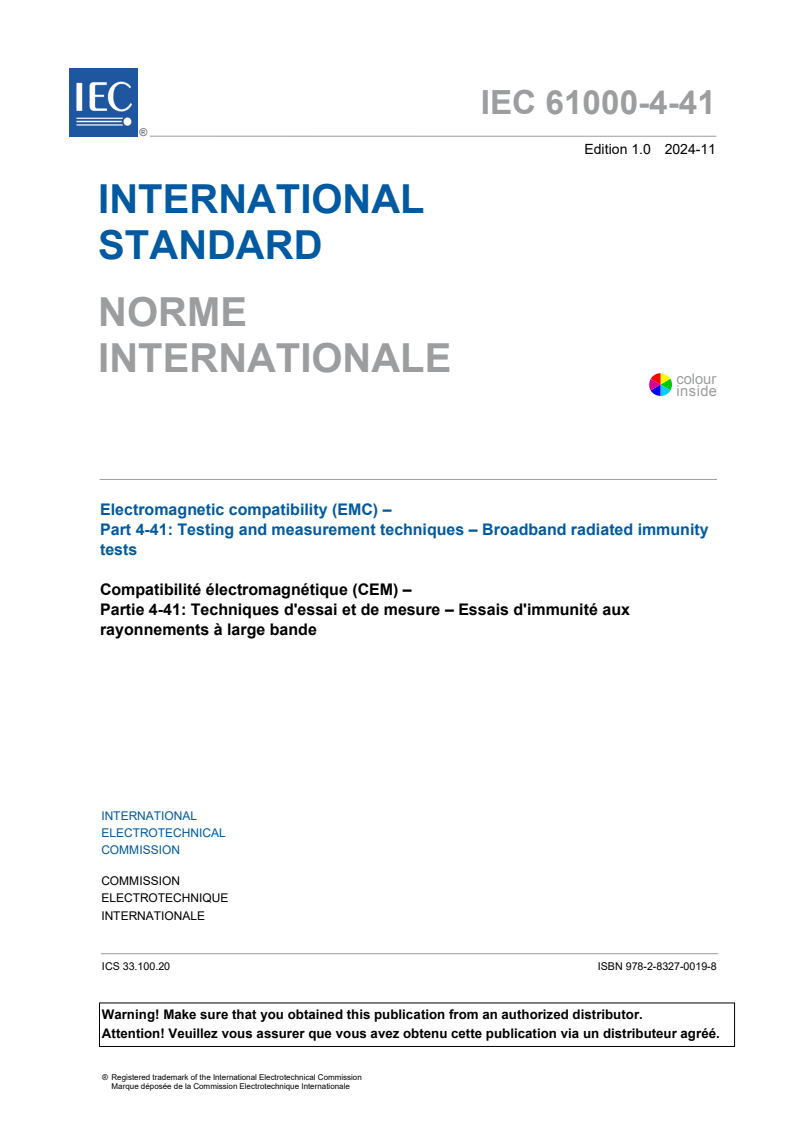

IEC 61000-4-41 ®
Edition 1.0 2024-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
BASIC EMC PUBLICATION
PUBLICATION FONDAMENTALE EN CEM
Electromagnetic compatibility (EMC) –
Part 4-41: Testing and measurement techniques – Broadband radiated immunity
tests
Compatibilité électromagnétique (CEM) –
Partie 4-41: Techniques d'essai et de mesure – Essais d'immunité aux
rayonnements à large bande
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC -  IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications, symboles
en utilisant différents critères (numéro de référence, texte, graphiques et le glossaire. Avec un abonnement, vous aurez
comité d’études, …). Elle donne aussi des informations sur les toujours accès à un contenu à jour adapté à vos besoins.
projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 500 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 25 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 61000-4-41 ®
Edition 1.0 2024-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Electromagnetic compatibility (EMC) –

Part 4-41: Testing and measurement techniques – Broadband radiated immunity

tests
Compatibilité électromagnétique (CEM) –

Partie 4-41: Techniques d'essai et de mesure – Essais d'immunité aux

rayonnements à large bande
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.100.20  ISBN 978-2-8327-0019-8

– 2 – IEC 61000-4-41:2024 © IEC 2024

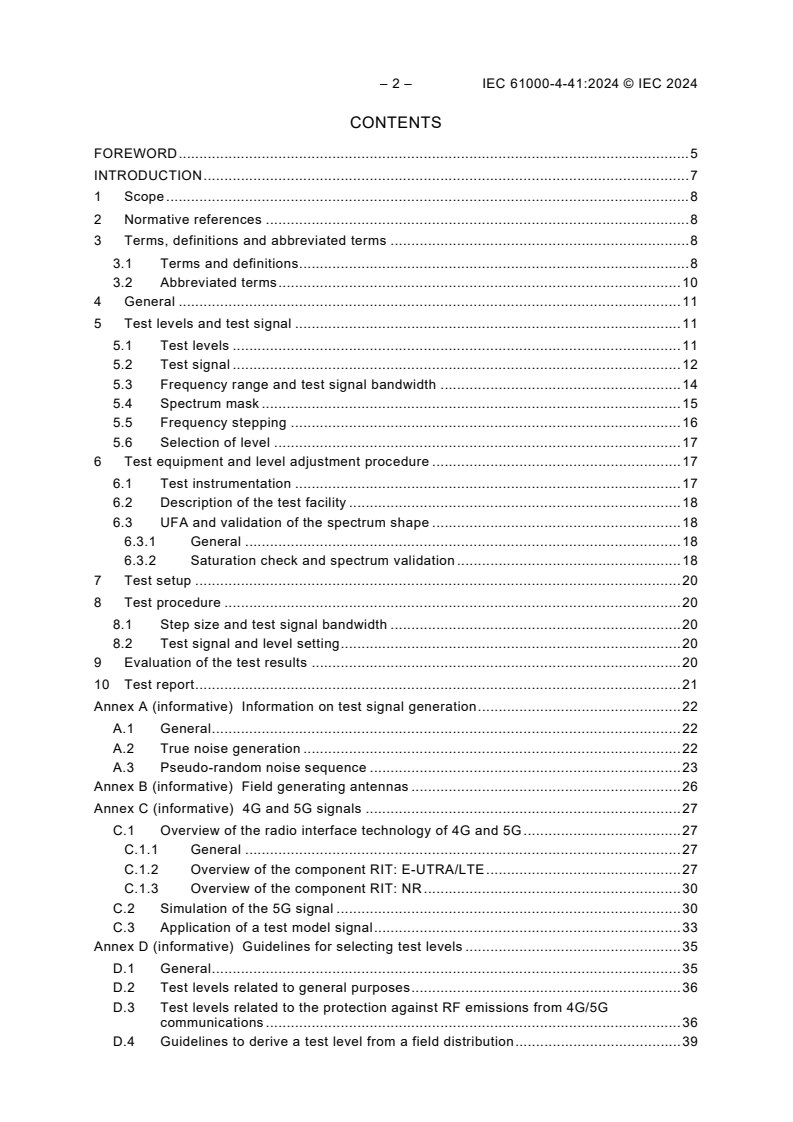

CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms, definitions and abbreviated terms . 8
3.1 Terms and definitions . 8
3.2 Abbreviated terms . 10
4 General . 11
5 Test levels and test signal . 11
5.1 Test levels . 11
5.2 Test signal . 12
5.3 Frequency range and test signal bandwidth . 14
5.4 Spectrum mask . 15
5.5 Frequency stepping . 16
5.6 Selection of level . 17
6 Test equipment and level adjustment procedure . 17
6.1 Test instrumentation . 17
6.2 Description of the test facility . 18
6.3 UFA and validation of the spectrum shape . 18
6.3.1 General . 18
6.3.2 Saturation check and spectrum validation . 18
7 Test setup . 20
8 Test procedure . 20
8.1 Step size and test signal bandwidth . 20
8.2 Test signal and level setting . 20
9 Evaluation of the test results . 20
10 Test report . 21
Annex A (informative) Information on test signal generation . 22
A.1 General . 22
A.2 True noise generation . 22
A.3 Pseudo-random noise sequence . 23
Annex B (informative) Field generating antennas . 26
Annex C (informative) 4G and 5G signals . 27
C.1 Overview of the radio interface technology of 4G and 5G . 27
C.1.1 General . 27
C.1.2 Overview of the component RIT: E-UTRA/LTE . 27
C.1.3 Overview of the component RIT: NR . 30
C.2 Simulation of the 5G signal . 30
C.3 Application of a test model signal . 33
Annex D (informative) Guidelines for selecting test levels . 35
D.1 General . 35
D.2 Test levels related to general purposes . 36
D.3 Test levels related to the protection against RF emissions from 4G/5G
communications . 36
D.4 Guidelines to derive a test level from a field distribution . 39

Annex E (informative) Measurement uncertainty due to test instrumentation . 42
Annex F (informative) Test signal characterization . 43
F.1 General . 43
F.2 Test signal generation . 43
F.3 Definition of the crest factor . 43
F.4 Crest factor determination . 44
F.4.1 Mathematical determination for arbitrary waveform generator use . 44
F.4.2 Complementary cumulative distribution function (CCDF) . 44
F.5 Amplifier saturation . 45
F.6 Measurement methods . 46
F.6.1 General . 46
F.6.2 Spectrum analyser method . 46
F.6.3 Time domain measurement with a fast oscilloscope . 47
F.6.4 Power meter method . 48
F.7 Comparison of crest factor measurement results . 49
Bibliography . 50

Figure 1 – Example of the envelope of a 100 MHz wide test signal in frequency domain . 13
Figure 2 – Example of the envelope of a 100 MHz wide test signal in time domain . 13
Figure 3 – Pulse modulated test signal, with a period of 10 ms, and 50 % duty cycle . 14
Figure 4 – Spectrum mask of the broadband test signal at the output of the power

amplifier . 16
Figure A.1 – Principle of true noise generation . 22
Figure A.2 – Example of a 100 MHz wide band-limited true noise signal at a centre
frequency of 1 GHz . 22
Figure A.3 – Principle of band-limited broadband signal generation with an arbitrary
waveform generator . 23
Figure A.4 – Example signal spectrum of a band-limited pseudo random noise signal
(measured with 120 kHz bandwidth) .
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

IEC
IEC 61000-4-6:2023(Main)
Electromagnetic compatibility (EMC) - Part 4-6: Testing and measurement techniques - Immunity to conducted disturbances, induced by radio-frequency fields

IEC 61000-4-6: 2023 relates to the conducted immunity requirements of electrical and electronic equipment to electromagnetic disturbances coming from intended radio-frequency (RF) transmitters in the frequency range 150 kHz up to 80 MHz.
NOTE 1 Product committees might decide to use the methods described in this document also for frequencies up to 230 MHz (see Annex B) although the methods and test instrumentation are intended to be used in the frequency range up to 80 MHz.
Equipment not having at least one conducting wire or cable (such as mains supply, signal line or earth connection) which can couple the equipment to the disturbing RF fields is excluded from the scope of this document.
NOTE 2 Test methods are specified in this part of IEC 61000 to assess the effect that conducted disturbing signals, induced by electromagnetic radiation, have on the equipment concerned. The simulation and measurement of these conducted disturbances are not adequately exact for the quantitative determination of effects. The test methods specified are structured for the primary objective of establishing adequate repeatability of results at various facilities for quantitative analysis of effects.
The object of this document is to establish a common reference for evaluating the functional immunity of electrical and electronic equipment when subjected to conducted disturbances induced by RF fields. The test method in this document describes a consistent method to assess the immunity of an equipment or system against a specified phenomenon.
NOTE 3 As described in IEC Guide 107, this document is a basic EMC publication for use by product committees of the IEC. As also stated in Guide 107, the IEC product committees are responsible for determining whether this immunity test standard should be applied or not, and if applied, they are responsible for determining the appropriate test levels and performance criteria.
This fifth edition cancels and replaces the fourth edition published in 2013. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) selection of injection devices revised;
b) need of AE impedance check for clamp injection removed and Annex H deleted;
c) saturation check revised;
d) new Annex H on testing with multiple signals;
e) level-setting only with feedback loop.

  • Standard
    83 pages
    English language
    sale 15% off
  • Standard
    189 pages
    English language
    sale 15% off
  • Standard
    184 pages
    English and French language
    sale 15% off
IEC
IEC 61000-4-20:2022(Main)
Electromagnetic compatibility (EMC) - Part 4-20: Testing and measurement techniques - Emission and immunity testing in transverse electromagnetic (TEM) waveguides

IEC 61000-4-20:2022 focuses on emission and immunity test methods for electrical and electronic equipment using various types of transverse electromagnetic (TEM) waveguides. These types include open structures (for example striplines and electromagnetic pulse simulators) and closed structures (for example TEM cells). These structures can be further classified as one-port, two-port, or multi-port TEM waveguides. The frequency range depends on the specific testing requirements and the specific TEM waveguide type. The object of this document is to describe
TEM waveguide characteristics, including typical frequency ranges and equipment-under-test (EUT) size limitations;
TEM waveguide validation methods for electromagnetic compatibility (EMC) tests;
the EUT (i.e. EUT cabinet and cabling) definition;
test set-ups, procedures, and requirements for radiated emission measurements in TEM waveguides; and
test set-ups, procedures, and requirements for radiated immunity testing in TEM waveguides.  NOTE Test methods are defined in this document to measure the effects of electromagnetic radiation on equipment and the electromagnetic emissions from the equipment concerned. The simulation and measurement of electromagnetic radiation is not adequately exact for the quantitative determination of effects for all end-use installations. The test methods defined are structured for a primary objective of establishing adequate reproducibility of results at various test facilities for qualitative analysis of effects.
This document does not intend to specify the tests to be applied to any particular apparatus or system(s). The main intention of this document is to provide a general basic reference for all interested product committees of the IEC. For radiated emission measurements, product committees select emission limits and measurement methods in consultation with CISPR standards. For radiated immunity testing, product committees remain responsible for the appropriate choice of immunity tests and immunity test limits to be applied to equipment within their scope. This document describes test methods that are separate from those of IEC 61000‑4‑3.
This third edition cancels and replaces the second edition published in 2010. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
provide information on the testing of large EUTs (including cables);
apply the work on measurement uncertainties by adapting the work completed in CISPR and TC 77 (for emissions and immunity);
update the validation procedure for the test volume regarding field uniformity and TEM mode verification;
provide information concerning two-port and four-port TEM waveguides;
add a new informative annex (Annex I) dealing with transient TEM waveguide characterization; and
add information dealing with dielectric test stands for EUTs.

  • Standard
    229 pages
    English and French language
    sale 15% off
IEC
IEC 61000-4-3:2020(Main)
Electromagnetic compatibility (EMC) - Part 4-3 : Testing and measurement techniques - Radiated, radio-frequency, electromagnetic field immunity test

IEC 61000-4-3:2020 is applicable to the immunity requirements of electrical and electronic equipment to radiated electromagnetic energy. It establishes test levels and the required test procedures. The object of this document is to establish a common reference for evaluating the immunity of electrical and electronic equipment when subjected to radiated, radio-frequency electromagnetic fields. The test method documented in this part of IEC 61000 describes a consistent method to assess the immunity of an equipment or system against RF electromagnetic fields from RF sources not in close proximity to the EUT. The test environment is specified in Clause 6. NOTE 1 As described in IEC Guide 107, this is a basic EMC publication for use by product committees of the IEC. As also stated in Guide 107, the IEC product committees are responsible for determining whether this immunity test standard should be applied or not, and if applied, they are responsible for determining the appropriate test levels and performance criteria. TC 77 and its sub-committees are prepared to co-operate with product committees in the evaluation of the value of particular immunity tests for their products. NOTE 2 Immunity testing against RF sources in close proximity to the EUT is defined in IEC 61000-4-39. Particular considerations are devoted to the protection against radio-frequency emissions from digital radiotelephones and other RF emitting devices. NOTE 3 Test methods are defined in this part for evaluating the effect that electromagnetic radiation has on the equipment concerned. The simulation and measurement of electromagnetic radiation is not adequately exact for quantitative determination of effects. The test methods defined in this basic document have the primary objective of establishing an adequate reproducibility of testing configuration and repeatability of test results at various test facilities. This document is an independent test method. It is not possible to use other test methods as substitutes for claiming compliance with this document. This fourth edition cancels and replaces the third edition published in 2006, Amendment 1:2007 and Amendment 2:2010. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- testing using multiple test signals has been described;
- additional information on EUT and cable layout has been added;
- the upper frequency limitation has been removed to take account of new services;
- the characterization of the field as well as the checking of power amplifier linearity of the immunity chain are specified.

  • Standard
    81 pages
    English language
    sale 15% off
  • Standard
    164 pages
    English and French language
    sale 15% off
IEC
IEC 61000-4-18:2019/COR1:2019(Corrigendum)
Corrigendum 1 - Electromagnetic compatibility (EMC) - Part 4-18: Testing and measurement techniques - Damped oscillatory wave immunity test
  • Standard
    1 page
    English and French language
    sale 15% off
IEC
IEC 61000-4-18:2019(Main)
Electromagnetic compatibility (EMC) - Part 4-18: Testing and measurement techniques - Damped oscillatory wave immunity test

IEC 61000-4-18: 2019 focuses on the immunity requirements and test methods for electrical and electronic equipment, under operational conditions, with regard to:
a) repetitive slow damped oscillatory waves occurring mainly in power, control and signal cables installed in high voltage and medium voltage (HV/MV) substations;
b) repetitive fast damped oscillatory waves occurring mainly in power, control and signal cables installed in gas insulated substations (GIS) and in some cases also air insulated substations (AIS) or in any installation due to high-altitude electromagnetic pulse (HEMP) phenomena.
The object of this document is to establish a common and reproducible reference for evaluating the immunity of electrical and electronic equipment when subjected to damped oscillatory waves on supply, signal, control and earth ports. The test method documented in this part of IEC 61000 describes a consistent method to assess the immunity of an equipment or system against a defined phenomenon. NOTE As described in IEC Guide 107, this is a basic EMC publication for use by product committees of the IEC. As also stated in Guide 107, the IEC product committees are responsible for determining whether this immunity test standard is applied or not, and if applied, they are responsible for determining the appropriate test levels and performance criteria. The document defines:
test voltage and current waveforms;
ranges of test levels;
test equipment;
calibration and verification procedures of test equipment;
test setups;
test procedure.
This second edition cancels and replaces the first edition published in 2006 and its Amendment 1:2010. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) addition of a mathematical modelling of damped oscillatory wave waveform;
b) new Annex B on measurement uncertainty;
c) addition high speed CDN;
d) addition of calibration procedures for CDNs;
e) addition of the use of the capacitive coupling clamp on interconnection lines for fast damped oscillatory waves;
f) addition of a test procedure for DC/DC converters in case the CDN does not work;
g) new Annex C on issues relating to powering EUTs having DC/DC converters at the input.
Keywords: immunity requirements and test methods for electrical and electronic equipment
The contents of the corrigendum of August 2019 have been included in this copy.

  • Standard
    115 pages
    English and French language
    sale 15% off
IEC
IEC 61000-4-5:2014/AMD1:2017(Amendment)
Amendment 1 - Electromagnetic compatibility (EMC) - Part 4-5: Testing and measurement techniques - Surge immunity test

Applies to electronic direct a.c. converter systems with electrical energy storage means in the d.c. link. Ensures continuity of an alternating power source. Also includes the method of specifying all power switches that form integral parts of a UPS and are associated with its output. Included are interrupters, bypass switches, isolating switches, load transfer switches and tie switches. does not refer to cnventional mains distirbution boards, rectifier input switches or d.c. switches or UPS based on rotating machines. Defines a complete uninterruptible power system in terms of its performance and not individual UPS functional units.[
]The contents of the corrigendum of July 2003 have been included in this copy.

  • Standard
    10 pages
    English and French language
    sale 15% off
IEC
IEC 61000-4-12:2017(Main)
Electromagnetic Compatibility (EMC) - Part 4-12: Testing and measurement techniques - Ring wave immunity test

IEC 61000-4-12:2017 relates to the immunity requirements and test methods for electrical and electronic equipment, under operational conditions, to ring waves occurring in low-voltage power, control and signal lines supplied by public and non-public networks.
The object of this document is to establish a common reference for evaluating the immunity of electrical and electronic equipment when subjected to ring waves. The test method documented in this part of IEC 61000 describes a consistent method to assess the immunity of an equipment or system against a defined phenomenon.
It has the status of a basic EMC publication in accordance with IEC Guide 107.
This edition includes the following significant technical changes with respect to the previous edition:
a) addition of a mathematical modelling of ring wave waveform;
b) new Annex B on selection of generators and test levels;
c) new Annex C on explanatory notes;
d) new Annex D on measurement uncertainty;
e) addition of high speed CDN;
f) addition of a calibration procedure for CDN.

  • Standard
    158 pages
    English language
    sale 15% off
  • Standard
    95 pages
    English and French language
    sale 15% off
IEC
IEC 61000-4-39:2017(Main)
Electromagnetic compatibility (EMC) - Part 4-39: Testing and measurement techniques - Radiated fields in close proximity - Immunity test

IEC 61000-4-39:2017 specifies immunity requirements for electrical and electronic equipment when it is exposed to radiated electromagnetic energy from RF transmitters used in close proximity. It establishes test levels and the required test procedures. The applicable frequency range is 9 kHz to 6 GHz. It has the status of a basic EMC publication in accordance with IEC Guide 107.

  • Standard
    82 pages
    English and French language
    sale 15% off
IEC
IEC 61000-4-31:2016(Main)
Electromagnetic compatibility (EMC) - Part 4-31: Testing and measurement techniques - AC mains ports broadband conducted disturbance immunity test

IEC 61000-4-31:2016 relates to the conducted immunity of electrical and electronic equipment to electromagnetic disturbances coming from intended and/or unintended broadband signal sources in the frequency range 150 kHz up to 80 MHz. It has the status of a basic EMC publication in accordance with IEC Guide 107.

  • Standard
    86 pages
    English and French language
    sale 15% off
IEC
IEC 61000-4-9:2016(Main)
Electromagnetic compatibility (EMC) - Part 4-9: Testing and measurement techniques - Impulse magnetic field immunity test

IEC 61000-4-9:2016 specifies the immunity requirements, test methods, and range of recommended test levels for equipment subjected to impulse magnetic disturbances mainly encountered in industrial installations, power plants, railway installations, and medium voltage and high voltage sub-stations. This second edition cancels and replaces the first edition published in 1993 and Amendment 1:2000. This edition constitutes a technical revision.

  • Standard
    181 pages
    English language
    sale 15% off
  • Standard
    109 pages
    English and French language
    sale 15% off
