Standards Content (Sample)


 IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION

COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE

____________
IEC 60384-24 IEC 60384-24
Edition 2.0  2015-07 Édition 2.0  2015-07

FIXED CAPACITORS FOR USE IN ELECTRONIC CONDENSATEURS FIXES UTILISES DANS LES
EQUIPMENT EQUIPEMENTS ELECTRONIQUES

Part 24: Sectional specification – Fixed tantalum Partie 24: Spécification intermédiaire –
electrolytic surface mount capacitors with Condensateurs fixes électrolytiques au tantale
conductive polymer solid electrolyte pour montage en surface à électrolyte solide en
polymère conducteur
CO RRI G E NDUM 1

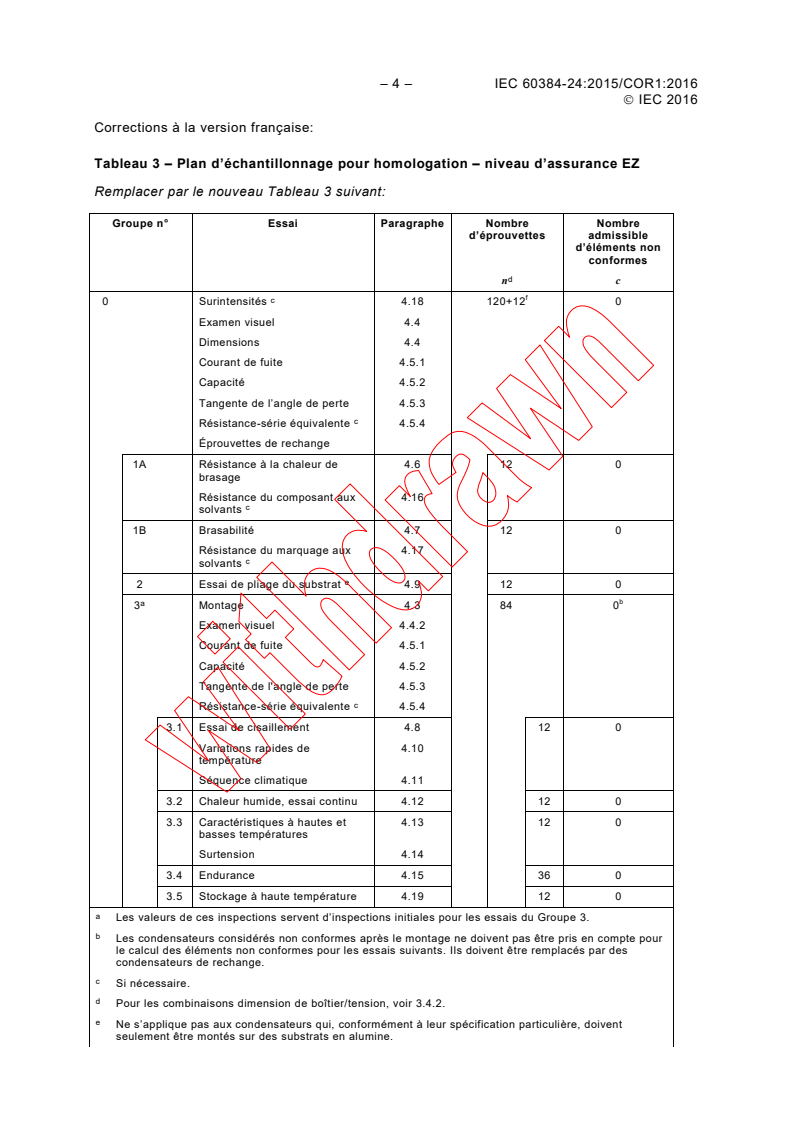

Corrections to the French version appear after the English text.
Les corrections à la version française sont données après le texte anglais.

Table 3 – Sampling plan for qualification approval, assessment level EZ
Replace with the following new Table 3:
Group no. Test Subclause Number of Permissible
specimens number of non-
conforming
items
d
n c
f
c
0  4.18 120+12 0
High surge current
Visual examination 4.4
Dimensions 4.4
Leakage current 4.5.1
Capacitance 4.5.2
Tangent of loss angle 4.5.3
c
Equivalent series resistance  4.5.4
Spare specimens
1A Resistance to soldering heat 4.6 12 0
c
Component solvent resistance 4.16
1B Solderability 4.7 12 0
c
Solvent resistance of marking 4.17
e
2 Substrate bending test 4.9 12 0
b
a
3 Mounting 4.3 84 0
Visual examination 4.4.2
IEC 60384-24:2016-12/COR1:2016-12(en-fr)

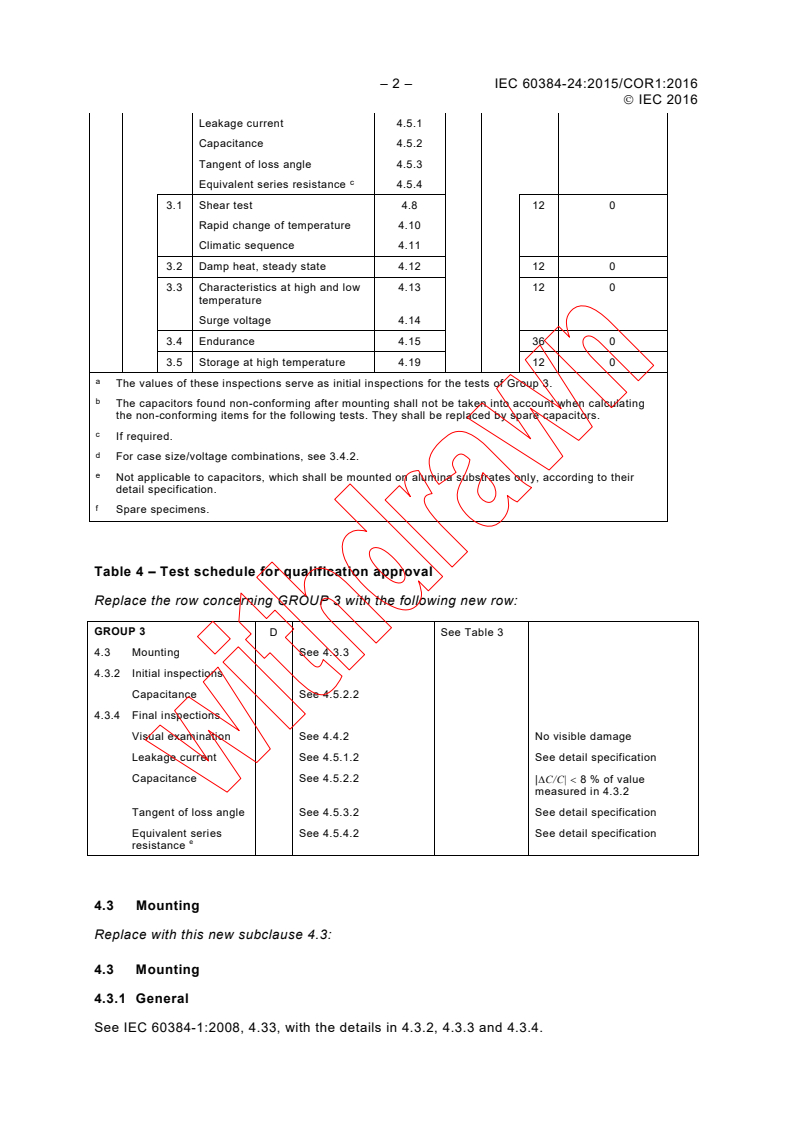

– 2 – IEC 60384-24:2015/COR1:2016

 IEC 2016
Leakage current 4.5.1
Capacitance 4.5.2
Tangent of loss angle 4.5.3
c
Equivalent series resistance 4.5.4

3.1 Shear test 4.8  12 0
Rapid change of temperature 4.10

Climatic sequence 4.11
3.2 Damp heat, steady state 4.12  12 0

3.3 Characteristics at high and low 4.13  12 0

temperature
Surge voltage 4.14
3.4 Endurance 4.15  36 0
3.5 Storage at high temperature 4.19  12 0
a
The values of these inspections serve as initial inspections for the tests of Group 3.
b
The capacitors found non-conforming after mounting shall not be taken into account when calculating
the non-conforming items for the following tests. They shall be replaced by spare capacitors.
c
If required.
d
For case size/voltage combinations, see 3.4.2.
e
Not applicable to capacitors, which shall be mounted on alumina substrates only, according to their
detail specification.
f
Spare specimens.
Table 4 – Test schedule for qualification approval
Replace the row concerning GROUP 3 with the following new row:
GROUP 3 D See Table 3
4.3 Mounting See 4.3.3
4.3.2 Initial inspections
Capacitance See 4.5.2.2
4.3.4 Final inspections
Visual examination See 4.4.2 No visible damage
Leakage current See 4.5.1.2 See detail specification
Capacitance See 4.5.2.2
|∆C/C| < 8 % of value
measured in 4.3.2
Tangent of loss angle See 4.5.3.2 See detail specification
Equivalent series See 4.5.4.2 See detail specification
e
resistance
4.3 Mounting
Replace with this new subclause 4.3:
4.3 Mounting
4.3.1 General
See IEC 60384-1:2008, 4.33, with the details in 4.3.2, 4.3.3 and 4.3.4.

 IEC 2016
4.3.2 Initial
...
