IEC 60384-25-1:2006

IEC 60384-25-1 ®
Edition 1.0 2006-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed capacitors for use in electronic equipment –
Part 25-1: Blank detail specification – Surface mount fixed aluminium electrolytic
capacitors with conductive polymer solid electrolyte – Assessment level EZ

Condensateurs fixes utilisés dans les équipements électroniques –
Partie 25-1: Spécification particulière cadre – Condensateurs fixes
électrolytiques en aluminium pour montage en surface à électrolyte solide en
polymère conducteur – Niveau d’assurance EZ

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.
IEC 60384-25-1 ®
Edition 1.0 2006-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fixed capacitors for use in electronic equipment –

Part 25-1: Blank detail specification – Surface mount fixed aluminium electrolytic

capacitors with conductive polymer solid electrolyte – Assessment level EZ

Condensateurs fixes utilisés dans les équipements électroniques –

Partie 25-1: Spécification particulière cadre – Condensateurs fixes

électrolytiques en aluminium pour montage en surface à électrolyte solide en

polymère conducteur – Niveau d’assurance EZ

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX N
ICS 31.060.40; 31.060.50 ISBN 978-2-83220-703-1

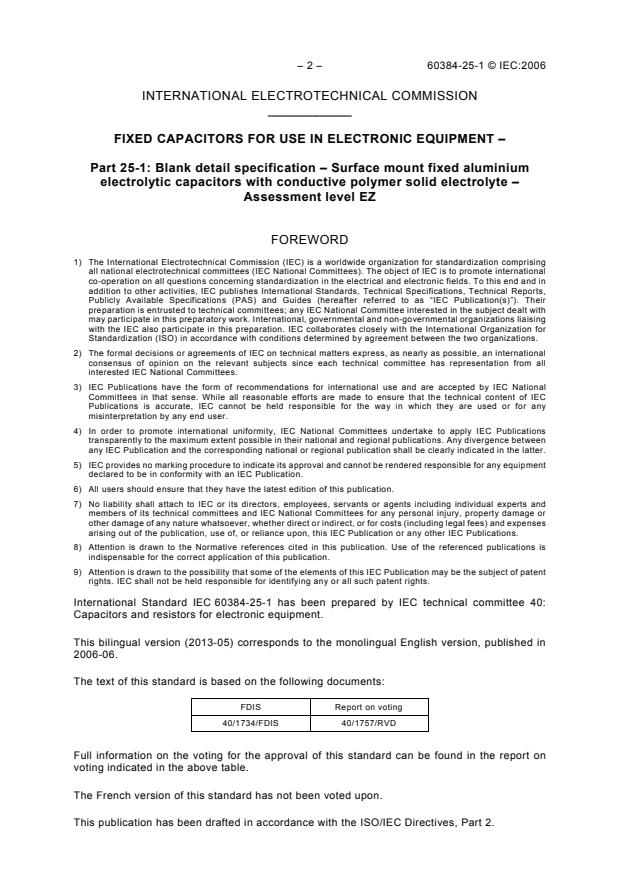

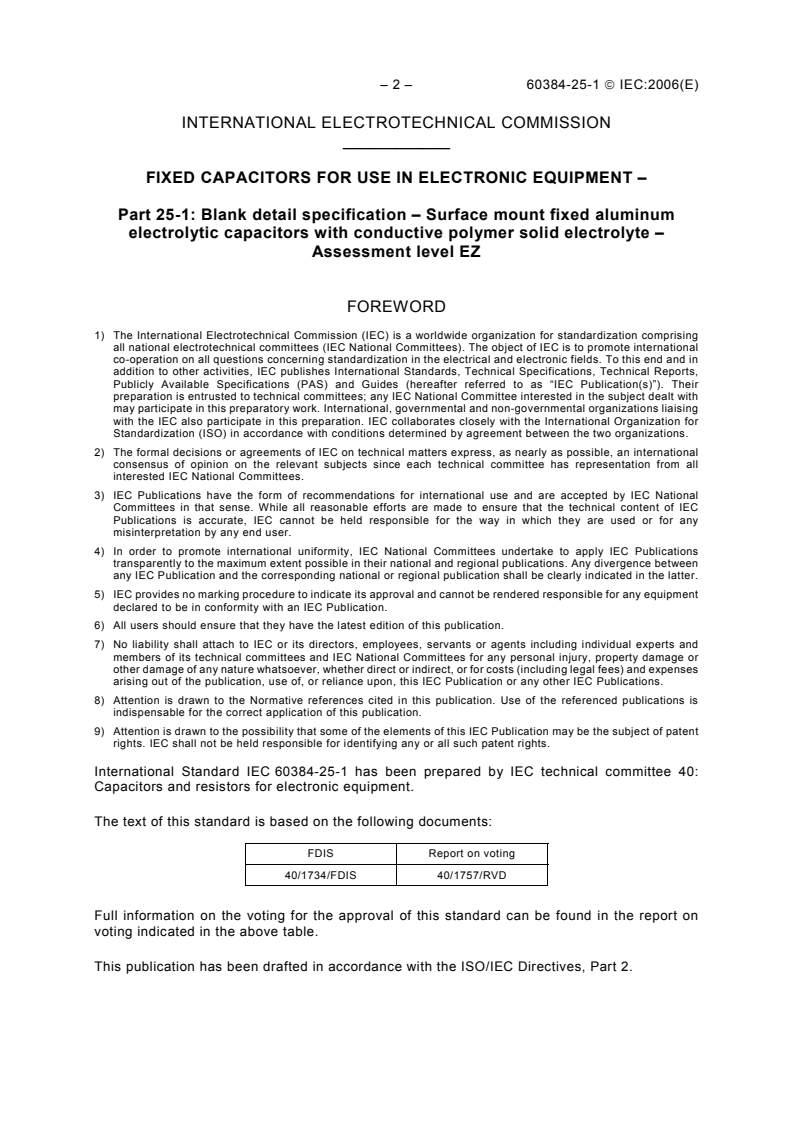

– 2 – 60384-25-1 © IEC:2006
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –

Part 25-1: Blank detail specification – Surface mount fixed aluminium
electrolytic capacitors with conductive polymer solid electrolyte –
Assessment level EZ
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in
addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any equipment
declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses
arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60384-25-1 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This bilingual version (2013-05) corresponds to the monolingual English version, published in
2006-06.
The text of this standard is based on the following documents:
FDIS Report on voting
40/1734/FDIS 40/1757/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

60384-25-1  IEC:2006 – 3 –
IEC 60384 consists of the following parts, under the general title Fixed capacitors for use in
electronic equipment:
Part 1: Generic specification
Part 2: Sectional specification: Fixed metallized polyethylene-terephthalate film dielectric
d.c. capacitors
Part 3: Sectional specification: Fixed tantalum chip capacitors
Part 4: Sectional specification: Aluminium electrolytic capacitors with solid and non-solid
electrolyte
Part 5: Sectional specification: Fixed mica delectric d.c. capacitors with a rated voltage not
exceeding 3 000 V – Selection of methods of test and general requirements
Part 6: Sectional specification: Fixed metallized polycarbonate film dielectric d.c.
capacitors
Part 7: Sectional specification: Fixed polystyrene film dielectric metal foil d.c. capacitors
Part 8: Sectional specification: Fixed capacitors of ceramic dielectric, Class 1
Part 9: Sectional specification: Fixed capacitors of ceramic dielectric, Class 2
Part 11: Sectional specification: Fixed polyethylene-terephthalate film dielectric metal foil
d.c. capacitors
Part 12: Sectional specification: Fixed polycarbonate film dielectric metal foil d.c. capacitors
Part 13: Sectional specification: Fixed polypropylene film dielectric metal foil d.c. capacitors
Part 14: Sectional specification: Fixed capacitors for electromagnetic interference
suppression and connection to the supply mains
Part 15: Sectional specification: Fixed tantalum capacitors with non-solid or solid electrolyte
Part 16: Sectional specification: Fixed metallized polypropylene film dielectric d.c.
capacitors
Part 17: Sectional specification: Fixed metallized polypropylene film dielectric a.c. and pulse
capacitors
Part 18: Sectional specification: Fixed aluminium electrolytic chip capacitors with solid and
non-solid electrolyte
Part 19: Sectional specification: Fixed metallized polyethylene-terephthalate film dielectric
chip d.c. capacitors
Part 20: Sectional specification: Fixed metallized polyphenylene sulphide film dielectric chip
d.c. capacitors
Part 21: Sectional specification: Fixed surface mount multilayer capacitors of ceramic
dielectric, Class 1
Part 22: Sectional specification: Fixed surface mount multilayer capacitors of ceramic
dielectric, Class 2
Part 23: Sectional specification: Fixed surface mount metallized polyethylene naphthalate
film dielectric d.c. capacitors
Part 24: Sectional specification: Surface mount fixed tantalum electrolytic capacitors with
conductive polymer solid electrolyte
Part 25: Sectional specification: Surface mount fixed aluminium electrolyte capacitors with
conductive polymer solid electrolyte
All sectional specifications mentioned above do have one or more blank detail specifications
being a supplementary document, containing requirements for style, layout and minimum
content of detail specifications.

– 4 – 60384-25-1  IEC:2006
The committee has decided that the contents of this publication will remain unchanged until the
maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60384-25-1  IEC:2006 – 5 –
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –

Part 25-1: Blank detail specification – Surface mount fixed aluminium
electrolytic capacitors with conductive polymer solid electrolyte –
Assessment level EZ
Blank detail specification
A blank detail specification is a supplementary document to the sectional specification and
contains requirements for style, layout and minimum content of detail specifications. Detail
specifications not complying with these requirements may not be considered as being in
accordance with IEC specifications nor shall they so be described.
In the preparation of detail specifications the content of 1.4 of the sectional specification shall be
taken into account.
The numbers between square brackets on the first page of the detail specification correspond to
the following information, which shall be inserted in the position indicated.
Identification of the detail specification
[1] The "International Electrotechnical Commission" or the National Standards
Organization under whose authority the detail specification is drafted.
[2] The IEC or National Standards number of the detail specification, date of issue and any
further information required by the national system.
[3] The number and issue number of the IEC or national generic specification.
[4] The IEC number of the blank detail specification.
Identification of the capacitor
[5] A short description of the type of capacitor.
[6] Information on typical construction (when applicable).
[7] Outline drawing with main dimensions which are of importance for interchangeability
and/or reference to the national or international documents for outlines. Alternatively,
this drawing may be given in an annex to the detail specification.
[8] Application or group of applications covered and/or assessment level.
[9] Reference data on the most important properties, to allow comparison between the
various capacitor types.
– 6 – 60384-25-1  IEC:2006
[1] [2]
ELECTRONIC COMPONENTS OF ASSESSED [3] IEC 60384-25-1 [4]
QUALITY IN ACCORDANCE WITH:
Surface mount fixed aluminium [5]
Outline drawing : (see Table 1) electrolytic capacitors with conductive
[7]
polymer solid electrolyte
(…angle projection)
[6]
Assessment level(s): EZ [8]
Information on the availability of components qualified to
this detail specification is given in EC QC 001005.
[9]
1 General data
1.1 Recommended method(s) of mounting (to be inserted)
(See 1.4.2 of IEC 60384-25).
1.2 Dimensions
Table 1 – Case size reference and dimensions
Case size Dimension
reference
mm
L W H
NOTE 1 When there is no case size reference, Table 1 may be omitted and the dimensions should be given in
Table 2, which then becomes Table 1.
NOTE 2 The dimensions should be given as maximum dimensions or as nominal dimensions with a tolerance.
NOTE 3 L, W, H of the symbols of Table 1 is the example of the corner shape capacitors.

60384-25-1  IEC:2006 – 7 –
1.3 Ratings and characteristics
Rated capacitance range (see Table 2)
Tolerance on rated capacitance
Rated voltage (see Table 2)
Surge voltage (see Table 2)
Climatic category
Rated temperature
Rated ripple current (see Table 3)
Tangent of loss angle (see Table 3)
Leakage current (see Table 3)
Equivalent series resistance (see Table 3)
Table 2 – Values of capacitance and of voltage related to case sizes
Rated voltage
V
Surge voltage
V
Rated capacitance Case sizes Case sizes Case sizes Case sizes
µF
Table 3 – Values of rated ripple current, equivalent series resistance,
tangent of loss angle and leakage current
U C Rated ripple current Equivalent series Tangent of loss angle Leakage current
R R
resistance δ µA
V tan
µF
A
mΩ
at 105 °C or 125 °C and at 20 °C and 100 kHz at 20 °C and 120 Hz
100 kHz
(if applicable)
Table 4 – Values of resistance to soldering heat, damp heat,
steady state and characteristics at high temperature
U C Resistance to soldering heat Damp heat, Characteristics at
R R
steady state high temperature
V
µF
∆C/C ∆ESR/ESR ∆C/C ∆C/C
% % % %
– 8 – 60384-25-1  IEC:2006
1.4 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of the
referenced document (including any amendments) applies.
IEC 60384-1:1999, Fixed capacitors for use in electronic equipment – Part 1: Generic
specification
IEC 60384-25: Fixed capacitors for use in electronic equipment – Part 25: Sectional
specification: Surface mount fixed aluminium electrolytic capacitors with conductive polymer
solid electrolyte
1.5 Marking
The marking of the capacitor and the package shall be in accordance with the requirements of
1.6 of IEC 60384-25.
NOTE The details of the marking of the component and package should be given in full in the detail specification.
1.6 Ordering information
Orders for capacitors covered by this specification shall contain, in clear or in coded form, the
following minimum information:
a) rated capacitance;
b) tolerance on rated capacitance;
c) rated d.c. voltage;
d) number and issue reference of the detail specification and style reference;
e) packaging instructions.
1.7 Certified records of released lots
Required/not required.
1.8 Additional information (not for inspection purposes)
1.9 Additional or increased severities or requirements to those specified in the generic
and/or sectional specification
NOTE Additions or increased requirements should be specified only when essential.
Table 5 – Other characteristics
This table is to be used for defining characteristics which are additional to, or
more severe than, those given in the sectional specification.

2 Inspection requirements
2.1 Procedures
2.1.1 For qualification approval, the procedures shall be in accordance with 3.4 of
IEC 60384-25.
2.1.2 For quality conformance inspection, the test schedule (Table 6) includes sampling,
periodicity, severities and requirements. The formation of inspection lots is covered by 3.5.1 of
IEC 60384-25.
60384-25-1  IEC:2006 – 9 –
Table 6 – Test schedule for quality conformance inspection
a
Subclause number D Conditions of test Number of specimens Performance
a a
and test and number of requirements
or
b
non-conforming items
b
ND
IL n c
Group A inspection
(lot-by-lot)
c
Subgroup A0 ND
100 %
4.20 High surge
current (if
applicable)
4.5.1 Leakage Protective resistor: 1 000 Ω As in Table 3
current
4.5.2 Capacitance Frequency: 120 Hz Within specified tolerance
4.5.3 Tangent of loss Frequency: 120 Hz As in Table 3
angle (tan δ)
4.5.4 Equivalent Frequency: 100 kHz As in Table 3
series
resistance
(ESR)
d
Subgroup A1 ND S-3 0
4.4 Visual As in 4.4.2
examination
Legible marking (if
required) and as specified
in the detail specification
d
Subgroup A2 ND S-3 0
As specified in Table 1 of this
4.4 Dimension
specification
e
(detail)
d
Group B inspection 0
D S-3
(lot-by-lot)
4.7 Solderability
4.7.1 Test See detail specification for
the method
4.7.2 Final Visual examination  As in 4.7.2
measurement
4.19 Solvent Solvent: …  Legible marking
resistance of
Solvent temperature: …
the marking
(if applicable)
Method 1
Rubbing material: cotton
wool
Recovery time: …
– 10 – 60384-25-1  IEC:2006
Table 6 (continued)
a
Subclause number D Conditions of test Number of specimens Performance
a a
and test and number of requirements
or
b
non-conforming items
b
ND
p n c
Group C inspection
(Periodic)
Subgroup C1
D 3 12 0
g
4.6 Resistance to
soldering heat
4.6.1 Initial Capacitance  For use as reference
measurement value
4.6.2 Test Method: …
Deflection: …s
Reflow profile: …
Recovery: 24 h ± 2 h
4.6.3 Final Visual examination  As in 4.6.3
measurement
Leakage current As in Table 3
Capacitance As in Table 4
Tangent of loss angle (tan δ) As in Table 3
Equivalent series resistance As in Table 4
(ESR)
4.18 Component Solvent: …  See detail specification
solvent
Solvent temperature: …
resistance
(if applicable)
Method 2
Recovery: …
Sub group C2 D 3 12 0
g
4.9 Substrate
bending test
4.9.1 Initial Capacitance  For use as reference
measurement value
4.9.3 Final Capacitance (with printed  See detail specification
inspection board in bent position)
Sub group C3 D
h
Substrate material: …
4.3 Mounting
4.3. Initial Capacitance (the value
measurement obtained in 4.5.2 may be
used)
4.3.3 Final Visual examination No visible damage
inspection
Leakage current As in Table 3
Capacitance ∆C/C ≤ ± 15 % at U ≤ 4
R
∆C/C ≤ ± 10 % at U > 4
R
Tangent of loss angle (tan δ)
As in Table 3
Equivalent series resistance
See detail specification
(ESR)
60384-25-1  IEC:2006 – 11 –
Table 6 (continued)
a
Subclause number D Conditions of test Number of specimens Performance
a a
and test and number of requirements
or
b
non-conforming items
b
ND
p n c
Subgroup C3.1 D 6 12 0
g
4.8 Shear test Visual examination  No visible damage
4.10 Rapid change of
temperature
4.10.1 Initial Capacitance (the value
measurement obtained in Group 3 may be
used)
4.10.2 Conditioning T = Lower category
A
temperature
T = Upper category
B
temperature
Five cycles
Duration t = 30 min
Recovery: 1 h to 2 h
4.10.3 Final Leakage current  As in Table 3
measurements
Capacitance ∆C/C ≤ ± 10 % of the
value measured in
4.10.1
As in Table 3
Tangent of loss angle (tan δ)
4.11 Climatic
sequence
4.11.1 Initial Capacitance (the value

measurement obtained in 4.10.3 may be
used)
4.11.2 Dry heat Temperature: upper category
temperature
Duration: 16 h
4.11.3 Damp heat,
cyclic, test Db,
first cycle
4.11.4 Cold Temperature: lower category
temperature
Duration: 2h
4.11.5 Damp heat, Recovery: 1 h to 2 h
cyclic, test Db,
remaining
cycles
4.11.6 Final Visual examination  No visible damage
measurements
Legible marking
Leakage current As in Table 3
Capacitance
∆C/C ≤ ± 20 % of the
value measured in
4.11.1
Tangent of loss angle  ≤ 1,5 times the limit of
Table 3
– 12 – 60384-25-1  IEC:2006
Table 6 (continued)
a
Subclause number D Conditions of test Number of specimens Performance
a a
and test and number of requirements
or
b
non-conforming items
b
ND
p n c
Subgroup C3.2 D 6 24 0
g
4.12 Damp heat, Recovery: 1 h to 2 h

steady
state
4.12.1 Initial Capacitance (the value

measurement obtained in Group 3 may be

used)
4.12.3 Final Visual examination  No visible damage

measurements
Legible marking
Leakage current 5 times initial limit
Capacitance As in Table 4
Tangent of loss angle  ≤1,5 times the limit of
Table 3
Sub group C3.3 D 6 12 0
g
4.13 Characteristics The capacitors shall be
at high and low measured at each
temperature temperature step
Step 1: 20 °C
Capacitance (if applicable) For use as reference
value
Impedance  For use as reference
value
Tangent of loss angle
(if applicable)
Step 2: lower category
temperature
Capacitance (if applicable)
∆C/C ≤ ± 20 % of the
value measured in Step
Impedance  Ratio with respect to
value in Step 1: ≤1,5
times
Tangent of loss angle  ≤ 2 times the limit of
(if applicable)
Table 3
Step 3: upper category
temperature
Leakage current  At 105 °C (with U ) :
R
≤ 12,5 times the limit of
Table 3
Capacitance (if applicable)
∆C/C ≤ ± 20 %
Tangent of loss angle
At U ≤ 4: ≤ 3 times the
R
(if applicable)
limit of Table 3
At U > 4: ≤ 2 times the
R
limit of Table 3
60384-25-1  IEC:2006 – 13 –
Table 6 (continued)
a
Subclause number D Conditions of test Number of specimens Performance
a a
and test and number of requirements
or
b
non-conforming items
b
ND
p n c
4.17 Charge and
Temperature: … °C
discharge
Number of cycles: 10
(if applicable)
Duration of charge: 0.5 s
Duration of discharge: 0.5 s
4.17.1 Initial Capacitance
measurement
4.17.3 Final Visual examination  No visible damage
measurements
Legible marking
Leakage current As in Table 3
Capacitance ∆C/C ≤ ±20 % of the
value measured in
4.18.1
Tangent of loss angle  ≤ 1,5 times the limit of
Table 3
Equivalent series resistance
≤ 2 times the limit of
Table 3
Subgroup C3.4 D 3 36 0
g
4.15 Endurance Duration: 1 000 h

Test temperature: … °C
Voltage: … V
Recovery: 1 h to 2 h
4.15.1 Initial Capacitance
measurement
4.15.3 Final Visual examination  No visible damage
measurements
Legible marking
Leakage current  ≤ 2 times the limit of
Table 3
Capacitance  ∆C/C ≤± 20 % of the
value measured in
4.15.1
Tangent of loss angle  ≤ 1,5 times the limit of
Table 3
Equivalent series resistance  ≤ 2 times the limit of
Table 3
– 14 – 60384-25-1  IEC:2006
Table 6 (continued)
a
Subclause number D Conditions of test Number of specimens Performance
a a
and test and number of requirements
or
b
non-conforming items
b
ND
p n c
Subgroup C3.5 D 6 12 0
g
4.16 Storage at high Test temperature: upper
temperature category temperature
Duration: 96 h ± 4 h
Recovery: 16 h min
4.16.1 Initial Capacitance (the value
measurement obtained in Group 3 may be
used)
4.16.3 Final Visual examination  No visible damage
measurements
Leakage current < 2 times the limit
specified in 4.5.1
Capacitance
∆C/C ≤ ± 10 % of the
value measured in
4.16.1
Tangent of loss angle  As in Table 3
4.14 Surge Number of cycles: 1 000
Test temperature: …°C
Voltage: 1,15 U
R
Protective resistor: 1 000 Ω
Duration of charge: 30 s
Duration of no-load:
5 min 30 s
4.14.3 Final Visual examination  No visible damage

measurements
Leakage current As in Table 3
Capacitance ∆C/C ≤ ± 15 % of the
value measured in
4.17.3
Tangent of loss angle  ≤ 1,5 times the limit of

Table 3
a
Subclause numbers of tests and performance requirements refer to IEC 60384-25 and Clause 1 of this
specification.
b
In this table p = periodicity (in months), n = sample size, c = acceptance cr
...
