IEC 61970-456:2013/AMD1:2015 is an important amendment to the Energy Management System Application Program Interface (EMS-API) standard, specifically Part 456 which deals with Solved Power System State Profiles. Published by the International Electrotechnical Commission (IEC), this amendment enhances the previous 2013 edition by aligning it with updates in CIM (Common Information Model) version CIM15, improving data modeling and interoperability for energy management systems.
This international standard is critical for power systems management professionals, software developers, and utility operators who need standardized methods to exchange and manage solved power system state data efficiently. The amendment updates and clarifies key classes and attributes within EMS applications, ensuring consistency and accuracy when profiling power system states.
Key Topics
Topology Profile Updates
- Introduction of new classes such as Name and NameType for enhanced object identification.
- Extension of the TopologicalNode class with the role ConnectivityNodeContainer to better represent node relationships.
- Removal of the IdentifiedObject.description attribute to streamline data structures.
State Variables Profile Changes
- Enhancements to power flow representation with updated attributes for active and reactive power (p and q), using consistent load sign conventions.
- Attribute type changes, such as from Integer to Float for SvShuntCompensatorSections.sections and SvTapStep.position, improving accuracy in modeling.
- Conversion of voltage angle measurements from radians to degrees for better usability and intuitive interpretation.
- Removal of deprecated or redundant attributes like continuousSections and continuousPosition.
Data Type Elaboration
- Clarification of measurement units and multipliers for key electrical parameters like ActivePower, ReactivePower, Voltage, AngleDegrees, and ApparentPower.
- Definition of classes and attributes facilitating consistent and precise power system state data exchange.
Model Versioning and Namespace Changes
- Alignment with IEC 61970-301 Edition 5 and CIM15 UML updates.
- Updated namespace URIs reflecting the new version profiles for Topology and StateVariables.
Applications
This standard and its amendment are tailored for applications related to:
Energy Management Systems (EMS)
- Providing APIs for consistent retrieval, update, and exchange of solved power system states within complex EMS software architectures.
Power System Modeling and Analysis
- Facilitating interoperable data exchange between planning, operation, and control systems.
Utility Grid Operations
- Standardizing the representation of network topology and electrical state variables to improve system performance monitoring and decision-making.
Software Development for Smart Grids
- Supporting developers in implementing interfaces that comply with internationally recognized CIM profiles for power system data.
Integration Across Enterprise IT Systems
- Enabling mapping of multiple naming schemes (localName, aliasName) across diverse IT systems within energy utilities.
Related Standards
- IEC 61970-301:2013 Edition 5 - Core CIM-based models for energy management system interfaces.
- IEC 61970-456:2013 - Base publication prior to Amendment 1, containing original definitions for solved power system state profiles.
- IEC 61970 Series - Encompassing various parts covering EMS APIs, spanning topology, measurements, and operations.
- IEC 61850 - Standard for communication networks and systems in substations, often integrated with EMS APIs.
- Common Information Model (CIM) Standards - Foundational models used within the IEC 61970 series for power system data representation.
By implementing IEC 61970-456:2013/AMD1:2015, stakeholders ensure that energy management systems effectively communicate solved power system state profiles with high precision, interoperability, and updated semantics. This supports the reliable operation and planning of modern electrical power networks in an increasingly interconnected and data-driven environment.
Frequently Asked Questions
IEC 61970-456:2013/AMD1:2015 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Amendment 1 - Energy management system application program interface (EMS-API) - Part 456: Solved power system state profiles". This standard covers: Amendment 1 - Energy management system application program interface (EMS-API) - Part 456: Solved power system state profiles
Amendment 1 - Energy management system application program interface (EMS-API) - Part 456: Solved power system state profiles
IEC 61970-456:2013/AMD1:2015 is classified under the following ICS (International Classification for Standards) categories: 33.200 - Telecontrol. Telemetering. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 61970-456:2013/AMD1:2015 has the following relationships with other standards: It is inter standard links to IEC 61970-456:2013, IEC 61970-456:2018. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 61970-456:2013/AMD1:2015 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
IEC 61970-456 ®
Edition 1.0 2015-09
INTERNATIONAL
STANDARD
AMENDMENT 1
Energy management system application program interface (EMS-API) –
Part 456: Solved power system state profiles
IEC 61970-456:2013-05/AMD1:2015-09(en)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,
77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC 61970-456 ®
Edition 1.0 2015-09
INTERNATIONAL
STANDARD
AMENDMENT 1
Energy management system application program interface (EMS-API) –
Part 456: Solved power system state profiles
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.200 ISBN 978-2-8322-2911-8
– 2 – IEC 61970-456:2013/AMD1:2015
© IEC 2015

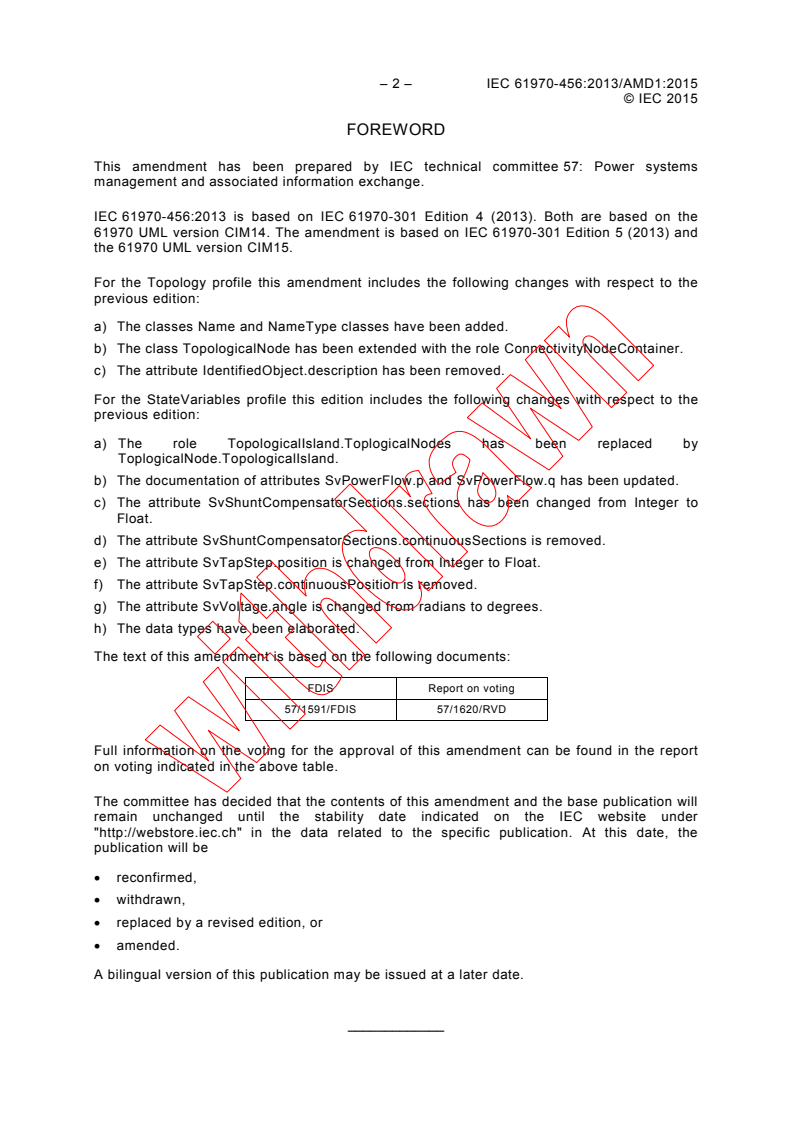

FOREWORD
