IEC 61340-5-1:2016
(Main)Electrostatics - Part 5-1: Protection of electronic devices from electrostatic phenomena - General requirements
Electrostatics - Part 5-1: Protection of electronic devices from electrostatic phenomena - General requirements
IEC 61340-5-1:2016 is available as IEC 61340-5-1:2016 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 61340-5-1:2016 applies to activities that: manufacture, process, assemble, install, package, label, service, test, inspect, transport or otherwise handle electrical or electronic parts, assemblies and equipment with withstand voltages greater than or equal to 100 V HBM, 200 V CDM and 35 V for isolated conductors. ESDS with lower withstand voltages may require additional control elements or adjusted limits. Processes designed to handle items that have lower ESD withstand voltage(s) can still claim compliance to this standard. This standard provides the requirements for an ESD control program. IEC TR 61340-5-2 [9] provides guidance on the implementation of this standard. This standard does not apply to electrically initiated explosive devices, flammable liquids, gases and powders. The purpose of this standard is to provide the administrative and technical requirements for establishing, implementing and maintaining an ESD control program (hereinafter referred to as the "program"). This edition includes the following significant technical changes with respect to the previous edition:
a) Technical requirements were changed to align IEC 61340-5-1 with other industry ESD standards;
b) Reference documents were updated to reflect newly released IEC standards;
c) A section on product qualification was added;
d) Table 4 was deleted and detailed packaging requirements were deferred to IEC 61340-5-3;
e) Clause A.1 was removed and is now included in IEC 61340-4-6.
The contents of the corrigendum of May 2017 have been included in this copy.
Électrostatique - Partie 5-1: Protection des dispositifs électroniques contre les phénomènes électrostatiques - Exigences générales
L'IEC 61340-5-1:2016 s'applique aux activités concernant: la fabrication, le traitement, l'assemblage, l'installation, l'emballage, l'étiquetage, l'entretien, l'essai, l'examen, le transport ou bien la manipulation des pièces, des ensembles et des équipements électriques ou électroniques présentant des tensions de tenue supérieures ou égales à 100 V sur le modèle du corps humain (HBM), 200 V sur le modèle de dispositif chargé (CDM) et 35 V sur les conducteurs isolés. Des ESDS possédant des tensions de tenue inférieures peuvent nécessiter des éléments de contrôle supplémentaires ou des limites ajustées. Les processus conçus pour manipuler des éléments présentant une ou plusieurs tensions de tenue aux ESD inférieures peuvent toujours déclarer être conformes à la présente norme. La présente norme fournit les exigences nécessaires à un programme de maîtrise des ESD. L'IEC TR 61340-5-2 [9] donne des lignes directrices pour la mise en eouvre de la présente norme. La présente norme ne s'applique pas aux dispositifs explosifs à déclenchement électronique ni aux liquides, gaz et poudres inflammables. L'objectif de la présente norme est de fournir les exigences administratives et techniques pour l'établissement, la mise en oeuvre et la maintenance d'un programme de maîtrise des ESD (ciaprès dénommé "programme"). Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) Des exigences techniques ont été modifiées afin d'aligner l'IEC 61340-5-1 avec les autres normes de l'industrie relatives aux décharges électrostatiques (ESD);
b) Les documents de référence ont été mis à jour afin de refléter les normes IEC récemment publiées;
c) Un paragraphe sur la qualification produit a été ajouté;
d) Le Tableau 4 a été supprimé, et les exigences relatives aux emballages sont désormais décrites dans l'IEC 61340-5-3;
e) L'Article A.1 a été supprimé et figure désormais dans l'IEC 61340-4-6.
Le contenu du corrigendum de mai 2017 a été pris en considération dans cet exemplaire.
General Information
Relations
Buy Standard
Standards Content (Sample)
IEC 61340-5-1 ®
Edition 2.0 2016-05
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Electrostatics –
Part 5-1: Protection of electronic devices from electrostatic phenomena –
General requirements
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC 61340-5-1 ®
Edition 2.0 2016-05
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Electrostatics –
Part 5-1: Protection of electronic devices from electrostatic phenomena –
General requirements
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 17.220.99; 29.020 ISBN 978-2-8322-3443-3
– 2 – IEC 61340-5-1:2016 RLV © IEC 2016

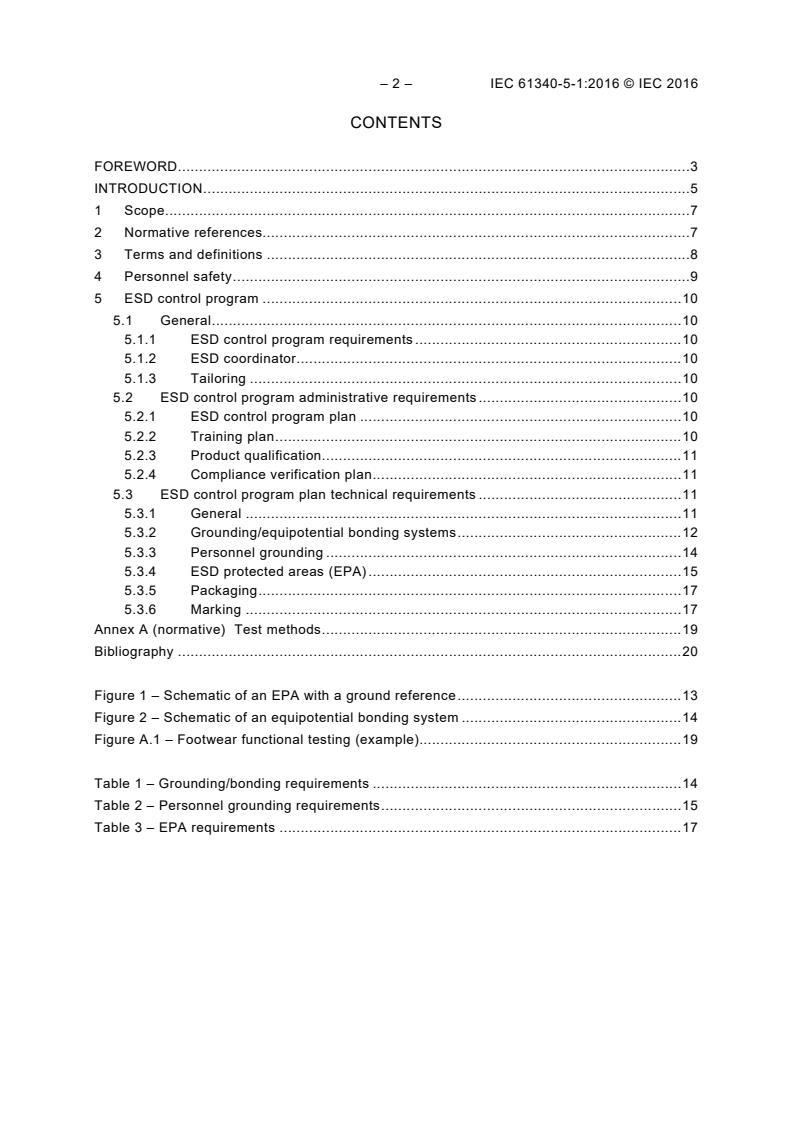

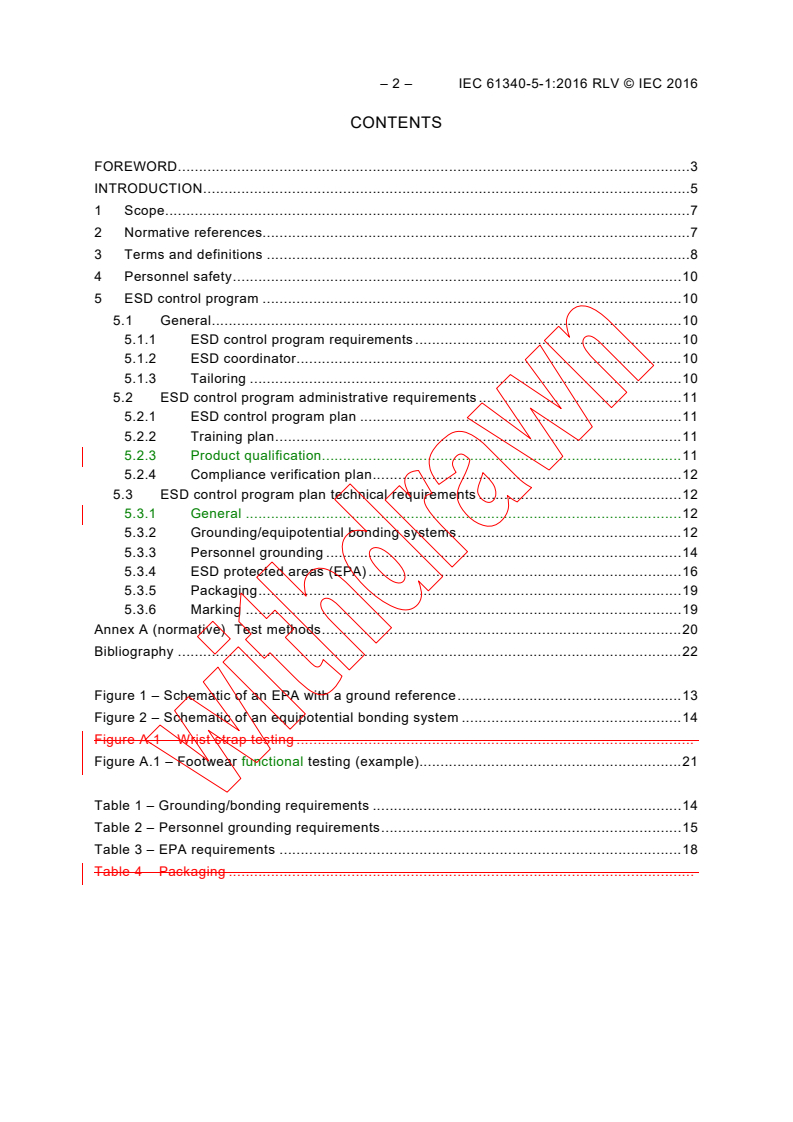

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 7
2 Normative references. 7
3 Terms and definitions . 8
4 Personnel safety . 10
5 ESD control program . 10
5.1 General . 10
5.1.1 ESD control program requirements . 10
5.1.2 ESD coordinator . 10
5.1.3 Tailoring . 10
5.2 ESD control program administrative requirements . 11
5.2.1 ESD control program plan . 11
5.2.2 Training plan . 11
5.2.3 Product qualification . 11
5.2.4 Compliance verification plan . 12
5.3 ESD control program plan technical requirements . 12
5.3.1 General . 12
5.3.2 Grounding/equipotential bonding systems . 12
5.3.3 Personnel grounding . 14
5.3.4 ESD protected areas (EPA) . 16
5.3.5 Packaging . 19
5.3.6 Marking . 19
Annex A (normative) Test methods . 20
Bibliography . 22
Figure 1 – Schematic of an EPA with a ground reference . 13
Figure 2 – Schematic of an equipotential bonding system . 14
Figure A.1 – Wrist strap testing .
Figure A.1 – Footwear functional testing (example). 21
Table 1 – Grounding/bonding requirements . 14
Table 2 – Personnel grounding requirements . 15
Table 3 – EPA requirements . 18
Table 4 – Packaging .
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTROSTATICS –
Part 5-1: Protection of electronic devices from
electrostatic phenomena – General requirements
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition. A vertical bar appears in the margin wherever a change
has been made. Additions are in green text, deletions are in strikethrough red text.
– 4 – IEC 61340-5-1:2016 RLV © IEC 2016
International Standard IEC 61340-5-1 has been prepared by IEC technical committee 101:
Electrostatics.
This second edition cancels and replaces the first edition published in 2007. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Technical requirements were changed to align IEC 61340-5-1 with other industry ESD
standards;
b) Reference documents were updated to reflect newly released IEC standards;
c) A section on product qualification was added;
d) Table 4 was deleted and detailed packaging requirements were deferred to IEC 6134053;
e) Clause A.1 was removed and is now included in IEC 61340-4-6.
The text of this standard is based on the following documents:
FDIS Report on voting
101/505/FDIS 101/508/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 61340 series, published under the general title Electrostatics, can
be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
The contents of the corrigendum of May 2017 have been included in this copy.
IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.
INTRODUCTION
This part of IEC 61340 covers the requirements necessary to design, establish, implement
and maintain an electrostatic discharge (ESD) control program for activities that: manufacture,
process, assemble, install, package, label, service, test, inspect, transport or otherwise
handle electrical or electronic parts, assemblies and equipment susceptible to damage by
electrostatic discharges greater than or equal to 100 V human body model (HBM), 200 V
charged device model (CDM) and 35 V on isolated conductors. Isolated conductors were
historically represented by machine model (MM). The 35 V limit is related to the level
achievable using ionizers specified in this standard. The MM test is no longer required for
qualification of devices, only the HBM and CDM tests are. The MM test is retained in this
standard for process control of isolated conductors only.
Any contact and physical separation of materials or flow of solids, liquids, or particle-laden
gases can generate electrostatic charges. Common sources of ESD include charged:
personnel, conductors, common polymeric materials, and processing equipment. ESD
damage can occur when:
• a charged person or o
...
IEC 61340-5-1 ®
Edition 2.0 2016-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electrostatics –
Part 5-1: Protection of electronic devices from electrostatic phenomena –
General requirements
Électrostatique –
Partie 5-1: Protection des dispositifs électroniques contre les phénomènes
électrostatiques – Exigences générales
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et
CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 61340-5-1 ®
Edition 2.0 2016-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electrostatics –
Part 5-1: Protection of electronic devices from electrostatic phenomena –
General requirements
Électrostatique –
Partie 5-1: Protection des dispositifs électroniques contre les phénomènes
électrostatiques – Exigences générales
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.220.99; 29.020 ISBN 978-2-8322-3422-8
– 2 – IEC 61340-5-1:2016 © IEC 2016
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 7
2 Normative references. 7
3 Terms and definitions . 8
4 Personnel safety . 9
5 ESD control program . 10
5.1 General . 10
5.1.1 ESD control program requirements . 10
5.1.2 ESD coordinator . 10
5.1.3 Tailoring . 10
5.2 ESD control program administrative requirements . 10
5.2.1 ESD control program plan . 10
5.2.2 Training plan . 10
5.2.3 Product qualification . 11
5.2.4 Compliance verification plan . 11
5.3 ESD control program plan technical requirements . 11
5.3.1 General . 11
5.3.2 Grounding/equipotential bonding systems . 12
5.3.3 Personnel grounding . 14
5.3.4 ESD protected areas (EPA) . 15
5.3.5 Packaging . 17
5.3.6 Marking . 17
Annex A (normative) Test methods . 19
Bibliography . 20
Figure 1 – Schematic of an EPA with a ground reference . 13
Figure 2 – Schematic of an equipotential bonding system . 14
Figure A.1 – Footwear functional testing (example). 19
Table 1 – Grounding/bonding requirements . 14
Table 2 – Personnel grounding requirements . 15
Table 3 – EPA requirements . 17
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTROSTATICS –
Part 5-1: Protection of electronic devices from
electrostatic phenomena – General requirements
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61340-5-1 has been prepared by IEC technical committee 101:
Electrostatics.
This second edition cancels and replaces the first edition published in 2007. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Technical requirements were changed to align IEC 61340-5-1 with other industry ESD
standards;
b) Reference documents were updated to reflect newly released IEC standards;
c) A section on product qualification was added;
d) Table 4 was deleted and detailed packaging requirements were deferred to
IEC 61340-5-3;
– 4 – IEC 61340-5-1:2016 © IEC 2016
e) Clause A.1 was removed and is now included in IEC 61340-4-6.
The text of this standard is based on the foll
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
