IEC 60287-1-2:2023

IEC 60287-1-2
®

Edition 2.0 2023-05
INTERNATIONAL
STANDARD



Electric cables – Calculation of the current rating –
Part 1-2: Current rating equations (100 % load factor) and calculations of losses –
Sheath eddy current loss factors for two circuits in flat formation

IEC 60287-1-2:2023-05(en)

---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2023 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.


IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.

---------------------- Page: 2 ----------------------
IEC 60287-1-2

®


Edition 2.0 2023-05




INTERNATIONAL



STANDARD



















Electric cables – Calculation of the current rating –

Part 1-2: Current rating equations (100 % load factor) and calculations of losses –

Sheath eddy current loss factors for two circuits in flat formation
























INTERNATIONAL

ELECTROTECHNICAL


COMMISSION





ICS 29.060.20  ISBN 978-2-8322-6972-5




  Warning! Make sure that you obtained this publication from an authorized distributor.


® Registered trademark of the International Electrotechnical Commission

---------------------- Page: 3 ----------------------

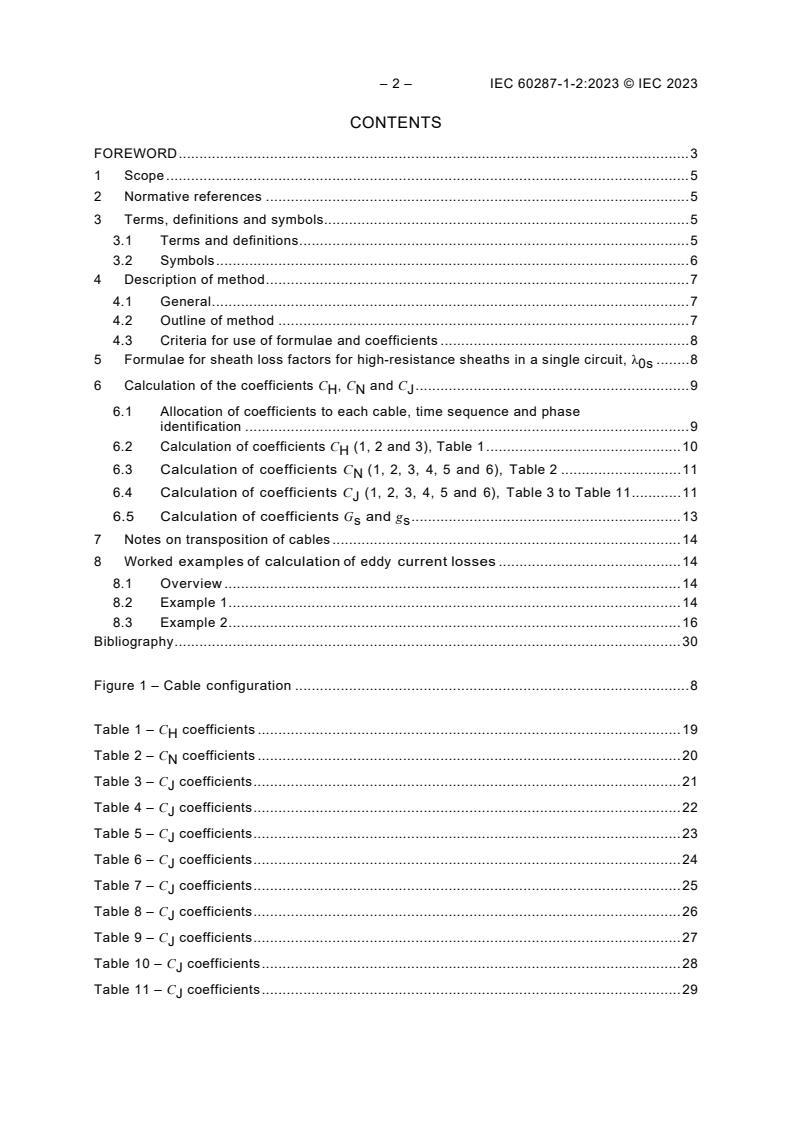

– 2 – IEC 60287-1-2:2023 © IEC 2023
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms, definitions and symbols. 5
3.1 Terms and definitions . 5
3.2 Symbols . 6
4 Description of method . 7
4.1 General . 7
4.2 Outline of method . 7
4.3 Criteria for use of formulae and coefficients . 8
5 Formulae for sheath loss factors for high-resistance sheaths in a single circuit, λ . 8
0s
6 Calculation of the coefficients C , C and C . 9
H N J
6.1 Allocation of coefficients to each cable, time sequence and phase
identification . 9
6.2 Calculation of coefficients C (1, 2 and 3), Table 1 . 10
H
6.3 Calculation of coefficients C (1, 2, 3, 4, 5 and 6), Table 2 . 11
N
6.4 Calculation of coefficients C (1, 2, 3, 4, 5 and 6), Table 3 to Table 11 . 11
J
6.5 Calculation of coefficients G and g . 13
s s
7 Notes on transposition of cables . 14
8 Worked examples of calculation of eddy current losses . 14
8.1 Overview . 14
8.2 Example 1 . 14
8.3 Example 2 . 16
Bibliography . 30

Figure 1 – Cable configuration . 8

Table 1 – C coefficients . 19
H
Table 2 – C coefficients . 20
N
Table 3 – C coefficients . 21
J
Table 4 – C coefficients . 22
J
Table 5 – C coefficients . 23
J
Table 6 – C coefficients . 24
J
Table 7 – C coefficients . 25
J
Table 8 – C coefficients . 26
J
Table 9 – C coefficients . 27
J
Table 10 – C coefficients . 28
J
Table 11 – C coefficients . 29
J

---------------------- Page: 4 ----------------------
IEC 60287-1-2:2023 © IEC 2023 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

ELECTRIC CABLES –
CALCULATION OF THE CURRENT RATING –

Part 1-2: Current rating equations
(100 % load factor) and calculation of losses –
Sheath eddy current loss factors for two circuits in flat formation

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 60287-1-2 has been prepared by IEC technical committee 20: Electric cables. It is an
International Standard.
This second edition cancels and replaces the first edition published in 1993. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the symbols have been harmonized and aligned with the symbols used in the IEC 60287
and IEC 60853 series.

---------------------- Page: 5 ----------------------
– 4 – IEC 60287-1-2:2023 © IEC 2023
The text of this International Standard is based on the following documents:
Draft Report on voting
20/2097/FDIS 20/2104/RVD

Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 60287 series, published under the general title Electric cables –
Calculation of the current rating, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

---------------------- Page: 6 ----------------------
IEC 60287-1-2:2023 © IEC 2023 – 5 –
ELECTRIC CABLES –
CALCULATION OF THE CURRENT RATING –

Part 1-2: Current rating equations
(100 % load factor) and calculation of losses –
Sheath eddy current loss factors for two circuits in flat formation



1 Scope
This part of IEC 60287 provides a method for calculating the eddy current losses in the metallic
sheaths of single-core cables arranged as a three-phase double circuit in flat formation. The
sheaths are bonded at one point or are cross-bonded so that there are no significant sheath
circulating currents. Where metallic sheaths are bonded at both ends there are significant
circulating currents which result in a lower current-carrying capacity. A method of calculating
circulating current losses for double circuits is provided in IEC 60287-1-3.
The method descibed in this document provides coefficients which are applied as corrections
to the loss factors for the sheaths of one isolated three-phase circuit. These corrections are
7
negligible for cables where the parameter m is less than approximately 0,1 (m = ω/(R · 10 )),
s
which corresponds to a sheath longitudinal resistance higher than 314 µΩ/m at 50 Hz.
Consequently, the method is used for most sizes of aluminium-sheathed cables, but is not
required for lead-sheathed cables unless they are unusually large.
The coefficients are provided in tabular form and have been computed from fundamental
formulae for sheath losses, the evaluation of which calls for expertise in computer programming
which will possibly not be readily available in general commercial situations. The development
of simplified formulae for some of the tabulated coefficients is under consideration.
Losses for cables in a single circuit is covered in IEC 60287-1-1.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60287-1-1:2023, Electric cables – Calculation of the current rating – Part 1-1: Current rating
equations (100 % load factor) and calculation of losses – General
3 Terms, definitions and symbols
3.1 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp

---------------------- Page: 7 ----------------------
– 6 – IEC 60287-1-2:2023 © IEC 2023
3.2 Symbols

C , C , C , C coefficients used to interpolate for C and C
A0 B0 C0 D0 H J
C , C , C coefficients which correct for sheath resistance, the
H1 H2 H3
values obtained relate to cables 1, 2 or 3 in a single
circuit
C , C , C , C , C , coefficients which introduce the mutual influences
N1 N2 N3 N4 N5
between circuits and are therefore dependent on the
C
N6
relative phase sequences of cables 1 to 3 and 4 to 6
C , C , C , C , C , coefficients which depend on the cable positions 1 to 3
J1 J2 J3 J4 J5
and 4 to 6 in each circuit
C
J6
C C coefficients used for calculation of coefficients C
M0, Z0 H
C , C , C , C coefficients used to interpolate for C
S T U V J
C coefficient used for calculation of coefficients C
Y J
C coefficient used for calculation of coefficients G and g
ß1 s s

D external diameter of the metal sheath (mm)
s
D the diameter of the imaginary cylinder which just (mm)
it
touches the inside surface of the troughs of a
corrugated sheath
the diameter of the imaginary coaxial cylinder which just
D (mm)
oc
touches the crests of a corrugated sheath
coefficient which accounts for losses due to eddy
G
s
currents across the thickness of the sheath due to the
current in the conductor
R alternating current resistance of the conductor at its (Ω/m)

c
maximum operating temperature

R resistance of the sheath (Ω/m)

s
c distance between centres of cables in adjoining circuits (mm)
1
d mean diameter of sheath or screen (mm)
f system frequency (Hz)
g coefficient which accounts for losses due to eddy
s
currents across the thickness of the sheath, due to
currents in adjacent cables
m parameter used in calculation of loss factor
s distance between centres of cables in the same circuit (mm)
t thickness of the sheath (mm)
s
y equal to s/c
1 1
z equal to d/2 · s
λ sheath loss factor for a high-resistance sheath in a
0s
single circuit
λ ′′ sheath loss factor for a low-resistance sheath in a single
1s
circuit
λ ′′ sheath loss factor for a low-resistance sheath in a
1d
double circuit
ρ electrical resistivity of sheath material at operating (Ω · m)
s
temperature
ω angular frequency of system (2πf) (l/s)

---------------------- Page: 8 ----------------------
IEC 60287-1-2:2023 © IEC 2023 – 7 –
4 Description of method
4.1 General
The method proceeds in a way similar to that used for single circuits in IEC 60287-1-1. There,
formulae for loss factors applicable to sheaths having a longitudinal resistance such that m is
less than 0,1 (R = 314 µΩ/m at 50 Hz) are given, together with empirical formulae to calculate
s
the correction coefficient for lower resistance sheaths.
However, for double circuits, accurate empirical formulae covering the complete range of
coefficients would contain so many terms that their use would show little or no advantage over
the use of precise, tabulated coefficients with interpolation, as necessary. This latter course
has the advantage that the accuracy of the loss factors can be closely equal to that of the
original calculations and is better than 1 %.
The development of empirical formulae for a limited range of coefficients is under consideration.
In order to explain the method, it is described here in a way appropriate to manual evaluation
of the arithmetic. However, because of the appreciable effort required to provide loss factors
for six cables, it is to be expected that calculations will usually be effected by means of a
computer. Under these circumstances, the decision to use interpolation (as necessary) between
tabulated values is fully justified.
However, in many cases, values of the relevant parameters will be such that interpolation is
unnecessary or can be accomplished with sufficient accuracy by inspection.
Corrections to cover the effect of eddy currents circulating within the thickness of a sheath are
derived with the use of the same formulae as those used in IEC 60287-1-1.
4.2 Outline of method
The loss factor for the sheath of a given cable in a double-circuit flat formation (see Figure 1)
is evaluated as follows:
R
s
λ′′ λC⋅ 1 to 3⋅C 1 to 6⋅C 1 to 6⋅+g G 
( ) ( ) ( )

1d 0s H N J s s
 
R
c

The tasks performed by coefficients C and C are not directly related to any physical function
N J
but have been selected to simplify the tabulation. The nomenclature is arbitrary.
Values of C , C and C are obtained from Table 1 to Table 11 and are chosen according
H N J
the following parameters together with the position of the cable and the phase sequence
to
of the currents in the conductors.
ω
−7
m ×10
R
s
ω= 2πf
d
z=
2s
=
=

---------------------- Page: 9 ----------------------
– 8 – IEC 60287-1-2:2023 © IEC 2023
s
y =
1
c
1
where
c is the distance between the centres of cables in adjoining circuits (see Figure 1) (mm).
1

Figure 1 – Cable configuration
NOTE The factors for a single circuit having low-resistance sheaths can be obtained by using the coefficients
C (1, 2 and 3) only, as follows:
H
R
s
′′ 
λ λC⋅ (1 to 3)⋅+g G
1s 0s H s s

R
c
4.3 Criteria for use of formulae and coefficients
For sheaths for which the value of m is less than 0,1, which includes most lead-sheathed cables,
it can be assumed that the coefficients C , C , C and g are unity and G is zero. In such
H N J s s
circumstances, λ can be used for twin circuits without correction.
0s
When the value of m is equal to 0,1 or greater, which is generally the case for all but the smaller
aluminium-sheathed cables, values for C , C , C and g shall be calculated. The coefficient
H N J s
G is important only when the value of m is 1,0 or higher.
s
5 Formulae for sheath loss factors for high-resistance sheaths in a single
circuit, λ
0s
The sheath loss factor λ is given by
0s
2
2
md 
λC=
0s C0
 
2
2s
 
1+ m
( )
For three single-core cables in flat formation, the coefficient C is given by:
C0
Cable Coefficient C
C0
Centre cable 6
Outer cables 1,5

=

---------------------- Page: 10 ----------------------
IEC 60287-1-2:2023 © IEC 2023 – 9 –
6 Calculation of the coefficients C , C and C
H N J
6.1 Allocation of coefficients to each cable, time sequence and phase identification
, C and C are dependent on the
It is important to note the way in which the coefficients C
H N J
time sequence of the currents and the physical position of the conductors.
The cables shall be numbered according to Figure 1.
The coefficients C , C and C of Table 1 are allocated on a basis of time sequence
H1 H2 H3
associated with the positions of the cables, so that the following single-circuit arrangements
have the same time sequence:
Cable number 1 2 3
Sequence R S T
Or S T R
Or T R S
With coefficients C C C
H1 H2 H3
In the above example, cable 1 is always the outer conductor on a leading phase and takes
coefficient C . Cable 3 is the outer conductor on a lagging phase and takes coefficient C .
H1 H3
It will be seen that, for these cases, the phase identification implied by the letters R, S and
T is not important, it is only the time sequence which is of significance.
In double circuits, if either circuit has a reversed sequence, the values of C shall be allocated
H
to the cables in the reverse order. The allocation of coefficient C is dependent on the time
H
sequence within each circuit.
In a double-circuit configuration, the phase identification implied by the symbols is significant
to the extent that the phase identification in relation to the cable position in one circuit shall
be either the same as, in the forward sequence, or a mirror image of, in the reverse
sequence, that in the other.
Two sets of coefficients C to C are given in Table 2 corresponding to the forward and
N1 N6
reverse sequences. If the cable positions are labelled sequentially and the phase
identification rules are adhered to, the coefficients are allocated on the same basis as
coefficient C . Note that the values for cables 4, 5 and 6 in the reversed sequence are a
H
reflection of the values for cables 1, 2 and 3.
The number of input parameters involved for the coefficients C to C makes it desirable to
J1 J6
use several tables. Table 3 to Table 8 are for each cable for the forward sequence installation.
For the reverse sequence, Table 9 to Table 11 are provided and the coefficients for cables 1
to 3 are also used for cables 6 to 4, in that order. The allocation is on the same lines as those
for coefficient C .
N
The following tables give examples of four common cases, where letters R, S, T are used for
convenience and are equivalent to other well-known sets of symbols to denote time sequence
and phase identification, such as L1, L2, L3; a, b, c; R, Y, B.

---------------------- Page: 11 ----------------------
– 10 – IEC 60287-1-2:2023 © IEC 2023
a) Forward sequence
Cable number 1 2 3 4 5 6
Sequence R S T R S T
Allocation C C C C C C C Table 1
H H1 H2 H3 H1 H2 H3
Allocation C C C C C C C Table 2, forward
N N1 N2 N3 N4 N5 N6
Allocation C C C C C C C Table 3 to Table 8, forward
J J1 J2 J3 J4 J5 J6
b) Forward sequence
Cable number 1 2 3 4 5 6
Sequence T S R T S R
Allocation C C C C C C C Table 1
H H3 H2 H1 H3 H2 H1
Allocation C C C C C C C Table 2, forward
N N6 N5 N4 N3 N2 N1
Allocation C C C C C C C Table 3 to Table 8, forward
J J6 J5 J4 J3 J2 J1
c) Reverse sequence
Cable number 1 2 3 4 5 6
Sequence R S T T S R
Allocation C C C C C C C Table 1
H H1 H2 H3 H3 H2 H1
Allocation C C C C C C C Table 2, forward
N N1 N2 N2 N4 N5 N6
Allocation C C C C C C C Table 9 to Table 11, forward
J J1 J2 J3 J4 J5 J6
d) Reverse sequence
Cable number 1 2 3 4 5 6
Sequence T S R R S T
Allocation C C C C C C C Table 1
H H1 H2 H3 H3 H2 H1
Allocation C C C C C C C Table 2, forward
N N6 N5 N4 N3 N2 N1
Allocation C C C C C C C Table 9 to Table 11, forward
J J6 J5 J4 J3 J2 J1
6.2 Calculation of coefficients C (1, 2 and 3), Table 1
H
Each coefficient C is obtained from Table 1 using the parameters m and z as well as the
H
position of each cable (see 6.1).
When values of m and z involve interpolation between values in Table 1, the following procedure
should be used where interpolation by inspection is not desired.
From the relevant part of Table 1, values for C (a, b, c, d) are obtained as shown in the
H
following diagram:
z z z
0 1
m C C
0 Ha Hc
m C
H
m C C

1 Hb Hd

where m , m , z and z are tabulated values smaller and larger than the values of m and z.
0 1 0 1

---------------------- Page: 12 ----------------------
IEC 60287-1-2:2023 © IEC 2023 – 11 –
Tabulate:
m .
0
. C = (m − m ) .
m
1 M0 1 0
z .
0
z . C = (z − z ) .
1 Z0 1 0
C .
Ha
C .
Hb
C .
Hc
C .
Hd
Then:
C = C =  .
A Ha
C = (C – C )/C =  .
B Hb Ha M0
C = (C – C )/C =  .
C Hc Ha Z0
C = (C + C – C – C )/C · C =  .
D Hd Ha Hc Hb M0 Z0
Add together:
C =  .
A
+C · (m – m ) =  .
B 0
+C · (z – z ) =  .
C 0
+C · (m – m ) · (z – z ) =  .
D 0 0
Coefficient C = total =  .
H
This process shall be repeated for each of the three cables in a circuit to obtain C , C and
H1 H2
C .
H3
6.3 Calculation of coefficients C (1, 2, 3, 4, 5 and 6), Table 2
N
Values of coefficient C are obtained from Table 2, using parameter y for each cable. The
N
table has values for the forward and reverse sequences. Note that in the latter case the
coefficients for cables 4, 5 and 6 form a mirror image of those for cables 1 to 3.
Where interpolation is required, a linear one-dimensional interpolation is adequate.
6.4 Calculation of coefficients C (1, 2, 3, 4, 5 and 6), Table 3 to Table 11
J
Values of coefficient C for each cable are obtained from Table 3 to Table 11, according to
J
the sequence of the currents and the parameters m, z and y .
1
Table 3 to Table 8 apply to the six cables when the currents in the conductors follow the
forward sequence. But, in a reversed sequence, Table 9 to Table 11 apply to cables 1 to 3
and also to cables 6 to 4, in that order.

---------------------- Page: 13 ----------------------
– 12 – IEC 60287-1-2:2023 © IEC 2023
Interpolation between all three input parameters can be necessary and the following scheme
for a three-dimensional interpolation can be used.
The tables for each cable are arranged in groups, one for each value of the parameter y . Two
1
groups can be chosen, one for a value of y smaller, and one for a value larger, than the input
1
value. For each group, values of C (a to d) and C (e to f) are required (in a similar way to
J J
the interpolation for C ), as shown in the following diagrams.
H

z z z z
z  z
0 1 0 1
m C C m C C

0 Ja Jc 0 Je Jg
m *  m *
m C C m C C

1 Jb Jd 1 Jf Jh
Group for y  Group for y
0 1

Interpolation between the values marked * gives t
...
