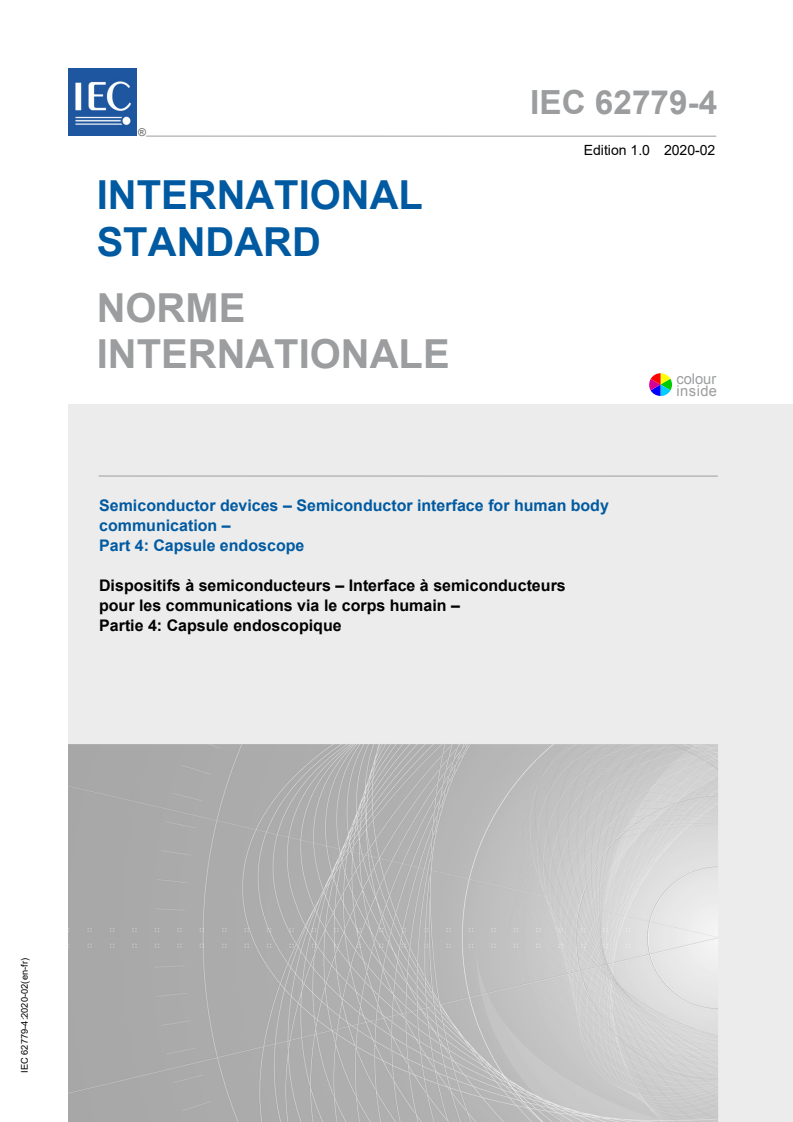

IEC 62779-4:2020

IEC 62779-4 ®
Edition 1.0 2020-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Semiconductor devices – Semiconductor interface for human body
communication –
Part 4: Capsule endoscope
Dispositifs à semiconducteurs – Interface à semiconducteurs
pour les communications via le corps humain –
Partie 4: Capsule endoscopique

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

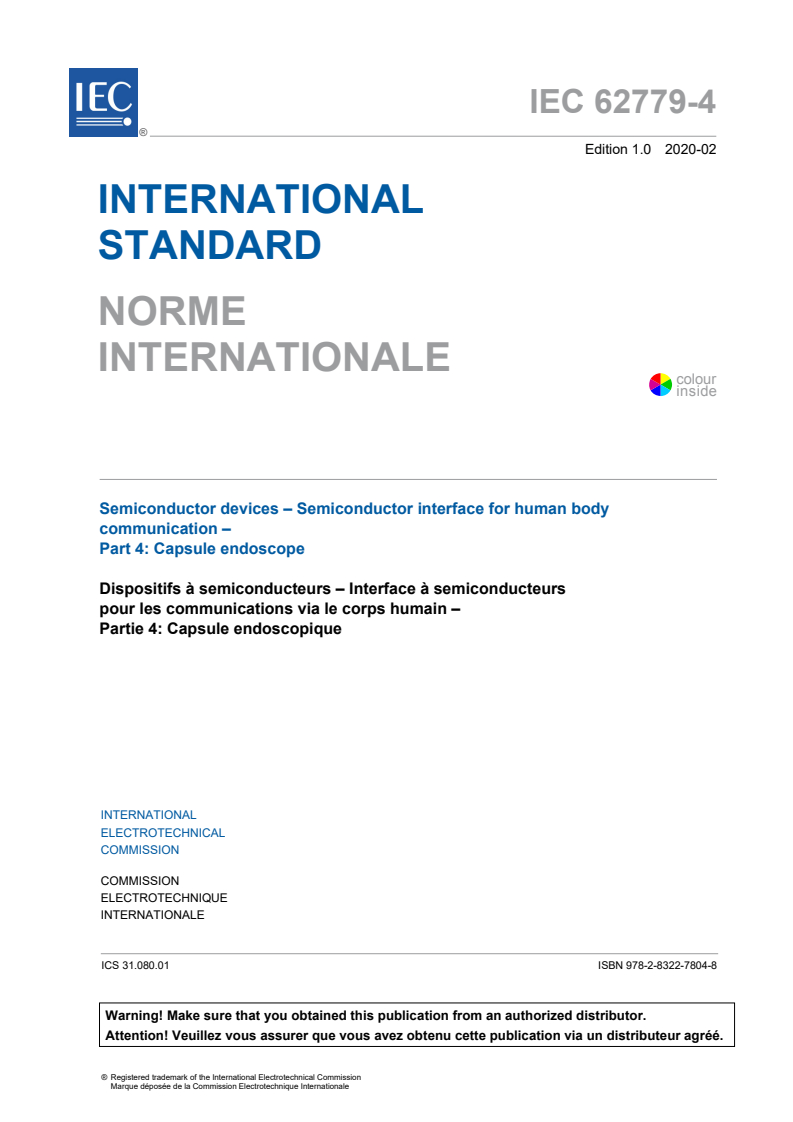

IEC 62779-4 ®
Edition 1.0 2020-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Semiconductor devices – Semiconductor interface for human body

communication –
Part 4: Capsule endoscope
Dispositifs à semiconducteurs – Interface à semiconducteurs

pour les communications via le corps humain –

Partie 4: Capsule endoscopique

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.080.01 ISBN 978-2-8322-7804-8

– 2 – IEC 62779-4:2020 © IEC 2020

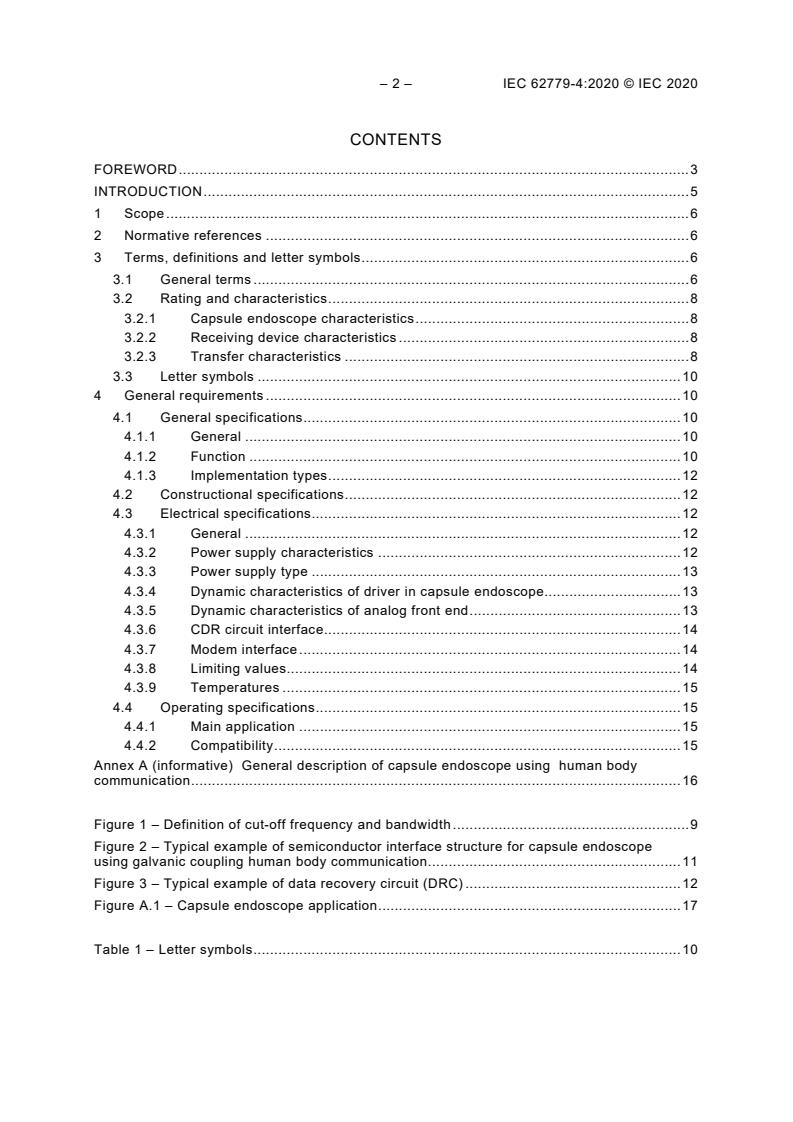

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions and letter symbols . 6
3.1 General terms . 6
3.2 Rating and characteristics . 8
3.2.1 Capsule endoscope characteristics . 8
3.2.2 Receiving device characteristics . 8
3.2.3 Transfer characteristics . 8
3.3 Letter symbols . 10
4 General requirements . 10
4.1 General specifications . 10
4.1.1 General . 10
4.1.2 Function . 10
4.1.3 Implementation types . 12
4.2 Constructional specifications . 12
4.3 Electrical specifications . 12
4.3.1 General . 12
4.3.2 Power supply characteristics . 12
4.3.3 Power supply type . 13
4.3.4 Dynamic characteristics of driver in capsule endoscope. 13
4.3.5 Dynamic characteristics of analog front end . 13
4.3.6 CDR circuit interface . 14
4.3.7 Modem interface . 14
4.3.8 Limiting values. 14
4.3.9 Temperatures . 15
4.4 Operating specifications . 15
4.4.1 Main application . 15
4.4.2 Compatibility . 15
Annex A (informative) General description of capsule endoscope using human body
communication . 16

Figure 1 – Definition of cut-off frequency and bandwidth . 9
Figure 2 – Typical example of semiconductor interface structure for capsule endoscope

using galvanic coupling human body communication. 11
Figure 3 – Typical example of data recovery circuit (DRC) . 12
Figure A.1 – Capsule endoscope application . 17

Table 1 – Letter symbols . 10

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES –
SEMICONDUCTOR INTERFACE FOR HUMAN BODY COMMUNICATION –

Part 4: Capsule endoscope
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62779-4 has been prepared by IEC technical committee 47:
Semiconductor devices.
The text of this International Standard is based on the following documents:
FDIS Report on voting
47/2600/FDIS 47/2611/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.

– 4 – IEC 62779-4:2020 © IEC 2020
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62779 series, published under the general title Semiconductor
devices – Semiconductor interface for human body communication, can be found on the IEC
website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
INTRODUCTION
IEC 62779-1, IEC 62779-2 and IEC 62779-3 define the general requirements, measurement
method and functional type of a semiconductor interface for human body communication.
They include the general and functional specifications of the interface, the electrical
performances of an electrode, and the operational conditions of the interface. However, an in-
body to on-body channel for a capsule endoscope using galvanic coupling human body
communication (HBC) is different from the channel that is described in IEC 62779-1,
IEC 62779-2 and IEC 62779-3 using capacitive coupling human body communication (i.e.
channel properties, such as signal loss and signal propagation mechanism, are different).
Therefore, the semiconductor interface covered by IEC 62779-1, IEC 62779-2 and
IEC 62779-3 cannot be used for the capsule endoscope using galvanic coupling human body
communication. A common interface for a capsule endoscope using human body
communication should be defined to secure communication compatibility between various
capsule endoscope devices and receiving devices that are implemented on or inside the
human body.
– 6 – IEC 62779-4:2020 © IEC 2020
SEMICONDUCTOR DEVICES – SEMICONDUCTOR INTERFACE
FOR HUMAN BODY COMMUNICATION –

Part 4: Capsule endoscope
1 Scope
This part of IEC 62779 defines general requirements on the electrical performances of a
semiconductor interface for capsule endoscope using galvanic coupling human body
communication. It includes general and functional specifications of the interface. The
semiconductor interface that is covered in this document is the interface to handle or deliver
an electrical signal between the capsule endoscope inside the human body and the HBC
modem in the receiving device outside the human body.
NOTE Additional information on capsule endoscope using the human body communication is provided in Annex A.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEEE 802.15.6:2012, IEEE Standard for Local and Metropolitan area networks – Part 15.6:
Wireless Body Area Networks
3 Terms, definitions and letter symbols
For the purposes of this document, the following terms, definitions and letter symbols apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1 General terms
3.1.1
transmitting electrode
golden physical structure that transmits an electrical signal from a capsule endoscope to the
human body while typically located inside the human body and adhering to the small bowel
Note 1 to entry: A transmitting electrode delivers an electrical signal to a non-metallic transmission channel, the
human body.
3.1.2
capsule endoscope
small round and tube-shaped fixture that contains a LED module, lens module, sensor PCB,
battery and power module
3.1.3
image sensor
semiconductor device that converts the luminance of light in front of the image sensor to
electrical signal
3.1.4
driver
semiconductor device that delivers image data to the human body in the form of an electrical
signal
Note 1 to entry: The driver is located before the transmitting electrode and outputs the electrical signal with a pre-
limited current and pre-limited voltage.
3.1.5
galvanic coupling human body communication
human body communication method in which a receiver with two electrodes in-body or on-
body can sense the change of electrical current caused by a transmitter through a part of the
human body
3.1.6
capacitive coupling human body communication
human body communication method in which a receiver with an electrode on-body and a
ground off-body can sense the change of electrical potential caused by a transmitter with an
electrode on-body and a ground off-body
3.1.7
receiving electrode
physical metallic structure for receiving an electrical signal from the human body and
delivering the received signal to the analog front end
Note 1 to entry: A receiving electrode delivers an electrical signal from a non-metallic transmission channel, the
human body.
3.1.8
receiving device
electrical device for receiving image data transmitted from a capsule endoscope inside the
human body and storing the received image data in a storage device
Note 1 to entry: The storage device can be a flash memory or hard disk drive.
3.1.9
band-pass filter
semiconductor device or circuit component in an analog front end that eliminates low
frequency noise (i.e. noise from a power line or a fluorescent light) and high frequency noise
(i.e. noise from a radio or a TV broadcasting, a cellular phone) that overlap in a received
signal
3.1.10
analog to digital converter
ADC
semiconductor device or circuit component in an analog front end that converts filtered analog
data to digital data
Note 1 to entry: The converted digital data can be processed in the modem of the receiving device.
3.1.11
data recovery circuit
DRC
semiconductor device or circuit component in an analog front end that recovers a digital data
signal from a filtered signal in the receiving device
Note 1 to entry: The DRC can consist of a comparator and CDR circuit or ADC only.

– 8 – IEC 62779-4:2020 © IEC 2020
3.2 Rating and characteristics
3.2.1 Capsule endoscope characteristics
3.2.1.1
single fault current between transmitting electrodes
I
SFC
maximum amount of short current between the electrodes of the capsule endoscope in the
capsule endoscope semiconductor interface
3.2.1.2
output impedance between transmitting electrodes
Z
EC
impedance seen from the human body into the transmitting electrodes on the capsule
endoscope in the capsule endoscope semiconductor interface
Note 1 to entry The output impedance depends on the output impedances of the driver.
3.2.2 Receiving device characteristics
3.2.2.1
input impedance of receiving electrode
Z
ER
impedance seen from the human body into the receiving electrode of the receiving device in a
capsule endoscope semiconductor interface
Note 1 to entry: The input impedance depends on the input impedances of a band-pass filter and signal amplifier
that are typically the very first stages of an analog front end.
3.2.3 Transfer characteristics
3.2.3.1
input sensitivity of receiving device
IS
minimum signal requirement for the receiving device to recover the transmitted signal from the
capsule endoscope correctly
Note 1 to entry: For the definition of IS the required bit error rate should be satisfied between the capsule
endoscope and the receiving device.
Note 2 to entry: This note applies to the French language only.
3.2.3.2
dynamic range
DR
ratio of a signal’s maximum to minimum voltage ratio at an input of a semiconductor interface
for capsule endoscope human body communication that can be tolerated without signal
distortion
Note 1 to entry: Dynamic range depends on a minimum drive level of a comparator and a signal gain of a signal
amplifier.
Note 2 to entry: This note applies to the French language only.
3.2.3.3
voltage gain
G
V
amplifying amount for the amplifier circuit or band-pass filter component in the analog front
end without being attenuated or removed intentionally

3.2.3.4
lower cut-off frequency
f
CL
lower frequency where a receiving signal is attenuated by 3 dB as passing through a band-
pass filter
SEE: Figure 1.
3.2.3.5
upper cut-off frequency
f
CU
upper frequency where a receiving signal is attenuated by 3 dB as passing through a band-
pass filter
SEE: Figure 1.
3.2.3.6
bandwidth
BW
frequency width starting from the lower cut-off frequency to upper cut-off frequency without
being attenuated or removed intentionally
Note 1 to entry: This note applies to the French language only.
SEE: Figure 1.
Key
BW f
Bandwidth Lower cut-off frequency
CL
f Upper cut-off frequency
CU
Figure 1 – Definition of cut-off frequency and bandwidth
3.2.3.7
propagation loss
P
L
amount of attenuation when a signal transmitted from the capsule endoscope passes through
the human body
Note 1 to entry: Typically propagation loss can be defined as the ratio of the transmitting voltage swing and
received voltage swing.
– 10 – IEC 62779-4:2020 © IEC 2020
3.2.3.8
lock range
LR
operating frequency range of the CDR where the CDR circuit can be locked
Note 1 to entry: This note applies to the French language only.
3.2.3.9
bit width of ADC
BIT
ADC
output resolution of the ADC which can determine the processing accuracy of the modem in
the receiving device
3.3 Letter symbols
Table 1 – Letter symbols
Name and designation Letter symbol
supply voltage V
SC
operating current I
SC
operating time t
OPC
single fault current between transmitting electrodes I
SFC
output impedance between transmitting electrodes Z
EC
supply voltage V
SR
operating current I
SR
operating time t
OPR
input impedance between receiving electrodes Z
ER
input sensitivity of receiving device IS
dynamic range DR
voltage gain G
V
f
lower cut-off frequency
CL
upper cut-off frequency f
CU
bandwidth BW
propagation loss P
L
lock range LR
bit width of ADC BIT
ADC
4 General requirements
4.1 General specifications
4.1.1 General
Clause 4 provides general specifications to specify the functional and external requirements
for a semiconductor interface for a capsule endoscope using human body communication.
4.1.2 Function
4.1.2.1 Category
If an interface has a functional or electrical category, it shall be stated.

4.1.2.2 Functional description
A general description of the function performed by the interface shall be given.
4.1.2.3 Block diagram
The overall structure of the interface to realize the function shall be given. Details of the
structure shall be given using a block diagram. A semiconductor interface for capsule
endoscope using human body communication consists of a transmitting electrode and
receiving electrode, capsule endoscope (CE), and receiving device (RD). A controller (CTRL)
and driver (DRV) in the capsule endoscope convert the image data into an electrical signal
and send it to the transmitting electrode. The received electrical signal from the human body
is amplified by the signal amplifier (SA), filtered by the band-pass filter (BPF), and processed
by the data recovery circuit (DRC) in an analog front end (AFE). The AFE delivers the
processed data to the modem in the receiving device. (See an example in Figure 2 for more
details.)
Key
CE Capsule endoscope AFE Analog front end
DRV Driver BPF Band-pass filter
CTRL Controller DRC Data recovery circuit
RD Receiving device STG DEV Storage device
SA Signal amplifier TE Transmitting electrode
SB Small bowel RE Receiving electrode
IMGS Image sensor HB Human body
MOD Modem INB Inside of human body
OUTB Outside of human body
NOTE The order of the components in the interface can be changed if necessary, as long as the interface
satisfies the required performances.
Figure 2 – Typical example of semiconductor interface structure for capsule endoscope
using galvanic coupling human body communication
If applicable, control signals that are transmitted between the interface and an HBC modem
shall be defined in the block diagram.
The data recovery circuit (DRC) in the receiving device can be implemented using a
comparator and CDR or it can be implemented using an ADC only. (See an example
in Figure 3 for more details.)

– 12 – IEC 62779-4:2020 © IEC 2020

Key
DRC Data recovery circuit CMP Comparator
CDRC Clock and data recovery circuit ADC Analog to digital converter
Figure 3 – Typical example of data recovery circuit (DRC)
4.1.3 Implementation types
4.1.3.1 Manufacturing and assembling technology
The manufacturing technologies for an electrode, for example metallic pattern, thin film, etc.,
an analog front end, for example semiconductor monolithic integrated circuit, thin-film
integrated circuit, hybrid integrated circuit, module, etc., and capsule, for example plastic,
metal, polymer tube, etc., shall be stated. Details of the semiconductor technologies shall be
included.
An assembling technology between the driver and the transmitting electrode, for example
modularization, integration, shall be stated.
An assembling technology between the receiving electrode and the analog front end, for
example modularization, integration, shall be stated.
4.1.3.2 Package technology
The package type, for example ceramic, plastic or glass, shall be given. The package size, for
example length of the capsule, diameter of capsule, should be given.
If applicable, the IEC and/or national reference number of the outline drawing shall be stated.
4.2 Constructional specifications
The physical specifications of an electrode, for example material, dimensions, location, shall
be given. The number of receiving electrodes should be given. The maximum attachable
distance between the receiving electrodes on the skin should be given.
4.3 Electrical specifications
4.3.1 General
The electrical specifications should be given over the specified range of an operating
temperature.
4.3.2 Power supply characteristics
The following characteristics shall be given:
a) supply voltage;
b) operating current.
4.3.3 Power supply type
The type of power supply, for example an outlet or battery, shall be given.
4.3.4 Dynamic characteristics of driver in capsule endoscope
The following characteristics shall be given with respect to the corresponding component in a
driver of a capsule endoscope:
a) output common voltage level;
b) rising time of transmitting signal with predefined load condition;
c) falling time of transmitting signal with predefined load condition;
d) output timing jitter;
e) output duty cycle;
f) maximum output swing voltage;
g) minimum output swing voltage;
h) single fault current on electrode when two transmitting electrodes are short;
i) maximum leakage current to the heart.
4.3.5 Dynamic characteristics of analog front end
4.3.5.1 Signal amplifier and band-pass filter
The following characteristics shall be given with respect to the corresponding component in a
signal amplifier and band-pass filter:
a) input impedance of band-pass filter;
b) output impedance of band-pass filter;
c) sensitivity level;
d) dynamic range;
e) power supply noise reduction ratio (PSRR);
f) maximum voltage gain over a pass band;
g) minimum voltage gain over a pass band;
h) decrease rate of voltage gain over a stop band;
i) bandwidth;
j) cut-off frequency.
4.3.5.2 Comparator
The following characteristics shall be given with respect to the corresponding component in a
comparator:
a) minimum input voltage;
b) hysteresis voltage;
c) output rising time under predefined load condition;
d) output falling time under predefined load condition;
e) input common mode dynamic range.

– 14 – IEC 62779-4:2020 © IEC 2020
4.3.5.3 CDR circuit
The following characteristics shall be given with respect to the corresponding component in a
CDR circuit:
a) input switching threshold voltage;
b) input logic high voltage;
c) input logic low voltage;
d) hysteresis voltage;
e) lock range;
f) lock time;
g) loop bandwidth;
h) PLL type (e.g. Type I, Type II);
nd rd
i) PLL order (e.g. 2 , 3 );
j) output rising time at predefined load condition;
k) output falling time at predefined load condition;
l) power supply noise reduction ratio (PSRR).
4.3.6 CDR circuit interface
The specifications for the data input of a CDR circuit, for example a line code and logic level,
shall be given. To maintain the operating frequency constant and stable, intentional switching
edges on the data input to the CDR should be provided. For example if consecutive ones or
zeros are supposed to be delivered to the data input of the CDR, an intentionally high or low
pulse of signal should be provided and added before the driver on the capsule endoscope.
4.3.7 Modem interface
4.3.7.1 Data
The specifications for data that is exchanged between a modem in the receiving device and
an interface shall be given.
4.3.7.2 Clock
The specifications for a clock signal used for synchronization shall be given.
4.3.8 Limiting values
4.3.8.1 Details to be stated
– Any dependency between the limiting values shall be specified.
– If externally connected and/or attached elements have an influence on the limiting values,
the elements and their conditions shall be specified.
– If the limiting values are exceeded for transient overload, the permissible excesses and
their durations shall be specified.
– All voltages are referenced to a specific reference terminal.
– The limiting values given shall cover an interface’s operation over the specified range of
operating temperature. If the limiting values are dependent on temperature, the
dependency shall be given.
4.3.8.2 Electrical limiting values
The limiting values of the following items shall be given:
a) supply voltage;
b) operating current;
c) supply power;
d) input voltage at an electrode;
e) number of electrodes on the receiving device;
f) dimension of the capsule endoscope;
g) leakage current to the heart;
h) maximum single fault current of a capsule endoscope when two transmitting electrodes
are short;
i) bit error rate (BER).
4.3.9 Temperatures
The following temperatures shall be given:
a) operating temperature;
b) storage temperature.
4.4 Operating specifications
4.4.1 Main application
The main application shall be stated, for example capsule endoscope for small bowel, large
intestine, etc.
If there are any application restrictions, they shall be stated.
4.4.2 Compatibility
A communication standard, for example IEEE 802.15.6 that is compatible with this document
shall be stated. Details of the standard including its communication protocol shall be given.

– 16 – IEC 62779-4:2020 © IEC 2020
Annex A
(informative)
General description of capsule endoscope using
human body communication
In human body communication (HBC), the human body is used as a transmission medium for
communication between a transmitter and receiver without wired or wireless technology. In
particular, in HBC, an electrical signal can be transferred from the transmitter to the receiver
in the form of non-return to zero (NRZ) digital data without using a carrier signal or component
related to it in order to operate with low power consumption. There are various applications of
HBC where various sensor nodes are connected together to transfer multimedia or biomedical
information among sensors or sensor hubs through the human body. Since HBC with digital
data transferring can operate with low power, sensors attached to the body can have a long
operating time without frequent changing of batteries.
Figure A.1 shows one of the particular applications using HBC, i.e. capsule endoscope
application. In particular, in the capsule endoscope application, the human body can be used
as a transmission medium for communication between the capsule endoscope (i.e.
transmitter) and the image recording device (i.e. receiver). Moreover, a long operating time or
low power consumption of the capsule endoscope is one of the important issues since the
capsule should operate at least 12 h after the user has swallowed the capsule to examine the
small bowel, an area that is hard to reach for the existing wired endoscopic system. The size
of the capsule itself is also important, because it should be swallowed easily by the user.

Key
RD Receiving device NE Nerve endoscope
CE Capsule endoscope LE Larynx endoscope
OE Oesophagus endoscope BE Bronchial endoscope
TE Thoracic endoscope SE Stomach endoscope
HE Heart endoscope BPE Bile passage endoscope
SBE Small bowel endoscope DE Duodenum endoscope
LIE Large intestine endoscope COLE Colon endoscope
RECE Rectum endoscope
Figure A.1 – Capsule endoscope application
Because of the simplicity of the implementation of human body communication with digital
data transferring compared to RF signaling, HBC is a good solution to sustain these
requirements.
– 18 – IEC 62779-4:2020 © IEC 2020
A capsule endoscope system using the human body is typically composed of the transmitting
part (capsule) that transfers digital image data to the human body (typically located in the
small bowel) and the receiving part that senses the transmitted signal from a capsule and
recovers the digital signal (typically located outside of the human body with various sensing
electrodes that are attached on the skin). A simple operation sequence of the capsule
endoscope using the human body is as follows. The raw image data captured by the image
sensor is converted to the pre-defined encoded digital data. Then, it is transmitted to the
electrodes on each end of the capsule endoscope in the form of a non-return to zero (NRZ)
signal. The transmitted signal that is measured at the skin of the body can have severe loss
or distortion that is different from the original transmitting signal from the capsule. An
electrical signal composed of NRZ digital data passes through the capsule endoscope
interface from the capsule to the receiving device. The capsule endoscope interface is
composed of several parts as follows: capsule endoscope, transmitting electrode of the
capsule, receiving device, receiving electrode of the receiving device, and analog front end at
the receiving device. The transmitting electrode on the capsule is a ring or other shaped metal
substance that is for transmitting the electrical signal. Since the signal transferring method in
the capsule endoscope is galvanic coupling, the capsule has two electrodes that are the
opposite polarity of each other (i.e. positive and negative). The differential signal transmitted
to the human body is attenuated and distorted while it passes through. The electrode on the
receiving device delivers the transferred differential signal to the analog front end at the
receiving device. The number of electrodes on the receiving device is more than two to
maximize the performance or quality of the receiving signal that varies according to the angle
of the rotation of the capsule. The analog front end at the receiving device restores the
original transmitting data from the distorted data by amplifying and phase-retiming the
received signal.
___________
– 20 – IEC 62779-4:2020 © IEC 2020
SOMMAIRE
AVANT-PROPOS . 21
