IEC 60704-2-1:2020
(Main)Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-1: Particular requirements for dry vacuum cleaners
Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-1: Particular requirements for dry vacuum cleaners
IEC 60704-2-1:2020 is applicable for the determination of airborne acoustical noise of mains operated and cordless dry vacuum cleaners for household use or under conditions similar to those in households. This part of IEC 60704 does not apply to vacuum cleaners for industrial or professional purposes. This edition includes the following significant technical changes with respect to the previous edition:
a) product scope is extended to cordless and similar vacuum cleaners;
b) definitions of "cleaning head", "active nozzle" and "standard Wilton test carpet" have been added;
c) specification of standard Wilton test carpet has been removed; reference is made to IEC/TS 62885-1;
d) specific requirements on equipping and pre-conditioning have been added;
e) topic ageing of test carpet is addressed.
This Part 2-1 supplements or modifies the corresponding clauses in IEC 60704-1:2010.
Appareils électrodomestiques et analogues - Code d'essai pour la détermination du bruit aérien - Partie 2-1: Exigences particulières pour les aspirateurs à sec
L'IEC 60704-2-1:2020 s'applique pour la détermination du bruit aérien des aspirateurs à sec qui fonctionnent sur secteur et des aspirateurs à sec sans cordon destinés à un usage domestique ou dans des conditions analogues à celles des foyers domestiques. La présente partie de l'IEC 60704 ne s'applique pas aux aspirateurs destinés à des usages industriels ou professionnels. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) le domaine d'application des produits a été étendu aux aspirateurs sans cordon et appareils analogues;
b) les définitions des termes "tête de nettoyage", "suceur actif" et "tapis d'essai normalisé Wilton" ont été ajoutées;
c) la spécification du tapis d'essai normalisé Wilton a été supprimée; il est fait référence à l'IEC TS 62885-1;
d) des exigences spécifiques pour l'équipement et le conditionnement préalable ont été ajoutées;
e) le sujet du vieillissement du tapis d'essai est traité.
La présente Partie 2-1 complète ou modifie les articles correspondants de l'IEC 60704-1:2010.
General Information
Relations
Buy Standard
Standards Content (Sample)

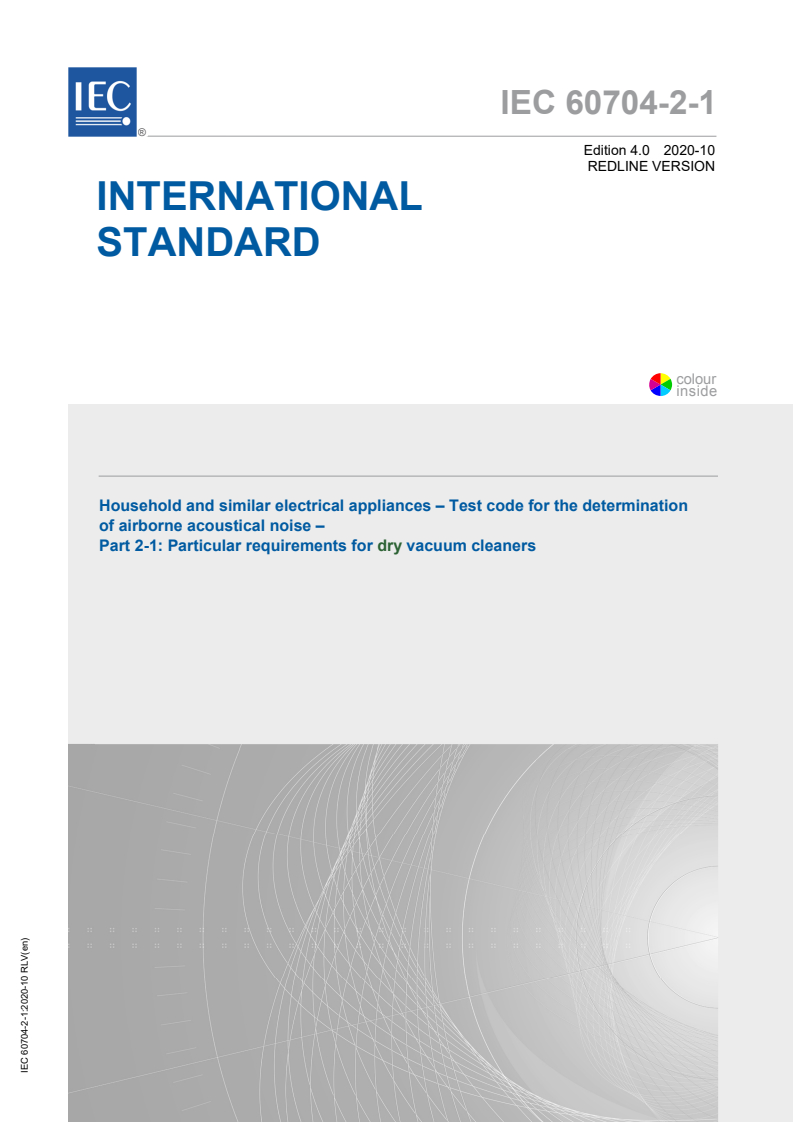

IEC 60704-2-1 ®
Edition 4.0 2020-10
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Test code for the determination
of airborne acoustical noise –
Part 2-1: Particular requirements for dry vacuum cleaners
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.

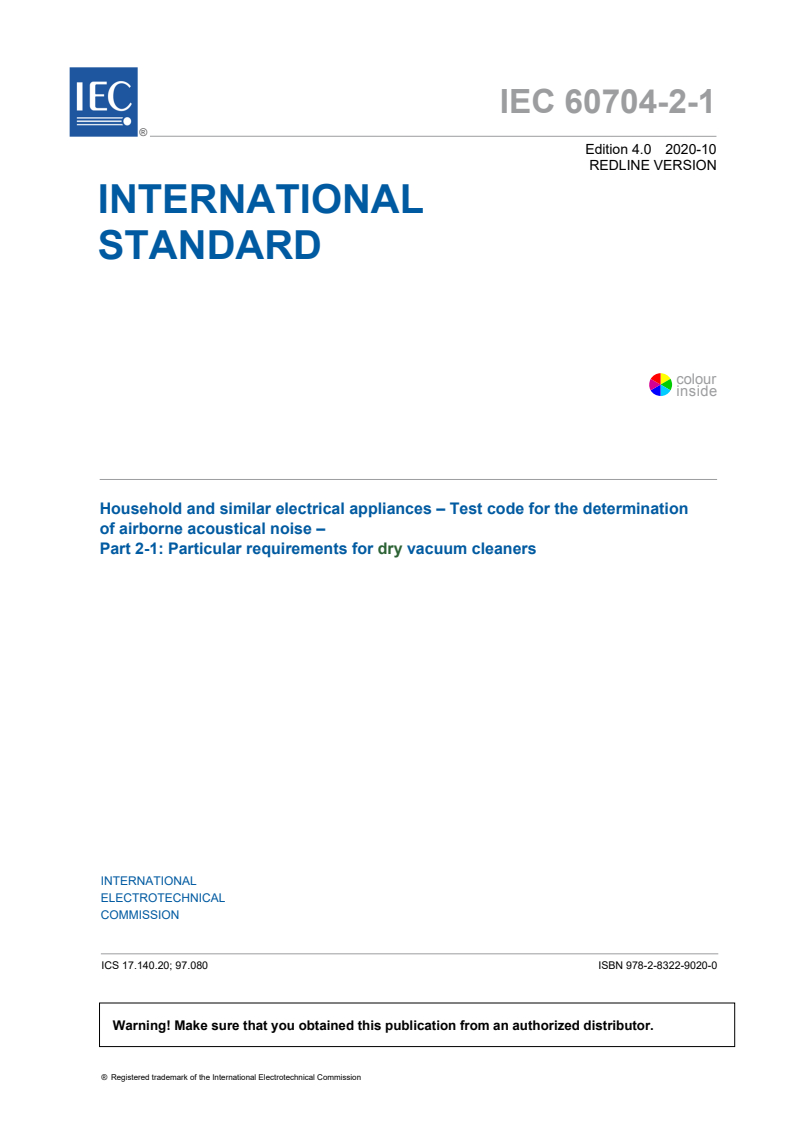

IEC 60704-2-1 ®
Edition 4.0 2020-10
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Test code for the determination
of airborne acoustical noise –
Part 2-1: Particular requirements for dry vacuum cleaners
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 17.140.20; 97.080 ISBN 978-2-8322-9020-0

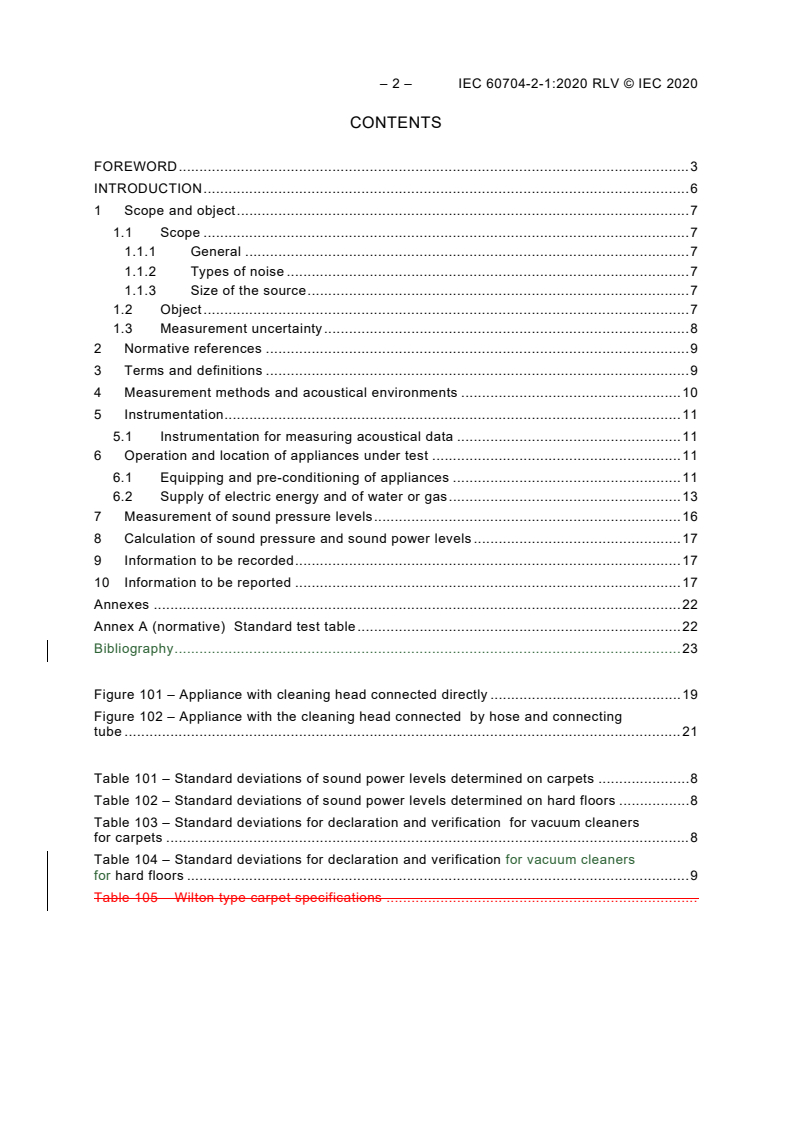

– 2 – IEC 60704-2-1:2020 RLV © IEC 2020
CONTENTS
FOREWORD . 3
INTRODUCTION . 6
1 Scope and object . 7
1.1 Scope . 7
1.1.1 General . 7
1.1.2 Types of noise . 7
1.1.3 Size of the source . 7
1.2 Object . 7
1.3 Measurement uncertainty . 8
2 Normative references . 9
3 Terms and definitions . 9
4 Measurement methods and acoustical environments . 10
5 Instrumentation . 11
5.1 Instrumentation for measuring acoustical data . 11
6 Operation and location of appliances under test . 11
6.1 Equipping and pre-conditioning of appliances . 11
6.2 Supply of electric energy and of water or gas . 13
7 Measurement of sound pressure levels . 16
8 Calculation of sound pressure and sound power levels . 17
9 Information to be recorded . 17
10 Information to be reported . 17
Annexes . 22
Annex A (normative) Standard test table . 22
Bibliography . 23
Figure 101 – Appliance with cleaning head connected directly . 19
Figure 102 – Appliance with the cleaning head connected by hose and connecting
tube . 21
Table 101 – Standard deviations of sound power levels determined on carpets . 8
Table 102 – Standard deviations of sound power levels determined on hard floors . 8
Table 103 – Standard deviations for declaration and verification for vacuum cleaners
for carpets . 8
Table 104 – Standard deviations for declaration and verification for vacuum cleaners
for hard floors . 9
Table 105 – Wilton type carpet specifications .
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
TEST CODE FOR THE DETERMINATION
OF AIRBORNE ACOUSTICAL NOISE –
Part 2-1: Particular requirements for dry vacuum cleaners
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition. A vertical bar appears in the margin wherever a change has
been made. Additions are in green text, deletions are in strikethrough red text.
– 4 – IEC 60704-2-1:2020 RLV © IEC 2020
International Standard IEC 60704-2-1 has been prepared by subcommittee 59F: Surface
cleaning appliances, of IEC technical committee 59: Performance of household and similar
electrical appliances.
This fourth edition cancels and replaces the third edition published in 2014. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) product scope is extended to cordless and similar vacuum cleaners;
b) definitions of "cleaning head", "active nozzle" and "standard Wilton test carpet" have been
added;
c) specification of standard Wilton test carpet has been removed; reference is made to
IEC TS 62885-1;
d) specific requirements on equipping and pre-conditioning have been added;
e) topic ageing of test carpet is addressed.
The text of this International Standard is based on the following documents:
FDIS Report on voting
59F/399/FDIS 59F/408/RVD
Full information on the voting for the approval of this International Standard can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
This Part 2-1 is intended to be used in conjunction with IEC 60704-1:2010, Household and
similar electrical appliances – Test code for the determination of airborne acoustical noise –
Part 1: General requirements.
NOTE When "Part 1" is mentioned in this standard, it refers to IEC 60704-1:2010.
The relevant text of Part 1 as amended by this document establishes the test code for vacuum
cleaners.
This Part 2-1 supplements or modifies the corresponding clauses in IEC 60704-1:2010. When
a particular subclause of Part 1 is not mentioned in this Part 2-1, that subclause is applicable
as far as reasonable. Where this standard states "addition", "modification" or "replacement",
the relevant requirements, test specifications or explanatory matter in Part 1 should be adapted
accordingly.
Subclauses, tables, and figures that are additional to those in Part 1 are numbered starting from
101. Additional annexes are lettered AA, BB, etc.
Unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from
101, including those in a replaced clause or subclause.
A list of all the parts in the IEC 60704 series, published under the general title Household and
similar electrical appliances – Test code for the determination of airborne acoustical noise, can
be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.
– 6 – IEC 60704-2-1:2020 RLV © IEC 2020
INTRODUCTION
The measuring conditions specified in t
...

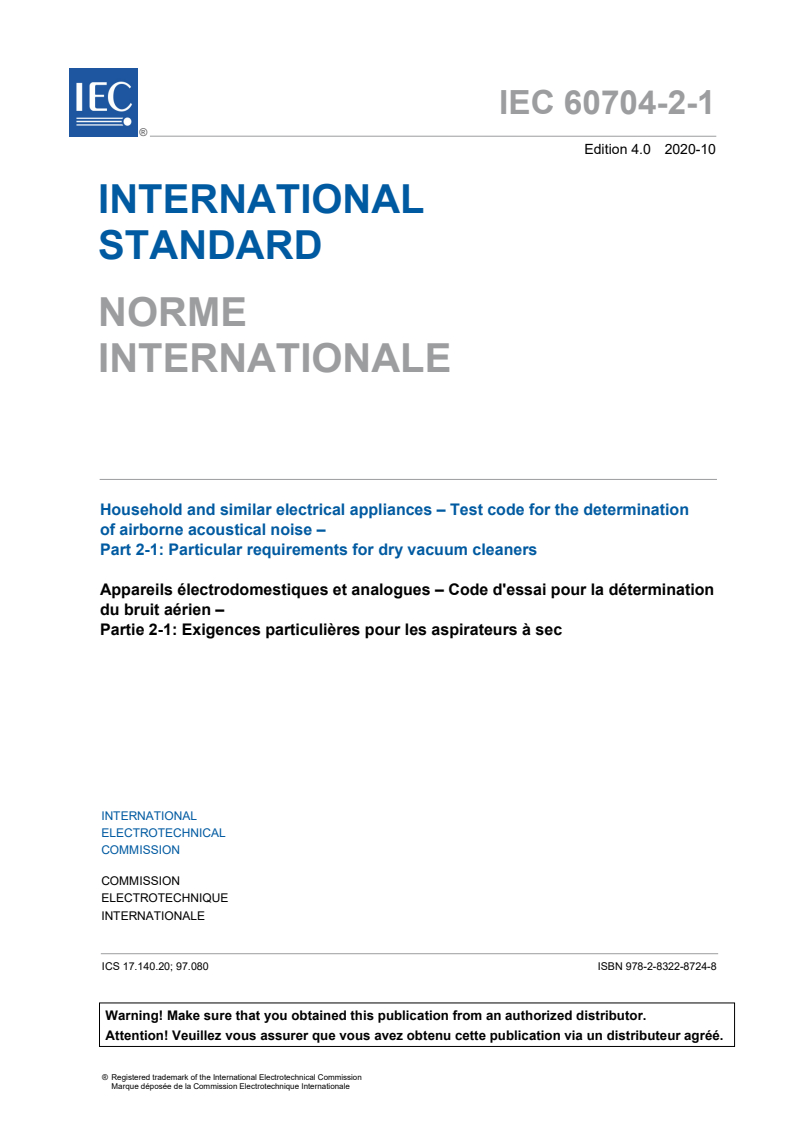

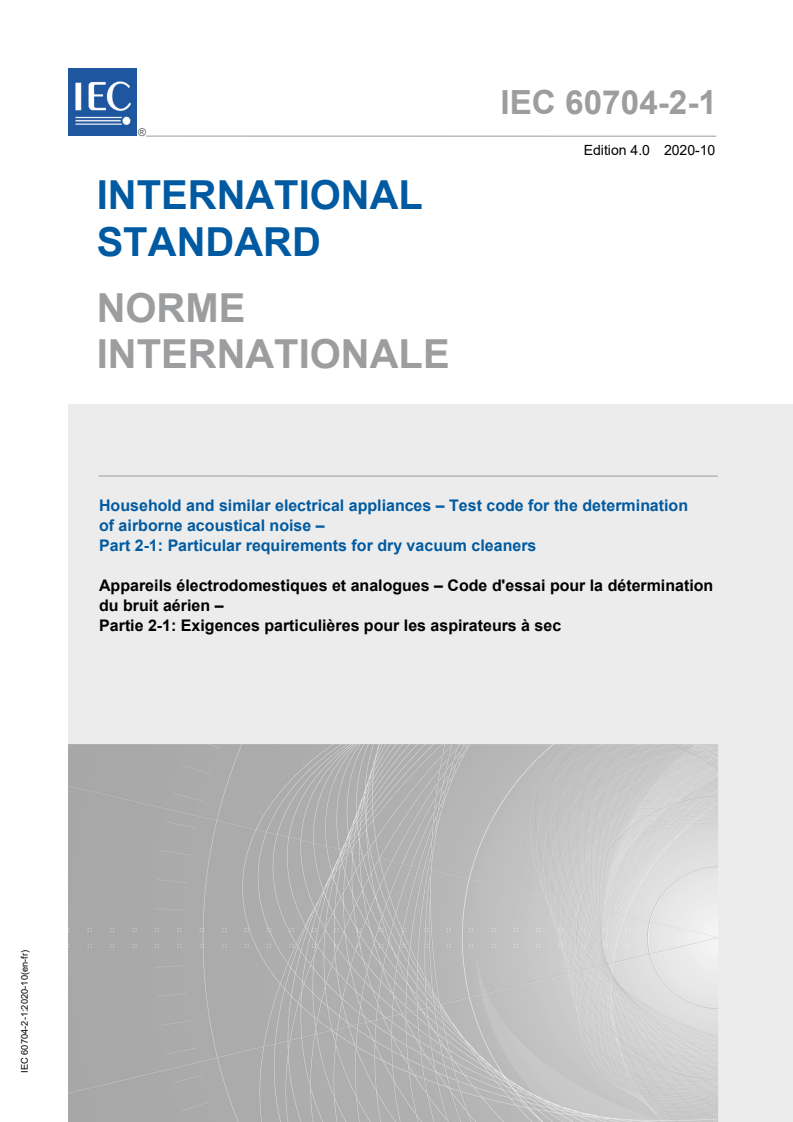

IEC 60704-2-1 ®
Edition 4.0 2020-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Test code for the determination
of airborne acoustical noise –
Part 2-1: Particular requirements for dry vacuum cleaners
Appareils électrodomestiques et analogues – Code d'essai pour la détermination
du bruit aérien –
Partie 2-1: Exigences particulières pour les aspirateurs à sec
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.
IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 60704-2-1 ®
Edition 4.0 2020-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Test code for the determination
of airborne acoustical noise –
Part 2-1: Particular requirements for dry vacuum cleaners
Appareils électrodomestiques et analogues – Code d'essai pour la détermination
du bruit aérien –
Partie 2-1: Exigences particulières pour les aspirateurs à sec
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.140.20; 97.080 ISBN 978-2-8322-8724-8
– 2 – IEC 60704-2-1:2020 © IEC 2020
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope and object . 6
1.1 Scope . 6
1.1.1 General . 6
1.1.2 Types of noise . 6
1.1.3 Size of the source . 6
1.2 Object . 6
1.3 Measurement uncertainty . 7
2 Normative references . 8
3 Terms and definitions . 8
4 Measurement methods and acoustical environments . 9
5 Instrumentation . 9
5.1 Instrumentation for measuring acoustical data . 9
6 Operation and location of appliances under test . 9
6.1 Equipping and pre-conditioning of appliances . 9
6.2 Supply of electric energy and of water or gas . 11
7 Measurement of sound pressure levels . 14
8 Calculation of sound pressure and sound power levels . 14
9 Information to be recorded . 14
10 Information to be reported . 14
Annexes . 18
Annex A (normative) Standard test table . 18
Bibliography . 19
Figure 101 – Appliance with cleaning head connected directly . 16
Figure 102 – Appliance with the cleaning head connected by hose and connecting tube . 17
Table 101 – Standard deviations of sound power levels determined on carpets . 7
Table 102 – Standard deviations of sound power levels determined on hard floors . 7
Table 103 – Standard deviations for declaration and verification for vacuum cleaners
for carpets . 7
Table 104 – Standard deviations for declaration and verification for vacuum cleaners
for hard floors . 8
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
TEST CODE FOR THE DETERMINATION
OF AIRBORNE ACOUSTICAL NOISE –
Part 2-1: Particular requirements for dry vacuum cleaners
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60704-2-1 has been prepared by subcommittee 59F: Surface
cleaning appliances, of IEC technical committee 59: Performance of household and similar
electrical appliances.
This fourth edition cancels and replaces the third edition published in 2014. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) product scope is extended to cordless and similar vacuum cleaners;
b) definitions of "cleaning head", "active nozzle" and "standard Wilton test carpet" have been
added;
c) specification of standard Wilton test carpet has been removed; reference is made to
IEC TS 62885-1;
– 4 – IEC 60704-2-1:2020 © IEC 2020
d) specific requirements on equipping and pre-conditioning have been added;
e) topic ageing of test carpet is addressed.
The text of this International Standard is based on the following documents:
FDIS Report on voting
59F/399/FDIS 59F/408/RVD
Full information on the voting f
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
