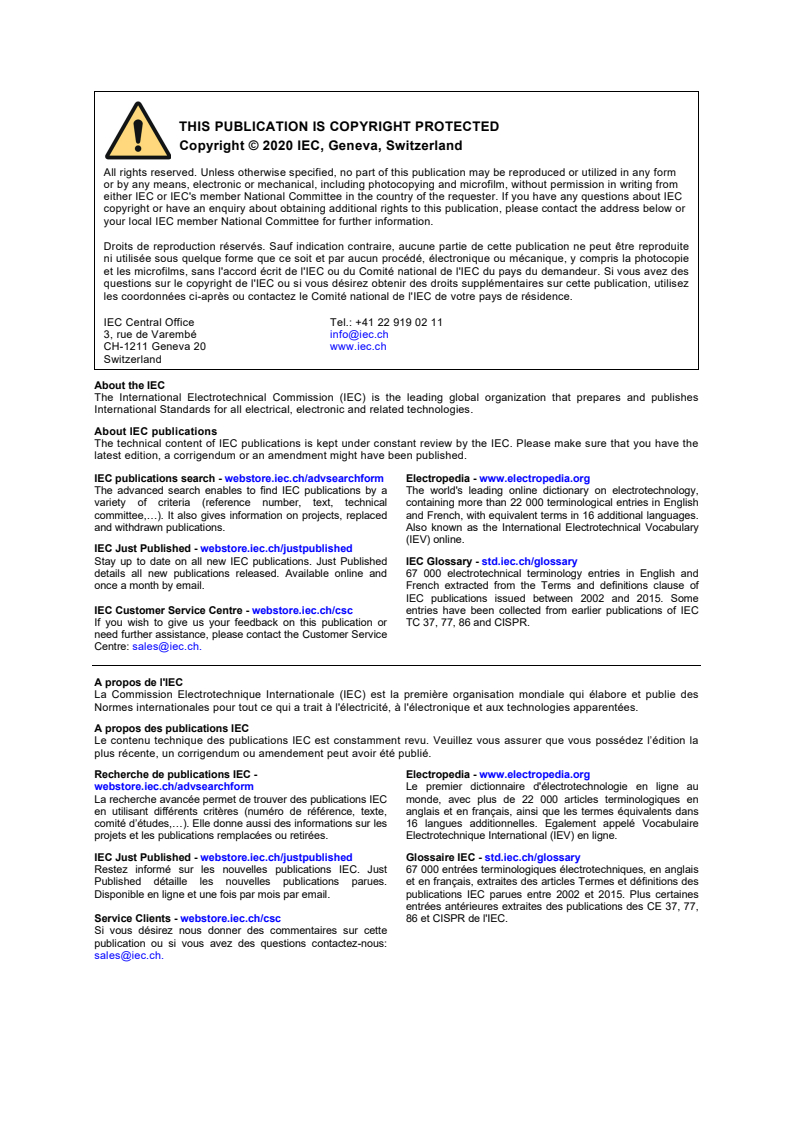

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and definitions clause of
IEC publications issued between 2002 and 2015. Some
IEC Customer Service Centre - webstore.iec.ch/csc entries have been collected from earlier publications of IEC
If you wish to give us your feedback on this publication or TC 37, 77, 86 and CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues entre 2002 et 2015. Plus certaines
entrées antérieures extraites des publications des CE 37, 77,
Service Clients - webstore.iec.ch/csc 86 et CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 62153-4-10 ®
Edition 2.0 2020-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Metallic communication cable test methods –

Part 4-10: Electromagnetic compatibility (EMC) – Transfer impedance and

screening attenuation of feed-throughs and electromagnetic gaskets – Double

coaxial test method
Méthodes d’essai des câbles métalliques de communication –

Partie 4-10: Compatibilité électromagnétique (CEM) – Impédance de transfert et

affaiblissement d'écran des traversées et des joints d’étanchéité

électromagnétiques – Méthode d'essai coaxiale double

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.100.10; 33.120.10 ISBN 978-2-8322-8557-2

– 2 – IEC 62153-4-10:2015/AMD1:2020
© IEC 2020

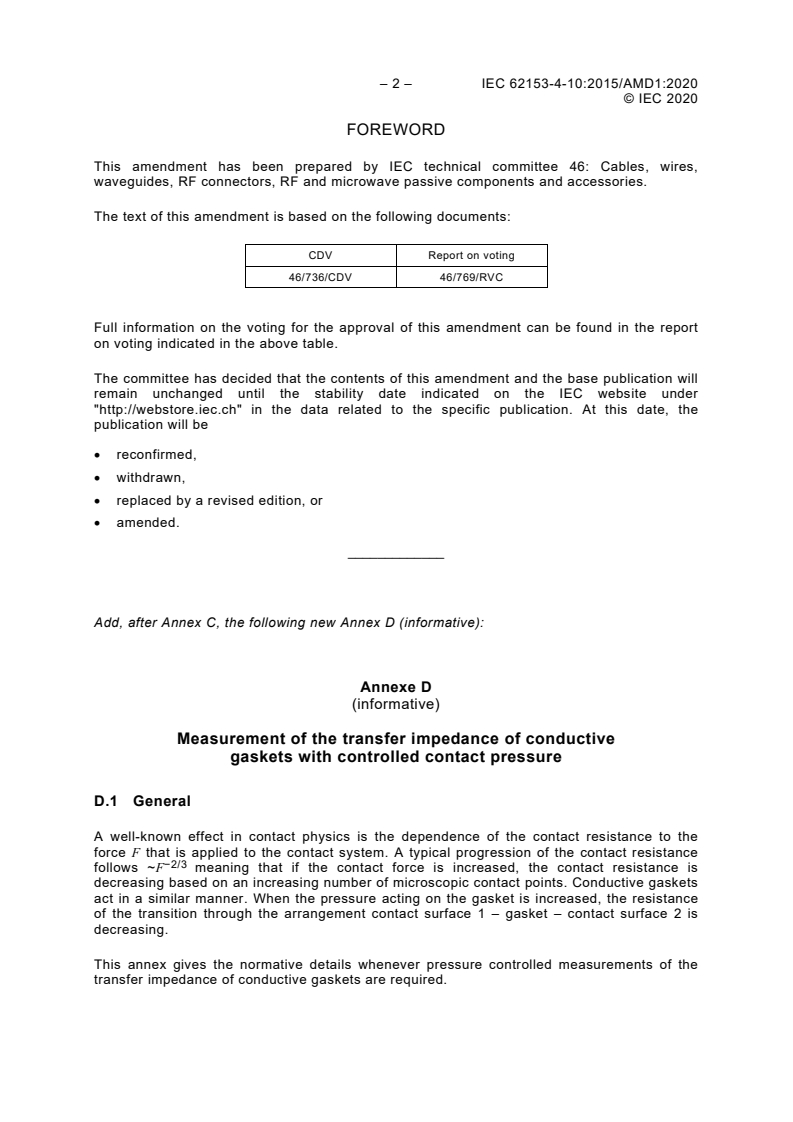

FOREWORD
This amendment has been prepared by IEC technical committee 46: Cables, wires,
waveguides, RF connectors, RF and microwave passive components and accessories.
The text of this amendment is based on the following documents:
CDV Report on voting
46/736/CDV 46/769/RVC
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
Add, after Annex C, the following new Annex D (informative):

Annexe D
(informative)
Measurement of the transfer impedance of conductive
gaskets with controlled contact pressure
D.1 General
A well-known effect in contact physics is the dependence of the contact resistance to the
force F that is applied to the contact system. A typical progression of the contact resistance
−2/3
follows ~F meaning that if the contact force is increased, the contact resistance is
decreasing based on an increasing number of microscopic contact points. Conductive gaskets
act in a similar manner. When the pressure acting on the gasket is increased, the resistance
of the transition through the arrangement contact surface 1 – gasket – contact surface 2 is
decreasing.
This annex gives the normative details whenever pressure controlled measurements of the
transfer impedance of conductive gaskets are required.

© IEC 2020
D.2 Measuring equipment and auxiliary measuring devices
Typical measuring equipment and auxiliary measuring devices consist of:
• RF-generator and test receiver (test method A) or a network analyser (NWA) (test
method B,
• test fixture for the relevant specimen size,
• terminating resistor (test method A: RF-generator and test receiver).
D.3 Test setup
The test set-up is shown in Figure D.1.

Figure D.1 – Test set-up
Figure D.2 shows the details of an example for a suitable test fixture enabling the
determination of certain contact pressures during the measurement.

– 4 – IEC 62153-4-10:2015/AMD1:2020
© IEC 2020
Key
1 termination (only required for test method A: RF-Generator and test receiver)
2 housing lid
3 test specimen
4 connection to generator port (method A) or NWA Port 1 (method B)
5 contact element
6 insulator
7 housing
8 pressure element
9 connection to test receiver port (method A) or NWA Port 2 (method B)
10 connection to pneumatic or hydraulic
11 manometer
Figure D.2 – Details of the test fixture
D.4 Test specimen
Specimens of size A are dimensioned for measurements up to 3 GHz, size B f
...
