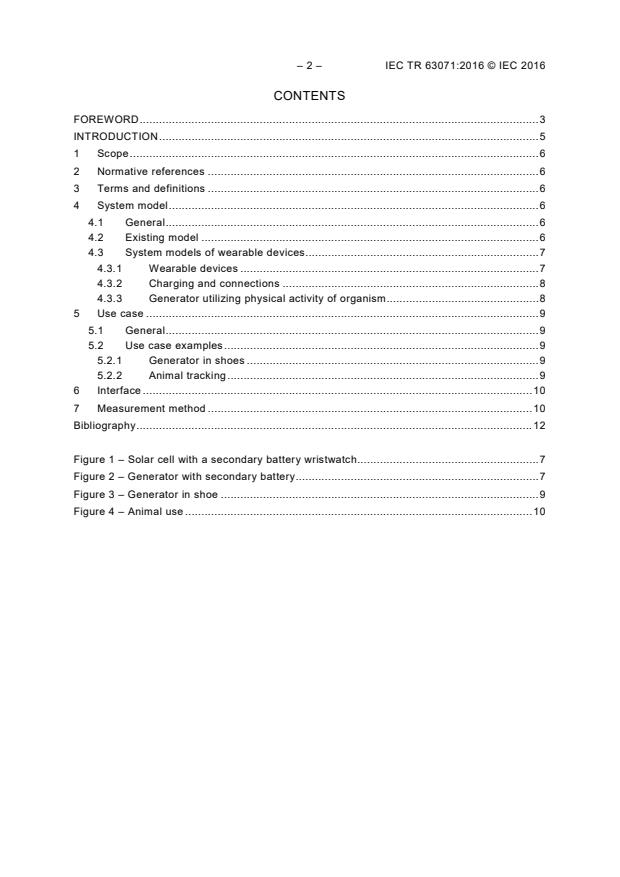

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 System model . 6
4.1 General . 6
4.2 Existing model . 6
4.3 System models of wearable devices. 7
4.3.1 Wearable devices . 7
4.3.2 Charging and connections . 8
4.3.3 Generator utilizing physical activity of organism . 8
5 Use case . 9
5.1 General . 9
5.2 Use case examples . 9
5.2.1 Generator in shoes . 9
5.2.2 Animal tracking . 9
6 Interface . 10
7 Measurement method . 10
Bibliography . 12

Figure 1 – Solar cell with a secondary battery wristwatch. 7
Figure 2 – Generator with secondary battery . 7
Figure 3 – Generator in shoe . 9
Figure 4 – Animal use . 10

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
POWER SUPPLYING SCHEME FOR WEARABLE
SYSTEMS AND EQUIPMENT
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a Technical Report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC TR 63071, which is a Technical Report, has been prepared by IEC technical committee
100: Audio, video and multimedia systems and equipment.
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
100/2751/DTR 100/2816/RVC
Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – IEC TR 63071:2016 © IEC 2016
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
INTRODUCTION
Wearable devices are being introduced into the market, but each device employs its own
power charging method and power source device. Wearable devices are used to support
human life and health. The duration and life of the power source, as well as easy charging
and replacing of a power source, is a crucial factor for wearable devices that are primarily
powered by batteries. A power generator is one solution for this power duration or life, since it
provides power generated by user activities and/or also from environmental sources. Also,
connectivity and compatibility of power and data transmission is important.
This Technical Report does not specify the power generating or energy harvesting methods
and devices themselves, but focuses on interoperability and measurement methods of power-
suppling devices and systems.
– 6 – IEC TR 63071:2016 © IEC 2016
POWER SUPPLYING SCHEME FOR WEARABLE
SYSTEMS AND EQUIPMENT
1 Scope
This document provides models and frameworks for the power-supplying scheme for wearable
systems and equipment. This document does not specify power generating or energy
harvesting methods and the devices themselves.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
energy harvest
technique to obtain energy from surroundings such as electric power from the activity of
organisms
3.2
kinetic generator
generator that utilizes kinetic energy to generate electric power
4 System model
4.1 General
The power-supplying system for audio, video and multimedia systems and equipment can be
applicable to wearable systems and equipment. Among them, the power supplying systems of
energy harvesting devices or systems are suitable for the wearable devices because they
generate energy.
Energy-harvesting devices or systems have already been used in various pieces of equipment
such as electronic wrist watches. The existing model is described in 4.2.
4.2 Existing model
A major existing model of wearable equipment and power supply is the electronic wristwatch.
Power supply methods for electronic wristwatches include:
• primary batteries,
• secondary batteries,
• solar cells with secondary batteries,

• a generator with a secondary battery.
To charge the secondary battery, wired power transfer is a common method. Its connector is
for example a USB connector specified in the IEC 62680 series or other type of dedicated
connector.
Wireless power transfer is not a common method for wristwatches, but it is applied for health
band type wearable equipment that has also a watch function. However, wireless power
transfer is not applied when a wristwatch is worn but applied when it is taken off and when it
is charg
...
