IEC 60050-702:1992/AMD2:2016
(Amendment)Amendment 2 - International Electrotechnical Vocabulary (IEV) - Part 702: Oscillations, signals and related devices
Amendment 2 - International Electrotechnical Vocabulary (IEV) - Part 702: Oscillations, signals and related devices
Amendement 2 - Vocabulaire Electrotechnique International (IEV) - Partie 702: Oscillations, signaux et dispositifs associés
General Information
- Status
- Published
- Publication Date
- 15-Dec-2016
- Technical Committee
- TC 1 - Terminology
- Current Stage
- PPUB - Publication issued
- Start Date
- 19-Jan-2017
- Completion Date
- 16-Dec-2016
Relations
- Effective Date
- 05-Sep-2023
Overview
The IEC 60050-702:1992/AMD2:2016 is an important amendment to the International Electrotechnical Vocabulary (IEV), specifically Part 702, which covers Oscillations, Signals, and Related Devices. Published by the International Electrotechnical Commission (IEC), this amendment updates the terminology and definitions used globally in the fields of electrical and electronic engineering.
This standard provides precise, internationally accepted definitions of key terms related to oscillations, signal processing, modulation, coding, and related devices. The vocabulary ensures uniform understanding and communication across industries and research disciplines involved with electrotechnical technologies.
Key Topics
IEC 60050-702:2016 Amendment 2 addresses the following critical concepts:
- Baseband: Defines the frequency band occupied by one or more multiplexed signals in a transmission system, critical for understanding transmission and modulation stages.
- Absorption: Describes the conversion of electromagnetic or acoustic wave energy into other forms, such as heat, when interacting with matter.
- Analogue Signal: A signal with continuously variable values representing information, fundamental in electronic communication systems.
- Automatic Gain Control (AGC): Mechanism used to maintain consistent output signal levels despite variable input amplitudes, widely applied in amplifiers and receivers.
- Binary Digit (Bit): The fundamental unit of digital information, consisting of two possible states, essential in digital communication and data processing.
- Byte: An ordered set of eight binary digits operated as a unit, forming the basis of digital information storage and processing.
- Code Conversion (Transcoding): Changing information representation from one code system to another, important in data communications and telegraphy.
- Redundant Codes: Codes containing extra signal elements beyond the minimum necessary for data representation, enabling error detection and correction.
- Error Detecting and Correcting Codes: Specialized redundant codes designed to automatically detect and correct errors in the transmission or processing of information.
- Modulation and Carrier: Definitions related to oscillations used in transmitting information by varying carriers with signals, including amplitude modulation (AM) and amplitude shift keying (ASK).
- Baud: The unit of modulation rate or line digit rate, critical in measuring data transmission speed.
This amendment refines definitions and replaces outdated terms to enhance clarity and standardization.
Applications
The vocabulary outlined in IEC 60050-702:2016 Amendment 2 is essential for a broad spectrum of practical applications, including:
- Telecommunication Systems: Understanding and designing signal modulation, coding, and transmission based on standardized terminology.
- Electronics Manufacturing: Developing devices such as amplifiers, modulators, and signal processors that rely heavily on standardized electrotechnical vocabularies for quality and compliance.
- Digital Communications: Employing error detecting and correcting codes to ensure data integrity in networks and digital broadcasting.
- Signal Processing: Applying concepts like automatic gain control and analogue/digital signal interpretation for audio, video, and sensor technologies.
- Education and Research: Providing a reliable knowledge base for students, educators, and researchers working in fields related to electrical engineering and communications technology.
By adhering to the IEC vocabulary, professionals ensure interoperability, reduce ambiguities, and facilitate international collaboration.
Related Standards
IEC 60050-702:2016 links closely with other international standards that collectively support electrotechnical terminology and practices:
- IEC 60050 (General Electrotechnical Vocabulary): Covers broad electrical and electronic terms beyond oscillations and signals.
- IEC 701 Series (Modulation Vocabulary): Provides detailed terminology on modulation techniques referenced in this amendment.
- IEC 721 and IEC 721-03 (Telegraphy and Digital Data Codes): Related to terms defining digital codes, error detection, and correction used in communication standards.
- Various IEC TC 1 Terminology Projects: Ongoing efforts to maintain and update electrotechnical terms online via Electropedia (www.electropedia.org).
- CISPR Publications: Some entries related to radio communication and signal standards overlap with work by CISPR, the specialized IEC committee for radio interference.
For the latest terminology and definitions, users are encouraged to consult the online IEC Electropedia and verify the edition and amendments of standards, as the IEC maintains continuous updates.
By aligning with IEC 60050-702:2016 Amendment 2, industries and academia gain access to the most accurate and current international electrotechnical vocabulary related to oscillations, signals, and related devices-enhancing communication, efficiency, and innovation in the global electrotechnical landscape.
Frequently Asked Questions
IEC 60050-702:1992/AMD2:2016 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Amendment 2 - International Electrotechnical Vocabulary (IEV) - Part 702: Oscillations, signals and related devices". This standard covers: Amendment 2 - International Electrotechnical Vocabulary (IEV) - Part 702: Oscillations, signals and related devices
Amendment 2 - International Electrotechnical Vocabulary (IEV) - Part 702: Oscillations, signals and related devices
IEC 60050-702:1992/AMD2:2016 is classified under the following ICS (International Classification for Standards) categories: 01.040.31 - Electronics (Vocabularies); 29.020 - Electrical engineering in general; 31.020 - Electronic components in general. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 60050-702:1992/AMD2:2016 has the following relationships with other standards: It is inter standard links to IEC 60050-702:1992. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 60050-702:1992/AMD2:2016 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
IEC 60050-702 ®
Edition 1.0 2016-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
HO RIZONTAL STANDARD
NO RME HORIZONTALE
AMENDMENT 2
AMENDEMENT 2
International electrotechnical vocabulary –
Part 702: Oscillations, signals and related devices
Vocabulaire électrotechnique international –
Partie 702: Oscillations, signaux et dispositifs associés
IEC 60050-702:1992-03/AMD2:2016-12(en-fr)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et
CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60050-702 ®
Edition 1.0 2016-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
HO RIZONTAL STANDARD
NO RME HORIZONTALE
AMENDMENT 2
AMENDEMENT 2
International electrotechnical vocabulary –
Part 702: Oscillations, signals and related devices
Vocabulaire électrotechnique international –
Partie 702: Oscillations, signaux et dispositifs associés
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 01.040.31; 29.020; 31.020 ISBN 978-2-8322-3729-8
– II – IEC 60050-702:1992/AMD2:2016
© IEC 2016

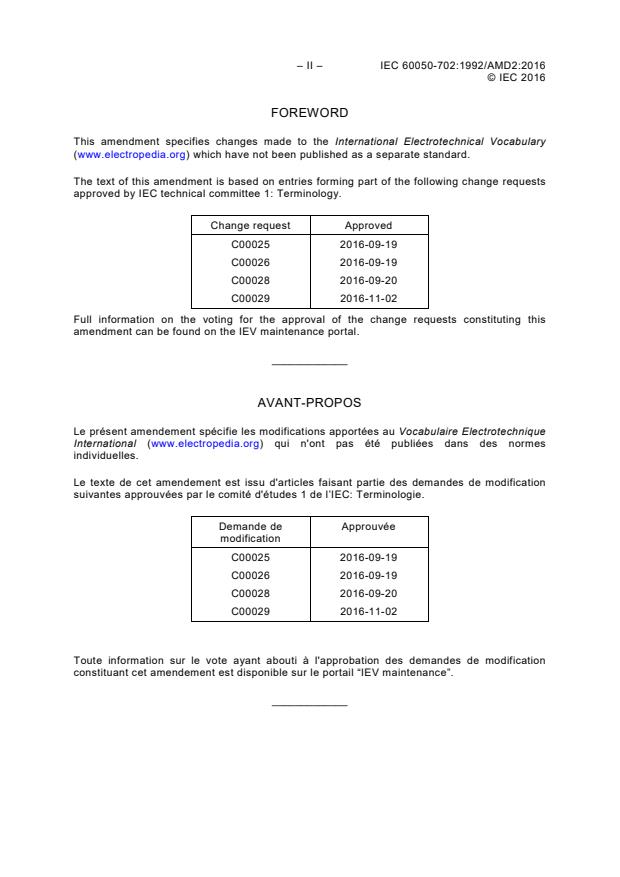

FOREWORD
This amendment specifies changes made to the International Electrotechnical Vocabulary
(www.electropedia.org) which have not been published as a separate standard.
The text of this amendment is based on entries forming part of the following change requests
approved by IEC technical committee 1: Terminology.
Change request Approved
C00025 2016-09-19
C00026 2016-09-19
C00028 2016-09-20
C00029 2016-11-02
Full information on the voting for the approval of the change requests constituting this
amendment can be found on the IEV maintenance portal.
_____________
AVANT-PROPOS
Le présent amendement spécifie les modifications apportées au Vocabulaire Electrotechnique
International (www.electropedia.org) qui n'ont pas été publiées dans des normes
individuelles.
Le texte de cet amendement est issu d'articles faisant partie des demandes de modification
suivantes approuvées par le comité d'études 1 de l’IEC: Terminologie.
Demande de Approuvée
modification
C00025 2016-09-19
C00026 2016-09-19
C00028 2016-09-20
C00029 2016-11-02
Toute information sur le vote ayant abouti à l'approbation des demandes de modification
constituant cet amendement est disponible sur le portail “IEV maintenance”.
_____________
© IEC 2016
Part 702 / Partie 702
Replace IEV 702-01-06, IEV 702-02-12, IEV 702-04-02, IEV 702-04-15, IEV 702-04-38,
IEV 702-05-03, IEV 702-05-04, IEV 702-05-09, IEV 702-05-16, IEV 702-05-17, IEV 702-05-18,
IEV 702-05-19, IEV 702-05-20, IEV 702-05-24, IEV 702-06-01, IEV 702-06-03, IEV 702-06-17,
IEV 702-06-18, IEV 702-06-45, IEV 702-06-60, IEV 702-08-62, IEV 702-09-20, IEV 702-09-30
and IEV 702-09-45 by the following:
Remplacer IEV 702-01-06, IEV 702-02-12, IEV 702-04-02, IEV 702-04-15, IEV 702-04-38,
IEV 702-05-03, IEV 702-05-04, IEV 702-05-09, IEV 702-05-16, IEV 702-05-17, IEV 702-05-18,
IEV 702-05-19, IEV 702-05-20, IEV 702-05-24, IEV 702-06-01, IEV 702-06-03, IEV 702-06-17,
IEV 702-06-18, IEV 702-06-45, IEV 702-06-60, IEV 702-08-62, IEV 702-09-20, IEV 702-09-30
et IEV 702-09-45 par ce qui suit:
702-01-06
baseband
frequency band occupied by one signal or by a number of multiplexed signals at specified
input and output points of a transmission system
Note 1 to entry: In radiocommunication, the baseband is that frequency band occupied by the signal modulating the
radio transmitter.
Note 2 to entry: When the transmission involves multiple modulation, it is generally considered that the baseband
is that frequency band occupied by the signal which is applied to the first modulation stage, and not the frequency
band occupied by an intermediate modulated signal.
bande de base, f
bande de fréquences occupée par un signal, ou par un ensemble de signaux multiplexés, en
des points spécifiés à l'entrée et à la sortie d'un système de transmission
Note 1 à l'article: Dans une radiocommunication, la bande de base est la bande de fréquences occupée par le
signal qui module l'émetteur radioélectrique.
Note 2 à l'article: Dans une transmission comportant une modulation multiple, on considère généralement comme
bande de base la bande de fréquences occupée par le signal appliqué au premier étage de modulation et non la
bande de fréquences occupée par un modulat intermédiaire.
702-02-12
absorption
conversion of electromagnetic or acoustic wave energy into another form of energy, for
instance heat, by interaction with matter
absorption, f
conversion de l'énergie d'une onde électromagnétique ou acoustique en une autre forme
d’énergie, par exemple en chaleur, par interaction avec la matière
702-04-02
analogue signal
signal in which the characteristic quantity representing information can at any instant assume
any value within a continuous interval
Note 1 to entry: An analogue signal can follow continuously the values of another physical quantity representing
information.
– 2 – IEC 60050-702:1992/AMD2:2016
© IEC 2016
signal analogique, m
signal tel que la caractéristique qui représente des informations est susceptible à tout instant
de prendre une quelconque des valeurs d'un intervalle continu
Note 1 à l'article: Un signal analogique peut suivre de façon continue les valeurs d'une autre grandeur physique
représentant des informations.
702-04-15
anisochronous, adj
DEPRECATED: asynchronous, adj
qualifying a time-varying phenomenon, a time-scale or a signal the consecutive significant
instants of which are separated by time intervals which are not all constrained to have the
same rated duration or to have rated durations equal to integral multiples of a unit duration
Note 1 to entry: The term “asynchronous” with a different meaning is used in the technique of rotating machines
(see for example IEV 411-31-09 “asynchronous machine").
anisochrone, adj
DÉCONSEILLÉ: asynchrone, adj
qualifie un phénomène variable dans le temps, une trame temporelle ou un signal dont les
instants significatifs consécutifs sont séparés par des intervalles
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
