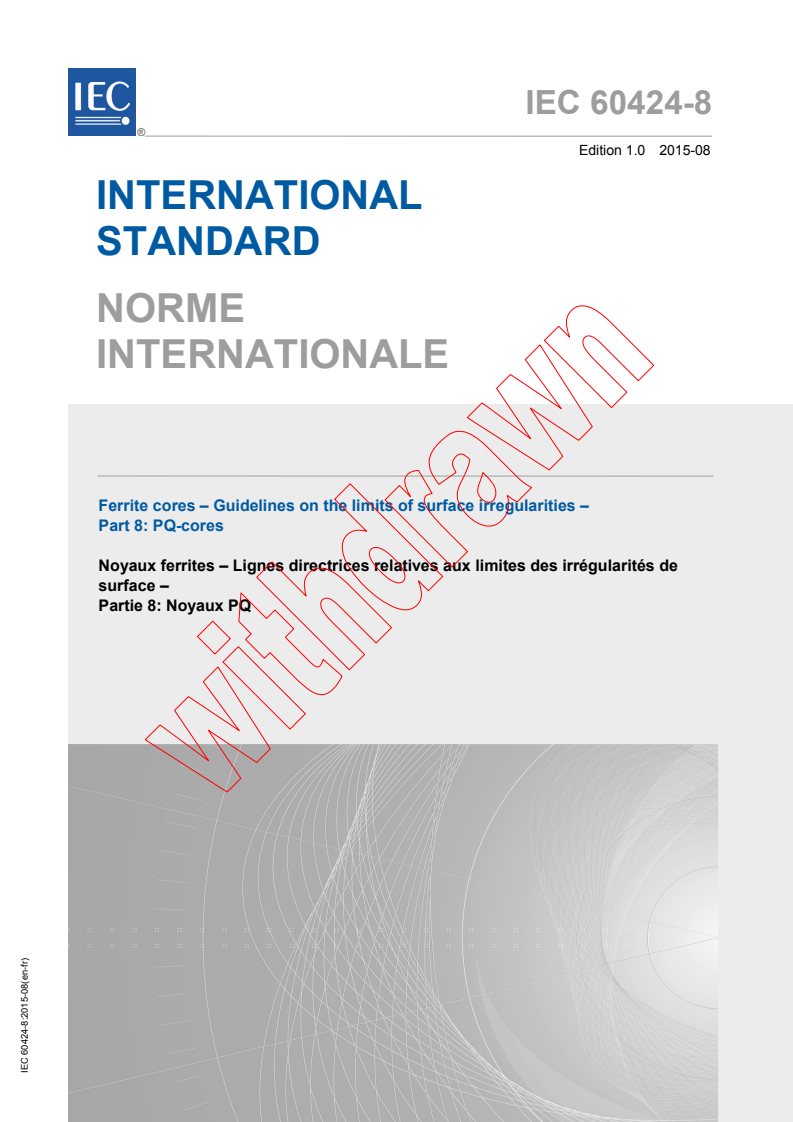

IEC 60424-8:2015

IEC 60424-8 ®
Edition 1.0 2015-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Ferrite cores – Guidelines on the limits of surface irregularities –
Part 8: PQ-cores
Noyaux ferrites – Lignes directrices relatives aux limites des irrégularités de
surface –
Partie 8: Noyaux PQ
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

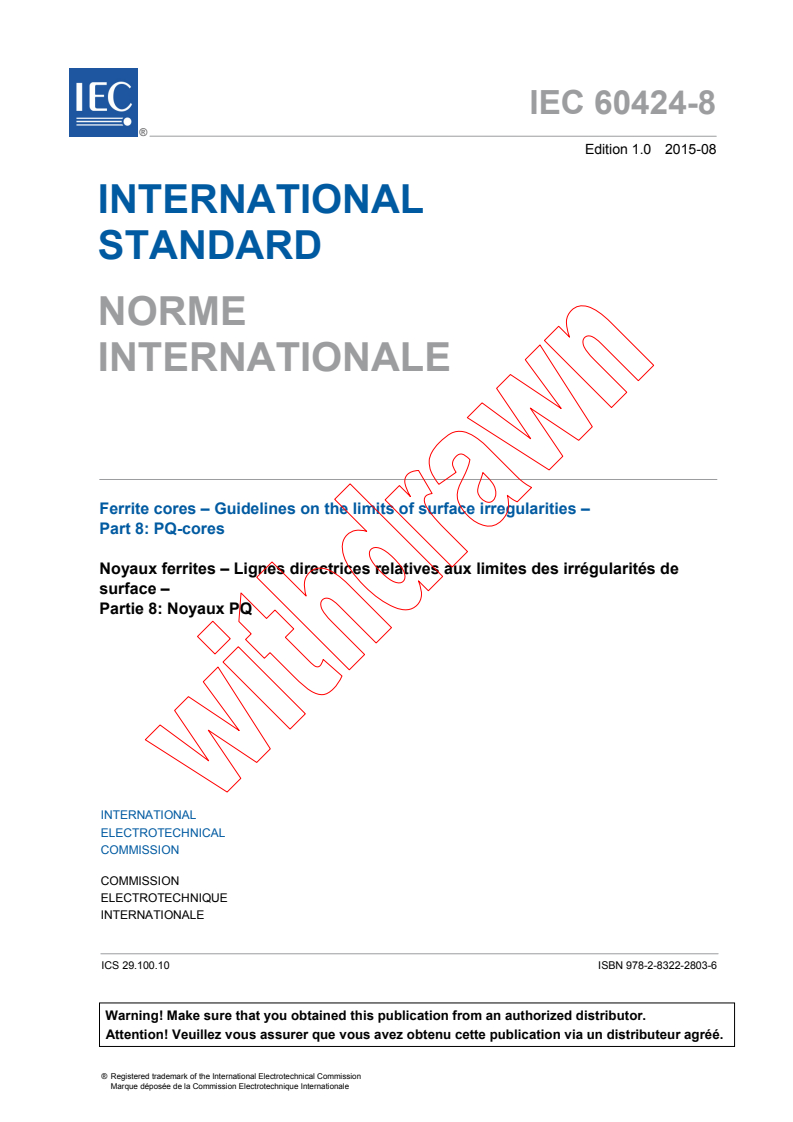

IEC 60424-8 ®
Edition 1.0 2015-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Ferrite cores – Guidelines on the limits of surface irregularities –

Part 8: PQ-cores
Noyaux ferrites – Lignes directrices relatives aux limites des irrégularités de

surface –
Partie 8: Noyaux PQ
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.100.10 ISBN 978-2-8322-2803-6

– 2 – IEC 60424-8:2015 © IEC 2015

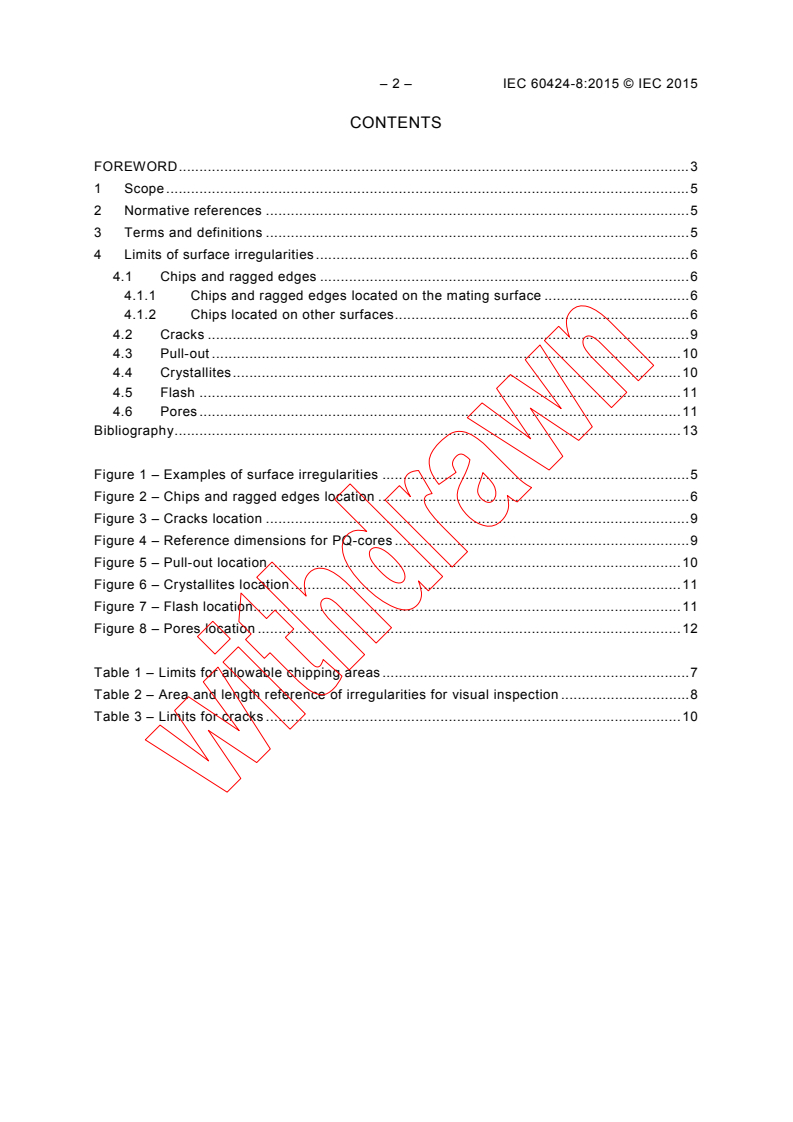

CONTENTS
FOREWORD . 3

1 Scope . 5

2 Normative references . 5

3 Terms and definitions . 5

4 Limits of surface irregularities . 6

4.1 Chips and ragged edges . 6

4.1.1 Chips and ragged edges located on the mating surface . 6
4.1.2 Chips located on other surfaces . 6
4.2 Cracks . 9
4.3 Pull-out . 10
4.4 Crystallites . 10
4.5 Flash . 11
4.6 Pores . 11
Bibliography . 13

Figure 1 – Examples of surface irregularities . 5
Figure 2 – Chips and ragged edges location . 6
Figure 3 – Cracks location . 9
Figure 4 – Reference dimensions for PQ-cores . 9
Figure 5 – Pull-out location . 10
Figure 6 – Crystallites location . 11
Figure 7 – Flash location. 11
Figure 8 – Pores location . 12

Table 1 – Limits for allowable chipping areas . 7
Table 2 – Area and length reference of irregularities for visual inspection . 8
Table 3 – Limits for cracks . 10

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
FERRITE CORES –
GUIDELINES ON THE LIMITS OF SURFACE IRREGULARITIES –

Part 8: PQ-cores
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60424-8 has been prepared by technical committee 51: Magnetic
components and ferrite materials.
The text of this standard is based on the following documents:
CDV Report on voting
51/1078/CDV 51/1084/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – IEC 60424-8:2015 © IEC 2015

A list of all parts in the IEC 60424 series, published under the general title Ferrite cores –

Guidelines on the limits of surface irregularities, can be found on the IEC website.

Future standards in this series will carry the new general title as cited above. Titles of existing

standards in this series will be updated at the time of the next edition.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be

• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
FERRITE CORES –
GUIDELINES ON THE LIMITS OF SURFACE IRREGULARITIES –

Part 8: PQ-cores
1 Scope
This part of IEC 60424 gives guidance on allowable limits of surface irregularities applicable
to PQ-cores in accordance with the relevant generic specification.
This standard is considered as a sectional specification useful in the negotiation between
ferrite core manufacturers and users about surface irregularities.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60401-1, Terms and nomenclature for cores made of magnetically soft ferrites – Part 1:
Terms used for physical irregularities
IEC 60424-1, Ferrite cores – Guide on the limits of surface irregularities – Part 1: General
specification
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60424-1 and
IEC 60401-1, as well as the following apply.
3.1
pores
holes left on the surface of cores after sintering and surface finishing
SEE: Figure 1.
IEC
Figure 1 – Examples of surface irregularities

– 6 – IEC 60424-8:2015 © IEC 2015

4 Limits of surface irregularities

4.1 Chips and ragged edges
4.1.1 Chips and ragged edges located on the mating surface

The areas of the chips located on the mating surface (see C1 and C1’ irregularities in Figure 2)

shall not exceed the following limits:

– the cumulative area of the chips located on the mating surface shall be less than 4 % of

the total mating surface;
– the cumulative area of the chips located on the centre post mating surface shall be less
than 2 % of the total mating surface;
– the cumulative area of the chips located on the mating surface of one outer leg shall be
less than 1 % of the total mating surface;
The total length of the ragged edges shall be less than 25 % of the perimeter of the relevant
mating surface.
4.1.2 Chips located on other surfaces
The areas of the chips located on the other surfaces (see C2, C2’, C3 and C3’ irregularities in
Figure 2) shall not exceed the following limits:
– the allowable chipping areas are doubled as compared to the limits for the whole mating
surfaces (see Table 1);
– the rule for the ragged edges is the same as for the mating surfaces;
– chips and ragged edges are not acceptable on the inner edges of the wire slot area.

IEC
Figure 2 – Chips and ragged edges location
The limits of allowable chipping areas shall be in accordance with Table 1.

Table 1 – Limits for allowable chipping areas

Unit: mm
Chipping on Chipping on
Overall chipping Overall chipping

Core size mating surface of mating surface of
on mating surface on other surfaces
one outer leg centre post
PQ20/16
< 1,0 < 2,0 < 4,5 < 9,0
PQ20/20 < 1,0 < 2,0 < 4,5 < 9,0

PQ26/20
< 2,0 < 4,5 < 9,5 < 19,0
PQ26/25
< 2,0 < 4,5 < 9,5 < 19,0
PQ32/20 < 3,0 < 6,0 < 12,0 < 24,0
PQ32/30 < 3,0 < 6,0 < 12,0 < 24,0
PQ35/35
< 3,0 < 6,5 < 13,0 < 26,0
PQ40/40 < 3,5 < 7,0 < 14,0 < 28,0
PQ50/50 < 6,0 < 12,5 < 25,0 < 50,0
NOTE For the relevant core sizes refer to IEC 62317-13.

The area and length reference of irregularities for visual inspection are given in Table 2.

– 8 – IEC 60424-8:2015 © IEC 2015

Table 2 – Area and length reference of irregularities for visual inspection

IEC
4.2 Cracks
Figure 3 shows examples of cracks location on PQ-cores:

– a single crack which intersects the perimeter of the relevant surface at two points is not
acceptable (see S1 in Figure 3);

– the number of the cracks located on the same surface shall not exceed 3.

The limits of cracks at various locations shown in Figure 3 are given in Table 3.

IEC
Key
S1 to S8: types of cracks (for limits for cracks, see Table 3)
Figure 3 – Cracks location
The reference dimensions for PQ-cores given in Figure 4 correspond to the cores defined in
IEC 60401-2.
IEC
Key
A Overall length of the core back
B Outside leg length of core
C Core width
D Inside leg length or available bobbin depth
F Centre post diameter
Figure 4 – Reference dimensions for PQ-cores
...
