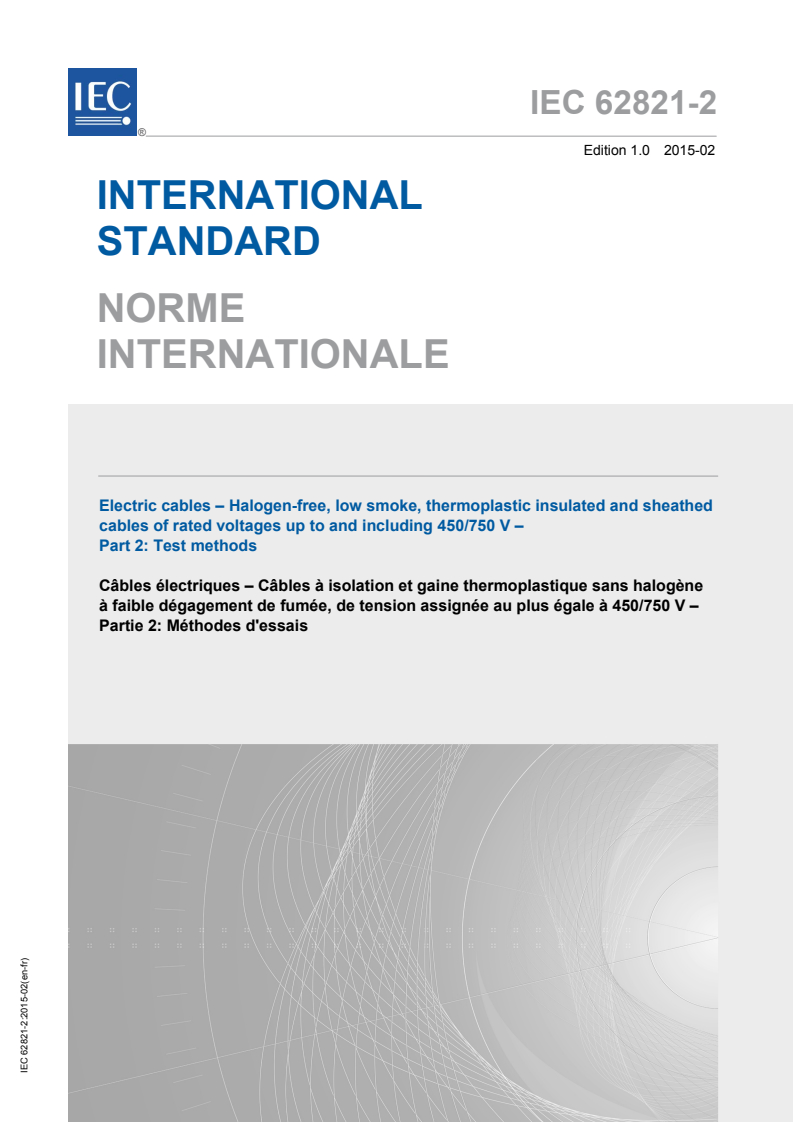

IEC 62821-2:2015

IEC 62821-2 ®
Edition 1.0 2015-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric cables – Halogen-free, low smoke, thermoplastic insulated and sheathed
cables of rated voltages up to and including 450/750 V –
Part 2: Test methods
Câbles électriques – Câbles à isolation et gaine thermoplastique sans halogène
à faible dégagement de fumée, de tension assignée au plus égale à 450/750 V –
Partie 2: Méthodes d'essais
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

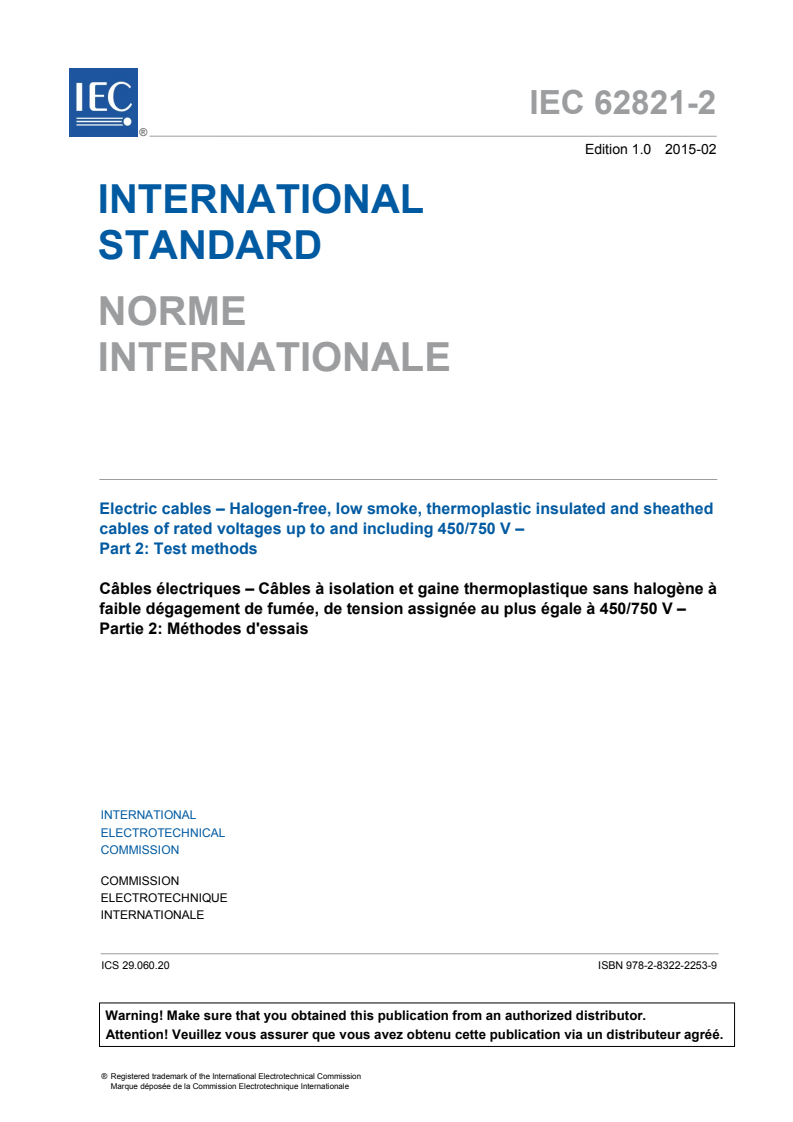

IEC 62821-2 ®
Edition 1.0 2015-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric cables – Halogen-free, low smoke, thermoplastic insulated and sheathed

cables of rated voltages up to and including 450/750 V –

Part 2: Test methods
Câbles électriques – Câbles à isolation et gaine thermoplastique sans halogène à

faible dégagement de fumée, de tension assignée au plus égale à 450/750 V –

Partie 2: Méthodes d'essais
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.20 ISBN 978-2-8322-2253-9

– 2 – IEC 62821-2:2015 © IEC 2015

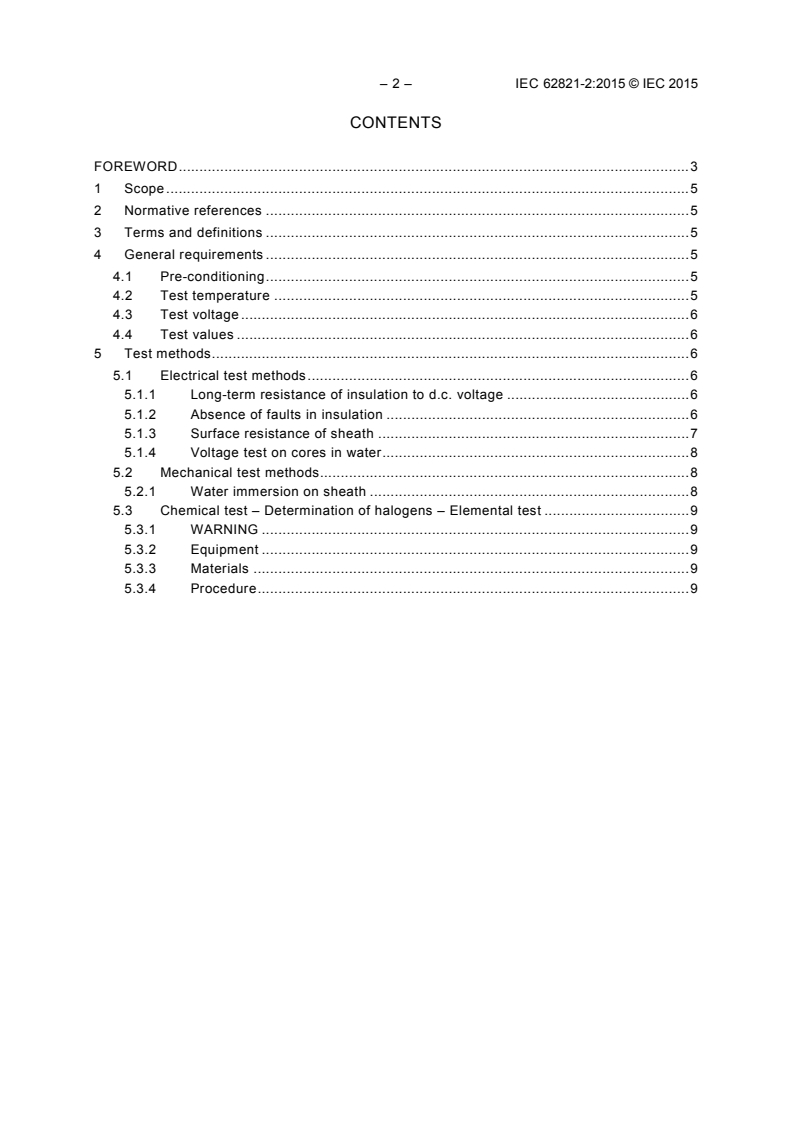

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General requirements . 5
4.1 Pre-conditioning . 5
4.2 Test temperature . 5
4.3 Test voltage . 6
4.4 Test values . 6
5 Test methods . 6
5.1 Electrical test methods . 6
5.1.1 Long-term resistance of insulation to d.c. voltage . 6
5.1.2 Absence of faults in insulation . 6
5.1.3 Surface resistance of sheath . 7
5.1.4 Voltage test on cores in water . 8
5.2 Mechanical test methods. 8
5.2.1 Water immersion on sheath . 8
5.3 Chemical test – Determination of halogens – Elemental test . 9
5.3.1 WARNING . 9
5.3.2 Equipment . 9
5.3.3 Materials . 9
5.3.4 Procedure . 9

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRIC CABLES – HALOGEN-FREE, LOW SMOKE, THERMOPLASTIC
INSULATED AND SHEATHED CABLES OF RATED VOLTAGES UP TO AND
INCLUDING 450/750 V –
Part 2: Test methods
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62821-2 has been prepared by IEC technical committee 20:
Electric cables.
The text of this standard is based on the following documents:
FDIS Report on voting
20/1553/FDIS 20/1566/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – IEC 62821-2:2015 © IEC 2015

A list of all parts in the IEC 62821 series, published under the general title, Electric cables –
Halogen-free, low smoke, thermoplastic insulated and sheathed cables of rated voltages up to
and including 450/750 V, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
ELECTRIC CABLES – HALOGEN-FREE, LOW SMOKE, THERMOPLASTIC
INSULATED AND SHEATHED CABLES OF RATED VOLTAGES UP TO AND
INCLUDING 450/750 V –
Part 2: Test methods
1 Scope
This part of IEC 62821 specifies test methods which are particular for cables with insulation,
and sheath based on halogen-free, thermoplastic compound, and having low emission of
smoke and corrosive gases when exposed to fire, of rated voltages U /U up to and including
450/750 V a.c.
General requirements are specified in IEC 62821-1 and particular types of flexible cables are
specified in IEC 62821-3.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60811-501, Electric and optical fibre cables – Test methods for non-metallic materials –
Part 501: Mechanical tests – Tests for determining the mechanical properties of insulating and
sheathing compounds
IEC 62230, Electric cables – Spark-test method
IEC 62821-1, Electric cables – Halogen-free low smoke, thermoplastic insulated and sheathed
cables of rated voltages up to and including 450/750 V – Part 1: General requirements
IEC 62821-3, Electric cables – Halogen-free low smoke thermoplastic insulated and sheathed
cables of rated voltage up to and including 450/750 V – Part 3: Flexible cables (cords)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62821-1 apply.
4 General requirements
4.1 Pre-conditioning
All the tests shall be carried out not less than 16 h after the extrusion, of the insulating or
sheathing compounds.
4.2 Test temperature
Unless otherwise specified, tests shall be made at an ambient temperature of (20 ± 15) °C.

– 6 – IEC 62821-2:2015 © IEC 2015

4.3 Test voltage
Unless otherwise specified in the individual clause of this standard or in the product standard,
the test voltage shall be a.c. of approximately sine wave form and of frequency between
49 Hz and 61 Hz. The ratio of peak value to r.m.s. value shall be equal to √2 with a tolerance
of ±7 %.
The values quoted are r.m.s. values.
4.4 Test values
Full test conditions (such as temperatures, durations, etc.) and full test requirements are not
specified in this standard. It is intended that they should be specified by the standard dealing
with the relevant type of cable.
Any test requirements which are given in this standard may be modified by the relevant cable
standard to suit the needs of a particular type of cable.
5 Test methods
5.1 Electrical test methods
5.1.1 Long-term resistance of insulation to d.c. voltage
5.1.1.1 Test sample
Carry out the test on a sample of cable of 5 m length from which all coverings have been
removed. The cores of flat unsheathed cords shall not be separated.
For cables having up to five cores, each core shall be tested. For multicore cables having
more than five cores, one core of each colour in the cable shall be tested, and where the
number of colours is less than 5, duplicate coloured cores shall be tested as necessary to
bring the number of cores tested up to a minimum of 5.
Take care to avoid damage to the core(s) during removal of the coverings.
5.1.1.2 Procedure
Immerse the sample, for the period and at the temperature given in the relevant cable
standard, in an aqueous solution of sodium chloride having a concentration of 10 g/l, with a
length of about 250 mm at each end of the sample projecting above the solution. Connect the
negative pole of a 220 V d.c. supply to the conductor(s) of the sample and the positive pole to
a copper electrode immersed in the solution for the time given in the relevant cable standard.
5.1.1.3 Requirement
No breakdown of the insulation shall occur during the test and after the test the exterior of the
insulation shall show no sign of damage.
Discoloration of the insulation should be ignored.
5.1.2 Absence of faults in insulation
5.1.2.1 General
Test all the cable that is in the final stage of manufacture, whether it is in delivery lengths or
in manufacturing lengths prior to being cut into delivery lengths.

Test single core cables, whether sheathed or unsheathed, by the spark test in accordance
with 5.1.2.2. Test all other cables, including sheathed flat cables, with the voltage test in
accordance with 5.1.2.3.
The requirements of 4.1 of this standard do not apply when the check for absence of faults is
carried out as a routine (R) test.
5.1.2.2 Spark test
5.1.2.2.1 Procedure
Carry out the test according to IEC 62230, except that the option to use a pulsed waveform
high-voltage source is not permitted.
5.1.2.2.2 Requirement
No faults shall be detected during the test.
5.1.2.3 Voltage test
5.1.2.3.1 Procedure
With the cable in the dry state and at ambient temperature apply a voltage of the magnitude
given in the relevant cable standard, supplied either from an a.c. source or from a d.c. source,
between each conductor and all the other conductors and, if any, the metallic layer connected
to earth.
Increase the voltage gradually and maintain it at the full value for the duration given in the
relevant cable standard.
5.1.2.3.2 Requirement
No breakdown of the insulation shall occur during the test.
5.1.3 Surface resistance of sheath
5.1.3.1 Test samples
Carry out the test on three samples of completed cable, each about 250 mm in length.
5.1.3.2 Procedure
Clean the sheath of each of the samples with industrial methylated spirit and apply to each
sample two electrodes, consisting of wire helices of copper wire of between 0,2 mm and
0,6 mm diameter, at a distance of (100 ± 2) mm from each other. After the wire has been
applied, clean the surface of the sheath again thoroughly between the electrodes.
Condition the samples with electrodes attached in a conditioning chamber at a temperature of
(20 ± 2) °C and a relative humidity of (65 ± 5) % for 24 h.
Immediately after removal from the conditioning chamber, apply a d.c. voltage of between
100 V and 500 V between the electrodes, and measure the resistance after 1 min.
Multiply the measured resistance of each sample, in ohms, by a/100, where a is the
circumference of the sheath of the sample, in millimetres. Record the median of the three
values so obtained as the surface resistance of the sheath.

– 8 – IEC 62821-2:2015 © IEC 2015

5.1.3.3 Requirement
The median of the three values so obtained shall be not lower than the value in the cable
standard.
5.1.4 Voltage test on cores in water
5.1.4.1 General
The test applies to sheathed cables, braided cables and flat unsheathed cords.
5.1.4.2 Test sample
Prepare a sample of cable 5 m long, by carefully removing, without damaging the cores, the
sheath or the overall braid and any other covering or filling from a length of completed cable.
In the case of flat unsheathed cord, make a cut in the insulation between the cores and
separate the cores by hand over a length of 2 m.
5.1.4.3 Procedure
Immerse the sample in water at the temperature, and for the period, specified in the cable
standard. Ensure that the ends of the cores protrude above the water by a distance sufficient
to prevent excessive surface leakage when the test voltage is applied. Apply a voltage, of the
magnitude specified in the cable standard between the conductors and the water for the time
specified in the cable standard.
5.1.4.4 Requirement
No breakdown of the insulation shall occur during the test.
5.2 Mechanical test methods
5.2.1 Water immersion on sheath
5.2.1.1 General
This test is to demonstrate the effect of water on the mechanical properties of sheath by
determining the tensile strength and elongation at break of the sheathing materials in the
unconditioned state as manufactured and in the conditioned state after immersion in water.
The tensile tests on the conditioned and unconditioned test pieces shall be made in
immediate succession.
5.2.1.2 Sampling and preparation of test pieces
Prepare test pieces in accordance with the procedure described in IEC 60811-501.
The cross-sectional area of the sample shall be determined before immersion in water.
5.2.1.3 Procedure
Immerse the dumb-bell test pieces in de-ionized water for the time and at the temperature
given in the relevant standard for the cable sheathing material. Following this immersion,
allow the test pieces to cool to a temperature of (20 ± 5) °C before removing them from the
water. Dry the test pieces with absorbent paper and within 60 min of drying measure both the
tensile strength and the elongation at break in accordance with the procedure described in
IEC 60811-501.
5.2.1.4 Evaluation of results
Calculate the tensile strength and the elongation at break in accordance with the procedure
described in IEC 60811-501.
5.3 Chemical test – Determination of halogens – Elemental test
5.3.1 WARNING
Owing to its potentially hazardous nature, the fusion operation should be carried out in
a fume cupboard, using a safety screen.
5.3.2 Equipment
– Bunsen burner
– 3 small/medium soda glass test tubes (approximately 50 mm × 10 mm)
– Test tube holder
– Evaporating basin/mortar
– Wire gauze
– Funnel
– Filter paper
5.3.3 Materials
– Sample to be analysed
– Sodium metal
– Dilute nitric acid (5 %)
– Aqueous silver nitrate (5 %)
– Dilute ammonia (10 %)
– Freshly made up zirconium-alizarin red S reagent
– Glacial acetic acid
– Acid/pH indicator papers
5.3.4 Procedure
5.3.4.1 Sodium fusion
Place 200 mg – 250 mg of the sample into the bottom of a small soda glass test tube. Add
10 ml of distilled/de-ionized water to the evaporating basin and place this in the fume
cupboard behind the safety screen. Whilst holding the test tube firmly with the test tube holder
at an angle of 45° – 60° to the vertical,
...
