IEC 60947-8:2021

(Main)

Low-voltage switchgear and controlgear - Part 8: Control units for built-in thermal protection (PTC) for rotating electrical machines

Low-voltage switchgear and controlgear - Part 8: Control units for built-in thermal protection (PTC) for rotating electrical machines

IEC 60947-8:2021 specifies requirements for control units, which control a switching device in response to the PTC thermistors incorporated in rotating electrical machines and the industrial application.
This second edition cancels and replaces the first edition published in 2003, Amendment 1:2006 and Amendment 2:2011. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
safety aspects related to:
general aspects;
limited energy circuits;
electronic circuits;
alignment to IEC 60947-1:2020;
wire break detection function;
the term detector is replaced by thermistor;
reference to IEC 60738-1-4.

Appareillage à basse tension - Partie 8: Unités de commande pour la protection thermique incorporée (CTP) aux machines électriques tournantes

L'IEC 60947-8:2021 spécifie les exigences pour les unités de commande qui commandent un appareil de connexion réagissant aux thermistances CTP incorporées dans les machines électriques tournantes et l’application industrielle.
Cette deuxième édition annule et remplace la première édition parue en 2003, son Amendement 1:2006 et son Amendement 2:2011. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
des aspects liés à la sécurité concernant:
les aspects généraux;
les circuits à énergie limitée;
les circuits électroniques;
l’alignement avec l’IEC 60947-1:2020;
la fonction de détection de rupture de conducteur;
le terme détecteur est remplacé par thermistance;
la référence à l’IEC 60738-1-4.

General Information

Status
Published
Publication Date
27-Jul-2021
ICS
29.130.20 - Low voltage switchgear and controlgear
Technical Committee
SC 121A - Low-voltage switchgear and controlgear
Current Stage
PPUB - Publication issued
Start Date
03-Sep-2021
Completion Date
28-Jul-2021
Ref Project

Relations

Revises
IEC 60947-8:2003/AMD1:2006 - Amendment 1 - Low-voltage switchgear and controlgear - Part 8: Control units for built-in thermal protection (PTC) for rotating electrical machines
Effective Date
05-Sep-2023
Revises
IEC 60947-8:2003/AMD2:2011 - Amendment 2 - Low-voltage switchgear and controlgear - Part 8: Control units for built-in thermal protection (PTC) for rotating electrical machines
Effective Date
05-Sep-2023
Revises
IEC 60947-8:2003 - Low-voltage switchgear and controlgear - Part 8: Control units for built-in thermal protection (PTC) for rotating electrical machines
Effective Date
05-Sep-2023

Buy Standard

IEC 60947-8:2021 - Low-voltage switchgear and controlgear - Part 8: Control units for built-in thermal protection (PTC) for rotating electrical machinesIEC 60947-8:2021 - Low-voltage switchgear and controlgear - Part 8: Control units for built-in thermal protection (PTC) for rotating electrical machines
PreviousNext
Standard
IEC 60947-8:2021 - Low-voltage switchgear and controlgear - Part 8: Control units for built-in thermal protection (PTC) for rotating electrical machines
English and French language
82 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

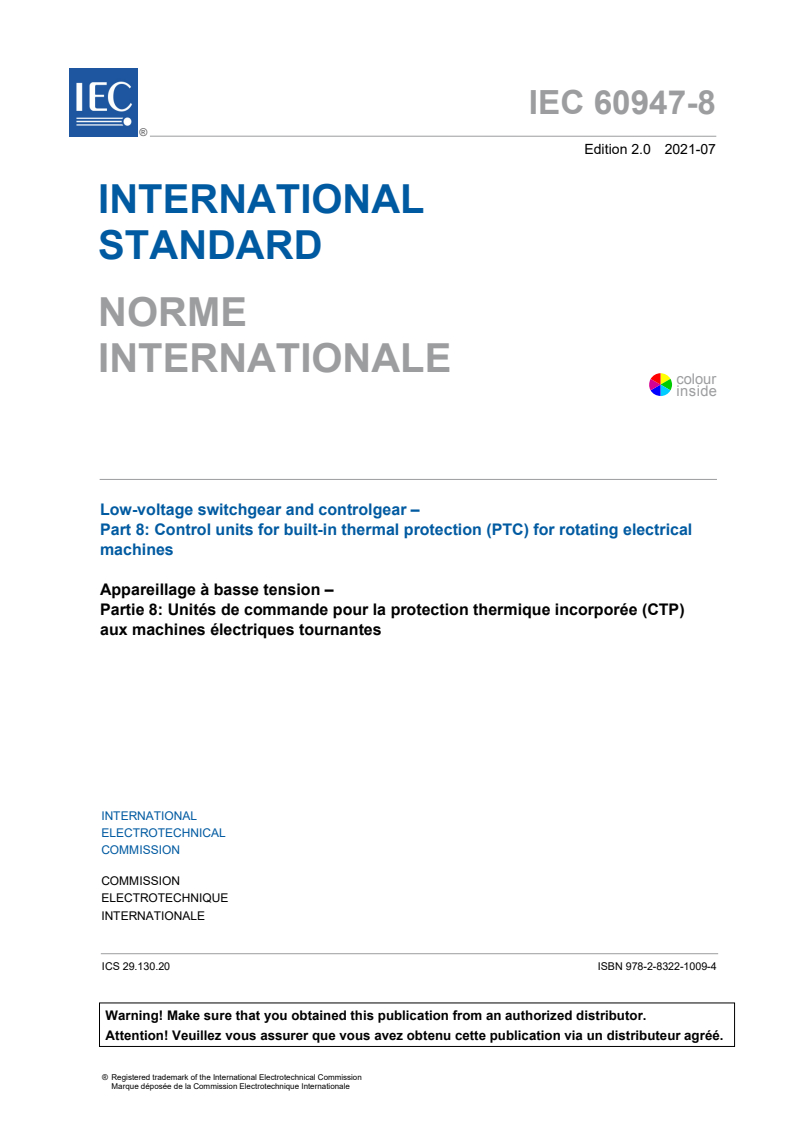

IEC 60947-8 ®
Edition 2.0 2021-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Low-voltage switchgear and controlgear –
Part 8: Control units for built-in thermal protection (PTC) for rotating electrical
machines
Appareillage à basse tension –
Partie 8: Unités de commande pour la protection thermique incorporée (CTP)
aux machines électriques tournantes

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC online collection - oc.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 60947-8 ®
Edition 2.0 2021-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Low-voltage switchgear and controlgear –

Part 8: Control units for built-in thermal protection (PTC) for rotating electrical

machines
Appareillage à basse tension –

Partie 8: Unités de commande pour la protection thermique incorporée (CTP)

aux machines électriques tournantes

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.130.20 ISBN 978-2-8322-1009-4

– 2 – IEC 60947-8:2021 © IEC 2021

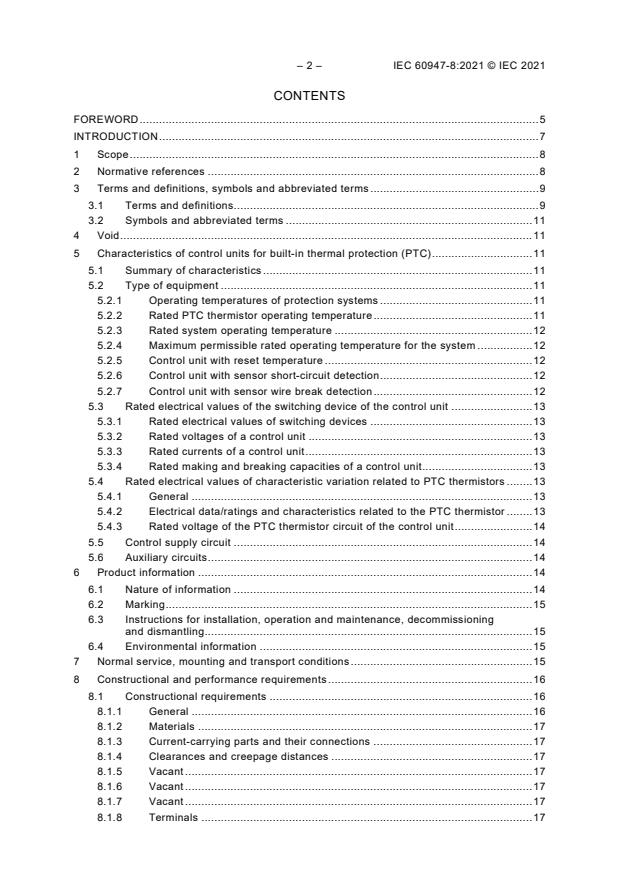

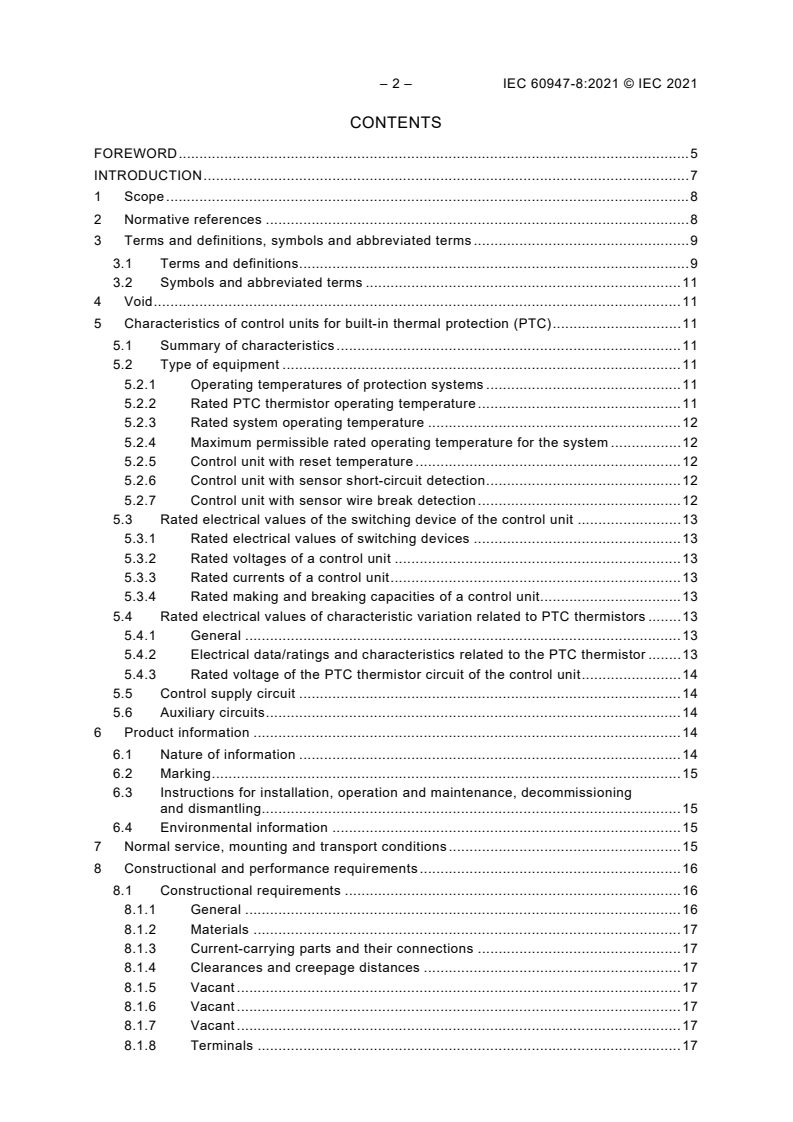

CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms and definitions, symbols and abbreviated terms . 9
3.1 Terms and definitions . 9
3.2 Symbols and abbreviated terms . 11
4 Void . 11
5 Characteristics of control units for built-in thermal protection (PTC) . 11
5.1 Summary of characteristics . 11
5.2 Type of equipment . 11
5.2.1 Operating temperatures of protection systems . 11
5.2.2 Rated PTC thermistor operating temperature . 11
5.2.3 Rated system operating temperature . 12
5.2.4 Maximum permissible rated operating temperature for the system . 12
5.2.5 Control unit with reset temperature . 12
5.2.6 Control unit with sensor short-circuit detection . 12
5.2.7 Control unit with sensor wire break detection . 12
5.3 Rated electrical values of the switching device of the control unit . 13
5.3.1 Rated electrical values of switching devices . 13
5.3.2 Rated voltages of a control unit . 13
5.3.3 Rated currents of a control unit . 13
5.3.4 Rated making and breaking capacities of a control unit . 13
5.4 Rated electrical values of characteristic variation related to PTC thermistors . 13
5.4.1 General . 13
5.4.2 Electrical data/ratings and characteristics related to the PTC thermistor . 13
5.4.3 Rated voltage of the PTC thermistor circuit of the control unit . 14
5.5 Control supply circuit . 14
5.6 Auxiliary circuits . 14
6 Product information . 14
6.1 Nature of information . 14
6.2 Marking . 15
6.3 Instructions for installation, operation and maintenance, decommissioning
and dismantling. 15
6.4 Environmental information . 15
7 Normal service, mounting and transport conditions . 15
8 Constructional and performance requirements . 16
8.1 Constructional requirements . 16
8.1.1 General . 16
8.1.2 Materials . 17
8.1.3 Current-carrying parts and their connections . 17
8.1.4 Clearances and creepage distances . 17
8.1.5 Vacant . 17
8.1.6 Vacant . 17
8.1.7 Vacant . 17
8.1.8 Terminals . 17

8.1.9 Vacant . 18
8.1.10 Provisions for protective earthing . 18
8.1.11 Dedicated enclosures for equipment . 18
8.1.12 Degrees of protection of enclosed equipment . 18
8.1.13 Conduit pull-out, torque and bending with metallic conduits . 18
8.1.14 Limited energy source . 18
8.1.15 Stored charge energy circuit . 20
8.1.16 Fault and abnormal conditions . 20
8.1.17 Short-circuit and overload protection of ports . 21
8.2 Performance requirements . 21
8.2.1 Operating conditions . 21
8.2.2 Abnormal conditions of service . 22
8.2.3 Dielectric properties . 22
8.2.4 Temperature rise . 22
8.2.5 Conditional short-circuit current . 22
8.2.6 Making and breaking capacities for control and auxiliary circuits . 22
8.2.7 Additional requirements and tests for equipment with protective

separation . 22
8.2.8 Operating temperature variation . 22
8.2.9 Damp heat . 22
8.2.10 Shock and vibration . 22
8.2.11 Requirements for short-circuit detection within the PTC thermistor
circuit . 23
8.2.12 Requirements for wire break detection within the PTC thermistor circuit . 23
8.3 Electromagnetic compatibility (EMC) . 23
8.3.1 General . 23
8.3.2 Immunity . 23
8.3.3 Emission . 24
9 Tests . 24
9.1 Kinds of tests .
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

IEC
IEC 60947-1:2020/COR2:2024(Corrigendum)
Corrigendum 2 - Low-voltage switchgear and controlgear - Part 1: General rules

IEC 60947-1:2020 applies, when required by the relevant product standard, to low-voltage switchgear and controlgear hereinafter referred to as "equipment" or “device” and intended to be connected to circuits, the rated voltage of which does not exceed 1 000 V AC or 1 500 V DC.
This document states the general rules and common safety requirements for low-voltage switchgear and controlgear, including:
- definitions;
- characteristics;
- information supplied with the equipment;
- normal service, mounting and transport conditions, decommissioning and dismantling;
- constructional and performance requirements;
- verification of characteristics and performance;
- energy efficiency aspects (see Annex V);
- environmental aspects.
This sixth edition cancels and replaces the fifth edition published in 2007, Amendment 1:2010 and Amendment 2:2014. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
– DC values testing improvement;
– update of EMC tests;
– Annex B deletion;
– update of requirements for environmental tests (Table Q.1);
– improvement of Annex R (new examples);
– deletion of digital input Type 2, and introduction of Type 3 in Annex S;
– example for materials declaration (Annex W);
– new Annex X (co-ordination between short-circuit protective devices associated in the same circuit) created.
The contents of the corrigendum of December 2022 have been included in this copy.

  • Standard
    3 pages
    English and French language
    sale 15% off
IEC
IEC 60947-5-7:2024(Main)
Low-voltage switchgear and controlgear - Part 5-7: Control circuit devices and switching elements - Proximity devices with analog output

IEC 60947-5-7:2024 states the requirements for proximity devices that correspond to the scope of IEC 60947-5-2:2019 with analog output (PDAO) and/or a digital output to transmit a corresponding digital value representing the detected sensing input. These devices can provide additional parameters.
This second edition cancels and replaces the first edition published in 2003. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) New structure;
b) Update and expansion of definitions on analog output properties;
c) Expanded performance requirements on analog output;
d) Update and new normative references;
e) Update of EMC requirements;
f) Harmonization with IEC 62828 series;
g) Harmonization with IEC 62683 and IEC 61987 definitions;
h) Harmonization with IEC 61131-2 requirements;
i) Update of the Annex A (former Annex G), Example of the determination of the conformity;
j) New Annex B, Overview tests and influence quantities;
k) New Annex C, Additional requirements for proximity switches with analog output incorporating a built-in communication interface complying with IEC 61131-9;
l) New Annex D, Main characteristics for proximity devices with analog output.

  • Standard
    96 pages
    English and French language
    sale 15% off
IEC
IEC 60947-5-1:2024(Main)
Low-voltage switchgear and controlgear - Part 5-1: Control circuit devices and switching elements - Electromechanical control circuit devices

IEC 60947-5-1:2024 applies to control circuit devices and switching elements intended for controlling, signalling, interlocking, etc., of switchgear and controlgear.
It applies to control circuit devices having a rated voltage not exceeding 1 000 V AC (at a frequency not exceeding 1 000 Hz) or 600 V DC.
This fifth edition cancels and replaces the fourth edition published in 2016. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) update of the scope structure and exclusions;
b) requirements for control circuits;
c) update of the normal service conditions (e.g. shock and vibration);
d) update of information and marking requirements including environmental information requirements referencing IEC TS 63058:2021;
e) update of the constructional requirements and the corresponding tests considering safety aspects (e.g. artificial optical radiation, security aspects, limited energy source, stored charge energy circuit);
f) update of the EMC requirements according to the generic documents;
g) new requirements for reed contact magnetic switches in Annex D;
h) requirements for class II circuit devices achieved by double or reinforced insulation in Annex F;
i) update of pull-out tests in Annex G;
j) information requirements for audible signalling device in Annex J;
k) insertion of new Annex O.

  • Standard
    263 pages
    English and French language
    sale 15% off
IEC
IEC 60947-4-1:2023(Main)
Low-voltage switchgear and controlgear - Part 4-1: Contactors and motor-starters - Electromechanical contactors and motor-starters

IEC 60947-4-1:2023 is applicable to the following equipment:
- electromechanical contactors and starters including motor protective switching devices (MPSD and IMPSD);
- actuators of contactor relays;
- contacts dedicated exclusively to the coil circuit of the contactor or the contactor relay;
- dedicated accessories (e.g. dedicated wiring, dedicated latch accessory);
intended to be connected to distribution circuits, motors circuits and other load circuits, the rated voltage of which does not exceed 1 000 V AC or 1 500 V DC.
This fifth edition cancels and replaces the fourth edition published in 2018. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) objective in the scope;
b) instantaneous only motor protective switching device IMPSD (3.5.33);
c) kinds of equipment (5.2.1);
d) methods of overload protection of motors (5.2.6);
e) adoption of the AC-7d from IEC 61095:2023 (in 5.4.2);
f) separately mounted overload relay of a starter (in 5.7.3 b));
g) starter and contactor suitable for use downstream to basic drive module (6.1.2 w));
h) reference to IEC TS 63058 for environmental aspects (in 6.4);
i) wiring subject to movement (in 8.1.3);
j) use of voltage transient limiting device (8.1.18);
k) accessible parts subject to temperature limits (in 8.2.2.3);
l) reference to Annex X of IEC 60947-1:2020 for the co-ordination of MPSD with SCPD (8.2.5.4);
m) reference to IEC TR 63216 with different EMC environments (8.3.1);
n) reference to IEC TR 63201 for the embedded software design (8.4);
o) reference to IEC TS 63208 for cybersecurity aspects (8.5);
p) update and completion of the measurement method of the power consumption of the electromagnet (9.3.3.2.1.2);
q) update of Annex C including rational about AC-3e;
r) determination of the critical load current for photovoltaic applications (M.8.7).

  • Standard
    385 pages
    English and French language
    sale 15% off
IEC
IEC 62626-1:2023(Main)
Low-voltage switchgear and controlgear enclosed equipment - Part 1: Additional requirements for enclosed switch-disconnectors in accordance with IEC 60947-3 - Isolation of electrical equipment during repair and maintenance work in specific applications

IEC 62626-1:2023 is available as IEC 62626-1:2023 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.IEC 62626-1:2023 applies to enclosed switches-disconnectors with rated voltages up to 1 000 V AC for repair and maintenance work or cleaning work in load circuits. Devices within the scope of this document are switch-disconnectors in accordance with IEC 60947-3 with specific additional requirements. Enclosed switch-disconnectors in this document are suitable for isolation in accordance with the IEC 60947 series and are not equipped with means for remote control or automatic switching to avoid unexpected or accidental start. These devices are not used for operational switching, for example quick start and stop, jogging. This second edition cancels and replaces the first edition published in 2014. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) update of this document based on IEC 60947-1:2020.

  • Standard
    33 pages
    English language
    sale 15% off
  • Standard
    21 pages
    English and French language
    sale 15% off
IEC
IEC 61095:2023(Main)
Electromechanical contactors for household and similar purposes

IEC 61095:2023 is available as IEC 61095:2023 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.IEC 61095:2023 applies to electromechanical air break contactors for household and similar purposes provided with main contacts intended to be connected to circuits the rated voltage of which does not exceed 440 V AC (between phases) with rated operational currents less than or equal to 63 A for utilization category AC-7a, and 32 A for utilization categories AC‑7b, AC‑7c and AC-7d (expressed in rated power), and rated conditional short-circuit current less than or equal to 6 kA. This third edition cancels and replaces the second edition published in 2009. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) addition of requirements for screwless terminals;
b) addition of requirements for the switching of LED lamps. Contactors for domestic and similar applications can be used for controlling lighting loads which is increasingly using LED lamp technology. A specific category for contactors is created: AC-7d. Requirements and tests are added to cover this market development, mainly for making and breaking and conventional operational performance;
c) addition of requirements for contactors with electronically controlled electromagnet. Household contactors with electronically controlled electromagnet are available for years on the market. To fully cover such device, requirements and tests are added, dealing mainly with operating limits, behaviour in abnormal conditions, breakdown of components, EMC tests, etc.
d) embedded software. More and more contactors are incorporating electronic circuits with embedded software. A reference is provided to guide the design of the software.

  • Standard
    435 pages
    English language
    sale 15% off
  • Standard
    284 pages
    English and French language
    sale 15% off
IEC
IEC TR 63434:2023(Main)
Low voltage switchgear and controlgear - Partial discharge voltages and PD-level in low voltage switchgear and controlgear

IEC TR 63434:2023 is intended to provide awareness about partial discharge phenomena. This document gives guidance for some conditions when partial discharge can occur in low voltage switchgear and controlgear connected to networks of up to 1 000 V AC. Internal operational voltages can exceed these values. This document gives guidance on the design of conductors and dimensioning of insulation exposed to electrical fields.
This document explains the partial discharge phenomena considering electrical field stress, type of insulation material and other construction parameters, such as the voltage, frequency, temperature, humidity and the distances within the device.

  • Technical report
    40 pages
    English language
    sale 15% off
IEC
IEC 60947-6-2:2020/COR2:2023(Corrigendum)
Corrigendum 2 - Low-voltage switchgear and controlgear - Part 6-2: Multiple function equipment - Control and protective switching devices (or equipment) (CPS)
  • Standard
    2 pages
    English and French language
    sale 15% off
IEC
IEC 60947-1:2020/COR1:2022(Corrigendum)
Corrigendum 1 - Low-voltage switchgear and controlgear - Part 1: General rules
  • Standard
    2 pages
    English and French language
    sale 15% off
IEC
IEC 60947-6-2:2020/COR1:2021(Corrigendum)
Corrigendum 1 - Low-voltage switchgear and controlgear - Part 6-2: Multiple function equipment - Control and protective switching devices (or equipment) (CPS)
  • Standard
    2 pages
    English and French language
    sale 15% off
