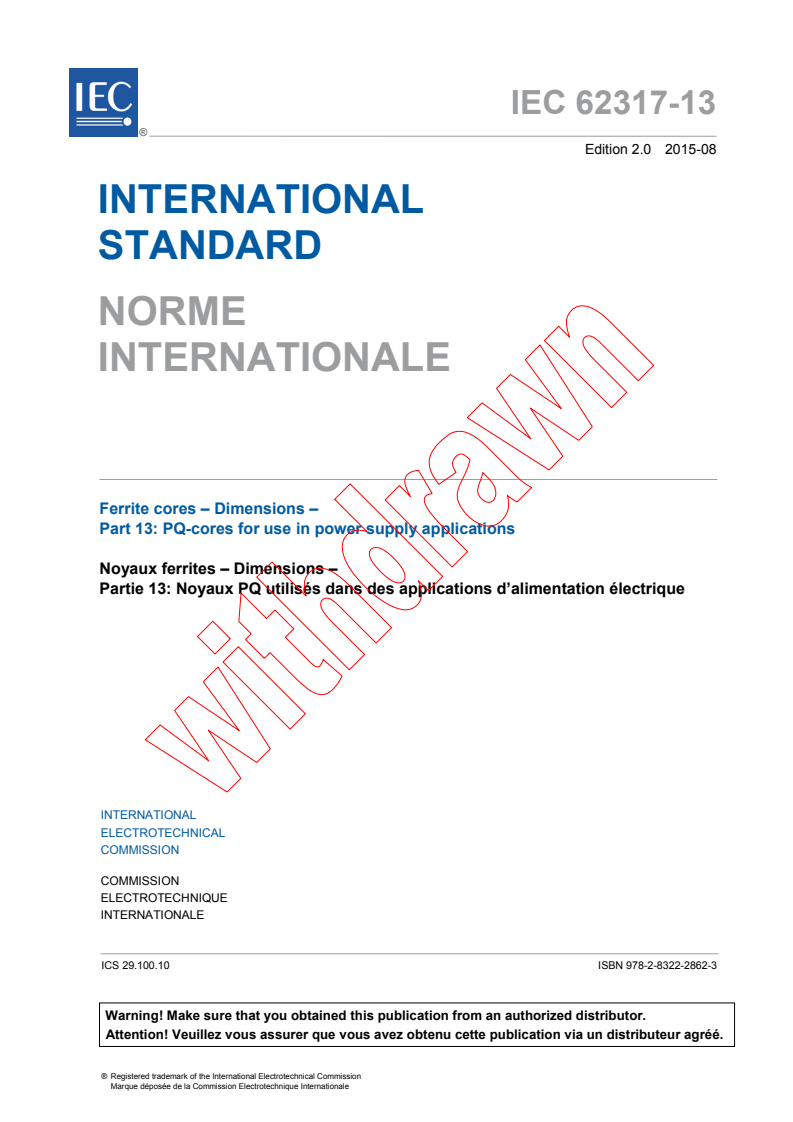

IEC 62317-13:2015

IEC 62317-13 ®
Edition 2.0 2015-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Ferrite cores – Dimensions –
Part 13: PQ-cores for use in power supply applications

Noyaux ferrites – Dimensions –
Partie 13: Noyaux PQ utilisés dans des applications d’alimentation électrique

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

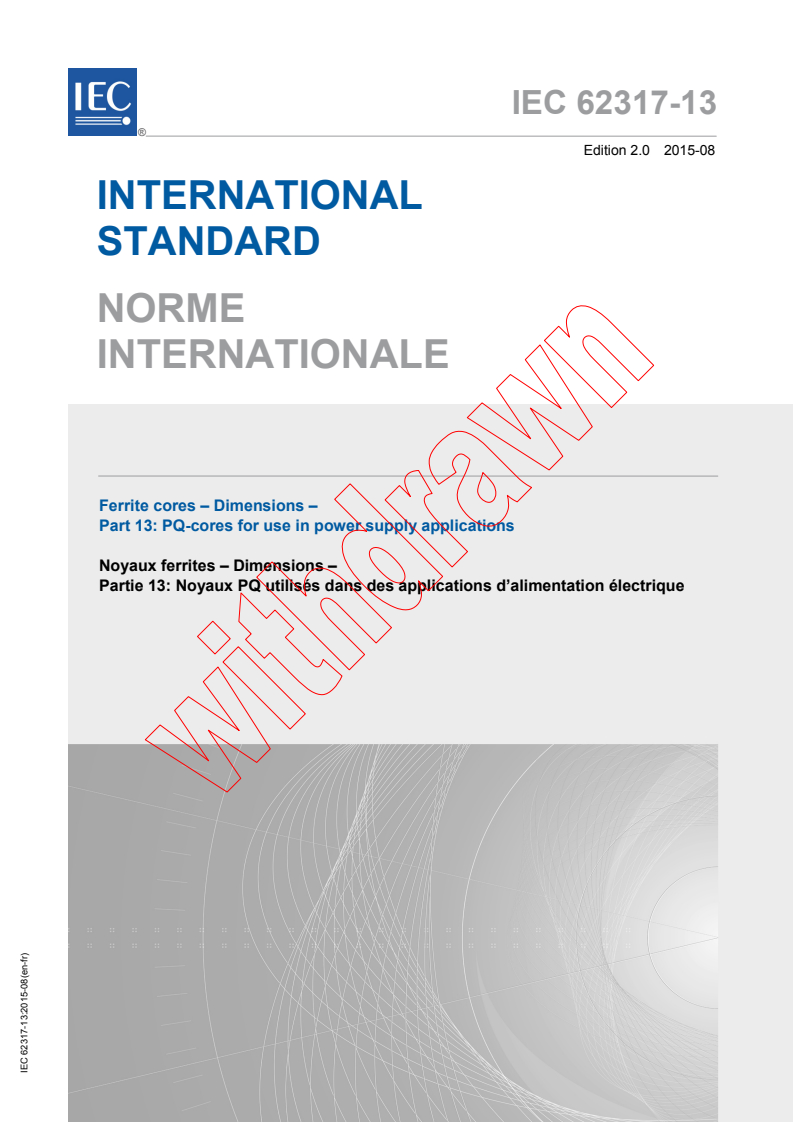

IEC 62317-13 ®
Edition 2.0 2015-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Ferrite cores – Dimensions –
Part 13: PQ-cores for use in power supply applications

Noyaux ferrites – Dimensions –

Partie 13: Noyaux PQ utilisés dans des applications d’alimentation électrique

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.100.10 ISBN 978-2-8322-2862-3

– 2 – IEC 62317-13:2015 © IEC 2015

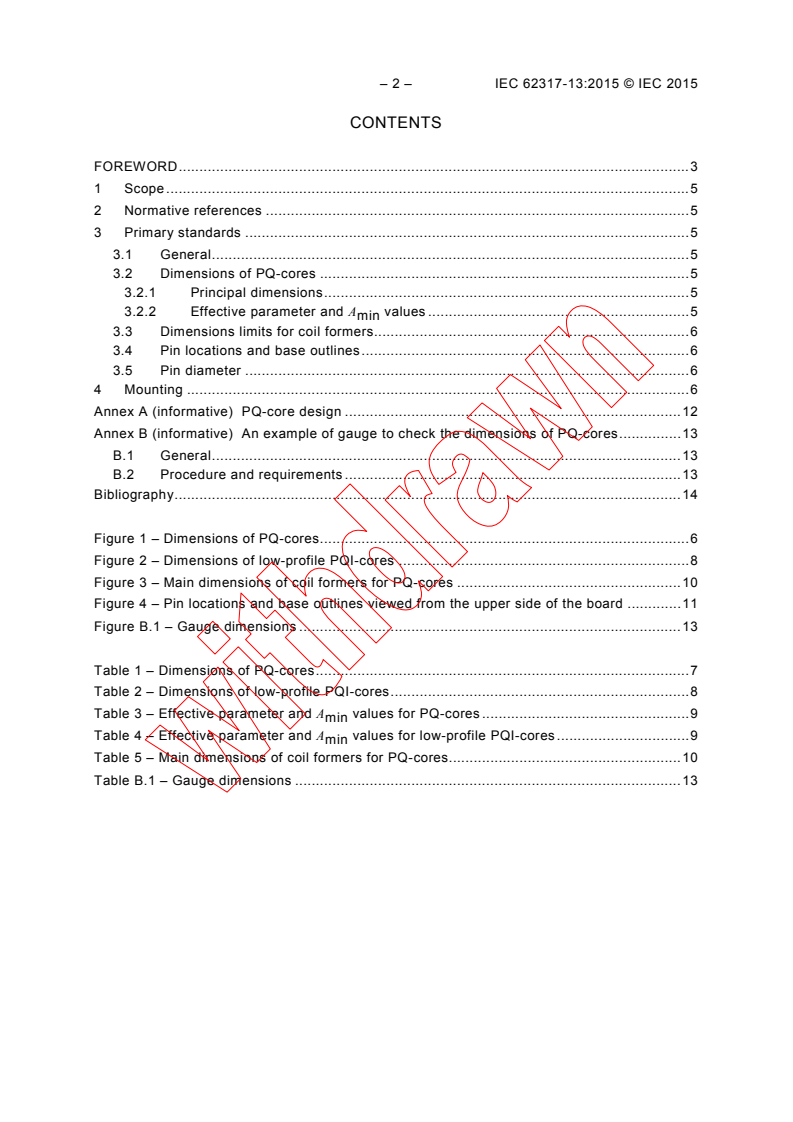

CONTENTS
FOREWORD . 3

1 Scope . 5

2 Normative references . 5

3 Primary standards . 5

3.1 General . 5

3.2 Dimensions of PQ-cores . 5

3.2.1 Principal dimensions . 5

3.2.2 Effective parameter and A values . 5
min
3.3 Dimensions limits for coil formers. 6
3.4 Pin locations and base outlines . 6
3.5 Pin diameter . 6
4 Mounting . 6
Annex A (informative) PQ-core design . 12
Annex B (informative) An example of gauge to check the dimensions of PQ-cores . 13
B.1 General . 13
B.2 Procedure and requirements . 13
Bibliography . 14

Figure 1 – Dimensions of PQ-cores . 6
Figure 2 – Dimensions of low-profile PQI-cores . 8
Figure 3 – Main dimensions of coil formers for PQ-cores . 10
Figure 4 – Pin locations and base outlines viewed from the upper side of the board . 11
Figure B.1 – Gauge dimensions . 13

Table 1 – Dimensions of PQ-cores . 7
Table 2 – Dimensions of low-profile PQI-cores . 8
Table 3 – Effective parameter and A values for PQ-cores . 9
min
Table 4 – Effective parameter and A values for low-profile PQI-cores . 9
min
Table 5 – Main dimensions of coil formers for PQ-cores. 10
Table B.1 – Gauge dimensions . 13

INTERNATIONAL ELECTROTECHNICAL COMMISSION

___________
FERRITE CORES – DIMENSIONS –
Part 13: PQ-cores for use in power supply applications

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62317-13 has been prepared by technical committee 51: Magnetic
components and ferrite materials.
This second edition cancels and replaces the first edition published in 2008. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) addition of three core sizes (PQ 65/54, PQ 78/39 and PQ 107/87) in Table 1,
b) addition of effective parameter and A values, of main dimensions of coil formers and of
min
gauge dimensions for PQ-cores for PQ 65/54, PQ 78/39 and PQ 107/87.

– 4 – IEC 62317-13:2015 © IEC 2015

The text of this standard is based on the following documents:

FDIS Report on voting
51/1095/FDIS 51/1104/RVD
Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts of the IEC 62317 series, under the general title Ferrite cores – Dimensions,
can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
FERRITE CORES – DIMENSIONS –
Part 13: PQ-cores for use in power supply applications

1 Scope
This part of IEC 62317 specifies the dimensions that are of importance for mechanical

interchangeability for a preferred range of PQ-cores and low-profile PQI-cores made of ferrite,
and the locations of their terminal pins on a 2,54 mm printed wiring grid in relation to the base
outlines of the cores.
The selection of core sizes for this standard is based on the philosophy of including those
sizes which are industrial standards, either by inclusion in a national standard, or by broad-
based use in industry.
NOTE See IEC 62317-1 for more detail concerning the philosophy of selecting core sizes to be included.
The general considerations that the design of this range of cores is based upon are given in
Annex A.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
Void.
3 Primary standards
3.1 General
Compliance with the following requirements ensures mechanical interchangeability of
complete assemblies and wound coil formers.
3.2 Dimensions of PQ-cores
3.2.1 Principal dimensions
The principal dimensions of PQ-cores shall be as given in Table 1 and those of the low-profile
PQ-cores shall be as given in Table 2. See also Figure 1 and Figure 2.
The dimensions of the cores may be checked by means of gauges. By way of example, a
possible standard for these gauges is given in Annex B, although no relaxation of the
requirements for the dimensions of the cores given in Table 1 and in Table 2 is permitted.
3.2.2 Effective parameter and A values
min
The effective parameter values for cores having the dimensions given in 3.2.1 are as shown in
Table 3 and Table 4.
– 6 – IEC 62317-13:2015 © IEC 2015

3.3 Dimensions limits for coil formers

The essential dimensions of coil formers suitable for use with a pair of PQ-cores shall be as

given in Table 5. See also Figure 3.

3.4 Pin locations and base outlines

These shall be as shown in Figure 4.

3.5 Pin diameter
Coil former terminations (pins) shall be accepted by a gauge having 1,2 mm holes on a true

position.
4 Mounting
Due to their sizes and respective weights, it is recommended that the cores above PQ 35/35
(including PQ 35/35) be fixed on the printed board with mounting assemblies at two opposite
sides of their coil formers.
Concerning low-profile PQ-cores, no mounting assemblies are defined. It is recommended
that the two cores be fixed by glue or adhesive tape.
C
L B
D
X
X
IEC
Figure 1 – Dimensions of PQ-cores
A
J
F
G
E
Table 1 – Dimensions of PQ-cores

A B C D E F G J L
Size
mm mm mm mm mm mm mm mm mm
Min. 20,10 8,00 13,60 5,.00 17,60 8,60 12,00

PQ 20/16 Nom.    4,80 10,50

Max. 20,90 8,20 14,40 5,30 18,40 9,00 13,00

Min. 20,10 10,00 13,60 7,00 17,60 8,60 12,00

PQ 20/20 Nom.    4,80 10,50

Max. 20,90 10,20 14,40 7,30 18,40 9,00 13,00
Min. 26,05 9,95 18,55 5,60 22,05 11,80 15,50
PQ 26/20 Nom.    7,30 13,90
Max. 26,95 10,20 19,45 5,90 22,95 12,20 16,50
Min. 26,05 12,25 18,55 7,90 22,05 11,80 15,50
PQ 26/25 Nom.    7,30 13,90
Max. 26,95 12,50 19,45 8,20 22,95 12,20 16,50
Min. 31,50 10,15 21,50 5,60 27,00 13,20 19,00
PQ 32/20 Nom.    6,20 15,10
Max. 32,50 10,40 22,50 5,90 28,00 13,70 20,00
Min. 31,50 15,05 21,50 10,50 27,00 13,20 19,00
PQ 32/30 Nom.    6,20 15,10
Max. 32,50 15,30 22,50 10,80 28,00 13,70 20,00
Min. 34,50 17,25 25,50 12,35 31,50 14,10 23,50
PQ 35/35 Nom.    7,30 16,40
Max. 35,70 17,50 26,50 12,65 32,50 14,60 24,50
Min. 39,70 19,75 27,40 14,60 36,40 14,60 28,00
PQ 40/40 Nom.    7,75 16,80
Max. 41,30 20,00 28,60 14,90 37,60 15,20 29,00
Min. 49,00 24,85 31,50 17,90 43,30 19,65 31,50
PQ 50/50 Nom.    10,00 22,00
Max. 51,00 25,10 32,50 18,20 44,70 20,35 32,50
Min. 63,70 26,80 39,20 17,75 52,00 25,55 39,20
PQ 65/54 Nom.    12,00 27,50

Max. 66,30 27,20 40,80 18,25 54,00 26,45 40,80
Min. 77,00 19,45 41,20 12,60 69,10 25,00 60,10
PQ 78/39 Nom.    13,60 27,60
Max. 80,00 19,95 42,80 13,20 71,90 26,00 62,50
Min. 105,00 43,10 68,50 27,50 93,70 40,20 72,50
PQ 107/87 Nom.    22,80 43,70
Max. 109,00 43,90 71,50 28,50 97,30 41,80 75,30

– 8 – IEC 62317-13:2015 © IEC 2015

C
B
L
B
C
D
X
X
IEC
Figure 2 – Dimensions of low-profile PQI-cores
Table 2 – Dimensions of low-profile PQI-cores
A B B C D E F G J L
1 2
Size
mm mm mm mm mm mm mm mm mm mm
Min. 16,10 5,30 2,25 10,90 2,90 14,10 6,80 9,60
PQI 16/7,8 Nom.     3,90 8,40
Max. 16,70 5,50 2,45 11,50 3,20 14,70 7,20 10,40
Min. 20,10 5,90 2,85 13,60 2,90 17,60 8,60 12,00
PQI 20/9 Nom.     4,80 10,50
Max. 20,90 6,10 3,05 14,40 3,20 18,40 9,00 12,50
Min. 26,05 7,20 4,10 18,55 2,95 22,05 11,80 15,50
PQI 26/12 Nom.     7,30 13,90
Max. 26,95 7,40 4,30 19,45 3,25 22,95 12,20 16,50

A
J
F
G
E
A
Table 3 – Effective parameter and A values for PQ-cores
min
a
－3
C A l V A
C × 10
1 e e e min
Size
－1 －3 2 3 2
mm mm mm mm mm mm
PQ 20/16 0,580 53 9,034 6 64,3 37,3 2 400 59,3

PQ 20/20 0,709 95 11,129 63,8 45,3 2 890 59,3

PQ 26/20 0,361 41 2,932 5 123 44,5 5 490 113

PQ 26/25 0,437 83 3,569 9 123 53,7 6 590 113

PQ 32/20 0,313 14 2,001 2 156 49,0 7 670 142

PQ 32/30 0,440 40 2,833 3 155 68,5 10 600 142
PQ 35/35 0,465 38 2,718 8 171 79,7 13 600 161
PQ 40/40 0,491 97 2,602 7 189 93,0 17 600 174
PQ 50/50 0,342 34 1,032 6 332 113 37 600 314
PQ 65/54 0,209 36 0,355 40 589 123 72 700 531
PQ 78/39 0,256 49 0,577 90 444 114 50 500 386
PQ 107/87 0,141 35 0,098 530 1 430 203 291 000 1 320
a
See 2.2 of IEC 60205:2006.
Table 4 – Effective parameter and A values for low-profile PQI-cores
min
－3 a
C C × 10 A l V A
1 2 e e e min
Size
－1 －3 2 3 2
mm mm mm mm mm mm
PQI 16/7,8 0,466 78 11,185 41,7 19,5 814 37,4
PQI 20/9 0,345 95 5,238 7 66,0 22,8 1 510 59,3
PQI 26/12 0,224 03 1,814 3 123 27,7 3 420 110
a
See 2.2 of IEC 60205:2006.
– 10 – IEC 62317-13:2015 © IEC 2015

H
H
h 2
b
IEC
Figure 3 – Main dimensions of coil formers for PQ-cores
Table 5 – Main dimensions of coil formers for PQ-cores
D D D H H a b h
1 2 3 1 2
Size mm mm mm mm mm mm mm mm
Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Max. Max. Min.
PQ 20/16 17,05 17,45 10,85 11,05 9,05 9,25 9,60 9,95 8,55 9,20 23,35 23,35 6,1
PQ 20/20 17,05 17,45 10,85 11,05 9,05 9,25 13,60 13,95 12,55 13,20 23,35 23,35 6,1
PQ 26/20 21,35 21,85 14,15 14,45 12,25 12,55 10,80 11,15 9,75 10,40 26,95 29,65 6,1
PQ 26/25 21,35 21,85 14,15 14,45 12,25 12,55 15,40 15,75 14,35 15,00 26,95 29,65 6,1
PQ 32/20 26,35 26,85 15,85 16,15 13,85 14,15 10,80 11,15 9,65 10,30 32,35 34,35 6,6
PQ 32/30 26,35 26,85 15,85 16,15 13,85 14,15 20,35 20,95 19,20 20,10 32,35 34,35 6,6

PQ 35/35 30,85 31,35 16,65 17,05 14,75 15,05 24,05 24,60 22,90 23,95 35,55 39,45 7,1
PQ 40/40 35,75 36,25 17,35 17,65 15,45 15,75 28,55 29,05 27,40 28,20 41,30 42,45 6,1
PQ 50/50 42,65 43,15 22,95 23,45 20,55 21,05 34,75 35,25 33,50 34,30 51,00 51,25 9,6
PQ 65/54 51,35 51,85 29,05 29,55 26,65 27,15 34,45 34,95 33,20 34,00 – – –
PQ 78/39 68,45 68,95 28,60 29,10 26,20 26,70 24,15 24,65 22,90 23,70 – – –
PQ 107/87 93,05 93,55 44,40 44,90 42,00 42,50 53,95 54,45 52,70 53,50 – – –

D
D
a
D
PQ 20/16
PQ 26/20
PQ 32/20
PQ 20/20
PQ 26/25
PQ 32/30
PQ 35/35
PQ 40/40
2,54 mm grids
PQ 50/50
IEC
Figure 4 – Pin locations and base outlines viewed from the upper side of the board

– 12 – IEC 62317-13:2015 © IEC 2015

Annex A
(informative)
PQ-core design
The design of PQ-cores standardized by the IEC is based on the following considerations:

a) minimize the design “q” (l IA × l IA ) with a uniform cross-section area of each magnetic
e e w w
path,
where
l  is the average length of turns;
w
A  is the available winding cross-section.
w
One useful way to consider ferrite core design is by evaluating the design factor “q”.
Minimize the “q” results in the highest inductance and lowest copper losses in the
transformer or inductor. PQ-core dimensions in this document are based on this type of
design philosophy;
b) get more transmission power from the tran
...
