Piezoelectric filters of assessed quality –
Part 3: Standard outlines and lead connections

Filtres piézoélectriques sous assurance de la qualité –
Partie 3: Encombrements normalisés et connexions des sorties

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
P
CODE PRIX
ICS 31.140 ISBN 978-2-88912-244-8
– 2 – 60368-3 Ó IEC:2010

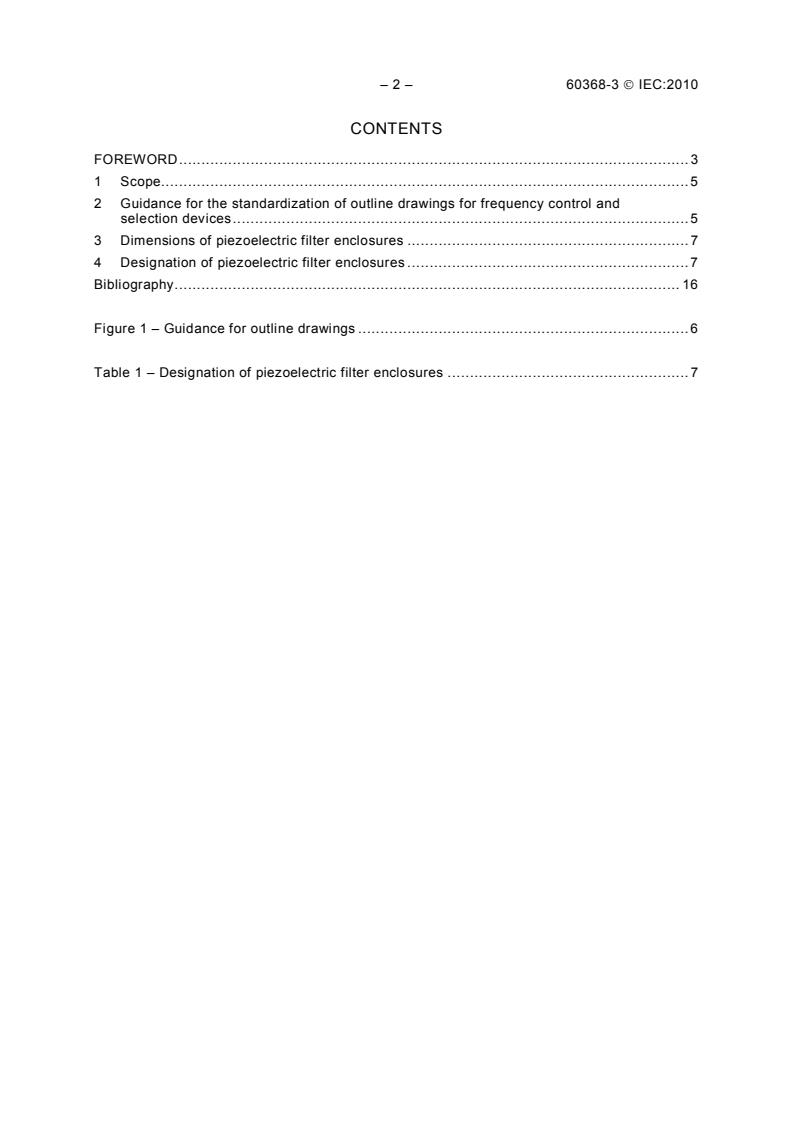

CONTENTS
FOREW ORD . 3
1 Sc o pe . 5
2 Guidance for the standardization of outline drawings for frequency control and
selection devices . 5
3 Dimensions of piezoelectric filter enclosures . 7
4 Designation of piezoelectric filter enclosures . 7
Bibliography . 16

Figure 1 – Guidance for outline drawings . 6

Table 1 – Designation of piezoelectric filter enclosures . 7

60368-3 Ó IEC:2010 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PIEZOELECTRIC FILTERS OF ASSESSED QUALITY –

Part 3: Standard outlines and lead connections

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in
addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses
arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60368-3 has been prepared by lEC Technical Committee 49:
Piezoelectric, dielectric and electrostatic devices and associated materials for frequency control,
selection and detection.
This fourth edition cancels and replaces the third edition published in 2001 and constitutes a
technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) four enclosure types (CF05, CF06, CF07 and CF09) have been deleted from previous edition,
IEC 60368-3 Ed. 3.0;
b) now standardized enclosures are totally 16 types. These are listed in Table.1.

– 4 – 60368-3 Ó IEC:2010
The text of this standard is based on the following documents:
CDV Report on voting
49/887/CDV 49/905A/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of IEC 60368 under the general title Piezoelectric filters of assessed quality can
be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
 reconfirmed,
 withdrawn,
 replaced by a revised edition, or
 amended.
60368-3 Ó IEC:2010 – 5 –
PIEZOELECTRIC FILTERS OF ASSESSED QUALITY –

Part 3: Standard outlines and lead connections

1 Scope
This part of IEC 60368 specifies the outline drawing for piezoelectric filters with lead enclosures.
2 Guidance for the standardization of outline drawings for frequency control
and selection devices
In order to achieve a uniform presentation of all outline drawings for frequency control and
selection devices the following guide shall be considered:
2.1 An outline drawing shall show all dimensional and geometrical characteristics of an
enclosure necessary to ensure mechanical interchangeability with all other enclosures of the
same outline. Enlarged detailed view may be used, if necessary.
2.2 The outline drawing shall consist of three parts:
2.2.1 A drawing with dimensional symbols (capital letter) as shown in Figure 1 below with
applicable notes, if necessary.
2.2.2 A tabular listing relating to the drawing symbols to the actual dimensions. Where possible
this shall be shown on the same page as the drawing.
2.2.3 An "actual-size" sketch (scale 1:1).
2.3 The outline drawing shall be executed in the third angle projection.
2.4 The function and identification of the lead connections (termination) shall be determined by
agreement between the supplier and user. They shall not be defined on the outline drawing.
2.5 Descriptive notes may be used at the bottom of/ or adjacent to, the drawing with proper
reference to the body of the drawing.
2.6 All dimensions shall be in millimeters.
2.7 0utline dimensions A, B, C, D and E shall be listed with maximum values only.
2.8 Lead (termination) cross-sectional dimensions shall be listed with minimum and maximum
values. If applicable, nominal dimensions may be added.
2.9 The spacing of the leads (termination) – symbol H – shall be listed with minimum, nominal
and maximum dimensions.
2.10 Leads (terminations) for soldering application shall be specified with the minimum length
dimensions (symbol L) only.
Lead (termination) for plug-in application shall be specified with minimum and maximum length
dimensions.
– 6 – 60368-3 Ó IEC:2010
2.11 If leads (terminations) are provided with an undercut dimensions U and W shall be listed
with minimum dimensions only.
E
D
C
Actual size
U
L
W
H
K B
A
IEIEC C  2244 / 02481/310
Dimensions (mm)
Notes
Ref.
Min. Nom. Max.
A ― ― X
B ― ― X
C ― ― X
D
― ― X
E ― ― X
H
X X X
K X ― X 1
L
X ― X
U X ― ― 2
W X ― ― 2
NOTE 1 In this sentence, a comment related to K or to the number X should be notified.
NOTE 2 In this sentence, a comment related to U and W or to the number X should be notified

Scale
Figure 1 – Guidance for outline drawings

2 :1
Sheet - number
60368-3 Ó IEC:2010 – 7 –
3 Dimensions of piezoelectric filter enclosures
The dimensions in this standard apply to the competed piezoelectric filters.
Only those dimensions which meet the requirements of the guidance for standardization of
outline drawings are given (see Clause 2).
4 Designation of piezoelectric filter enclosures
Table 1 – Designation of piezoelectric filter enclosures
No. Type Sheet No. Description
1 F 01 Sheet 1 Metal enclosure, soldered, two-lead crystal filter outline
2 F 02 Sheet 2 Metal enclosure, soldered, seven-lead crystal filter outline
3 F 03 Sheet 3 Metal enclosure, soldered, four-lead crystal filter outline
F 04
F 05
4 F06 Sheet 4 Metal enclosure, soldered, four-lead crystal filter outline
F 07
F 08
5 F 12 Sheet 5 Metal enclosure, soldered, four-lead crystal filter outline
F 14
6 Sheet 6 Metal enclosure, welded, three-lead crystal filter outline
F 15
7 F 16 Sheet 7 Metal enclosure, welded, three-lead crystal filter outline
CF 01
CF 02
8 Sheet 8 Metal enclosure, soldered, four-lead piezoelectric ceramic filter outline
CF 03
CF 04
– 8 – 60368-3 Ó IEC:2010
B
A
C
L2
L
K1
K2
H1
H2
H3
IEC  2482/10
IEC  866/01
Dimensions (mm) Identity Notes
Ref.
reference Types
Min. Nom. Max.
A ― ― 36,10
B ― ― 27,20
C ― ― 19,40
H1 22,61 22,86 23,11
H2 7,37 7,62 7,87
H3 14,75 15,00 15,49
K1 0,95 ― 1,05
K2 ― M3 ―
L1 2,50 ― ―
L2 3,50 ― 6,40
Metal enclosure, soldered, two-lead crystal filter outline Scale

– Type F 01 1:1
Sheet 1
60368-3 Ó IEC:2010 – 9 –
B
A
C
L
Kx
H1
H
H4
H5
IEC  2483/10
IEC 867/01
H
Dimensions (mm)
Identity Notes
Ref.
reference Types
Min. Nom. Max.
A ― ― 38,40
B ― ― 18,20
C ― ― 15,90
H1 23,76 24,00 24,25
H2 31,75 32,00 32,25
H3 3,75 4,00 4,25
H4 0,75 1,00 1,25
H5 4,75 5,00 5,25
K1 0,70 ― 0,85 a 1
K2 0,90 ― 1,10 b 1
L 2,70 ― ―
NOTE 1 K1 and K2 are alternative lead and are identified by adding the letter a or b to the basic type designation.

Metal enclosure, soldered, seven-lead crystal filter Scale
outline – Type F 02 1:1
Sheet 2
– 10 – 60368-3 Ó IEC:2010
C
Actual size
L
L1
KX
K1
A
H2
B
H2
H H1
IEC  868/01IEC  2484/10
Dimensions (mm)
Identity Notes
Ref.
reference Types
Min. Nom. Max.
A ― ― 11,00
B ― ― 8,50
C ― ― 12,00
H1 3,45 3,70 3,95
H2 1,75 2,00 2,25
K1 ― ― 1,60
K2 0,25 ― 0,40 a 1
K3 0,40 ― 0,48 b 1
L 4,00 ― ―
L1 7,00 ― ―
NOTE 1 K2 and K3 are alternative lead diameters and are identified by adding the letter a or b to the basic type
designation.
Metal enclosure, soldered, four-lead crystal filter outline Scale
– Type F 03 3:1
Sheet 3
60368-3 Ó IEC:2010 – 11 –
Ax
Type F 08
C
L
L1
K1
K
2 3
H
B
H
Hx
IEC  2485/10
IEC  869/01
Dimensions (mm)
Notes
Ref.
Types
Min. Nom. Max.
B ― ― 12,00
C ― ― 16,00
H 2,25 2,50 2,75
K 0,40 ― 0,48
K1 ― ― 1,60
L 3,50 ― ―
L1 3,50 ― ―
A1 ― ― 15,00
Type F 04
H1 8,75 9,00 9,25
A2 ― ― 18,50
Type F 05
H2 13,15 13,40 13,65
A3 ― ― 23,00
Type F 06
H3 17,55 17,80 18,05
A4 ― ― 28,00
Type F 07
H4 21,95 22,20 22,45
A5 ― ― 34,00
Type F 08
H5 26,35 26,60 26,85
Metal enclosure, soldered, four-lead crystal filter outline Scale
– Type F 04, F 05, F 06, F 07, F 08 1:1
Sheet 4
– 12 – 60368-3 Ó IEC:2010
C
Actual size
L
K
A
B
H2
H
IEIEC 870/01C  2486/10
Dimensions (mm)
Notes
Ref.
Types
Min. Nom. Max.
A ― ― 25,10
B ― ― 14,10
C
― ― 10,00
H1 17,50 18,00 18,50
H2
7,50 8,00 8,50
K 0,65 ― 0,85
L
3,00 ― ―
Metal enclosure, soldered, four-lead crystal filter outline Scale
– Type F 12 2:1
Sheet 5
60368-3 Ó IEC:2010 – 13 –
E B
D
A
Actual size
C
L
Kx
H1
H2
IEIEC  871/01C  2487/10
Dimensions (mm)
Notes
Ref.
Min. Nom. Max.
Types
A
― ― 8,26
B ― ― 3,70
C
― ― 8,80
D ― ― 7,00
E ― ― 2,60
H1 1,75 1,87 1,95
H2 3,60 3,75 3,90
K1 0,40 ― 0,48 Type F 15
K2 0,25 ― 0,48 Type F 14
L 12,70 ― ―
NOTE Centre lead may be either isolated or grounded to base.

Metal enclosure, welded, three-lead crystal filter outline Scale

– Type F 14, F 15 4:1
Sheet 6
– 14 – 60368-3 Ó IEC:2010
B
E
D
A
Actual size
C
L
K
H1
IEC  872/01
IEC  2488/10
H2
Dimensions (mm)
Notes
Ref.
Types
Min. Nom. Max.
A ― ― 11,10
B
― ― 5,00
C ― ― 13,50
D ― ― 10,20
E ― ― 3,80
H1 2,25 2,45 2,65
H2 4,67 4,90 5,08
K 0,40 ― 0,48
L 12,70 ― ―
NOTE Centre lead may be either i
...
