IEC 60079-14:2013

(Main)

Explosive atmospheres - Part 14: Electrical installations design, selection and erection

Explosive atmospheres - Part 14: Electrical installations design, selection and erection

IEC 60079-14:2013 contains the specific requirements for the design, selection, erection and initial inspection of electrical installations in, or associated with, explosive atmospheres. Where the equipment is required to meet other environmental conditions, for example, protection against ingress of water and resistance to corrosion, additional protection requirements may be necessary. The requirements of this standard apply only to the use of equipment under standard atmospheric conditions as defined in IEC 60079-0. For other conditions, additional precautions may be necessary, and the equipment should be certified for these other conditions. For example, most flammable materials and many materials which are normally regarded as non-flammable might burn vigorously under conditions of oxygen enrichment. These requirements are in addition to the requirements for installations in non-hazardous areas. This standard applies to all electrical equipment including fixed, portable, transportable and personal, and installations, permanent or temporary. No account is taken in this Standard of the toxic risks that are associated with flammable gases, liquids and dusts in concentrations that are usually very much less than the lower explosive limit. In locations where personnel may be exposed to potentially toxic concentrations of flammable material, appropriate precautions should be taken. Such precautions are outside the scope of this Standard. This fifth edition cancels and replaces the fourth edition published in 2007. This edition constitutes a technical revision. Refer to the document's Foreward for a listing of the specific revisions and additional Notes. Key words: requirements for the design, selection, erection and initial inspection of electrical installations in explosive atmospheres.
The contents of the corrigendum of January 2016, the interpretation sheet 1 of February 2017 and March 2020 have been included in this copy.

Atmosphères explosives - Partie 14: Conception, sélection et construction des installations électriques

L'IEC 60079-14:2013 contient les exigences spécifiques de conception, de sélection, de construction et d'inspection initiale applicables aux installations électriques situées ou en relation avec des atmosphères explosives. Lorsque le matériel est tenu de satisfaire à d'autres conditions environnementales, par exemple, la protection contre la pénétration de l'eau et la résistance à la corrosion, des exigences de protection supplémentaires peuvent être nécessaires. Les exigences de la présente norme s'appliquent uniquement à l'utilisation de matériels dans des conditions atmosphériques normalisées telles que définies dans la CEI 60079-0. Pour d'autres conditions, des précautions complémentaires peuvent être nécessaires, et il convient de certifier le matériel pour ces mêmes conditions. Par exemple, la plupart des matières inflammables et beaucoup de matières normalement réputées ininflammables sont susceptibles de brûler violemment dans des conditions enrichies en oxygène. Ces exigences complètent celles relatives aux installations dans les emplacements non dangereux. La présente norme est applicable à tout matériel électrique fixe, portable, transportable et personnel et aux installations permanentes ou temporaires. La présente norme ne tient pas compte des risques toxiques associés aux gaz, liquides et poussières inflammables présents dans des concentrations habituellement bien inférieures à la limite inférieure d'explosivité. Sur les sites où le personnel peut être exposé à des concentrations potentiellement toxiques de matières inflammables, il convient de prendre des précautions appropriées. Ces précautions ne relèvent pas du domaine d'application de la présente norme. Cette cinquième édition annule et remplace la quatrième édition parue en 2007, dont elle constitue une révision technique. Reportez-vous à l'Avant-propos du document pour obtenir une liste des révisions spécifiques et billets supplémentaires. Mots clès: exigences de conception, de sélection, de construction et d'inspection initiale applicables aux installations électriques situées ou en des atmosphères explosives.
Le contenu du corrigendum de janvier 2016, la feuille d'interprétation 1 de février 2017 et de mars 2020 a été pris en considération dans cet exemplaire.

General Information

Status
Published
Publication Date
27-Nov-2013
ICS
01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
29.260.20 - Electrical apparatus for explosive atmospheres
Technical Committee
SC 31J - Classification of hazardous areas and installation requirements
Drafting Committee
MT 60079-14 - TC 31/SC 31J/MT 60079-14
Current Stage
PPUB - Publication issued
Start Date
31-Dec-2013
Completion Date
28-Nov-2013
Ref Project

Relations

Corrected By
IEC 60079-14:2013/COR1:2016 - Corrigendum 1 - Explosive atmospheres - Part 14: Electrical installations design, selection and erection
Effective Date
05-Sep-2023
Revised
IEC 60079-14:2013/ISH2:2020 - Interpretation sheet 2 - Explosive atmospheres - Part 14: Electrical installations design, selection and erection
Effective Date
05-Sep-2023
Revises
IEC 60079-14:2007 - Explosive atmospheres - Part 14: Electrical installations design, selection and erection
Effective Date
05-Sep-2023
Revised
IEC 60079-14:2013/ISH1:2017 - Intrepretation sheet 1 - Explosive atmospheres - Part 14: Electrical installations design, selection and erection
Effective Date
05-Sep-2023

Buy Standard

IEC 60079-14:2013 - Explosive atmospheres - Part 14: Electrical installations design, selection and erectionIEC 60079-14:2013 - Explosive atmospheres - Part 14: Electrical installations design, selection and erection
PreviousNext
Standard
IEC 60079-14:2013 - Explosive atmospheres - Part 14: Electrical installations design, selection and erection
English and French language
282 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

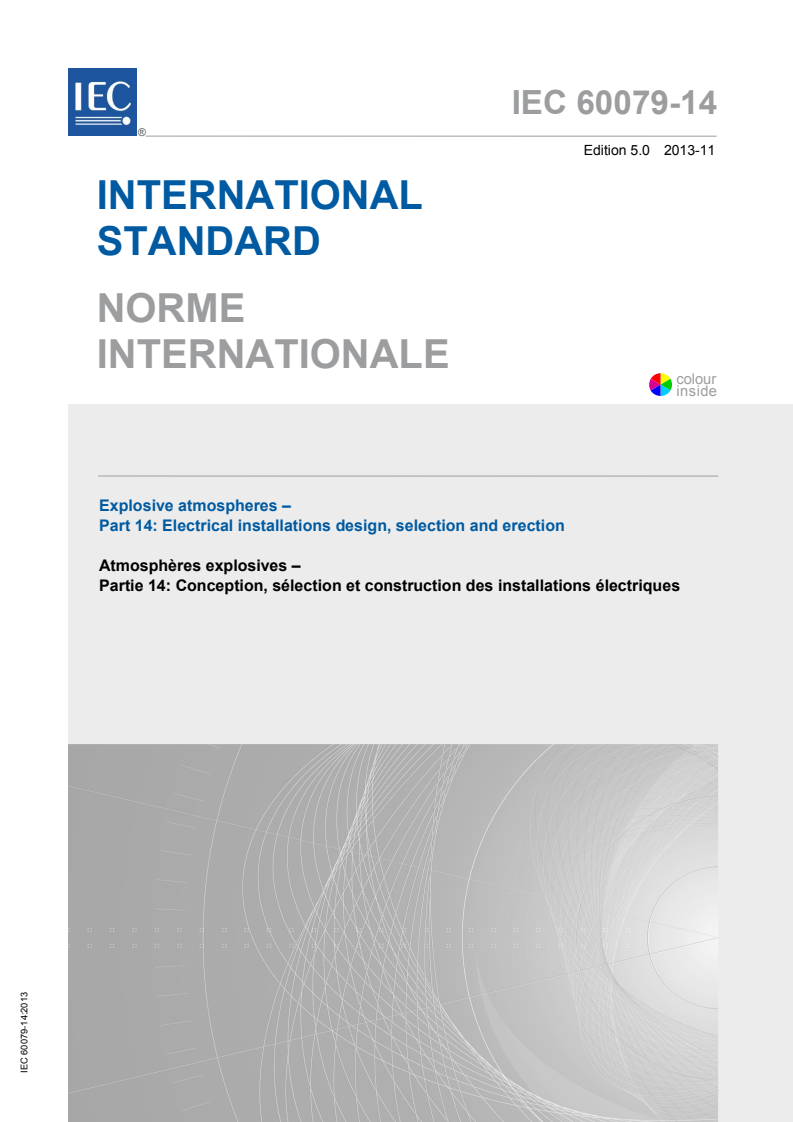

IEC 60079-14 ®
Edition 5.0 2013-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Explosive atmospheres –
Part 14: Electrical installations design, selection and erection

Atmosphères explosives –
Partie 14: Conception, sélection et construction des installations électriques

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.

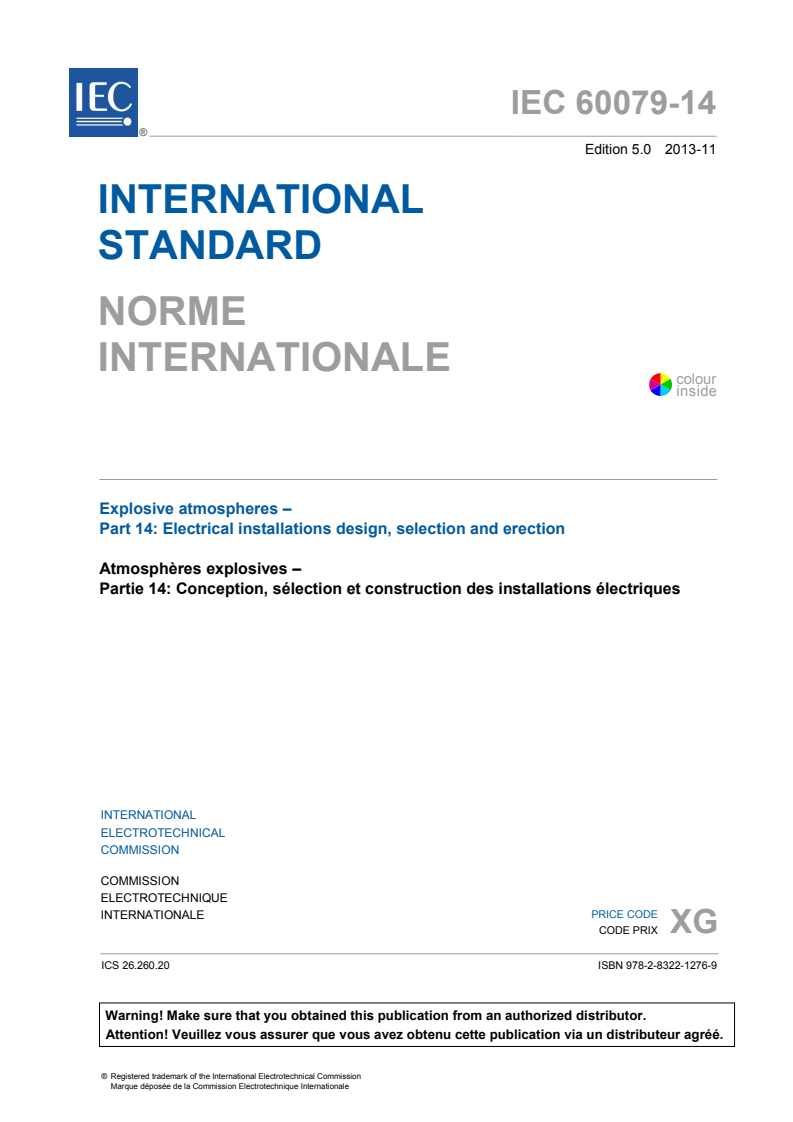

IEC 60079-14 ®
Edition 5.0 2013-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Explosive atmospheres –
Part 14: Electrical installations design, selection and erection

Atmosphères explosives –
Partie 14: Conception, sélection et construction des installations électriques

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX XG
ICS 26.260.20 ISBN 978-2-8322-1276-9

– 2 – IEC 60079-14:2013/ISH1:2017
 IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60079-14
Edition 5.0  2013-11
EXPLOSIVE ATMOSPHERES –
Part 14: Electrical installations design, selection and erection

INTERPRETATION SHEET 1
This interpretation sheet has been prepared by subcommittee 31J: Classification of hazardous
areas and installation requirements, of IEC technical committee 31: Equipment for explosive
atmospheres.
The text of this interpretation sheet is based on the following documents:
ISH Report on voting
31J/268/ISH 31J/270/RVD
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.
___________
INTERPRETATION SHEET
Interpretation sheet for IEC 60079-14:2013, Explosive atmospheres – Part 14: Electrical
installations design, selection and erection
Following decision No 1 of the SC 31J meeting in Frankfurt in 2016, the issuing of an
Interpretation Sheet for IEC 60079-14:2013 was requested, in order to clarify the issues
relating to the installation of the converter supply or reduced voltage starting of electric
motors.
Details of interpretation:
Interpretation of sub clauses 11.2.1 b), 11.2.2 b), 11.3.5 b), 11.4.1 b) 11.4.2 b), 11.5.1 b),
11.5.2 b), 11.6.1 b) and 11.6.2 b) for Motors with converter supply or reduced voltage
starting
The motor has not been type-tested for this duty as a unit in association with the converter.
In this case, means (or equipment) for direct temperature control by embedded temperature
sensors specified in the motor documentation or other effective measures for limiting the
surface temperature of the motor housing shall be provided. The effectiveness of the
temperature control shall take into consideration power, speed range, torque and frequency
for the duty required and shall be verified and documented. The action of the protective
device shall cause the motor to be electrically disconnected.”

ICS 26.260.20
 IEC 2017
Question
Is physical disconnection, such as a switch (circuit breaker) or contactor, required to
accomplish the intent of this requirement ?
Interpretation
The intention of this requirement is to protect the machine from excessive surface
temperatures.
Any action within the control circuit for the motor that accomplishes one of the following
satisfactorily meets the intent of this requirement:
• direct physical disconnection resulting in no output voltage to the motor, or,
• control circuit intervention such as ceasing modulation, resulting in the motor not
operating.
NOTE In this case, voltage to a motor may still exist, but the motor does not operate.

 IEC 2020
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
IEC 60079-14
Edition 5.0  2013-11
EXPLOSIVE ATMOSPHERES –
Part 14: Electrical installations design, selection and erection

INTERPRETATION SHEET 2
This interpretation sheet has been prepared by subcommittee 31J: Classification of hazardous
areas and installation requirements, of IEC technical committee 31: Equipment for explosive
atmospheres.
The text of this interpretation sheet is based on the following documents:
DISH Report on voting
31J/302/DISH 31J/303/RVDISH
Full information on the voting for the approval of this interpretation sheet can be found in the
report on voting indicated in the above table.

___________
Background
With changes to the Type of Protection designations in the IEC 60079 Series, a number of
these Type of Protection designations are not identified in the current edition of
IEC 60079-14. This may create confusion for end users regarding the correct application of
equipment with these Types of Protection.
Question
How should equipment be marked with new Type of Protection designations be handled in
accordance with IEC 60079-14?
Interpretation
Equipment marked with new Type of Protection designations shall be applied in accordance
with IEC 60079-14 requirements based on the following points and IEC 60079-14:2013,
Table 2.
ICS 26.260.20
– 2 – IEC 60079-14:2013/ISH2:2020
 IEC 2020
• Ex "eb" should be treated as equivalent to Ex "e"
• Ex "ec" should be treated as equivalent to Ex "nA"
• Ex "db" should be treated as equivalent to Ex "d"
• Ex "dc" requirements should be based on Ex "d" requirements but is only suitable for
EPL Gc
• Ex "ob" should be treated as equivalent to Ex "o"
• Ex "oc" requirements should be based on Ex "o" requirements but is only suitable for
EPL Gc
– 2 – 60079-14 © IEC:2013
CONTENTS
FOREWORD . 11
INTRODUCTION . 16
1 Scope . 18
2 Normative references . 19
3 Terms and definitions . 20
3.1 General . 20
3.2 Hazardous areas . 21
3.3 Flameproof enclosure . 22
3.4 Increased safety . 22
3.5 Intrinsic safety . 23
3.6 Intrinsic safety parameters . 24
3.7 Pressurization . 24
3.8 Type of protection “n” . 24
3.9 oil-immersion “o” . 25
3.10 powder filling “q” . 25
3.11 encapsulation “m” . 25
3.12 protection by enclosure “t” . 25
3.13 Electrical supply systems . 25
3.14 Equipment . 25
3.15 radio frequency identification RFID . 26
4 General . 26
4.1 General requirements . 26
4.2 Documentation . 27
4.3 Initial inspection . 28
4.4 Assurance of conformity of equipment. 28
4.4.1 Equipment with certificates according to IEC standards . 28
4.4.2 Equipment without certificates according to IEC standards . 28
4.4.3 Selection of repaired, second hand or existing equipment . 29
4.5 Qualifications of personnel . 29
5 Selection of equipment . 29
5.1 Information requirements . 29
5.2 Zones . 30
5.3 Relationship between equipment protection levels (EPLs) and zones . 30
5.4 Selection of equipment according to EPLs . 30
5.4.1 General . 30
5.4.2 Relationship between EPLs and types of protection . 30
5.4.3 Equipment for use in locations requiring EPL “Ga” or “Da” . 32
5.4.
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

IEC
IEC 60079-19:2019(Main)
Explosive atmospheres - Part 19: Equipment repair, overhaul and reclamation

IEC 60079-19:2019 gives instructions, principally of a technical nature, on the repair, overhaul, reclamation and modification of equipment designed for use in explosive atmospheres; it is not applicable to maintenance, other than when repair and overhaul cannot be disassociated from maintenance, neither does it give advice on cable entry systems which may require a renewal when the equipment is re-installed.
This fourth edition cancels and replaces the third edition published in 2010 together with Amendment 1:2015. This edition constitutes a technical revision.
The significance of the changes between IEC 60079-19, Edition 3 (2010), including Amendment 1 (2015), and IEC 60079-19, Edition 4 (2019) are defined in the foreword and cover minor and editorial changes, extension, and major technical changes.

  • Standard
    166 pages
    English and French language
    sale 15% off
IEC
IEC 60079-13:2017(Main)
Explosive atmospheres - Part 13: Equipment protection by pressurized room "p" and artificially ventilated room "v"

IEC 60079-13:2017 gives requirements for the design, construction, assessment, verification and marking of rooms used to protect internal equipment:
– located in a Zone 1 or Zone 2 or Zone 21 or Zone 22 explosive atmosphere without an internal source of gas/vapour release and protected by pressurization;
– located in a Zone 2 explosive atmosphere with or without an internal source of gas/vapour release and protected by artificial ventilation;
– located in a non-hazardous area, containing an internal source of gas/vapour release and protected by artificial ventilation;
– located in a Zone 1 or Zone 2 or Zone 21 or Zone 22 explosive atmosphere containing an internal source of gas/vapour release and protected by both pressurization and artificial ventilation.
The term "room" used in this document includes single rooms, multiple rooms, a complete building or a room contained within a building. A room is intended to facilitate the entry of personnel and includes inlet and outlet ducts. An acoustic hood and other like enclosures designed to permit the entry of personnel can be considered as a room.
This document also includes requirements related safety devices and controls necessary to ensure that artificial ventilation, purging and pressurization is established and maintained.
A room assembled or constructed on site, can be either on land or off-shore. The room is primarily intended for installation by an end-user but could be constructed and assessed at a manufacturer’s facility, where the final construction such as ducting can be completed on site.
This document does not specify the methods that may be required to ensure adequate air quality for personnel with regard to toxicity and temperature within the room. National or other regulations and requirements may exist to ensure the safety of personnel in this regard.
This second edition cancels and replaces the first edition published in 2010. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) modification of the title of this document to include artificially ventilated room "v" in addition to pressurized room "p";
b) addition of types of protection "pb", "pc", and "vc" and removal of types of protection "px", "py", "pz" and "pv";
c) definition of the differences between pressurization and artificial ventilation types of protection;
d) removal of protection of rooms with an inert gas or a flammable gas from the scope of this document;
e) addition of an informative annex to include examples of applications where types of protection pressurization or artificial ventilation or pressurization and artificial ventilation can be used and associated guidelines.

  • Standard
    35 pages
    English language
    sale 15% off
  • Standard
    72 pages
    English and French language
    sale 15% off
IEC
IEC 60079-10-1:2015(Main)
Explosive atmospheres - Part 10-1: Classification of areas - Explosive gas atmospheres
SIST IEC/TR2 61200-53:2000

IEC 60079-10-1:2015 is concerned with the classification of areas where flammable gas or vapour hazards may arise and may then be used as a basis to support the proper selection and installation of equipment for use in hazardous areas. It is intended to be applied where there may be an ignition hazard due to the presence of flammable gas or vapour, mixed with air, but it does not apply to:
- mines susceptible to firedamp;
- the processing and manufacture of explosives;
- catastrophic failures or rare malfunctions which are beyond the concept of abnormality dealt with in this standard (see 3.7.3 and 3.7.4);
- rooms used for medical purposes;
- commercial and industrial applications where only low pressure fuel gas is used for appliances e.g. for cooking, water heating and similar uses, where the installation is compliant with relevant gas codes;
- domestic premises;
- where a hazard may arise due to the presence of combustible dusts or combustible flyings but the principles may be used in assessment of a hybrid mixture (refer also IEC 60079-10-2). This second edition of IEC 60079-10-1 cancels and replaces the first edition, published in 2008, and constitutes a technical revision. The significant technical changes with respect to the previous edition are identified in the Foreward of the document. Keywords: ignition hazards, flammable gas or vapour, risk of explosions

  • Standard
    107 pages
    English language
    sale 15% off
  • Standard
    262 pages
    English language
    sale 15% off
  • Standard
    226 pages
    English and French language
    sale 15% off
  • Technical report
    17 pages
    English language
    sale 10% off
    e-Library read for
    1 day
IEC
IEC 60079-10-2:2015(Main)
Explosive atmospheres - Part 10-2: Classification of areas - Explosive dust atmospheres

IEC 60079-10-2:2015 is available as IEC 60079-10-2:2015 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 60079-10-2:2015 is concerned with the identification and classification of areas where explosive dust atmospheres and combustible dust layers are present, in order to permit the proper assessment of ignition sources in such areas. In this standard, explosive dust atmospheres and combustible dust layers are treated separately. In Clause 4, area classification for explosive dusts clouds is described, with dust layers acting as one of the possible sources of release. In Clause 7 other general considerations for dust layers are described. The examples in this standard are based on a system of effective housekeeping being implemented in the plant to prevent dust layers from accumulating. Where effective housekeeping is not present, the area classification includes the possible formation of explosive dust clouds from dust layers. The principles of this standard can also be followed when combustible fibres or flyings might cause a hazard. This standard is intended to be applied where there can be a risk due to the presence of explosive dust atmospheres or combustible dust layers under normal atmospheric conditions. Please refer to the foreword of the document for a detailed listing of the significant technical changes from the previous edition. Keywords: explosive dust atmospheres, combustible dust layers, ignition hazards

  • Standard
    92 pages
    English language
    sale 15% off
  • Standard
    56 pages
    English and French language
    sale 15% off
IEC
IEC 60079-17:2013(Main)
Explosive atmospheres - Part 17: Electrical installations inspection and maintenance

IEC 60079-17:2013 applies to users and covers factors directly related to the inspection and maintenance of electrical installations within hazardous areas only, where the hazard may be caused by flammable gases, vapours, mists, dusts, fibres or flyings. It does not include:
- other fundamental installation and inspection requirements for electrical installations;
- the verification of electrical equipment;
- the repair and reclamation of explosion protected equipment (see IEC 60079-19). This standard supplements the requirements of IEC 60364-6. In the case of dusts, fibres or flyings the level of housekeeping may influence the inspection and maintenance requirements. This standard is intended to be applied where there can be a risk due to the presence of explosive gas or dust mixtures with air or combustible dust layers under normal atmospheric conditions. It does not apply to:
- underground mining areas,
- dusts of explosives that do not require atmospheric oxygen for combustion,
- pyrophoric substances. This fifth edition cancels and replaces the fourth edition published in 2007 and constitutes a technical revision. The significant technical changes with respect to the previous edition are as follows:
- Equipment specific inspection tables for luminaires, heating systems and motors have been added into Annex A to supplement the general protection concept tables;
- Document has been updated to complement the changes made to IEC 60079-14 for initial inspection. Keywords: inspection and maintenance of electrical installations within hazardous area, flammable gases, vapours, mists, dusts, fibres or flyings
This publication is to be read in conjunction with IEC 60364-6:2006.

  • Standard
    75 pages
    English and French language
    sale 15% off
IEC
IEC 60079-25:2020(Main)
Explosive atmospheres - Part 25: Intrinsically safe electrical systems

IEC 60079-25:2020 contains the specific requirements for design, construction and assessment of intrinsically safe systems, Type of Protection “i”, intended for use, as a whole or in part, in locations in which the use of Group I, II or III Ex Equipment is required.
This document supplements and modifies the general requirements of IEC 60079-0 and the intrinsic safety standard IEC 60079-11. Where a requirement of this standard conflicts with a requirement of IEC 60079-0 or IEC 60079-11, the requirement of this standard takes precedence.
The installation requirements of Group II or Group III systems designed in accordance with this standard are specified in IEC 60079-14.
This third edition cancels and replaces the second edition published in 2010 and constitutes a technical revision.
The contents of the corrigendum 1 of October 2020 and corrigendum 2 of November 2022 have been included in this copy.

  • Standard
    117 pages
    English and French language
    sale 15% off
IEC
IEC 60079-29-1:2016/AMD1:2020(Amendment)
Amendment 1 - Explosive atmospheres - Part 29-1: Gas detectors - Performance requirements of detectors for flammable gases
  • Standard
    9 pages
    English and French language
    sale 15% off
IEC
IEC 60079-6:2015/AMD1:2020(Amendment)
Amendment 1 - Explosive atmospheres - Part 6: Equipment protection by liquid immersion "o"
  • Standard
    14 pages
    English and French language
    sale 15% off
IEC
IEC 60079-19:2019(Main)
Explosive atmospheres - Part 19: Equipment repair, overhaul and reclamation

IEC 60079-19:2019 gives instructions, principally of a technical nature, on the repair, overhaul, reclamation and modification of equipment designed for use in explosive atmospheres; it is not applicable to maintenance, other than when repair and overhaul cannot be disassociated from maintenance, neither does it give advice on cable entry systems which may require a renewal when the equipment is re-installed.
This fourth edition cancels and replaces the third edition published in 2010 together with Amendment 1:2015. This edition constitutes a technical revision.
The significance of the changes between IEC 60079-19, Edition 3 (2010), including Amendment 1 (2015), and IEC 60079-19, Edition 4 (2019) are defined in the foreword and cover minor and editorial changes, extension, and major technical changes.

  • Standard
    166 pages
    English and French language
    sale 15% off
IEC
IEC 62990-1:2019(Main)
Workplace atmospheres - Part 1: Gas detectors - Performance requirements of detectors for toxic gases

IEC 62990-1:2019 specifies general requirements for design, function and performance, and describes the test methods that apply to portable, transportable, and fixed equipment for the detection and concentration measurement of toxic gases and vapours in workplace atmospheres and other industrial and commercial applications.
This document is applicable to continuously sensing equipment whose primary purpose is to provide an indication, alarm and/or other output function the purpose of which is to indicate the presence of a toxic gas or vapour in the atmosphere and in some cases to initiate automatic or manual protective action(s). It is applicable to equipment in which the sensor generates an electrical signal when gas is present.
This document applies to two types of equipment:
• Type HM (Health Monitoring) ‘occupational exposure’ equipment:
For occupational exposure measurement, the performance requirements are focused on uncertainty of measurement of gas concentrations in the region of Occupational Exposure Limit Values (OELV). The upper limit of measurement will be defined by the manufacturer in accordance with 4.2.1.
• Type SM (Safety Monitoring) ‘general gas detection’ equipment:
For general gas detection applications (e.g. safety warning, leak detection), the performance requirements are focused on alarm signalling. The upper limit of measurement will be defined by the manufacturer according to the intended use of the equipment.
In general, the requirements for accuracy will be higher for Type HM equipment than for Type SM equipment. The same equipment may meet the requirements of both Type HM and Type SM.
For equipment used for sensing the presence of multiple gases this document applies only to the detection of toxic gas or vapour.
This document is not applicable to equipment:
- with samplers and concentrators such as sorbents or paper tape having an irreversible indication;
- used for the measurement of gases and vapours related to the risk of explosion;
- used for the measurement of oxygen;
- used only in laboratories for analysis or measurement;
- used only for process measurement purposes;
- used in the domestic environment;
- used in environmental air pollution monitoring;
- used for open-path (line of sight) area gas measurement;
- used for ventilation control in car parks or tunnels.
The contents of the corrigendum of December 2019 have been included in this copy.

  • Standard
    124 pages
    English and French language
    sale 15% off
