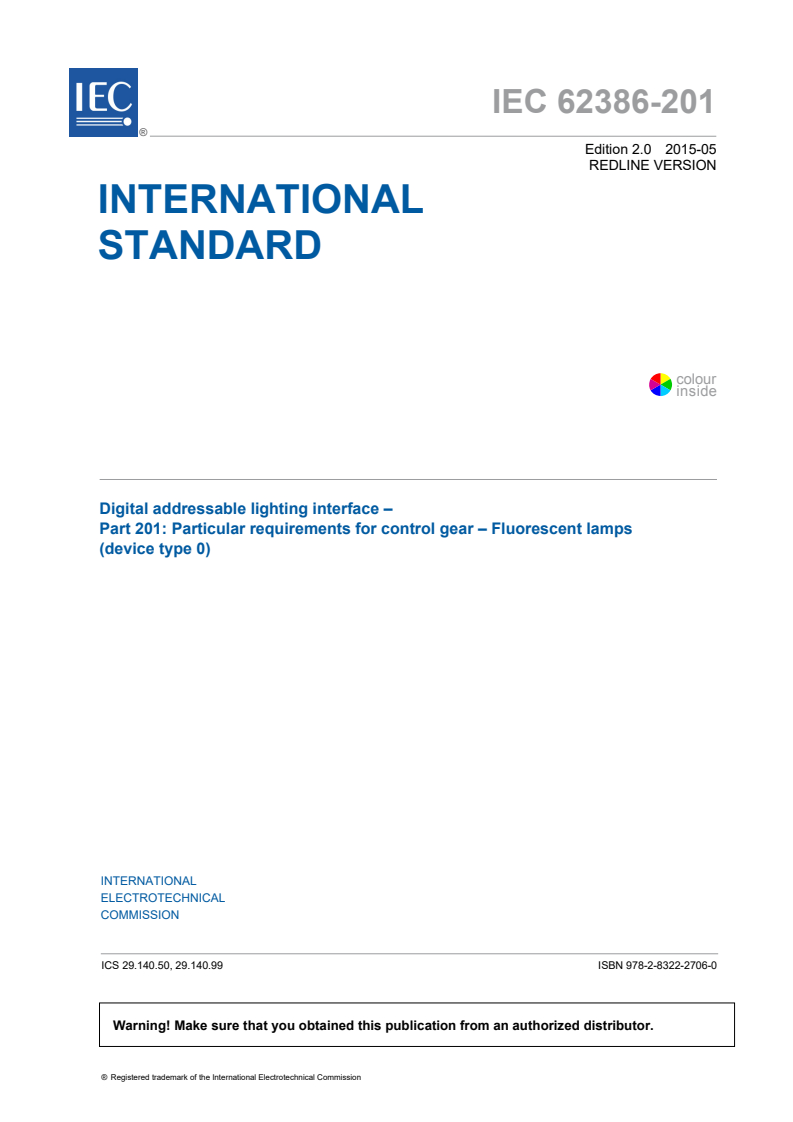

IEC 62386-201:2015

IEC 62386-201 ®
Edition 2.0 2015-05
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Digital addressable lighting interface –
Part 201: Particular requirements for control gear – Fluorescent lamps
(device type 0)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC 62386-201 ®
Edition 2.0 2015-05
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Digital addressable lighting interface –

Part 201: Particular requirements for control gear – Fluorescent lamps

(device type 0)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.140.50, 29.140.99 ISBN 978-2-8322-2706-0

– 2 – IEC 62386-201:2015 RLV © IEC 2015

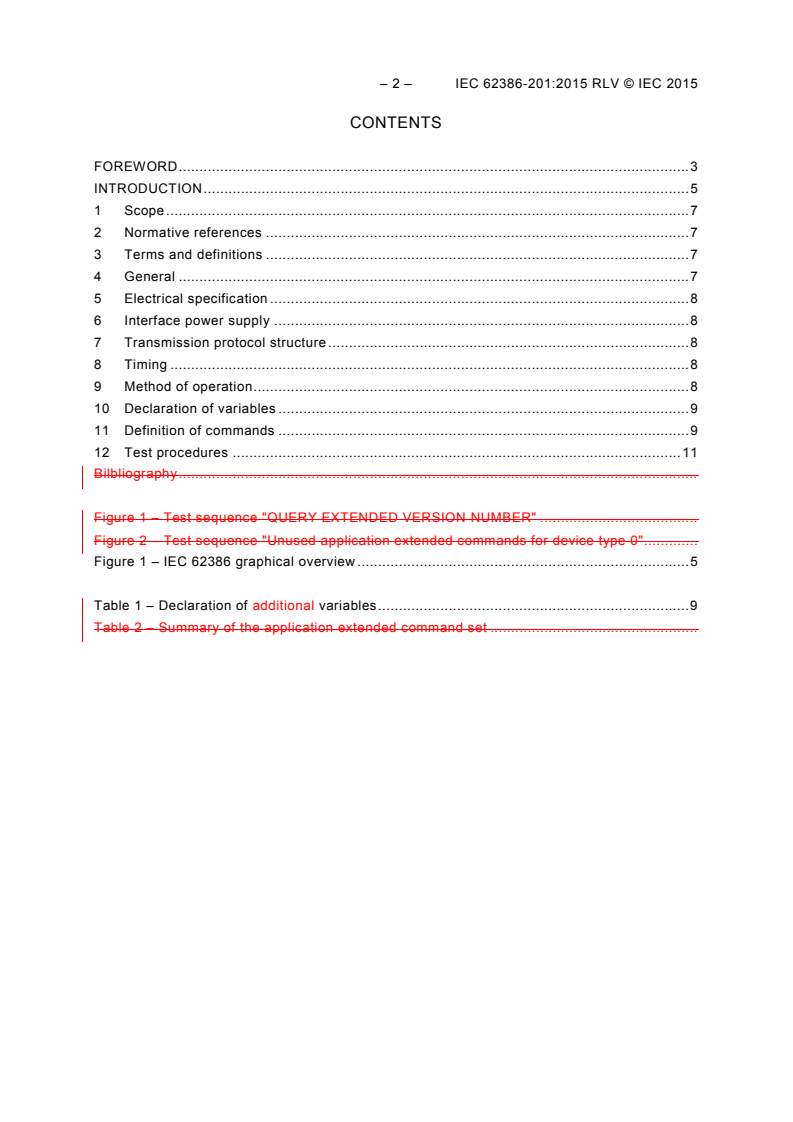

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 General . 7
5 Electrical specification . 8
6 Interface power supply . 8
7 Transmission protocol structure . 8
8 Timing . 8
9 Method of operation . 8
10 Declaration of variables . 9
11 Definition of commands . 9
12 Test procedures . 11
Bilbliography .

Figure 1 – Test sequence "QUERY EXTENDED VERSION NUMBER" .
Figure 2 – Test sequence "Unused application extended commands for device type 0" .
Figure 1 – IEC 62386 graphical overview . 5

Table 1 – Declaration of additional variables . 9
Table 2 – Summary of the application extended command set .

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DIGITAL ADDRESSABLE LIGHTING INTERFACE –

Part 201: Particular requirements for control gear –
Fluorescent lamps (device type 0)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition. A vertical bar appears in the margin wherever a change
has been made. Additions are in green text, deletions are in strikethrough red text.

– 4 – IEC 62386-201:2015 RLV © IEC 2015

International Standard IEC 62386-201 has been prepared by subcommittee 34C: Auxiliaries
for lamps, of IEC technical committee 34: Lamps and related equipment.
This second edition cancels and replaces the first edition published in 2009 and constitutes a
technical revision. The essential changes with respect to the first edition are:
• references to subclauses in IEC 62386-101 and IEC 62386-102 updated to the new
structure of the standard;
• test sequence reworked and description of the test sequences in form of a pseudo code
instead of flow charts.
The text of this standard is based on the following documents:
CDV Report on voting
34C/1082/CDV 34C/1103/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This Part 201 of IEC 62386 is intended to be used in conjunction with:
• IEC 62386-101, which contains general requirements for system components;
• IEC 62386-102, which contains general requirements for the control gear.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
INTRODUCTION
IEC 62386 contains several parts, referred to as series. The 1xx series includes the basic
specifications. Part 101 contains general requirements for system components, Part 102
extends this information with general requirements for control gear and Part 103 extends it
further with general requirements for control devices.
The 2xx parts extend the general requirements for control gear with lamp specific extensions
(mainly for backward compatibility with Edition 1 of IEC 62386) and with control gear specific
features.
The 3xx parts extend the general requirements for control devices with input device specific
extensions describing the instance types as well as some common features that can be
combined with multiple instance types.
The setup of the standard is graphically represented in Figure 1 below.
2xx 2xx 2xx 2xx 2xx 3xx 3xx 3xx 3xx 3xx
102 General requirements – 103 General requirements –
Control gear Control devices
101 General requirements –
System components
IEC
Figure 1 – IEC 62386 graphical overview
This second edition of IEC 62386-201 is published in conjunction with the second edition of
IEC 62386-101 and the second edition of IEC 62386-102. The division of IEC 62386 into
separately published parts provides for ease of future amendments and revisions. Additional
requirements will be added as and when a need for them is recognized.
This International Standard, and the other parts that make up the IEC 62386-200 series, in
referring to any of the clauses of IEC 62386-101 or IEC 62386-102, specify the extent to
which such a clause is applicable and the order in which the tests are to be performed; the
parts also include additional requirements, as necessary. All parts that make up the
IEC 62386-200 series are self-contained and therefore do not include references to each
other.
Where the requirements of any of the clauses of IEC 62386-101 or IEC 62386-102 are
referred to in this International Standard by the sentence "The requirements of fluorescent
lamp control gear (device type 0) shall conform to IEC 62386-1xx, Clause “n”, this sentence is
to be interpreted as meaning that all requirements of the clause in question of Part 101 or
Part 102 apply, except any which are inapplicable to the specific type of lamp control gear
covered by Part 201.
All numbers used in this International Standard are decimal numbers unless otherwise noted.
Hexadecimal numbers are given in the format 0xVV, where VV is the value. Binary numbers

– 6 – IEC 62386-201:2015 RLV © IEC 2015

are given in the format XXXXXXXXb or in the format XXXX XXXX, where X is 0 or 1; "x" in
binary numbers means "don't care".

DIGITAL ADDRESSABLE LIGHTING INTERFACE –

Part 201: Particular requirements for control gear –
Fluorescent lamps (device type 0)

1 Scope
This part of IEC 62386 specifies a protocol and methods of test bus system for control by
digital signals of electronic control gear for use on a.c. or d.c. supplies, associated with
fluorescent lamps lighting equipment. This electronic lighting equipment should be in line with
the requirements of IEC 61347.
This document is applicable to control gear associated with fluorescent lamps.
NOTE Tests in this standard are type tests. Requirements for testing individual bus units during production are
not included.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61347 (all parts), Lamp controlgear
IEC 62386-101:2009 2014, Digital addressable lighting interface – Part 101: General
requirements – System components
IEC 62386-102:2009 2014, Digital addressable lighting interface – Part 102: General
requirements – Control gear
3 Terms and definitions
For the purposes of this document, the terms and definitions given in Clause 3 of
IEC 62386-101:2009 2014 and Clause 3 of IEC 62386-102:2009 2014 apply.
4 General
The requirements of Clause 4 of IEC 62386-101:2009 and of IEC 62386-102:2009 2014,
Clause 4 apply, with the following exception:
Replace Subclause 4.2 by the following:
4.2 Extended version number
The extended version number of this document shall be in the format "x.y", where the major
extended version number x is in the range of 0 to 62 and the minor extended version
number y is in the range of 0 to 2. When the extended version number is encoded into a byte,
the major extended version number x shall be placed in bits 7 to 2 and the minor extended
version number y shall be placed in bits 1 to 0.

– 8 – IEC 62386-201:2015 RLV © IEC 2015

At each amendment to an edition of IEC 62386-201, the minor extended version number shall
be incremented by one.
At a new edition of IEC 62386-201, the major extended version number shall be incremented
by one and the minor extended version number shall be set to 0.
The current extended version number is "2.0" and is encoded in extendedVersionNumber.
NOTE IEC allows normally for 2 amendments before a new edition is created.
5 Electrical specification
The requirements of IEC 62386-101:2009 2014, Clause 5, and Clause 5 of IEC 62386-
102:2009 apply.
6 Interface power supply
If a power supply is integrated with into a control gear, the requirements of IEC 62386-
101:2009 2014, Clause 6, and Clause 6 of IEC 62386-102:2009 apply.
7 Transmission protocol structure
The requirements of Clause 7 of IEC 62386-101:2009 and Clause 7 of IEC 62386-102:2009
apply.
7.1 General
The requirements of Subclause 7.1 of IEC 62386-101:2014 apply.
7.2 Bit encoding
The requirements of Subclause 7.2 of IEC 62386-101:2014 apply.
7.3 Frame description
The requirements of Subclause 7.3 of IEC 62386-101:2014 apply.
7.4 Frame types
The requirements of Subclause 7.4 of IEC 62386-101:2014 apply.
7.5 16 bit forward frame encoding
The requirements of Subclause 7.2 of IEC 62386-102:2014 apply.
8 Timing
The requirements of IEC 62386-101:2009 2014, Clause 8, and Clause 8 of IEC 62386-102
apply.
9 Method of operation
The requirements of Clause 9 of IEC 62386-101:2009 and of IEC 62386-102:2009 2014,
Clause 9, apply.
10 Declaration of variables
The requirements of Clause 10 of IEC 62386-101:2009 and of IEC 62386-102:2009,
Clause 10, apply, with the following additional variables for this device type, as indicated in
Table 1.
Table 1 – Declaration of additional variables
Variable Default value Reset value Power-on Range of Memory
a
(factory) value validity type
”extendedVersionNumber" 1 2.0 no change no change 0 – 255 1 byte ROM
00001000b
"deviceType" 0 no change no change 0 – 254, 1 byte ROM
255 (mask)
a
Persistent memory (storage time indefinite) if not stated otherwise.

11 Definition of commands
The requirements of Clause 11 of IEC 62386-101:2009 and of IEC 62386-102:2009 2014,
Clause 11, shall apply, with the following exceptions:
Amendment of Subclause 11.6 of IEC 62386-102:2009 2014 as follows:
11.3.1 Queries related to status information
Amendment:
Command 153: YAAA AAA1 1001 1001 "QUERY DEVICE TYPE"
The answer shall be 0.
11.3.4 Application extended commands
Replacement:
Application extended commands shall be preceded by command 272, "ENABLE DEVICE
TYPE 0". For device types other than 0, these commands may be used in a different way.
A fluorescent lamp control gear shall not react to application extended commands preceded
by command 272 "ENABLE DEVICE TYPE X" with X ≠ 0.
Commands 224 – 239:  YAAA AAA1 1110 XXXX
Reserved for future needs. The fluorescent lamp control gear shall not react in any way.
Commands 240 – 247: YAAA AAA1 1111 0XXX
Reserved for future needs. The fluorescent lamp control gear shall not react in any way.
Commands 248 – 251: YAAA AAA1 1111 10XX
Reserved for future needs. The fluorescent lamp control gear shall not react in any way.
Commands 252 – 253: YAAA AAA1 1111 110X
Reserved for future needs. The fluorescent lamp control gear shall not react in any way.

– 10 – IEC 62386-201:2015 RLV © IEC 2015

Command 254: YAAA AAA1 1111 1110
Reserved for future needs. The fluorescent lamp control gear shall not react in any way.
Command 255: YAAA AAA1 1111 1111 "QUERY EXTENDED VERSION
NUMBER"
The answer shall be 1.
11.4.4 Extended special commands
Amendment:
Command 272: 1100 0001 0000 0000 "ENABLE DEVICE TYPE 0"
The device type for fluorescent lamp control gear is 0.
11.5 Summary of the command set
The commands listed in 11.5 of IEC 62386-101:2009 and 11.5 of IEC 62386-102:2009 apply
with the following additional commands for device type 0 listed in Table 2.
Table 2 – Summary of the application extended command set
Command number Command code Command name
a
224 – 239 YAAA AAA1 1110 XXXX
a
240 – 247 YAAA AAA1 1111 0XXX
a
248 – 251 YAAA AAA1 1111 10XX
a
252 – 253 YAAA AAA1 1111 110X
a
254 YAAA AAA1 1111 1110
255 YAAA AAA1 1111 1111 QUERY EXTENDED VERSION NUMBER
272 1100 0001 0000 0000 ENABLE DEVICE TYPE 0
a
Reserved for future needs. The fluorescent lamp control gear shall not react in any way.

11.6 APPLICATION EXTENDED COMMANDS
11.6.1 General
Amendment:
Replace data by deviceType.
11.6.2 QUERY EXTENDED VERSION NUMBER
Replacement:
The answer shall be extendedVersionNumber when device type deviceType has been enabled.
Refer to Subclause 4.1 for further information.
Amendment of Subclause 11.7 of IEC 62386-102 as follows:
11.7 Special commands
11.7.14 ENABLE DEVICE TYPE (data)
Addition:
data shall be equal to deviceType to enable the command set as defined in this standard.
12 Test procedures
The requirements of IEC 62386-102:2009 2014, Clause 12, apply, with the following
exceptions:
Additional subclause:
12.7 Test sequences for "Application extended commands for device type 0"
12.7.1 Test sequences for standard application extended commands
12.7.1.1 Test sequence for "Q
...

IEC 62386-201 ®
Edition 2.0 2015-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Digital addressable lighting interface –
Part 201: Particular requirements for control gear – Fluorescent lamps (device
type 0)
Interface d'éclairage adressable numérique –
Partie 201: Exigences particulières pour les appareillages de commande –
Lampes fluorescentes (dispositifs de type 0)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 62386-201 ®
Edition 2.0 2015-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Digital addressable lighting interface –

Part 201: Particular requirements for control gear – Fluorescent lamps (device

type 0)
Interface d'éclairage adressable numérique –

Partie 201: Exigences particulières pour les appareillages de commande –

Lampes fluorescentes (dispositifs de type 0)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.50; 29.140.99 ISBN 978-2-8322-3037-4

– 2 – IEC 62386-201:2015 © IEC 2015
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 General . 6
5 Electrical specification . 7
6 Interface power supply . 7
7 Transmission protocol structure . 7
8 Timing . 7
9 Method of operation . 7
10 Declaration of variables . 7
11 Definition of commands . 7
12 Test procedures . 8

Figure 1 – IEC 62386 graphical overview . 5

Table 1 – Declaration of additional variables . 7

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DIGITAL ADDRESSABLE LIGHTING INTERFACE –

Part 201: Particular requirements for control gear –
Fluorescent lamps (device type 0)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62386-201 has been prepared by subcommittee 34C: Auxiliaries
for lamps, of IEC technical committee 34: Lamps and related equipment.
This second edition cancels and replaces the first edition published in 2009 and constitutes a
technical revision. The essential changes with respect to the first edition are:
• references to subclauses in IEC 62386-101 and IEC 62386-102 updated to the new
structure of the standard;
• test sequence reworked and description of the test sequences in form of a pseudo code
instead of flow charts.
– 4 – IEC 62386-201:2015 © IEC 2015
This bilingual version (2015-12) corresponds to the English version, published in 2015-05.
The text of this standard is based on the following documents:
CDV Report on voting
34C/1082/CDV 34C/1103/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
This Part 201 of IEC 62386 is intended to be used in conjunction with:
• IEC 62386-101, which contains general requirements for system components;
• IEC 62386-102, which contains general requirements for the control gear.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
INTRODUCTION
IEC 62386 contains several parts, referred to as series. The 1xx series includes the basic
specifications. Part 101 contains general requirements for system components, Part 102
extends this information with general requirements for control gear and Part 103 extends it
further with general requirements for control devices.
The 2xx parts extend the general requirements for control gear with lamp specific extensions
(mainly for backward compatibility with Edition 1 of IEC 62386) and with control gear specific
features.
The 3xx parts extend the general requirements for control devices with input device specific
extensions describing the instance types as well as some common features that can be
combined with multiple instance types.
The setup of the standard is graphically represented in Figure 1.
2xx 2xx 2xx 2xx 2xx 3xx 3xx 3xx 3xx 3xx
102 General requirements – 103 General requirements –
Control gear Control devices
101 General requirements –
System components
IEC
Figure 1 – IEC 62386 graphical overview
This second edition of IEC 62386-201 is published in conjunction with the second edition of
IEC 62386-101 and the second edition of IEC 62386-102. The division of IEC 62386 into
separately published parts provides for ease of future amendments and revisions. Additional
requirements will be added as and when a need for them is recognized.
This International Standard, and the other parts that make up the IEC 62386-200 series, in
referring to any of the clauses of IEC 62386-101 or IEC 62386-102, specify the extent to
which such a clause is applicable and the order in which the tests are to be performed; the
parts also include additional requirements, as necessary.
Where the requirements of any of the clauses of IEC 62386-101 or IEC 62386-102 are
referred to in this International Standard by the sentence "The requirements of fluorescent
lamp control gear (device type 0) shall conform to IEC 62386-1xx, Clause “n”, this sentence is
to be interpreted as meaning that all requirements of the clause in question of Part 101 or
Part 102 apply, except any which are inapplicable to the specific type of lamp control gear
covered by Part 201.
All numbers used in this International Standard are decimal numbers unless otherwise noted.
Hexadecimal numbers are given in the format 0xVV, where VV is the value. Binary numbers
are given in the format XXXXXXXXb or in the format XXXX XXXX, where X is 0 or 1; "x" in
binary numbers means "don't care".

– 6 – IEC 62386-201:2015 © IEC 2015
DIGITAL ADDRESSABLE LIGHTING INTERFACE –

Part 201: Particular requirements for control gear –
Fluorescent lamps (device type 0)

1 Scope
This part of IEC 62386 specifies a bus system for control by digital signals of electronic
lighting equipment. This electronic lighting equipment should be in line with the requirements
of IEC 61347.
This document is applicable to control gear associated with fluorescent lamps.
NOTE Tests in this standard are type tests. Requirements for testing individual bus units during production are
not included.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61347 (all parts), Lamp controlgear
IEC 62386-101:2014, Digital addressable lighting interface – Part 101: General requirements
– System components
IEC 62386-102:2014, Digital addressable lighting interface – Part 102: General requirements
– Control gear
3 Terms and definitions
For the purposes of this document, the terms and definitions given in Clause 3 of IEC 62386-
101:2014 and Clause 3 of IEC 62386-102:2014 apply.
4 General
The requirements of IEC 62386-102:2014, Clause 4 apply, with the following exception:
Replace Subclause 4.2 by the following:
4.2 Extended version number
The extended version number of this document shall be in the format "x.y", where the major
extended version number x is in the range of 0 to 62 and the minor extended version
number y is in the range of 0 to 2. When the extended version number is encoded into a byte,
the major extended version number x shall be placed in bits 7 to 2 and the minor extended
version number y shall be placed in bits 1 to 0.
At each amendment to an edition of IEC 62386-201, the minor extended version number shall
be incremented by one.
At a new edition of IEC 62386-201, the major extended version number shall be incremented
by one and the minor extended version number shall be set to 0.
The current extended version number is "2.0" and is encoded in extendedVersionNumber.
NOTE The IEC allows normally for 2 amendments before a new edition is created.

5 Electrical specification
The requirements of IEC 62386-101:2014, Clause 5 apply.
6 Interface power supply
If a power supply is integrated into a control gear, the requirements of IEC 62386-101:2014,
Clause 6 apply.
7 Transmission protocol structure
7.1 General
The requirements of Subclause 7.1 of IEC 62386-101:2014 apply.
7.2 Bit encoding
The requirements of Subclause 7.2 of IEC 62386-101:2014 apply.
7.3 Frame description
The requirements of Subclause 7.3 of IEC 62386-101:2014 apply.
7.4 Frame types
The requirements of Subclause 7.4 of IEC 62386-101:2014 apply.
7.5 16 bit forward frame encoding
The requirements of Subclause 7.2 of IEC 62386-102:2014 apply.
8 Timing
The requirements of IEC 62386-101:2014, Clause 8 apply.
9 Method of operation
The requirements of IEC 62386-102:2014, Clause 9 apply.
10 Declaration of variables
The requirements of IEC 62386-102:2014, Clause 10 apply, with the following additional
variables for this device type, as indicated in Table 1.
Table 1 – Declaration of additional variables
Variable Default value Reset value Power-on value Range of Memory type
(factory) validity
”extendedVersionNumber" 2.0 no change no change 00001000b ROM
"deviceType" 0 no change no change 0 ROM

11 Definition of commands
The requirements of IEC 62386-102:2014, Clause 11 apply, with the following exceptions:
Amendment of Subclause 11.6 of IEC 62386-102:2014 as follows:
11.6 APPLICATION EXTENDED COMMANDS
11.6.1 General
Amendment:
Replace data by
...
