– 2 – IEC 61347-2-1:2024 RLV © IEC 2024

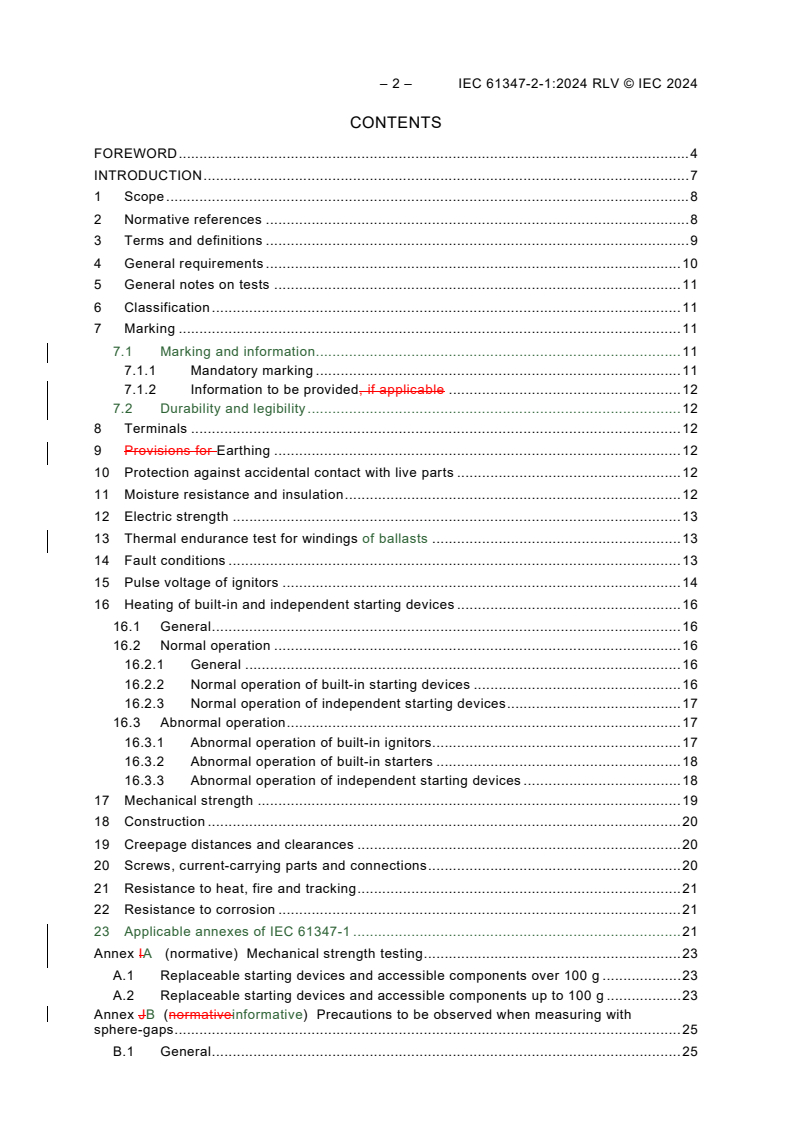

CONTENTS
FOREWORD . 4
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms and definitions . 9
4 General requirements . 10
5 General notes on tests . 11
6 Classification . 11
7 Marking . 11
7.1 Marking and information . 11
7.1.1 Mandatory marking . 11
7.1.2 Information to be provided, if applicable . 12
7.2 Durability and legibility . 12
8 Terminals . 12
9 Provisions for Earthing . 12
10 Protection against accidental contact with live parts . 12
11 Moisture resistance and insulation . 12
12 Electric strength . 13
13 Thermal endurance test for windings of ballasts . 13
14 Fault conditions . 13
15 Pulse voltage of ignitors . 14
16 Heating of built-in and independent starting devices . 16
16.1 General . 16
16.2 Normal operation . 16
16.2.1 General . 16
16.2.2 Normal operation of built-in starting devices . 16
16.2.3 Normal operation of independent starting devices . 17
16.3 Abnormal operation . 17
16.3.1 Abnormal operation of built-in ignitors. 17
16.3.2 Abnormal operation of built-in starters . 18
16.3.3 Abnormal operation of independent starting devices . 18
17 Mechanical strength . 19
18 Construction . 20
19 Creepage distances and clearances . 20
20 Screws, current-carrying parts and connections . 20
21 Resistance to heat, fire and tracking . 21
22 Resistance to corrosion . 21
23 Applicable annexes of IEC 61347-1 . 21
Annex IA  (normative) Mechanical strength testing . 23
A.1 Replaceable starting devices and accessible components over 100 g . 23
A.2 Replaceable starting devices and accessible components up to 100 g . 23
Annex JB (normativeinformative) Precautions to be observed when measuring with
sphere-gaps . 25
B.1 General . 25

B.2  Sphere-gap . 25
B.3  Breakdown gap distance . 25
B.4  Duty cycle of the ignitor . 25
B.5  End of test . 25
Annex C (informative) Schedule of more onerous requirements . 26
Bibliography . 27

Figure 1 – Starting voltage measurement for ignitors . 15
Figure IA.1 – Tumbling barrel . 24

– 4 – IEC 61347-2-1:2024 RLV © IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LAMP CONTROLGEAR –
CONTROLGEAR FOR ELECTRIC LIGHT SOURCES – SAFETY –

Part 2-1: Particular requirements – Starting devices
(other than glow starters)
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition IEC 61347-2-1:2000+AMD1:2005+AMD2:2013 CSV. A vertical
bar appears in the margin wherever a change has been made. Additions are in green text,
deletions are in strikethrough red text.

IEC 61347-2-1 has been prepared by subcommittee 34C: Auxiliaries for lamps, of IEC technical
committee 34: Lighting. It is an International Standard.
This second edition cancels and replaces the first edition published in 2000, Amendment 1:2005
and Amendment 2:2013. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) update of normative references, introducing dated references where appropriate;
b) clarification of sample item numbers;
c) alignment of clause numbers with those of IEC 61347-1;
d) renumbering of Clause 15 and Clause 16.
The text of this International Standard is based on the following documents:
Draft Report on voting
34C/1582/CDV 34C/1590/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
This document is intended to be used in conjunction with IEC 61347-1:2015 and
IEC 61347-1:2015/AMD1:2017. Where the requirements of any of the clauses of
IEC 61347-1:2015 and IEC 61347-1:2015/AMD1:2017 are referred to in this document by the
phrase "IEC 61347-1:2015, Clause n and IEC 61347-1:2015/AMD1:2017, Clause n apply", this
phrase is interpreted as meaning that all the requirements of the clause in question of
IEC 61347-1:2015 and IEC 61347-1:2015/AMD1:2017 apply, except any which are clearly
inapplicable to the specific type of controlgear covered by this document.
NOTE In this document, the following print type is used:
– compliance statements: in italic type.
A list of all parts in the IEC 61347 series, published under the general title Controlgear for
electric light sources – Safety, can be found on the IEC website.
Future documents in this series will carry the new general title as cited above. Titles of existing
documents in this series will be updated at the time of the next edition.

– 6 – IEC 61347-2-1:2024 RLV © IEC 2024
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

INTRODUCTION
This first edition of IEC 61347-2-1, published in conjunction with IEC 61347-1, represents an
editorial review of IEC 60926. The formatting into separately published parts provides for ease
of future amendments and revisions. Additional requirements will be added as and when a need
for them is recognized.
This standard, and the parts which make up IEC 61347-2, in referring to any of the clauses of
IEC 61347-1, specify the extent to which such a clause is applicable and the order in which the
tests are to be performed; they also include additional requirements, as necessary. All parts
which make up IEC 61347-2 are self-contained and, therefore, do not include references to
each other.
Where the requirements of any of the clauses of IEC 61347-1 are referred to in this standard
by the phrase ”The requirements of clause n of IEC 61347-1 apply”, this phrase is interpreted
as meaning that all requirements of the clause in question of part 1 apply, except any which are
clearly inapplicable to the specific type of lamp controlgear covered by this particular part of
IEC 61347-2.
The technical requirements in this document compared to IEC 61347-2-1:2000,
IEC 61347-2-1:2000/AMD1:2005 and IEC 61347-2-1:2000/AMD2:2013 are essentially
unchanged. Nevertheless, a new edition of this document could not be avoided, as without the
introduction of dated references to IEC 61347-1:2015 and IEC 61347-1:2015/AMD1:2017, the
fourth edition of IEC 61347-1:— would have been implicitly applicable due to the undated
nature of the references to IEC 61347-1 in IEC 61347-2-1:2000,
IEC 61347-2-1:2000/AMD1:2005 and IEC 61347-2-1:2000/AMD2:2013.
This document, in referring to any of the clauses of IEC 61347-1:2015 and
IEC 61347-1:2015/AMD1:2017, specifies the extent to which such a clause is applicable.
Additional requirements are also included, as necessary.
___________
Fourth edition under preparation. Stage at the time of publication IEC FDIS 61347-1:2024.

– 8 – IEC 61347-2-1:2024 RLV © IEC 2024
LAMP CONTROLGEAR –
CONTROLGEAR FOR ELECTRIC LIGHT SOURCES – SAFETY –

Part 2-1: Particular requirements – Starting devices
(other than glow starters)
1 Scope
This part of IEC 61347 specifies safety requirements for starting devices (starters other than
glow starters and ignitors) for fluorescent and other discharge lamps for use on AC supplies up
to 1 000 V at 50 Hz or 60 Hz which produce starting pulses not greater than 100 kV and which
are used in combination with lamps and ballasts controlgear covered in IEC 60081, IEC 60188,
IEC 60192, IEC 60662, IEC 60901, IEC 61167, IEC 61195, IEC 61199, IEC 61347-2-8 and
IEC 61347-2-9.
This document does not apply to glow starters or starting devices which are incorporated in
discharge lamps or which are manually operated. Preheat transformers for fluorescent lamps
are covered by IEC 61347-2-8.
NOTE 1 Glow starters are dealt with in IEC 60155.
NOTE 2 Performance requirements are given in IEC 60927.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60052:2002, Voltage measurement by means of standard air gaps
IEC 60068-2-75:19972014, Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests
IEC 60081, Double-capped fluorescent lamps – Performance specifications
IEC 60155:1993, Glow-starters for fluorescent lamps
IEC 60155:1993/AMD1:1995
IEC 60155:1993/AMD2:2006
IEC 60188, High-pressure mercury vapour lamps
IEC 60192, Low-pressure sodium vapour lamps
IEC 60255-8:1990 , Electrical relays – Part 8: Thermal electrical relays
IEC 60598 (all parts), Luminaires
___________
Withdrawn.
IEC 60598-1:2020, Luminaires – Part 1: General requirements and tests
IEC 60662, High-pressure sodium vapour lamps
IEC 60901, Single-capped fluorescent lamps – Performance specifications
IEC 61167, Metal halide lamps
IEC 61195, Double-capped fluorescent lamps – Safety specifications
IEC 61199, Single-capped fluorescent lamps – Safety specifications
IEC 61347-1:2015, Lamp controlgear – Part 1: General and safety requirements
IEC 61347-1:2015/AMD1:2017
ISO 3864 (all parts), Graphical symbols – Safety colours and safety signs
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61347-1 and the
following apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1
starting device
ignitor
apparatus which provides, by itself or in combination with other components in the circuit, the
appropriate electrical conditions needed to start a discharge type of lamp
device designed to provide the appropriate electrical conditions to start a discharge lamp by
itself or in combination with other components in the circuit
[SOURCE: IEC 60500-845:2020, 845-28-041, modified – The admitted term "ignitor" has been
added.]
3.2
starter
starting device, usually for fluorescent lamps, which provides for the necessary preheating of
the electrodes and may, in combination with the series impedance of the ballast, cause a surge
in the voltage applied to the lamp
device, usually for fluorescent lamps, which is used for the purpose of starting the discharge
lamp by providing the necessary preheating of the cathode and, in combination with the series
inductance of the ballast, causes a voltage surge applied to the discharge lamp
Note 1 to entry: The starter element that releases the starting voltage pulse may can be either triggered, for
example, phase-angle synchronized, or non-triggered.
[SOURCE: IEC 60500-845:2020, 845-28-042]

– 10 – IEC 61347-2-1:2024 RLV © IEC 2024
3.3
starting device with operating time limitation
starting device which prevents prolonged attempts to start lamps which refuse to start, for
example, lamps with deactivated electrodes
Note 1 to entry: Prevention of starting attempts means that in the case of starters, the starting-current circuit is
switched off and/or the current in the starting circuit is limited to a value equal to or smaller than the rated lamp
current.
In the case of ignitors, prevention of starting attempts means that pulse generation has ceased, or voltage pulses
are significantly reduced in amplitude.
3.4
peak voltage
U
p
highest value of the voltage pulses generated by an ignitor at the output terminals
3.5
short-circuit power (of a voltage source)
quotient of the square of the voltage produced at the output terminals of the voltage source, in
opencircuit condition, and its internal impedance as seen from the output terminals
3.5
spherical spark gap
two metal spheres of the same diameter arranged at a specified distance and used under
specified conditions for the measurement of peak voltages in excess of 15 kV
3.6
maximum case temperature under abnormal conditions
(t + X)
c
maximum allowable case temperature of the starting devices and ignitors under abnormal
conditions with metal halide lamps
Note 1 to entry: The value of (t + X) is declared by the manufacturer.
c
[SOURCE: IEC 60927, 3.7, modified – The term "starting device" is added.]
3.7
sample
one or more sampling items intended to provide information on the population or on the material
provided by the manufacturer or responsible vendor
[SOURCE: IEC 60050-151:2001, 151-16-19, modified – "provided by the manufacturer or
responsible vendor" has been added.]
3.8
sample item
one of the individual items in a population of similar items, or a portion of material forming a
cohesive entity and taken from one place and at one time
[SOURCE: IEC 60050-151:2001, 151-16-18]
4 General requirements
IEC 61347-1:2015, Clause 4 applies.

5 General notes on tests
IEC 61347-1:2015, Clause 5 applies, together with the following:
5.1 Starting devices for use with lamps having different electrical characteristics
Starting devices intended for use with lamps having different electrical characteristics are tested
with the lamp which gives the most unfavourable conditions.
5.2 Number of specimens
The following number of specimens shall be submitted for testing:
– one unit for the tests of clauses 6 to 12 and 15 to 22;
– one unit for the tests of clause 14 (additional units or components, where necessary, may
be required in consultation with the manufacturer).
– IEC 61347-1:2015, Annex H applies.
– One sample item shall be used for all tests, unless otherwise specified in the corresponding
clause.
To allow for parallel testing and reduced test times, additional sample items may be used
except where the outcome of the test can be affected by preceding tests, for example the
tests of Clause 11 and Clause 12.
– Specially prepared sample items may be used where required.
– Starting devices intended for use with lamps having different electrical characteristics are
tested with the lamp which gives the most unfavourable conditions.
For information on requalification of products compliant with the previous edition of this
document, i.e. IEC 61347-2-1:2000, IEC 61347-2-1:2000/AMD1:2005 and
IEC 61347-2-1:2000/AMD2:2013, refer to Annex C.
6 Classification
IEC 61347-1:2015, Clause 6 applies.
Additionally, starting devices are shall be classified as one of the following:
– output voltage up to and including 5 kV;
– output voltage greater than 5 kV, and up to and including 10 kV;
– output voltage greater than 10 kV, and up to and including 100 kV.
7 Marking
7.1 Marking and information
7.1.1 Mandatory marking
In accordance with the requirements of 7.2 of IEC 61347-1, Starting devices shall be clearly
and durably marked with the following markings:
– items a), b) and c) of IEC 61347-1:2015, 7.1;
– item f) of IEC 61347-1:2015, 7.1, and IEC 61347-1:2015/AMD1:2017, 7.1;
This marking is not required for ignitors over 5 kV, because these are mandatorily provided
with a time limitation;
– 12 – IEC 61347-2-1:2024 RLV © IEC 2024
– a marking to show the peak value of the voltage produced if the peak value exceeds 1 500 V.
Connections having this voltage shall be marked; for ignitors with a pulse voltage over 5 kV,
this marking shall be a flash symbol (broken arrow) (see the ISO 3864 series);
– the manufacturer shall declare the allowable maximum case temperature under normal
conditions (A) and, for ignitors which are intended to be connected in series with discharge
lamps which could can, according to the lamp specification cause rectification, the maximum
case temperature under abnormal conditions (B). The marking shall be "t A/B" (example
c
t 60/90 = maximum temperature 60 °C for the normal and maximum temperature 90 °C for
c
the abnormal conditions).
7.1.2 Information to be provided, if applicable
In addition to the above mandatory markings, The following information, if applicable, shall be
given either on the starting device, or be made available in the manufacturer's catalogue or
similar:
– items d), e), h), i), j), k) and l) of IEC 61347-1:2015, 7.1 and IEC 61347-1:2015/AMD1:2017,
7.1;
– an indication of the time limitation, if this is provided by the starting device;
– the catalogue reference of the ballast which may be associated with the starting device, if
the ballast design governs the magnitude of the pulse voltage;
– special conditions relating to the use of the starting device.
7.2 Durability and legibility
IEC 61347-1:2015, 7.2 applies.
8 Terminals
IEC 61347-1:2015, Clause 8 and IEC 61347-1:2015/AMD1:2017, Clause 8 apply.
9 Provisions for Earthing
IEC 61347-1:2015, Clause 9 applies.
10 Protection against accidental contact with live parts
IEC 61347-1:2015, Clause 10 and IEC 61347-1:2015/AMD1:2017, Clause 10 apply.
11 Moisture resistance and insulation
IEC 61347-1:2015, Clause 11 and IEC 61347-1:2015/AMD1:2017, Clause 11 apply, together
with the following:
– Electric components, enclosures and other parts which can be removed without the aid of a
tool are removed and subjected, if necessary, to the humidity treatment with the main part.
– In order to achieve the specified conditions within the cabinet, it is necessary recommended
to ensure constant circulation of the air within and, in general, to use a cabinet which is
thermally insulated.
– With double or reinforced insulation, the resistance shall be not less than 7 MΩ.
– Care should be taken to avoid the moisture content of the devices at the end of the moisture
treatment changing appreciably before the measurement of the insulation resistance.

To achieve this, it is recommended that the insulation resistance be measured while the
devices are still kept in the humidity cabinet or in an adjacent room protected against
draught and having similar conditions to those in the humidity cabinet.
12 Electric strength
IEC 61347-1:2015, Clause 12 applies, together with the following:
Pulsing test
For starting devices which incorporate a high-voltage winding, compliance is checked by the
following pulsing test. The starting device is operated at 110 % rated supply voltage without a
lamp load until 50 pulses have occurred, switching the supply on and off if necessary.
NOTE High-voltage winding denotes a winding incorporated in the starting device which produces the necessary
voltage to start the lamp.
During the test, there shall be
a) no visible or audible disruptive discharge (indication of failure of insulation under electrical
stress);
b) no sparkover or flashover;
c) no collapse or reduction of the front or the tail of the impulse voltage waveshape when
observed on an oscilloscope.
For starting devices without high-voltage winding, compliance is checked by an electric strength
test as given in IEC 61347-1:2015, Clause 12.
13 Thermal endurance test for windings of ballasts
There are no requirements.
NOTE The requirements of IEC 61347-1:2015, Clause 13 are not applicable and a separate test is under
consideration.
14 Fault conditions
IEC 61347-1:2015, Clause 14 and IEC 61347-1:2015/AMD1:2017, Clause 14 apply, together
with the following:
– The current in the lamp circuit shall not be increased by a fault in the starting device to such
an extent that the ballast becomes overheated, i.e. the winding temperature exceeds the
t value at abnormal conditions. For starters having external dimensions as specified in
w
IEC 60155:1993, IEC 60155:1993/AMD1:1995 and IEC 60155:1993/AMD2:2006, this
requirement is met if the current in the lamp circuit does not exceed the maximum preheat
current value as specified in IEC 60081 and IEC 60901 for a period longer than 5 min.
– Independent starting devices shall not exceed the temperature values for abnormal
operations given in 16.3.3. This requirement is regarded as complied with when, for
preheated lamp electrodes, the preheating current does not increase above its rated value
by more than 5 % when the starting device is short-circuited. Mechanical cut-outs in starting
devices shall be bridged if, with preheated lamp electrodes at 110 % of rated voltage, the
current through the ballast is more than 105 % of the short-circuit value for a period longer
than 5 min.
– 14 – IEC 61347-2-1:2024 RLV © IEC 2024
This requirement is regarded as being complied with when the mechanical cut-out meets
the relevant conditions of IEC 60255-8:1990 .
15 Pulse voltage of ignitors
The maximum value of the pulse voltage, of either positive or negative pulses, shall not exceed
5 kV when operated at the rated voltage and with a load capacitance of 20 pF, using the circuit
shown in Figure 1. However, the maximum pulse voltage specified in the relevant lamp data
sheet shall be taken into account.
If not otherwise stated on the relevant lamp data sheets, for ignitors with pulses over 5 kV, the
maximum value of the pulse voltage shall not exceed 1,3 × U declared by the manufacturer
p
when operated at the rated supply voltage and with a load capacitance of 20 pF.
Measurements are made by oscilloscope or static voltmeter for peak pulses up to 100 kV. Above
15 kV, a spherical spark gap can be employed, using the procedure based on those given in
IEC 60052, and taking note of annex J of this standard.
___________
Withdrawn.
Key
1 HV diode
blocking voltage U ≥ 25 kV
RM
rated current (average) I ≥ 1,5 mA
FAVM
periodic current (peak) I ≥ 0,1 A
FRM
anode/cathode capacitance C ≤ 2 pF
a/k
NOTE Suitable parts are, for example, HV rectifier tubes of type GY 501 for CTV receivers.
2 HV capacitor
capacitance C = 500 pF
rated voltage U ≥ 6,3 kV
–3
phase-angle (at 10 kHz)
tan δ = 20 × 10
3 HV measuring instrument
electrostatic voltmeter 0 kV to 6 kV
capacitance at full deflection < 15 pF
breakdown voltage > 10 kV
precision Class 1 or superior
4 discharge resistance 1 MΩ
5 short-circuit device for discharging HV capacitors
6 to high-voltage lead of ignitor
7 to neutral conductor
The leakage resistance between A and B and between C and D shall be not less than 10 Ω.
Figure 1 – Starting voltage measurement for ignitors
NOTE 1 As an alternative to the electrostatic voltmeter specified in Figure 1, a memory oscilloscope can be used
in the circuit together with a high-voltage probe having the following properties:
– input resistance ≥ 100 MΩ;
– input capacitance ≤ 15 pF;
– cut-off frequency ≥ 1 MHz.
In case of doubt, the measurement with the electrostatic voltmeter is the reference method to use.

– 16 – IEC 61347-2-1:2024 RLV © IEC 2024
For ignitors with pulses over 5 kV, the maximum value of the pulse voltage shall not exceed 1,3
times the peak voltage (according to 3.4) declared by the manufacturer when operated at the
rated supply voltage and with a load capacitance of 20 pF, if not otherwise stated on the relevant
lamp data sheets.
Measuring equipment for measuring the peak shall be able to measure the peak pulses with an
accuracy of 5 %.
NOTE 2 Typically, measurements are made by oscilloscope or electrostatic voltmeter for peak pulses up to 100 kV.
Above 15 kV, a spherical spark gap can be employed, using the procedure based on those given in IEC 60052:2002,
and taking note of Annex B.
16 Heating of built-in and independent starting devices
16.1 General
Built-in and independent starting devices shall not exceed the temperature limits during normal
operation (t ) and abnormal operation (t + X).
c c
In addition to the requirements of this Clause 16 for built-in starting devices, the normal and the
abnormal operating conditions are checked together with the luminaire in accordance with
IEC 60598-1 the applicable part from the IEC 60598 series (luminaire safety).
16.2 Normal operation
16.2.1 General
Normal conditions are working conditions in which one or more of the following situations apply:
a) the lamps are operating normally;
b) the rated current flows through the starting device;
c) the starting device has been connected to a voltage source, for example, the mains voltage
or the lamp voltage arising during normal operation;
d) a combination of b) and c).
16.2.2 Normal operation of built-in starting devices
Compliance of built-in starting devices in normal operation is checked by the following
procedure.
The starting devices are connected as for normal use with appropriate lamps.
The built-in starting device shall be placed in a test enclosure as detailed in IEC 61347-1:2015,
Annex D, the starting device being supported by two wooden blocks as shown in
IEC 61347-1:2015, Figure H.1.
The wooden blocks shall be 75 mm high, 10 mm thick and of a width equal to, or greater than,
the width of the starting device. Furthermore, the blocks shall be positioned with the extreme
end of the starting device aligned with the outer vertical sides of the block.
The controlgear employed for the components shall meet the requirements of the relevant IEC
standard and be compatible with the lamp type to be started by the starting device.
The whole test circuit (controlgear, built-in starting device and the lamp(s)) is connected to the
supply voltage. When the lamp is in stable operation, the lamp current is set for rated value by
modifying the voltage applied. The ambient temperature of the test enclosure is adjusted to
reach t on the starting device. In this condition, the starting devices and lamp are operated
c
until they reach steady temperature.

Compliance is checked by the temperature measurement. The measured value shall not exceed
the limits specified in IEC 60598-1:2020, Table 12.1 and Table 12.2.
16.2.3 Normal operation of independent starting devices
Compliance of independent starting devices in normal operation is checked by the following
procedure.
Independent starting devices are connected as for normal use with appropriate lamps.
Independent starting devices are mounted in a test corner consisting of three dull black painted
laminated wood boards 15 mm to 25 mm thick and arranged so as to resemble two walls and
the ceiling of a room. The starting device is secured to the ceiling as close as possible to the
walls, the ceiling extending at least 250 mm beyond the other sides of the starting device. This
assembly is positioned as far as possible from the five internal surfaces of the enclosure.
The tests are carried out in a draught-proof room or enclosure as specified in
IEC 61347-1:2015, Annex F. The ambient temperature within the draught-proof enclosure shall
be within 5 °C of the t rating and should preferably be the same as the t rating.
a a
The controlgear employed for the components shall meet the requirements of the relevant IEC
standard and be compatible with the lamp type to be started by the starting device.
The whole test circuit (controlgear, independent starting device and the lamp(s)) is connected
to the supply voltage. When the lamp is in stable operation, the lamp current is set for the rated
value by modifying the voltage applied. In this condition, the starting device and lamps are
operated until they reach steady temperature.
Compliance is checked by the temperature measurement. The measured value shall not exceed
the limits specified in IEC 60598-1:2020, Table 12.1 and Table 12.2.
16.3 Abnormal operation
16.3.1 Abnormal operation of built-in ignitors
Compliance of built-in starting devices in abnormal operation is checked by the following test
procedure.
The test is required for built-in starting devices (built-in ignitors) intended to be connected in
series with discharge lamps which could can, according to the lamp specification, cause
rectification and are tested additionally with the rectifying test circuit in accordance with
IEC 60598-1:2020, 12.5 and Annex C.
The built-in starting device shall be placed in a test enclosure as detailed in IEC 61347-1:2015,
Annex D, the starting device being supported by two wooden blocks as shown in
IEC 61347-1:2015, Figure H.1.
The wooden blocks shall be 75 mm high, 10 mm thick and of a width equal to, or greater than,
the width of the starting device. Furthermore, the blocks shall be positioned with the extreme
end of the starting device aligned with the outer vertical sides of the block.
For the test, the built-in starting device is operated in the test enclosure described above for
30 min during which the double value of the rated current flows through the built-in starting
device. For built-in starting devices, which are intended for the use of different lamps, the
highest value of the current shall be used.

– 18 – IEC 61347-2-1:2024 RLV © IEC 2024
The ambient temperature in the test enclosure is set to achieve at the end of the test (t + X) °C
c
for which the built-in starting device is specified. If during the test, the value of (t + X) °C is not
c
reached, then the test shall be repeated on another sample at an increased ambient
temperature at which (t + X) °C is achieved.
c
Compliance is checked by the following parameters:
After the test, the temperature of the components is determined:
a) temperatures shall not exceed the values specified in IEC 60598-1:2020, Table 12.3.
b) After cooling down to the ambient temperature of 10 °C to 30 °C, the starting device shall
comply with the following conditions:
• the starting device marking shall still be legible;
• the pulse voltage must shall not differ by more than ±10 % from the initially measured
value;
• the starting device shall withstand without damage an electric strength test according to
Clause 12 of this document, the test voltage, however, being reduced to 75 % of the
values given in IEC 61347-1:2015, Table 1, but not less than 500 V.
A period of 30 min is the medium time required for a controlgear incorporated into a luminaire
to heat up and cause the operation of the thermal control device during the rectifying effect.
16.3.2 Abnormal operation of built-in starters
Compliance of built-in starters in abnormal operation is checked by the following test procedure:
The built-in starting device shall be placed in a test enclosure as detailed in IEC 61347-1:2015,
Annex D, the starting device being supported by two wooden blocks as shown in
IEC 61347-1:2015, Figure H.1.
The wooden blocks shall be 75 mm high, 10 mm thick and of a width equal to, or greater than,
the width of the starting device. Furthermore, the blocks shall be positioned with the extreme
end of the starting device aligned with the outer vertical sides of the block.
Built-in starters are connected as for normal use with appropriate lamps as indicated in 16.2.1.
The test is performed with lamps having deactivated cathodes or substitution resistors specified
in IEC 60081 and IEC 60901 on the lamp data sheets.
Upon completion of this test, and after cooling down, the starting device shall comply with the
following conditions:
a) the starting device marking shall still be legible;
b) the starting device shall withstand without damage an electric strength test according to
Clause 12 of this document, the test voltage, however, being reduced to 75 % of the values
given in IEC 61347-1:2015, Table 1, but not less than 500 V.
16.3.3 Abnormal operation of independent starting devices
Compliance of independent starting devices in abnormal operation is checked by the following
test procedure.
The test is required for independent starting devices (independent ignitors) intended to be
connected in series with
...
