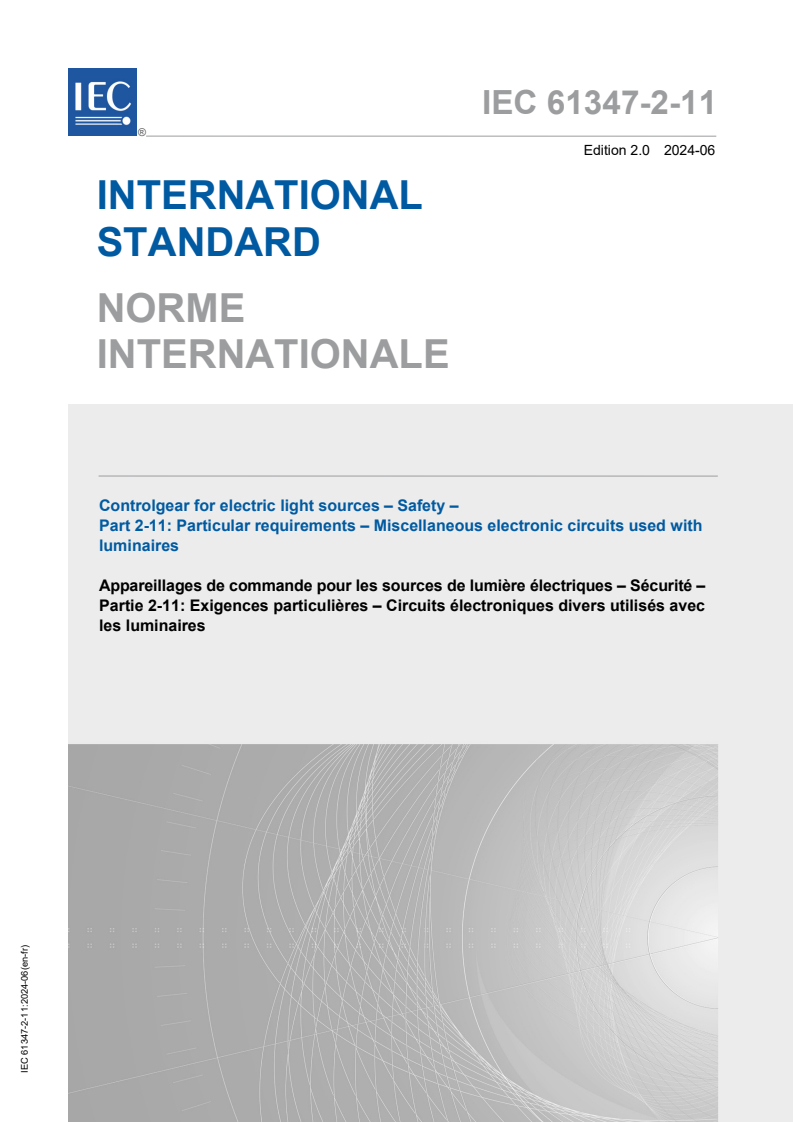

IEC 61347-2-11:2024

IEC 61347-2-11 ®
Edition 2.0 2024-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Controlgear for electric light sources – Safety –
Part 2-11: Particular requirements – Miscellaneous electronic circuits used with
luminaires
Appareillages de commande pour les sources de lumière électriques – Sécurité –
Partie 2-11: Exigences particulières – Circuits électroniques divers utilisés avec
les luminaires
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC -  IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications, symboles
en utilisant différents critères (numéro de référence, texte, graphiques et le glossaire. Avec un abonnement, vous aurez
comité d’études, …). Elle donne aussi des informations sur les toujours accès à un contenu à jour adapté à vos besoins.
projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 500 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 25 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

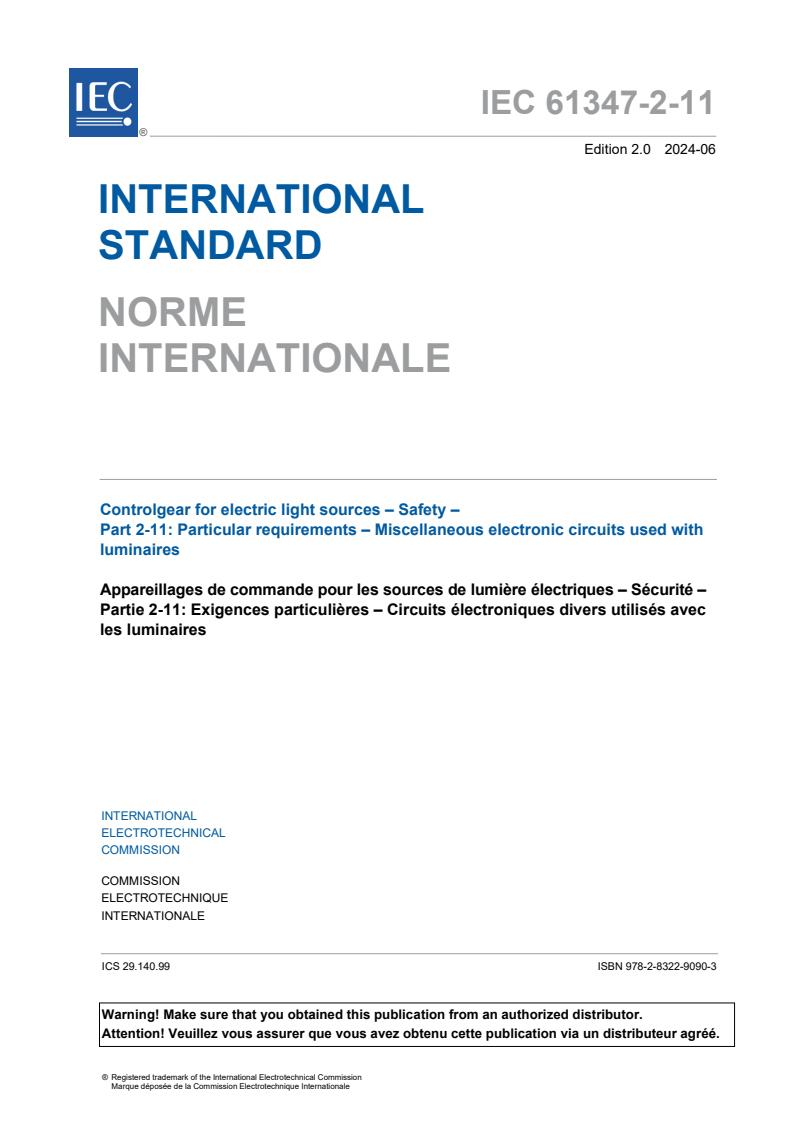

IEC 61347-2-11 ®
Edition 2.0 2024-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Controlgear for electric light sources – Safety –

Part 2-11: Particular requirements – Miscellaneous electronic circuits used with

luminaires
Appareillages de commande pour les sources de lumière électriques – Sécurité –

Partie 2-11: Exigences particulières – Circuits électroniques divers utilisés avec

les luminaires
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99  ISBN 978-2-8322-9090-3

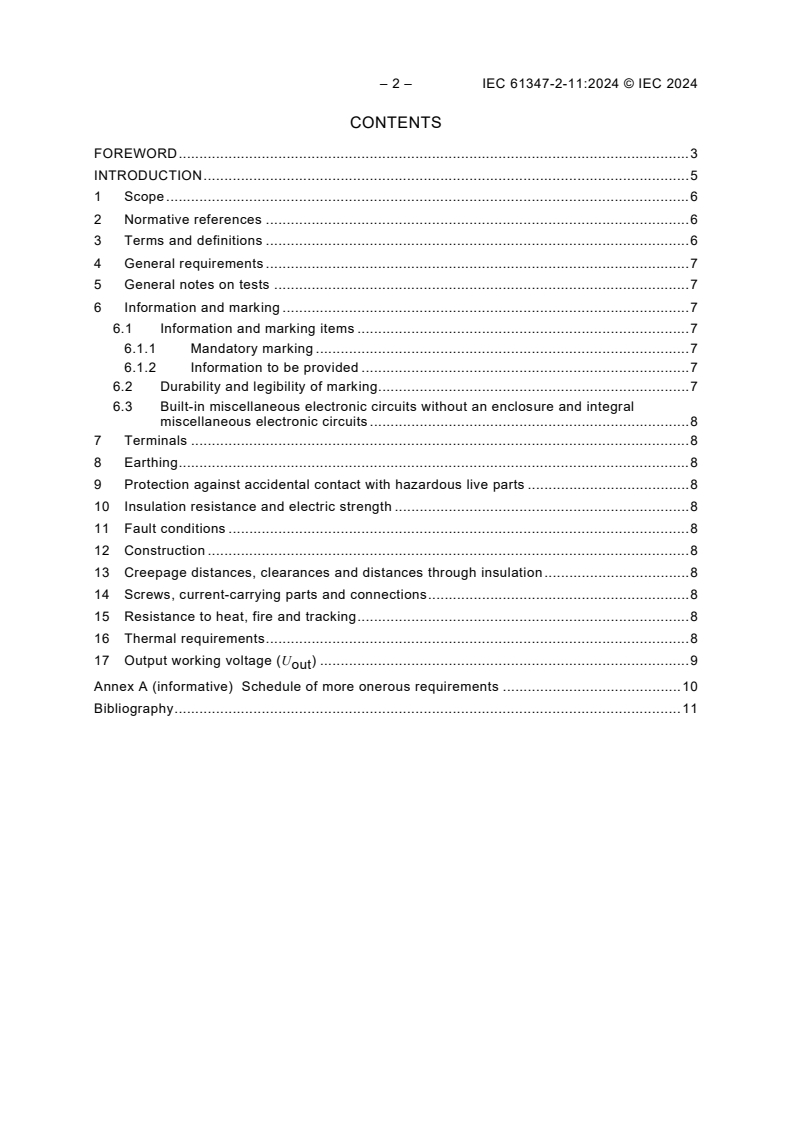

– 2 – IEC 61347-2-11:2024 © IEC 2024
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 General requirements . 7
5 General notes on tests . 7
6 Information and marking . 7
6.1 Information and marking items . 7
6.1.1 Mandatory marking . 7
6.1.2 Information to be provided . 7
6.2 Durability and legibility of marking . 7
6.3 Built-in miscellaneous electronic circuits without an enclosure and integral
miscellaneous electronic circuits . 8
7 Terminals . 8
8 Earthing . 8
9 Protection against accidental contact with hazardous live parts . 8
10 Insulation resistance and electric strength . 8
11 Fault conditions . 8
12 Construction . 8
13 Creepage distances, clearances and distances through insulation . 8
14 Screws, current-carrying parts and connections . 8
15 Resistance to heat, fire and tracking . 8
16 Thermal requirements . 8
17 Output working voltage (U ) . 9
out
Annex A (informative) Schedule of more onerous requirements . 10
Bibliography . 11

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONTROLGEAR FOR ELECTRIC LIGHT SOURCES –
SAFETY –
Part 2-11: Particular requirements – Miscellaneous
electronic circuits used with luminaires

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 61347-2-11 has been prepared by subcommittee 34C: Auxiliaries for lamps, of IEC
technical committee 34: Lighting. It is an International Standard.
This second edition cancels and replaces the first edition published in 2001 and Amendment 1:
2017. This edition constitutes a technical revision.

– 4 – IEC 61347-2-11:2024 © IEC 2024
This edition includes the following significant technical changes with respect to the previous
edition:
a) alignment with respect to the fourth edition of IEC 61347-1:
– introduction of dated references to the fourth edition of IEC 61347-1 as appropriate;
– deletion of clauses and subclauses which are either no longer relevant or now covered
in IEC 61347-1;
b) scope extension to 1 500 V for direct current;
c) scope clarification;
d) revision of information and marking requirements;
e) addition of requirements for the determination of the output working voltage (new
Clause 17).
The text of this International Standard is based on the following documents:
Draft Report on voting
34C/1598/FDIS 34C/1601/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
This document is intended to be used in conjunction with IEC 61347-1:2024. Where the
requirements of any of the clauses of IEC 61347-1:2024 are referred to in this document by the
phrase "IEC 61347-1:2024, Clause n applies", this phrase is interpreted as meaning that all the
requirements of the clause in question of IEC 61347-1:2024 apply, except any which are clearly
inapplicable to the specific type of controlgear covered by this document.
NOTE In this document, the following print type is used:
– compliance statements: in italic type.
A list of all parts in the IEC 61347 series, published under the general title Controlgear for
electric light sources – Safety, can be found on the IEC website.
Future documents in this series will carry the new general title as cited above. Titles of existing
documents in this series will be updated at the time of the next edition.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
INTRODUCTION
This document specifies safety requirements for miscellaneous electronic circuits used with
luminaires. All general requirements, which apply to controlgear for electric light sources in
general, regardless of the specific type of light source in question, are contained in
IEC 61347-1. The corresponding general requirements apply to miscellaneous electronic
circuits used with luminaires by clause-wise reference in this document to any of the clauses of
IEC 61347-1, thereby specifying the extent to which such a clause is applicable and the order
in which the tests are performed.
In the same way, further documents exist specifying individual safety requirements for different
types of controlgear related to different types of electric light sources which, together with this
document, constitute the IEC 61347-2 series.
Any such parts of the IEC 61347-2 series are the leading documents for the safety assessment
of the corresponding type of controlgear; it is not IEC 61347-1.
Also, all parts of the IEC 61347-2 series do not include references to each other.

– 6 – IEC 61347-2-11:2024 © IEC 2024
CONTROLGEAR FOR ELECTRIC LIGHT SOURCES –
SAFETY –
Part 2-11: Particular requirements – Miscellaneous
electronic circuits used with luminaires

1 Scope
This part of IEC 61347 specifies safety requirements for miscellaneous electronic circuits used
with luminaires for use on DC supplies up to 1 500 V or on AC supplies up to 1 000 V at 50 Hz
or 60 Hz.
Miscellaneous electronic circuits used with luminaires covered by this document are
• control circuits of electronic controlgear (e.g. as specified in the IEC 62386 series,
IEC 63128 or IEC 62756-1);
• circuits used in association with daylight or presence sensors, or both;
• circuits to assist EMC performance;
• intermittence and similar devices used with lighting chains;
• earth leakage or open-circuit protective devices used with neon transformers;
• other electronic circuits or devices within the scope of TC 34 not covered by a specific TC 34
standard.
NOTE 1 Such miscellaneous electronic circuits can also be used in luminaires producing optical radiation other
than visible spectrum.
NOTE 2 The scope of TC 34 can be found on the relevant IEC webpage at the following address:
https://www.iec.ch/dyn/www/f?p=103:7:0::::FSP_ORG_ID:1235
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61347-1:2024, Controlgear for electric light sources – Safety – Part 1: General
requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61347-1 and the
following apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp

3.1
miscellaneous electronic circuit
electronic circuit to assist the functioning of the controlgear or to provide
additional functions to the luminaire
Note 1 to entry: Whenever the term "controlgear" is used in IEC 61347-1, this includes miscellaneous electronic
circuits, being a specific type of controlgear.
4 General requirements
IEC 61347-1:2024, Clause 4 applies with the following addition:
Miscellaneous electronic circuits shall be designed to meet the requirements of the declared
overvoltage category (OVC) taking into account the intended applications. Miscellaneous
electronic circuits classified as OVC III shall comply with IEC 61347-1:2024, Annex L,
considering the annex as normative.
EXAMPLE Miscellaneous electronic circuits designed to be installed in distribution boards are classified as OVC III
equipment.
5 General notes on tests
IEC 61347-1:2024, Clause 5 applies.
For information on requalification of products compliant with the previous edition of this
document, i.e. IEC 61347-2-11:2001 and IEC 61347-2-11:2001/AMD1:2017, refer to Annex A.
6 Information and marking
6.1 Information and marking items
6.1.1 Mandatory marking
Miscellaneous electronic circuits, other than miscellaneous electronic circuits covered by 6.3,
shall be marked with the following as applicable:
items a1), a2), b1), c2), e1), e2), f1), f3), f4), g2), g3), j2), j4), k1), l1) and n1) of
IEC 61347-1:2024, 6.2; symbols according to item o) of IEC 61347-1:2024 shall be used as
applicable.
For independent miscellaneous electronic circuits, the marking of the rated maximum ambient
temperature t is considered an acceptable alternative to the marking of the rated case
a
temperature t .
c
6.1.2 Information to be provided
The following information, if applicable, shall be given either on the miscellaneous electronic
circuit, or be made available in the manufacturer’s catalogue or the like:
– items b2), b3), c1), c3), c4), c5), c6), c7), e3), f2), g1), h), i), j1), j3), j5), k2), l2), m), n2)
and n3) of IEC 61347-1:2024, 6.2;
– the overvoltage category (OVC) of the miscellaneous electronic circuit if other than OVC II.
6.2 Durability and legibility of marking
IEC 61347-1:2024, 6.3 applies.

– 8 – IEC 61347-2-11:2024 © IEC 2024
6.3 Built-in miscellaneous electronic circuits without an enclosure and integral
miscellaneous electronic circuits
IEC 61347-1:2024, 6.4 applies.
7 Terminals
IEC 61347-1:2024, Clause 7 applies.
8 Earthing
IEC 61347-1:2024, Clause 8 applies.
9 Protection against accidental contact with hazardous live parts
IEC 61347-1:2024, Clause 9 applies.
10 Insulation resistance and electric strength
IEC 61347-1:2024, Clause 10 applies.
11 Fault conditions
IEC 61347-1:2024, Clause 11 applies.
12 Construction
IEC 61347-1:2024, Clause 12 applies.
13 Creepage distances, clearances and distances through insulation
IEC 61347-1:2024, Clause 13 applies.
14 Screws, current-carrying parts and connections
IEC 61347-1:2024, Clause 14 applies.
15 Resistance to heat, fire and tracking
IEC 61347-1:2024, Clause 15 applies.
16 Thermal requirements
IEC 61347-1:2024, Clause 16 applies.

17 Output working voltage (U )
out
Under normal operating conditions and any other load conditions, which means including the
abnormal condition, the voltage at the output terminals shall not exceed the output working
voltage U in accordance with 6.1.1.
out
The test shall be carried out with the miscellaneous electronic circuit at rated supply voltage or
at the maximum of the rated supply voltage range and loaded in maximum load condition. The
load shall be modified in order to find the load condition resulting in a maximum voltage between
output terminals and between output terminals and earth.
NOTE 1 In most cases the highest voltage is reached in no-load condition.
Compliance is checked by measuring the maximum output voltage between the output terminals
and the maximum output voltage between the output terminals and earth in any load condition.
The measured voltage shall not exceed the declared output working voltage U .
out
No requirements apply for the voltage towards earth for misc
...
