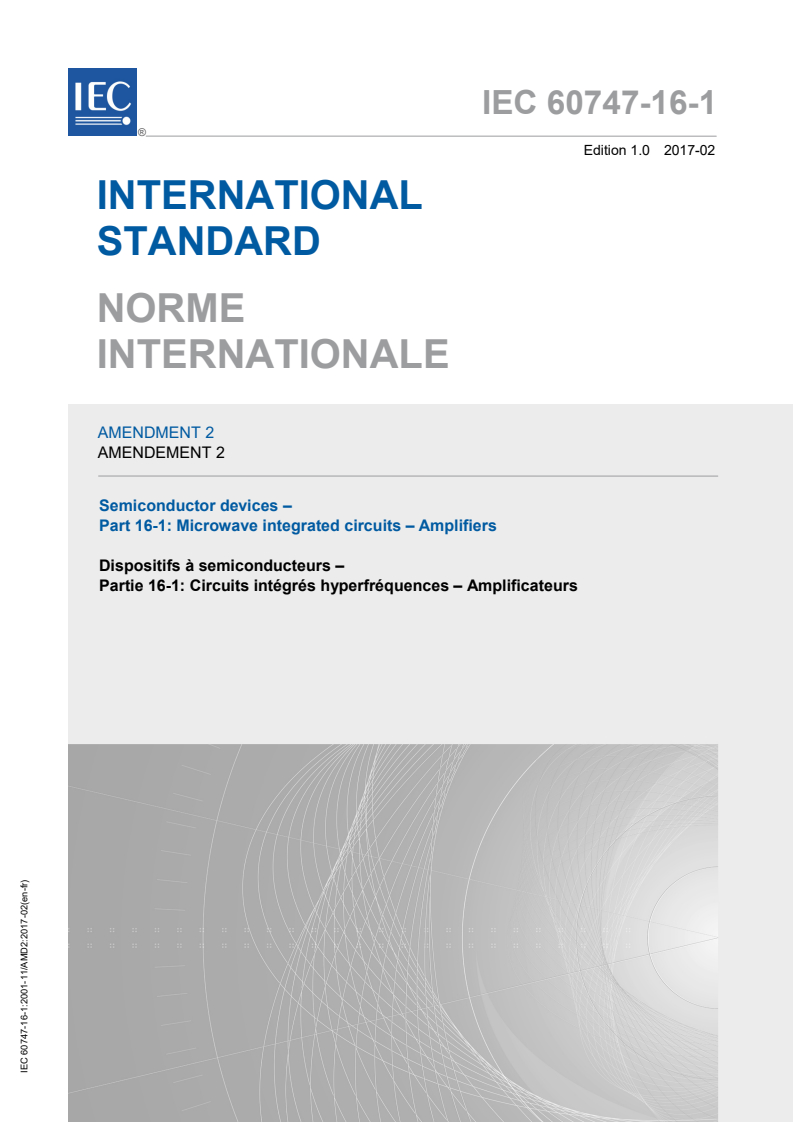

IEC 60747-16-1:2001/AMD2:2017

IEC 60747-16-1 ®
Edition 1.0 2017-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 2
AM ENDEMENT 2
Semiconductor devices –
Part 16-1: Microwave integrated circuits – Amplifiers

Dispositifs à semiconducteurs –
Partie 16-1: Circuits intégrés hyperfréquences – Amplificateurs

IEC 60747-16-1:2001-11/AMD2:2017-02(en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales, électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes langues additionnelles. Egalement appelé Vocabulaire
Android et iPad. Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60747-16-1 ®
Edition 1.0 2017-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 2
AM ENDEMENT 2
Semiconductor devices –
Part 16-1: Microwave integrated circuits – Amplifiers

Dispositifs à semiconducteurs –

Partie 16-1: Circuits intégrés hyperfréquences – Amplificateurs

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.080.99 ISBN 978-2-8322-3873-8

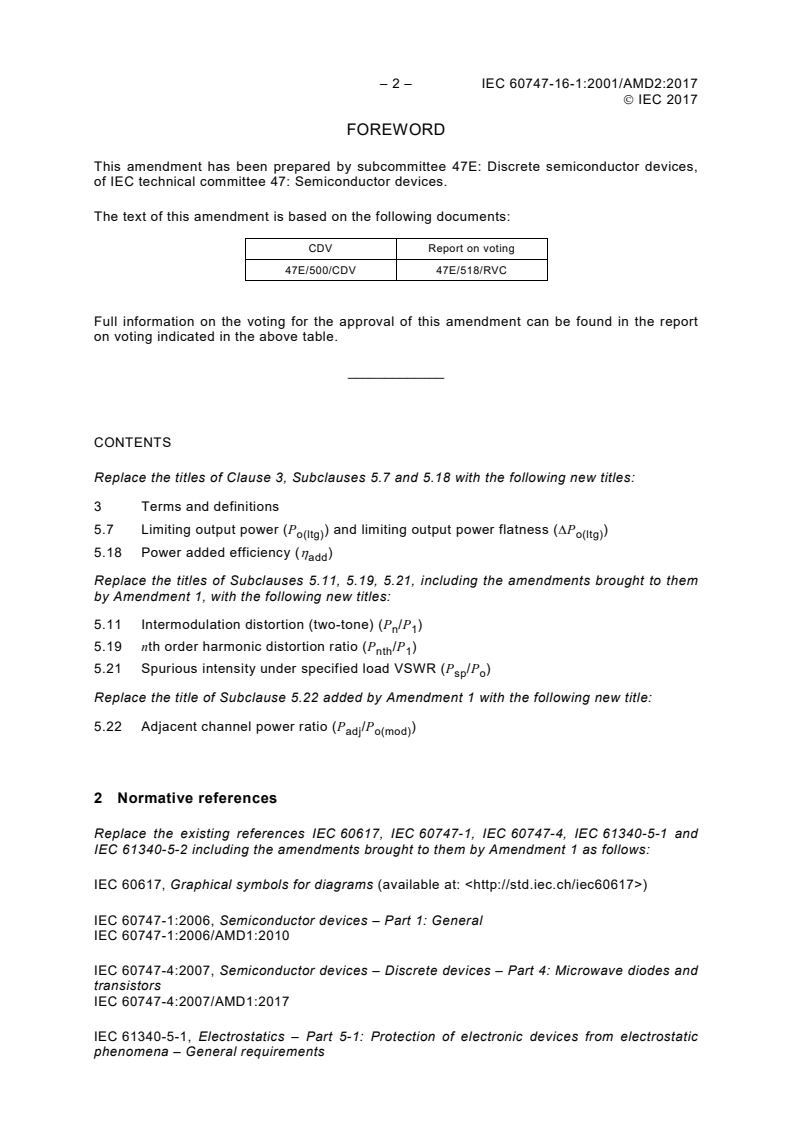

– 2 – IEC 60747-16-1:2001/AMD2:2017
 IEC 2017
FOREWORD
This amendment has been prepared by subcommittee 47E: Discrete semiconductor devices,
of IEC technical committee 47: Semiconductor devices.
The text of this amendment is based on the following documents:
CDV Report on voting
47E/500/CDV 47E/518/RVC
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
_____________
CONTENTS
Replace the titles of Clause 3, Subclauses 5.7 and 5.18 with the following new titles:
3 Terms and definitions
5.7 Limiting output power (P ) and limiting output power flatness (∆P )
o(ltg) o(ltg)
5.18 Power added efficiency (η )
add
Replace the titles of Subclauses 5.11, 5.19, 5.21, including the amendments brought to them
by Amendment 1, with the following new titles:
5.11 Intermodulation distortion (two-tone) (P /P )
n 1
5.19 nth order harmonic distortion ratio (P /P )
nth 1
5.21 Spurious intensity under specified load VSWR (P /P )
sp o
Replace the title of Subclause 5.22 added by Amendment 1 with the following new title:
5.22 Adjacent channel power ratio (P /P )
adj o(mod)
2 Normative references
Replace the existing references IEC 60617, IEC 60747-1, IEC 60747-4, IEC 61340-5-1 and
IEC 61340-5-2 including the amendments brought to them by Amendment 1 as follows:
IEC 60617, Graphical symbols for diagrams (available at: )
IEC 60747-1:2006, Semiconductor devices – Part 1: General
IEC 60747-1:2006/AMD1:2010
IEC 60747-4:2007, Semiconductor devices – Discrete devices – Part 4: Microwave diodes and
transistors
IEC 60747-4:2007/AMD1:2017
IEC 61340-5-1, Electrostatics – Part 5-1: Protection of electronic devices from electrostatic
phenomena – General requirements

 IEC 2017
IEC TR 61340-5-2, Electrostatics – Part 5-2: Protection of electronic devices from
electrostatic phenomena – User guide
Replace the existing reference IEC 60748-3 as follows:
IEC 60748-3:1986, Semiconductor devices – Integrated circuits – Part 3: Analogue integrated
circuits
IEC 60748-3:1986/AMD1:1991
IEC 60748-3:1986/AMD2:1994
Delete the existing reference to IEC 60747-7:2000:
IEC 60747-7:2000, Semiconductor devices – Part 7: Bipolar transistors
Delete the references IEC 60747-16-2 and IEC 60747-16-4 added by Amendment 1:
IEC 60747-16-2:2001, Semiconductor devices – Part 16-2: Microwave integrated circuits –
Frequency prescalers
IEC 60747-16-4:2004, Semiconductor devices – Part 16-4: Microwave integrated circuits –
Switches
Add the new reference IEC 60050-702:
IEC 60050-702, International Electrotechnical Vocabulary – Chapter 702: Oscillations, signals
and related devices (available at: http://www.electropedia.org)
3 Terminology
Replace the clause title with the following new title and introductory paragraph:
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
Replace entries 3.7, 3.14, and 3.16, including the amendments brought to them by
Amendment 1, with the following new entries:
3.7
intermodulation distortion
P /P
n 1
ratio of the nth order component of the output power to the fundamental component of the
output power
Note 1 to entry: The abbreviation “IMD ” is in common use for the nth order intermodulation distortion.
n
SOURCE: IEC 60747-4:2007/AMD1:2017, 7.2.19.

3.14
nth order harmonic distortion ratio
/P
P
nth 1
ratio of the power of the nth order harmonic component measured at the output port of the
device to the power of the fundamental frequency measured at the output port

– 4 – IEC 60747-16-1:2001/AMD2:2017
 IEC 2017
3.16
spurious intensity under specified load VSWR
P /P
sp o
ratio of the power of the maximum spurious power measured at the output port of the device
to the fundamental frequency measured at the output port under specified load VSWR

Replace entries 3.17 and 3.21 added by Amendment 1 with the following new entries:
3.17
output power
P
o
RF power measured at the output port
SOURCE: IEC 60747-4:2007/AMD1:2017, 7.2.2.
3.21
adjacent channel power ratio
P /P
adj o(mod)
ratio of the total output power in a specified frequency band away from a specified carrier
signal frequency to the total power in a specified carrier signal frequency band, when a
modulation signal is supplied
Replace, in entry 3.9 as modified by Amendment 1, the words "see 3.5.2.1 of IEC 60747-7" by
"see 7.4.3.10.2.2 of IEC 60747-4:2007".
Replace, in entry 3.10, the words "see 3.5.2.2 of IEC 60747-7" by "see 7.4.3.10.2.2 of
IEC 60747-4:2007".
Replace, in entry 3.11, the words "see 3.5.2.4 of IEC 60747-7" by "see 7.4.3.10.2.2 of
IEC 60747-4:2007".
4.4.2 Temperatures
Replace the existing item 1), with the following new item:
1) Operating temperature (ambient or reference-point temperature)

4.6.2 Dynamic or r.f. characteristics
Replace parameters 4.6.2.10, 4.6.2.20, 4.6.2.22 and 4.6.2.23 including the amendments
brought to them by Amendment 1 with the following new parameters:
Types
Parameters Min. Max.
A B C D
4.6.2.10 Intermodulation distortion +  + +
4.6.2.20 nth order harmonic distortion ratio +  +
(where appropriate) (note 2)
4.6.2.22 Spurious intensity under specified load VSWR +  +
(where appropriate) (note 2)
4.6.2.23 Adjacent channel power ratio (where appropriate) +  +

 IEC 2017
5.7 Limiting output power (P )
o(ltg)
Replace the existing title and first line with the following new title:
5.7 Limiting output power (P ) and limiting output power flatness (∆P )
o(ltg) o(ltg)
5.11 Intermodulation distortion (two-tone) (P /P )
1 n
Replace the existing title including the amendments brought to it by Amendment 1 with the
following new title:
5.11 Intermodulation distortion (two-tone) (P /P )
n 1
5.11.3 Principle of measurement
/P " with
Replace, in the last paragraph of this subclause as modified by Amendment 1 "P
1 n
"P /P ".
n 1
Replace Equation (16) as modified by Amendment 1 as follows:
P /P = P – P = P – P (16)
n 1 n 1 c b
5.18 Power added efficiency
Replace the existing title with the following new title:
5.18 Power added efficiency (η )
add
5.19 nth order harmonic distortion ratio (P /P )
1 nth
Replace the existing title including the amendments brought to it by Amendment 1 with the
following new title:
5.19 nth order harmonic distortion ratio (P /P )
nth 1
5.19.3 Principle of measurement
Replace the existing first sentence and Equation (29) including the amendments brought to
them by Amendment 1 as follows:
In the circuit diagram shown in Figure 9, nth order harmonic distortion ratio P /P in dBc is
nth 1
derived from Equation (29):
P /P = P – P (29)
nth 1 nth 1
– 6 – IEC 60747-16-1:2001/AMD2:2017
 IEC 2017
5.21 Spurious intensity under specified load VSWR (P /P )
o sp
Replace the existing title including the amendments brought to it by Amendment 1 with the
following new title:
5.21 Spurious intensity under specified load VSWR (P /P )
sp o
5.21.3 Principle of measurement
Replace the existing last sentence and Equation (35) including the amendments brought to
them by Amendment 1 as follows:
The spurious intensity P /P in dBc is defined as follows:
sp o
P /P = P − P (35)
sp o sp o
5.22 Adjacent channel power ratio (P /P )
o(mod) adj
Replace the title of this subclause added by Amendment 1 with the following new title:
5.22 Adjacent channel power ratio (P /P )
adj o(mod)
5.22.3 Principle of measurement
Replace the existing second sentence in the first paragraph as follows:
Adjacent channel power ratio P /P is the ratio of P to P .
adj o(mod) adj o(mod)
Replace the existing second paragraph and Equation (39) as follows:
P /P in dBc is given as the following equations in the circuit of Figure 12.
adj o(mod)
P /P = P − P = P − P (39)
adj o(mod) adj o(mod
...
