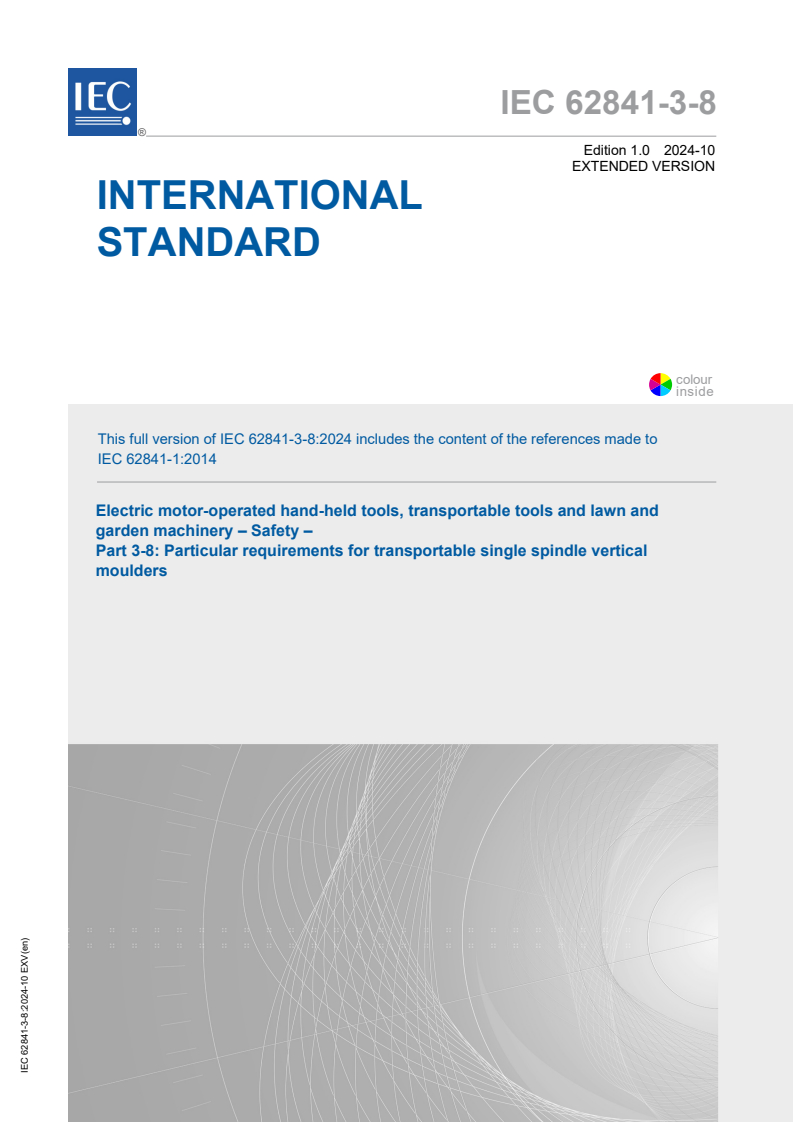

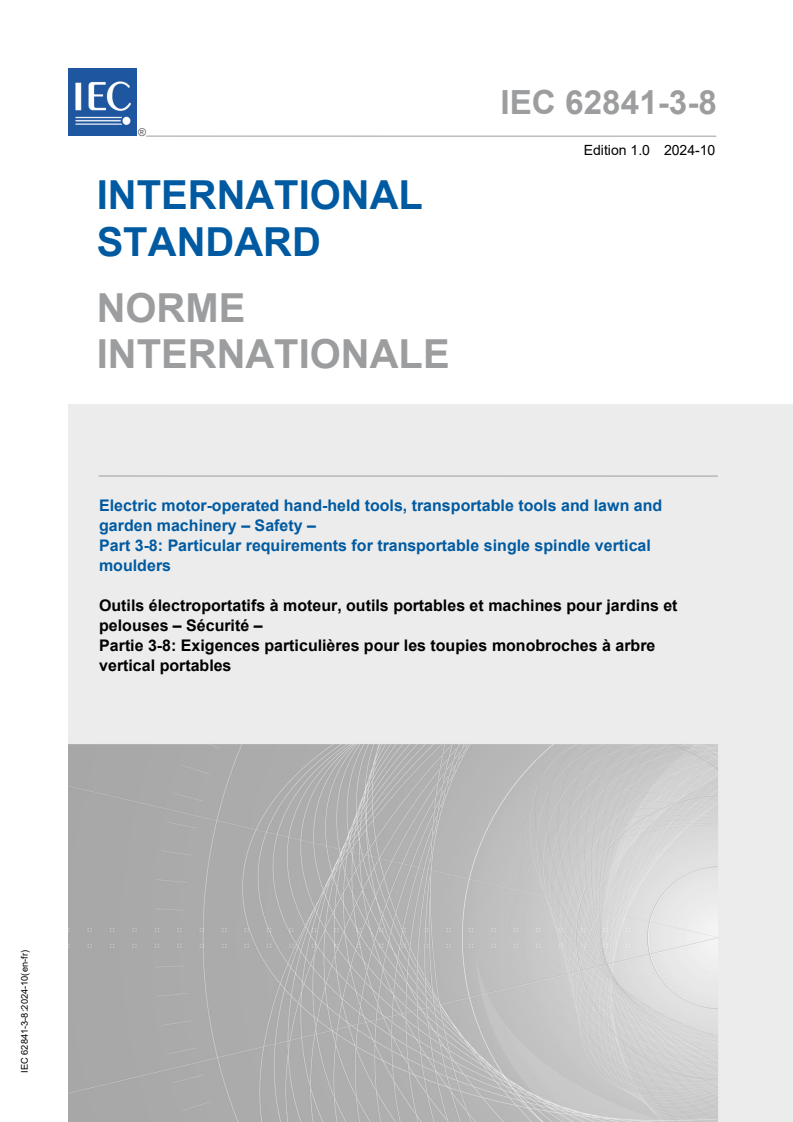

IEC 62841-3-8:2024

IEC 62841-3-8 ®
Edition 1.0 2024-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety –
Part 3-8: Particular requirements for transportable single spindle vertical
moulders
Outils électroportatifs à moteur, outils portables et machines pour jardins et
pelouses – Sécurité –
Partie 3-8: Exigences particulières pour les toupies monobroches à arbre
vertical portables
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC -  IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications, symboles
en utilisant différents critères (numéro de référence, texte, graphiques et le glossaire. Avec un abonnement, vous aurez
comité d’études, …). Elle donne aussi des informations sur les toujours accès à un contenu à jour adapté à vos besoins.
projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 500 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 25 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

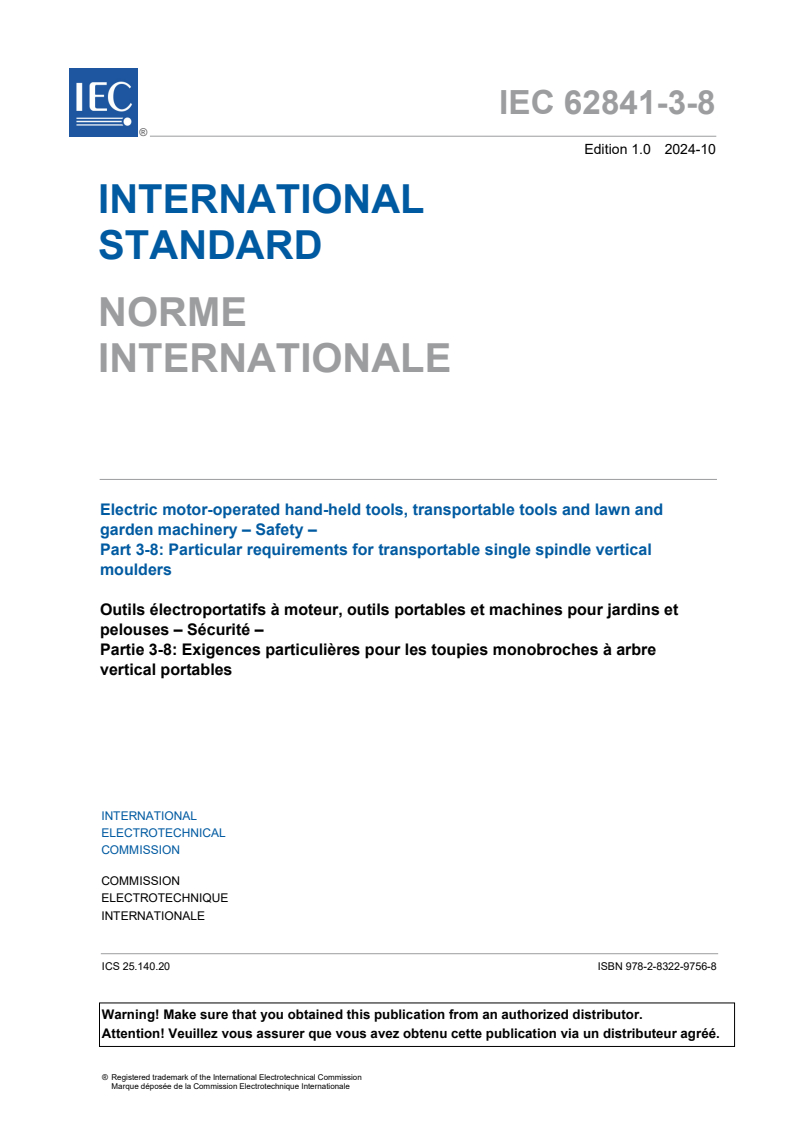

IEC 62841-3-8 ®
Edition 1.0 2024-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric motor-operated hand-held tools, transportable tools and lawn and

garden machinery – Safety –
Part 3-8: Particular requirements for transportable single spindle vertical

moulders
Outils électroportatifs à moteur, outils portables et machines pour jardins et

pelouses – Sécurité –
Partie 3-8: Exigences particulières pour les toupies monobroches à arbre

vertical portables
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.140.20  ISBN 978-2-8322-9756-8

– 2 – IEC 62841-3-8:2024 © IEC 2024

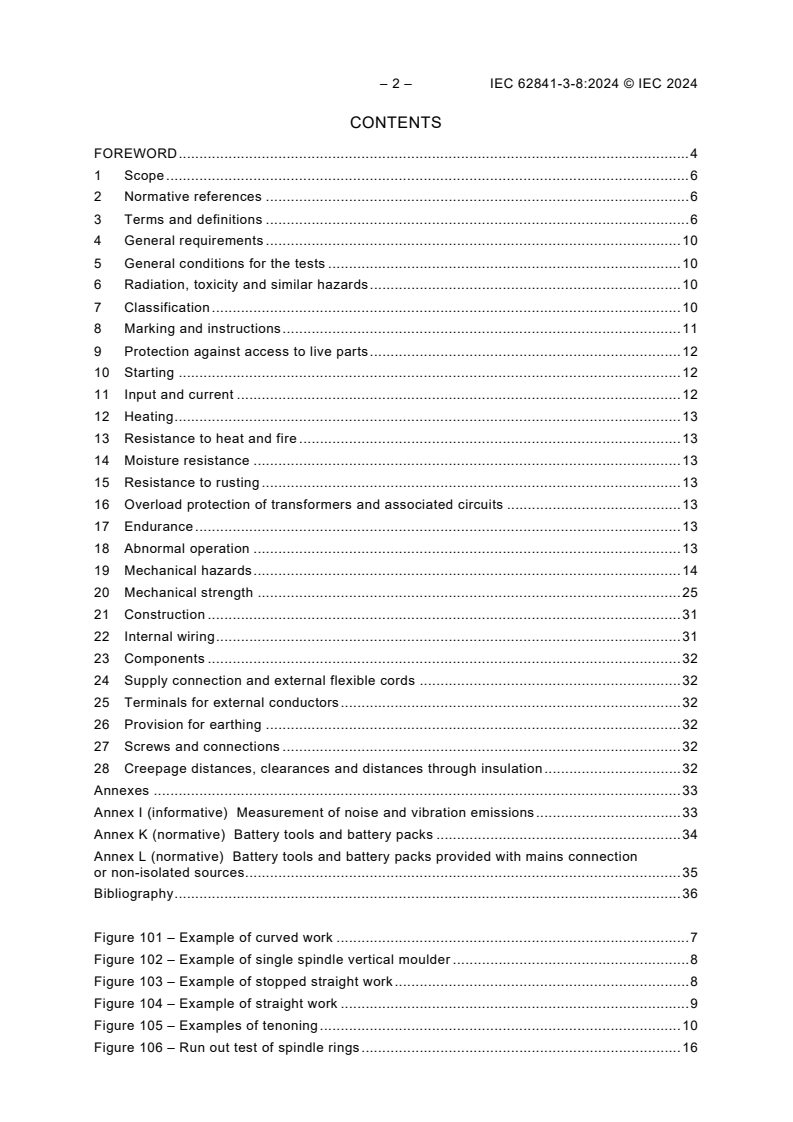

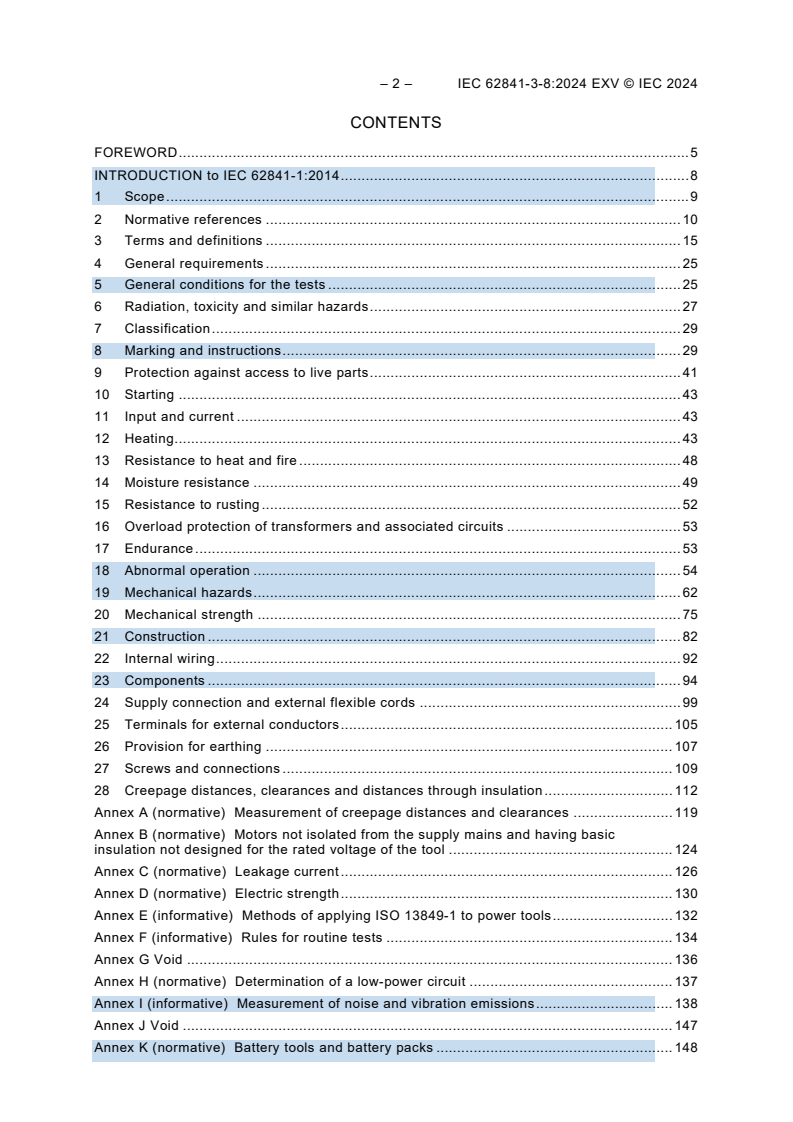

CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 General requirements . 10
5 General conditions for the tests . 10
6 Radiation, toxicity and similar hazards . 10
7 Classification . 10
8 Marking and instructions . 11
9 Protection against access to live parts . 12
10 Starting . 12
11 Input and current . 12
12 Heating . 13
13 Resistance to heat and fire . 13
14 Moisture resistance . 13
15 Resistance to rusting . 13
16 Overload protection of transformers and associated circuits . 13
17 Endurance . 13
18 Abnormal operation . 13
19 Mechanical hazards . 14
20 Mechanical strength . 25
21 Construction . 31
22 Internal wiring . 31
23 Components . 32
24 Supply connection and external flexible cords . 32
25 Terminals for external conductors . 32
26 Provision for earthing . 32
27 Screws and connections . 32
28 Creepage distances, clearances and distances through insulation . 32
Annexes . 33
Annex I (informative) Measurement of noise and vibration emissions . 33
Annex K (normative) Battery tools and battery packs . 34
Annex L (normative) Battery tools and battery packs provided with mains connection
or non-isolated sources . 35
Bibliography . 36

Figure 101 – Example of curved work . 7
Figure 102 – Example of single spindle vertical moulder . 8
Figure 103 – Example of stopped straight work . 8
Figure 104 – Example of straight work . 9
Figure 105 – Examples of tenoning . 10
Figure 106 – Run out test of spindle rings . 16

Figure 107 – Table dimensions . 17
Figure 108 – Table rings . 18
Figure 109 – Example of curved work workpiece guiding and cutter block guarding
systems . 20
Figure 110 – Test probe . 21
Figure 111 – Straight work – example of using pressure devices . 23
Figure 112 – Definition of fence pressure pad deflection measuring point and

directions of application of the test forces (horizontal view) . 27
Figure 113 – Definition of fence pressure pad deflection measuring point and
directions of application of the test forces (top view) . 27
Figure 114 – Application of fence pressure pad test force "F" and measurement of
displacement "f" (top view) . 27
Figure 115 – Definition of table pressure pad deflection measuring point and

directions of application of test forces (horizontal view) . 28
Figure 116 – Definition of table pressure pad deflection measuring point and
directions of application of test forces (vertical view) . 28
Figure 117 – Definition of the adjustable guard deflection measuring points and
directions of application of test forces . 29
Figure 118 – Definition of guiding steady deflection measuring points and directions of

application of test forces . 30

Table 4 – Required performance levels . 13
Table 101 – Tool holder spindle and cutting tool dimensions . 14
Table 102 – Table dimensions . 17
Table 103 – Table rings . 18
Table 104 – Metal saw blade guard characteristics . 25
Table 105 – Light alloy saw blade guard characteristics . 26
Table 106 – Fences and table pressure pad displacement . 28
Table 107 – Adjustable guard deflection . 29
Table 108 – Guiding steady deflection . 30
Table I.101 – Noise test conditions for single vertical spindle moulders . 33

– 4 – IEC 62841-3-8:2024 © IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY –
SAFETY –
Part 3-8: Particular requirements for
transportable single spindle vertical moulders

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 62841-3-8 has been prepared by IEC technical committee 116: Safety of motor-operated
electric tools. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
116/814/FDIS 116/834/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
This document is to be used in conjunction with IEC 62841-1:2014.
This document supplements or modifies the corresponding clauses in IEC 62841-1, so as to
convert it into the IEC Standard: Particular requirements for transportable single spindle vertical
moulders.
Where a particular subclause of IEC 62841-1 is not mentioned in this document, that subclause
applies as far as reasonable. Where this document states "addition", "modification" or
"replacement", the relevant text in IEC 62841-1 is to be adapted accordingly.
The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– terms defined in Clause 3: in bold type;
– notes: in small roman type.
Subclauses, notes, tables and figures which are additional to those in IEC 62841-1 are
numbered starting from 101.
Subclauses, notes, tables and figures in Annex K and Annex L which are additional to those in
the main body of this document are numbered starting from 301.
A list of all parts in the IEC 62841 series, published under the general title: Electric motor-
operated hand-held tools, transportable tools and lawn and garden machinery – Safety, can be
found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation nationally
not earlier than 36 months from the date of publication.

– 6 – IEC 62841-3-8:2024 © IEC 2024
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY –
SAFETY –
Part 3-8: Particular requirements for
transportable single spindle vertical moulders

1 Scope
IEC 62841-1:2014, Clause 1 is applicable, except as follows:
Addition:
This document applies to transportable single spindle vertical moulders, with a maximum
tool holder diameter of 200 mm, designed to cut wood and analogue materials also covered
with plastic laminate or edgings by hand-feed operation.
NOTE 101 Single spindle vertical moulders other than transportable are covered by ISO 19085-6:2024.
2 Normative references
IEC 62841-1:2014, Clause 2 is applicable, except as follows:
Addition:
IEC 62841-1:2014, Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety – Part 1: General requirements
ISO 286-2:2010, Geometrical product specifications (GPS) – ISO code system for tolerances
on linear sizes – Part 2: Tables of standard tolerance classes and limit deviations for holes and
shafts
3 Terms and definitions
IEC 62841-1:2014, Clause 3 is applicable, except as follows:
Addition:
3.101
anti-kickback device
device which either reduces the possibility of kickback or arrests the motion during kickback
of the workpiece, parts of it or part of the tool
3.102
curved work
machining of a curve on a workpiece by having one side in contact with the table (or if held in
a jig in contact with the table) and the other in contact with the vertical reference of a steady or
ring guide when using a jig
Note 101 to entry: See Figure 101.

Figure 101 – Example of curved work
3.103
cutter block
rotating assembly consisting of the tool holder and the cutting tool
3.104
kickback
unexpected movement of the workpiece, parts of it or part of the tool opposite to the direction
of feed during processing
3.105
removable spindle
spindle capable of being changed without removing the bearings
3.106
single spindle vertical moulder
hand-fed tool with a cutting accessory on a rotating spindle used on a table or similar support
which is intended to carry out work in a stationary position, capable of being lifted by hand by
one person and having
– a single spindle (fixed or removable) whose position is fixed during machining;
– a horizontal table; and
– a motor that is integral to the tool.
Note 101 to entry: The tool can have any of the following additional features:
a) the facility for the spindle to be raised and lowered through the table;
b) the facility for fitting an additional manually operated sliding table;
c) the facility to tilt the spindle.
Note 102 to entry: Single spindle vertical moulders are also known as shapers.
Note 103 to entry: See Figure 102.

– 8 – IEC 62841-3-8:2024 © IEC 2024

Key
1 table
2 pressure pads
3 guard
4 guard
5 parallel fence
Figure 102 – Example of single spindle vertical moulder
3.107
stopped straight work
machining of only a part of the workpiece length
Note 101 to entry: See Figure 103.

Figure 103 – Example of stopped straight work

3.108
straight work
shaping of a workpiece with one face in contact with the table and a second with the fence, and
where the work starts at one end of the workpiece and continues through to the other end
Note 101 to entry: See Figure 104.

Figure 104 – Example of straight work
3.109
tenoning
machining of projections and slots on the end of a workpiece to facilitate the joining of
workpieces, including profiled tenons
Note 101 to entry: See Figure 105.

– 10 – IEC 62841-3-8:2024 © IEC 2024

Key
1 tenon
Figure 105 – Examples of tenoning
3.110
tool holder
single piece spindle or removable spindle to which the cutting tool is fixed
4 General requirements
IEC 62841-1:2014, Clause 4 is applicable.
5 General conditions for the tests
IEC 62841-1:2014, Clause 5 is applicable, except as follows:
5.17 Addition:
The mass of the tool includes the tool holder and the fences.
6 Radiation, toxicity and similar hazards
IEC 62841-1:2014, Clause 6 is applicable.
7 Classification
IEC 62841-1:2014, Clause 7 is applicable.

8 Marking and instructions
IEC 62841-1:2014, Clause 8 is applicable, except as follows:
8.1 Addition:
Tools shall also be marked with:
– the maximum and minimum no-load speed of the tool holder; and
– the maximum diameter of the cutting tool to be used.
8.3 Addition:
Tools shall also be marked with an indication of the direction of rotation of the cutter block.
The direction of rotation of the spindle shall be indicated on a fixed part of the tool in the vicinity
of the spindle axis by an arrow raised or sunk which is visible when changing the cutter block,
or by any other means not less visible and indelible.
In addition, for tools designed to operate at more than one spindle speed, tools shall also be
marked as follows:
– for tools where the speed change is achieved by changing the position of the drive belts on
the drive pulley, the selected speed shall be indicated on the same side of the tool as the
start control by a diagram showing the relevant speed selected for each combination of
pulleys; or
– for tools where the speed change is achieved by an electrical control circuit, the selected
speed shall be indicated on the same side of tool as the switching device (e.g. a variable
speed control dial provided with numbers).
8.14.2 a) Addition:
101) Instruction to check the cutter block for faultless condition before use;
102) Instruction to use the correct table rings in relation to the size of cutter block;
103) Instruction to always wear suitable personal protective equipment. This includes:
– hearing protection to reduce the risk of induced hearing loss;
– respiratory protection to reduce the risk of inhalation of harmful dust;
– safety gloves when handling the cutter block and rough material due to sharp edges;
and
– safety glasses to avoid eye injury caused by flying particles;
104) When cutting wood, a warning that wood dust can cause health risks;
105) Instruction how to correctly fit the dust collection system and for the correct assembly of
a dust-collecting device;
106) Information of the factors that influence exposure of dust, e.g. the type of material being
machined and the importance of local extraction (capture or source) and proper
adjustment of hoods, baffles or chutes;
107) A warning not to use non-recommended cutting tools, which can lead to injuries due to
the loss of control.
– 12 – IEC 62841-3-8:2024 © IEC 2024
8.14.2 b) Addition:
101) Information on possible contact of the cutter block with hands and fingers of the
operator. Instruction defining the correct guard and how to adjust guard(s) to prevent
accessibility to portions of the cutter tool not being used;
102) Information on possible kickback, a sudden reaction to uncontrolled guiding of small
workpieces. Instruction to use additional measures such as horizontal pressure devices
when working narrow workpieces to ensure safe working;
103) Information on the hazardous situation due to uncontrolled lift up of the workpiece.
Instruction to support adequately large workpieces to be held in place;
104) When performing curved work, instruction to guide the workpiece in the correct way to
prevent cutting injuries. Instruction on what type of guard shall be used to ensure safe
operation;
105) A warning that the incorrect use of cutter tools, workpiece and guiding devices can lead
to dangerous situation. Instruction how the operator shall be trained in the handling of
the workpiece, use, adjustment and operation of workpiece clamps and guiding devices
and tool selection;
106) A warning about possible contact with moving parts. Instruction to switch off the tool and
pull the plug when changing or adjusting;
107) A warning about incorrect adjustment of fences. Instruction how the fences shall be
adjusted in relation to the different work. Instruction when and how to use a false fence
to minimize the gap between the cutting tool and the fence plate;
108) A warning about a possible mistake of the cutting tool position. Instruction to fit the
cutting tool to the tool correctly and to feed the workpiece against the direction of spindle
rotation;
109) A warning on the necessity to select the correct speed on the tool. Instruction on how to
select the right speed on the tool corresponding to the cutting tool and material being
used;
110) Instruction to keep hands away during straight work. Instruction to use, where possible,
pressure pads in conjunction with the fence;
111) A warning that missing stops can cause kickback. Instruction to use a stop(s) fixed to
the fence when doing stopped straight work;
112) A warning that failure to use a tenoning slide or guard provided by the manufacturer for
tenoning can lead to cutting injuries due to loss of control.
8.14.2 c) Addition:
101) Information on which faults on the tool, including guards or the cutter block, shall be
rectified as soon as they are discovered;
102) A warning that unmaintained tools can cause uncontrolled situations. Instruction to use
cutting tools which are sharpened, maintained and adjusted in accordance with the tool
manufacturer's instructions.
9 Protection against access to live parts
IEC 62841-1:2014, Clause 9 is applicable.
10 Starting
IEC 62841-1:2014, Clause 10 is applicable.
11 Input and current
IEC 62841-1:2014, Clause 11 is applicable.

12 Heating
IEC 62841-1:2014, Clause 12 is applicable.
13 Resistance to heat and fire
IEC 62841-1:2014, Clause 13 is applicable.
14 Moisture resistance
IEC 62841-1:2014, Clause 14 is applicable.
15 Resistance to rusting
IEC 62841-1:2014, Clause 15 is applicable.
16 Overload protection of transformers and associated circuits
IEC 62841-1:2014, Clause 16 is applicable.
17 Endurance
IEC 62841-1:2014, Clause 17 is applicable.
18 Abnormal operation
IEC 62841-1:2014, Clause 18 is applicable, except as follows:
18.8 Replacement of Table 4:
Table 4 – Required performance levels
Type and purpose of SCF Minimum Performance Level (PL)
Power switch – prevent unwanted switch-on c
Power switch – provide desired switch-off c
Prevent output speed from exceeding 130 % of maximum no-load speed b
Provide desired direction of rotation b
Provide stopping time as required in 21.101 a
Any electronic control to pass the test of 18.3 a
Prevent exceeding thermal limits as in 18.4 and 18.5.3 a
Speed monitoring as in 19.104 c
Restart prevention as required by 21.18.2.1 b
Prevent self-resetting as required in 23.3 b

– 14 – IEC 62841-3-8:2024 © IEC 2024
19 Mechanical hazards
IEC 62841-1:2014, Clause 19 is applicable, except as follows:
19.1 Addition:
The main body, the table with the table rings, the tool holder spindle, the workpiece guiding
system, the stopping device including the automatic brake, if any, the guarding systems and
speed changing device are the main parts of a single spindle vertical moulder.
Depending on the nature of the work to be undertaken, the safety requirements are related to
– the tool holder;
– straight work;
– curved work; and
– tenoning.
19.6 Replacement:
The maximum no-load speed of the tool holder at rated voltage shall not exceed 110 % of the
maximum no-load speed marked on the tool in accordance with 8.1.
Compliance is checked by measuring the speed of the tool holder after the tool has been
operating for 5 min at no-load. During the test, separable accessories are not mounted.
19.101 Straight and curved work
19.101.1 Tool holder
19.101.1.1 Strength
The tool holder spindle shall be manufactured in steel with an ultimate tensile strength of at
least 580 N/mm or any other material of an equivalent performance.
Compliance is checked by inspection.
19.101.1.2 Dimensions for tool holder spindle and cutting tools
The maximum usable lengths of the tool holder from its shoulder for single piece and
removable spindles and the maximum cutting tool diameters are given in Table 101.
Compliance is checked by measurement.
Table 101 – Tool holder spindle and cutting tool dimensions
Minimum spindle Maximum usable length of tool holder spindle from its Maximum diameter for
diameter shoulder for single piece and removable spindles the cutting tool
mm mm mm
20 80 150
30 140 200
19.101.1.3 Tool holder spindle adjustment
The spindle shall be adjustable in height and capable of being locked in all positions.
The single spindle vertical moulder shall be equipped with an indicator to show incremental
vertical movement of the spindle.
Compliance is checked by inspection and by the following test.
With the tool spindle set in a vertical position, and a force of 300 N applied vertically downwards
on its exposed end, the change in tool spindle height shall be less than 0,5 mm.
Where the spindle is capable of being inclined, the tool shall be equipped with an indicator
showing the degree of inclination with respect to the table. The adjustment device shall remain
in the position in which it is placed.
Compliance is checked by inspection and by the following test.
With the tool spindle set in a vertical position, and a force of 300 N applied horizontally on its
exposed end, the inclination shall not exceed 1°.
19.101.1.4 Spindle locking
The single spindle vertical moulder shall be fitted with a spindle locking device in order to
facilitate the mounting and removal of cutting tools and removable spindles.
Compliance is checked by inspection.
19.101.1.5 Direction of rotation
Single direction of rotation tools shall always run anti-clockwise (viewed from the top).
In cases where the tool is designed to also run in the clockwise direction of rotation, the tool
shall comply with the additional requirements a) to f).
a) A direction of rotation control shall be fitted at the normal operating position of the tool which
shall be designed so that the movement of the control is consistent with its effect.
b) This control shall be held in the anti-clockwise direction position by a blocking device.
c) Selection of clockwise direction shall only be possible following the manual override of the
blocking device.
d) The direction of rotation selection device shall be either:
1) a two-position selector such that
• the normal position, without the blocking device, corresponds to the anticlockwise
direction of rotation;
• the unnormal position, with blocking device, corresponds to the clockwise direction
of rotation;
• selection of the clockwise direction of rotation shall only be possible after manual
override of the blocking device;
• the direction of rotation selection shall remain in the selected direction of rotation
position after the tool is switched off;
or
2) a three-position selector, with a neutral position without blocking device, such that only
if the tool has been started in the clockwise direction of rotation, as soon as it is switched
off the direction of rotation selection device returns automatically to its neutral position.
Any further selection of rotation shall require voluntary operation of the selection device.

– 16 – IEC 62841-3-8:2024 © IEC 2024
e) A visible warning device shall inform the tool operator when clockwise rotation is selected.
The visible warning may be supplemented by an audible one.
f) The selector actuator shall not initiate spindle start up.
Compliance is checked by inspection.
19.101.1.6 Spindle rings
The spindle shall be equipped with a set of spindle rings having a minimum wall thickness of
9,75 mm and a tolerance of H7 in accordance with ISO 286-2:2010 on their internal diameter.
The spindle rings shall be capable of covering the whole usable length of the spindle.
Spindle rings shall be manufactured in steel with an ultimate tensile strength of at least
580 N/mm or in any other material with equivalent performance.
The set of spindle rings shall be subjected to a camming test. The cam out shall not be more
than 0,1 mm when measured on a suitable test disc at a diameter of 100 mm as shown in
Figure 106.
Compliance is checked by inspection, by measurement and by manual test.
Dimensions in millimetres
Figure 106 – Run out test of spindle rings
19.101.1.7 Cutting tool fixing device
The spindle shall be fitted with one of the following cutting tool fixing devices to ensure a
positive connection between the ring and the spindle:
– a locknut and a separate or integral spindle ring; or
– a spindle screw and a separate or integral spindle ring.
Compliance is checked by inspection.

19.101.2 Single spindle vertical moulder table
19.101.2.1 Tilting
The single spindle vertical moulder table shall not be capable of being tilted.
Compliance is checked by inspection.
19.101.2.2 Table dimensions
The single spindle vertical moulder table dimensions shall be in accordance with Table 102
(see Figure 107).
The table shall have a through hole of suitable diameter to allow for the projection of the spindle
and the cutting tool.
Compliance is checked by inspection and by measurement.
Table 102 – Table dimensions
Table bore diameter Minimum table length A Dimension B Dimension C
mm mm mm mm
≤ 120 400 180 < B ≤ A/2 (220 ± 60)
> 120 and ≤ 160 450 200 < B ≤ A/2 (250 ± 70)
> 160 and ≤ 210 600 250 < B ≤ A/2 (350 ± 100)

Key
1 table hole
Figure 107 – Table dimensions
19.101.2.3 Table rings
The table shall be equipped in accordance with Table 103, with a set of table rings to reduce
the internal diameter of the hole in the table (See Figure 108).
Compliance is checked by inspection and by measurement.

– 18 – IEC 62841-3-8:2024 © IEC 2024
Table 103 – Table rings
Table bore diameter Ranges of internal diameter
mm mm
≤ 120 45 to 55
75 to 90
> 120 and ≤ 160 45 to 55
75 to 90
115 to 130
> 160 and ≤ 210 45 to 55
75 to 90
115 to 130
155 to 180
Key
1 table
2 ring
Figure 108 – Table rings
19.101.3 Workpiece guiding device
19.101.3.1 Straight work
19.101.3.1.1 Fence dimension
In order to ensure the vertical stability of the workpiece, the single spindle vertical moulder
shall be equipped with fences which:
– have a minimum height greater than the usable spindle length;
– have a minimum length of
• the table length (for both fences), or
• 300 mm (for each fence),
whichever is the smaller.
Compliance is checked by inspection and by measurement.

19.101.3.1.2 Fence adjustment
The fence assembly shall be capable of being fixed securely to the table and shall be adjustable
to take account of the cutting tool diameter and the position of the spindle.
When transverse adjustments are carried out, the fence plates shall remain integral with their
supports.
The lateral adjustment of the fence plates shall allow any necessary opening for the cutting tool
to be reduced to a minimum. The fence plates shall either be fitted with a device ensuring
continuity between the fence plates or shall be equipped with fixing arrangements which would
permit such a device (e.g. false fence) to be fitted.
A fine adjustment control for transverse movement of the outfeed fence plate with respect to
the infeed fence plate shall be provided. When moved in this way, the fence plate shall remain
parallel to the fixed fence plate and their re-alignment shall be checked using a method given
by the manufacturer in the instruction manual (see 8.14.2 b) 107)).
All adjustments shall be capable of being undertaken without the aid of a tool.
The part of the fence plates close to the cutting tool shall be made of light alloy, plastic or wood.
Compliance is checked by inspection.
19.101.3.2 Curved work
A workpiece guiding device suitable for curved work, see Figure 109, shall be provided and
consist of either
– a guiding steady (ring guide)
• the shape or adjustment of which shall allow a progressive penetration of the cutting tool
into the workpiece;
• that supports and guides the workpiece during working;
• that shall have the tangential point where the depth of cut is measured clearly marked;
• the adjustment range of which shall take account of all possible positions of the cutting
tool with respect to the table; and
• that during adjustment shall remain parallel to the table within 0,5 mm over a length of
100 mm
or
– a lead-in device which allows the use of a ball ring guide
• that allows progressive feed of the workpiece to the cutting tool;
• where the tool has two directions of spindle rotation, shall be designed to allow for its
use whichever direction of rotation is selected; and
• where the guard supporting device is designed to allow for the fixing of a guiding steady
and the lead-in device is also capable of being fixed to the supporting device, shall be
capable of being moved out of position whilst remaining integral with the workpiece
guiding device to allow for the use of the guiding steady.
Compliance is checked by inspection and by measurement.

– 20 – IEC 62841-3-8:2024 © IEC 2024

Key
1 lead-in guide
2 ball ring guide
3 hand protector
4 guiding steady (ring guide)
5 support
6 chip exhaust outlet
7 bonnet guard
8 cutter block
Figure 109 – Example of curved work workpiece guiding and
cutter block guarding systems
19.101.4 Guarding of the working parts
19.101.4.1 Guarding under the table
Access to the cutting tool, to the spindle or to the driving system shall not be possible either
directly or through any dust extraction opening.
Access to the cutting tool from below the table shall be prevented by a fixed guard or a movable
guard interlocked with
...
