Glass bulb designation system for lamps

IEC/TR 60887:2010 describes a system of nomenclature that provides designations of the glass bulbs used as envelopes for electric lamps. The application of such designations is directed towards the descriptions of finished lamps. This third edition cancels and replaces the second edition, published in 2003. It constitutes a technical revision. The reason for this new edition is the addition of a new bulb type designation and drawing.

Système de désignation des ampoules de verre pour lampes

La CEI/TR 60887:2010 décrit un système de nomenclature permettant la désignation des ampoules de verre utilisées comme enveloppes des lampes électriques. Ce système s'applique à la description des lampes finies. Cette troisième édition annule et remplace la deuxième édition, publiée en 2003. Elle constitue une révision technique. La raison de cette nouvelle édition est l'ajout d'une nouvelle désignation de type d'ampoule et son dessin.

General Information

Status
Published
Publication Date
23-Jun-2010
Drafting Committee
Current Stage
PPUB - Publication issued
Start Date
15-Sep-2010
Completion Date
24-Jun-2010
Ref Project

Relations

Buy Standard

Technical report
IEC TR 60887:2010 - Glass bulb designation system for lamps
English and French language
21 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


IEC/TR 60887 ®
Edition 3.0 2010-06
TECHNICAL
REPORT
RAPPORT
TECHNIQUE
Glass bulb designation system for lamps

Système de désignation des ampoules de verre pour lampes

IEC/TR 60887:2010
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC/TR 60887 ®
Edition 3.0 2010-06
TECHNICAL
REPORT
RAPPORT
TECHNIQUE
Glass bulb designation system for lamps

Système de désignation des ampoules de verre pour lampes

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
L
CODE PRIX
ICS 29.140.20 ISBN 978-2-88910-998-2
– 2 – TR 60887 © IEC:2010

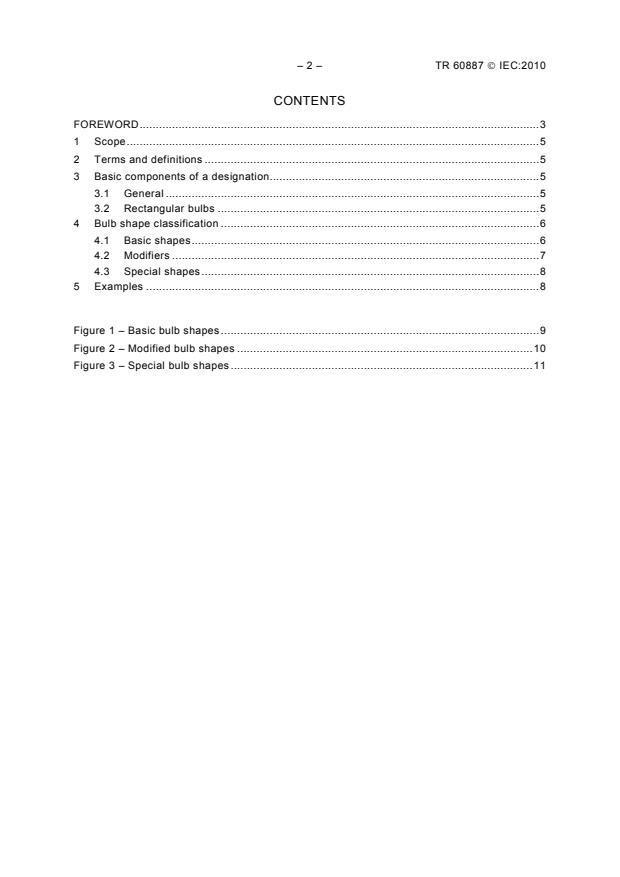

CONTENTS
FOREWORD.3
1 Scope.5
2 Terms and definitions .5
3 Basic components of a designation.5
3.1 General .5
3.2 Rectangular bulbs .5
4 Bulb shape classification .6
4.1 Basic shapes.6
4.2 Modifiers .7
4.3 Special shapes.8
5 Examples .8

Figure 1 – Basic bulb shapes.9
Figure 2 – Modified bulb shapes .10
Figure 3 – Special bulb shapes .11

TR 60887 © IEC:2010 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
GLASS BULB DESIGNATION SYSTEM FOR LAMPS

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC TR 60887, which is a technical report, has been prepared by subcommittee 34A: Lamps,
of IEC technical committee 34: Lamps and related equipment.
This third edition cancels and replaces the second edition, published in 2003. It constitutes a
technical revision. The reason for this new edition is the addition of a new bulb type
designation and drawing.
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
34A/1386/DTR 34A/1391/RVC
Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table.

– 4 – TR 60887 © IEC:2010
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
TR 60887 © IEC:2010 – 5 –
GLASS BULB DESIGNATION SYSTEM FOR LAMPS

1 Scope
This technical report describes a system of nomenclature that provides designations of the
glass bulbs used as envelopes for electric lamps. The application of such designations is
directed towards the descriptions of finished lamps.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
2.1
bulb
outer envelope of glass or other transparent or translucent material enclosing the essential
components of an electric lamp
2.2
approximate reference line
construction line transverse to the axis through the neck of the bulb defining the approximate
position at which the rim of a cap, such as an Edison screw cap, would meet the neck of a
bulb
NOTE The sole purpose of the approximate reference line is to aid the establishment of technical definitions of
bulb shapes. This line appears in Figures 1 and 2 as a C-D line. No such line exists for pressed glass bulbs.
3 Basic components of a designation
3.1 General
Glass bulbs should be described by a designation consisting of a sequence of letter and
number symbols without spaces, as follows:
a) a letter symbol consisting of up to three letters which describes the bulb shape. The letter
or letters of this symbol may in some cases be a basic shape letter symbol only and in
other cases it may be a combination of a basic shape symbol and a modifier or modifiers.
Basic shapes, modifiers and special shapes are defined in Clause 4;
b) a number symbol which states the major diameter (nominal) of the bulb, in millimetres.
NOTE In some countries, bulb diameter has been stated in multiples of 1/8 of an inch. This practice should be
discouraged and preference given to millimetre units.
3.2 Rectangular bulbs
Rectangular glass bulbs should be described by the letter symbol REC followed by two sets of
numbers. The first number should designate the dimension of the shorter side; the second
number should designate the dimension of the longer side. These numbers should be
separated by the multiplication symbol (×). The dimensions should be in millimetres.

– 6 – TR 60887 © IEC:2010
4 Bulb shape classification
4.1 Basic shapes
The basic shape symbols are listed below. The following descriptive information used in
conjunction with the associated illustration in Figure 1 forms the definition of each shape.
Letter symbol General meaning Explanatory notes
A A bulb shape having a spherical end section
that is joined to the neck by a radius that
a) has a centre outside the bulb,
b) has a magnitude greater than the radius of
the spherical section,
c) and is tangent to both the neck and the
curve of the spherical end section.
NOTE These bulbs do not have any significant straight
portion between the spherical end and the transitional
radius into the neck.
...
