IEC 60730-2-17:1997

NORME CEI
INTERNATIONALE IEC
60730-2-17
INTERNATIONAL
Edition 1.1
STANDARD
2001-10
Edition 1:1997 consolidée par l'amendement 1:2000
Edition 1:1997 consolidated with amendment 1:2000
Dispositifs de commande électrique automatiques
à usage domestique et analogue –
Partie 2-17:
Règles particulières pour les électrovannes
de gaz, y compris les prescriptions mécaniques
Automatic electrical controls for household
and similar use –
Part 2-17:
Particular requirements for electrically operated
gas valves, including mechanical requirements

Numéro de référence
Reference number
CEI/IEC 60730-2-17:1997+A1:2000

Numérotation des publications Publication numbering

Depuis le 1er janvier 1997, les publications de la CEI As from 1 January 1997 all IEC publications are

sont numérotées à partir de 60000. Ainsi, la CEI 34-1 issued with a designation in the 60000 series. For
devient la CEI 60034-1. example, IEC 34-1 is now referred to as IEC 60034-1.

Editions consolidées Consolidated editions

Les versions consolidées de certaines publications de la The IEC is now publishing consolidated versions of its

CEI incorporant les amendements sont disponibles. Par publications. For example, edition numbers 1.0, 1.1
exemple, les numéros d’édition 1.0, 1.1 et 1.2 indiquent and 1.2 refer, respectively, to the base publication,

respectivement la publication de base, la publication de the base publication incorporating amendment 1 and

base incorporant l’amendement 1, et la publication de the base publication incorporating amendments 1
base incorporant les amendements 1 et 2. and 2.
Informations supplémentaires Further information on IEC publications
sur les publications de la CEI
Le contenu technique des publications de la CEI est The technical content of IEC publications is kept
constamment revu par la CEI afin qu'il reflète l'état under constant review by the IEC, thus ensuring that
actuel de la technique. Des renseignements relatifs à the content reflects current technology. Information
cette publication, y compris sa validité, sont dispo- relating to this publication, including its validity, is
nibles dans le Catalogue des publications de la CEI available in the IEC Catalogue of publications
(voir ci-dessous) en plus des nouvelles éditions, (see below) in addition to new editions, amendments
amendements et corrigenda. Des informations sur les and corrigenda. Information on the subjects under
sujets à l’étude et l’avancement des travaux entrepris consideration and work in progress undertaken by the
par le comité d’études qui a élaboré cette publication, technical committee which has prepared this
ainsi que la liste des publications parues, sont publication, as well as the list of publications issued,
également disponibles par l’intermédiaire de: is also available from the following:
• Site web de la CEI (www.iec.ch) • IEC Web Site (www.iec.ch)
• Catalogue des publications de la CEI • Catalogue of IEC publications
Le catalogue en ligne sur le site web de la CEI The on-line catalogue on the IEC web site
(www.iec.ch/catlg-f.htm) vous permet de faire des (www.iec.ch/catlg-e.htm) enables you to search
recherches en utilisant de nombreux critères, by a variety of criteria including text searches,
comprenant des recherches textuelles, par comité technical committees and date of publication. On-
d’études ou date de publication. Des informations line information is also available on recently
en ligne sont également disponibles sur les issued publications, withdrawn and replaced
nouvelles publications, les publications rempla- publications, as well as corrigenda.
cées ou retirées, ainsi que sur les corrigenda.
• IEC Just Published
• IEC Just Published
Ce résumé des dernières publications parues
This summary of recently issued publications
(www.iec.ch/JP.htm) est aussi disponible par
(www.iec.ch/JP.htm) is also available by email.
courrier électronique. Veuillez prendre contact
Please contact the Customer Service Centre (see
avec le Service client (voir ci-dessous) pour plus
below) for further information.
d’informations.
• Service clients
• Customer Service Centre
Si vous avez des questions au sujet de cette
If you have any questions regarding this
publication ou avez besoin de renseignements
publication or need further assistance, please
supplémentaires, prenez contact avec le Service
contact the Customer Service Centre:
clients:
Email: custserv@iec.ch
Email: custserv@iec.ch
Tél: +41 22 919 02 11
Tel: +41 22 919 02 11
Fax: +41 22 919 03 00
Fax: +41 22 919 03 00
.
NORME CEI
INTERNATIONALE IEC
60730-2-17
INTERNATIONAL
Edition 1.1
STANDARD
2001-10
Edition 1:1997 consolidée par l'amendement 1:2000
Edition 1:1997 consolidated with amendment 1:2000
Dispositifs de commande électrique automatiques
à usage domestique et analogue –
Partie 2-17:
Règles particulières pour les électrovannes
de gaz, y compris les prescriptions mécaniques
Automatic electrical controls for household
and similar use –
Part 2-17:
Particular requirements for electrically operated
gas valves, including mechanical requirements

 IEC 2001 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in
utilisée sous quelque forme que ce soit et par aucun procédé, any form or by any means, electronic or mechanical,
électronique ou mécanique, y compris la photocopie et les including photocopying and microfilm, without permission in
microfilms, sans l'accord écrit de l'éditeur. writing from the publisher.
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: +41 22 919 0300 e-mail: inmail@iec.ch IEC web site http://www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale
CL
PRICE CODE
International Electrotechnical Commission
Pour prix, voir catalogue en vigueur
For price, see current catalogue

– 2 – 60730-2-17 © CEI:1997+A1:2000

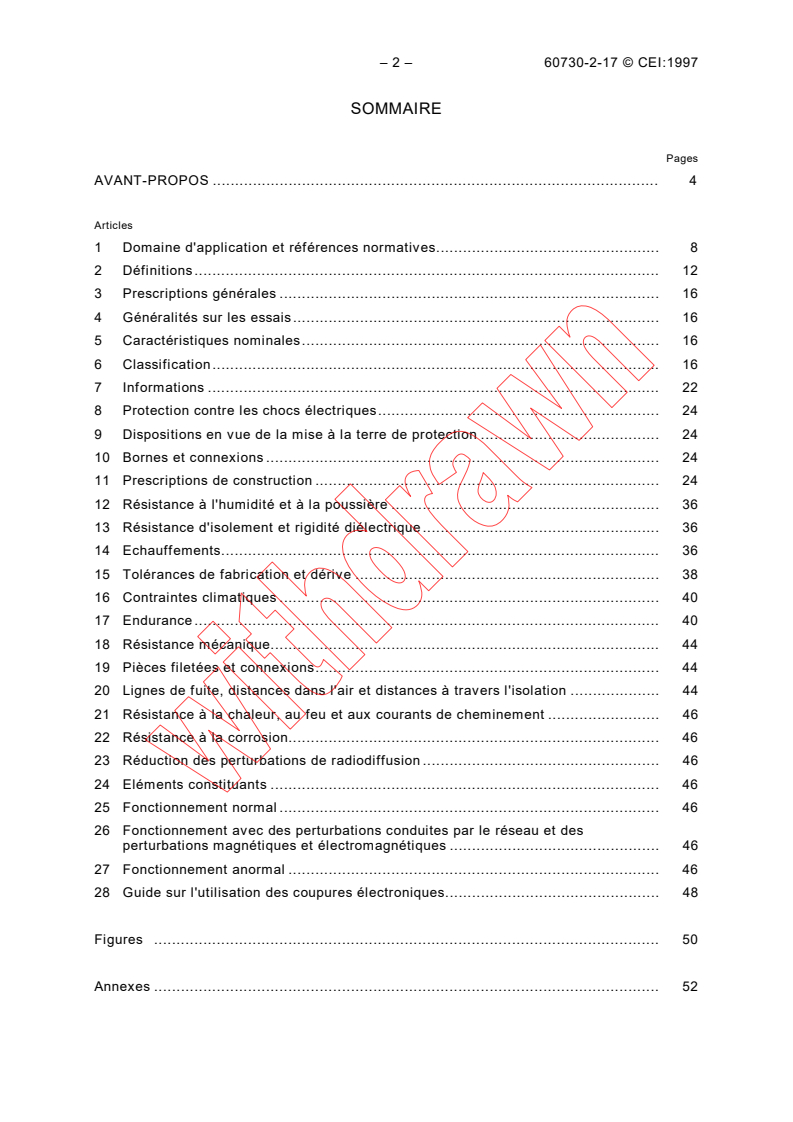

SOMMAIRE
AVANT-PROPOS .4

1 Domaine d'application et références normatives.8

2 Définitions .12

3 Prescriptions générales .16

4 Généralités sur les essais.16
5 Caractéristiques nominales .18
6 Classification .18
7 Informations .22
8 Protection contre les chocs électriques .24
9 Dispositions en vue de la mise à la terre de protection .24
10 Bornes et connexions .26
11 Prescriptions de construction .26
12 Résistance à l'humidité et à la poussière.36
13 Résistance d'isolement et rigidité diélectrique .38
14 Echauffements.38
15 Tolérances de fabrication et dérive .38
16 Contraintes climatiques.40
17 Endurance .40
18 Résistance mécanique.44
19 Pièces filetées et connexions .44
20 Lignes de fuite, distances dans l'air et distances à travers l'isolation.46
21 Résistance à la chaleur, au feu et aux courants de cheminement .46
22 Résistance à la corrosion.46
23 Réduction des perturbations de radiodiffusion .46
24 Eléments constituants.46
25 Fonctionnement normal .46
26 Fonctionnement avec des perturbations conduites par le réseau et

des perturbations magnétiques et électromagnétiques .46
27 Fonctionnement anormal.46
28 Guide sur l'utilisation des coupures électroniques .50
Annexes.54
Annexe H (normative) Prescriptions pour dispositifs de commande électroniques .54
Figures .52
Tableau 27.2.101 – Températures maximales autorisées pour l'essai dans les
conditions de sortie bloquée.48

60730-2-17 © IEC:1997+A1:2000 – 3 –

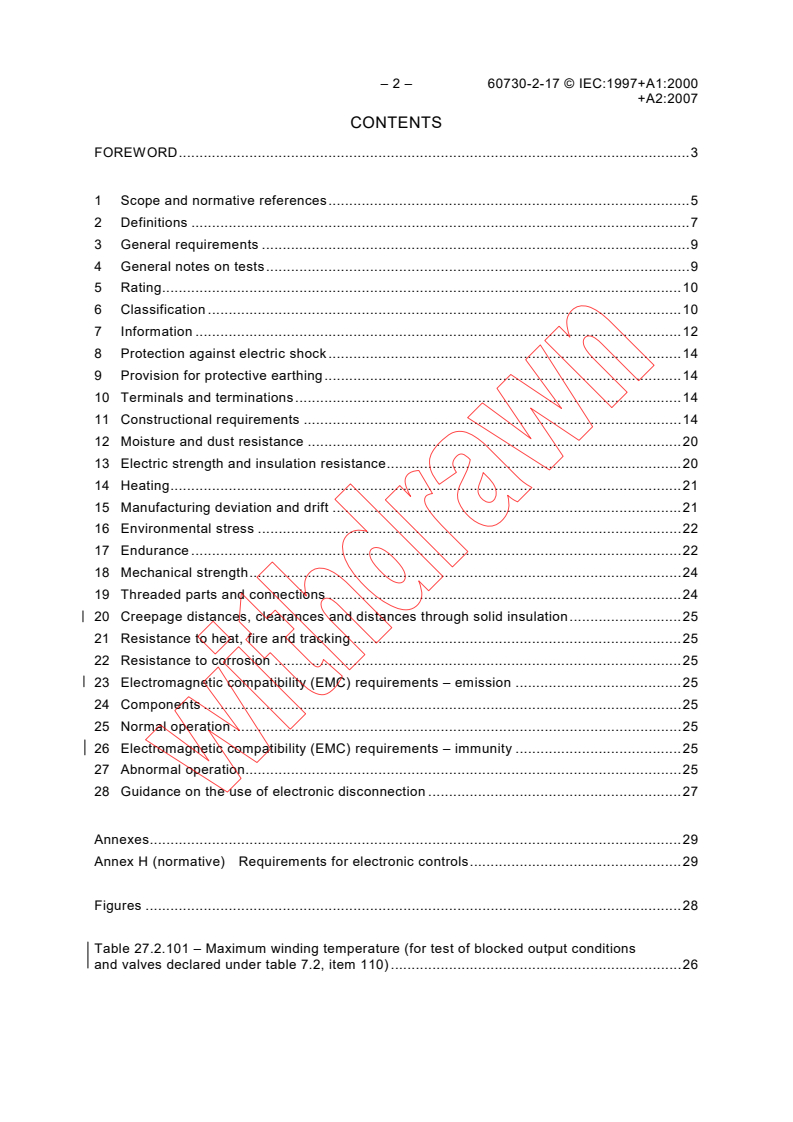

CONTENTS
FOREWORD . 5

1 Scope and normative references . 9

2 Definitions. 13

3 General requirements. 17

4 General notes on tests . 17
5 Rating . 19
6 Classification .19
7 Information. 23
8 Protection against electric shock . 25
9 Provision for protective earthing . 25
10 Terminals and terminations . 27
11 Constructional requirements. 27
12 Moisture and dust resistance. 37
13 Electric strength and insulation resistance . 39
14 Heating . 39
15 Manufacturing deviation and drift. 39
16 Environmental stress. 41
17 Endurance .41
18 Mechanical strength . 45
19 Threaded parts and connections. 45
20 Creepage distances, clearances and distances through insulation . 47
21 Resistance to heat, fire and tracking. 47
22 Resistance to corrosion. 47
23 Radio interference suppression . 47
24 Components. 47
25 Normal operation. 47
26 Operation with mains-borne perturbations, magnetic and

electromagnetic disturbances . 47
27 Abnormal operation . 47
28 Guidance on the use of electronic disconnection. 51
Annexes . 55
Annex H (normative) Requirements for electronic controls . 55
Figures. 53
Table 27.2.101 – Maximum permitted temperatures for test of blocked output conditions. 49

– 4 – 60730-2-17 © CEI:1997+A1:2000

COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE

____________
DISPOSITIFS DE COMMANDE ÉLECTRIQUE AUTOMATIQUES

À USAGE DOMESTIQUE ET ANALOGUE –

Partie 2-17: Règles particulières pour les électrovannes de gaz,

y compris les prescriptions mécaniques

AVANT-PROPOS
1) La CEI (Commission Electrotechnique Internationale) est une organisation mondiale de normalisation composée
de l'ensemble des comités électrotechniques nationaux (Comités nationaux de la CEI). La CEI a pour objet de
favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines de
l'électricité et de l'électronique. A cet effet, la CEI, entre autres activités, publie des Normes internationales.
Leur élaboration est confiée à des comités d'études, aux travaux desquels tout Comité national intéressé par le
sujet traité peut participer. Les organisations internationales, gouvernementales et non gouvernementales, en
liaison avec la CEI, participent également aux travaux. La CEI collabore étroitement avec l'Organisation
Internationale de Normalisation (ISO), selon des conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de la CEI concernant les questions techniques représentent, dans la mesure
du possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux intéressés
sont représentés dans chaque comité d’études.
3) Les documents produits se présentent sous la forme de recommandations internationales. Ils sont publiés
comme normes, spécifications techniques, rapports techniques ou guides et agréés comme tels par les Comités
nationaux.
4) Dans le but d'encourager l'unification internationale, les Comités nationaux de la CEI s'engagent à appliquer de
façon transparente, dans toute la mesure possible, les Normes internationales de la CEI dans leurs normes
nationales et régionales. Toute divergence entre la norme de la CEI et la norme nationale ou régionale
correspondante doit être indiquée en termes clairs dans cette dernière.
5) La CEI n’a fixé aucune procédure concernant le marquage comme indication d’approbation et sa responsabilité
n’est pas engagée quand un matériel est déclaré conforme à l’une de ses normes.
6) L’attention est attirée sur le fait que certains des éléments de la présente Norme internationale peuvent faire
l’objet de droits de propriété intellectuelle ou de droits analogues. La CEI ne saurait être tenue pour
responsable de ne pas avoir identifié de tels droits de propriété et de ne pas avoir signalé leur existence.
La Norme internationale CEI 60730-2-17 a été établie par le comité d'études 72 de la CEI:
Commandes automatiques pour appareils domestiques.
La présente version consolidée de la CEI 60730-2-17 comprend la première édition (1997)
[documents 72/348/FDIS et 72/371/RVD] et son amendement 1 (2000) [documents
72/466/FDIS et 72/490/RVD].
Le contenu technique de cette version consolidée est donc identique à celui de l'édition de

base et à son amendement; cette version a été préparée par commodité pour l'utilisateur.
Elle porte le numéro d'édition 1.1.
Une ligne verticale dans la marge indique où la publication de base a été modifiée par les
amendement 1.
La présente partie 2 doit être utilisée conjointement avec la CEI 60730-1. Elle a été établie sur
la base de la troisième édition (1999) de cette publication. Les éditions ou amendements futurs
de la CEI 60730-1 pourront être pris en compte.
Lorsque la présente partie 2 spécifie «addition», «modification» ou «remplacement», la
prescription, la modalité d'essai ou le commentaire correspondant de la partie 1 doit être
adapté en conséquence.
60730-2-17 © IEC:1997+A1:2000 – 5 –

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
AUTOMATIC ELECTRICAL CONTROLS
FOR HOUSEHOLD AND SIMILAR USE –

Part 2-17: Particular requirements for electrically operated gas valves,

including mechanical requirements

FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International Organization
for Standardization (ISO) in accordance with conditions determined by agreement between the two
organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60730-2-17 has been prepared by IEC technical committee 72:
Automatic controls for household use.
This consolidated version of IEC 60730-2-17 consists of the first edition (1997) [documents
72/348/FDIS and 72/371/RVD], and its amendment 1 (2000) [documents 72/466/FDIS and
72/490/RVD].
The technical content is therefore identical to the base edition and its amendment and has
been prepared for user convenience.

It bears the edition number 1.1.
A vertical line in the margin shows where the base publication has been modified by
amendment 1.
This part 2 is intended to be used with IEC 60730-1. It was established on the basis of the third
edition (1999) of that publication. Consideration may be given to future editions of, or
amendments to IEC 60730-1.
Where this part 2 states "addition", "modification" or "replacement", the relevant requirement,
test specification or explanatory matter in part 1 should be adapted accordingly.

– 6 – 60730-2-17 © CEI:1997+A1:2000

Lorsque aucune modification n'est nécessaire, la partie 2 indique que l'article ou le paragraphe

approprié est applicable.
Afin d'obtenir une norme complètement internationale, il a été nécessaire d'examiner des

prescriptions différentes résultant de l'expérience acquise dans diverses parties du monde, et

de reconnaître les différences nationales dans les réseaux d'alimentation électrique et les

règles d'installations.
Les notes «dans certains pays» concernant des pratiques nationales différentes sont contenues dans les

paragraphes suivants:
– 6.11.101
– 6.103
– Tableau 7.2, prescription 117
– Tableau 7.2, notes 103 et 104
– 11.102
– 11.103
– 11.104.3
– 11.104.5
– 11.104.11
– 11.104.14
– 11.105.1
– 11.105.2
– 11.105.3
– 11.105.6
– 11.106.1
– 11.115
– 17.16.101
– 18.102
– 18.103
Dans la présente publication:
1) Les caractères d'imprimerie suivants sont utilisés:
– Prescriptions proprement dites: caractères romains;
– Modalités d'essais: caractères italiques;
– Commentaires: petits caractères romains.
2) Les paragraphes, notes ou points complémentaires à ceux de la partie 1 sont numérotés
à partir de 101.
Le comité a décidé que le contenu de la publication de base et de ses amendements ne sera
pas modifié avant 2002-06. A cette date, la publication sera
• reconduite;
• supprimée;
• remplacée par une édition révisée, ou
• amendée.
60730-2-17 © IEC:1997+A1:2000 – 7 –

Where no change is necessary, part 2 indicates that the relevant clause or subclause applies.

In the development of a fully international standard it has been necessary to take into
consideration the differing requirements resulting from practical experience in various parts of
the world and to recognize the variation in national electrical systems and wiring rules.

The “in some countries” notes regarding differing national practices are contained in the following subclauses:

– 6.11.101
– 6.103
– Table 7.2, requirement 117
– Table 7.2, notes 103 and 104
– 11.102
– 11.103
– 11.104.3
– 11.104.5
– 11.104.11
– 11.104.14
– 11.105.1
– 11.105.2
– 11.105.3
– 11.105.6
– 11.106.1
– 11.115
– 17.16.101
– 18.102
– 18.103
In this publication:
1) The following print types are used:
– Requirements proper: in roman type;
– Test specifications: in italic type;
– Explanatory matter: in smaller roman type.
2) Subclauses, notes or requirements which are additional to those in part 1 are numbered
starting from 101.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until 2002-06. At this date, the publication will be

• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
– 8 – 60730-2-17 © CEI:1997+A1:2000

DISPOSITIFS DE COMMANDE ÉLECTRIQUE AUTOMATIQUES

À USAGE DOMESTIQUE ET ANALOGUE –

Partie 2-17: Règles particulières pour les électrovannes de gaz,

y compris les prescriptions mécaniques

1 Domaine d'application et références normatives

L'article de la partie 1 est remplacé par ce qui suit:

Remplacement:
1.1 La présente partie 2 de la CEI 60730 s'applique aux électrovannes de gaz destinées à
être utilisées dans, ou en association avec des appareils domestiques et à usage analogue
pouvant utiliser de l'électricité, en combinaison avec des combustibles à l'état gazeux tels que
le gaz naturel, le gaz de ville ou le gaz de pétrole liquéfié prévus pour être utilisés dans les
matériels brûlant du gaz.
Des considérations additionnelles peuvent être nécessaires pour les gaz ayant des propriétés corrosives.
Cette partie 2 s'applique aussi aux électrovannes de gaz utilisant des thermistances NTC ou
PTC dont les prescriptions sont données dans l'annexe J.
1.1.1 La présente partie 2 s'applique à la sécurité intrinsèque, aux valeurs de fonctionnement,
aux temps de fonctionnement et aux séquences de fonctionnement quand ils sont associés à
la sécurité du matériel, ainsi qu'aux essais des électrovannes de gaz utilisées dans, ou en
association avec des matériels domestiques et analogues.
La présente partie 2 s'applique aussi aux dispositifs de commande pour appareils dans le
domaine d'application de la CEI 60335-1.
Partout où il est utilisé dans la présente partie 2, le terme «matériel« signifie «appareil et matériel».
La présente partie 2 ne s'applique pas aux électrovannes de gaz conçues exclusivement pour
des applications industrielles.
Les électrovannes de gaz des matériels non destinés à l'usage domestique normal, mais qui
peuvent cependant être utilisés par le public, tels que les matériels destinés à être utilisés par
des personnes sans qualification particulière dans des magasins, dans l'industrie légère et
dans les fermes, relèvent du domaine d'application de la présente partie 2.

La présente partie 2 comprend un certain nombre de caractéristiques mécaniques classées «à
l'étude». Jusqu'à ce que ces prescriptions mécaniques soient incorporées dans la présente
partie 2, les pays utilisant la présente partie 2 devront chiffrer ces prescriptions.
La conformité d'une électrovanne avec la présente partie 2 n'implique pas que l'électrovanne est acceptable sans
essai de ces caractéristiques mécaniques.
1.1.2 La présente partie 2 s'applique aux dispositifs de commande manuels dans le cas où
ces derniers sont solidaires électriquement et/ou mécaniquement des électrovannes de gaz.
Les prescriptions relatives aux interrupteurs manuels ne faisant pas partie d'une électrovanne de gaz figurent dans
la CEI 61058-1.
La présente partie 2 ne s'applique pas aux électrovannes de gaz dont le diamètre nominal de
raccordement est supérieur à DN 150.

60730-2-17 © IEC:1997+A1:2000 – 9 –

AUTOMATIC ELECTRICAL CONTROLS
FOR HOUSEHOLD AND SIMILAR USE –

Part 2-17: Particular requirements for electrically operated gas valves,

including mechanical requirements

1 Scope and normative references

This clause of part 1 is replaced as follows:
Replacement:
1.1 This part 2 of IEC 60730 applies to electrically operated gas valves for use in, on or in
association with, equipment for household and similar use that use electricity, in combination
with fuel in the gaseous state such as manufactured gas, natural gas or liquefied petroleum
gas intended to be used for gas burning equipment.
Additional considerations may be necessary for gas with corrosive properties.
This part 2 also applies to electrically operated gas valves using NTC or PTC thermistors,
requirements for which are contained in annex J.
1.1.1 This part 2 applies to the inherent safety, to the operating values, operating times, and
operating sequences where such are associated with equipment safety, and to the testing of
electrically operated gas valves used in, or in association with, household or similar equipment.
This part 2 is also applicable to controls for appliances within the scope of IEC 60335-1.
Throughout this part 2 the word "equipment" means "appliance and equipment".
This part 2 does not apply to electrically operated gas valves designed exclusively for industrial
applications.
Electrically operated gas valves for equipment not intended for normal household use, but
which nevertheless may be used by the public, such as equipment intended to be used by
laymen in shops, in light industry and on farms, are within the scope of this part 2.
This part 2 identifies a number of mechanical features as "under consideration". Until these
mechanical requirements are incorporated in this part 2, each country using this part 2 will

have to quantify these requirements.
Compliance of an electrically operated gas valve with this part 2 does not imply that the valve is acceptable without
further tests for these mechanical features.
1.1.2 This part 2 applies to manual controls when such are electrically and/or mechanically
integral with electrically operated gas valves.
Requirements for manual switches not forming part of an electrically operated gas valve are contained in
IEC 61058-1.
This part 2 does not apply to electrically operated gas valves of nominal connection size above
DN 150.
– 10 – 60730-2-17 © CEI:1997+A1:2000

La présente partie 2 s'applique aux électrovannes de gaz dont la pression de travail est

inférieure ou égale à 400 kPa (4 bar).

Ci-après, le terme «vanne» est utilisé pour désigner une électrovanne de gaz (y compris le

moteur primaire et le corps de vanne).

1.1.3  Un actionneur électrique soumis au laboratoire d'essai en combinaison avec une vanne

de gaz sera évalué selon la présente partie 2. Un actionneur électrique séparé est évalué selon

la CEI 60730-2-14, qui donne les prescriptions particulières pour les actionneurs électriques.

1.1.4 La présente partie 2 s'applique aussi aux vannes utilisées comme partie d'un système

ou aux vannes mécaniquement intégrées à des dispositifs de commande multifonctions.
1.1.5 La présente partie 2 ne s'applique pas aux vannes alimentées par de l'énergie thermo-
électrique fournie par un thermocouple ou une thermo-pile disposés dans la flamme du gaz.
1.3 N'est pas applicable.
1.5 Références normatives
L'article de la partie 1 est applicable avec les exceptions suivantes:
Addition:
CEI 60335-1:1991, Sécurité des appareils électrodomestiques et analogues – Partie 1:
Prescriptions générales
CEI 60529:1989, Degrés de protection procurés par les enveloppes (Code IP)
CEI 60730-2-14:1995, Dispositifs de commande électrique automatiques à usage domestique
et analogue – Partie 2: Règles particulières pour les actionneurs électriques
CEI 61058-1:1990, Interrupteurs pour appareils – Partie 1: Règles générales
ISO 7-1:1994, Filetages de tuyauterie pour raccordement avec étanchéité dans le filet – Partie 1:
Dimensions, tolérances et désignation
ISO 228-1:1994, Filetages de tuyauterie pour raccordement sans étanchéité dans le filet –
Partie 1: Dimensions, tolérances et désignation
ISO 274:1975, Tubes en cuivre de section circulaire – Dimensions

ISO 301:1981, Alliages de zinc en lingots destinés à la fonderie
ISO 4400:1994, Transmissions hydrauliques et pneumatiques – Connecteurs électriques à trois
broches avec contact de sécurité – Caractéristiques et exigences
ISO 6952:1994, Transmissions hydrauliques et pneumatiques – Connecteurs électriques à
deux broches avec contact de sécurité – Caractéristiques et exigences
ISO 7005-1:1992, Brides métalliques – Partie 1: Brides en acier
ISO 7005-2:1988, Brides métalliques – Partie 2: Brides en fonte

60730-2-17 © IEC:1997+A1:2000 – 11 –

This part 2 applies to electrically operated gas valves for maximum working pressures up
to 400 kPa (4 bar).
Hereinafter, the term "valve" is used to denote an electrically operated gas valve (including

prime mover and valve body).
1.1.3  An electric actuator that is submitted to the testing laboratory in combination with a gas

valve will be evaluated under this part 2. A separate electric actuator is evaluated under

IEC 60730-2-14, which provides particular requirements for electric actuators.

1.1.4 This part 2 also applies to valves utilized as part of a system, or valves mechanically

integral with multifunctional controls.
1.1.5 This part 2 does not apply to valves energized by thermoelectric energy generated in a
thermocouple or thermopile inserted in a gas flame.
1.3 Is not applicable.
1.5 Normative references
This clause of part 1 is applicable except as follows:
Addition:
IEC 60335-1:1991, Safety of household and similar electrical appliances – Part 1: General
requirements
IEC 60529:1989, Degrees of protection provided by enclosures (IP Code)
IEC 60730-2-14:1995, Automatic electrical controls for household and similar use – Part 2:
Particular requirements for electric actuators
IEC 61058-1:1990, Switches for appliances – Part 1: General requirements
ISO 7-1:1994, Pipe threads where pressure-tight joints are made on the threads – Part 1:
Dimensions, tolerances and designation
ISO 228-1:1994, Pipe threads where pressure-tight joints are not made on the threads – Part 1:
Dimensions, tolerances and designation
ISO 274:1975, Copper tubes of circular section – Dimensions

ISO 301:1981, Zinc alloy ingots intended for casting
ISO 4400:1994, Fluid power systems and components – Three-pin electrical plug connectors
with earth contact – Characteristics and requirements
ISO 6952:1994, Fluid power systems and components – Two-pin electrical plug connectors
with earth contact – Characteristics and requirements
ISO 7005-1:1992, Metallic flanges – Part 1: Steel flanges
ISO 7005-2:1988, Metallic flanges – Part 2: Cast iron flanges

– 12 – 60730-2-17 © CEI:1997+A1:2000

2 Définitions
L'article de la partie 1 est applicable avec les exceptions suivantes:

2.2.17 Définitions additionnelles:

2.2.17.101
électrovanne de gaz
vanne automatique dans laquelle la transmission est effectuée par un moteur primaire

électrique et dont le fonctionnement contrôle le débit du gaz

Une vanne semi-automatique qui est ouverte manuellement et se ferme automatiquement ou vice versa est

également couverte par cette définition.
2.2.17.102
corps de vanne
partie qui est l'enveloppe principale soumise à la pression et comportant les passages du débit
de gaz et les raccordements
2.2.17.103
taille nominale
désignation numérique de taille commune à tous les composants d'un système conducteur de
fluide à l'exception des composants désignés par leur diamètre extérieur ou par les dimensions
du filetage
Cette taille peut être désignée par les lettres «DN» suivies d'un nombre entier convenable mais uniquement à titre
de référence.
Certaines anciennes normes internationales désignent la dimension nominale par le diamètre nominal mais, pour
les besoins de la présente partie 2, les deux expressions sont synonymes.
2.2.17.104
raccord
configuration du corps de la vanne prévue pour constituer un joint étanche en pression avec le
système conducteur de fluide
2.3 Définitions concernant les fonctions des dispositifs de commande
Définitions additionnelles:
2.3.101
vanne tout ou rien
vanne qui est ouverte ou fermée, sans aucune position intermédiaire
2.3.102
vanne normalement fermée
vanne qui est fermée quand elle n'est pas alimentée électriquement
2.3.103
vanne normalement ouverte
vanne qui est ouverte quand elle n'est pas alimentée électriquement
2.3.104
vanne à débit variable
vanne présentant un débit variable entre des limites de débits prédéterminés
2.3.104.1
vanne à points de fonctionnement multiples
vanne pouvant fonctionner à un débit assigné ou à différents débits prédéterminés inférieurs
au débit assigné
60730-2-17 © IEC:1997+A1:2000 – 13 –

2 Definitions
This clause of Part 1 is applicable except as follows:

2.2.17 Additional definitions:

2.2.17.101
electrically operated gas valve

an automatic valve in which the transmission is effected by an electrical prime mover and in

which the operation controls the flow of gas

A semi-automatic valve that is opened manually and closes automatically, or vice versa, is also covered by this
definition.
2.2.17.102
valve body
that part which is the main pressure boundary and which provides the gas flow passageways
with end connections
2.2.17.103
nominal size
a numerical designation of size which is common to all components in a fluid conducting
system other than components designated by outside diameter or by thread size
This size may be designated by DN followed by a convenient round number, for reference purposes only.
Some older international standards refer to nominal size as nominal diameter but, for the purpose of this part 2, the
two terms are synonymous.
2.2.17.104
end connection
valve body configuration provided to make a pressure-tight joint to the fluid-connecting system
2.3 Definitions relating to the function of controls
Additional definitions:
2.3.101
on-off valve
a valve which is open or closed, without any intermediate positions
2.3.102
normally closed valve
a valve which is closed when not electrically energized

2.3.103
normally open valve
a valve which is open when not electrically energized
2.3.104
modulating valve
a valve which has a variable flow rate between predetermined flow rates
2.3.104.1
multi-stage valve
a valve which permits operation at rated flow rate or at various predetermined flow rates below
rated flow rate
– 14 – 60730-2-17 © CEI:1997+A1:2000

2.3.105
pièce de fermeture
partie mobile de la vanne qui est placée dans le flux pour modifier le débit au travers de la vanne

2.3.106
position fermée
position de la pièce de fermeture telle qu'il n'est pas prévu de débit de gaz du côté sortie de
la vanne
2.3.107
position ouverte
position de la pièce de fermeture telle qu'un débit de gaz est prévu du côté sortie de la vanne

2.3.107.1
position complètement ouverte
position de la pièce de fermeture telle que la quantité de gaz traversant la vanne correspond
au débit nominal
2.3.108
débit
volume de gaz traversant la vanne par unité de temps
2.3.109
débit nominal (capacité)
débit pour la course nominale dans des conditions de référence normalisées de température et
de pression déclarées pour une différence de pression donnée
2.3.110
pression d'entrée
pression à l'entrée de la vanne
2.3.111
pression de sortie
pression à la sortie de la vanne
2.3.112
différence de pression
différence entre les pressions d'entrée et de sortie
2.3.113
pression maximale de fonctionnement
pression maximale d'entrée déclarée à laquelle la vanne peut fonctionner
2.3.114
vanne de coupure de sécurité
vanne normalement fermée qui empêche le passage du gaz quand elle n'est pas alimentée par
action d'un limiteur, d'un coupe-circuit ou d'un système de commande de brûleur
Une vanne de coupure de sécurité est considérée comme un dispositif de commande de protection et peut aussi
être utilisée comme dispositif de commande de fonctionnement.
Une vanne de coupure de sécurité peut être de type à ouverture automatique ou semi-automatique.
2.3.115
«en réserve»
2.3.116
«en réserve»
2.3.117
fuite de gaz, externe
fuite de gaz du corps de vanne vers l'atmosphère

60730-2-17 © IEC:1997+A1:2000 – 15 –

2.3.105
closure member
a movable part of the valve which is positioned in the flow path to modify the rate of flow
through the valve
2.3.106
closed position
position of the closure member when there is no intended gas flow from the outlet of the valve

2.3.107
open position
position of the closure member when there is intended gas flow from the outlet of the valve
2.3.107.1
fully open position
position of the closure member so that the amount of gas flowing through the valve is in
accordance with the rated flow rate
2.3.108
flow rate
volume of gas flowing through the valve in unit time
2.3.109
rated flow rate (capacity)
flow rate under standard reference conditions of temperature and pressure declared at a given
pressure difference
2.3.110
inlet pressure
pressure at the inlet of the valve
2.3.111
outlet pressure
pressure at the outlet of the valve
2.3.112
pressure difference
difference between the inlet and outlet pressures
2.3.113
maximum working pressure
declared maximum inlet pressure at which the valve may be operated

2.3.114
safety shut-off valve
normally closed valve that prevents delivery of gas when de-energized by the action of a
limiter, a cut-out or a burner control system
A safety shut-off valve is considered a protective control and may also be used as an operating control.
A safety shut-off valve may be either of the automatic or semi-automatic opening type.
2.3.115
"Void"
2.3.116
"Void"
2.3.117
gas leakage, external
leakage of gas from the valve body to atmosphere

– 16 – 60730-2-17 © CEI:1997+A1:2000

2.3.118
fuite de gaz, interne
fuite de gaz vers l'atmosphère du raccord de sortie, la pièce de fermeture étant en position

fermée
2.3.119
temps d'ouverture
intervalle de temps entre le signal électrique d'ouverture de la vanne et l'obtention du débit

maximum ou d'un autre débit défini

2.3.120
temps de fermeture
Intervalle de temps entre la perte du signal électrique et la réalisation de la position fermée
2.3.121
retard:
intervalle de temps entre le signal électrique d'ouverture de la vanne et le début du débit
de gaz
2.3.122
interrupteur à fermeture confirmée
interrupteur électrique qui contrôle la position fermée de la pièce de fermeture de la vanne et
qui est utilisé comme verrou
2.3.123
servomoteur primaire
moteur primaire qui contrôle le débit du fluide (par exemple de l'air comprimé) alimentant le
mécanisme actionnant la vanne
2.3.124
dispositif de commutation
interrupteur électrique actionné par l'actionneur de la vanne et utilisé comme une sortie
électrique
2.3.125
actionneur de vanne
mécanisme manoeuvré électriquement ou actionneur primaire, utilisé pour effectuer l'action
d'ouverture ou de fermeture d'une vanne
3 Prescriptions générales
L'article de la partie 1 est applicable.

4 Généralités sur les essais
L'article de la partie 1 est applicable avec les exceptions suivantes:
4.1.7 N'est pas applicable.
4.3 Instructions pour les essais
Remplacement:
4.3.2.6 Pour les dispositifs de commande marqués ou déclarés pour plus d'une tension
nominale, les essais de l'article 17 sont effectués à la tension assignée maximale.

60730-2-17 © IEC:1997+A1:2000 – 17 –

2.3.118
gas leakage, internal
leakage of gas to atmosphere from the outlet piping connection with the closure member in the
closed position
2.3.119
opening time
time interval between the electrical signal to open the valve and the achievement of maximum

or other defined flow rate
2.3.120
closing time
time interval between when the electrical signal is removed and the achievement of the closed
position
2.3.121
delay time
time interval between the electrical signal to open the valve and start of flow through the valve
2.3.122
proof of closure switch
an electrical switch which monitors the closed position of the valve closure member and which
is used as an interlock
2.3.123
pilot operated prime mover
prime mover which controls the fluid (for example, compressed air), supplied to the actuating
mechanism of the valve
2.3.124
switc
...

IEC 60730-2-17
Edition 1.2 2007-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Automatic electrical controls for household and similar use –
Part 2-17: Particular requirements for electrically operated gas valves, including
mechanical requirements
Dispositifs de commande électrique automatiques à usage domestique et
analogue –
Partie 2-17: Règles particulières pour les électrovannes de gaz, y compris
les prescriptions mécaniques
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60730-2-17
Edition 1.2 2007-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Automatic electrical controls for household and similar use –
Part 2-17: Particular requirements for electrically operated gas valves, including
mechanical requirements
Dispositifs de commande électrique automatiques à usage domestique et
analogue –
Partie 2-17: Règles particulières pour les électrovannes de gaz, y compris
les prescriptions mécaniques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CN
CODE PRIX
ICS 97.120 ISBN 2-8318-9327-5
– 2 – 60730-2-17 © IEC:1997+A1:2000
+A2:2007
CONTENTS
FOREWORD.3

1 Scope and normative references.5
2 Definitions .7
3 General requirements .9
4 General notes on tests.9
5 Rating.10
6 Classification .10
7 Information .12
8 Protection against electric shock.14
9 Provision for protective earthing.14
10 Terminals and terminations.14
11 Constructional requirements .14
12 Moisture and dust resistance .20
13 Electric strength and insulation resistance.20
14 Heating.21
15 Manufacturing deviation and drift .21
16 Environmental stress .22
17 Endurance .22
18 Mechanical strength.24
19 Threaded parts and connections .24
20 Creepage distances, clearances and distances through solid insulation.25
21 Resistance to heat, fire and tracking .25
22 Resistance to corrosion .25
23 Electromagnetic compatibility (EMC) requirements – emission .25
24 Components .25
25 Normal operation .25
26 Electromagnetic compatibility (EMC) requirements – immunity .25
27 Abnormal operation.25
28 Guidance on the use of electronic disconnection .27

Annexes.29
Annex H (normative) Requirements for electronic controls.29

Figures .28

Table 27.2.101 – Maximum winding temperature (for test of blocked output conditions
and valves declared under table 7.2, item 110) .26

60730-2-17 © IEC:1997+A1:2000 – 3 –
+A2:2007
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
AUTOMATIC ELECTRICAL CONTROLS
FOR HOUSEHOLD AND SIMILAR USE –

Part 2-17: Particular requirements for electrically operated gas valves,
including mechanical requirements

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60730-2-17 has been prepared by IEC technical committee 72:
Automatic controls for household use.
This consolidated version of IEC 60730-2-17 consists of the first edition (1997) [documents
72/348/FDIS and 72/371/RVD], its amendment 1 (2000) [documents 72/466/FDIS and
72/490/RVD] and its amendment 2 (2007) [documents 72/744/FDIS and 72/749/RVD].
The technical content is therefore identical to the base edition and its amendments and has
been prepared for user convenience.
It bears the edition number 1.2.
A vertical line in the margin shows where the base publication has been modified by
amendments 1 and 2.
– 4 – 60730-2-17 © IEC:1997+A1:2000
+A2:2007
This Part 2-17 is intended to be used in conjunction with IEC 60730-1. It was established on
the basis of the third edition of that standard (1999) and its amendment 1 (2003).
Consideration may be given to future editions of, or amendments to IEC 60730-1.
Where this part 2 states "addition", "modification" or "replacement", the relevant requirement,
test specification or explanatory matter in part 1 should be adapted accordingly.
Where no change is necessary, part 2 indicates that the relevant clause or subclause applies.
In the development of a fully international standard it has been necessary to take into
consideration the differing requirements resulting from practical experience in various parts of
the world and to recognize the variation in national electrical systems and wiring rules.
The “in some countries” notes regarding differing national practice are contained in the following subclauses:
– 6.11.101
– 6.103
– 6.104
– Table 7.2, requirements 117 and 118
– Table 7.2, notes 103 and 104
– 11.102
– 11.103
– 11.104.3
– 11.104.5
– 11.104.11
– 11.104.14
– 11.105.1
– 11.105.2
– 11.105.3
– 11.105.6
– 11.106.1
– 11.115
– 17.16.101
– 18.102
– 18.103
– 27.2.101.1
In this publication:
1) The following print types are used:
–  Requirements proper: in roman type;
– Test specifications: in italic type;
– Explanatory matter: in smaller roman type.
2) Subclauses, notes or requirements which are additional to those in part 1 are numbered
starting from 101.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date,
the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60730-2-17 © IEC:1997+A1:2000 – 5 –
+A2:2007
AUTOMATIC ELECTRICAL CONTROLS
FOR HOUSEHOLD AND SIMILAR USE –

Part 2-17: Particular requirements for electrically operated gas valves,
including mechanical requirements

1 Scope and normative references
This clause of part 1 is replaced as follows:
Replacement:
1.1 This part 2 of IEC 60730 applies to electrically operated gas valves for use in, on or in
association with, equipment for household and similar use that use electricity, in combination
with fuel in the gaseous state such as manufactured gas, natural gas or liquefied petroleum
gas intended to be used for gas burning equipment.
Additional considerations may be necessary for gas with corrosive properties.
This part 2 also applies to electrically operated gas valves using NTC or PTC thermistors,
requirements for which are contained in annex J.
1.1.1 This standard applies to the inherent safety, to the operating values, operating times,
and operating sequences where such are associated with equipment safety, and to the testing
of electrically operated gas valves used in, or in association with, household or similar
equipment, but also extended to industrial purposes when no dedicated product standard
exists, such as that for central heating, air conditioning, process heating, etc.
This part 2 is also applicable to controls for appliances within the scope of IEC 60335-1.
Throughout this part 2 the word "equipment" means "appliance and equipment".
This part 2 does not apply to electrically operated gas valves designed exclusively for industrial
applications.
Electrically operated gas valves for equipment not intended for normal household use, but
which nevertheless may be used by the public, such as equipment intended to be used by
laymen in shops, in light industry and on farms, are within the scope of this part 2.
This part 2 identifies a number of mechanical features as "under consideration". Until these
mechanical requirements are incorporated in this part 2, each country using this part 2 will
have to quantify these requirements.
Compliance of an electrically operated gas valve with this part 2 does not imply that the valve is acceptable without
further tests for these mechanical features.
1.1.2 This part 2 applies to manual controls when such are electrically and/or mechanically
integral with electrically operated gas valves.
Requirements for manual switches not forming part of an electrically operated gas valve are contained in
IEC 61058-1.
– 6 – 60730-2-17 © IEC:1997+A1:2000
+A2:2007
This part 2 does not apply to electrically operated gas valves of nominal connection size above
DN 150.
This part 2 applies to electrically operated gas valves for maximum working pressures up
to 400 kPa (4 bar).
Hereinafter, the term "valve" is used to denote an electrically operated gas valve (including
prime mover and valve body).
1.1.3  An electric actuator that is submitted to the testing laboratory in combination with a gas
valve will be evaluated under this part 2. A separate electric actuator is evaluated under
IEC 60730-2-14, which provides particular requirements for electric actuators.
1.1.4 This part 2 also applies to valves utilized as part of a system, or valves mechanically
integral with multifunctional controls.
1.1.5 This part 2 does not apply to valves energized by thermoelectric energy generated in a
thermocouple or thermopile inserted in a gas flame.
1.3 Is not applicable.
1.5 Normative references
This clause of part 1 is applicable except as follows:
Addition:
IEC 60730-2-14:2001, Automatic electrical controls for household and similar use – Part 2:
Particular requirements for electric actuators

ISO 7-1:1994, Pipe threads where pressure-tight joints are made on the threads – Part 1:
Dimensions, tolerances and designation
ISO 228-1:2000, Pipe threads where pressure-tight joints are not made on the threads – Part 1:
Dimensions, tolerances and designation
ISO 274:1975, Copper tubes of circular section – Dimensions
ISO 301:1981, Zinc alloy ingots intended for casting
ISO 4400:1994, Fluid power systems and components – Three-pin electrical plug connectors
with earth contact – Characteristics and requirements
ISO 6952:1994, Fluid power systems and components – Two-pin electrical plug connectors
with earth contact – Characteristics and requirements
ISO 7005-1:1992, Metallic flanges – Part 1: Steel flanges
ISO 7005-2:1988, Metallic flanges – Part 2: Cast iron flanges

60730-2-17 © IEC:1997+A1:2000 – 7 –
+A2:2007
2 Definitions
This clause of Part 1 is applicable except as follows:
2.2.17 Additional definitions:
2.2.17.101
electrically operated gas valve
an automatic valve in which the transmission is effected by an electrical prime mover and in
which the operation controls the flow of gas
A semi-automatic valve that is opened manually and closes automatically, or vice versa, is also covered by this
definition.
2.2.17.102
valve body
that part which is the main pressure boundary and which provides the gas flow passageways
with end connections
2.2.17.103
nominal size
a numerical designation of size which is common to all components in a fluid conducting
system other than components designated by outside diameter or by thread size
This size may be designated by DN followed by a convenient round number, for reference purposes only.
Some older international standards refer to nominal size as nominal diameter but, for the purpose of this part 2, the
two terms are synonymous.
2.2.17.104
end connection
valve body configuration provided to make a pressure-tight joint to the fluid-connecting system
2.3 Definitions relating to the function of controls
Additional definitions:
2.3.101
on-off valve
a valve which is open or closed, without any intermediate positions
2.3.102
normally closed valve
a valve which is closed when not electrically energized
2.3.103
normally open valve
a valve which is open when not electrically energized
2.3.103.1
semi-automatic normally open valve with latch
a valve which is closed when energized. When power is removed the valve will not open
automatically and must be manually reset
2.3.103.2
normally open valve, automatic
a valve which is open when not electrically energized and when power is removed the valve will
open automatically
– 8 – 60730-2-17 © IEC:1997+A1:2000
+A2:2007
2.3.104
modulating valve
a valve which has a variable flow rate between predetermined flow rates
2.3.104.1
multi-stage valve
a valve which permits operation at rated flow rate or at various predetermined flow rates below
rated flow rate
2.3.105
closure member
a movable part of the valve which is positioned in the flow path to modify the rate of flow
through the valve
2.3.106
closed position
position of the closure member when there is no intended gas flow from the outlet of the valve
2.3.107
open position
position of the closure member when there is intended gas flow from the outlet of the valve
2.3.107.1
fully open position
position of the closure member so that the amount of gas flowing through the valve is in
accordance with the rated flow rate
2.3.108
flow rate
volume of gas flowing through the valve in unit time
2.3.109
rated flow rate (capacity)
flow rate under standard reference conditions of temperature and pressure declared at a given
pressure difference
2.3.110
inlet pressure
pressure at the inlet of the valve
2.3.111
outlet pressure
pressure at the outlet of the valve
2.3.112
pressure difference
difference between the inlet and outlet pressures
2.3.113
maximum working pressure
declared maximum inlet pressure at which the valve may be operated
2.3.114
safety shut-off valve
normally closed valve that prevents delivery of gas when de-energized by the action of a
limiter, a cut-out or a burner control system
A safety shut-off valve is considered a protective control and may also be used as an operating control.
A safety shut-off valve may be either of the automatic or semi-automatic opening type.

60730-2-17 © IEC:1997+A1:2000 – 9 –
+A2:2007
2.3.115
"Void"
2.3.116
"Void"
2.3.117
gas leakage, external
leakage of gas from the valve body to atmosphere
2.3.118
gas leakage, internal
leakage of gas to atmosphere from the outlet piping connection with the closure member in the
closed position
2.3.119
opening time
time interval between the electrical signal to open the valve and the achievement of maximum
or other defined flow rate
2.3.120
closing time
time interval between when the electrical signal is removed and the achievement of the closed
position
2.3.121
delay time
time interval between the electrical signal to open the valve and start of flow through the valve
2.3.122
proof of closure switch
an electrical switch which monitors the closed position of the valve closure member and which
is used as an interlock
2.3.123
pilot operated prime mover
prime mover which controls the fluid (for example, compressed air), supplied to the actuating
mechanism of the valve
2.3.124
switching devices
an electrical switch actuated by the valve actuator and used as an electrical output
2.3.125
valve actuator
an electrically operated mechanism or prime mover used to effect the opening or closing action
of a valve
3 General requirements
This clause of part 1 is applicable.
4 General notes on tests
This clause of part 1 is applicable except as follows:
4.1.7 Is not applicable.
– 10 – 60730-2-17 © IEC:1997+A1:2000
+A2:2007
4.3 Instructions for test
Replacement:
4.3.2.6 For controls marked or declared for more than one rated voltage, the tests of
clause 17 are made at the maximum rated voltage.
Additional subclause:
4.3.101 Where a manufacturer builds the same valve body with a number of different end
connection sizes declared in 6.103, the tests of 18.101 shall be conducted on the largest end
connection.
5 Rating
This clause of part 1 is applicable.
6 Classification
This clause of part 1 is applicable except as follows:
6.3 According to their purpose:
6.3.12 Additional subclauses:
6.3.12.101 – on-off valve;
6.3.12.102 – normally closed valve;
6.3.12.103 – normally open valve;
6.3.12.103.1 – normally open valve, automatic;
6.3.12.103.2 – normally open valve, semi-automatic with latch;
6.3.12.104 – modulating valve;
6.3.12.105 – multi-stage valve;
6.3.12.106 – safety shut-off valve, automatic;
6.3.12.107 – safety shut-off valve, semi-automatic.
6.7 According to ambient temperature limits of the switch head
Modification:
To read "valve" for "control" and to read "prime mover" for "switch head."
6.11 According to number of automatic cycles (A) of each automatic action
Additional table:
6.11.101 In the countries members of CEN/CENELEC, the required automatic cycles are as
follows:
60730-2-17 © IEC:1997+A1:2000 – 11 –
+A2:2007
Table 6.11
Automatic cycles
Number of automatic cycles at:
Nominal size T (at least 60 ± 5) °C (20 ± 5) °C
max
DN ≤ 25
Opening time ≤ 1 s 100 000 400 000
Permissible working pressure ≤ 150 mbar
DN ≤ 25
Opening time ≤ 1 s 50 000 150 000
Permissible working pressure > 150 mbar
DN ≤ 25 50 000 150 000
Opening time > 1 s
≤ DN 80 25 000 75 000
≤ DN 150 25 000 25 000
6.12 Is not applicable.
6.15 According to construction:
Additional subclause:
6.15.101 According to type of gas:
Natural gas, propane gas, butane gas, manufactured gas for example.
Additional subclauses:
6.101 According to type of end connections:
6.101.1 Valves provided with internally threaded end connections with either:
– ISO 7-1 or NPT thread when pressure tight joints are made on the thread, or
– ISO 228-1 thread when pressure tight joints are not made on the thread, but via an
additional sealing washer.
6.101.2 Valves provided with externally threaded end connections for:
a) compression fittings; or
b) washered union connection; or
c) cone seated union connection; or
d) threaded pipe connections either according to ISO 7-1, ISO 228-1 or NPT thread.
6.101.3 Valves provided with flanged end connections suitable for connection to flanges with
or without adaptors.
6.102 According to features of electrically operated gas valves
6.102.1 According to size and rated flow rate:
Size to be specified in dimensions of inlet and outlet connections and in rated flow rate.

– 12 – 60730-2-17 © IEC:1997+A1:2000
+A2:2007
6.102.2 According to function:
Description of function regarding number of gas connections and valve position when
de-energized.
6.102.3 According to the operation of the prime mover:
Examples are electromagnetic, electric motors, electrically heated wax, bi-metal, electro-
hydraulic, pilot operated prime mover.
6.102.4 According to sequence of operation:
Multi-stage, etc.
6.103 According to nominal pipe size of end connections:
Designation of thread Nominal size
1/8 DN6
1/4 DN8
3/8 DN10
1/2 DN15
3/4 DN20
1 DN25
1 1/4 DN32
1 1/2 DN40
2 DN50
2 1/2 DN65
3 DN80
4 DN100
5 DN125
6 DN150
Nominal size designation corresponds to the nominal size flanges according to ISO 7005-1 or ISO 7005-2.
6.104 According to the sealing force:
In the countries members of CEN, valves can be further classified as Class A, B, C, D, E and J valves. See EN 161.
See also 11.106.1.
7 Information
This clause of part 1 is applicable except as follows:
Modification:
60730-2-17 © IEC:1997+A1:2000 – 13 –
+A2:2007
Table 7.2
Inormation Clause or subclause Method
7 The type of load controlled by each circuit (for valves 6.2, 14, 17, D
7)
with switching devices)
8)
15 Degree of protection provided by enclosure 6.5.1, 6.5.2, 11.5, 11.102 C
22 Ambient temperature limits of the valve, if T lower 6.7, 14.5, 14.7, 17.3 D
min
103)
than 0 °C, or T other than 55 °C
max
23 Not applicable
26 Number of cycles of actuation (M) for each manual 6.10 X
101)
action
28 Not applicable
29 Type of disconnection or interruption provided by each 6.9 X
circuit (for valves with switching devices)
5)
31 Mounting positions allowed 11.6 D
36 Not applicable
37 Not applicable
38 Not applicable
39 Type 1 or type 2 action (for valves with switching 6.4 D
devices)
40 Additional features of type 1 or type 2 actions 6.4.3 D
(for valves with switching devices)
41 Manufacturing deviation and condition of test 11.4.3, 15, 17.14 X
appropriate to deviation (for valves with switching
devices)
42 Drift (for valves with switching devices) 11.4.3, 15, 16.2.4, 17.14 X
43 Not applicable
44 Not applicable
47 Not applicable
48 Operating values (for valves with switching devices) 15 D
101 Input rating in watts or in VA or current in amperes C
102 Maximum working pressure in kPa (or in mbar/bar) 2.3.113 C
104)
103 Flow direction (on valve body) 2.2.17.102 C
102)
104 Rated flow rate and test method 2.3.109, 6.102.1, 11.111 D
105 Type of valve 2.3.101, 2.3.104, 2.3.110, D
2.3.111, 2.3.112, 2.3.114,
6.3.12, 11.106.1
106 Type of gas 1.1, 6.15.101 D
107 Valve features 6.102 D
108 Parts intended for field replacement or service 11.3.4.103, 11.104.5 D
102)
109 Valve opening time, characteristics and test method 11.109 X
102)
110 Valve closing time, characteristics and test method 11.110 X
111 Type of end connections 6.101, 6.103, 11.105, 18.101 D
102)
112 Maximum external leakage and test method 2.3.117, 11.108.2, 15, 17 X
102)
113 Maximum internal leakage and test method 2.3.118, 11.108.1, 15, 17 X
102)
114 Value and test method for torsion  18.101.1 X
102)
115 Value and test method for bending moment 18.101.2 X
116 Test data for compliance of non-metallic materials 11.107 X
117 In the USA and Canada, means of actuation of safety 2.3.114, 11.106.1 C
shutoff valve lever, handle, etc.
118   In the countries members of CEN, class of valve A, B, 6.104, 11.106.1 C
C, D, E or J
– 14 – 60730-2-17 © IEC:1997+A1:2000
+A2:2007
Notes to table 7.2
Note 3) Is not applicable.
Note 4) Is not applicable.
Additional notes to table 7.2:
Note 101) The number of manual actuations is a minimum of 6 000.
Note 102) Test method to include conditions for test if different from 4.1 or 4.2.
Note 103) In the countries members of CENELEC, the value for T is 60 °C.
max
Note 104) In the countries members of CENELEC, direction of gas flow by a cast or embossed arrow.
7.4.5 Is not applicable.
8 Protection against electric shock
This clause of part 1 is applicable.
9 Provision for protective earthing
This clause of part 1 is applicable.
10 Terminals and terminations
This clause of part 1 is applicable except as follows:
Additional subclause:
10.101 Where electrical connectors according to ISO 4400 or ISO 6952 are used, the pins
shall be connected as follows:
Pin 1 – Valve neutral connection
Pin 2 – Valve first stage line connection
Pin 3 – Valve second stage line connection
Pin 4 – (or the one marked with the earth symbol) – Earth connection
Except as follows:
a) Pin 3 shall not be used for single stage valves;
b) Pin 4 or the earth symbol shall not be used for class II valves;
c) Pin 4 or the earth symbol shall not be used for those class I valves where the earth
connection is external to the connector;
d) Pins 2 and 3 can be used for line connection of two single stage valves connected in series
or parallel;
e) Combination controls with additional terminals or connections shall be marked with other
than 1, 2, 3, 4 or the earth symbol.
11 Constructional requirements
This clause of part 1 is applicable except as follows:

60730-2-17 © IEC:1997+A1:2000 – 15 –
+A2:2007
11.3.4 Setting by the manufacturer
Replacement:
Adjustment means shall be secured by means providing protection against access by
uninstructed persons or shall be declared as requiring such protection in the application.
For example, these means may:
a) be sealed with a material suitable for the temperature range of the valve such that tampering is apparent; or
b) be accessible only with the use of special purpose tools; or
c) be accompanied by instructions requiring the equipment manufacturer to mount the valve such that the
adjustment means is inaccessible.
Compliance is checked by inspection. Where sealing is used, inspection is done before and
after the tests of clause 17.
Additional subclauses:
11.3.4.101  Suitable means for maintaining all adjustments shall be provided.
Lock nuts or adjusting nuts held by springs or compression are acceptable unless their adjustment can be
accidentally disturbed.
11.3.4.102  Necessary field adjustments shall be capped or otherwise protected in such a
manner as to resist tampering or accidental change.
11.3.4.103  If a valve can be partially or completely disassembled without the use of special
tools, construction shall be such that either:
a) parts of the valve cannot be readily reassembled improperly in a manner which could result
in an unsafe condition, or
b) threaded fasteners are covered with a sealing means to discourage disassembly. The
sealing means shall be suitable for exposure to the minimum and maximum ambient
temperatures declared for the valve.
This subclause does not apply to parts of a valve intended for field replacement or servicing (as declared in table
7.2, requirement 108).
11.3.9 Pull-cord actuated control
Replacement:
11.3.9.101  Operation of a manually actuated mechanism of a valve shall not subject parts to
distortion or damage to the extent that their intended function is impaired.
Compliance is checked by operation and inspection.
11.3.9.102  Operating parts shall be separated from conductors to be connected to the valve
by barriers or by their physical location so that such operating parts are not obstructed by these
conductors.
Compliance is checked by operation and inspection.
Additional subclauses:
11.101
Void.
– 16 – 60730-2-17 © IEC:1997+A1:2000
+A2:2007
11.102 For valves intended for exposure to the outdoor environment, the protection of the
electrical parts by the enclosure shall conform to at least IP54 unless that protection is afforded
by the equipment.
In the countries members of CENELEC, the ambient temperature range of these valves shall be at least –20 °C to
+60 °C.
Compliance is checked by inspection and the tests of IEC 60529, after pre-conditioning of a
sample as indicated in clause 12.
11.103 Normally closed (normally open) valves shall be constructed to assume the de-
energized position at reduced supply voltage.
Compliance is checked by connecting the normally closed (normally open) valve to the supply
at rated voltage, at room temperature and when mounted in the most unfavourable position
declared in Table 7.2, requirement 31, and with or without air at the maximum working pressure
connected to the valve inlet, whichever is more unfavourable. The voltage is then slowly
reduced to 15 % of the minimum rated voltage. Before this value is reached, the valve shall
have closed (opened) automatically.
The test is repeated three times.
In the USA and Canada, for d.c. valves, the voltage is slowly reduced to 2 % of the minimum rated voltage.
The value of 15% is based on the usual normally closed valves where remanence, friction and possible rest
currents due to control and signalling circuits can influence the closing force.
11.104 Miscellaneous construction requirements
11.104.1 For normally closed, normally open and safety shutoff valves of the automatic type,
there shall be no exposed shafts or operating levers where interference could affect the ability
of the valve to close.
11.104.2 Holes for screws, pins, etc., which are used for the assembly of parts or used to
install the valve shall not penetrate gasways.
11.104.3 Parts of the valve housing that directly or indirectly separate a gas-carrying
compartment from the atmosphere shall be manufactured only of metallic materials with a
melting point of not less than 450 °C.
Soldering or other processes where the jointing material has a melting point below 450 °C after
application shall not be used for joining gas-carrying parts.
A gas-carrying compartment may be made of non-metallic material provided that upon removal
or fracture of this non-metallic part, not more than 30 dm /h of air can escape to atmosphere at
maximum working pressure.
This subclause is not intended to cover o-rings, gaskets, seals, or diaphragms.
In the countries members of CENELEC, ZnAl according to ISO 301 is allowed in certain valve configurations.
11.104.4 Holes necessary in manufacture which connect gasways to the atmosphere but
which do not affect the function of the valve shall be permanently sealed by metallic means.
Suitable jointing compounds may additionally be used.

60730-2-17 © IEC:1997+A1:2000 – 17 –
+A2:2007
11.104.5 The valve shall be constructed such that leak-tightness in accordance with 11.108
will be achieved by mechanical means (for example, metal to metal joints, o-rings). If the
manufacturer specifies servicing or maintenance which requires access or disassembly,
leak-tightness shall also be maintained after the specified disassembly and reassembly.
In the countries members of CENELEC, the leakage test shall be carried out after five times disassembly and
reassembly.
11.104.6 Self-tapping screws that cut a thread and produce swarf shall not be used for
connecting gas-carrying parts or parts that must be removed for specified servicing.
11.104.7 Springs shall be protected against abrasion and guided or arranged to minimize
binding, buckling, or other interference with their free movement.
Springs providing the closing forces or opening forces in the case of normally open valves shall
be designed for oscillating loads and for fatigue resistance. These springs shall be either made
from corrosion resistant material or suitably protected against corrosion.
11.104.8 Any part in contact with gas shall be manufactured from corrosion resistant
materials or suitably protected against corrosion and shall be resistant to the effects of gas.
11.104.9 For pneumatically or hydraulically actuated valves, where the blockage of an orifice
can adversely affect the closing or opening in the case of normally open valves, protection to
avoid any such blockage shall be provided.
11.104.10 Diaphragm type valves in which a flexible non-metallic diaphragm constitutes the
only gas seal and which utilize control gas on one side of the diaphragm shall have that side of
the diaphragm enclosed in gas-tight housing with means provided for bleeding the control gas.
11.104.11 Valves, in which a flexible non-metallic diaphragm constitutes the only gas seal,
shall have the atmospheric side of the diaphragm enclosed to limit the leakage to atmosphere
in the event of diaphragm rupture to not more than 70 dm /h at the maximum working pressure
of the valve when tested with air, or shall be provided with means for venting the gas in the
event of diaphragm rupture.
3 3
In the USA and Canada, for liquid petroleum gases the value is 30 dm /h and 70 dm /h for natural gas.
11.104.12 Parts of valves coming in contact with a diaphragm shall not have sharp edges
which might chafe or abrade it.
11.104.13 A valve shall be designed to accept a spanner for assembly and disassembly to
piping or tubing.
11.104.14 When a pressure test gauge connection is provided as part of the valve, this
connection shall be:
a) a tapping sealed by a minimum DN6 or equivalent plug or cap with taper pipe threads; or
b) a fitting capable of accommodating a hose. The hose connection fitting shall have a
minimum length of 10 mm and a 9 mm maximum/8,5 mm minimum outside diameter. The
area of the hole shall not be greater than that of a 1 mm diameter hole.
In the USA and Canada, this construction in item b) cannot utilize a removable sealing means.

– 18 – 60730-2-17 © IEC:1997+A1:2000
+A2:2007
11.104.15 Threaded fasteners which attach operating parts to movable members shall be
prevented from loosening.
Examples of acceptable means are lock nuts, adjusting nuts held by springs, upset threads.
11.104.16 Compliance of 11.104.1 to 11.104.15, inclusive is checked by inspection – or test.
11.105 Piping and tubing connections
11.105.1 When threaded for connection to pipe, the inlet and outlet shall have pipe threads
conforming to ISO 7-1 or to ISO 228-1.
When for connection to tubing, the connections together with the fittings used shall be in
accordance with the applicable dimensioning standard for copper tubing of circular section.
In the USA and Canada, pipe threads shall comply with ANSI/ASME Bl.20.1 and tubing connections with ANSI/SAE
J512 or J514 specifications.
Gas valves with connections sizes greater than DN 80 or 3 inches shall utilize flanged
connections.
11.105.2 Valves over DN 50 connection sizes which use flanges shall be suitable for
connection to flanges which comply with ISO 7005-1 or ISO 7005-2, PN 6 or PN 16. For
valves with connection sizes up to and including DN 50, flanges shall comply with ISO 7005-1
or ISO 7005-2 or suitable adapters shall be supplied to ensure connection to standard flanges
or threads.
Flanges for connection to threaded pipe shall be threaded to comply with 11.105.1.
In the USA and Canada, flanges shall comply with the dimensional requirements of ANSI/ASME B16.1 (cast iron) or
B16.5 (steel).
11.105.3 Compression fittings shall be suitable for use with pipes of outside diameters as per
the applicable dimensioning standard for copper tubing of circular section. It shall not be
necessary for the installer to form the tubes before connection is made.
In the USA and Canada, tubing connections shall comply with ANSI/SAE specifications.
11.105.4 For connections using union joints, these union joints shall be supplied with
the valve or details provided if the threaded connection threads do not comply with ISO 7-1 or
ISO 228-1.
11.10
...
