EN 60966-3:2003

SLOVENSKI SIST EN 60966-3:2004

STANDARD
april 2004
Radio frequency and coaxial cable assemblies - Part 3: Sectional specification for
semi-flexible coaxial cable assemblies (IEC 60966-3:2003)
ICS 33.120.10 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD EN 60966-3
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2003

ICS 33.120.10 Supersedes EN 60966-3:1994

English version
Radio frequency and coaxial cable assemblies
Part 3: Sectional specification for semi-flexible coaxial cable assemblies
(IEC 60966-3:2003)
Ensembles de cordons coaxiaux et de Konfektionierte Koaxial- und
cordons pour fréquences radioélectriques Hochfrequenzkabel
Partie 3: Spécification intermédiaire pour Teil 3: Rahmenspezifikation für
cordons coaxiaux semi-flexibles halbflexible konfektionierte Koaxialkabel
(CEI 60966-3:2003) (IEC 60966-3:2003)

This European Standard was approved by CENELEC on 2003-10-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2003 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 60966-3:2003 E

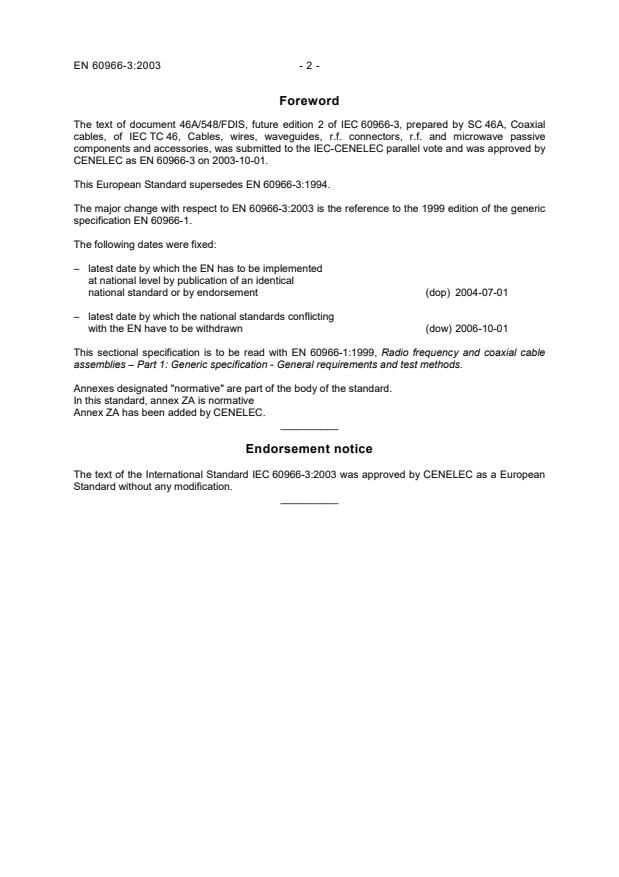

Foreword
The text of document 46A/548/FDIS, future edition 2 of IEC 60966-3, prepared by SC 46A, Coaxial
cables, of IEC TC 46, Cables, wires, waveguides, r.f. connectors, r.f. and microwave passive
components and accessories, was submitted to the IEC-CENELEC parallel vote and was approved by
CENELEC as EN 60966-3 on 2003-10-01.

This European Standard supersedes EN 60966-3:1994.

The major change with respect to EN 60966-3:2003 is the reference to the 1999 edition of the generic
specification EN 60966-1.
The following dates were fixed:

– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2004-07-01

– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2006-10-01

This sectional specification is to be read with EN 60966-1:1999, Radio frequency and coaxial cable
assemblies – Part 1: Generic specification - General requirements and test methods.

Annexes designated "normative" are part of the body of the standard.
In this standard, annex ZA is normative
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60966-3:2003 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 60966-3:2003
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies (including
amendments).
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
1) 2)
IEC 60068-2-6 - Environmental testing EN 60068-2-6 1995
Part 2: Tests - Test Fc: Vibration
(sinusoidal)
IEC 60096-2 1988 Radio-frequency cables - - -
Part 2: Relevant cable specifications

IEC 60169 Series Radio-frequency connectors HD 134 Series
EN 60169 Series
IEC 60410 1973 Sampling plans and procedures for - -
inspection by attributes
IEC 60966-1 1999 Radio frequency and coaxial cable EN 60966-1 1999
assemblies
Part 1: Generic specification - General
requirements and test methods
IEC 61169 Series Radio-frequency connectors EN 61169 Series

IEC 61196 Series Radio-frequency cables EN 61196 Series

1) 2)
ISO 9000 - Quality management systems EN ISO 9000 2000
Fundamentals and vocabulary
1)
Undated reference.
2)
Valid edition at date of issue.

NORME CEI
INTERNATIONALE IEC
60966-3
INTERNATIONAL
Deuxième édition
STANDARD
Second edition
2003-08
Ensembles de cordons coaxiaux et de
cordons pour fréquences radioélectriques –
Partie 3:
Spécification intermédiaire
pour cordons coaxiaux semi-flexibles
Radio frequency and coaxial cable assemblies –
Part 3:
Sectional specification for
semi-flexible coaxial cable assemblies
© IEC 2003 Droits de reproduction réservés ⎯ Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch  Web: www.iec.ch
CODE PRIX
R
Commission Electrotechnique Internationale PRICE CODE
International Electrotechnical Commission
ɆɟɠɞɭɧɚɪɨɞɧɚɹɗɥɟɤɬɪɨɬɟɯɧɢɱɟɫɤɚɹɄɨɦɢɫɫɢɹ
Pour prix, voir catalogue en vigueur
For price, see current catalogue

60966-3 © IEC:2003 – 3 –
CONTENTS
FOREWORD . 5
1 Scope . 9
2 Normative references. 9
3 Definitions.11
4 Design and manufacturing requirements.11
5 Workmanship, marking and packaging .13
6 Quality assessment.15
7 Test methods − General.15
8 Electrical tests .15
9 Mechanical robustness tests .17
10 Environmental tests.17
11 Specialized test methods.19
12 Test schedules.19
Bibliography .37
Figure 1 –Length definition of cable assemblies .13
Figure 2 – Example of a cable assembly.13
Figure 3 – Preferred arrangement for the vibration test .19
Table 1 – Grouping of tests for specification purposes .21
Table 2 – Test schedule .23

60966-3 © IEC:2003 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO FREQUENCY AND COAXIAL
CABLE ASSEMBLIES –
Part 3: Sectional specification for
semi-flexible coaxial cable assemblies
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to
technical committees; any IEC National Committee interested in the subject dealt with may participate in this
preparatory work. International, governmental and non-governmental organizations liaising with the IEC also
participate in this preparation. IEC collaborates closely with the International Organization for Standardization
(ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60966-3 has been prepared by subcommittee 46A: Coaxial cables,
of IEC technical committee 46: Cables, wires, waveguides, r.f. connectors, r.f. and microwave
passive components and accessories .
This second edition cancels and replaces the first edition published in 1992 and constitutes a
technical revision.
The major changes with respect to the first edition is the reference to the second edition of the
generic specification.
60966-3 © IEC:2003 – 7 –
The text of this standard is based on the following documents:
FDIS Report on voting
46A/548/FDIS 46A/564/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This sectional specification is to be read with IEC 60966-1:1999, Radio frequency and coaxial
cable assemblies – Part 1: Generic specification – General requirements and test methods
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
2008. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
60966-3 © IEC:2003 – 9 –
RADIO FREQUENCY AND COAXIAL
CABLE ASSEMBLIES –
Part 3: Sectional specification for
semi-flexible coaxial cable assemblies
1 Scope
This part of IEC 60966 is a sectional specification that relates to semi-flexible coaxial cable
assemblies operating in the transverse electromagnetic mode (TEM). It establishes uniform
requirements for testing the electrical, mechanical and climatic properties of semi-flexible cable
assemblies composed of semi-flexible coaxial cables and coaxial connectors.
NOTE 1  The numbering of the Clauses is the same as in the generic specification.
NOTE 2 For the purpose of this sectional specification, a cable assembly is always regarded as an integral unit.
All specifications apply to the finished assembly and not to individual and non-assembled parts thereof.
NOTE 3 This sectional specification should b
...
