EN IEC 60728-113:2023
(Main)Cable networks for television signals, sound signals and interactive services - Part 113: Optical systems for broadcast signal transmissions loaded with digital channels only
Cable networks for television signals, sound signals and interactive services - Part 113: Optical systems for broadcast signal transmissions loaded with digital channels only
IEC 60728-113:2023 is applicable to optical transmission systems for broadcast signal transmission that consist of headend equipment, optical transmission lines, in-house wirings and system outlets. These systems are primarily intended for television and sound signals using digital transmission technology. This document specifies the basic system parameters and methods of measurement for optical distribution systems between headend equipment and system outlets in order to assess the system performance and its performance limits. In this document, the upper signal frequency is limited to about 3 300 MHz. The purpose of this part of IEC 60728 is to describe the system specifications of FTTH (fibre to the home) networks for digitally modulated broadcast signal transmission. This document is also applicable to broadcast signal transmission using a telecommunication network if it satisfies the performance of the optical portion of the system defined in this document. This document describes RF transmission for fully digitalized broadcast and narrowcast (limited area distribution of broadcast) signals over FTTH, and introduces the xPON system as a physical layer media. The detailed description of the physical layer is out of scope of this document. The scope is limited to downstream RF video signal transmission over FTTH; IP transport technologies, such as IP Multicast and associate protocols, which require a two-way optical transmission system, are out of scope of this document. Some interference effects occurring between the telecommunication system and the broadcast system are addressed in Clause 7. IEC 60728-113:2023 cancels and replaces the first edition published in 2018 and IEC 60728-13-1:2017. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) IEC 60728-13-1, which deals with the bandwidth expansion for broadcast signal over FTTH systems, has been merged with this document; b) a table containing the digital signal level at the system outlet has been added.
Kabelnetze für Fernsehsignale, Tonsignale und interaktive Dienste - Teil 113: Optische Systeme zur Rundfunksignalübertragung bei Vollbelegung mit digitalen Kanälen
Réseaux de distribution par câbles pour signaux de télévision, signaux de radiodiffusion sonore et services interactifs - Partie 113: Systèmes optiques pour la transmission de signaux de radiodiffusion soumis à une charge de porteuses exclusivement numériques
L'IEC 60728-113:2023 s'applique aux systèmes de transmission optique pour la transmission de signaux de radiodiffusion, qui se composent de l'équipement de la tête de réseau, des lignes de transmission optique, des câblages internes et des prises d'abonnés. Ces systèmes sont essentiellement destinés aux signaux de télévision et aux signaux de radiodiffusion sonore qui utilisent une technologie de transmission numérique. Le présent document spécifie les paramètres de base du système et les méthodes de mesurage des systèmes de distribution optique entre l'équipement de la tête de réseau et les prises d'abonnés, afin d'évaluer les performances du système et ses limites de performances. Dans le présent document, la fréquence supérieure du signal est limitée à 3 300 MHz environ. La présente partie de l'IEC 60728 a pour objet de décrire les spécifications des systèmes des réseaux de desserte par fibre de l'abonné (DFA) pour la transmission de signaux de radiodiffusion à modulation numérique. Le présent document s'applique également à la transmission des signaux de radiodiffusion qui utilisent un réseau de télécommunication, si celui-ci respecte les performances de la portion optique du système défini dans le présent document. Le présent document décrit la transmission des signaux RF en tant que signaux de radiodiffusion générale et de radiodiffusion ciblée (distribution des signaux de radiodiffusion dans une zone limitée) entièrement numérisés sur les réseaux DFA et introduit le système xPON comme support de la couche physique. La description précise de la couche physique ne relève pas du domaine d'application du présent document. Le domaine d'application se limite à la transmission des signaux vidéo RF en aval sur les réseaux DFA; les technologies de transport par protocole Internet (IP), comme la multidiffusion IP et les protocoles associés, qui exigent un système de transmission optique bidirectionnelle, ne relèvent pas du domaine d'application du présent document. Certains des effets de brouillage qui se produisent entre le système de télécommunication et le système de radiodiffusion sont traités à l'Article 7. L'IEC 60728-113:2023 annule et remplace la première édition parue en 2018 et l'IEC 60728-13-1:2017. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) l'IEC 60728-13-1, qui traite de l'extension de la largeur de bande pour les signaux de diffusion sur les systèmes DFA, a été fusionnée avec le présent document; b) un tableau qui indique le niveau du signal numérique au niveau de la prise d'abonné a été ajouté.
Kabelska omrežja za televizijske in zvokovne signale ter interaktivne storitve - 113. del: Optični sistemi za razpršeno oddajanje signalov z obremenitvami izključno digitaliziranih kanalov (IEC 60728-113:2023)
Standard IEC 60728-113:2023 se uporablja za optične sprejemno-oddajne sisteme za razpršeno oddajanje signalov, ki zajemajo opremo glavne sprejemne postaje, optične prenosne vode, notranje napeljave in sistemske izhode. Ti sistemi so namenjeni predvsem televizijskim in zvočnim signalom z uporabo tehnologije digitaliziranega prenosa. Ta dokument določa osnovne sistemske parametre in merilne metode za optične razdelilne sisteme med opremo glavne sprejemne postaje ter sistemskimi izhodi za namene ocenjevanja lastnosti teh sistemov in omejitev njihovega delovanja.
V tem dokumentu je zgornja frekvenca signala omejena na približno 3300 MHz.
Namen tega dela standarda IEC 60728 je opisati sistemske specifikacije omrežij FTTH (z optičnimi vlakni do doma) za digitalno moduliran prenos oddajnih signalov. Ta dokument se uporablja tudi za razpršeno oddajanje signalov prek telekomunikacijskega omrežja, če izpolnjuje delovanje optičnega dela sistema, opredeljenega v tem dokumentu. Ta dokument opisuje radiofrekvenčni prenos za povsem digitalizirano razpršeno in ozko usmerjeno oddajanje (omejeno območno razdelitev) signalov prek omrežij FTTH ter uvaja sistem xPON kot medij fizične plasti. Podroben opis fizične plasti ne spada v področje uporabe tega dokumenta. Področje uporabe je omenjeno na radiofrekvenčni prenos video signala na nižjih ravneh prek omrežja FTTH; tehnologije prenosa IP, kot so IP za več prejemnikov in povezani protokoli, ki zahtevajo sistem dvosmernega optičnega prenosa, niso zajeti v področje uporabe tega dokumenta.
Nekateri vplivi motenj med telekomunikacijskim sistemom in oddajnim sistemom so obravnavani v točki 7.
Standard IEC 60728-113:2023 razveljavlja in nadomešča prvo izdajo, objavljeno leta 2018, in standard IEC 60728-13-1:2017. Ta izdaja je tehnično popravljena izdaja.
Ta izdaja v primerjavi s prejšnjo vključuje naslednje pomembne tehnične spremembe:
a) standard IEC 60728-13-1, ki obravnava razširitev pasovne širine za signal oddajanja prek sistemov FTTH, je združen s tem dokumentom;
b) dodana je bila preglednica s stopnjami digitalnega signala na sistemskem izhodu.
General Information
Relations
Standards Content (Sample)

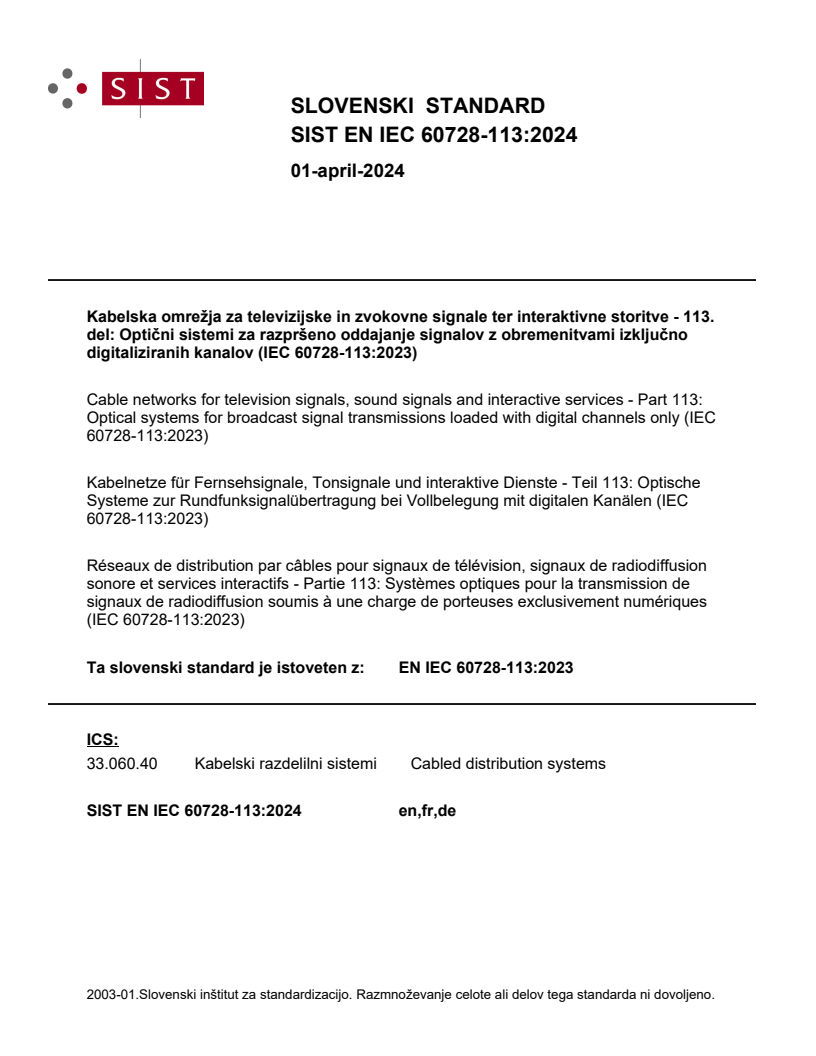

SLOVENSKI STANDARD
01-april-2024
Kabelska omrežja za televizijske in zvokovne signale ter interaktivne storitve - 113.
del: Optični sistemi za razpršeno oddajanje signalov z obremenitvami izključno
digitaliziranih kanalov (IEC 60728-113:2023)
Cable networks for television signals, sound signals and interactive services - Part 113:
Optical systems for broadcast signal transmissions loaded with digital channels only (IEC
60728-113:2023)
Kabelnetze für Fernsehsignale, Tonsignale und interaktive Dienste - Teil 113: Optische
Systeme zur Rundfunksignalübertragung bei Vollbelegung mit digitalen Kanälen (IEC
60728-113:2023)
Réseaux de distribution par câbles pour signaux de télévision, signaux de radiodiffusion
sonore et services interactifs - Partie 113: Systèmes optiques pour la transmission de
signaux de radiodiffusion soumis à une charge de porteuses exclusivement numériques
(IEC 60728-113:2023)
Ta slovenski standard je istoveten z: EN IEC 60728-113:2023
ICS:
33.060.40 Kabelski razdelilni sistemi Cabled distribution systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

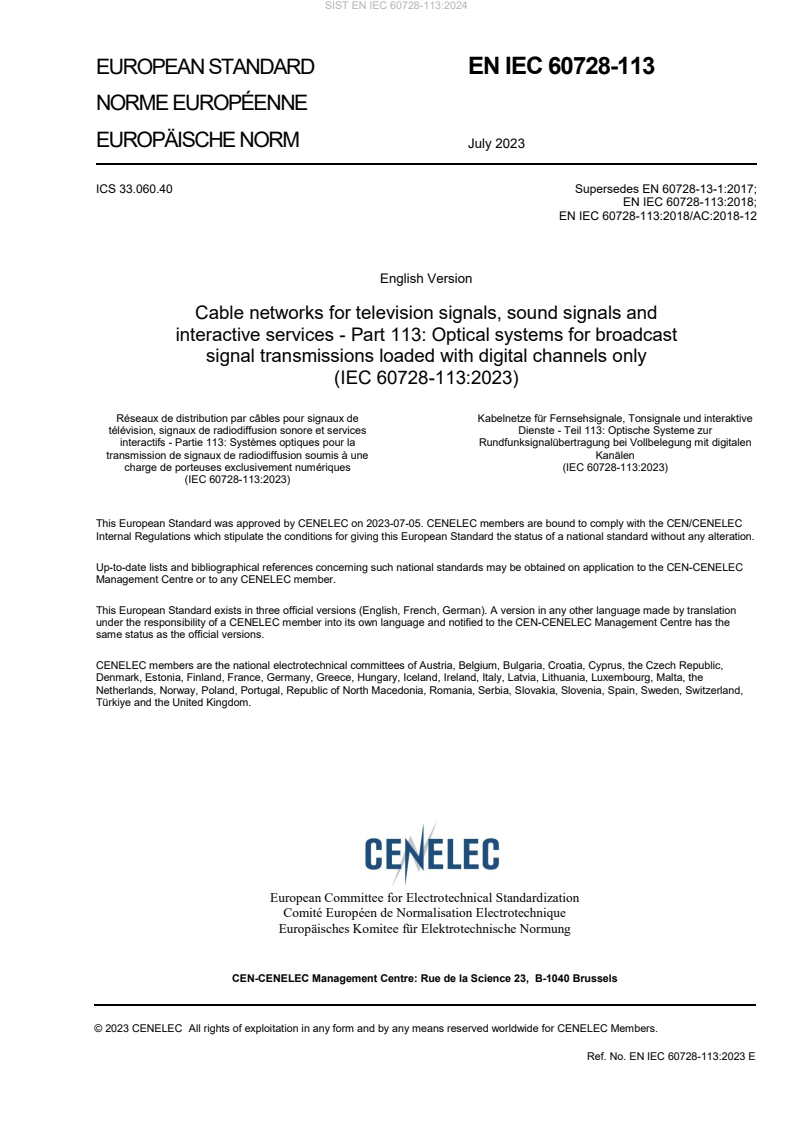

EUROPEAN STANDARD EN IEC 60728-113
NORME EUROPÉENNE
EUROPÄISCHE NORM July 2023
ICS 33.060.40 Supersedes EN 60728-13-1:2017;
EN IEC 60728-113:2018;
EN IEC 60728-113:2018/AC:2018-12
English Version
Cable networks for television signals, sound signals and
interactive services - Part 113: Optical systems for broadcast
signal transmissions loaded with digital channels only
(IEC 60728-113:2023)
Réseaux de distribution par câbles pour signaux de Kabelnetze für Fernsehsignale, Tonsignale und interaktive
télévision, signaux de radiodiffusion sonore et services Dienste - Teil 113: Optische Systeme zur
interactifs - Partie 113: Systèmes optiques pour la Rundfunksignalübertragung bei Vollbelegung mit digitalen
transmission de signaux de radiodiffusion soumis à une Kanälen
charge de porteuses exclusivement numériques (IEC 60728-113:2023)
(IEC 60728-113:2023)
This European Standard was approved by CENELEC on 2023-07-05. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60728-113:2023 E
European foreword
The text of document 100/3900/FDIS, future edition 2 of IEC 60728-113, prepared by IEC/TC 100
"Audio, video and multimedia systems and equipment" was submitted to the IEC-CENELEC parallel
vote and approved by CENELEC as EN IEC 60728-113:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-04-05
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-07-05
document have to be withdrawn
This document supersedes EN 60728-13-1:2017 and EN IEC 60728-113:2018 and all of its
amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60728-113:2023 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60068 (series) NOTE Approved as EN 60068 (series)
IEC 60728-1-2 NOTE Approved as EN 60728-1-2
IEC 60728-3 NOTE Approved as EN IEC 60728-3
IEC 60728-5 NOTE Approved as EN 60728-5
IEC 60728-10 NOTE Approved as EN 60728-10
IEC 60728-11 NOTE Approved as EN 60728-11
IEC 60728-13-1 NOTE Approved as EN 60728-13-1
IEC 60728-14 NOTE Approved as EN 60728-14
IEC 60875-1 NOTE Approved as EN 60875-1
IEC 61280-2-2 NOTE Approved as EN 61280-2-2
IEC 61280-2-9 NOTE Approved as EN 61280-2-9
IEC 61281-1 NOTE Approved as EN IEC 61281-1
IEC 61290-1-2 NOTE Approved as EN 61290-1-2
IEC 61290-1-3 NOTE Approved as EN IEC 61290-1-3
IEC 61754-13 NOTE Approved as EN 61754-13
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60068-1 2013 Environmental testing - Part 1: General EN 60068-1 2014
and guidance
IEC 60728-1 2014 Cable networks for television signals, EN 60728-1 2014
sound signals and interactive services -
Part 1: System performance of forward
paths
IEC 60728-6 2011 Cable networks for television signals, EN 60728-6 2011
sound signals and interactive services -
Part 6: Optical equipment
IEC/TR 60728-6-1 2006 Cable networks for television signals, - -
sound signals and interactive services -
Part 6-1: System guidelines for analogue
optical transmission systems
IEC 60728-101 2016 Cable networks for television signals, EN 60728-101 2017
sound signals and interactive services -
Part 101: System performance of forward
paths loaded with digital channels only
- - /AC 2017-07
IEC 60825-1 - Safety of laser products - Part 1: EN 60825-1 -
Equipment classification and requirements
IEC 60825-2 - Safety of laser products - Part 2: Safety of EN 60825-2 -
optical fibre communication systems
(OFCSs)
IEC 60825-12 - Safety of laser products - Part 12: Safety of EN IEC 60825-12 -
free space optical communication systems
used for transmission of information
IEC 61280-1-1 2013 Fibre optic communication subsystem EN 61280-1-1 2013
basic test procedures - Part 1-1: Test
procedures for general communication
subsystems - Transmitter output optical
power measurement for single-mode
optical fibre cable
IEC 61280-1-3 - Fibre optic communication subsystem test EN IEC 61280-1-3 -
procedures - Part 1-3: General
communication subsystems -
Measurement of central wavelength,
spectral width and additional spectral
characteristics
IEC 61755-1 2005 Fibre optic connector optical interfaces - EN 61755-1 2006
Part 1: Optical interfaces for single mode
non-dispersion shifted fibres - General and
guidance
- - + corrigendum Dec. 2006
ITU-T - Optical interfaces for multichannel systems - -
Recommendation with optical amplifiers
G.692
ITU-T - Spectral grids for WDM applications: - -
Recommendation CWDM wavelength grid
G.694.2
ITU-T - Time-division multiplexing of multiple - -
Recommendation MPEG-2 transport streams and generic
J.183 formats of transport streams over cable
television systems
ITU-T - Advanced digital downstream transmission - -
Recommendation systems for television, sound and data
J.382 services for cable distribution
ITU-T - Digital multi-programme systems for - -
Recommendation television, sound and data services for
J.83 cable distribution
IEC 60728-113 ®
Edition 2.0 2023-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Cable networks for television signals, sound signals and interactive services –
Part 113: Optical systems for broadcast signal transmissions loaded with digital
channels only
Réseaux de distribution par câbles pour signaux de télévision, signaux de
radiodiffusion sonore et services interactifs –
Partie 113: Systèmes optiques pour la transmission de signaux de radiodiffusion
soumis à une charge de porteuses exclusivement numériques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.060.40 ISBN 978-2-8322-7054-7
– 2 – IEC 60728-113:2023 © IEC 2023
CONTENTS
FOREWORD . 8
INTRODUCTION . 10
1 Scope . 11
2 Normative references . 11
3 Terms, definitions, graphical symbols and abbreviated terms. 12
3.1 Terms and definitions . 12
3.2 Graphical symbols . 19
3.3 Abbreviated terms . 20
4 Optical system reference model . 21
4.1 Overview. 21
4.2 Over-all FTTH system reference model . 21
4.3 Reference models for the optical systems for broadcast signal transmissions . 24
4.3.1 Optical wavelength for FTTH system . 24
4.3.2 Reference models . 24
4.4 Specified performance points of the optical system . 25
5 Preparation of measurement . 25
5.1 Environmental conditions . 25
5.1.1 Standard measurement conditions . 25
5.1.2 Temperature and humidity . 26
5.1.3 Setting up the measuring setup and system under test . 26
5.1.4 AGC/ALC operation . 26
5.1.5 Impedance matching between pieces of equipment . 26
5.1.6 Standard operating condition . 26
5.1.7 Standard signal and measuring equipment . 26
5.2 Accuracy of measuring equipment . 27
5.3 Source power . 27
6 Methods of measurement . 27
6.1 Measuring points and items . 27
6.1.1 General . 27
6.1.2 Measuring points . 28
6.1.3 Measured parameters . 28
6.2 General measurement requirement . 29
6.2.1 General . 29
6.2.2 Input specification . 29
6.2.3 Standard measurement conditions . 29
6.2.4 Precautions for measurements . 30
6.3 Optical power . 30
6.3.1 Ge
...
