EUROPEAN STANDARD EN IEC 60238

NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2018
ICS 29.140.10 Supersedes EN 60238:2004
English Version
Edison screw lampholders
(IEC 60238:2016)
Douilles à vis Edison pour lampes Lampenfassungen mit Edisongewinde
(IEC 60238:2016) (IEC 60238:2016)
This European Standard was approved by CENELEC on 2016-08-18. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60238:2018 E

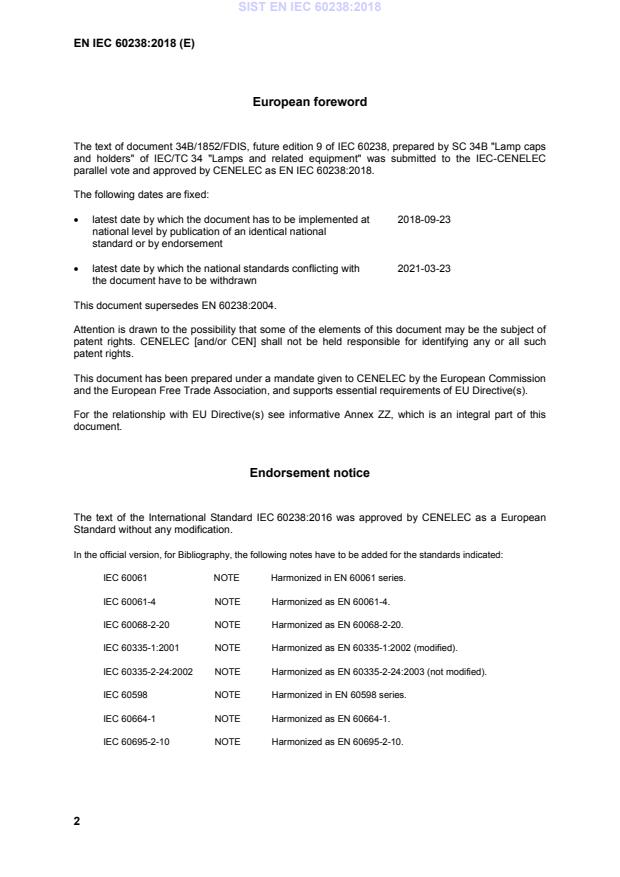

European foreword
The text of document 34B/1852/FDIS, future edition 9 of IEC 60238, prepared by SC 34B "Lamp caps
and holders" of IEC/TC 34 "Lamps and related equipment" was submitted to the IEC-CENELEC
parallel vote and approved by CENELEC as EN IEC 60238:2018.
The following dates are fixed:
2018-09-23
• latest date by which the document has to be implemented at
national level by publication of an identical national
standard or by endorsement
2021-03-23
• latest date by which the national standards conflicting with
the document have to be withdrawn
This document supersedes EN 60238:2004.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this
document.
Endorsement notice
The text of the International Standard IEC 60238:2016 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60061 NOTE Harmonized in EN 60061 series.
IEC 60061-4 NOTE Harmonized as EN 60061-4.
IEC 60068-2-20 NOTE Harmonized as EN 60068-2-20.
IEC 60335-1:2001 NOTE Harmonized as EN 60335-1:2002 (modified).
IEC 60335-2-24:2002 NOTE Harmonized as EN 60335-2-24:2003 (not modified).
IEC 60598 NOTE Harmonized in EN 60598 series.
IEC 60664-1 NOTE Harmonized as EN 60664-1.
IEC 60695-2-10 NOTE Harmonized as EN 60695-2-10.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is
available here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60061-1 (mod) 1969 Lamp caps and holders together with EN 60061-1 1993
gauges for the control of interchangeability
and safety -- Part 1: Lamp caps
IEC 60061-2 (mod) 1969 Lamp caps and holders together with EN 60061-2 1993
gauges for the control of interchangeability
and safety -- Part 2: Lampholders
IEC 60061-3 (mod) 1969 Lamp caps and holders together with EN 60061-3 1993
gauges for the control of interchangeability
and safety -- Part 3: Gauges
IEC 60068-2-32 1975 Basic environmental testing procedures - - -
Part 2: Tests - Test Ed: Free fall
IEC 60068-2-75 2014 Environmental testing - Part 2-75: Tests - EN 60068-2-75 2014
Test Eh: Hammer tests
IEC 60112 2003 Method for the determination of the proof EN 60112 2003
and the comparative tracking indices of
solid insulating materials
+ A1 2009  + A1 2009
IEC 60227 series Polyvinyl chloride insulated cables of rated - -
voltages up to and including 450/750 V --
Part 1: General requirements
IEC 60245 series Rubber insulated cables - Rated voltages - -
up to and including 450/750 V -- Part 1:
General requirements
IEC 60352-1 1997 Solderless connections -- Part 1: Wrapped EN 60352-1 1997
connections - General requirements, test
methods and practical guidance
IEC 60399 2004 Barrel thread for lampholders with shade EN 60399 2004
+ A1 2008 holder ring + A1 2008
IEC 60417 2002 Graphical symbols for use on equipment - -
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code)
- -  + corrigendum May 1993
+ A1 1999  + A1 2000
+ A2 2013  + A2 2013
IEC 60598-1 (mod) 2014 Luminaires -- Part 1: General requirements EN 60598-1 2015
and tests
IEC 60630 (mod)1994  Maximum lamp outlines for incandescent EN 60630 1998
+ A7 2014 lamps + A7 2015
IEC 60695-2-11 2014 Fire hazard testing - Part 2-11: EN 60695-2-11 2014
Glowing/hot-wire based test methods -
Glow-wire flammability test method for
end-products (GWEPT)
IEC 60695-11-5 2016 Fire hazard testing -- Part 11-5: Test EN 60695-11-5 2017
flames - Needle-flame test method -
Apparatus, confirmatory test arrangement
and guidance
IEC 61058-1 (mod) 2000 Switches for appliances -- Part 1: General EN 61058-1 1)
requirements
ISO 4046-4 2002 Paper, board, pulps and related terms - - -
Vocabulary -- Part 4: Paper and board
grades and converted products
1) EN 61058-1:2002 consists of IEC 61058-1:2000 (modified) and IEC 61058-1:2000/A1:2001 (not modified).
Annex ZZ
(informative)
Relationship between this European standard and the safety objectives of
Directive 2014/35/EU [2014 OJ L96] aimed to be covered
This European standard has been prepared under a Commission’s standardisation request relating to
harmonised standards in the field of the Low Voltage Directive, M/511, to provide one voluntary means
of conforming to safety objectives of Directive 2014/35/EU of the European Parliament and of the
Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the
making available on the market of electrical equipment designed for use within certain voltage limits
[2014 OJ L96].
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZZ.1 confers, within the limits of
the scope of this standard, a presumption of conformity with the corresponding safety objectives of
that Directive, and associated EFTA regulations.

Table ZZ.1 – Correspondence between this European standard and Annex I of Directive
2014/35/EU [2014 OJ L96]
Safety objectives of Directive Clause(s) / sub-clause(s)
Remarks / Notes
2014/35/EU of this EN
1. General conditions
a) the essential characteristics, Clause 8
the recognition and observance

of which will ensure that
electrical equipment will be used
safely and in applications for

which it was made, shall be
marked on the electrical
equipment, or, if this is not
possible, on an accompanying
document;
b) the electrical equipment, All clauses
together with its component
parts, shall be made in such a

way as to ensure that it can be
safely and properly assembled
and connected;
c) the electrical equipment shall See item 2 and 3 of this table
be so designed and
manufactured as to ensure that
protection against the hazards
set out in points 2 and 3 is
assured, providing that the
equipment is used in
applications for which it was
made and is adequately
maintained.
2. Protection against hazards
arising from the electrical
equipment
Measures of a technical nature
shall be laid down in accordance
with point 1, in order to ensure
that:
a) persons and domestic Clauses 4, 9, 10, 11, 12, 13, 14,
15 and 17
animals are adequately
protected against the danger of

physical injury or other harm
which might be caused by direct
or indirect contact;
b) temperatures, arcs or Clauses 13, 15, 18, 19, 20 and
radiation which would cause a
danger, are not produced;
c) persons, domestic animals Clauses 4, 13, 16, 19 and 22
and property are adequately
protected against non-electrical

dangers caused by the electrical
equipment which are revealed
by experience;
d) the insulation is suitable for Clauses 10, 12, 13, 16, 18, 20

foreseeable conditions. and 21
3. Protection against hazards
which may be caused by
external influences on the
electrical equipment
Technical measures shall be
laid down in accordance with
point 1, in order to ensure that
the electrical equipment:
a) meets the expected Clauses 8, 9, 13, 16 and 22
mechanical requirements in
such a way that persons,
domestic animals and property
are not endangered;
b) is resistant to non-mechanical Clauses 13, 15,18, 20 and 21
influences in expected
environmental conditions, in
such a way that persons,
domestic animals and property
are not endangered;
c) does not endanger persons, Clauses 13, 15, 20 and 21
domestic animals and property
in foreseeable conditions of
overload.
WARNING 1: Presumption of conformity stays valid only as long as a reference to this European
standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2: Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
IEC 60238 ®
Edition 9.0 2016-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Edison screw lampholders
Douilles à vis edison pour lampes

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.10 ISBN 978-2-8322-3465-5
