EUROPEAN STANDARD EN 60115-9
NORME EUROPÉENNE
EUROPÄISCHE NORM February 2004

ICS 31.040.10
English version
Fixed resistors for use in electronic equipment
Part 9: Sectional specification -
Fixed surface mount resistor networks
with individually measurable resistors
(IEC 60115-9:2003)
Résistances fixes utilisées  Festwiderstände zur Verwendung
dans les équipements électroniques in Geräten der Elektronik
Partie 9: Spécification intermédiaire - Teil 9: Rahmenspezifikation -
Réseaux de résistances fixes montés Oberflächenmontierbare Netzwerke
en surface avec des résistances aus Festwiderständen mit einzeln
mesurables individuellement messbaren Widerständen
(CEI 60115-9:2003) (IEC 60115-9:2003)

This European Standard was approved by CENELEC on 2004-02-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2004 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 60115-9:2004 E

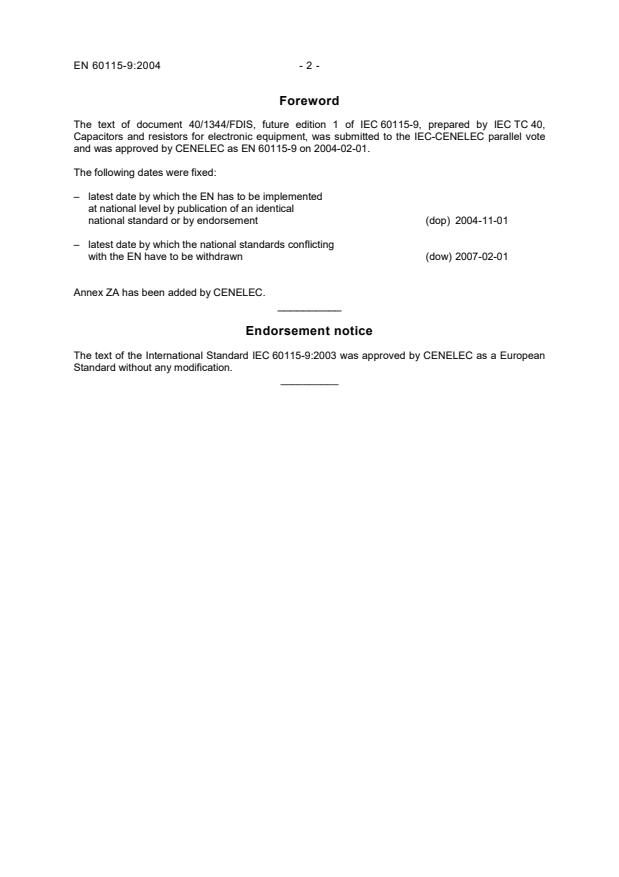

Foreword
The text of document 40/1344/FDIS, future edition 1 of IEC 60115-9, prepared by IEC TC 40,
Capacitors and resistors for electronic equipment, was submitted to the IEC-CENELEC parallel vote
and was approved by CENELEC as EN 60115-9 on 2004-02-01.

The following dates were fixed:

– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2004-11-01

– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2007-02-01

Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60115-9:2003 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 60115-9:2004
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
IEC 60063 1963 Preferred number series for resistors - -
and capacitors
A1 1967 - -
A2 1977 - -
1) 2)
IEC 60068-1 Environmental testing EN 60068-1
- 1994
Part 1: General and guidance
1) 2)
IEC 60068-2-1 - Part 2: Tests - Tests A: Cold EN 60068-2-1 1993

1) 2)
IEC 60068-2-2 - Part 2: Tests - Tests B: Dry heat EN 60068-2-2 1993

IEC 60115-1 1999 Fixed resistors for use in electronic EN 60115-1 2001
(mod) equipment
Part 1: Generic specification
1)
Undated reference.
2)
Valid edition at date of issue.

INTERNATIONAL IEC
STANDARD 60115-9
First edition
2003-10
Fixed resistors for use in electronic equipment –
Part 9:
Sectional specification:
Fixed surface mount resistor networks
with individually measurable resistors
© IEC 2003 ⎯ Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch  Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale P
International Electrotechnical Commission
ɆɟɠɞɭɧɚɪɨɞɧɚɹɗɥɟɤɬɪɨɬɟɯɧɢɱɟɫɤɚɹɄɨɦɢɫɫɢɹ
For price, see current catalogue

– 2 – 60115-9 © IEC:2003(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIXED RESISTORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 9: Sectional specification:
Fixed surface mount resistor networks
with individually measurable resistors
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60115-9 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
40/1344/FDIS 40/1366/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

60115-9 © IEC:2003(E) – 3 –
The committee has decided that the contents of this publication will remain unchanged until
2008. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
A bilingual edition of this standard may be issued at a later date.

– 4 – 60115-9 © IEC:2003(E)
FIXED RESISTORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 9: Sectional specification:
Fixed surface mount resistor networks
with individually measurable resistors
1 General
1.1 Scope
This part of IEC 60115 is applicable to fixed surface mount resistor networks with individually
measurable resistors for use in electronic equipment.
1.2 Object
The object of this standard is to prescribe preferred ratings and characteristics and to select
from IEC 60115-1, the appropriate Quality Assessment procedures, tests and measuring
methods and to give general performance requirements for this type of resistor.
Test severities and requirements prescribed in detail specifications referring to this sectional
specification must be of equal or higher performance level, because lower performance levels
are not permitted.
1.3 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60063:1963, Preferred number series for resistors and capacitors
Amendment 1 (1967)
Amendment 2 (1977)
IEC 60068-1: Environmental testing – Part 1: General and guidance
IEC 60068-2-1: Environmental testing – Part 2: Tests. Tests A: Cold
IEC 60068-2-2: Environmental testing – Part 2: Tests. Tests B: Dry heat
IEC 60115-1:1999, Fixed resistors for use in electronic equipment – Part 1: Generic
specification
1.4 Information to be given in a detail specification
Detail specifications shall be derived from the relevant blank detail specification.
Detail specifications shall not specify requirements inferior to those of the generic, sectional
specification or blank detail specification.
When more severe requirements are included, they shall be listed in 1.8 of the detail
specification and indicated in the test schedules, for example by an asterisk.

60115-9 © IEC:2003(E) – 5 –
The following information shall be given in each detail specification and the values quoted
shall preferably be selected from those given in the appropriate clause of this sectional
specification.
1.4.1 Outline drawing and dimensions
There shall be an illustration of the surface mount resistor network as an aid to easy
recognition and for comparison of the surface mount resistor network with others.
Dimensions and their associated tolerances, which affect interchangeability and mounting,
shall be given in the detail specification. All dimensions shall be stated in millimetres.
Normally the numerical values shall be given for the length, width and thickness of the body.
Schematic diagrams and pin identifications shall be given in the detail specification. Those
are prescribed in Annex A.
Configurations of terminations shall be given in the detail specification. Those are prescribed
in Annex B.
When the outline drawing is other than described above, the detail specification shall state
such dimensional information as will adequately describe the surface mount resistor network.
1.4.2 Mounting
The detail specification shall give guidance on methods of mounting for normal use. Mounting
for test and measurement purposes (when required) shall be in accordance with 4.31 of
IEC 60115-1.
1.4.3 Style (2.2.2 of IEC 60115-1)
The styles given in Table 1 are preferred. All dimensions are in mm.
Table 1 – Style and outline dimensions
Dimensions in mm
Construction of
a)
Code Length L Width W Thickness T Diagram a)
terminals
1005X2 AConvex
1 ± 0,1 1 ± 0,1 0,35 ± 0,1
1005X4 2 ± 0,1 1 ± 0,1 0,4 ± 0,15 A Convex Concave
1608X2 A Convex Concave
1,6 ± 0,2 1,6 ± 0,2 0,55 ± 0,15
1608X4 3,2 ± 0,2 1,6 ± 0,2 0,55 ± 0,15 A Convex Concave
3216X4 5,08 ± 0,2 3,1 ± 0,2 0,55 ± 0,15 A Convex Concave
3216 B, C Convex
3,2 ± 0,2 1,6 ± 0,2 0,5 ± 0,15
4021 4 ± 0,2 2,1 ± 0,2 0,6 ± 0,15 D Concave
6431 6,4 ± 0,2 3,1 ± 0,2 0,6 ± 0,15 B, C Convex Concave
a)
Diagrams are shown in Annex A. Constructions of terminals are shown in Annex B.

– 6 – 60115-9 © IEC:2003(E)
1.4.4 Ratings and characteristics
The ratings and characteristics shall be in accordance with the relevant clauses of this
specification together with the following:
Rated resistance range
See 2.2.1. The preferred values are those of the E-series of IEC 60063.
NOTE When products approved to the detail specification have different ranges, the following statement should
be added:
“The range of values available in each style is given in the qualified products list”.
1.4.5 Marking
The detail specification shall specify the content of the marking on the surface mount resistor
network and on the package.
Surface mount resistor networks are generally not marked on the body. If some marking can
be applied, the surface mount resistor network shall be clearly marked with the rated
resistance and as many of the remaining items in 2.4 of IEC 60115-1 as possible.
All items shall
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
