EN 50065-4-6:2004

SLOVENSKI SIST EN 50065-4-6:2005

STANDARD
september 2005
Signalizacija po nizkonapetostnih električnih napeljavah v frekvenčnem
območju od 3 kHz do 148,5 kHz – 4-6. del: Nizkonapetostni ločilni filtri – Fazni
ločilnik
Signalling on low-voltage electrical installations in the frequency range 3 kHz to
148,5 kHz – Part 4-6: Low voltage decoupling filters – Phase coupler
ICS 31.160; 33.040.30 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD EN 50065-4-6
NORME EUROPÉENNE
EUROPÄISCHE NORM July 2004
ICS 31.160; 33.040.30; 97.120
English version
Signalling on low-voltage electrical installations
in the frequency range 3 kHz to 148,5 kHz
Part 4-6: Low voltage decoupling filters –
Phase coupler
Transmission de signaux sur les réseaux Signalübertragung auf elektrischen
électriques basse tension dans la bande Niederspannungsnetzen
de fréquences de 3 kHz à 148,5 kHz im Frequenzbereich 3 kHz bis 148,5 kHz
Partie 4-6: Filtres basse tension Teil 4-6: Niederspannungs-
de découplage – Entkopplungsfilter –
Coupleur de phase Phasenkoppler

This European Standard was approved by CENELEC on 2004-03-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2004 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 50065-4-6:2004 E

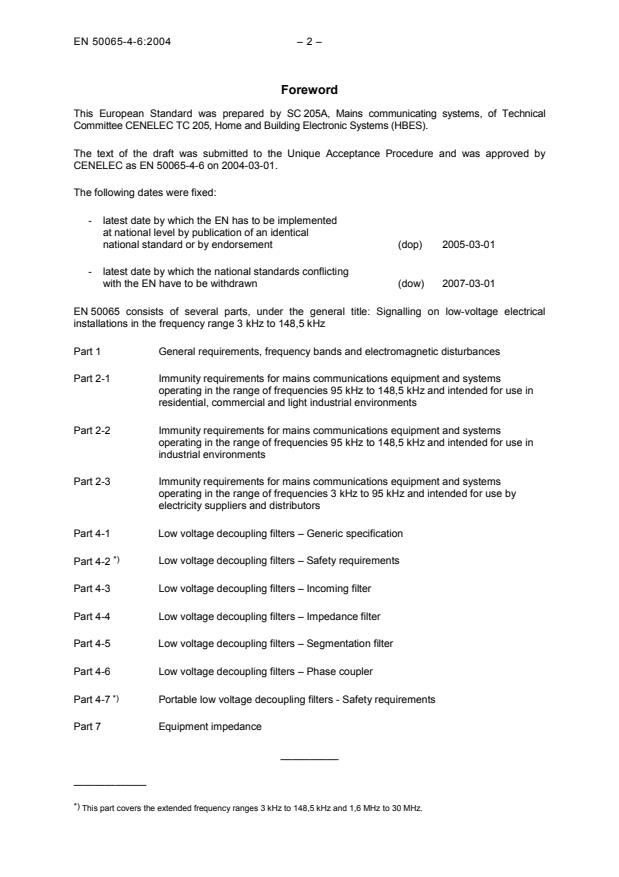

Foreword
This European Standard was prepared by SC 205A, Mains communicating systems, of Technical
Committee CENELEC TC 205, Home and Building Electronic Systems (HBES).
The text of the draft was submitted to the Unique Acceptance Procedure and was approved by
CENELEC as EN 50065-4-6 on 2004-03-01.
The following dates were fixed:
- latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2005-03-01
- latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2007-03-01
EN 50065 consists of several parts, under the general title: Signalling on low-voltage electrical
installations in the frequency range 3 kHz to 148,5 kHz
Part 1 General requirements, frequency bands and electromagnetic disturbances
Part 2-1 Immunity requirements for mains communications equipment and systems
operating in the range of frequencies 95 kHz to 148,5 kHz and intended for use in
residential, commercial and light industrial environments
Part 2-2 Immunity requirements for mains communications equipment and systems
operating in the range of frequencies 95 kHz to 148,5 kHz and intended for use in
industrial environments
Part 2-3 Immunity requirements for mains communications equipment and systems
operating in the range of frequencies 3 kHz to 95 kHz and intended for use by
electricity suppliers and distributors
Part 4-1 Low voltage decoupling filters – Generic specification
*)
Low voltage decoupling filters – Safety requirements
Part 4-2
Part 4-3 Low voltage decoupling filters – Incoming filter
Part 4-4 Low voltage decoupling filters – Impedance filter
Part 4-5 Low voltage decoupling filters – Segmentation filter
Part 4-6 Low voltage decoupling filters – Phase coupler
*)
Part 4-7 Portable low voltage decoupling filters - Safety requirements
Part 7 Equipment impedance
__________
———————
*)
This part covers the extended frequency ranges 3 kHz to 148,5 kHz and 1,6 MHz to 30 MHz.

– 3 – EN 50065-4-6:2004
Contents
1 Scope .4
2 Normative references .4
3 Definitions .5
4 Classification.5
4.1 Type 1 (standard type) .5
4.2 Type 2 (low leakage type) .5
5 Requirements.5
5.1 Marking.5
5.2 Electrical characteristics at mains frequency .5
5.2.1 Over voltage .6
5.2.2 Immunity .6
5.2.3 Mains frequency leakage current .6
5.3 Electrical characteristics at signalling frequency.7
5.3.1 Operating frequency range.7
5.3.2 Transfer function.7
5.3.3 Impedance .7

Figure 1 – Mains frequency leakage current test set up .6

Table 1 – Mains frequency leakage current limits.
...
