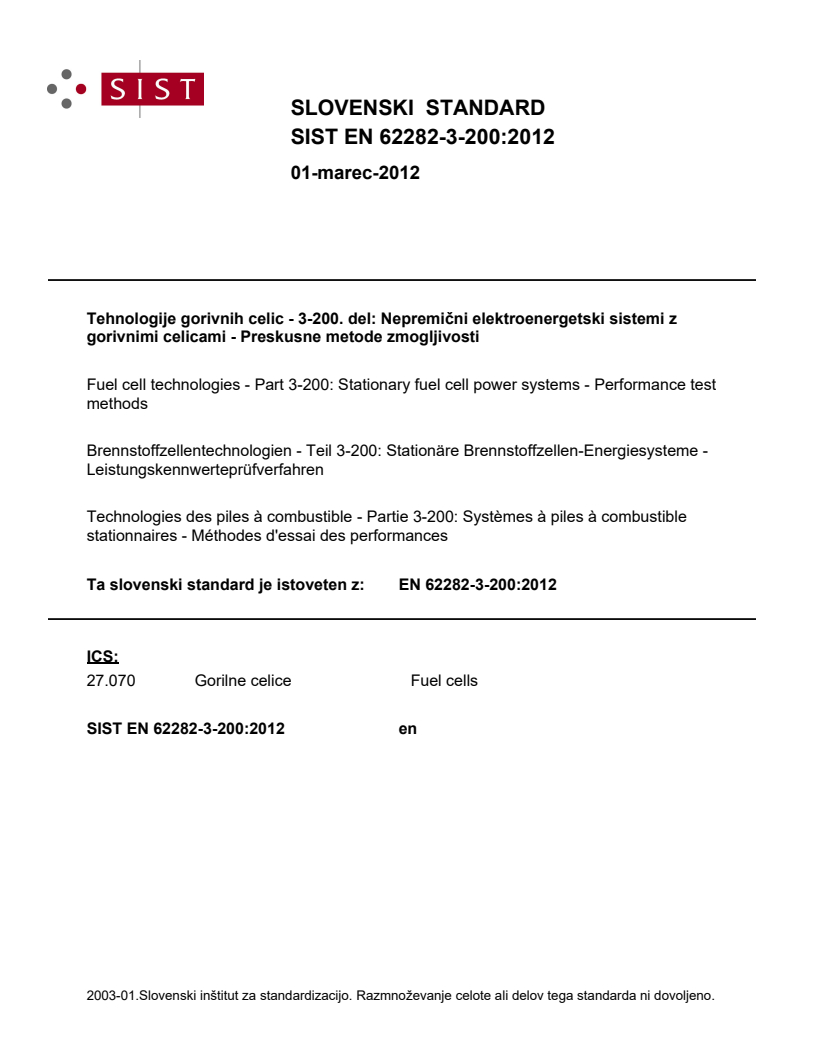

EN 62282-3-200:2012

SLOVENSKI STANDARD
01-marec-2012
7HKQRORJLMHJRULYQLKFHOLFGHO1HSUHPLþQLHOHNWURHQHUJHWVNLVLVWHPL]
JRULYQLPLFHOLFDPL3UHVNXVQHPHWRGH]PRJOMLYRVWL
Fuel cell technologies - Part 3-200: Stationary fuel cell power systems - Performance test
methods
Brennstoffzellentechnologien - Teil 3-200: Stationäre Brennstoffzellen-Energiesysteme -
Leistungskennwerteprüfverfahren
Technologies des piles à combustible - Partie 3-200: Systèmes à piles à combustible
stationnaires - Méthodes d'essai des performances
Ta slovenski standard je istoveten z: EN 62282-3-200:2012
ICS:
27.070 Gorilne celice Fuel cells
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

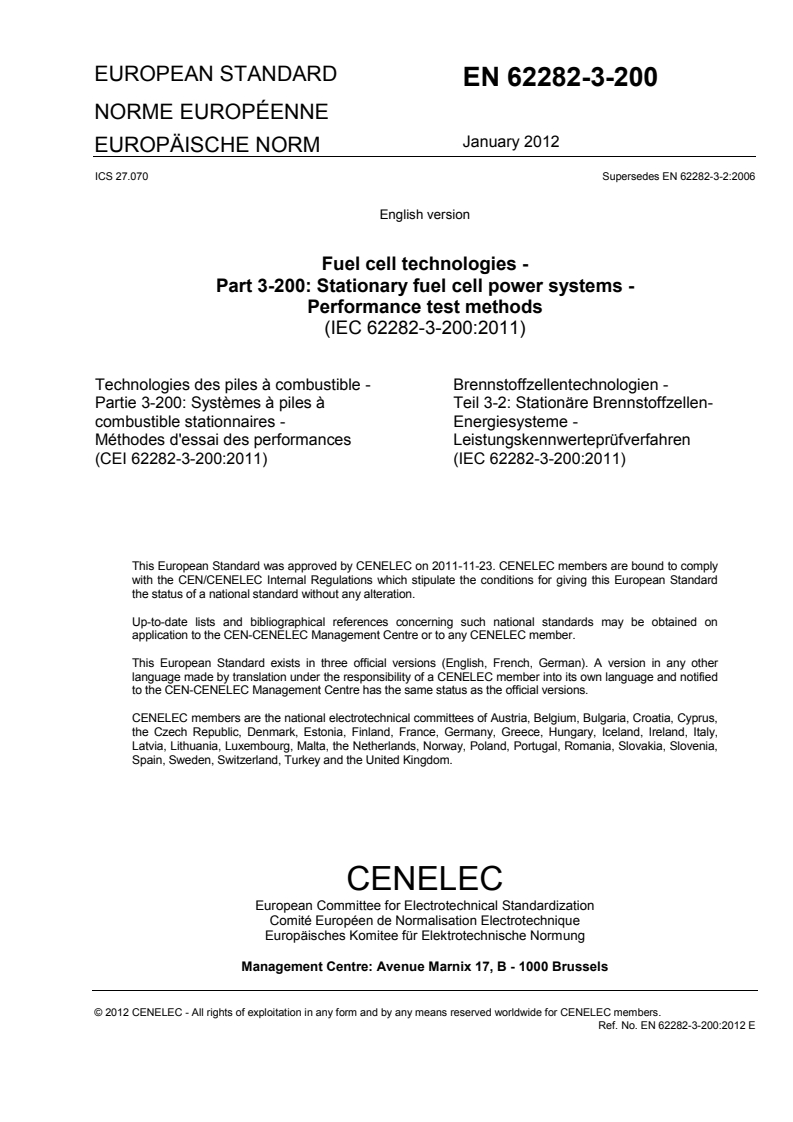

EUROPEAN STANDARD
EN 62282-3-200
NORME EUROPÉENNE
January 2012
EUROPÄISCHE NORM
ICS 27.070 Supersedes EN 62282-3-2:2006

English version
Fuel cell technologies -
Part 3-200: Stationary fuel cell power systems -
Performance test methods
(IEC 62282-3-200:2011)
Technologies des piles à combustible - Brennstoffzellentechnologien -
Partie 3-200: Systèmes à piles à Teil 3-2: Stationäre Brennstoffzellen-
combustible stationnaires - Energiesysteme -
Méthodes d'essai des performances Leistungskennwerteprüfverfahren
(CEI 62282-3-200:2011) (IEC 62282-3-200:2011)

This European Standard was approved by CENELEC on 2011-11-23. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62282-3-200:2012 E

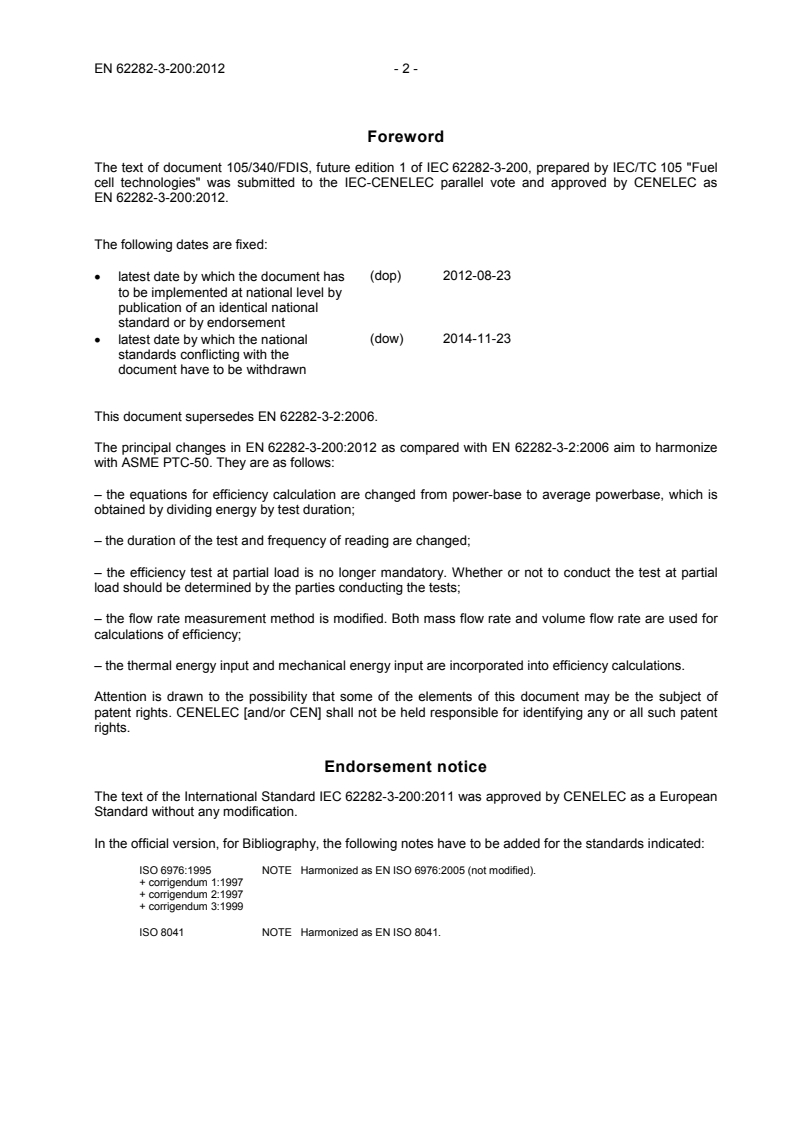

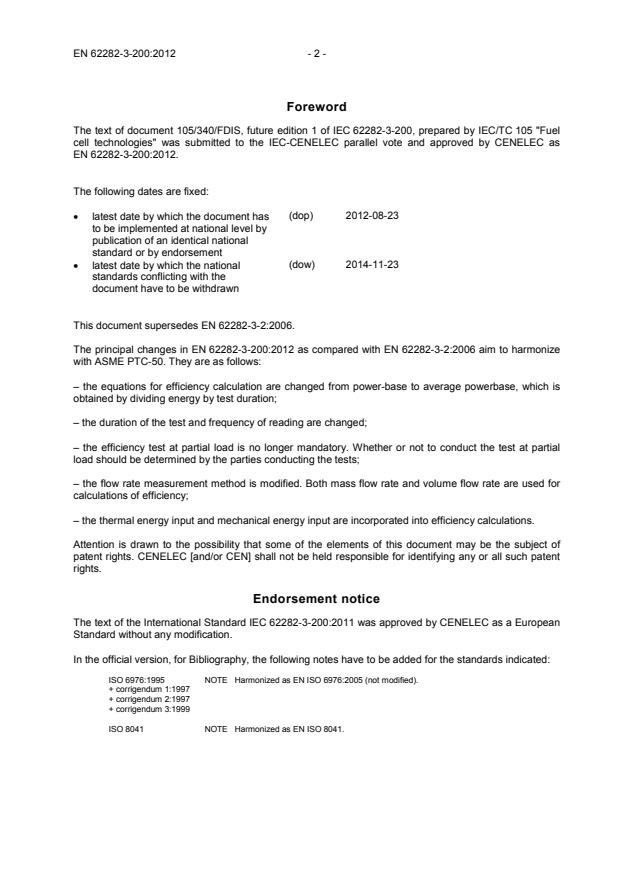

Foreword
The text of document 105/340/FDIS, future edition 1 of IEC 62282-3-200, prepared by IEC/TC 105 "Fuel
cell technologies" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
(dop) 2012-08-23
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2014-11-23
standards conflicting with the
document have to be withdrawn
This document supersedes EN 62282-3-2:2006.
The principal changes in EN 62282-3-200:2012 as compared with EN 62282-3-2:2006 aim to harmonize
with ASME PTC-50. They are as follows:
– the equations for efficiency calculation are changed from power-base to average powerbase, which is
obtained by dividing energy by test duration;
– the duration of the test and frequency of reading are changed;
– the efficiency test at partial load is no longer mandatory. Whether or not to conduct the test at partial
load should be determined by the parties conducting the tests;
– the flow rate measurement method is modified. Both mass flow rate and volume flow rate are used for
calculations of efficiency;
– the thermal energy input and mechanical energy input are incorporated into efficiency calculations.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
Endorsement notice
The text of the International Standard IEC 62282-3-200:2011 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
ISO 6976:1995 NOTE  Harmonized as EN ISO 6976:2005 (not modified).
+ corrigendum 1:1997
+ corrigendum 2:1997
+ corrigendum 3:1999
ISO 8041 NOTE  Harmonized as EN ISO 8041.

- 3 - EN 62282-3-200:2012
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60051 Series Direct acting indicating analogue electrical EN 60051 Series
measuring instruments and their accessories

IEC 60359 - Electrical and electronic measurement EN 60359 -
equipment - Expression of performance

IEC 60688 - Electrical measuring transducers for EN 60688 -
converting a.c. electrical quantities to
analogue or digital signals
IEC 61000-4-7 - Electromagnetic compatibility (EMC) - EN 61000-4-7 -
Part 4-7: Testing and measurement
techniques - General guide on harmonics and
interharmonics measurements and
instrumentation, for power supply systems
and equipment connected thereto

IEC 61000-4-13 - Electromagnetic compatibility (EMC) - EN 61000-4-13 -
Part 4-13: Testing and measurement
techniques - Harmonics and interharmonics
including mains signalling at a.c. power port,
low frequency immunity tests
IEC 61028 - Electrical measuring instruments - X-Y EN 61028 -
recorders
IEC 61143 Series Electrical measuring instruments - X-t EN 61143 Series
recorders
IEC 61672-1 - Electroacoustics - Sound level meters - EN 61672-1 -
Part 1: Specifications
IEC 61672-2 - Electroacoustics - Sound level meters - EN 61672-2 -
Part 2: Pattern evaluation tests

IEC 62052-11 - Electricity metering equipment (AC) - General EN 62052-11 -
requirements, tests and test conditions -
Part 11: Metering equipment
IEC 62053-22 - Electricity metering equipment (a.c.) - EN 62053-22 -
Particular requirements -
Part 22: Static meters for active energy
(classes 0,2 S and 0,5 S)
ISO/IEC Guide 98-3 - Uncertainty of measurement - - -
Part 3: Guide to the expression of uncertainty
in measurement (GUM:1995)
ISO 3648 - Aviation fuels - Estimation of net specific - -
energy
Publication Year Title EN/HD Year
ISO 3744 - Acoustics - Determination of sound power EN ISO 3744 -
levels of noise sources using sound pressure -
Engineering method in an essentially free field
over a reflecting plane
ISO 4677-1 - Atmospheres for conditioning and testing - - -
Determination of relative humidity -
Part 1: Aspirated psychrometer method

ISO 4677-2 - Atmospheres for conditioning and testing - - -
Determination of relative humidity -
Part 2: Whirling psychrometer method

ISO 5167 Series Measurement of fluid flow by means of EN ISO 5167 Series
pressure differential devices inserted in
circular cross-section conduits running full

ISO 5348 - Mechanical vibration and shock - Mechanical - -
mounting of accelerometers
ISO 6060 - Water quality - Determination of the chemical - -
oxygen demand
ISO 6326 Series Natural gas - Determination of sulfur EN ISO 6326 Series
compounds
ISO 6974 Series Natural gas - Determination of composition EN ISO 6974 Series
with defined uncertainty by gas
chromatography
ISO 6975 Series Natural gas - Extended analysis - Gas- EN ISO 6975 Series
chromatographic method
ISO 7934 - Stationary source emissions - Determination - -
of the mass concentration of sulfur dioxide -
Hydrogen peroxide/barium perchlorate/Thorin
method
ISO 7935 - Stationary source emissions - Determination - -
of the mass concentration of sulfur dioxide -
Performance characteristics of automated
measuring methods
ISO 8217 - Petroleum products - Fuels (class F) - - -
Specifications of marine fuels

ISO 9000 - Quality management systems - Fundamentals EN ISO 9000 -
and vocabulary
ISO 9096 - Stationary source emissions - Manual - -
determination of mass concentration of
particulate matter
ISO 10101 Series Natural gas - Determination of water by the EN ISO 10101 Series
Karl Fischer method
ISO 10396 - Stationary source emissions - Sampling for - -
the automated determination of gas
concentrations
ISO 10523 - Water quality - Determination of pH - -

ISO 10707 - Water quality - Evaluation in an aqueous EN ISO 10707 -
medium of the "ultimate" aerobic
biodegradability of organic compounds -
Method by analysis of biochemical oxygen
demand (closed bottle test)
- 5 - EN 62282-3-200:2012
Publication Year Title EN/HD Year
ISO 10780 - Stationary source emissions - Measurement - -
of velocity and volume flow rate of gas
streams in ducts
ISO 10849 - Stationary source emissions - Determination - -
of the mass concentration of nitrogen oxides -
Performance characteristics of automated
measuring systems
ISO 11042-1 - Gas turbines - Exhaust gas emission - - -
Part 1: Measurement and evaluation

ISO 11042-2 - Gas turbines - Exhaust gas emission - - -
Part 2: Automated emission monitoring

ISO 11541 - Natural gas - Determination of water content EN ISO 11541 -
at high pressure
ISO 11564 - Stationary source emissions - Determination - -
of the mass concentration of nitrogen oxides -
Naphthylethylenediamine photometric method

ISO 14687 - Hydrogen fuel - Product specification - -

ISO/TR 15916 - Basic considerations for the safety of - -
hydrogen systems
ISO 16622 - Meteorology - Sonic - -
anemometers/thermometers - Acceptance test
methods for mean wind measurements

ASTM D4809-00 - Standard Test Method for Heat of Combustion - -
of Liquid Hydrocarbon Fuels by Bomb
Calorimeter (Precision Method)

ASTM F260208e1 - Standard Test Method for Determining the - -
Molar Mass of Chitosan an Chitosan Salts by
Size Exclusion Chromatography with Multi-
angle Light Scattering Detection (SEC-MALS)

ASME PTC 50 - Performance Test Code 50 - Fuel Cell Power - -
Systems Performance
IEC 62282-3-200 ®
Edition 1.0 2011-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Fuel cell technologies –
Part 3-200: Stationary fuel cell power systems – Performance test methods

Technologies des piles à combustible –
Partie 3-200: Systèmes à piles à combustible stationnaires – Méthodes d'essai
des performances
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX XC
ICS 27.070 ISBN 978-2-88912-732-0

– 2 – 62282-3-200  IEC:2011
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 9
3 Terms, definitions and symbols . 11
3.1 Terms and definitions . 11
3.2 Symbols . 15
4 Reference conditions . 18
4.1 General . 18
4.2 Temperature and pressure . 18
4.3 Heating value base . 19
5 Item of performance test . 19
6 Test preparation . 19
6.1 General . 19
6.2 Uncertainty analysis . 20
6.2.1 Uncertainty analysis items . 20
6.2.2 Data acquisition plan . 20
7 Measurement instruments and measurement methods . 20
7.1 General . 20
7.2 Measurement instruments . 20
7.3 Measurement methods . 21
7.3.1 Electric power measurements . 21
7.3.2 Fuel input measurement . 22
7.3.3 Recovered heat measurement . 24
7.3.4 Purge gas flow measurement . 25
7.3.5 Oxidant (air) input measurement . 25
7.3.6 Other fluid flow measurement . 26
7.3.7 Exhaust gas flow measurement . 27
7.3.8 Discharge water measurement . 28
7.3.9 Audible noise level measurement . 29
7.3.10 Vibration level measurement . 29
7.3.11 Total harmonic distortion measurement . 29
7.3.12 Ambient condition measurement . 29
8 Test plan . 30
8.1 General . 30
8.2 Ambient conditions . 30
8.3 Maximum permissible variation in steady-state operating conditions . 31
8.4 Test operating procedure . 32
8.5 Duration of test and frequency of readings . 32
9 Test methods and computation of test results . 32
9.1 General . 32
9.2 Efficiency test . 32
9.2.1 General . 32
9.2.2 Test method . 32
9.2.3 Computation of inputs . 33

62282-3-200  IEC:2011 – 3 –
9.2.4 Computation of output . 42
9.2.5 Computation of efficiencies . 44
9.3 Electric power and thermal power response characteristics test . 44
9.3.1 General . 44
9.3.2 Electric power output response time . 49
9.3.3 Thermal power output response time . 53
9.4 Start-up and shutdown characteristics test . 56
9.5 Purge gas consumption test . 56
9.6 Water consumption test . 57
9.7 Waste heat test . 57
9.8 Exhaust gas emission test . 57
9.8.1 General . 57
9.8.2 Calculation of emissions . 57
9.9 Audible noise level test . 58
9.10 Vibration level test . 58
9.11 Discharge water quality test . 59
10 Test reports . 59
10.1 General . 59
10.2 Title page . 59
10.3 Table of contents . 59
10.4 Summary report . 59
10.5 Detailed report . 60
10.6 Full report . 60
Annex A (normative) Uncertainty analysis . 61
Annex B (normative) Calculation of fuel heating value . 76
Annex C (normative) Reference gas . 79
Bibliography . 82

Figure 1 – Fuel cell power system diagram . 9
Figure 2 – Symbol diagram . 18
Figure 3 – Operating process chart of fuel cell power system . 45
Figure 4 – Net electric and thermal power response time ramp rates . 46
Figure 5 – Example for net electric and thermal power response time ramp rates to
attain stable state . 47
Figure 6 – 90 % response time ramp rates . 48

Table 1 – Symbols . 15
Table 2 – Test classification and test item . 19
Table 3 – Test item and system status . 30
Table 4 – Maximum permissible variations in test operating conditions . 31
Table 5 – Vibration correction factors. 59
Table A.1 – Summary of measurement parameters and their nominal values . 66
Table A.2 – Nominal values of the calculation results. 66
Table A.3 – Elemental error sources for the various parameters . 67
Table A.4 – Absolute systematic uncertainty (B ) and absolute random uncertainty (2S ) . 69
i xi
Table A.5 – Sensitivity coefficients for the parameter P . 71
i
– 4 – 62282-3-200  IEC:2011
Table A.6 – Propagated systematic uncertainty B and random uncertainty 2S . 72
R R
Table A.7 – Total absolute uncertainty of the result U and per cent uncertainty of
R95
U of electric efficiency . 74
R95
Table B.1 – Heating value for component of gaseous fuel . 76
Worksheet 1 – Calculation worksheet for energy of fuel gases . 77
Worksheet 2 – Calculation worksheet for energy of air . 78
Table C.1 – Reference gas for natural gas . 80
Table C.2 – Reference gas for propane gas . 80

62282-3-200  IEC:2011 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FUEL CELL TECHNOLOGIES –
Part 3-200: Stationary fuel cell power systems –
Performance test methods
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62282-3-200 has been prepared by IEC technical committee 105:
Fuel cell technologies.
This first edition of IEC 62282-3-200 cancels and replaces the first edition of IEC 62282-3-2,
published in 2006, and constitutes a technical as well as a structural revision.
The principal changes in this first edition of IEC 62282-3-200 as compared with the first
edition of IEC 62282-3-2 aim to harmonize with ASME PTC-50. They are as follows:
– the equations for efficiency calculation are changed from power-base to average power-
base, which is obtained by dividing energy by test duration;
– the duration of the test and frequency of reading are changed;
– the efficiency test at partial load is no longer mandatory. Whether or not to conduct the
test at partial load should be determined by the parties conducting the tests;

– 6 – 62282-3-200  IEC:2011
– the flow rate measurement method is modified. Both mass flow rate and volume flow rate
are used for calculations of efficiency;
– the thermal energy input and mechanical energy input are incorporated into efficiency
calculations.
The development of an independent standard on performance test methods of small
stationary fuel cell power systems is currently under way (future IEC 62282-3-201). It will be
harmonized with this standard.
The text of this standard is based on the following documents:
FDIS Report on voting
105/340/FDIS 105/349/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 62282 series, published under the general title Fuel cell
technologies, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

62282-3-200  IEC:2011 – 7 –
INTRODUCTION
This part of IEC 62282 describes how to measure the performance of stationary fuel cell
power systems for residential, commercial, agricultural and industrial applications.
The following fuel cell types have been considered:
– alkaline fuel cells (AFC),
– phosphoric acid fuel cells (PAFC),
– polymer electrolyte fuel cells (PEFC),
– molten carbonate fuel cells (MCFC);
– solid oxide fuel cells (SOFC).

– 8 – 62282-3-200  IEC:2011
FUEL CELL TECHNOLOGIES –
Part 3-200: Stationary fuel cell power systems –
Performance test methods
1 Scope
This part of IEC 62282 covers operational and environmental aspects of the stationary fuel
cell power systems performance. The test methods apply as follows:
– power output under specified operating and transient conditions;
– electric and thermal efficiency under specified operating conditions;
– environmental characteristics; for example, gas emissions, noise, etc. under specified
operating and transient conditions.
This standard does not provide coverage for electromagnetic compatibility (EMC).
This standard does not apply to small stationary fuel cell power systems with electric power
output of less than 10 kW which will be dealt with in the future IEC 62282-3-201.
Fuel cell power systems may have different subsystems depending upon types of fuel cell and
applications, and they have different streams of material and energy into and out of them.
However, a common system diagram and boundary has been defined for evaluation of the
fuel cell power system (see Figure 1).
The following conditions are considered in order to determine the test boundary of the fuel
cell power system:
– all energy recovery systems are included within the test boundary;
– all kinds of electric energy storage devices are considered outside the test boundary;
– calculation of the heating value of the input fuel (such as natural gas, propane gas and
pure hydrogen gas, etc.) is based on the conditions of the fuel at the boundary of the fuel
cell power system.
62282-3-200  IEC:2011 – 9 –
Test boundary
Power inputs:
electric, secondary
thermal, shaft work
Recovered heat
Thermal
management
system
Waste heat
Fuel
Fuel
processing
Useable power
Fuel
system
cell electric
Power
module
conditioning
system
Oxidant
Oxidant
processing Water
system treatment
Water Internal power
Discharge
system
needs
water
Inert Gas
Exhaust gases,
ventilation
Automatic
Ventilation
Ventilation
control
system
system
1 EMI
EMD
Noise,
Vibration,
vibration
wind, rain,
temperature
IEC  2330/11
etc.
Key
： Fuel cell power system including subsystems. The interface is defined as a conceptual or
functional one instead of hardware such as a power package.

： Subsystems; fuel cell module, fuel processor, etc. These subsystem configurations depend on
the kind of fuel, type of fuel cell or system.

： The interface points in the boundary to be measured for calculation data.

EMD : electromagnetic disturbance
EMI : electromagnetic interference
Figure 1 – Fuel cell power system diagram
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60051 (all parts), Direct acting indicating analogue electrical measuring instruments and
their accessories
IEC 60359, Electrical and electronic equipment – Expression of performance
IEC 60688, Electrical measuring transducers for converting a.c. electrical quantities to
analogue or digital signals
IEC 61000-4-7, Electromagnetic compatibility (EMC) – Part 4-7: Testing and measurement
techniques – General guide on harmonics and interharmonics measurements and
instrumentation, for power supply systems and equipment connected thereto

– 10 – 62282-3-200  IEC:2011
IEC 61000-4-13, Electromagnetic compatibility (EMC) – Part 4-13: Testing and measurement
techniques – Harmonics and interharmonics including mains signalling at a.c. power port, low
frequency immunity tests
IEC 61028, Electrical measuring instruments – X-Y recorders
IEC 61143 (all parts), Electrical measuring instruments – X-t recorders
IEC 61672-1, Electroacoustics – Sound level meters – Part 1: Specifications
IEC 61672-2, Electroacoustics – Sound level meters – Part 2: Pattern evaluation tests
IEC 62052-11, Electricity metering equipment (AC) – General requirements, tests and test
conditions – Part 11: Metering equipment
IEC 62053-22, Electricity metering equipment (a.c.) – Particular requirements – Part 22: Static
meters for active energy (classes 0,2 S and 0,5 S)
ISO/IEC Guide 98-3, Uncertainty of measurement – Part 3: Guide to the expression of
uncertainty in measurement (GUM:1995)
ISO 3648, Aviation fuels – Estimation of net specific energy
ISO 3744, Acoustics – Determination of sound power levels and sound energy levels of noise
sources using sound pressure – Engineering methods for an essentially free field over a
reflecting plane
ISO 4677-1, Atmospheres for conditioning and testing – Determination of relative humidity –
Part 1: Aspirated psychrometer method
ISO 4677-2, Atmospheres for conditioning and testing – Determination of relative humidity –
Part 2: Whirling psychrometer method
ISO 5167 (all parts), Measurement of fluid flow by means of pressure differential devices
inserted in circular cross-section conduits running full
ISO 5348, Mechanical vibration and shock – Mechanical mounting of accelerometers
ISO 6060, Water quality – Determination of the chemical oxygen demand
ISO 6326 (all parts), Natural gas − Determination of sulfur compounds
ISO 6974 (all parts), Natural gas − Determination of composition with defined uncertainty by
gas chromatography
ISO 6975 (all parts), Natural gas − Extended analysis – Gas chromatographic method
ISO 7934, Stationary source emissions – Determination of the mass concentration of sulfur
dioxide – Hydrogen peroxide/barium perchlorate/Thorin method
ISO 7935, Stationary source emissions – Determination of the mass concentration of sulfur
dioxide – Performance characteristics of automated measuring methods
ISO 8217, Petroleum products – Fuel (class F) − Specifications of marine fuels

62282-3-200  IEC:2011 – 11 –
ISO 9000, Quality management systems – Fundamentals and vocabulary
ISO 9096, Stationary source emissions – Manual determination of mass concentration of
particulate matter
ISO 10101 (all parts), Natural gas − Determination of water by the Karl Fisher method
ISO 10396, Stationary source emissions – Sampling for the automated determination of gas
concentrations for permanently installed monitoring systems
ISO 10523, Water quality – Determination of pH
ISO 10707, Water quality – Evaluation in an aqueous medium of the "ultimate" aerobic
biodegradability of organic compounds – Method by analysis of biochemical oxygen demand
(closed bottle test)
ISO 10780, Stationary source emissions – Measurement of velocity and volume flowrate of
gas streams in ducts
ISO 10849, Stationary source emissions – Determination of the mass concentration of
nitrogen oxides – Performance characteristics of automated measuring systems
ISO 11042-1, Gas turbines – Exhaust gas emission – Part 1: Measurement and evaluation
ISO 11042-2, Gas turbines – Exhaust gas emission – Part 2: Automated emission monitoring
ISO 11541, Natural gas – Determination of water content at high pressure
ISO 11564, Stationary source emissions – Determination of the mass concentration of
nitrogen oxides – Naphthylethylenediamine photometric method
ISO 14687, Hydrogen fuel – Product specification
ISO/TR 15916, Basic consideration for the safety of hydrogen systems
ISO 16622, Meteorology – Sonic anemometer/thermometers – Acceptance test methods for
mean wind measurements
ASTM D4809-00, Standard Test Method for Heat of Combustion of Liquid Hydrocarbon Fuels
by Bomb Calorimeter (Precision Method)
ASTM F2602-08e1, Standard Test Method for Determining the Molar Mass of Chitosan and
Chitosan Salts by Size Exclusion Chromatography with Multi-angle Light Scattering Detection
(SEC-MALS)
ASME PTC 50, Performance Test Code 50 – Fuel Cell Power Systems Performance
3 Terms, definitions and symbols
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

– 12 – 62282-3-200  IEC:2011
3.1.1
audible noise level
sound pressure level produced by a fuel cell power system measured at a specified distance
in all operation modes
NOTE Expressed in decibels (dB) and measured as described in this standard.
3.1.2
auxiliary electric input power
electric power for a parasitic load (3.1.18) supplied from outside the system
3.1.3
background noise level
sound pressure level of ambient noise at the measurement point
NOTE This measurement is taken as described in this standard with the fuel cell power system in the cold state.
3.1.4
background vibration level
mechanical oscillations caused by the environment that affect vibration level readings
NOTE Background vibration is measured with the fuel cell power system in the cold state.
3.1.5
cold state
condition of a fuel cell power system at ambient temperature with no power input or output
3.1.6
discharge water
water that is discharged from the fuel cell power system
3.1.7
electric efficiency (of a fuel cell power system)
ratio of the net electric-power produced by a fuel cell power system to the total energy flow
supplied to the fuel cell power system
NOTE Any electric power that is supplied to a parasitic load of a fuel cell power system from an external source is
deducted from the electric power output of the fuel cell power system.
3.1.8
emission characteristics
concentrations of total sulfur oxides (SO ), total nitrogen oxides (NO ), carbon dioxide (CO ),
x x 2
carbon monoxide (CO), total hydrocarbon compounds and particulate in the exhaust gas
NOTE Measured at the point of discharge to the environment as described in this standard.
3.1.9
fuel cell module
assembly incorporating one or more fuel cell stacks and other main and, if applicable,
additional components, which is intended to be integrated into a power plant or a vehicle
NOTE A fuel cell module is comprised of the following main components: one or more fuel cell stack(s), a piping
system for conveying fuels, oxidants and exhausts, electric connections for the power delivered by the stack(s) and
means for monitoring and/or control. Additionally, a fuel cell module may comprise: means for conveying additional
fluids (e.g. cooling media, inert gas), means for detecting normal and/or abnormal operating conditions, enclosures
or pressure vessels and module ventilation systems.
3.1.10
fuel cell power system
generator system that uses one or more fuel cell module(s) to generate electric power and
heat
62282-3-200  IEC:2011 – 13 –
NOTE A fuel cell power system is composed of all or some of the following subsystems: one or more fuel cell
modules, a fuel processing system, a power conditioning system, a thermal management system, and other
subsystems as needed. A generic fuel cell power system is shown in Figure 1.
3.1.11
fuel input
amount of natural gas, hydrogen, methanol, liquid petroleum gas, propane, butane, or other
material containing chemical energy consumed by the fuel cell power system during specified
operating conditions
3.1.12
heat recovery efficiency (of a fuel cell power system)
ratio of the average recovered thermal power to the average total power input
3.1.13
interface point
measurement point at the boundary of a fuel cell power system at which material and/or
energy either enters or leaves
NOTE This boundary is intentionally selected to accurately measure the performance of the system. If necessary,
the boundary or the interface points of the fuel cell power system (Figure 1) to be assessed should be determined
by agreement among the parties.
3.1.14
minimum power
minimum net power output at which a fuel cell power system is able to operate continuously in
a stable manner
3.1.15
operating temperature
temperature at which fuel cell power system operates and is specified with a measuring point
by the manufacturer
3.1.16
overall energy efficiency (of fuel cell power system)
ratio of total average useable net power output (electric and thermal power) to the average
total power input
3.1.17
oxidant (air) input
amount of oxygen consumed inside the fuel cell module during specified operating conditions
3.1.18
parasitic load
power consumed by auxiliary machines and equipments such as balance of plant (BOP)
necessary to operate a fuel cell power system
3.1.19
power response time
duration between the instant of initiating a change of electric or thermal power output and
when the electric or thermal output power attains the steady state set value within tolerance
3.1.20
90 % power response time
duration between the instant of initiating a change of electric or thermal power output and
when the electric or thermal output power attains 90 % of the desired value
3.1.21
pressure
pressure of gas or liquid measured in the fuel cell power system

– 14 – 62282-3-200  IEC:2011
NOTE ISO recommends using absolute pressure. If gauge pressure is used, it should be so noted.
3.1.22
purge gas consumption
amount of inert gas or dilution gas supplied to the fuel cell power system during specific
conditions to make it ready for operation or shutdown
3.1.23
recovered heat (of a fuel cell power system)
thermal energy recuperated from the fuel cell power system
NOTE The recovered heat is measured by determining the temperatures and flow rates of heat recovery fluid
(water, steam, air or oil, etc.), entering and leaving the thermal energy recovery subsystem at the interface point of
the fuel cell power system.
3.1.24
reference condition
values of influence quantities prescribed for testing the performance of a measuring
instrument, which in this document are 288,15 K (15 °C) for temperature and 101,325 kPa for
pressure
3.1.25
response time to rated power
duration between the instant when the step load change to rated power is initiated and the
first instant when this value is delivered
3.1.26
secondary thermal power
additional heat i
...
