EN 61190-1-3:2007

SLOVENSKI STANDARD
01-oktober-2007
1DGRPHãþD
SIST EN 61190-1-3:2003
3RYH]RYDOQLPDWHULDOL]DHOHNWURQVNHVHVWDYHGHO=DKWHYH]DVSDMNDOQH]OLWLQH
WHU]DVSDMNDOQHåLFHVVSDMNDOQRWHNRþLQRLQEUH]QMH]DXSRUDERYHOHNWURQLNL,(&

Attachment materials for electronic assembly -- Part 1-3: Requirements for electronic
grade solder alloys and fluxed and non-fluxed solid solders for electronic soldering
applications
Verbindungsmaterialien für Baugruppen der Elektronik -- Teil 1-3: Anforderungen an
Elektroniklote und an Festformlote mit oder ohne Flussmittel für das Löten von
Elektronikprodukten
Matériaux de fixation pour les assemblages électroniques -- Partie 1-3: Exigences
relatives aux alliages à braser de catégorie électronique et brasures solides fluxées et
non-fluxées pour les applications de brasage électronique
Ta slovenski standard je istoveten z: EN 61190-1-3:2007
ICS:
25.160.50 Trdo in mehko lotanje Brazing and soldering
31.190 Sestavljeni elektronski Electronic component
elementi assemblies
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61190-1-3
NORME EUROPÉENNE
June 2007
EUROPÄISCHE NORM
ICS 31.190 Supersedes EN 61190-1-3:2002

English version
Attachment materials for electronic assembly -
Part 1-3: Requirements for electronic grade solder alloys
and fluxed and non-fluxed solid solders
for electronic soldering applications
(IEC 61190-1-3:2007)
Matériaux de fixation  Verbindungsmaterialien
pour les assemblages électroniques - für Baugruppen der Elektronik -
Partie 1-3: Exigences relatives Teil 1-3: Anforderungen
aux alliages à braser de catégorie an Elektroniklote und an Festformlote
électronique et brasures solides mit oder ohne Flussmittel
fluxées et non-fluxées pour les für das Löten von Elektronikprodukten
applications de brasage électronique (IEC 61190-1-3:2007)
(CEI 61190-1-3:2007)
This European Standard was approved by CENELEC on 2007-05-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2007 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61190-1-3:2007 E

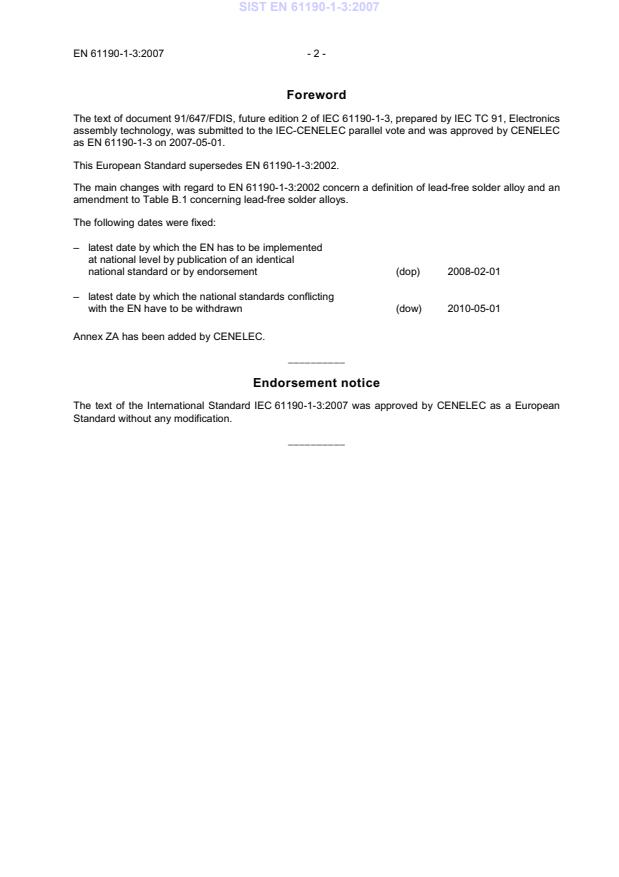

Foreword
The text of document 91/647/FDIS, future edition 2 of IEC 61190-1-3, prepared by IEC TC 91, Electronics
assembly technology, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC
as EN 61190-1-3 on 2007-05-01.
This European Standard supersedes EN 61190-1-3:2002.
The main changes with regard to EN 61190-1-3:2002 concern a definition of lead-free solder alloy and an
amendment to Table B.1 concerning lead-free solder alloys.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2008-02-01
national standard or by endorsement
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2010-05-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61190-1-3:2007 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 61190-1-3:2007
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

1) 2)
IEC 60194 - Printed board design, manufacture and EN 60194 2006
assembly - Terms and definitions

1) 2)
IEC 61189-5 - Test methods for electrical materials, EN 61189-5 2006
interconnection structures and assemblies -
Part 5: Test methods for printed board
assemblies
1) 2)
IEC 61189-6 - Test methods for electrical materials, EN 61189-6 2006
interconnection structures and assemblies -
Part 6: Test methods for materials used in
manufacturing electronic assemblies

IEC 61190-1-1 2002 Attachment materials for electronic EN 61190-1-1 2002
assembly -
Part 1-1: Requirements for soldering fluxes
for high-quality interconnections in electronics
assembly
1) 2)
IEC 61190-1-2 - Attachment materials for electronic EN 61190-1-2 2007
assembly -
Part 1-2: Requirements for soldering pastes
for high-quality interconnects in electronics
assembly
1) 2)
ISO 9001 - Quality systems - Model for quality assurance EN ISO 9001 2000
in design/ development, production,
installation and servicing
1) 2)
ISO 9453 - Soft solder alloys - Chemical compositions EN ISO 9453 2006
and forms
ISO 9454-1 1990 Soft soldering fluxes - Classification and EN 29454-1 1993
requirements -
Part 1: Classification, labelling and packaging

ISO 9454-2 1998 Soft soldering fluxes - Classification and EN ISO 9454-2 2000
requirements -
Part 2: Performance requirements

1)
Undated reference.
2)
Valid edition at date of issue.

INTERNATIONAL IEC
STANDARD 61190-1-3
Second edition
2007-04
Attachment materials for electronic assembly –
Part 1-3:
Requirements for electronic grade solder alloys
and fluxed and non-fluxed solid solders
for electronic soldering applications

PRICE CODE
Commission Electrotechnique Internationale V
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue

– 2 – 61190-1-3 © IEC:2007(E)
CONTENTS
FOREWORD.4

1 Scope.6
2 Normative references.6
3 Terms and definitions .6
4 Classification .8
4.1 Alloy composition.8
4.2 Solder form .8
4.3 Flux type .9
4.4 Flux percentage and metal content .10
4.5 Other characteristics.11
5 Requirements .11
5.1 Materials .11
5.2 Alloys .11
5.3 Solder forms.12
5.4 Flux type and form.13
5.5 Flux residue dryness.14
5.6 Spitting.14
5.7 Solder pool .14
5.8 Labelling for product identification.14
5.9 Workmanship .14
6 Quality assurance provisions.15
6.1 Responsibility for inspection and compliance.15
6.2 Classification of inspections.15
6.3 Materials inspection.20
6.4 Qualification inspections .20
6.5 Quality conformance.21
6.6 Preparation of solder alloy for test.21
7 Preparation for delivery – Preservation, packing and packaging.21

Annex A (informative) Selection of various alloys and fluxes for use in electronic
soldering – General information concerning IEC 61190-1-3.22
Annex B (normative) Lead-free solder alloys.26

Figure 1 – Report form for solder alloy tests .16
Figure 2 – Report form for solder powder tests .17
Figure 3 – Report form for non-fluxed solder tests .18
Figure 4 – Report form for fluxed wire/ribbon solder tests .19

Table 1 – Solder materials.8
Table 2 – Flux types and designating symbols .10
Table 3 – Flux percentage.11
Table 4 – Standard solder powders .13

61190-1-3 © IEC:2007(E) – 3 –
Table 5 – Solder inspections .20
a, b
Table B.1 – Composition, and temperature characteristics of lead-free solder alloys .26
a, b
Table B.2 – Composition and temperature characteristics of common tin-lead alloys .28
Table B.3 – Composition and temperature characteristics for specialty (non-tin/lead)
a,b
alloys .30
Table B.4 – Cross reference from solidus and liquidus temperatures to alloy names by
a
temperature .31
Table B.5 – Cross-reference from ISO 9453 alloy numbers and designations to
IEC 61190-1-3 alloy names .34

– 4 – 61190-1-3 © IEC:2007(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
ATTACHMENT MATERIALS FOR ELECTRONIC ASSEMBLY –

Part 1-3: Requirements for electronic grade solder alloys and
fluxed and non-fluxed solid solders for electronic soldering applications

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
The International Electrotechnical Commission (IEC) draws attention to the fact that it is claimed that compliance
with this document may involve the use of a patent concerning in particular alloy compositions. IEC takes no
position concerning the evidence, validity and scope of this patent right.
The holder of this patent right has assured the IEC that he/she is willing to negotiate licences under reasonable and
non-discriminatory terms and conditions with applicants throughout the world. In this respect, the statement of the
holder of this patent right is registered with IEC. Information may be obtained from:

For Sn96Ag2,5Bi1Cu,5:
US PAT No. 4879096
Cookson Electronics Assembly Materials
600 Route 440 Jersey City,New Jersey 07304

For Sn96,5Ag3Cu,5, Sn95,8Ag3,5Cu,7 and Sn95,5Ag3,8Cu,7:
US PAT No. 5527628
Iowa State University Research Foundation, Inc.
310 Lab of Mechanics
Ames, Iowa 50011-2131, U.S.A.
61190-1-3 © IEC:2007(E) – 5 –
For Sn88In8Ag3,5Bi,5:
JP PAT No. 3040929
For Sn96,5Ag3Cu,5, Sn95,8Ag3,5Cu,7 and Sn95,5Ag3,8Cu,7:
JP PAT No. 3027441
Matsushita Electric Industrial Co., Ltd.
Matsushita IMP Building 20F 1-3-7, Shiromi, Chouh-ku, Osaka, 540-6319, Japan

For Sn92In4Ag3,5Bi,5
JP PAT No. 2805595
Mitsui Mining & Smelting Co., Ltd.
Gate City Ohsaki-West Tower 19th Fl. 1-11-1 Osaki, Shinagawa-ku, Tokyo, 141-8584, Japan

For Sn96,5Ag3Cu,5, Sn95,8Ag3,5Cu,7, Sn95,5Ag3,8Cu,7 and Sn95,5Ag4,0Cu,5
JP PAT No. 3027441
Senju Metal Industry Co., Ltd.
Senju Hashido-cho 23, Adachi-ku, Tokyo, 120-8555, Japan

NOTE Patent rights vary between country of manufacture, sale, use and final destination; suppliers or users
remain responsible for establishing the exact legal position relevant to their own situation.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights
other than those identified above. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61190-1-3 has been prepared by IEC technical committee 91:
Electronics assembly technology.
This second edition cancels and replaces the first edition, published in 2002, and constitutes a
technical revision. The main changes with regard to the first edition concern a definition of
lead-free solder alloy and an amendment to Table B.1 concerning lead-free solder alloys.
The text of this standard is based on the following documents:
FDIS Report on voting
91/647/FDIS 91/679/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 61190 series, under the general title Attachment materials for
electronic assembly, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

– 6 – 61190-1-3 © IEC:2007(E)
ATTACHMENT MATERIALS FOR ELECTRONIC ASSEMBLY –

Part 1-3: Requirements for electronic grade solder alloys and
fluxed and non-fluxed solid solders for electronic soldering applications

1 Scope
This part of IEC 61190 prescribes the requirements and test methods for electronic grade
solder alloys, for fluxed and non-fluxed bar, ribbon, powder solders and solder paste, for
electronic soldering applications and for “special” electronic grade solders. For the generic
specifications of solder alloys and fluxes, see ISO 9453, ISO 9454-1 and ISO 9454-2. This
standard is a quality control document and is not intended to relate directly to the material's
performance in the manufacturing process
Special electronic grade solders include all solders which do not fully comply with the
requirements of standard solder alloys and solder materials listed herein. Examples of special
solders include anodes, ingots, preforms, bars with hook and eye ends, multiple-alloy solder
powders, etc.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
IEC 60194, Printed board design, manufacture and assembly – Terms and definitions
IEC 61190-1-1:2002, Attachment materials for electronic assembly – Part 1-1: Requirements
for soldering fluxes for high-quality interconnects in electronics assembly
IEC 61190-1-2, Attachment materials for electronic assembly – Part 1-2: Requirements for
solder pastes for high-quality interconnections in electronics assembly

IEC 61189-5, Test methods for electrical materials, interconnection structures and assemblies –
Part 5: Test methods for printed board assemblies
IEC 61189-6, Test methods for electrical materials, interconnection structures and assemblies –
Part 6: Test methods for materials used in manufacturing electronic assemblies
ISO 9001, Quality management systems – Requirements
ISO 9453, Soft solder alloys – Chemical compositions and forms
ISO-9454-1:1990, Soft soldering fluxes – Classification and requirements – Part 1: Classifi-
cation, labelling and packing
ISO-9454-2:1998, Soft soldering fluxes – Classification and requirements – Part 2: Perform-
ance requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60194, as well as the
following apply. Terms marked with an asterisk (*) are taken from IEC 60194 and are reprinted
here for convenience.
61190-1-3 © IEC:2007(E) – 7 –
3.1
acceptance tests *
those tests deemed necessary to determine the acceptability of a product and as agreed to by
both purchaser and vendor
3.2
alloy
substance having metallic properties and being composed of two or more chemical elements of
which at least one is an elemental metal
3.3
basis metal *
metal upon which coatings are deposited, also referred to as base metal
3.4
corrosion (chemical/electrolytic) *
attack of chemicals, flux, and flux residues on base metals
3.5
density (phototool) *
mass of a surface per unit volume, usually expressed in grams per cubic centimetre
3.6
dewetting *
condition that results when molten solder coats a surface and then recedes to leave irregularly
shaped mounds of solder that are separated by areas that are covered with a thin film of solder
and with the basis metal not exposed
3.7
eutectic (n.) *
alloy having the composition indicated by the eutectic point on an equilibrium diagram or an
alloy structure of intermixed solid constituents formed by a eutectic reaction
3.8
eutectic (adj.) *
isothermal reversible reaction in which, on cooling, a liquid solution is converted into two or
more intimately mixed solids, with the number of solids formed being the same as the number
of components
3.9
flux *
chemically - and physically-active compound that, when heated, promotes the wetting of a base
metal surface by molten solder by removing minor surface oxidation and other surface films
and by protecting the surfaces from reoxidation during a soldering operation
3.10
flux characterization *
series of tests that determines the basic corrosive and conductive properties of fluxes and flux
residues
3.11
flux residue *
flux-related contaminant that is present on or near the surface of a solder connection
3.12
liquidus
temperature at which a solder alloy changes from a paste form to a liquid form

– 8 – 61190-1-3 © IEC:2007(E)
3.13
nonwetting (solder) *
partial adherence of molten solder to a surface that it has contacted and where basis metal
remains exposed
3.14
lead-free solder
solder alloy the lead content of which h is equal to, or less than 0,10 % by mass
3.15
solder *
metal alloy with a melting temperature that is below 450 °C.
NOTE Metal alloy with a melting temperature less than 450 °C is classified as “soft solder”.
3.16
solderability *
ability of a metal to be wetted by molten solder
3.17
solidus
temperature at which a solder alloy changes from a solid to a paste form
3.18
wetting, solder *
formation of a relatively uniform, smooth, unbroken, and adherent film of solder to a basis
metal.
4 Classification
Soldering materials covered by this standard shall be classified by alloy composition, solder
form, flux type, flux percentage and by other characteristics peculiar to the solder material form.
4.1 Alloy composition
The solder alloys covered by this standard are the alloys listed in Tables B.1, B.2 and B.3 and
include pure tin and pure indium. Each alloy is identified by an alloy name composed of a
series of alphanumeric characters. These characters identify the component elements in the
alloy by chemical symbol and nominal percentage by mass. They terminate with an arbitrarily
assigned alloy variation letter (A, B, C, D). Alloys are also identified by an alloy short name.
This is an alphanumeric designation composed of the chemical symbol for the key element in
the alloy (see Clause A.4), the nominal percentage of that element in the alloy and the
arbitrarily assigned alloy variation letter.
Tables B.1, B.2 and B.3 identify alloy composition, short name and temperature characteristics;
Table B.4 cross-references solidus and liquidus temperatures to alloy names and Table B.5
cross-references ISO alloy numbers and designations from ISO 9453 to alloy names.
4.2 Solder form
Table 1 shows the forms of solder materials covered by this standard listed with their single-
letter designating symbols.
Table 1 – Solder materials
Identifying symbol Solder form
F Flux (only)
61190-1-3 © IEC:2007(E) – 9 –
P Paste (cream)
B Bar
D Powder
R Ribbon
W Wire
S Special
4.3 Flux type
The flux types used in/on solders covered by this standard are listed in Table 2. The
requirements for fluxes are covered by IEC 61190-1-1.

– 10 – 61190-1-3 © IEC:2007(E)
Table 2 – Flux types and designating symbols
Flux materials Flux activity levels IEC flux ISO flux
a c d
of composition designator designator
b
wt. % halide
Rosin Low (<0,01) L0 ROL0 1.1.1
(RO) Low (<0,15) L1 ROL1 1.1.2.W, 1.1.2.X
Moderate (<0,01) M0 ROM0 1.1.3.W
Moderate (0,15–2,0) M1 ROM1 1.1.2.Y, 1.1.2.Z
High (<0,01) H0 ROH0 1.1.3.X
High (>2,0) H1 ROH1 1.1.2.Z
Resin Low (<0,01) L0 REL0 1.2.1
(RE) Low (<0,15) L1 REL1 1.2.2.W, 1.2.2.X
Moderate (<0,01) M0 REM0 1.2.3.W
Moderate (0, 15 – 2,0) M1 REM1 1.2.2.Y, 1.2.2.Z
High (<0,01) H0 REH0 1.2.3.X
High (>2,0) H1 REH1 1.2.2.Z
Organic Low (<0,01) L0 ORL0 2.1., 2.2.3.E
(OR) Low (<0, 15) L1 ORL1 -
Moderate (<0,01) M0 ORM0 -
Moderate (0, 15 – 2,0) M1 ORM1 2.1.2, 2.2.2
High (<0,01) H0 ORH0 2.2.3.0
High (>2,0) H1 ORH1 2.2.2
Inorganic Low (<0,01) L0 INL0 Not applicable
(IN) Low (<0, 15) L1 INL1 (inorganic ISO flux is
different)
Moderate (<0,01) M0 INM0
Moderate (0, 15 – 2,0) M1 INM1
High (<0,01) H0 INH0
High (>2,0) H1 INH1
a
Fluxes are available in S (solid), P (paste/cream) or L (liquid) forms.
b
See 7.1 and 7.2 of IEC 61190-1-1 for comparisons of RO, RE, OR and IN composition classes and L, M and H
activity levels with the traditional classes such as R, RMA, RA, water soluble and low solids ”no-clean.''.
c
The 0 and 1 indicate absence and presence of halides, respectively. See 4.2.3 of IEC 61190-1-1 for an
explanation of L, M and H nomenclature.
d
ISO designations are similar to IEC designators with minor differences in characteristics

4.4 Flux percentage and metal content
The nominal percentage of flux, by mass, in solid-form solder products is identified as the flux
percentage. The flux percentage in/on solid solders is identified by a single alphanumeric
character in accordance with Table 3. “Metal content” refers to the percentage of metal in
solder paste (see IEC 61190-1-2).

61190-1-3 © IEC:2007(E) – 11 –
Table 3 – Flux percentage
Design Nominal Allowable Design Nominal Allowable Design Allowable
Nominal
symbol  range symbol  range symbol range
% % % % % %
0 None 5 2,5 2,2 – 2,8 A 5,0 4,7 – 5,3
1 0,5 0,2 – 0,8 6 3,0 2,7 – 3,3 B 5,5 5,2 – 5,8
2 1,0 0,7 – 1,3 7 3,5 3,2 – 3,8 C 6,0 5,7 – 6,3
3 1,5 1,2 – 1,8 8 4,0 3,7 – 4,3 D 6,5 6,2 – 6,8
4 2,0 1,7 – 2,3 9 4,5 4,2 – 4,8

4.5 Other characteristics
Standard bar solders are further classified by unit mass. Wire solders are further classified by
wire size (outside diameter) and unit mass. Ribbon solders are further classified by thickness,
width and unit mass. Powder solders are further classified by powder particle size distribution
and unit mass.
5 Requirements
5.1 Materials
Materials shall be used which permit the solder product to conform to the specified
requirements. The use of recovered or recycled materials is encouraged. Recovered or
recycled materials shall conform to or exceed comparable standards for virgin raw materials.
5.2 Alloys
The solder alloy shall be as specified (see Annex B). For the purposes of this standard,
electronic grade solder alloys are all those listed in Tables B.1, B.2 and B.3, including pure tin
(Sn99) and pure indium (In99). The elements listed in Tables B.1, B.2 and B.3 for an alloy are
considered to be the component elements of that alloy. Only the component elements of an
alloy are desirable and all other elements are impurities for that alloy. To the maximum extent
feasible and unless otherwise specified, solder alloy metal, including solder powder, shall be a
homogenous mixture of the component elements of the alloy, such that each particle of the
metal is the same alloy. Unless otherwise specified, the percentage by mass of impurity
elements in alloys which are identified with an “A”, “B”, or “C” suffix shall not exceed the
following values and the values listed in 5.2.1, 5.2.2, and 5.2.3 respectively, and the
percentage by mass of impurity elements in alloys which are identified with a “D” suffix shall
conform to the requirements in 5.2.4.
Ag: 0,05 Au: 0,05 Cu: 0,05 Ni: 0,01 Sn: 0,25
Al: 0,001 Bi: 0,10 Fe: 0,02 Pb: 0,10 Zn: 0,001
As: 0,03 Cd: 0,002 In: 0,10
The percentage of each element in an alloy shall be determined by any standard analytical
procedure. Wet chemistry shall be used as the referee procedure.
5.2.1 Variation A alloys
In alloys which are identified with an “A” suffix, the percentage by mass of antimony (Sb) as an
impurity element shall not exceed 0,50.

– 12 – 61190-1-3 © IEC:2007(E)
5.2.2 Variation B alloys
In alloys which are identified with a “B” suffix, the percentage by mass of antimony as an
impurity element shall not exceed 0,20.
5.2.3 Variation C alloys
In alloys which are identified with a “C” suffix, the percentage by mass of antimony as an
impurity element shall not exceed 0,05.
5.2.4 Variation D alloys
Alloys identified with a “D” suffix are ultra-pure alloys that are intended for use in barrier-free
die attachment applications. In alloys identified with a “D” suffix, the combined total percentage
by mass of all impurity elements shall not exceed 0,05 and the combined total percentage by
mass of each of the following sets of impurity elements shall not exceed 0,000 5:
Set 1: Be, Hg, Mg, and Zn. Set 2: As, Bi, P, and Sb.
5.3 Solder forms
This standard covers solders in the form of bars, wires, ribbons, and powders, and special
solders. Normally bar solders and solder powder are not fluxed, and wire, ribbon, and special
solders may be non-fluxed, flux-cored, flux-coated, or both flux-cored and flux-coated. Users
should determine from prospective sources the standard solder form characteristics that are
available and should specify standard characteristics to the maximum extent feasible.
5.3.1 Bar solder
The nominal cross-section area, the nominal length, and the nominal mass shall be as
specified (see Clause A.2 c)). Unless otherwise specified (see Clause A.2 d)), the actual cross-
section area shall not vary from the nominal value by more than 50 %, the actual length shall
not vary from the nominal value by more than 20 %, and the actual mass shall not vary from
the nominal value by more than 10 %. Bars with special end configurations, such as hooks or
eyes, are classified as special solders.
5.3.2 Wire solder
The wire size, flux type, and flux percentage shall be as specified (see Clause A.2 e)). Unless
otherwise specified (see Clause A.2f)), wire solders shall have a circular cross-section, the
wire size shall indicate the nominal outside diameter of the wire and the actual outside
diameter shall not vary from the nominal diameter by more than ±5 % or ±0,05 mm, whichever
is greater.
5.3.3 Ribbon solder
The ribbon thickness and width, flux type, and flux percentage shall be as specified (see
Clause A.2 g)). Unless otherwise specified (see Clause A.2 h)), ribbon solders shall have a
rectangular cross-section, and the actual thickness and width shall not vary from their nominal
values by more than ±5 % or ±0,05 mm, whichever is greater.
5.3.4 Solder powder
The powder size and shape shall be as specified (see Clauses A.2 i)) and A.2 j)). The
characteristics of six standard solder powders, sizes 1 through 6, are listed in Table 4. When
shape is not specified, solder powder shall be spherical. Solder powder shall be smooth and
bright and free of adhering small particles and oxides to the maximum extent possible.
NOTE Solder powders made with high-lead alloys are not “bright” by nature, but they should not appear unusually
dark. Solder powders which contain more than one solder alloy (multiple-alloy powders) are classified as special
solders.
61190-1-3 © IEC:2007(E) – 13 –
Table 4 – Standard solder powders
Powder Percentages of powder by mass
size
None larger Less than 1 % At least 80 % At least 90 % Less than 10 %
symbol
than larger than between between smaller than
μm μm μm μm μm
1 160 150 150 – 75  20
2 80 75 75 – 45  20
3 50 45 45 – 25  20
4 40 38  38 – 20 20
5 28 25  25 – 15 15
6 18 15  15 – 5 5
5.3.4.1 Powder size
Maximum particle size shall be determined in accordance with IEC 61189-6, Test method 6X04.
Powder particle size distribution shall be determined in accordance with IEC 61189-6, Test
methods 6X01, 6X02 or 6X03.
5.3.4.2 Powder shape
Solder powder shape shall be determined by visual observation using a binocular microscope
with sufficient magnification, by the light beam scatter method, or by a suitable microscopic
imaging analysis method. Solder powders visually determined to have at least 90 % of the
particles with a length to width ratio of 1:2 or less shall be classified as spherical powders.
Solder powders having a light beam scatter deviation result or an image analysis result that is
equivalent to the above visual results shall be classified as spherical powders. All other
powders shall be classified as non-spherical.
5.3.5 Special solder
All pertinent characteristics and tolerances for special form solders shall be specified (see
Clause A.2 k)). Special solders include all solders which do not fully conform to another solder
classification identified herein or in IEC 61190-1-2. Special solders include, but are not
necessarily limited to, anodes, bars with hook or eye ends, chips, ingots, multiple-alloy
powders, pellets, preforms, rings, sleeves, etc.
5.4 Flux type and form
The flux type and form shall be as specified (see Clause A.2 l)). Fluxes used in the
manufacture of solder products shall conform to the requirements of IEC 61190-1-1. Fluxes
shall have been fully tested and characterized in accordance with IEC 61190-1-1, and shall
have not been altered since being tested except for the addition of inert plasticizers.
5.4.1 Flux percentage
The percentage by mass of flux in/on solders shall be as specified (see Clause A.2 m)). For
fluxed solders other than solder paste, the flux percentage is identified in accordance with
Table 3. The flux percentage of flux-coated and/or flux-cored solder shall be determined in
accordance with IEC 61189-6, Test method 6C09.
5.4.2 Solder cores
Unless otherwise specified (see Clause A.2 n)), the core(s) of flux-cored solders may be of any
construction, provided it is (they are) continuous, uniform in cross-section, and symmetrically
disposed in the solder. When appropriate, the core(s) in the solder should be sealed at both
ends by a suitable means to prevent flux from leaking out.

– 14 – 61190-1-3 © IEC:2007(E)
5.4.3 Solder coatings
Unless otherwise specified (see Clause A.2 o)), the coatings on flux-coated solders shall be
dry and tack-free such that individual pieces do not stick together when the temperature and
humidity are maintained at, or below, 25 °C and 60 % RH.
5.5 Flux residue dryness
When specified (see Clause A.2 p)), the dryness characteristics of the reflowed residue of
fluxed solders shall be determined in accordance with IEC 61189-5, Test method 5X12. When
a fluxed solder is tested in accordance with Test method 5X12, the flux residue of “no-clean”
solders and, when specified, other flux type solders, shall be free of tackiness (‘not tacky’).
5.6 Spitting
When specified (see Clause A.2q)), the spitting characteristics of flux-cored wire and ribbon
solders shall be determined in accordance with IEC 61189-5, Test method 5X13.
5.7 Solder pool
When specified (see Clause A.2 r)), the solder pool characteristics of fluxed solder shall be
determined in accordance with IEC 61189-5, Test method 5X14. When fluxed solder is tested
in accordance with test method 5X14, the flux shall promote the spreading of molten solder
over the coupon to form integrally thereon a coat of solder which shall feather out to a thin
edge. There shall be no evidence of dewetting or nonwetting. Neither shall there be any
evidence of spattering, as indicated by the presence of flux and/or flux residue particles outside
the main pool of residue. Irregularly shaped solder pools do not necessarily indicate dewetting
or nonwetting.
5.8 Labelling for product identification
Unless otherwise specified (see Clause A.2 s)), solder bars shall be marked with the alloy
name or alloy short name and the manufacturer's name or commonly accepted symbol. Unless
otherwise specified, spools, packages, and containers of wire, ribbon, and powder solders, and
written documentation accompanying bar and special solders shall be marked with the
following information.
a) the manufacturer's name and address;
b) the number and revision designation of this standard;
c) the solder product description, and the manufacturer's designation of the solder product;
d) the net mass of the solder (and nominal unit mass of bar solder);
e) the batch number(s);
f) the date(s) of manufacture;
g) expected useful life of solder product, if applicable;
h) all applicable health and safety markings including lead free marking or lead containing
marking;
i) any other information which may be pertinent to the particular solder form;
j) any other markings or labelling specified in the contract or purchase order.
5.9 Workmanship
Solder products shall be made uniform in quality and free from defects which limit service life
or affect the serviceability or appearance.

61190-1-3 © IEC:2007(E) – 15 –
6 Quality assurance provisions
6.1 Responsibility for inspection and compliance
The user shall specify the qualification and quality conformance inspections (see Clause A.2 t)).
The solder product manufacturer is responsible for the performance of qualification and quality
conformance inspections. The manufacturer may use his own or any other facility for the
performance of these inspections, unless the facility is disapproved by the user.
It is the responsibility of the manufacturer to ascertain that all solder products or supplies
delivered to the user, or submitted for user acceptance, conform to the requirements of the
contract or purchase order and Clause 5 above. The absence of any inspection requirements
shall not relieve the vendor of this responsibility.
Materials covered by this specification shall meet all the requirements of Clause 5. The
inspection(s) excluding the performance inspections defined in this specification shall become
a part of the contractor's overall inspection system or quality programme. The vendor has
responsibility for ensuring that all products or supplies submitted to the user for acceptance
comply with all requirements of the purchase order contract.
6.1.1 Quality assurance programme
When required by the user, a quality assurance programme for material furnished under this
specification shall be established and maintained in accordance with ISO 9001, or as otherwise
agreed on between user and manufacturer, and shall be monitored by the qualifying activity.
6.1.2 Test equipment and inspection facilities
Test/measuring equipment and inspection facilities of sufficient accuracy, quality and quantity
to permit performance of the required inspection(s) shall be established and maintained or
designated by the supplier. Establishment and maintenance of a calibration system to control
the accuracy of the measuring and test equipment shall be in accordance with the general
requirements of IEC 61189-5 and IEC 61189-6, as appropriate.
6.1.3 Inspection conditions
Unless otherwise specified, all inspections shall be performed in accordance with the test
conditions specified in Clause 5.
6.2 Classification of inspections
The inspections specified in this standard are classified as follows:
a) materials inspection (6.3);
b) qualification inspection (6.4);
c) quality conformance (6.5).
Figures 1 through 4 are suitable for, and recommended for, recording the results of alloy and of
solid form solder inspections. Where applicable, definitive results should be entered on the
report forms. Where definitive results are not required or appropriate, successful completion of
inspections should be indicated by check marks on the report forms.

– 16 – 61190-1-3 © IEC:2007(E)
Test report on solder alloy (for suffix A, B, and C alloys)
Enter appropriate information in top portion and requirements columns of report and complete
report by entering the test results or checkmarks in the appropriate spaces.
Alloy designation: _______________________________________________________________
Manufacturer's identification: ______________________________________________________
Manufacturer's batch number: _____________________________________________________
Date of manufacture: ____________________________________________________________
...
