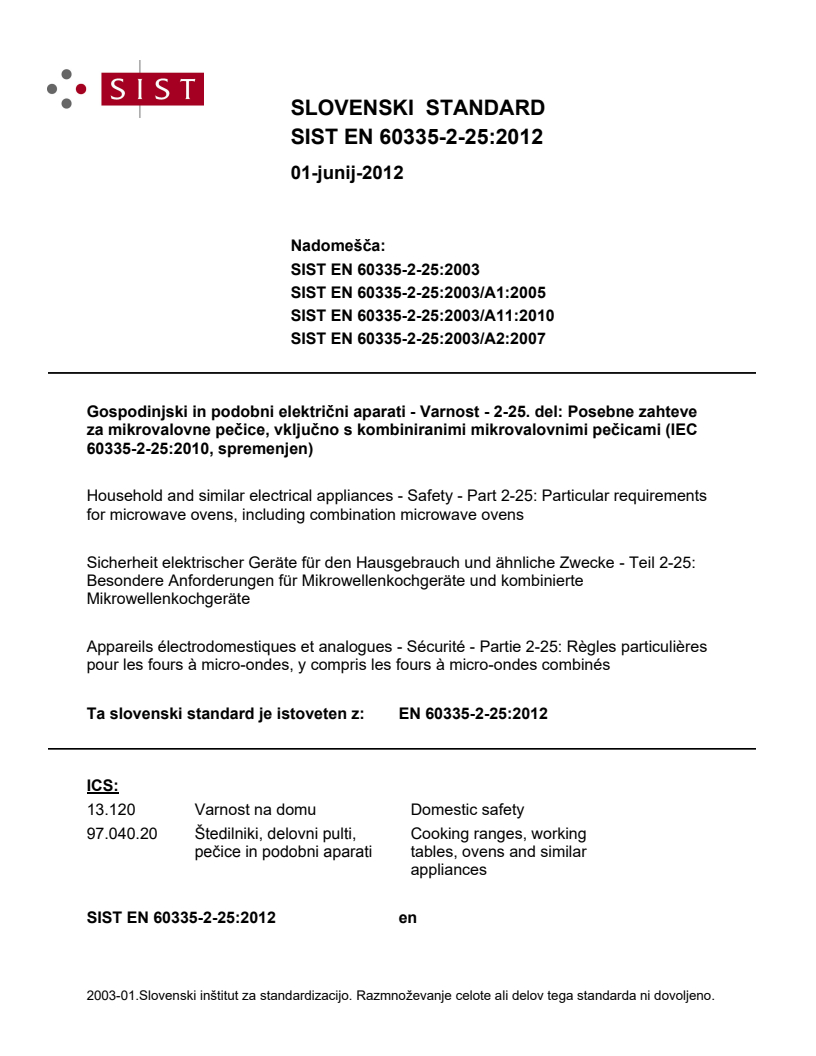

EN 60335-2-25:2012

SLOVENSKI STANDARD
01-junij-2012
1DGRPHãþD
SIST EN 60335-2-25:2003
SIST EN 60335-2-25:2003/A1:2005
SIST EN 60335-2-25:2003/A11:2010
SIST EN 60335-2-25:2003/A2:2007
*RVSRGLQMVNLLQSRGREQLHOHNWULþQLDSDUDWL9DUQRVWGHO3RVHEQH]DKWHYH
]DPLNURYDORYQHSHþLFHYNOMXþQRVNRPELQLUDQLPLPLNURYDORYQLPLSHþLFDPL,(&
VSUHPHQMHQ
Household and similar electrical appliances - Safety - Part 2-25: Particular requirements
for microwave ovens, including combination microwave ovens
Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-25:
Besondere Anforderungen für Mikrowellenkochgeräte und kombinierte
Mikrowellenkochgeräte
Appareils électrodomestiques et analogues - Sécurité - Partie 2-25: Règles particulières
pour les fours à micro-ondes, y compris les fours à micro-ondes combinés
Ta slovenski standard je istoveten z: EN 60335-2-25:2012
ICS:
13.120 Varnost na domu Domestic safety
97.040.20 âWHGLOQLNLGHORYQLSXOWL Cooking ranges, working
SHþLFHLQSRGREQLDSDUDWL tables, ovens and similar
appliances
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

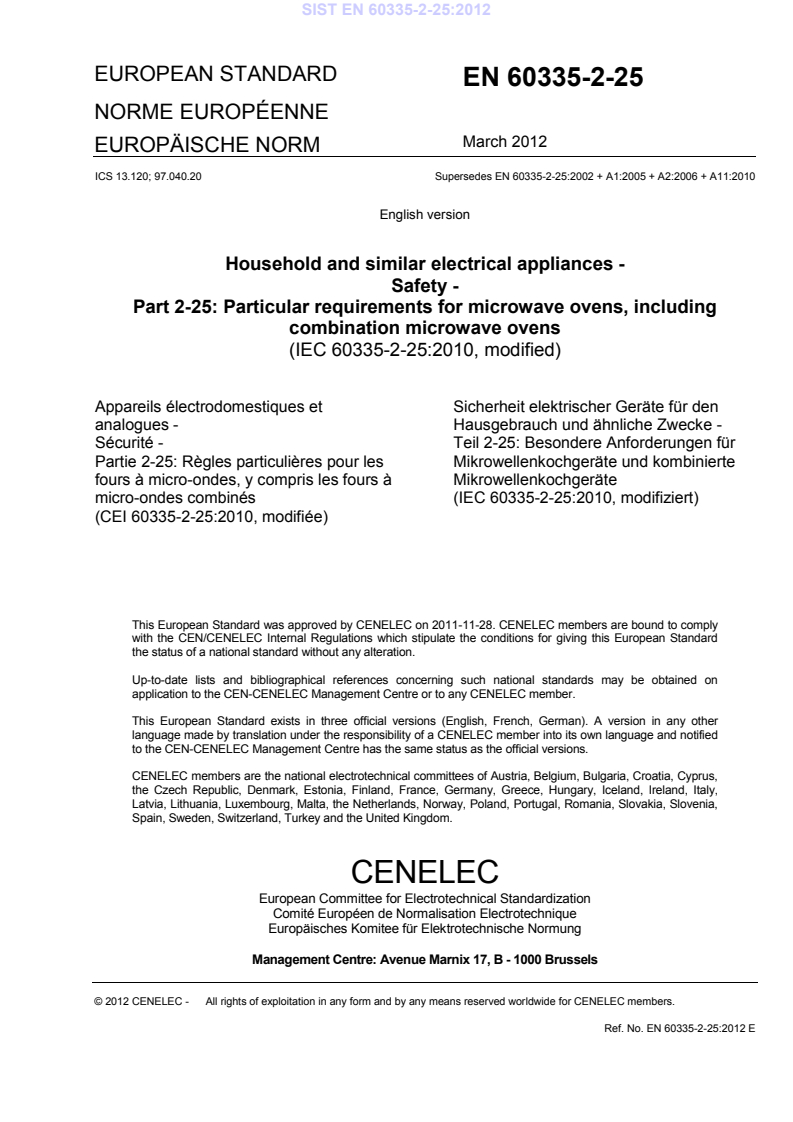

EUROPEAN STANDARD
EN 60335-2-25
NORME EUROPÉENNE
March 2012
EUROPÄISCHE NORM
ICS 13.120; 97.040.20 Supersedes EN 60335-2-25:2002 + A1:2005 + A2:2006 + A11:2010

English version
Household and similar electrical appliances -
Safety -
Part 2-25: Particular requirements for microwave ovens, including
combination microwave ovens
(IEC 60335-2-25:2010, modified)

Appareils électrodomestiques et Sicherheit elektrischer Geräte für den
analogues - Hausgebrauch und ähnliche Zwecke -
Sécurité - Teil 2-25: Besondere Anforderungen für
Partie 2-25: Règles particulières pour les Mikrowellenkochgeräte und kombinierte
fours à micro-ondes, y compris les fours à Mikrowellenkochgeräte
micro-ondes combinés (IEC 60335-2-25:2010, modifiziert)
(CEI 60335-2-25:2010, modifiée)

This European Standard was approved by CENELEC on 2011-11-28. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60335-2-25:2012 E

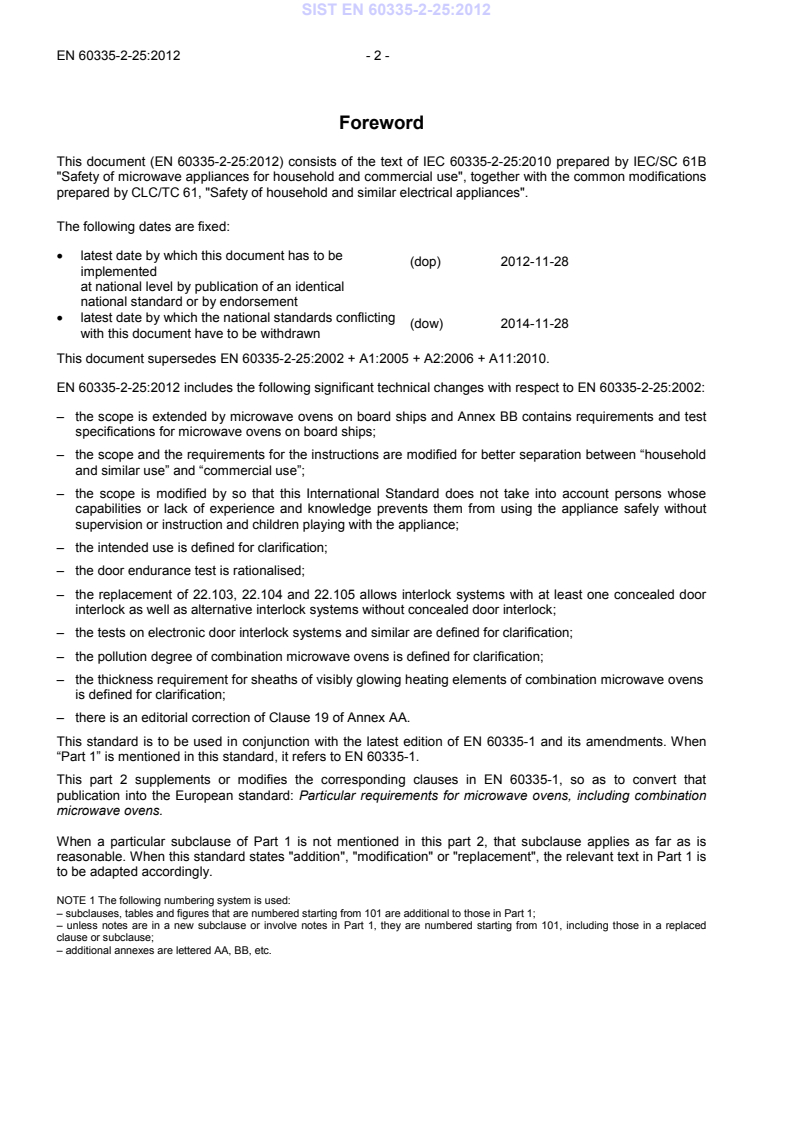

Foreword
This document (EN 60335-2-25:2012) consists of the text of IEC 60335-2-25:2010 prepared by IEC/SC 61B
"Safety of microwave appliances for household and commercial use", together with the common modifications
prepared by CLC/TC 61, "Safety of household and similar electrical appliances".
The following dates are fixed:
• latest date by which this document has to be
(dop) 2012-11-28
implemented
at national level by publication of an identical
national standard or by endorsement
• latest date by which the national standards conflicting
(dow) 2014-11-28
with this document have to be withdrawn
This document supersedes EN 60335-2-25:2002 + A1:2005 + A2:2006 + A11:2010.
– the scope is extended by microwave ovens on board ships and Annex BB contains requirements and test
specifications for microwave ovens on board ships;
– the scope and the requirements for the instructions are modified for better separation between “household
and similar use” and “commercial use”;
– the scope is modified by so that this International Standard does not take into account persons whose
capabilities or lack of experience and knowledge prevents them from using the appliance safely without
supervision or instruction and children playing with the appliance;
– the intended use is defined for clarification;
– the door endurance test is rationalised;
– the replacement of 22.103, 22.104 and 22.105 allows interlock systems with at least one concealed door
interlock as well as alternative interlock systems without concealed door interlock;
– the tests on electronic door interlock systems and similar are defined for clarification;
– the pollution degree of combination microwave ovens is defined for clarification;
– the thickness requirement for sheaths of visibly glowing heating elements of combination microwave ovens
is defined for clarification;
– there is an editorial correction of Clause 19 of Annex AA.
This standard is to be used in conjunction with the latest edition of EN 60335-1 and its amendments. When
“Part 1” is mentioned in this standard, it refers to EN 60335-1.
This part 2 supplements or modifies the corresponding clauses in EN 60335-1, so as to convert that
publication into the European standard: Particular requirements for microwave ovens, including combination
microwave ovens.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies as far as is
reasonable. When this standard states "addition", "modification" or "replacement", the relevant text in Part 1 is
to be adapted accordingly.
NOTE 1 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including those in a replaced
clause or subclause;
– additional annexes are lettered AA, BB, etc.

- 3 - EN 60335-2-25:2012
NOTE 2 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type ;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the associated noun are also
in bold.
Clauses, subclauses, notes, tables, figures and annexes which are additional to those in IEC 60335-2-
25:2010 are prefixed “Z”.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.
Endorsement notice
The text of the International Standard IEC 60335-2-25:2010 was approved by CENELEC as a European
Standard with common modifications.
COMMON MODIFICATIONS
1 Scope
Replacement
This European Standard deals with the safety of microwave ovens for household and similar use, their rated
voltage being not more than 250 V.
This European Standard also deals with combination microwave ovens, for which Annex AA is applicable.
This standard also deals with microwave ovens intended to be used on board ships, for which Annex BB is
applicable.
As far as is practicable, this European Standard deals with the common hazards presented by appliances that
are encountered by all persons in household and similar environments.

However, in general, it does not take into account:
• children playing with the appliance;
• the use of the appliance by very young children;
• the use of the appliance by young children without supervision.

It is recognized that very vulnerable people may have needs beyond the level addressed in this European
Standard.
NOTE Z101 Examples of appliance for household environment are appliances for typical housekeeping functions used in the
household environment that may also be used by non expert users for typical housekeeping functions:
– in shops and other similar working environments;
– in farm houses;
– by clients in hotels, motels and other residential type environments;
– in bed and breakfast type environments.

NOTE Z102 Household environments include the dwelling and its associated buildings, the garden, etc.
As far as is practicable, this standard deals with the common hazards presented by appliances that are
encountered by all persons in and around the home. However, in general, it does not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;

– children playing with the appliance.

NOTE Z103 Attention is drawn to the fact that
- for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
- in many countries, additional requirements are specified by the national health authorities, the national authorities
responsible for the protection of labour and similar authorities.
NOTE Z104 This standard does not apply to
- commercial microwave ovens (EN 60335-2-90)
- industrial microwave heating equipment (EN 60519-6)
- appliances for medical purposes (EN 60601)
- appliances intended to be used in locations where special conditions prevail, such as the presence of a corrosive or
explosive atmosphere (dust, vapour or gas).
7 Marking and instructions
In the fifth dashed item after Note 101 replace “if smoke is observed” by “if smoke is emitted”. :
11 Heating
11.8 Replace the first paragraph by the following:
During the test, the temperature rises are monitored continuously and shall not exceed the values
shown in Table 3.
Modification
Replace in Table 3 the row “External enclosure of motor-operated appliances, except handles held in
normal use” and the corresponding footnotes by the following Table Z101.
Add the following Table Z101.
- 5 - EN 60335-2-25:2012
Table Z101 ― Maximum temperature rises for external surfaces
under normal operating conditions
a
Temperature rise of external surfaces
K
Surfaces of appliances situated Surfaces of appliances situated
c
Surface
up to 850 mm above the floor more than 850 mm above the floor after

after installation installation and portable appliances
Bare metal 40 45
d
Coated metal 45 55
Glass and ceramic 55 60
b
Plastic and plastic coating > 0,3 mm 60 65
a
When, for appliance covered by Annex AA, due to their construction or dimensional limitations, the required values cannot be met,
the maximum temperature rise shall not be higher than twice the values indicated. In such cases, a warning shall be marked on
the appliance.
b
The temperature rise limit applies also for plastic material having a metal finish of thickness less than 0,1 mm.
c
When the thickness of the plastic coating does not exceed 0,3 mm, the temperature rise limits of the coated metal or of glass and
ceramic material apply.
d
Metal is considered coated when a coating having a minimum thickness of 80 µm made by enamel or non substantially plastic
coating is used.
22 Construction
Add:
rd
22.105 In the 3 paragraph replace “test probe B of IEC 61032” with “test probe B and test probe 18 of
IEC 61032 in turn to all openings.”
Annex AA
Add:
AA.7.1 When the provisions of footnote a to Table Z101 apply, the appliance shall be marked with:
- the substance of “CAUTION: Hot surface”; or
- symbol IEC 60417-5041.
The warning shall be put on the surface of the appliance having the highest temperature and shall be visible
during normal operation.
AA.7.6 Addition:
[symbol IEC 60417-5041] Caution, hot surface

AA.7.12 Delete.
Add:
AA7.14 Addition:
The height of the warning “CAUTION. Hot surface” shall be at least 4 mm (measured on the capital letters).
NOTE Z101  For the evaluation of legibility and clarity of safety warnings guidance can be found on IEC 62079.
The height of the symbol IEC 60417-5041 shall be at least 12 mm.

In the Bibliography, add the following notes for the standards indicated:
IEC 60335-2-90 NOTE  Harmonized as EN 60335-2-90.
IEC 60519-6 NOTE  Harmonized as EN 60519-6.
ISO 13732-1 NOTE  Harmonized as EN ISO 13732-1.

- 7 - EN 60335-2-25:2012
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Addition to the Annex ZA of EN 60335-1:
Publication Year Title EN/HD Year

IEC 60068-2-6 - Environmental testing - EN 60068-2-6 -
Part 2-6: Tests - Test Fc: Vibration (sinusoidal)

IEC 60068-2-27 - Environmental testing - EN 60068-2-27 -
Part 2-27: Tests - Test Ea and guidance: Shock

IEC 60068-2-52 - Environmental testing - EN 60068-2-52 -
Part 2: Tests - Test Kb: Salt mist, cyclic (sodium
chloride solution)
IEC 60335-2-6 - Household and similar electrical appliances - EN 60335-2-6 -
Safety -
Part 2-6: Particular requirements for stationary
cooking ranges, hobs, ovens and similar
appliances
IEC 60335-2-9 - Household and similar electrical appliances - - -
Safety -
Part 2-9: Particular requirements for grills,
toasters and similar portable cooking appliances

IEC 60335-2-25 ®
Edition 6.0 2010-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-25: Particular requirements for microwave ovens, including combination
microwave ovens
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-25: Règles particulières pour les fours à micro-ondes, y compris les
fours à micro-ondes combinés
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
V
CODE PRIX
ICS 13.120, 97.040.20 ISBN 978-2-88912-154-0
– 2 – 60335-2-25 © IEC:2010
CONTENTS
FOREWORD.3
INTRODUCTION.6
1 Scope.7
2 Normative references .8
3 Terms and definitions .8
4 General requirement.9
5 General conditions for the tests .9
6 Classification.9
7 Marking and instructions.10
8 Protection against access to live parts.11
9 Starting of motor-operated appliances .12
10 Power input and current .12
11 Heating .12
12 Void.12
13 Leakage current and electric strength at operating temperature.12
14 Transient overvoltages .12
15 Moisture resistance .13
16 Leakage current and electric strength.13
17 Overload protection of transformers and associated circuits .14
18 Endurance.14
19 Abnormal operation .14
20 Stability and mechanical hazards .16
21 Mechanical strength .16
22 Construction .18
23 Internal wiring.23
24 Components .23
25 Supply connection and external flexible cords .23
26 Terminals for external conductors.23
27 Provision for earthing .24
28 Screws and connections .24
29 Clearances, creepage distances and solid insulation .24
30 Resistance to heat and fire.24
31 Resistance to rusting.24
32 Radiation, toxicity and similar hazards.24
Annexes .26
Annex A (informative) Routine tests .26
Annex AA (normative) Combination microwave ovens.27
Annex BB (normative) Microwave ovens intended to be used on board ships.29
Bibliography.31

Figure 101 – Test rod for interlock concealment.25

60335-2-25 © IEC:2010 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
______________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-25: Particular requirements for microwave ovens,
including combination microwave ovens

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This part of International Standard IEC 60335 has been prepared by subcommittee 61B:
Safety of microwave ovens, of IEC technical committee 61: Safety of household and similar
electrical appliances.
This sixth edition cancels and replaces the fifth edition published in 2002 including its
Amendment 1 (2005) and Amendment 2 (2006). It constitutes a technical revision.
The principal changes with respect to the previous edition are as follows (minor changes are
not listed):
– the scope is extended by microwave ovens on board ships and Annex BB contains
requirements and test specifications for microwave ovens on board ships;
– the scope and the requirements for the instructions are modified for better separation
between “household and similar use” and “commercial use”;

– 4 – 60335-2-25 © IEC:2010
– the scope is modified by so that this International Standard does not take into account
persons whose capabilities or lack of experience and knowledge prevents them from using
the appliance safely without supervision or instruction and children playing with the
appliance;
– the intended use is defined for clarification;
– the door endurance test is rationalised;
– the replacement of 22.103, 22.104 and 22.105 allows interlock systems with at least one
concealed door interlock as well as alternative interlock systems without concealed door
interlock;
– the tests on electronic door interlock systems and similar are defined for clarification;
– the pollution degree of combination microwave ovens is defined for clarification;
– the thickness requirement for sheaths of visibly glowing heating elements of combination
microwave ovens is defined for clarification;
– there is an editorial correction of Clause 19 of Annex AA.
The text of this standard is based on the following documents:
FDIS Report on voting
61B/417/FDIS 61B/425/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Particular requirements for microwave ovens,
including combination microwave ovens.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification" or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type ;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.

60335-2-25 © IEC:2010 – 5 –
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.
The following differences exist in the countries indicated below.
– 5.3: Microwave leakage is not to exceed 10 W/m2 during the initial test (Japan and USA).
– 6.1: Microwave ovens may be class 0I if the rated voltage does not exceed more than 150 V (Japan).
– 7.12: Specific instructions exist pertaining to using and servicing microwave ovens with respect to the
risk of exposure to microwave energy (USA.
– 7.12: It is prohibited to place the appliance in a cabinet with a door (Japan).
– Clause 18: The test is carried out on two appliances (USA).
– 19.11.2: The input voltage variation is not applied (USA).
– 19.13: Microwave leakage is measured only at the end of each test (USA).
– 21.102: The applied force is 222 N (USA).
– 21.105: Microwave leakage is not to exceed 50 W/m2 (Japan and USA).
– 22.111: Microwave leakage is measured only at the end of the test (USA).
– 22.112: Microwave leakage is not to exceed 50 W/m2 (Japan and USA).
– 22.115: All access to the cavity has to be prevented (USA).

– 6 – 60335-2-25 © IEC:2010
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice and takes into account the way in which
electromagnetic phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features which impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
60335-2-25 © IEC:2010 – 7 –
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-25: Particular requirements for microwave ovens,
including combination microwave ovens

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of microwave ovens for household and similar
use, their rated voltage being not more than 250 V.
This standard also deals with combination microwave ovens, for which Annex AA is
applicable.
This standard also deals with microwave ovens intended to be used on board ships, for
which Annex BB is applicable.
Appliances not intended for normal household use but which nevertheless may be a source of
danger to the public, such as appliances intended to be used by laymen in shops, in light
industry and on farms, are within the scope of this standard. However, if the appliance is
intended to be used professionally to process food for commercial purposes, the appliance is
not considered to be for household and similar use only.
As far as is practicable, this standard deals with the common hazards presented by
appliances that are encountered by all persons in and around the home. However, in general,
it does not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.
NOTE 101 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries, additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour and similar authorities.
NOTE 102 This standard does not apply to
– commercial microwave ovens (IEC 60335-2-90)
– industrial microwave heating equipment (IEC 60519-6)
– appliances for medical purposes (IEC 60601)
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas).

– 8 – 60335-2-25 © IEC:2010
2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:
IEC 60068-2-6, Environmental testing – Part 2: Tests – Test Fc: Vibration (sinusoidal)
IEC 60068-2-27, Environmental testing – Part 2-27: Tests – Test Ea and guidance: Shock
IEC 60068-2-52, Environmental testing – Part 2-52: Tests – Test Kb: Salt mist, cyclic (sodium
chloride solution)
IEC 60335-2-6, Household and similar electrical appliances – Safety – Part 2-6: Particular
requirements for stationary cooking ranges, hobs, ovens and similar appliances
IEC 60335-2-9, Household and similar electrical appliances – Safety – Part 2-9: Particular
requirements for grills, toasters and similar portable cooking appliances
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1.7 Addition:
NOTE 101 The rated frequency is the input frequency.
3.1.9 Replacement:
normal operation
operation of the appliance with 1 000 g ± 50 g of potable water at an initial temperature of
20 °C ± 2 °C in a cylindrical borosilicate glass vessel having a maximum thickness of 3 mm
and an outside diameter of approximately 190 mm. The vessel is placed on the centre of the
shelf.
3.101
microwave oven
)
appliance using electromagnetic energy in one or several of the ISM frequency bands
between 300 MHz and 30 GHz, for heating food and beverages in a cavity
3.102
combination microwave oven
microwave oven in which heat is also provided in the cavity by simultaneous or consecutive
operation of resistive heating elements
NOTE The resistive heating elements are used to provide radiant heat, convection heat or steam.
3.103
cavity
space enclosed by the inner walls and the door in which the load is placed
___________
)
ISM frequency bands are the electromagnetic frequencies established by the ITU and reproduced in CISPR 11.

60335-2-25 © IEC:2010 – 9 –
3.104
shelf
horizontal support in the cavity on which the load is placed
3.105
door interlock
device or system that prevents the operation of the magnetron, unless the oven door is closed
3.106
monitored door interlock
door interlock system that incorporates a supervision device
3.107
temperature-sensing probe
device that is inserted into the food to measure its temperature and is a part of an oven
control
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.2 Addition:
NOTE 101 An additional sample may be required for the test of 19.104.
NOTE 102 Six samples of the interlocks are required for the test of 24.1.4.
5.3 Modification:
Instead of carrying out the tests in the order of clauses, the following sequence of clauses
and subclauses applies: Clause 32, 22.113, 22.108, 22.115. 22.116, Clause 7 to 17,
Clause 20, Clause 21 (except 21.101 to 21.105), Clause 18, Clause 19 (except 19.104),
Clause 22 (except 22.108, 22.113, 22.115 and 22.116), Clause 23 to 31, 21.101 to 21.105
and 19.104.
5.101 Microwave ovens are tested as motor-operated appliances.
5.102 Class III temperature-sensing probes are only subjected to the tests of 22.112.
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Microwave ovens shall be class I or class II.

– 10 – 60335-2-25 © IEC:2010
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.1 Addition:
Appliances shall be marked with the nominal frequency in megahertz of the ISM band in which
they operate.
If the removal of any cover results in microwave leakage exceeding the value specified in
Clause 32, the cover shall be marked with the substance of the following:
WARNING
MICROWAVE ENERGY
DO NOT REMOVE THIS COVER
If an appliance incorporates a socket-outlet protected by means of fuses, other than D-type
fuses, it shall be marked with the rated current of the relevant fuse. When a miniature fuse-
link is provided, this marking shall indicate that the fuse-link is to have a high breaking
capacity.
7.12 Addition:
The instructions shall state the substance of the following:
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
The instructions shall include the substance of the following warnings:
– WARNING: If the door or door seals are damaged, the oven must not be operated until it
has been repaired by a competent person.
– WARNING: It is hazardous for anyone other than a competent person to carry out any
service or repair operation that involves the removal of a cover which gives protection
against exposure to microwave energy.
– WARNING: Liquids and other foods must not be heated in sealed containers since they
are liable to explode.
The instructions shall include the substance of the following:
– This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential environments;
• bed and breakfast type environments.
NOTE 101 If the manufacturer wishes to limit the use of the appliance to less than the above, this has to be
clearly stated in the instructions.
– The minimum height of free space necessary above the top surface of the oven.
– Only use utensils that are suitable for use in microwave ovens.
– When heating food in plastic or paper containers, keep an eye on the oven due to the
possibility of ignition.
60335-2-25 © IEC:2010 – 11 –
– The microwave oven is intended for heating food and beverages. Drying of food or clothing
and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk
of injury, ignition or fire.
– If smoke is observed, switch off or unplug the appliance and keep the door closed in order
to stifle any flames.
– Microwave heating of beverages can result in delayed eruptive boiling, therefore care must
be taken when handling the container.
– The contents of feeding bottles and baby food jars shall be stirred or shaken and the
temperature checked before consumption, in order to avoid burns.
– Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens
since they may explode, even after microwave heating has ended.
– Details for cleaning door seals, cavities and adjacent parts.
– The oven should be cleaned regularly and any food deposits removed.
– Failure to maintain the oven in a clean condition could lead to deterioration of the surface
that could adversely affect the life of the appliance and possibly result in a hazardous
situation.
– Only use the temperature probe recommended for this oven (for appliances having a
facility to use a temperature-sensing probe).
The manufacturer shall state in the instructions whether the microwave oven is intended to
be used freestanding, built-in or in a cabinet. If the appliance can be used while placed in a
cabinet,
• the minimum dimensions of the cabinet shall be given by the manufacturer, and
• the instructions shall state that the appliance must be operated with any cabinet door
open.
The instructions for microwave ovens having an additional decorative door shall state that
the appliance must be operated with the decorative door open.
The instructions for microwave ovens that are not tested in a cabinet shall state that the
appliance must not be placed in a cabinet.
7.14 Addition:
The height of the lettering of the warning specified in 7.1 shall be at least 3 mm.
Compliance is checked by measurement.
8 Protection against access to live parts
This clause of Part 1 is applicable except as follows.
8.1.1 Addition:
Test probe 18 of IEC 61032 is also applied, as specified for test probe B. However, it is only
applied to parts that are accessible when the oven is operated in normal use.
8.2 Addition:
Test probe 18 of IEC 61032 is also applied, as specified for test probe B. However, it is only
applied to parts that are accessible when the oven is operated in normal use.

– 12 – 60335-2-25 © IEC:2010
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable.
11 Heating
This clause of Part 1 is applicable except as follows.
11.2 Addition:
Appliances, other than built-in appliances, are positioned as specified for heating
appliances.
A ceiling is placed over the appliance at the minimum height stated in the instructions.
The ceiling has a depth of 300 mm from the back wall of the test corner and a length at least
150 mm in excess of the width of the appliance.
Appliances that can be used when placed in a cabinet are placed in a cabinet with the
minimum dimension given in the instructions by the manufacturer, the plywood specified for
the test corner being used. The appliance is positioned against the rear wall and one of the
side walls.
The cabinet door is in the open position.
11.7 Replacement:
Appliances are operated for three cycles, each
...
