HD 22.1 S4:2002

SLOVENSKI STANDARD
01-februar-2003
1DGRPHãþD
SIST HD 22.1 S3:1998
.DEOL]QD]QDþHQLPLYUHGQRVWPLGRYNOMXþQR9LQVSUHþQRSRYH]DQR
L]RODFLMRGHO6SORãQH]DKWHYH
Cables of rated voltages up to and including 450/750 V and having cross-linked
insulation - Part 1: General requirements
Starkstromleitungen mit vernetzter Isolierhülle für Nennspannungen bis 450/750 V - Teil
1: Allgemeine Anforderungen
Conducteurs et câbles isolés avec des matériaux réticulés de tension assignée au plus
égale à 450/750 V - Partie 1: Prescriptions générales
Ta slovenski standard je istoveten z: HD 22.1 S4:2002
ICS:
29.060.20 Kabli Cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

HARMONIZATION DOCUMENT HD 22.1 S4
DOCUMENT D'HARMONISATION
HARMONISIERUNGSDOKUMENT November 2002

ICS 29.060.20 Supersedes HD 22.1 S3:1997

English version
Cables of rated voltages up to and including 450/750 V
and having cross-linked insulation
Part 1: General requirements
Conducteurs et câbles isolés  Starkstromleitungen mit vernetzter
avec des matériaux réticulés Isolierhülle mit Nennspannungen
de tension assignée bis 450/750 V
au plus égale à 450/750 V Teil 1: Allgemeine Anforderungen
Partie 1: Prescriptions générales

This Harmonization Document was approved by CENELEC on 2002-09-01. CENELEC members are
bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for
implementation of this Harmonization Document on a national level.

Up-to-date lists and bibliographical references concerning such national implementation may be obtained on
application to the Central Secretariat or to any CENELEC member.

This Harmonization Document exists in three official versions (English, French, German).

CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta,
Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2002 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. HD 22.1 S4:2002 E

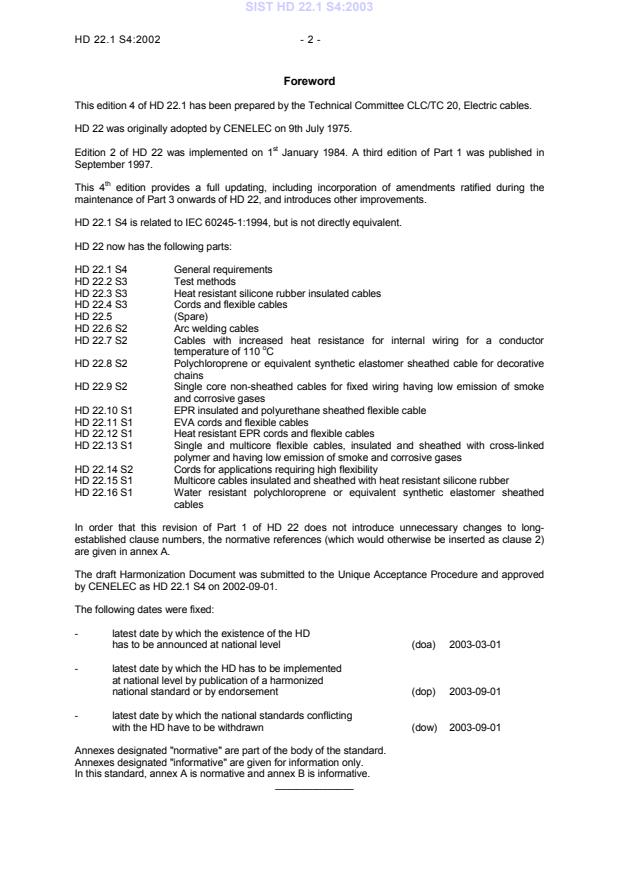

Foreword
This edition 4 of HD 22.1 has been prepared by the Technical Committee CLC/TC 20, Electric cables.

HD 22 was originally adopted by CENELEC on 9th July 1975.

st
Edition 2 of HD 22 was implemented on 1 January 1984. A third edition of Part 1 was published in
September 1997.
th
This 4 edition provides a full updating, including incorporation of amendments ratified during the
maintenance of Part 3 onwards of HD 22, and introduces other improvements.

HD 22.1 S4 is related to IEC 60245-1:1994, but is not directly equivalent.

HD 22 now has the following parts:

HD 22.1 S4 General requirements
HD 22.2 S3 Test methods
HD 22.3 S3 Heat resistant silicone rubber insulated cables
HD 22.4 S3 Cords and flexible cables
HD 22.5 (Spare)
HD 22.6 S2 Arc welding cables
HD 22.7 S2 Cables with increased heat resistance for internal wiring for a conductor
o
temperature of 110 C
HD 22.8 S2 Polychloroprene or equivalent synthetic elastomer sheathed cable for decorative
chains
HD 22.9 S2 Single core non-sheathed cables for fixed wiring having low emission of smoke
and corrosive gases
HD 22.10 S1 EPR insulated and polyurethane sheathed flexible cable
HD 22.11 S1 EVA cords and flexible cables
HD 22.12 S1 Heat resistant EPR cords and flexible cables
HD 22.13 S1 Single and multicore flexible cables, insulated and sheathed with cross-linked
polymer and having low emission of smoke and corrosive gases
HD 22.14 S2 Cords for applications requiring high flexibility
HD 22.15 S1 Multicore cables insulated and sheathed with heat resistant silicone rubber
HD 22.16 S1 Water resistant polychloroprene or equivalent synthetic elastomer sheathed
cables
In order that this revision of Part 1 of HD 22 does not introduce unnecessary changes to long-
established clause numbers, the normative references (which would otherwise be inserted as clause 2)
are given in annex A.
The draft Harmonization Document was submitted to the Unique Acceptance Procedure and approved
by CENELEC as HD 22.1 S4 on 2002-09-01.

The following dates were fixed:

- latest date by which the existence of the HD
has to be announced at national level  (doa) 2003-03-01

- latest date by which the HD has to be implemented
at national level by publication of a harmonized
national standard or by endorsement  (dop) 2003-09-01

- latest date by which the national standards conflicting
with the HD have to be withdrawn  (dow) 2003-09-01

Annexes designated "normative" are part of the body of the standard.
Annexes designated "informative" are given for information only.
In this standard, annex A is normative and annex B is informative.
_______________
- 3 - HD 22.1 S4:2002
Contents
Page
1 General
1.1 Scope. 4
1.2 Object . 4
1.3 Common marking . 4

2 Definitions
2.1 Definitions relating to insulating and sheathing materials and their processing . 4
2.2 Definitions relating to the tests .6
2.3 Rated voltage . 6

3 Marking
3.1 Indication of origin. 6
3.2 Continuity of marks . 7
3.3 Durability. 7
3.4 Legibility. 7
3.5 Common marking . 7
3.6 Use of the name CENELEC . 8
3.7 Code designation . 8

4 Core identification
4.1 General requirements . 8
4.2 Colour schemes . 8
4.3 Colour combination green-and-yellow . 9
4.4 Core identification of flexible cables by the 'Marking by inscription' method . 9

5 General requirements for the construction of cables
5.1 Conductors . 9
5.2 Insulation . 10
5.3 Filler . 17
5.4 Textile braid . 17
5.5 Sheath. 18
5.6 Tests on completed cables . 26

6 Guide to use of the cables . 30

Annex A (normative) Normative references .31
Annex B (informative) National marking .32

1 General
1.1 Scope
HD 22 applies to rigid and flexible cables, sheathed and unsheathed, and insulated with
cross-linked material, of rated voltages U /U up to and including 450/750V, used in
o
power installations.
NOTE  For some types of flexible cables, the term "cord" is used.

This Part 1 specifies the general requirements applicable to these cables.

The test methods specified are given in Part 2 of this Harmonization Document (HD), or
in the common test methods for cables given in EN 50265, EN 50266, EN 50267,
EN 50268 and EN 60811.
The particular types of cables are specified in Part 3 onwards of this HD, which are
hereafter referred to as "the particular specifications".

The code designations of these types of cables are in accordance with HD 361.

1.2 Object
The objects of this HD are to standardise cables and cords that are safe and reliable
when properly used, to state the characteristics and manufacturing requirements
directly or indirectly bearing on safety, and to specify methods for checking conformity
with those requirements.
1.3 Common marking
The common marking () signifies that the manufacturer has been assessed,
and his production is subjected to continuing surveillance in accordance with the
technical procedures, by a recognised national Approval Organisation, which is a
signatory to the "Agreement on the use of a Commonly Agreed Marking for Cables and
Cords complying with Harmonised Specifications."

Compliance with this HD may be certified by the application of the agreed technical
1)
procedures for granting the common marking , which are the recognised means of
ensuring that a manufacturer is competent and takes all reasonable care to produce
cables complying with this HD.

The common marking may be used, under these conditions, by manufacturers in
countries which have implemented this HD and in which the national Approval
Organisations are signatories to the Agreement.

NOTE  See annex B for guidance on national marking.

2 Definitions
2.1 Definitions relating to insulating and sheathing materials and their processing

2.1.1 cross-linking
the process of multiple intermolecular covalent bonding between polymer
chains obtained through a chemical process, with or without the contribution of
heat, or through a physical process such as irradiation

1)
These are given in Appendices 4 and 5 of the 'Agreement on the use of a Commonly Agreed Marking for Cables and Cords
complying with Harmonised Specifications'.

- 5 - HD 22.1 S4:2002
2.1.2 vulcanisation
a post-application treatment taking place after the insulation and/or sheath has
been applied in order to induce cross-linking of the rubber or synthetic
elastomer
NOTE  Vulcanisation is an historical term now largely limited to use with the longer-established
materials which did, and in some cases still do, use sulphur as the primary chemical agent of
cross-linking.
2.1.3 type of compound
the category in which a compound is placed according to its properties, and
determined by specific tests. The type designation is not directly related to the
composition of the compound
2.1.4 rubber compound
combination of materials suitably selected, proportioned, treated, and
vulcanised, of which the characteristic constituent is a rubber and/or synthetic
elastomer
2.1.5 polychloroprene compound or equivalent synthetic elastomer
a vulcanised compound in which the elastomer is polychloroprene (PCP) or
equivalent synthetic elastomer providing a compound with properties similar to
polychloroprene
2.1.6 chlorinated rubber compound
a vulcanised compound in which the characteristic constituent is a synthetic
chlorinated rubber, e.g. Polychloroprene (PCP), Chlorosulphonated
Polyethylene (CSP), Chlorinated Polyethylene (CPE), etc

2.1.7 ethylene-propylene rubber compound (EPR) or equivalent synthetic
elastomer
a cross-linked compound in which the elastomer is ethylene-propylene or
equivalent synthetic elastomer providing a compound with properties similar to
EPR
2.1.8 ethylene vinyl acetate rubber compound (EVA) or equivalent synthetic
elastomer
a cross-linked compound in which the elastomer is ethylene vinyl acetate or
equivalent synthetic elastomer providing a compound with properties similar to
EVA
2.1.9 polyolefin based cross-linked compound or equivalent synthetic
compound having a low level of emission of corrosive gases when
burned
a cross-linked compound in which the polymer is a polyolefin or equivalent
synthetic non-halogenated polymer providing a compound which, when
burned, has low emission of corrosive gases and is suitable for use in cables
which, when burned, have low emission of smoke

2.1.10 cross-linked polyvinyl chloride (XLPVC)
combinations of materials of which polyvinyl chloride is the characteristic
constituent, including adequate cross-linking agents, suitably selected,
proportioned and treated which when cross-linked, meet the requirements
given in the particular specification

2.1.11 cross-linked silicone rubber (SiR)
a compound based on a poly-siloxane polymer which, when cross-linked,
meets the requirements given for the particular cable

2.1.12 thermoplastic polyurethane compound (TMPU)
a thermoplastic compound based on polyurethane w
...
