EN 60065:2002/A1:2006

SLOVENSKI SIST EN 60065:2003/A1:2006

STANDARD
november 2006
Avdio, video in podobni elektronski aparati – Varnostne zahteve (IEC
60065:2001/A1:2005, spremenjen)
Audio, video and similar electronic apparatus - Safety requirements (IEC
60065:2001/A1:2005, modified)
ICS 33.160.01 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD
EN 60065/A1
NORME EUROPÉENNE
May 2006
EUROPÄISCHE NORM
ICS 97.020 Supersedes EN 60491:1995

English version
Audio, video and similar electronic apparatus –
Safety requirements
(IEC 60065:2001/A1:2005, modified)

Appareils audio, vidéo et appareils Audio-, Video- und ähnliche
électroniques analogues – elektronische Geräte –
Exigences de sécurité Sicherheitsanforderungen
(CEI 60065:2001/A1:2005, modifié) (IEC 60065:2001/A1:2005, modifiziert)

This amendment A1 modifies the European Standard EN 60065:2002; it was approved by CENELEC on
2005-12-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, the Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2006 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60065:2002/A1:2006 E

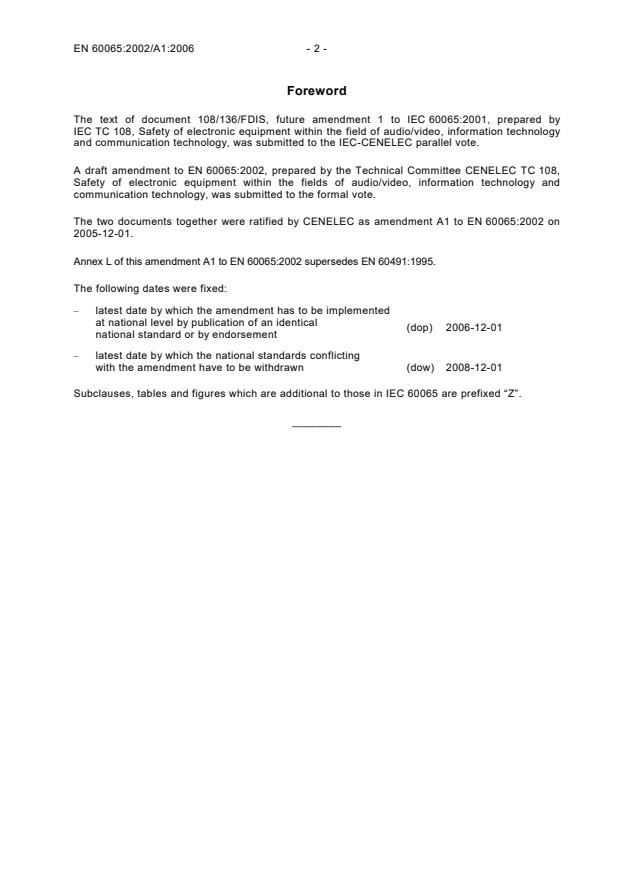

Foreword
The text of document 108/136/FDIS, future amendment 1 to IEC 60065:2001, prepared by
IEC TC 108, Safety of electronic equipment within the field of audio/video, information technology
and communication technology, was submitted to the IEC-CENELEC parallel vote.
A draft amendment to EN 60065:2002, prepared by the Technical Committee CENELEC TC 108,
Safety of electronic equipment within the fields of audio/video, information technology and
communication technology, was submitted to the formal vote.
The two documents together were ratified by CENELEC as amendment A1 to EN 60065:2002 on
2005-12-01.
Annex L of this amendment A1 to EN 60065:2002 supersedes EN 60491:1995.
The following dates were fixed:
– latest date by which the amendment has to be implemented

at national level by publication of an identical
(dop) 2006-12-01
national standard or by endorsement
– latest date by which the national standards conflicting
with the amendment have to be withdrawn (dow) 2008-12-01
Subclauses, tables and figures which are additional to those in IEC 60065 are prefixed “Z”.
________
- 3 - EN 60065:2002/A1:2006
Endorsement notice
The text of amendment 1:2005 to the International Standard IEC 60065:2001 was approved by
CENELEC as an amendment to the European Standard with agreed common modifications as
given below.
COMMON MODIFICATIONS
5.1 i) in EN 60065:2002
Replace the note by:
NOTE For RATED POWER CONSUMPTION measurements of TVs reference is made to EN 62087. Measurements
are done in the ON (play) operating mode.

5.4.1
Add the following indent:
za) A warning that excessive sound pressure from earphones and headphones can cause
hearing loss.
6.1 in EN 60065:2002
Replace the subclause by:
6.1  Ionizing radiation
Equipment that might produce ionizing radiation is checked by measuring the amount of radiation.
The amount of radiation is determined by means of a radiation monitor of the ionizing chamber
type with an effective area of 1 000 mm or by measuring equipment of other types giving
equivalent results.
Measurements are made with the equipment on test operating at the most unfavourable supply
voltage (see 4.2) and with operator controls and service controls adjusted so as to give maximum
radiation whilst maintaining the equipment operative for normal use.
Internal preset controls not intended to be adjusted during the lifetime of the equipment are not
considered to be service controls.
At any point 100 mm from the surface of the operator access area, the dose-rate shall not exceed
1 µSv/h (0,1 mR/h) (see Note). Account shall be taken of the background level.
NOTE These values appear in Directive 96/29/Euratom.

Bibliography in EN 60065:2002
Replace the paragraph related to prEN 50332-2 by:

EN 50332-2:2003, Sound system equipment: Headphones and earphones associated with
portable audio equipment - Maximum sound pressure level measurement methodology and limit
considerations - Part 2: Matching of sets with headphones if either or both are offered separately

Bibliography in IEC 60065:2001/A1:2005

Add the following notes for the standards indicated:

IEC 60598-2-9 NOTE Harmonized as EN 60598-2-9:1989 + A1:1994 (not modified).
IEC 60598-2-17 NOTE Harmonized as EN 60598-2-17:1989 + A2:1991 (not modified).
________
- 5 - EN 60065:2002/A1:2006
Replace the entire Annex ZA by the following:

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of the
referenced document (including any amendments) applies.
NOTE Where an international publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
Publication Date Title EN/HD Date

- - Audio, video and similar electronic EN 50333 2001
apparatus – Routine electrical safety testing
in production
IEC 60027 series Letter symbols to be used in electrical HD 60027 series
technology
IEC 60038 2002 IEC standard voltages - -

IEC 60068-2-6 1995 Environmental testing
+ corr. March 1995 Part 2: Tests - Test Fc: Vibration EN 60068-2-6 1995
(sinusoidal)
IEC 60068-2-32 1975 Environmental testing EN 60068-2-32 1993
1)
Part 2: Tests - Test Ed: Free fall

IEC 60068-2-75 1997 Environmental testing EN 60068-2-75 1997
Part 2: Tests - Test Eh: Hammer tests

IEC 60068-2-78 2001 Environmental testing EN 60068-2-78 2001
Part 2: Tests – Test Cab: Damp heat,
steady state
IEC 60085 2004 Thermal evaluation and classification of EN 60085 2004
electrical insulation
IEC 60086-4 2000 Primary batteries EN 60086-4 2000
Part 4: Safety of lithium batteries

IEC 60112 2003 Method for determining the comparative EN 60112 2003
and the proof tracking indices of solid
insulating materials under moist conditions

IEC 60127 series Miniature fuses EN 60127 series

IEC 60167 1964 Methods of test for the determination of the HD 568 S1 1990
insulation resistance of solid insulating
materials
———————
1)
EN 60068-2-32 includes A2:1990 to IEC 60068-2-32.

Publication Date Title EN/HD Date

IEC 60216 series Electrical insulating materials - Properties of HD 611 series
thermal endurance EN 60216 series

2)
IEC 60227 (mod) series Polyvinyl chloride insulated cables of rated - -
voltages up to and including 450/750 V

3)
IEC 60245 (mod) series Rubber insulated cables – Rated voltages - -
up to and including 450/750
IEC 60249-2 series Base materials for printed circuits EN 60249-2 series
Part 2: Specifications
4)
IEC 60268-1 1985 Sound system equipment HD 483.1 S2 1989
Part 1: General
IEC 60317 series Specifications for particular types of winding EN 60317 series
wires
IEC 60320 series Appliance couplers for household and EN 60320 series
similar general purposes
IEC 60335-1 (mod) 2001 Safety of household and similar electrical EN 60335-1 2002
A1 2004 appliances A1 2004
Part 1: General requirements + A11 2004

IEC 60384-1 (mod) 1999 Fixed capacitors for use in electronic EN 60384-1 2001
equipment
Part 1: Generic specification
5)
IEC 60384-14 1993 Fixed capacitors for use in electronic EN 132400 1994
A1 1995 equipment
Part 14: Sectional specification: Fixed
capacitors for electromagnetic interference
suppression and connection to the supply
mains
IEC 60417 data- Graphical symbols for use on equipment - -
base
IEC 60454 series Specifications for pressure-sensitive EN 60454 series
adhesive tapes for electrical purposes

IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code) + corr. May 1993
A1 1999 A1 2000
IEC 60664-1 1992 Insulation coordination for equipment within
+ A1 2000 low-voltage systems
+ A2 2002 Part 1: Principles, requirements and tests EN 60664-1 2003

———————
2)
The HD 21 series, which is related to, but not directly equivalent with the IEC 60227 series, applies instead.
3)
The HD 22 series, which is related to, but not directly equivalent with the IEC 60245 series, applies instead.
4)
HD 483.1 S2 includes A1:1988 to IEC 60268-1.
5)
EN 132400 is related to, but not directly equivalent to IEC 60384-14.

- 7 - EN 60065:2002/A1:2006
Publication Date Title EN/HD Date

IEC 60664-3 2003 Insulation coordination for equipment within EN 60664-3 2003
low-voltage systems
Part 3: Use of coatings to achieve insulation
coordination of printed board assemblies

IEC 60691 2002 Thermal links – Requirements and EN 60691 2003
application guide
IEC 60695-2-2 1991 Fire hazard testing EN 60695-2-2 1994
Part 2: Test methods
Section 2: Needle-flame test
IEC 60695-11-10 1999 Fire hazard testing EN 60695-11-10 1999
A1 2003 Part 11-10: Test flames - 50 W horizontal A1 2003
and vertical flame test methods

IEC 60707 1999 Flammability of solid non-metallic materials EN 60707 1999
when exposed to flame sources – List of
test methods
IEC 60730 (mod) series Automatic electrical controls for household EN 60730 series
and similar use
IEC 60825-1 1993 Safety of laser products EN 60825-1 1994
+ corr. December 1994 Part 1: Equipment classification, + corr. February 1995
A1 1997 requirements and user’s guide A1 2002
A2 2001 A2 2001
+ A2/corr. April 2004
IEC 60851 series Winding wires – Test methods EN 60851 series

IEC 60884 series Plugs and socket-outlets for household and - -
similar purposes
IEC 60885-1 1987 Electrical test methods for electric cables - -
Part 1: Electrical tests for cables, cords and
wires for voltages up to and including
450/750 V
IEC 60906 series IEC system of plugs and socket-outlets for - -
household and similar purposes

IEC 60950 (mod) 1999 Safety of information technology equipment
+ corr. January 2000 EN 60950 2000
+ corr. February 2002
IEC 60990 1999 Methods of measurement of touch-current EN 60990 1999
and protective conductor current

IEC 60998-2-2 2002 Connecting devices for low-voltage circuits EN 60998-2-2 2004
(mod) for household and similar purposes
Part 2-2: Particular requirements for
connecting devices as separate entities with
screwless-type clamping units
Publication Date Title EN/HD Date

IEC 60999-1 1999 Connecting devices – Safety requirements EN 60999-1 2000
for screw-type and screwless-type clamping
units
Part 1: General requirements and particular
requirements for clamping units for
2 2
conductors from 0,2 mm up to 35 mm
(included)
IEC 61032 1997 Protection of persons and equipment by EN 61032 1998
enclosures - Probes for verification

IEC 61051-2 1991 Varistors for use in electronic equipment - -
Part 2: Sectional specification for surge
suppression varistors
IEC 61058-1 2000 Switches for appliances
+ A1 (mod) 2001 Part 1: General requirements EN 61058-1 2002

IEC/TR2 61149 1995 Guide for safe handling and operation of - -
mobile radio equipment
IEC 61260 1995 Electroacoustics – Octave-band and EN 61260 1995
fractional-octave-band filters

IEC 61293 1994 Marking of electrical equipment with ratings EN 61293 1994
related to electrical supply – Safety
requirements
IEC 61558-1 (mod) 1997 Safety of power transformers, power supply EN 61558-1 1997
A1 1998 units and similar A1 1998
Part 1: General requirements and tests + A11 2003
+ corr. April 2003
IEC 61558-2-17 1997 Safety of power transformers, power supply EN 61558-2-17 1997
units and similar
Part 2-17: Particular requirements for
transformers for switch mode power
supplies
IEC 61965 2003 Mechanical safety of cathode ray tubes EN 61965 2003

IEC 62087 2002 Methods of measurement for the power EN 62087 2003
consumption of audio, video and related
equipment
IEC 62151 2000 Safety of equipment electrically connected - -
to a telecommunication network

IEC Guide 104 1997 The preparation of safety publications and - -
the use of basic safety publications and
group safety publications
ISO 261 1973 ISO general purpose metric screw threads - - -
General plan
- 9 - EN 60065:2002/A1:2006
Publication Date Title EN/HD Date

ISO 262 1973 ISO general purpose metric screw threads - - -
Selected sizes for screws, bolts and nuts

6)
ISO 306 1994 Plastics - Thermoplastic materials - EN ISO 306 1996
Determination of Vicat softening
temperature (VST)
ISO 7000 1989 Graphical symbols for use on equipment - - -
Index and synopsis
ITU-T 1988 Tests on power-fed repeaters using solid-- -
Recommendation state devices in order to check the
K17 arrangements for protection from external
interference
ITU-T 1996 Resistibility of telecommunication - -
Recommendation equipment installed
...
