Electrical energy meters - Test equipment, techniques and procedures - Part 1: Stationary meter test units (MTUs)

IEC 62057-1:2023 applies to stationary meter test units (MTUs) permanently installed in laboratories, used for testing and calibration of electricity meters, in particular for their type test, acceptance test and verification test. It covers the requirements for automatic MTUs for indoor laboratory application and applies to newly manufactured MTUs to test electricity meters on 50 Hz or 60 Hz networks with an AC voltage up to 600 V (phase to neutral). If meters are intended for system voltages not specified in this document, special requirements are agreed between the manufacturer and the purchaser. This document also defines the kind of tests to perform as type tests / routine tests / acceptance tests and commissioning tests for MTUs. It does not apply to: • portable reference meters and portable sources; • electricity meters; • data interfaces to the meter and test procedures of data interface; • transformer operated MTUs; • personal computers supplied together with the MTU.

Elektrische Energiezähler - Prüfgeräte, Techniken und Verfahren - Teil 1: Stationäre Zählerprüfeinrichtungen (MTU)

Compteurs d'énergie électrique - Équipements, techniques et procédures d'essai - Partie 1: Bancs d'essai stationnaires des compteurs d'énergie électrique (MTU)

IEC 62057-1:2023 s'applique aux bancs d'essai stationnaires des compteurs d'énergie électrique (MTU, Meter Test Units) installés en permanence dans les laboratoires, utilisés pour les essais et l'étalonnage des compteurs d'électricité, en particulier pour leurs essais de type, de réception et de vérification. Elle couvre les exigences relatives aux MTU automatisés pour les applications de laboratoire en intérieur et s'applique aux MTU neufs destinés aux essais des compteurs d'électricité sur les réseaux de 50 Hz ou 60 Hz avec une tension alternative allant jusqu'à 600 V (tension entre phase et neutre). Si les compteurs sont conçus pour des tensions de réseau non spécifiées dans le présent document, des exigences particulières font l'objet d'un accord entre le fabricant et l'acheteur. Le présent document définit également le type d'essais à effectuer, par exemple essais de type/essais individuels de série/essais d'acceptation et essais de mise en service des MTU. Il ne s'applique pas: • aux compteurs de référence portatifs et sources portatives; • aux compteurs d'électricité; • aux interfaces de communication avec le compteur et aux procédures d'essai de l'interface de communication; • aux MTU alimentés par transformateur; • aux ordinateurs personnels fournis avec le MTU

Števci električne energije - Merilna oprema, tehnike in postopki - 1. del: Enote za statične števce (MTU) (IEC 62057-1:2023)

Standard IEC 62057-1:2023 se uporablja za enote za statične števce (MTU), ki so trajno nameščene v laboratorijih ter se uporabljajo za preskušanje in umerjanje števcev za elektriko, zlasti za njihov tipski preskus, preskus sprejemljivosti in preskus za preverjanje. Zajema zahteve za samodejne enote za statične števce za uporabo v notranjih laboratorijih in se uporablja za novo izdelane enote za statične števce za preskušanje števcev za elektriko v omrežju 50 Hz ali 60 Hz z izmenično napetostjo do 600 V (fazna napetost).
Če so števci namenjeni za sistemske napetosti, ki niso določene v tem dokumentu, se proizvajalec in kupec dogovorita o posebnih zahtevah.
Ta dokument prav tako določa vrsto preskusov, ki se izvedejo kot tipski preskusi/rutinski preskusi/preskusi sprejemljivosti in zagonski preskusi za enote za statične števce.
Ne uporablja se za:
• prenosne referenčne števce in prenosne vire;
• števce za elektriko;
• podatkovne vmesnike za števec in njihove preskusne postopke;
• enote za statične števce, ki jih upravlja transformator;
• osebne računalnike, dobavljene z enoto za statične števce.

General Information

Status
Published
Publication Date
11-May-2023
Current Stage
6060 - Document made available - Publishing
Start Date
12-May-2023
Completion Date
12-May-2023

Buy Standard

Standard
EN IEC 62057-1:2023
English language
80 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-julij-2023
Števci električne energije - Merilna oprema, tehnike in postopki - 1. del: Enote za
statične števce (MTU) (IEC 62057-1:2023)
Electrical energy meters - Test equipment, techniques and procedures - Part 1:
Stationary meter test units (MTUs) (IEC 62057-1:2023)
Prüfgeräte, Techniken und Verfahren für elektrische Energiezähler - Teil 1: Stationäre
Zählerprüfeinrichtungen (MTU) (IEC 62057-1:2023)
Equipements, techniques et procédures d'essai des compteurs d'énergie électrique -
Partie 1: Bancs d'essai stationnaires des compteurs d'énergie électrique (MTU) (IEC
62057-1:2023)
Ta slovenski standard je istoveten z: EN IEC 62057-1:2023
ICS:
17.220.20 Merjenje električnih in Measurement of electrical
magnetnih veličin and magnetic quantities
91.140.50 Sistemi za oskrbo z elektriko Electricity supply systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 62057-1

NORME EUROPÉENNE
EUROPÄISCHE NORM May 2023
ICS 17.220.20; 91.140.50
English Version
Electrical energy meters - Test equipment, techniques and
procedures - Part 1: Stationary meter test units (MTUs)
(IEC 62057-1:2023)
Compteurs d'énergie électrique - Équipements, techniques Elektrische Energiezähler - Prüfgeräte, Techniken und
et procédures d'essai - Partie 1: Bancs d'essai stationnaires Verfahren - Teil 1: Stationäre Zählerprüfeinrichtungen
des compteurs d'énergie électrique (MTU) (MTU)
(IEC 62057-1:2023) (IEC 62057-1:2023)
This European Standard was approved by CENELEC on 2023-05-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62057-1:2023 E

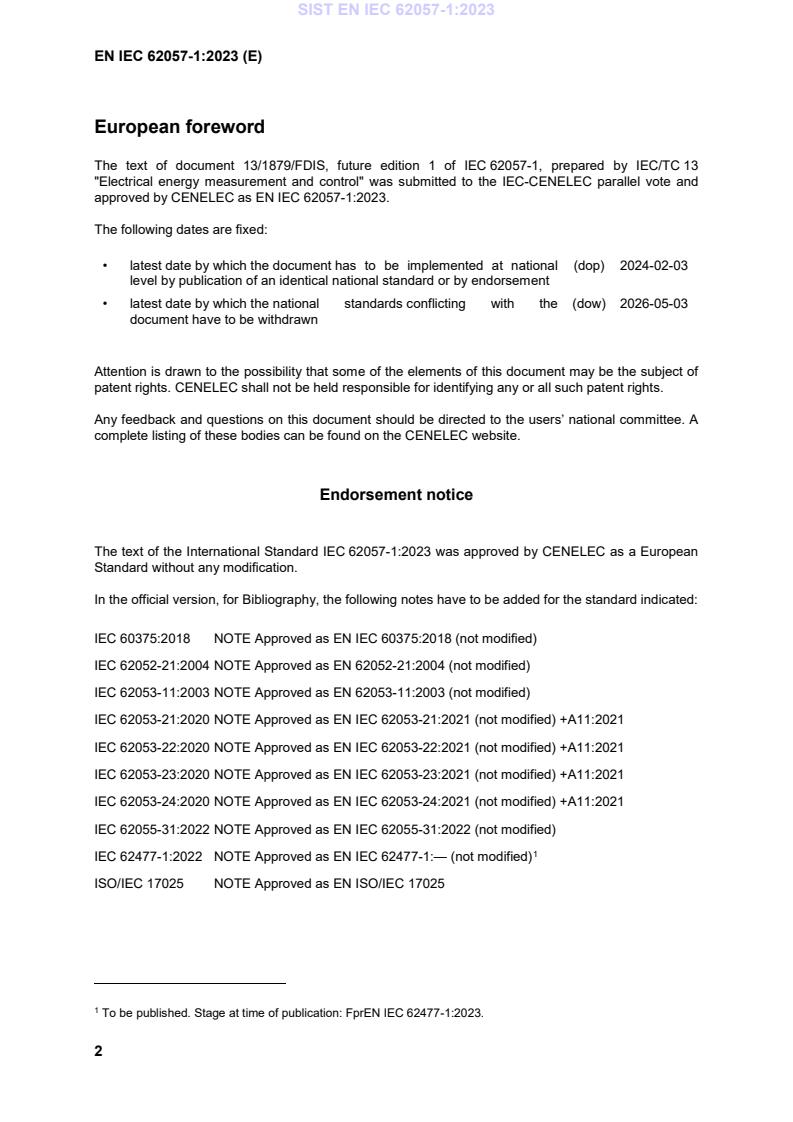

European foreword
The text of document 13/1879/FDIS, future edition 1 of IEC 62057-1, prepared by IEC/TC 13
"Electrical energy measurement and control" was submitted to the IEC-CENELEC parallel vote and
approved by CENELEC as EN IEC 62057-1:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-02-03
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-05-03
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62057-1:2023 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60375:2018 NOTE Approved as EN IEC 60375:2018 (not modified)
IEC 62052-21:2004 NOTE Approved as EN 62052-21:2004 (not modified)
IEC 62053-11:2003 NOTE Approved as EN 62053-11:2003 (not modified)
IEC 62053-21:2020 NOTE Approved as EN IEC 62053-21:2021 (not modified) +A11:2021
IEC 62053-22:2020 NOTE Approved as EN IEC 62053-22:2021 (not modified) +A11:2021
IEC 62053-23:2020 NOTE Approved as EN IEC 62053-23:2021 (not modified) +A11:2021
IEC 62053-24:2020 NOTE Approved as EN IEC 62053-24:2021 (not modified) +A11:2021
IEC 62055-31:2022 NOTE Approved as EN IEC 62055-31:2022 (not modified)
IEC 62477-1:2022 NOTE Approved as EN IEC 62477-1:— (not modified)
ISO/IEC 17025 NOTE Approved as EN ISO/IEC 17025

To be published. Stage at time of publication: FprEN IEC 62477-1:2023.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60417 - Graphical symbols for use on equipment - -
IEC 60617 - Graphical symbols for diagrams - -
IEC 60664-1 2020 Insulation coordination for equipment EN IEC 60664-1 2020
within low-voltage supply systems - Part 1:
Principles, requirements and tests
IEC 60721-3-2 2018 Classification of environmental conditions - EN IEC 60721-3-2 2018
Part 3-2: Classification of groups of
environmental parameters and their
severities - Transportation and Handling
IEC 60721-3-3 2019 Classification of environmental conditions - EN IEC 60721-3-3 2019
Part 3-3: Classification of groups of
environmental parameters and their
severities - Stationary use at
weatherprotected locations
IEC 61010-1 2010 Safety requirements for electrical EN 61010-1 2010
equipment for measurement, control, and
laboratory use - Part 1: General
requirements
+ A1 (mod) 2016  + A1 2019
IEC 61010-031 2015 Safety requirements for electrical EN 61010-031 2015
equipment for measurement, control and
laboratory use - Part 031: Safety
requirements for hand-held probe
assemblies for electrical measurement and
test
+ A1 2018  + A1 2021
IEC 61140 2016 Protection against electric shock - EN 61140 2016
Common aspects for installation and
equipment
IEC 61326-1 2020 Electrical equipment for measurement, EN IEC 61326-1 2021
control and laboratory use - EMC
requirements - Part 1: General
requirements
IEC 62052-11 2020 Electricity metering equipment - General EN IEC 62052-11 2021
requirements, tests and test conditions -
Part 11: Metering equipment
- - /A11 2022
IEC 62052-31 2015 Electricity metering equipment (AC) - EN 62052-31 2016
General requirements, tests and test
conditions - Part 31: Product safety
requirements and tests
IEC 62053 series Electricity metering equipment EN IEC 62053 series
CISPR 11 (mod) 2015 Industrial, scientific and medical equipment EN 55011 2016
- Radio-frequency disturbance
characteristics - Limits and methods of
measurement
+ A1 2016  + A1 2017
- -  + A11 2020
+ A2 2019  + A2 2021
- - Voltage characteristics of electricity EN 50160 -
supplied by public electricity networks
- - Electricity metering equipment (a.c.) EN 50470 series
ISO 3864-1 2011 Graphical symbols - Safety colours and - -
safety signs - Part 1: Design principles for
safety signs and safety markings
ISO 7000 - Graphical symbols for use on equipment - - -
Registered symbols
ISO 13732-1 2006 Ergonomics of the thermal environment - EN ISO 13732-1 2008
Methods for the assessment of human
responses to contact with surfaces - Part 1:
Hot surfaces
IEC 62057-1 ®
Edition 1.0 2023-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electrical energy meters – Test equipment, techniques and procedures –

Part 1: Stationary meter test units (MTUs)

Compteurs d'énergie électrique – Équipements, techniques et procédures

d'essai –
Partie 1: Bancs d'essai stationnaires des compteurs d'énergie électrique (MTU)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.220.20; 91.140.50 ISBN 978-2-8322-6437-9

– 2 – IEC 62057-1:2023 © IEC 2023
CONTENTS
FOREWORD . 7
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 10
3.1 Definitions related to the elements of the MTU . 11
3.2 Definitions of active, reactive and apparent power . 12
3.3 Definitions related to influence quantities . 15
3.4 Definitions related to accuracy . 16
3.5 Definitions related to testing. 17
4 Meter test units and automated meter test units. 18
5 Meter accuracy test methods . 19
5.1 General . 19
5.2 Energy comparison method . 19
5.3 Power–time measurement method (wattmeter method with register reading) . 20
5.4 Pulse comparison method . 20
6 Standard electrical values. 21
6.1 Mains supply . 21
6.2 Output values and ranges of the test circuits . 22
6.2.1 Test voltage circuit . 22
6.2.2 Test current circuit . 22
6.2.3 Phase angle . 23
6.2.4 Frequency . 23
6.2.5 Harmonics . 24
6.3 Standard meter . 24
6.3.1 Accuracy class . 24
6.3.2 Standard electrical values . 24
6.4 Magnetic field of the MTU . 25
6.5 Electrical and mechanical values for the scanning head(s) . 25
6.6 Error calculation system . 26
6.6.1 Functional requirements . 26
6.6.2 Parameters . 26
7 Constructional requirements of the MTU . 26
7.1 General requirements . 26
7.2 Source and standard meter . 26
7.3 Meter mounting system . 27
7.3.1 General . 27
7.3.2 Terminals . 27
8 Information and marking requirements . 28
8.1 General . 28
8.2 Labels, signs and signals .
...
