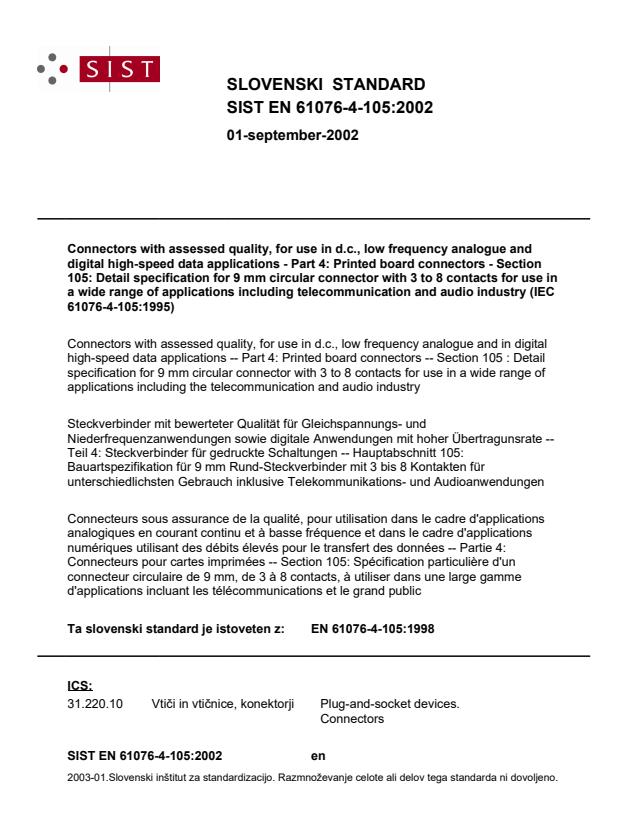

EN 61076-4-105:1998

SLOVENSKI STANDARD
01-september-2002
Connectors with assessed quality, for use in d.c., low frequency analogue and
digital high-speed data applications - Part 4: Printed board connectors - Section
105: Detail specification for 9 mm circular connector with 3 to 8 contacts for use in
a wide range of applications including telecommunication and audio industry (IEC
61076-4-105:1995)
Connectors with assessed quality, for use in d.c., low frequency analogue and in digital
high-speed data applications -- Part 4: Printed board connectors -- Section 105 : Detail
specification for 9 mm circular connector with 3 to 8 contacts for use in a wide range of
applications including the telecommunication and audio industry
Steckverbinder mit bewerteter Qualität für Gleichspannungs- und
Niederfrequenzanwendungen sowie digitale Anwendungen mit hoher Übertragunsrate --
Teil 4: Steckverbinder für gedruckte Schaltungen -- Hauptabschnitt 105:
Bauartspezifikation für 9 mm Rund-Steckverbinder mit 3 bis 8 Kontakten für
unterschiedlichsten Gebrauch inklusive Telekommunikations- und Audioanwendungen
Connecteurs sous assurance de la qualité, pour utilisation dans le cadre d'applications
analogiques en courant continu et à basse fréquence et dans le cadre d'applications
numériques utilisant des débits élevés pour le transfert des données -- Partie 4:
Connecteurs pour cartes imprimées -- Section 105: Spécification particulière d'un
connecteur circulaire de 9 mm, de 3 à 8 contacts, à utiliser dans une large gamme
d'applications incluant les télécommunications et le grand public
Ta slovenski standard je istoveten z: EN 61076-4-105:1998
ICS:
31.220.10 9WLþLLQYWLþQLFHNRQHNWRUML Plug-and-socket devices.
Connectors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

NORME CEI
INTERNATIONALE IEC
1076-4-105
INTERNATIONAL
STANDARD
QC 480301 XX0006
Première édition
First edition
1995-06
Connecteurs sous assurance de la qualité,
pour utilisation dans le cadre d'applications
analogiques en courant continu et à basse
fréquence et dans le cadre d'applications
numériques utilisant des débits élevés
pour le transfert des données -
Partie 4:
Connecteurs pour cartes imprimées -
Section 105: Spécification particulière d'un connecteur
circulaire de 9 mm, de 3 à 8 contacts, à utiliser dans
une large gamme d'applications incluant les
télécommunications et le grand public
Connectors with assessed quality, for use
in d.c., low-frequency analogue and in digital
high-speed data applications -
Part 4:
Printed board connectors -
Section
105: Detail specification for 9 mm circular
connector with 3 to 8 contacts for use in a wide range
of applications including the telecommunication
and audio industry
© CEI 1995 Droits de reproduction réservés — ri
Copy ght — all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No pa
rt of this publication may be reproduced or utilized in
utilisée sous quelque forme que ce soit et par aucun pro-
any form or by any means, electronic or mechanical,
cédé, électronique ou mécanique, y compris la photocopie et including photocopying and microfilm, without permission
les microfilms, sans l'accord écrit de l'éditeur. in writing from the publisher.
Bureau Central de la Commission Electrotechnique Inte
rnationale 3, rue de Varembé Genève, Suisse
Commission Electrotechnique Internationale CODE PRIX
International Electrotechnical Commission
PRICE CODE
IEC
Mew,sjl4apoaiae 3nelcrpoTexHH4ecnan HOMHCCNN
Pour prix, voir catalogue en vigueur
• •
For price, see current catalogue

1076-4-105 © IEC:1995 - 3 –
CONTENTS
Page
FOREWORD 7
Clause
1 General data 9
1.1 Recommended method of mounting 9
1.2 Minimum and maximum number of contacts 9
1.3 Rating and characteristics
1.4 Normative references 9
1.5 Marking 13
1.5.1 IEC type designation 13
1.6 Drawings and dimensions
1.6.1 General 15
1.6.2 Isometric view and common features 15
1.6.3 Mating information
1.6.4 Survey of styles and variants 23
1.6.5 Fixed connector 25
1.6.6 Free connectors with male contacts 37
1.6.7 Accessories 39
1.6.8 Mounting information for fixed connectors 39
1.6.9 Gauges 45
2 47
Characteristics
2.1 Climatic category
2.2 Electrical characteristics
2.2.1 Creepage and clearance distances 47
2.2.2 Voltage proof 49
2.2.3 Current-carrying capacity 49
2.2.4 Initial contact resistance 49
2.2.5 Initial insulation resistance 51
2.3 Mechanical characteristics 51
2.3.1 Mechanical operation
2.3.2 Insertion and withdrawal forces
3 Test schedule
3.1 General 51
3.1.1 Arrangements for dynamic stress tests 53

1076-4-105 © IEC:1995 — 5 —
Page
Clause
3.2 Test schedule tables
3.2.1 Preliminary group P
3.2.2 Group AP
3.2.3 Group BP
3.2.4 Group CP
3.2.5 Group DP
3.2.6 Group EP — Not applicable
3.2.7 Group FP — Not applicable
3.2.8 Group GP (applicable to free connectors only)
4 Quality assessment procedures
4.1 Qualification approval testing
4.1.1 63 Method 1
4.1.2 Method 2
4.2 Quality conformance inspection
4.2.1 Lot-by-lot tests
4.2.2 Periodic tests 65
4.3 Delayed delivery, re-inspection
Annexes
A Mixed industrial flowing gas test procedure 69
B Mechanical tests 83
C Microsection 85
D Random vibration test procedure

1076-4-105 © IEC:1995 – 7 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
CONNECTORS WITH ASSESSED QUALITY, FOR USE IN DC,
LOW-FREQUENCY ANALOGUE AND IN DIGITAL HIGH-SPEED
DATA APPLICATIONS -
Part 4: Printed board connectors -
Section 105: Detail specification for 9 mm circular connector
with 3 to 8 contacts for use in a wide range of applications
including the telecommunication and audio industry
FOREWORD
1)
The IEC (International Electrotechnical Commission) is a worldwide organization for standardization
comprising all national electrotechnical committees (IEC National Committees). The object of the IEC is to
promote international cooperation on all questions concerning standardization in the electrical and
electronic fields. To this end and in addition to other activities, the IEC publishes International Standards.
Their preparation is entrusted to technical committees; any IEC National Committee interested in
the subject dealt with may participate in this preparatory work. International, governmental and
non-governmental organizations liaising with the IEC also participate in this preparation. The IEC
collaborates closely with the International Organization for Standardization (ISO) in accordance with
conditions determined by agreement between the two organizations.
2)
The formal decisions or agreements of the IEC on technical matters, prepared by technical committees on
which all the National Committees having a special interest therein are represented, express, as nearly as
possible, an international consensus of opinion on the subjects dealt with.
3) They have the form of recommendations for international use published in the form of standards, technical
reports or guides and they are accepted by the National Committees in that sense.
4)
In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
International Standard IEC 1076-4-105 has been prepared by sub-committee 48B:
Connectors, of IEC technical committee 48: Electromechanical components and mech-
anical structures for electronic equipment.
The text of this standard is based on the following documents:
DIS Report on voting
48B/362/DIS
48B/416/RVD
Full information on the voting for the approval of this standard can be found in the repo
rt
on voting indicated in the above table.
Annexes A, B, C and D form an integral part of this standard.
The QC number that appears on the front cover of this publication is the specification
number in the IEC Quality Assessment System for Electronic Components (IECQ).

1076-4-105 © IEC:1995 - 9 -
CONNECTORS WITH ASSESSED QUALITY, FOR USE IN DC,
LOW-FREQUENCY ANALOGUE AND IN DIGITAL HIGH-SPEED
DATA APPLICATIONS -
Part 4: Printed board connectors -
Section 105: Detail specification for 9 mm circular connector
with 3 to 8 contacts for use in a wide range of applications
including the telecommunication and audio industry
1 General data
1.1 Recommended method of mounting
A complete connector consists of a fixed connector and a free connector. The fixed
connector is mounted vertically or at a right angle to the printed circuit board. The free
connector is terminated to a cable consisting of three to eight conductors (shielded or un-
shielded).
1.2 Minimum and maximum number of contacts
The fixed and the free connector have a range of three to eight contacts. Each connector
is keyed to prevent mismating. Examples of contact arrangements are shown in figure 2.
1.3 Rating and characteristics
Wording voltage: 30 V a.c. r.m.s. or d.c.
1 A max.
Current rating:
Insulation resistance: 1 000 MO min.
PL1: 55/100/56
Climatic category:
PL2: 55/100/21
Not applicable
PL3:
Printed board thickness: 1,58 mm (0,062 in)
Contact spacing: Varies with number of contacts.
1.4 Normative references
The following normative documents contain provisions which, through reference in this
text, constitute provisions of this section of IEC 1076-4. At the time of publication,
the editions indicated were valid. All normative documents are subject to revision, and
parties to agreements based on this section of IEC 1076-4 are encouraged to investigate
the possibility of applying the most recent editions of the normative documents indicated
below. Members of IEC and ISO maintain registers of currently valid International
Standards.
IEC 68-1: 1988, Environmental testing - Part 1: General and guidance
IEC 326-2: 1990, Printed boards - Pa rt 2: Test methods
Amendment 1 (1992)
rt 4: Solderless non-accessible insulation
IEC 352-4: 1994, Solderless connections Pa
displacement connections - General requirements, test methods and practical guidance

1076-4-105 ©IEC:1995 - 11 -
IEC 410: 1973, Sampling plans and procedures for inspection by attributes
IEC 512-2: 1985, Electromechanical components for electronic equipment; basic testing
procedures and measuring methods - Part 2: General examination, electrical continuity
and contact resistance tests, insulation tests and voltage stress tests
Amendment 1 (1994)
IEC 512-4: 1976, Electromechanical components for electronic equipment; basic testing
procedures and measuring methods - Part 4: Dynamic stress tests
IEC 512-5: 1992, Electromechanical components for electronic equipment; basic testing
procedures and measuring methods - Part 5: Impact tests (free components), static load
tests (fixed components), endurance tests and overload tests
IEC 512-6: 1984, Electromechanical components for electronic equipment; basic testing
procedures and measuring methods - Part 6: Climatic tests and soldering tests
IEC 512-7: 1993, Electromechanical components for electronic equipment; basic testing
procedures and measuring methods - Part 7: Mechanical operating tests and sealing tests
IEC/DIS 1076-1: 1995, Connectors with assessed quality, for use in d.c., low-frequency
analogue and in digital high-speed data applications - Pa rt 1: Generic specification')
IEC/DIS 1076-4: 1995, Connectors with assessed quality, for use in d.c., low-frequency
analogue and in digital high-speed data applications - Part 4: Sectional specification -
Printed board connectors2)
ISO 468: 1982, Surface roughness - Parameters, their values and general rules for speci-
fying requirements
1) At present, at the stage of draft international standard: 48B/363/DIS.
2) At present, at the stage of draft international standard: 48B/364/DIS.

1076-4-105 ©IEC:1995 – 13 –
1.5 Marking
Each connector and its associated package shall be marked in accordance with the
requirements specified in 2.5 of the future IEC 1076-1.
1.5.1 IEC type designation
L
IEC 1076-4-105
Reference
to standard
Assessment level
Style of connector
A
See 1.6.4 A
G
Survey of styles B
for description C
D
E
Performance level
Fixed F
G
H
1 PL1
J
2 PL2
K
3 PL3
Free L
M
Contact finish
Number of contacts
1 Gold - 0,762 µm (30 µin)
003 2 Gold - 0,381 µm (15 pin)
Gold - Flash
Type of termination
I Insulation displacement
Solder
S
Type of contact
M Surface mount
(see note under 1.6.4)
X Other
Female F
M
Male
"L" stands for letter
"N" stands for number
Example:
IEC 1076-4-105 – A008FS11 G
Eight-position shielded right-angle fixed soldered connector with female contacts with
0,76 gm gold finish for performance level 1 and assessment level G.

1076-4-105 © IEC:1995 - 15 -
1.6 Drawings and dimensions
1.6.1 General
Dimensions in inches are original. Dimensions are shown in millimetres with inch
dimensions in brackets. Drawings are shown in third-angle projection. The shape of the
connectors may deviate from those given in the following figures as long as the specified
dimensions are not influenced.
1.6.2
Isometric view and common features

Right-angle connector Vertical connector

(female contacts) (female contacts)
Overmoulding or boot, depending
on user requirements
Free hanging connector
(male contacts)
IEC 457/95
Figure 1 - Isometric views
1076-4-105 © IEC:1995 - 17 -
1.6.3 Mating information
Contact arrangements, mating face view of connector with male contacts. Mating face
view of connector with female contacts is mirror image.
IEC 458195
IEC 459/95 IEC 460/95
Figure 2a - Three-position
Figure 2b - Four-position Figure 2c - Five-position

mating face mating face
mating face
IEC 461195 IEC 462195
IEC 463/95
Figure 2d - Six-position
Figure 2e - Seven-position Figure 2f - Eight-position

mating face
mating face mating face
Figure 2 - Contact arrangements

1076-4-105 © IEC:1995 - 19 -
1.6.3.1 Dimensions of mating face
1.6.3.1.1
Dimensions shown are for the mating face of fixed connectors with female
contacts only
Symmetrical Symmetrical
1,80 i 1,80
i axis axis
. 2,87 2,87 • (0,071)
(0,071)
0 7,95
(0,113) ^ ^ ^ 0 7,95 (0,113) ^
(0,313)
(0,313)
2,08
(0,082)
1,52
(0,060)
IEC 464/95
/EC 465/95
Figure 3a - Three-position mating face
Figure 3b - Four-position mating face
Symmetrical
Symmetrical
1,80
1,80
I axis axis i 2,87 0,071 2,87 0 7,95
•^( • ' (0,071)
) fô 7,95
(0,113) (0,113) (0,313)
(0,313)
2,16
(0,085)
IEC 467/95
IEC 466/95
Figure 3c - Five-position mating face Figure 3d - Six-position mating face
Symmetrical
Symmetrical
axis 1,80 1 , 80
axis i
2,87 • (0,071) 2,87 (0,071)
(0,113) 0 7,95 (0,113) 0 7,95
i l
(0,313) (0,313)
1,42
1,78 1,78
(0,056)
(0,070) (0,070)
2 PLC ^ 2 PLC T.-
5,00 Ø•1 5,00 ___01
(0,197) (0,197)
IEC 469/95
/EC 468/95
Figure 3e - Seven-position mating face Figure 3f - Eight-position mating face
Figure 3 - Mating face of fixed connector

1076-4-105 © IEC:1995 - 21 -
1.6.3.1.2 Dimensions shown are for the mating face of free connectors with male
contacts
Symmetrical
axis
0,84
0,84
(0,033)
(0,033)
3 PLC
0 8,95 0 8,95
3 PLC
(0,352) (0,352)
1,27
(0,050)
1 52
(0,060)
100°
t 3°
!EC 470/95 !EC 471/95
Figure 4a - Three-position mating face Figure 4b - Four-position mating face
Symmetrical
axis
0,84
0,84
(0,033)
3 PLC^^ (0,033)
0 8,95 0 8,95
3 PLC
1,93
1,88 (0,352) (0,352)
(0,076)
(0,074)
IEC 472/95 !EC 473195
Figure 4c - Five-position mating face Figure 4d - Six-position mating face
Symmetrical
Symmetrical
axis , axis
0,84
0,84
0,84
(0,033) : (0,033) 0,84
3 PLC (0,033) 3 PLC (0,033)
0 8,95
0 8,95
3 PLC
3 PLC
(0,352)
!EC 475/95
Figure 4e - Seven-position mating face Figure 4f - Eight-position mating face
Figure 4 - Mating face of free connector

1076-4-105 © IEC:1995 — 23 —
1.6.4 Survey of styles and variants
Table 1 — Style survey
Fixed connectors
A Shielded, right angle
Shielded, right angle surface mounted
B
Shielded, right angle with printed board retention
C
D Shielded, right angle with panel grounding, through-hole
Shielded vertical with low flange
E
F Shielded vertical with high flange
G Unshielded vertical with low flange
H Unshielded vertical with high flange
Shielded vertical with low flange and front panel screw-down
J
K Shielded vertical with high flange and front panel screw-down
Free connectors
L Shielded with insulation displacement termination
Other (see note)
M
NOTE — Customer should contact supplier for individual requirements.

1076-4-105 © IEC:1995 - 25 -
1.6.5 Fixed connector
1.6.5.1 Dimensions
1.6.5.1.1 Shielded right-angle connector - Style A
V-notch for robotic indexing.
80°
2 54 -
(0, 00) \I ' I.
1,42
(0,056)
to
Section Z-Z
Scale 10:1
14,00
; A
(0,551) I
12,84
(0,505)
II
L 3,51
2,0 ± 0,05
(0,125)
(0,138)
(0,080 ± 0,002)
2,03 ± 0,13
551 t0,13
(0,080 ± 0,005)
(0,217 ± 0,005)
0,38
C B A®
(0,015)0
4,70 ± 0,13
(0,185 t 0,005)
0,216 ± 0,05
(0,0085 ± 0,002).
0,41
C
A®
B
(0,016)0
0,41
C B A®
(0,016)
(0,268)
Detail C
Scale 50:1
IEC 476/95
Figure 5 - Shielded right-angle connector

1076-4-105 © IEC:1995 - 27 -
1.6.5.1.2 Shielded right-angle surface mounted connector - Style B
For additional dimensions, see figure 5.
14,00
(0,551)
Ill
131 ^
_ Datum
axis
C
0,13
(0,005)
2'57 2PLC
TYP.
(0,101)
6,73 Contacts
0,26
^
V
0,318 ± 0,025 _♦
f
(0,0125 ± 0,0010) 6,84 C B A®
1,45
(0,269)
(0,057)
0,20
C B
5,51
(0.008)O
0,25
(0,217)
C B A®
2 PLC
13,68 (0,010)O
(0,538)
2 PLC 2 PLC
IEC 477195
Figure 6 - Shielded right-angle surface-mounted connector
1.6.5.1.3 Shielded right-angle connector with printed-board retention - Style C
For additional dimensions, see figure 5.
tJ(j
15±0,05
1'1- (0,045 ± 0,002)
551 ±0,13
(0,21 ± 0,005)
IEC 478195
Figure 7 - Shielded right-angle connector with board retention

1076-4-105 © IEC:1995 - 29 -
1.6.5.1.4 Shielded right-angle connector with panel grounding - Style D
For additional dimensions, see figure 5.
1,55±0,13
(0,065 ± 0,005)
2 PLC
fEC 479195
Figure 8 - Shielded right-angle connector with grounding
1.6.5.1.5 Shielded vertical connectors - Styles E and F
H
Style
mm in
E (low-flange) 5,994 0,236
F (high-flange) 8,509 0,335
0 17,78 ± 0,25
(0,700 ± 0,010)
fEC 48d95
Figure 9 - Shielded vertical connectors

1076-4-105 © IEC:1995 — 31 —
1.6.5.1.6 Unshielded ve rtical connectors - Styles G and H
H
Style
mm in
G (low-flange)
5,994 0,236
H (high-flange)
8,509 0,335
_ 0 11,94
(0,470) —1
9,52
TYP. t
(0,375)
H
, +
;
i
TYP.
(0,045)
[
0 13,97 3,56
TYP.
3,18
(0,140)
(0,550)
TYP.
(0,125)
!EC 481/9J
Figure 10 - Unshielded vertical connectors
1.6.5.1.7 Front panel screwdown connector - Styles J and K
H
Style
mm in
J (low-flange) 5,994
0,236
K (high-flange) 8,509
0,335
22,61
3,18
TYP.
(0,125)
(0,400)
/EC 482/95
Figure 11 - Vertical connector with panel screw-down

1076-4-105 ©IEC:1995 - 33 -
1.6.5.2
Contact arrangements for fixed connector with female contacts, male contacts
mirror image
Symmetrical
axis i
0,40
(0,016)
IEC 483195 IEC 484/95
Figure 12a - Three-contact arrangement
Figure 12b - Four-contact arrangement
0,40
0,40
(0,016)
(0,016)
IEC 485195 IEC 486195
Figure 12c - Five-
contact arrangement
Figure 12d - Six-contact arrangement
Symmetrical
axis
0,40
0,40
(0,016)
(0,016)
Figure 12e - Seven-contact arrangement
Figure 12f - Eight-contact arrangement
Figure 12 - Contact arrangements for fixed connector with female contacts

1076-4-105 © IEC:1995 - 35 -
1.6.5.3 Termination
1.6.5.3.1 Through-hole soldering
When connector is fully seated, the solder post shall extend a minimum of
1,27 mm
(0,050
in) beyond the printed board. This requirement applies to all printed board thick-
nesses.
1,27 mm to 2,032 mm
(0,050 in to 0 ,080 in)
I
Printed board
IEC 489/95
Figure 13 - Through-hole soldering
1.6.5.3.2 Surface mount
Solder feet shall maintain coplanarity through length of connector and with solder pads.
Pad léngth
PC board lead
IEC 490195
Figure 14 — Surface mount
1076-4-105 © IEC:1995 - 37 -
Free connectors with male contacts
1.6.6
Dimensions of connectors with male contacts
1.6.6.1
0,38
0,20
...... (0,015)
(0,008)
0,61 ± 0,05
Max. flat
/
r (0,024 ± 0,002)
}
f {
6,00
(0,236)
6,35
(0,250)
30° ± 5°
0 8,95
(0,352)
IEC 49I/95
Figure 15 - Dimensions of connectors with male contacts
1.6.6.2 Dimensions of contact arrangements
Contact arrangement for male contacts is mirror image of those illustrated in 1.6.5.2.
1.6.6.3 Termination
1.6.6.3.1 Insulation displacement (see IEC 352-4)
A solderless electrical connection made by inserting a single wire into a precisely
controlled slot in a termination such that the sides of the slot displace the insulation and
deform the conductor of a solid wire or strands of stranded wire to produce a gas-tight
connection. (See 3.2.8 of test schedule GP; annexes B and C.)
IEC
192/95
Figure 16 - Insulation displacement connection

1076-4-105 © IEC:1995 - 39 -
1.6.7 Accessories
Not applicable.
1.6.8 Mounting information for fixed connectors
1.6.8.1 Hole pattern on printed boards
See figures 17 and 18 for hole pattern dimensions.
Table 2 - Hole pattern matrix for right-angle and
vertical fixed connectors
Circuit number and hole pattern letters
Connector positions
1 2 3 4 5 6 7 8
D A F - - - - -
4 D A H E - - - -
5 CD AH E - - -
6 CB J E - -
7 DA H F E -
CB
8 CB DG A F F E
1.6.8.1.1 Right-angle connectors
0 2,28 ± 0,08
(0,090 ± 0,003)
3 PLC
13,5 ± 0,08
Printed board
4,70 ± 0,08
(0,53 ± 0,003)
(0,185 ± 0,003)
edge
1 1
5,50 ± 0,08
(0,217 ± 0,003)
11,00 ± 0,08
(0,433 ± 0,003)
2,49 ± 0,08
(0,098 ± 0,003)
0 0,90 ± 0,08
0,90 ± 0,08
(0,035 ± 0,003)
± 0,003
(0,035
8 PLC
± 0,08 _p
(0,051 ± 0,003)
2,60 ± 0,08
-111.
Bottom side of (0,102 ± 0,003)
printed circuit board
3,40 ± 0,08
•
(0,134 ± 0,003)
6,80 ± 0,08
•
(0,268 ± 0,003)
!EC 493/95
Figure 17 - Hole pattern for right-angle connectors

-41 -
1076-4-105 © IEC:1995
1.6.8.1.2 rt
Ve ical connectors
1,60 ± 0,08
(0,063 ± 0,003)-
2 PLC
1,90 ± 0,08
(0,075 ± 0,003)
2,39 ± 0,08
(0,094 ± 0,003)
0,41 ± 0,08
._(0,016 ± 0,003)
2,69 ± 0,08 3 PLC
(0,106 ± 0,003)
2,36 ± 0,08
(0,093 ± 0,003)
4,17 ± 0,08
(0,164 ± 0,003)
5,05 ± 0,08
(0,199 ± 0,003)
6,45 ± 0,08
(0,254 ± 0,003)-
7,95 ± 0,08
(0,313 ± 0,003)
10,29 ± 0,08
IEC 494/95
(0,405 ± 0,003)
Figure 18 - Hole pattern for vertical connectors

1076-4-105 © IEC:1995 - 43 -
1.6.8.2 Pad pattern for surface-mount connectors
The recommended printed circuit board pad pattern, dimensions and tolerances are in
figure 19.
Table 3 - Surface-mounted circuit and pad pattern
Circuit number and pad pattern letters
Connector positions
1 2 3 4 5 6 7 8
A H E - - - - -
4 A H B G - - - -
5 CA H B G - - -
CF AH B G - -
H G -
7 C F A B E
8 CF AD H G
PS 1,52 ± 0,08
(0,050 ± 0,003)
0 0,10 (0,004)
X Y
id 2,03 ± 0,10
0 0,08 (0,003)
O
(0,080 ± 0,004)
Plated through holes
4-I 0 0,25 (0,010)
X Y
.Both sides of printed board
5,51
(0,217)
TYP.
i
/
2,54 ± 0,03
(0,100 ± 0,001)
Pad
0,23 (0,009) OS
Y
0,03 (0,001) OS
0,89 ± 0,03
TYP.
2,39
(0,035 ± 0,001)
(0,094)
0,15 (0,006) OS
X IY
^
0,03 (0,001)
US
!EC 493/93
Figure 19 - Pad pattern for surface-mount connectors

1076-4-105 © IEC:1995 - 45 -
1.6.8.3 Panel cut-out dimensions (rear panel mount only)
03,81
(0,150)
Panel cut-out dimensions Panel cut-out dimensions

Right-angle and standard ver cal connectors
ti Vertical connectors with screwdown option
IEC 496/95
Figure 20 - Panel cut-out dimensions
Gauges
1.6.9
1.6.9.1
Sizing gauges and retention force gauges
Material: tooling steel, hardened
ace roughness:
Su rf according to ISO 468
Ra = 0,10 µm (4 gin)
Sizing gauge inserted three times, then inse rt retention force gauge.
All female contacts tested, gauge shall be retained.
0,20 mm max.
0,38 mm
Ea ^
T
i
4,2 mm
^
-0—OA
/EC 497/95
Figure 21 - Sizing and retention force gauges for female contacts
Table 4 - Sizing gauges and retention force gauges
Gauge Application 0 A Mass
PA Sizing
0,64 mm to 0,66 mm (0,025 in to 0,026 in) —
PM Retention force 0,58 mm to 0,59 mm (0,0228 in to 0,0232 in) 20 g to 21 g

1076-4-105 © IEC:1995 . - 47 -
2 Characteristics
2.1 Climatic category
Table 5 - Climatic category
Category temperature
Performance Climatic Damp heat
level category Number of days
Upper °C
Lower °C
1 55/100/56 -55 +100 56
55/100/21 +100 21
2 -55
3 Not applicable
2.2 Electrical characteristics
2.2.1 Creepage and clearance distances
The permissible operating voltages depend on the application and on the applicable or
specified safety requirements.
Therefore, the clearance and creepage distances are given as operating characteristics.
In practice, reductions in creepage or clearance distances may occur due to the wiring
used and shall duly be taken into account.
Table 6 - Creepage and clearance distance
Fixed connectors
Free connectors
Number
Creepage Clearance Creepage
Clearance
of contacts
mm in mm in mm in mm in
3 3,86 0,152 3,73 0,148 2,43 0,096 2,43 0,096
4 2,72 0,107 2,63 0,103 1,29 0,051 1,29 0,051
5 2,72 0,107 2,63 0,103 1,29 0,051 1,29 0,051
6 • 2,66 0,105 2,57 0,101 1,23 0,049 1,23 0,049
7 2,64 0,100 1,22 0,048 1,22 0,048
0,104 2,55
8 2,64 0,104 2,55 0,100 1,22 0,048 1,22 0,048

1076-4-105 © IEC:1995 - 49 -
2.2.2 Voltage proof
Conditions:
Method C, Test 4a, IEC 512-2
Standard atmospheric conditions
Mated connectors
Unmounted specimens only
Contact/contact: 500 V a.c. peak
Contact/test panel: Not applicable
2.2.3 Current-carrying capacity
Not applicable - this connector family used for signal only.
2.2.4 Initial contact resistance
Conditions:
Test 2a, IEC 512-2
Standard atmospheric conditions
Mated connectors
All contacts measured
Connection points, see figure 22
All contact arrangements: 20 mi/ maximum
76,2 mm (3 in)
Fixed connector
Length of wire
J/ U
Printed board with individual Free connector
circuit for each contact
Resistance
measurement points
!EC 498/95
NOTE - Subtract 76,2 mm (3 in) bulk resistance to yield termination resistance.
Figure 22 - Contact resistance measurement points

— 51 —
1076-4-105 © IEC:1995
2.2.5 Initial insulation resistance
Conditions:
Method C, Test 3a, IEC 512-2
Standard atmospheric conditions
Unmated connectors
Test voltage 500 V ± 50 V d.c.
Adjacent contacts
Requirement: 1 000 r■An minimum
2.3 Mechanical characteristics
2.3.1 Mechanical operation
Conditions:
Test 9a, IEC 512-5,
Standard atmospheric conditions
Frequency of operations: 2 000 cycles/h
Speed of operations: 12,7 mm/min (0,5 in/min)
Table 7 — Number of mechanical operations
Performance levels 1 2 3
Operations 500 250 100
2.3.2 Insertion and withdrawal forces
Conditions:
Test 13b, IEC 512-7
Rate of engagement and separation: 20 mm/s
Insertion: 40 N maximum per connector
Extraction: 9 N minimum per connector
3 Test schedule
3.1 General
This test schedule shows all tests and the order in which they shall be carried out as well
as the requirements to be met.
Unless otherwise specified, all tests shall be carried out under standard atmospheric
conditions for testing as specified in IEC 68-1.
Unless otherwise specified, mated sets of connector modules shall be tested. Care shall
be taken to keep a particular combination of connector modules together during the
complete test sequence; i.e., when unmating is necessary for a certain test, the same
connector modules as before shall be mated for the subsequent tests.
In the following, a mated set of connectors is called a "specimen".

- 53 -
1076-4-105 © IEC:1995
When the initial tests have been completed, all specimens are divided up according to the
test groups. Before testing commences, the connector modules must have been stored
for at least 24 h in the non-inserted state under normal climatic conditions for testing as
specified in IEC 68-1.
The test sequence is applicable to all styles of connector modules.
All styles of connector modules shall be fully loaded.
2 to 0,08 mm 2 cross-section.
Wire to be used for testing - single-solid or 7-strand 0,2 mm
Maximum insulation diameter 1,066 mm, minimum insulation diameter 0,762 mm.
Table 8 - Number of specimens
Number of specimens
Test
group
Fixed Free
P 40 40
10 10
AP
BP 10
10 10
CP
DP 10
EP Not applicable Not applicable
N
...
