EN 60770-1:2011
(Main)Transmitters for use in industrial-process control systems - Part 1: Methods for performance evaluation
Transmitters for use in industrial-process control systems - Part 1: Methods for performance evaluation
IEC 60770-1:2010 is intended to specify uniform methods of test for the evaluation of the performance of transmitters with pneumatic or electric output signals. It is applicable to transmitters which have either a standard analogue electric current output signal or a standard pneumatic output analogue signal in accordance with IEC 60381-1 or IEC 60382. The tests detailed herein may be applied to transmitters which have other output signals, provided that due allowance is made for such differences. This second edition cancels and replaces the first edition published in 1999 and constitutes a technical revision. The significant technical change with respect to the previous edition is as follows: 4.3 Load conditions,for pneumatic transmitters, load details have been added. This publication is to be read in conjunction with IEC 61298-1:2008, IEC 61298-2:2008, IEC 61298-3:2008 and IEC 61298-4:2008.
Messumformer für industrielle Prozessleittechnik - Teil 1: Methoden für die Bewertung des Betriebsverhaltens
Transmetteurs utilisés dans les systèmes de conduite des processus industriels - Partie 1: Méthodes d’évaluation des performances
La CEI 60770-1:2010 spécifie des méthodes uniformes d'essai pour l'évaluation des performances des transmetteurs à signaux de sortie électriques ou pneumatiques. Elle s'applique aux transmetteurs ayant pour signal de sortie normalisé soit un courant électrique analogique, soit un signal pneumatique analogique, conformément à la CEI 60381-1 ou à la CEI 60382. Les essais détaillés dans cette norme peuvent être applicables à des transmetteurs dotés d'autres signaux de sortie, à condition de tenir compte, de façon appropriée, de ces différences. Cette deuxième édition annule et remplace la première édition, parue en 1999, dont elle constitue une révision technique. La modification technique principale par rapport à l'édition précédente est la suivante: 4.3 Conditions de charge, pour les transmetteurs pneumatiques, des détails de charge ont été ajoutés. Cette publication doit être lue conjointement avec la CEI 61298-1:2008, la CEI 61298-2:2008, la CEI 61298-3:2008 et la CEI 61298-4:2008.
Oddajniki za uporabo v sistemih vodenja industrijskih procesov - 1. del: Metode vrednotenja lastnosti (IEC 60770-1:2010)
Ta del IEC 60770 velja za oddajnike, ki imajo ali standardni analogni električni tokovni izhodni signal ali standardni pnevmatični analogni izhodni signal v skladu z IEC 60381-1 ali IEC 60382. Preskusi, ki so tukaj podrobno opisani, se lahko uporabijo za oddajnike, ki imajo druge izhodne signale, pod pogojem, da se ustrezno upoštevajo te razlike. Za vrednotenje inteligentnih oddajnikov glej IEC 60770-3. Za nekatere vrste oddajnikov, kjer je senzor sestavni del, je morda treba upoštevati druge določene standarde IEC ISO (npr. za kemične analizatorje, merilnike pretoka itd). Ta standard je namenjen določevanju enotnih metod preskušanja za vrednotenje
delovanja oddajnikov s pnevmatičnimi ali električnimi izhodnimi signali. Metode vrednotenja, določene v tem standardu, so namenjene uporabi proizvajalca za določanje delovanja njihovih proizvodov in uporabnikov ali neodvisnih preskusnih organizacij za potrditev proizvajalčevih specifikacij delovanja. Okoliščine preskusov, določene v tem standardu, na primer razpon temperatur okolice in napajanje, predstavljajo tiste, ki se običajno pojavljajo pri uporabi. Posledično se morajo vrednosti, navedene tukaj, uporabiti, kadar proizvajalec ne poda drugih vrednosti.Preskusi, določeni v tem standardu, niso nujno zadostni za instrumente, posebej načrtovane za nenavadno naporne dolžnosti, povezane z varnostjo. Oziroma, omejene serije preskusov so
lahko primerne za instrumente, načrtovane za delovanje v bolj omejenem nizu pogojev. Kadar ni potrebno celotno ocenjevanje v skladu s tem standardom, se izvedejo ti preskusi, ki se zahtevajo, in rezultati izrazijo v skladu z ustreznimi deli tega standarda.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-april-2011
1DGRPHãþD
SIST EN 60770-1:2001
Oddajniki za uporabo v sistemih vodenja industrijskih procesov - 1. del: Metode
vrednotenja lastnosti (IEC 60770-1:2010)
Transmitters for use in industrial-process control systems - Part 1: Methods for
performance evaluation (IEC 60770-1:2010)
Messumformer für industrielle Prozessleittechnik - Teil 1: Methoden für die Bewertung
des Betriebsverhaltens (IEC 60770-1:2010)
Transmetteurs utilisés dans les systèmes de conduite des processus industriels - Partie
1: Méthodes d’évaluation des performances (CEI 60770-1:2010)
Ta slovenski standard je istoveten z: EN 60770-1:2011
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 60770-1
NORME EUROPÉENNE
February 2011
EUROPÄISCHE NORM
ICS 25.040.40 Supersedes EN 60770-1:1999
English version
Transmitters for use in industrial-process control systems -
Part 1: Methods for performance evaluation
(IEC 60770-1:2010)
Transmetteurs utilisés dans les systèmes Messumformer für industrielle
de conduite des processus industriels - Prozessleittechnik -
Partie 1: Méthodes d’évaluation des Teil 1: Methoden für die Bewertung des
performances Betriebsverhaltens
(CEI 60770-1:2010) (IEC 60770-1:2010)
This European Standard was approved by CENELEC on 2011-01-02. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60770-1:2011 E

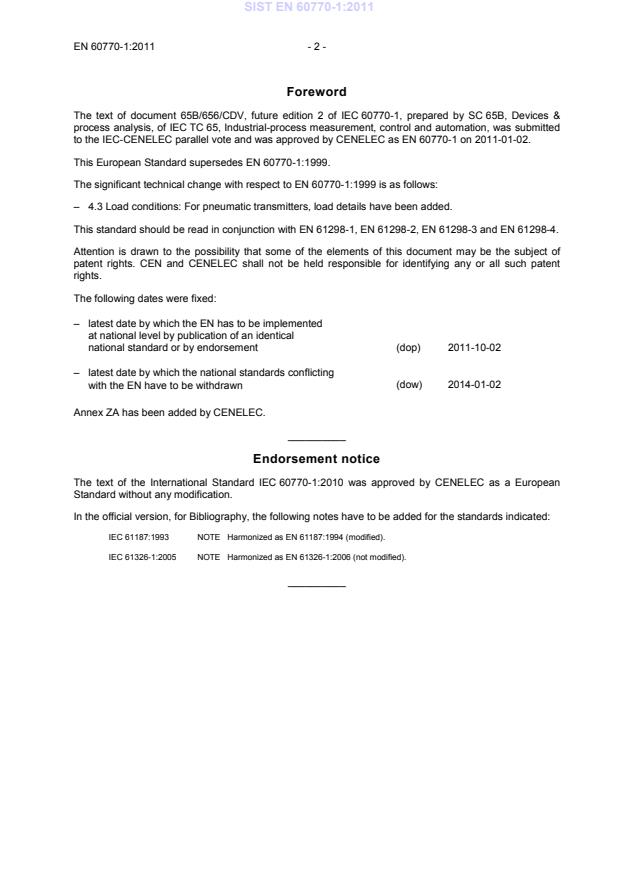

Foreword
The text of document 65B/656/CDV, future edition 2 of IEC 60770-1, prepared by SC 65B, Devices &
process analysis, of IEC TC 65, Industrial-process measurement, control and automation, was submitted
to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 60770-1 on 2011-01-02.
This European Standard supersedes EN 60770-1:1999.
The significant technical change with respect to EN 60770-1:1999 is as follows:
– 4.3 Load conditions: For pneumatic transmitters, load details have been added.
This standard should be read in conjunction with EN 61298-1, EN 61298-2, EN 61298-3 and EN 61298-4.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2011-10-02
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2014-01-02
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60770-1:2010 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 61187:1993 NOTE Harmonized as EN 61187:1994 (modified).
IEC 61326-1:2005 NOTE Harmonized as EN 61326-1:2006 (not modified).
__________
- 3 - EN 60770-1:2011
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year
IEC 60050-300 2001 International Electrotechnical Vocabulary - - -
Electrical and electronic measurements and
measuring instruments -
Part 311: General terms relating to
measurements -
Part 312: General terms relating to electrical
measurements -
Part 313: Types of electrical measuring
instruments -
Part 314: Specific terms according to the type
of instrument
IEC 60068-2-1 2007 Environmental testing - EN 60068-2-1 2007
Part 2-1: Tests - Test A: Cold
1) 2)
IEC 60068-2-2 1974 Environmental testing - EN 60068-2-2 1993
Part 2: Tests - Tests B: Dry heat
IEC 60068-2-31 2008 Environmental testing - EN 60068-2-31 2008
Part 2-31: Tests - Test Ec: Rough handling
shocks, primarily for equipment-type
specimens
IEC 60381-1 1982 Analogue signals for process HD 452.1 S1 1984
control systems -
Part 1: Direct current signals
IEC 60382 1991 Analogue pneumatic signal for process EN 60382 1993
control systems
IEC 60529 2001 Degrees of protection provided by - -
enclosures (IP Code)
IEC 60770-3 2006 Transmitters for use in industrial-process EN 60770-3 2006
control systems -
Part 3: Methods for performance evaluation of
intelligent transmitters
IEC 61000-4-2 2008 Electromagnetic compatibility (EMC) - EN 61000-4-2 2009
Part 4-2: Testing and measurement
techniques - Electrostatic discharge immunity
test
1)
EN 60068-2-2 includes supplement(s) A to IEC 60068-2-2.
2)
EN 60068-2-2 is superseded by EN 60068-2-2:2007, which is based on IEC 60068-2-2:2007.
Publication Year Title EN/HD Year
IEC 61000-4-3 2006 Electromagnetic compatibility (EMC) - EN 61000-4-3 2006
Part 4-3: Testing and measurement
techniques - Radiated, radio-frequency,
electromagnetic field immunity test
IEC 61000-4-4 2004 Electromagnetic compatibility (EMC) - EN 61000-4-4 2004
Part 4-4: Testing and measurement
techniques - Electrical fast transient/burst
immunity test
IEC 61000-4-5 2005 Electromagnetic compatibility (EMC) - EN 61000-4-5 2006
Part 4-5: Testing and measurement
techniques - Surge immunity test
IEC 61000-4-6 2008 Electromagnetic compatibility (EMC) - EN 61000-4-6 2009
Part 4-6: Testing and measurement
techniques - Immunity to conducted
disturbances, induced by radio-frequency
fields
IEC 61000-4-8 2009 Electromagnetic compatibility (EMC) - EN 61000-4-8 2010
Part 4-8: Testing and measurement
techniques - Power frequency magnetic field
immunity test
IEC 61000-4-10 1993 Electromagnetic compatibility (EMC) - EN 61000-4-10 1993
Part 4-10: Testing and measurement
techniques - Damped oscillatory magnetic
field immunity test
IEC 61000-4-11 2004 Electromagnetic compatibility (EMC) - EN 61000-4-11 2004
Part 4-11: Testing and measurement
techniques - Voltage dips, short interruptions
and voltage variations immunity tests
IEC 61000-4-12 2006 Electromagnetic compatibility (EMC) - EN 61000-4-12 2006
Part 4-12: Testing and measurement
techniques - Ring wave immunity test
IEC 61000-4-16 1998 Electromagnetic compatibility (EMC) - EN 61000-4-16 1998
Part 4-16: Testing and measurement
techniques - Test for immunity to conducted,
common mode disturbances in the frequency
range 0 Hz to 150 kHz
IEC 61010-1 2001 Safety requirements for electrical EN 61010-1 2001
3)
equipment for measurement, control, and + corr. June 2002
laboratory use -
Part 1: General requirements
IEC 61032 1997 Protection of persons and equipment by EN 61032 1998
enclosures - Probes for verification
IEC 61298-1 2008 Process measurement and control devices - EN 61298-1 2008
General methods and procedures for
evaluating performance -
Part 1: General considerations
IEC 61298-2 2008 Process measurement and control devices - EN 61298-2 2008
General methods and procedures for
evaluating performance -
Part 2: Tests under reference conditions
3)
EN 61010-1 is superseded by EN 61010-1:2010, which is based on IEC 61010-1:2010.
- 5 - EN 60770-1:2011
Publication Year Title EN/HD Year
IEC 61298-3 2008 Process measurement and control devices - EN 61298-3 2008
General methods and procedures for
evaluating performance -
Part 3: Tests for the effects of influence
quantitites
IEC 61298-4 2008 Process measurement and control devices - EN 61298-4 2008
General methods and procedures for
evaluating performance -
Part 4: Evaluation report content
IEC 60770-1 ®
Edition 2.0 2010-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Transmitters for use in industrial-process control systems –
Part 1: Methods for performance evaluation
Transmetteurs utilisés dans les systèmes de conduite des processus
industriels –
Partie 1: Méthodes d’évaluation des performances
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
R
CODE PRIX
ICS 25.040.40 ISBN 978-2-88912-082-6
– 2 – 60770-1 © IEC:2010
CONTENTS
FOREWORD.3
1 Scope and object .5
2 Normative references.5
3 Terms and definitions .7
4 General conditions for tests .7
4.1 Overview .7
4.2 Supply conditions.7
4.3 Load conditions .7
4.4 Input variable quality.7
5 Analysis and classification of transmitter performance.7
6 General testing procedures and precautions.8
7 Test procedures and reporting .8
8 Other considerations.13
8.1 General .13
8.2 Safety.13
8.3 Degree of protection provided by enclosure.13
8.4 Documentary information (see IEC 61187) .13
8.5 Installation.14
8.6 Routine maintenance and adjustment .14
8.7 Repair .14
8.8 Protective finishes .14
8.9 Design features .14
8.10 Variants.14
8.11 Tools and equipment .14
9 Test report and documentation.14
Annex A (informative) Analysis and classification of the instrument performance .15
Bibliography .19
Figure A.1 – Instrument model .15
Table 1 – Tests for all transmitters .8
Table 2 – Additional tests for electrically powered transmitters.10
Table 3 – Additional tests for pneumatic transmitters .
...
