DRAFT
EUROPEAN STANDARD
prEN 13126-12
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2024
ICS 91.190 Will supersede EN 13126-12:2008
English Version
Building hardware - Hardware for windows and door-
height windows - Requirements and test methods - Part
12: Side hung projecting reversible hardware
Quincaillerie pour le bâtiment - Exigences et méthodes Baubeschläge - Beschläge für Fenster und Fenstertüren
d'essai des ferrures de fenêtres et portes-fenêtres - - Anforderungen und Prüfverfahren - Teil 12:
Partie 12: Ferrures pour ouvrants à projection de l'axe Beschläge für auskragende Drehflügel-Umkehrfenster
latéral réversibles
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 33.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 13126-12:2024 E
worldwide for CEN national Members.

oSIST prEN 13126-12:2024
prEN 13126-12:2024 (E)

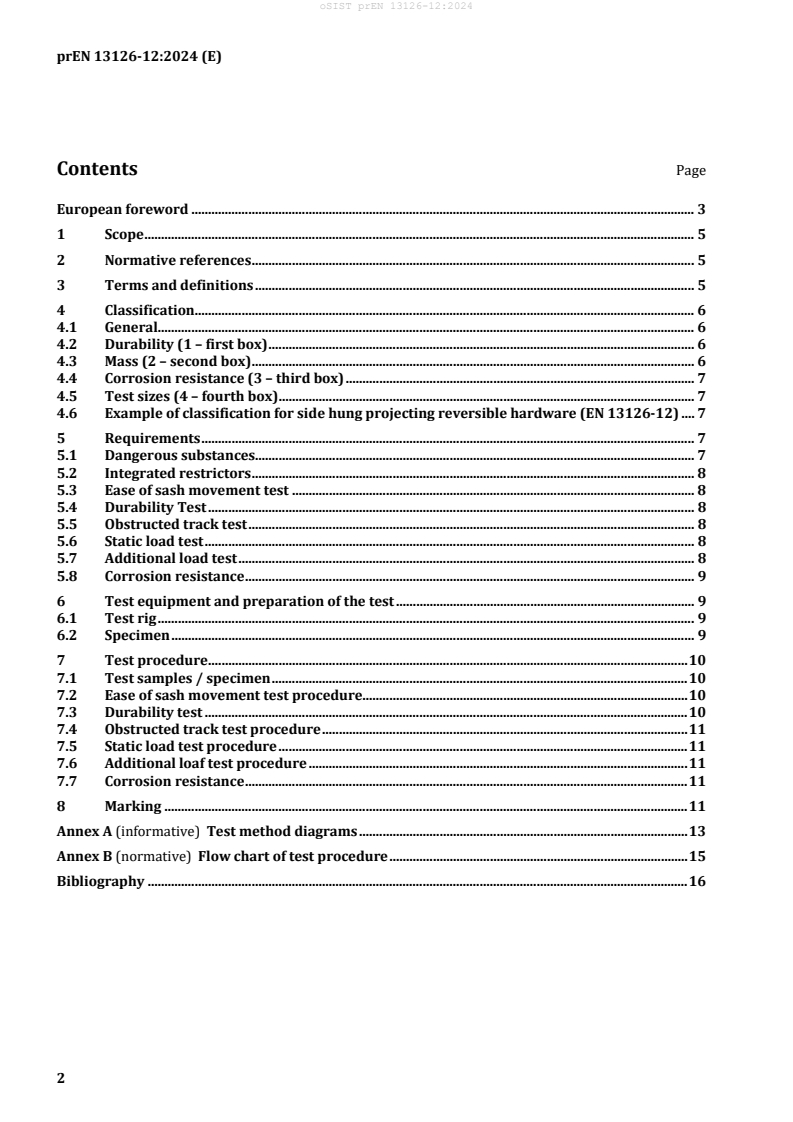

Contents Page
European foreword . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Classification. 6
4.1 General. 6
4.2 Durability (1 – first box) . 6
4.3 Mass (2 – second box) . 6
4.4 Corrosion resistance (3 – third box) . 7
4.5 Test sizes (4 – fourth box) . 7
4.6 Example of classification for side hung projecting reversible hardware (EN 13126-12) . 7
5 Requirements . 7
5.1 Dangerous substances. 7
5.2 Integrated restrictors . 8
5.3 Ease of sash movement test . 8
5.4 Durability Test . 8
5.5 Obstructed track test . 8
5.6 Static load test . 8
5.7 Additional load test . 8
5.8 Corrosion resistance . 9
6 Test equipment and preparation of the test . 9
6.1 Test rig . 9
6.2 Specimen . 9
7 Test procedure . 10
7.1 Test samples / specimen . 10
7.2 Ease of sash movement test procedure. 10
7.3 Durability test . 10
7.4 Obstructed track test procedure . 11
7.5 Static load test procedure . 11
7.6 Additional loaf test procedure . 11
7.7 Corrosion resistance . 11
8 Marking . 11
Annex A (informative) Test method diagrams . 13
Annex B (normative) Flow chart of test procedure . 15
Bibliography . 16

oSIST prEN 13126-12:2024
prEN 13126-12:2024 (E)
European foreword
This document (prEN 13126-12:2024) has been prepared by Technical Committee CEN/TC 33 “Doors,
windows, shutters, building hardware and curtain walling”, the secretariat of which is held by AFNOR.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 13126-12:2008.
In comparison with the previous edition, the following technical modifications have been made:
— EN 13126-12 now is independent from EN 13126-1; all necessary information is included without
the need of any further information from EN 13126-1;
— several editorial changes in the wording for a better understanding;
— terms under 3.6 'specimen’, 3.7 'sample', 3.8 'test-rig', 3.9 ‘test equipment and 3.10 'supporting
subframe' added;
— under 4.1 classification system changed completely; former digits 1 (Category of use), 4 (Fire
resistance), 5 (Safety in use) and 8 (Application) deleted; former digit 2 changed into box 1
(Durability), former digit 3 changed into box 2 (Mass), former digit 6 changed into box 3 (Corrosion
resistance), former digit 9 changed into box 4 (Test sizes);
— under 4.2 new Grades for the number of cycles defined; H1 (5 000), H2 (10 000) and H3 (20 000);
see also 5.4;
— under 4.6 new example added for the new classification;
— under 5.4 new Grades for the number of cycles defined; H1 (5 000), H2 (10 000) and H3 (20 000) in
accordance with 4.2 established;
— under 5.8. ‘Corrosion resistance’ new text added;
— under Clause 6 subclauses 6.1 ‘Test rig’ and 6.2 ‘Specimen’ added or text amended;
— under 7.7 ‘Corrosion resistance’ text modified;
— new Clause 8 ‘Marking’ added;
EN 13126, Building hardware — Hardware for windows and door height windows — Requirements and
test methods consists of the following parts:
— Part 1: Requirements common to all types of hardware;
— Part 2: Window fastener handles;
— Part 3: Handles, primarily for Tilt and Turn, Tilt-First and Turn-Only hardware;
— Part 4: Espagnolettes;
— Part 5: Devices that restrict the opening of windows and door height windows;
— Part 6: Variable geometry stay hinges (with or without a friction stay);
oSIST prEN 13126-12:2024
prEN 13126-12:2024 (E)
— Part 7: Finger catches;
— Part 8: Requirements and test methods for tilt and turn, Tilt-First and Turn-Only hardware;
— Part 9: Hardware for horizontal and vertical pivot windows;
— Part 10: Arm-balancing systems;
— Part 11: Top hung projecting reversible hardware;
— Part 12: Side hung projecting reversible hardware;
— Part 13: Sash balances;
— Part 14: Sash fasteners;
— Part 15: Rollers for horizontal sliding and hardware for sliding folding windows;
— Part 16: Hardware for Lift and Slide windows;
— Part 17: Hardware for Tilt and Slide windows;
— Part 19: Sliding Closing Devices
oSIST prEN 13126-12:2024
prEN 13126-12:2024 (E)
1 Scope
This document specifies requirements and test methods for durability, strength, security and function for
side hung projecting reversible hardware for windows and door height windows.
Note This document is applicable to side hung projecting reversible hardware whether fitted with integral
restrictors or not. Where any restrictor is used it is intended to be tested in accordance with EN 13126-5.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 1670, Building hardware - Corrosion resistance - Requirements and test methods
EN 13126-5, Building hardware - Hardware for windows and door height windows - Requirements and test
methods - Part 5: Devices that restrict the opening of windows and door height windows
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1
pivot retainer
device (may be integrated onto hinge arm system) fitted to the sash to hold it during rotation on hinge
mechanism
3.2
integrated restrictor
mechanism that is an integral part of the side hung projecting reversible hardware that limits the initial
opening of the window and may or may not also hold an opening light firmly in the reverse position
3.3
top slider
assembly consisting of plate and swivel bracket fitted to a sash, which guides movement in a horizontal
plane
3.4
bottom slider
assembly consisting of plate and swivel bracket fitted to sash, which guides movement in horizontal plane
3.5
side hung projecting reversible hinge
mechanism consisting of sliding rails and moving arms fitted into the upper and lower sections of the
window frame, to support the sash allowing it to open outwardly, without projecting into the room, and
to be reversed for cleaning from inside the room
oSIST prEN 13126-12:2024
prEN 13126-12:2024 (E)
3.6
specimen
window without gaskets to accommodate hardware components (samples) for testing
3.7
sample
hardware component intended to be tested
3.8
test-rig
testing device onto which the sample is mounted
3.9
tes
...
