EN 13126-3:2023

(Main)

Building hardware - Hardware for windows and door-height windows - Requirements and test methods - Part 3: Handles, primarily for Tilt and Turn, Tilt-First and Turn-Only hardware

Building hardware - Hardware for windows and door-height windows - Requirements and test methods - Part 3: Handles, primarily for Tilt and Turn, Tilt-First and Turn-Only hardware

This part of the EN 13126 series specifies the requirements and test procedures for durability, strength, security and functionality of handles.
This document is applicable to Tilt and Turn, Tilt-First and Turn-Only hardware for use on windows and door-height windows.
Handles can also be used on other opening types, e.g. on In-line Sliding, Tilt and Slide, Sliding Folding, horizontal and vertical-pivoting windows.
This document is not applicable to:
a)   operation devices, door handles for door latches and door locks (for this, refer to EN 1906);
b)   handles with handle length > 170 mm (refer to Figure B.1).

Baubeschläge - Beschläge für Fenster und Fenstertüren - Anforderungen und Prüfverfahren - Teil 3: Betätigungsgriffe, insbesondere für Drehkipp-, Kippdreh- und Drehbeschläge

Dieser Teil der Normenreihe EN 13126 legt die Anforderungen an und Prüfabläufe für die Dauerfunktionsfähigkeit, Festigkeit, Schutzwirkung und Funktionsweise von Betätigungsgriffen fest.
Dieses Dokument gilt für Drehkipp , Kippdreh- und Drehbeschläge für die Anwendung bei Fenstern und Fenstertüren.
Betätigungsgriffe können auch bei anderen Öffnungsarten, z. B. bei Inline-Schiebefenstern, Kippschiebefenstern, Faltschiebefenstern, Schwingflügelfenstern und Wendeflügelfenstern, angewendet werden.
Dieses Dokument ist nicht anwendbar auf:
a)   Betätigungsvorrichtungen und Türdrücker für Türfallen oder  schlösser (siehe stattdessen EN 1906);
b)   Betätigungsgriffe mit einer Grifflänge > 170 mm (siehe Bild B.1).

Quincaillerie pour le bâtiment - Exigences et méthodes d'essai des ferrures de fenêtres et portes-fenêtres - Partie 3 : Poignées, ferrures d'oscillo-battant, de battant-oscillant et d'ouvrant pivotant

La présente partie de la série EN 13126 spécifie les exigences et les méthodes d'essai relatives à l'endurance, à la résistance, à la sécurité et à la fonctionnalité des poignées.
Le présent document s'applique aux ferrures d'oscillo-battant, de battant-oscillant et d’ouvrant pivotant destinées à être utilisées sur les fenêtres et les portes-fenêtres.
Les poignées peuvent également être utilisées sur d'autres types d'ouverture, par exemple sur des fenêtres coulissantes, oscillo-coulissantes, coulissantes accordéon, basculantes et pivotantes.
Le présent document n'est pas applicable aux :
a)   organes de manœuvre et les poignées de porte pour serrures de portes à pêne dormant ou à pêne demi-tour (pour cela, se reporter à l’EN 1906);
b)   poignées d'une longueur > 170 mm (se reporter à la Figure B.1).

Stavbno okovje - Okovje za okna in zastekljena vrata - Zahteve in preskusne metode - 3. del: Ročaji, namenjeni predvsem za vrtljivo-nagibno, nagibno-vrtljivo in vrtljivo okovje

Ta del standarda EN 13126 določa zahteve in preskusne metode za trajnost, trdnost, varnost ter funkcionalnost ročajev.
Ta evropski standard se uporablja za okovja za okna, ki se nagibajo in obračajo, ki zahtevajo najprej nagib in ki se samo obračajo, ter zastekljenih vrat.
Ročaji se lahko uporabljajo tudi pri drugih vrstah odpiranja, npr. vodoravno drsna, nagibna in drsna, zgibno drsna, horizontalno in vertikalno vrtljiva okna.

General Information

Status
Published
Publication Date
07-Feb-2023
ICS
91.190 - Building accessories
Technical Committee
CEN/TC 33 - Doors, windows, shutters and building hardware
Drafting Committee
CEN/TC 33/WG 4 - Building hardware
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
08-Feb-2023
Due Date
17-May-2023
Completion Date
08-Feb-2023
Ref Project
SIST EN 13126-3:2023 - Building hardware - Hardware for windows and door-height windows - Requirements and test methods - Part 3: Handles, primarily for Tilt and Turn, Tilt-First and Turn-Only hardware

Relations

Replaces
EN 13126-3:2011 - Building hardware - Hardware for windows and door-height windows - Requirements and test methods - Part 3: Handles, primarily for Tilt&Turn, Tilt-First and Turn-Only hardware
Effective Date
18-Jan-2023

Buy Standard

EN 13126-3:2023EN 13126-3:2023
PreviousNext
Standard
EN 13126-3:2023
English language
28 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-maj-2023
Nadomešča:
SIST EN 13126-3:2012
Stavbno okovje - Okovje za okna in zastekljena vrata - Zahteve in preskusne
metode - 3. del: Ročaji, namenjeni predvsem za vrtljivo-nagibno, nagibno-vrtljivo
in vrtljivo okovje
Building hardware - Hardware for windows and door-height windows - Requirements and
test methods - Part 3: Handles, primarily for Tilt and Turn, Tilt-First and Turn-Only
hardware
Baubeschläge - Beschläge für Fenster und Fenstertüren - Anforderungen und
Prüfverfahren - Teil 3: Betätigungsgriffe, insbesondere für Drehkipp-, Kippdreh- und
Drehbeschläge
Quincaillerie pour le bâtiment - Exigences et méthodes d'essai des ferrures de fenêtres
et portes-fenêtres - Partie 3 : Poignées, ferrures d'oscillo-battant, de battant-oscillant et
d'ouvrant pivotant
Ta slovenski standard je istoveten z: EN 13126-3:2023
ICS:
91.190 Stavbna oprema Building accessories
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 13126-3
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2023
EUROPÄISCHE NORM
ICS 91.190 Supersedes EN 13126-3:2011
English Version
Building hardware - Hardware for windows and door-
height windows - Requirements and test methods - Part 3:
Handles, primarily for Tilt and Turn, Tilt-First and Turn-
Only hardware
Quincaillerie pour le bâtiment - Exigences et méthodes Baubeschläge - Beschläge für Fenster und Fenstertüren
d'essai des ferrures de fenêtres et portes-fenêtres - - Anforderungen und Prüfverfahren - Teil 3:
Partie 3 : Poignées, ferrures d'oscillo-battant, de Betätigungsgriffe, insbesondere für Drehkipp-,
battant-oscillant et d'ouvrant pivotant Kippdreh- und Drehbeschläge
This European Standard was approved by CEN on 2 January 2023.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13126-3:2023 E
worldwide for CEN national Members.

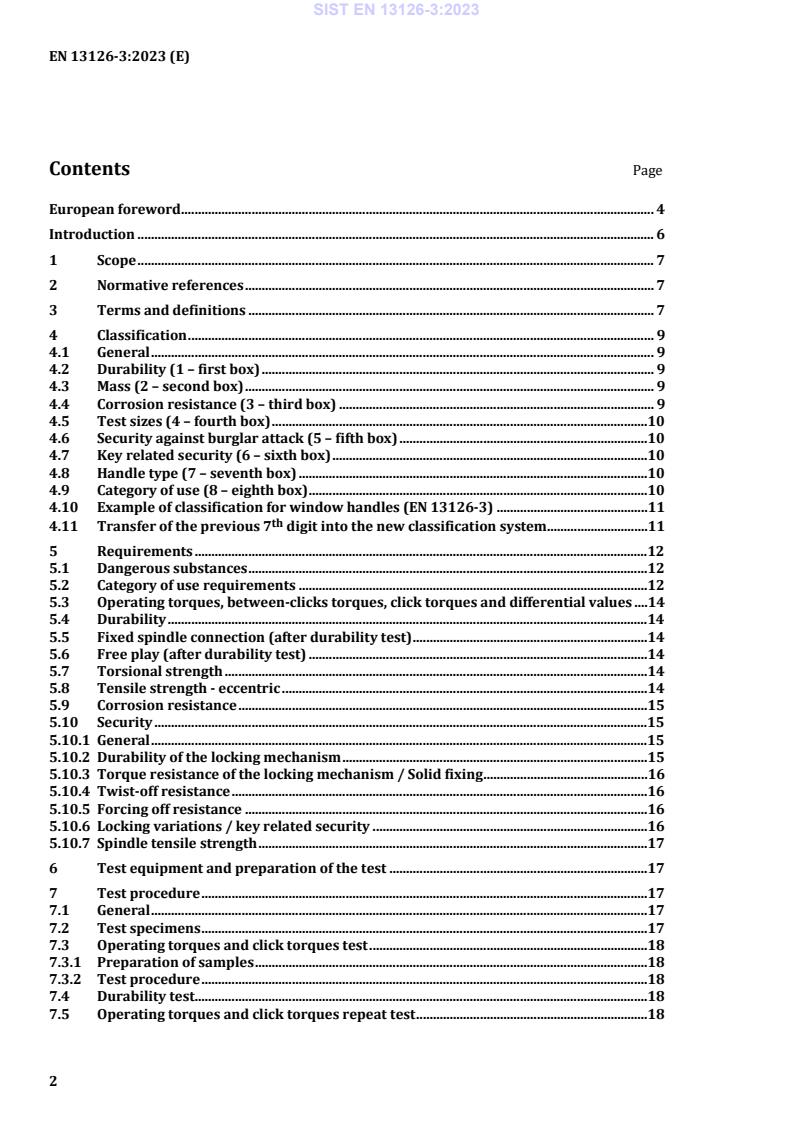

Contents Page
European foreword . 4
Introduction . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Classification . 9
4.1 General . 9
4.2 Durability (1 – first box) . 9
4.3 Mass (2 – second box) . 9
4.4 Corrosion resistance (3 – third box) . 9
4.5 Test sizes (4 – fourth box) .10
4.6 Security against burglar attack (5 – fifth box) .10
4.7 Key related security (6 – sixth box) .10
4.8 Handle type (7 – seventh box) .10
4.9 Category of use (8 – eighth box) .10
4.10 Example of classification for window handles (EN 13126-3) .11
th
4.11 Transfer of the previous 7 digit into the new classification system .11
5 Requirements .12
5.1 Dangerous substances .12
5.2 Category of use requirements .12
5.3 Operating torques, between-clicks torques, click torques and differential values .14
5.4 Durability .14
5.5 Fixed spindle connection (after durability test) .14
5.6 Free play (after durability test) .14
5.7 Torsional strength .14
5.8 Tensile strength - eccentric .14
5.9 Corrosion resistance .15
5.10 Security .15
5.10.1 General .15
5.10.2 Durability of the locking mechanism .15
5.10.3 Torque resistance of the locking mechanism / Solid fixing .16
5.10.4 Twist-off resistance .16
5.10.5 Forcing off resistance .16
5.10.6 Locking variations / key related security .16
5.10.7 Spindle tensile strength .17
6 Test equipment and preparation of the test .17
7 Test procedure .17
7.1 General .17
7.2 Test specimens .17
7.3 Operating torques and click torques test .18
7.3.1 Preparation of samples .18
7.3.2 Test procedure .18
7.4 Durability test.18
7.5 Operating torques and click torques repeat test .18
7.6 Test of fixed spindle connection . 19
7.7 Free play test . 19
7.7.1 General . 19
7.7.2 Free play – Perpendicular to the mounting plane . 19
7.7.3 Free play – Parallel to the mounting plane . 19
7.8 Torsional strength test . 19
7.9 Tensile strength test – eccentric . 19
7.10 Corrosion resistance test . 20
7.11 Locking mechanism durability test . 20
7.12 Torque resistance of the locking mechanism / Solid fixing test . 20
7.13 Test - Resistance against twisting-off and forcing-off . 20
7.14 Spindle tensile strength test . 21
8 Marking . 21
Annex A (normative) Test flow charts . 22
Annex B (informative) Figures . 24
Bibliography . 28

European foreword
This document (EN 13126-3:2023) has been prepared by Technical Committee CEN/TC 33 “Doors,
windows, shutters, building hardware and curtain walling”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by August 2023, and conflicting national standards shall be
withdrawn at the latest by August 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13126-3:2011.
In comparison with the previous edition, the following technical modifications have been made:
— EN 13126-3 is now independent from EN 13126-1; all necessary information is included without the
need of any further information from EN 13126-1;
— several editorial changings in the wording were made for a better understanding;
— terms 3.5 'locking mechanism', 3.6 'non-key-operated locking mechanism', 3.15 'sample' and 3.16
'test rig' were added and term 3.6 'key-operated locking mechanism' was modified for better
understanding;
— in 4.1, the classification system changed completely; former digits 1 (Category of use), 4 (Fire
resistance), 5 (Safety in use) and 8 (Application) were deleted; former digit 2 changed into box 1
(Durability), former digit 3 changed into box 2 (Mass), former digit 6 changed into box 3 (Corrosion
resistance), former digit 9 changed into box 4 (Test sizes); former digit 7 changed into box 5 (Security
against burglar attack) and a new box 6 (Key related security) was added;
— in 4.2, new Grades for the number of cycles are defined; H1 (5 000), H2 (10 000) and H3 (20 000),
see also 5.4;
— in 4.10, a new example was added for the new classification;
— in 5.4, new Grades for the number of cycles are defined; H1 (5 000), H2 (10 000) and H3 (20 000) in
accordance with 4.2 established;
— in 5.4, the number of cycles were adapted to the newly defined Grades for the durability;
— in 5.10.6, the subclause 'Locking variations / key related security' was modified in accordance with
4.7 (requirement in grade 2 changed from ' ≤ 99' into ' ≥ 25 and ≤ 99');
— in Clause 6, the title has been modified to “…and preparation for the test”;
— in Clause 8, a new clause was added regarding marking with information from the current version of
EN 13126-1.
----------------
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

CEN
EN 16867:2020+A2:2024(Main + Amendment)
Building hardware - Mechatronic door furniture - Requirements and test methods
SIST EN 16867:2020+A2:2024

1.1   General
This document applies to Mechatronic door furniture (MDF) fitted on the door set which gives the possibility to control the locking and/or release part through an electronic authorization means. This can be operable by credentials (i.e. card, code, biometric).
The MDF according to this document is combined with locks according to EN 12209, EN 14846, prEN 15685 or may be a part of an emergency exit device according to EN 179, EN 1125 or EN 13637.
The MDF may be standalone or linkable to an external control system.
The document would allow classifying the MDF upon several characteristics such as category of use, durability, environmental, security, and type of operating device.
The suitability of the MDF for use on fire or smoke-door assemblies is determined by fire resistance tests conducted in addition to the performance testing specified by this document.
1.2   Exclusions
This document does not cover:
-   mechatronic cylinders according to EN 15684;
-   electromechanical operated locks and striking plates according to EN 14846.

  • Standard
    66 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
EN 16035:2023(Main)
Hardware performance sheet (HPS) - Identification and summary of test evidence to facilitate the inter-changeability of building hardware for application to fire resisting and/or smoke control doorsets and/or openable windows
SIST EN 16035:2024

This document summarizes relevant results and classifications from tests of the fire and smoke resistance performance of building hardware in the format of a hardware performance sheet (HPS). This document provides guidance and requirements on the minimum data required as a basis for the preparation of EXAP reports for the interchangeability of building hardware on fire-retardant and/or smoke-tight doors and openable windows.
This document identifies the performance characteristics and the requirements for building hardware which can be found in the appropriate product standards.

  • Standard
    14 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
EN 17610:2022(Main)
Building hardware - Environmental product declarations - Product category rules complementary to EN 15804 for building hardware
SIST EN 17610:2022

This document provides product category rules (PCR) for Type III environmental declarations for:
- Building hardware products for opening and closing doors, gates, windows and shutters:
-- Lever handles and knob furniture (EN 1906);
-- Single-axis hinges (EN 1935);
-- Hardware for windows and door height windows (EN 13126 (all parts));
-- Fittings for shutters (e.g. EN 14648);
-- Controlled door closing devices, electrically powered hold-open devices for swing doors and door coordinator devices (EN 1154, EN 1155, EN 1158);
-- Hardware for sliding doors, folding doors and roll fronts (EN 1527, EN 15706);
-- Glass door gear;
- Building hardware products for locking and unlocking doors, gates, windows and shutters:
-- Mechanically operated locks and locking plates, multipoint locks, latches and locking plates (EN 12209, EN 15685 );
-- Cylinders for locks (EN 1303);
-- Padlocks and padlock fittings (EN 12320);
-- Mechanically operated push-button locksets (BS 8607);
-- Emergency exit devices operated by a lever handle or push pad, for use on escape routes and panic exit devices operated by a horizontal bar, for use on escape routes (EN 179, EN 1125);
- Electromechanical building hardware products:
-- Mechatronic cylinders (EN 15684);
-- Mechatronic padlocks (EN 16864);
-- Mechatronic door furniture (EN 16867);
-- Electromechanically operated locks and striking plates (EN 14846);
-- Electrically controlled exit systems for use on escape routes (EN 13637).
This document complements the core rules for the product category of construction products as defined in the European standard EN 15804:2012+A2:2019.
NOTE The assessment of social and economic performances at product level is not covered by this document.
The core PCR:
- defines the parameters to be declared and the way in which they are collated and reported;
- describes which stages of a product’s life cycle are considered in the EPD and which processes are to be included in the life cycle stages;
- defines rules for the development of scenarios;
- includes the rules for calculating the Life Cycle Inventory and the Life Cycle Impact Assessment underlying the EPD, including the specification of the data quality to be applied;
- includes the rules for reporting the predetermined, environmental and health information that is not covered by Life Cycle Assessment (LCA) for the product, construction process(es) and construction service(s), as relevant;
- defines the conditions under which construction products can be compared based on the information provided by EPD.
For the EPD of construction services the same rules and requirements apply as for the EPD of construction products.

  • Standard
    26 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
CEN/TS 17814:2022(Main)
Building hardware - Master Key System data protection - Guidance
SIST-TS CEN/TS 17814:2022

This document specifies requirements and procedures to achieve and maintain protection of data and sensitive information related to mechanical Master Key Systems and other mechanical key systems where customer or application related data are being processed throughout the process of planning, production, installation, and maintenance.
The requirements and test methods for mechanical cylinder locks is covered by EN 1303.
Reference is made to EN 1303 and Annexes relating to Master Key Systems (MKS).
Requirements relating to the information security of key based and non-key based electronic cylinders are not covered.

  • Technical specification
    10 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
EN 13126-16:2019/AC:2022(Corrigendum)
Building hardware - Hardware for windows and door height windows - Requirements and test methods - Part 16: Hardware for Lift and Slide windows
SIST EN 13126-16:2019/AC:2022

This part of EN 13126 specifies requirements and test methods for durability, strength, security and function of hardware for Lift and Slide windows and door height windows in accordance with common application as shown in informative Annex C, regardless of whether the hardware enables an additional tilt position.
NOTE 1   This document is also applicable to hardware systems, whereby the sash itself is not lifted but a gasket mechanism is moved.
NOTE 2   This document is also applicable to hardware systems, whereby the sash itself is not lifted but the sash is being moved parallel to the plane of the frame.

  • Corrigendum
    2 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
EN 13126-13:2022(Main)
Building hardware - Hardware for windows and door height windows - Requirements and test methods - Part 13: Sash balances
SIST EN 13126-13:2022

This document specifies requirements and test methods for durability, strength, security and function of sash balances.

  • Standard
    15 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
EN 13126-14:2022(Main)
Building hardware - Hardware for windows and door height windows - Requirements and test methods - Part 14: Sash fasteners
SIST EN 13126-14:2022

This document specifies requirements and test methods for durability, strength, security, and function of sash fasteners for windows and door height windows.

  • Standard
    15 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
EN 13126-4:2022(Main)
Building hardware - Hardware for windows and door height windows - Requirements and test methods - Part 4: Espagnolettes
SIST EN 13126-4:2022

This document specifies requirements and test methods for durability, strength, security and function of espagnolettes and their striker plates for use on windows and door height windows.
Espagnolettes are defined as a locking mechanism for windows and door height windows that usually have a maximum handle movement of 90°.
This document does not include door bolts within the scope of EN 12051, or locks with latch and/or dead bolt within the scope of EN 12209 or multi-point locks within the scope of prEN 15685.

  • Standard
    16 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
EN 13126-1:2022(Main)
Building hardware - Hardware for windows and door height windows - Requirements and test methods - Part 1: Requirements common to all types of hardware
SIST EN 13126-1:2022

This document specifies performance requirements for the strength and durability of hardware for the operation of movable sashes of windows and door height windows including requirements and test methods common to all hardware.
This document is applicable to the hardware suitable for windows and door height windows in Table 1, whatever the material used for the construction of the window.
Table 1 - Window opening-types
This document does not apply to the following:
—   fusible links;
—   hardware for lifting side-hung windows;
—   fixing devices that are used to assemble or install a fixed window;
—   devices that are used for the permanent fixing of a complete window into a building structure;
—   mechanisms for the pneumatic or hydraulic remote operation of windows;
—   single axis hinges (other than those, which provide a pivot-function for windows);
—   single axis hinges as covered in EN 1935;
—   hardware for sliding doors and folding doors as covered in EN 1527;
—   door and window bolts as covered in EN 12051.

  • Standard
    31 pages
    English language
    sale 10% off
    e-Library read for
    1 day
CEN
EN 1527:2019+A1:2021(Main + Amendment)
Building hardware - Hardware for sliding doors and folding doors - Requirements and test methods
SIST EN 1527:2019+A1:2022

This document specifies requirements for the design manual system sliding doors, sliding corner doors and folding doors of the bi-fold type and multi-panel folding doors but excluding doors and panels. Cycle tests, static load, initial friction and corrosion resistance tests are included for fittings and track only.
This document covers door gear for all industrial, commercial and residential sliding doors and folding doors.
This document does not cover the rollers for horizontal sliding and building hardware for inward or outward sliding folding windows (types N Q, R and S) in accordance with EN 13126-15, building hardware for Lift and Slide windows (type P) in accordance with EN 13126-16 and building hardware for Tilt and Slide windows (type T) in accordance with EN 13126-17.

  • Standard
    23 pages
    English language
    sale 10% off
    e-Library read for
    1 day
