Diesel and domestic heating fuels - Determination of cold filter plugging point - Stepwise cooling bath method

This European Standard specifies a method for the determination of the cold filter plugging point (CFPP) of diesel and domestic heating fuels (see 3.1) using automated test equipment. Manual test equipment may be used, but for referee purposes only automated test equipment is allowed.
This European Standard is applicable to fatty-acid methyl esters (FAME) and to distillate fuels as well as paraffinic diesel fuels, including those containing FAME, flow-improvers or other additives, intended for use in diesel engines and domestic heating installations.
The results obtained from the method specified in this European Standard are suitable for estimating the lowest temperature at which a fuel will give trouble-free flow in the fuel system.
NOTE   In the case of diesel fuels the results are usually close to the temperature of failure in service except when the fuel system contains, for example, a paper filter installed in a location exposed to the weather or if the filter plugging temperature is more than 12 °C below the cloud point of the fuel. Domestic heating installations are usually less critical and often operate satisfactorily at temperatures somewhat lower than those indicated by the test results.
The difference in results obtained from the sample "as received" and after heat treatment at 45°C for 30 min may be used to investigate complaints of unsatisfactory performance under low temperature conditions.
WARNING - The use of this standard may involve hazardous materials, operations and equipment. This standard does not purport to address all of the safety problems associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

Dieselkraftstoffe und Haushaltsheizöle - Bestimmung des Temperaturgrenzwertes der Filtrierbarkeit - Verfahren mit einem stufenweise arbeitenden Kühlbad

Diese Europäische Norm legt ein Verfahren zur Bestimmung des Temperaturgrenzwertes der Filtrier-barkeit (CFPP) von Dieselkraftstoffen und Haushaltsheizölen (siehe 3.1) unter Verwendung von automati-siertem Prüfgerät fest. Manuell zu betreibende Prüfgeräte dürfen eingesetzt werden, für den Streitfall ist jedoch nur die Prüfung mit automatisiertem Prüfgerät zulässig.
Diese Europäische Norm ist anwendbar auf Fettsäuremethylester (FAME) und Destillat-Brennstoffe sowie auf paraffinische Dieselkraftstoffe, die für den Gebrauch in Dieselmotoren und Haushalt-Heizungsanlagen bestimmt sind, einschließlich auf solche, die FAME, Fließverbesserer oder andere Zusätze enthalten.
Die durch das in dieser Europäischen Norm festgelegte Verfahren erzielten Ergebnisse eignen sich zur Schätzung der niedrigsten Temperatur, bei der ein Brennstoff störungsfrei im Brennstoffsystem fließen kann.
ANMERKUNG   Bei Dieselkraftstoffen liegen die Ergebnisse für gewöhnlich nahe bei der Betriebsstörungstemperatur, außer wenn sich im Kraftstoffsystem zum Beispiel ein Papierfilter an einer Stelle befindet, die dem Wetter ausgesetzt ist oder wenn der CFPP mehr als 12 °C unterhalb des Cloudpoints des Kraftstoffes liegt. Haushalt-Heizungsanlagen sind für gewöhnlich weniger kritisch und arbeiten oft zufriedenstellend bei Temperaturen, die etwas niedriger sind als durch die Prüfung ausgewiesen.
Die unterschiedlichen Ergebnisse, die sich an einer Probe im Lieferzustand und nach einer Wärmebehandlung von 30 min bei 45 °C ergeben, können verwendet werden, um Beanstandungen in Bezug auf ungenügendes Kälteverhalten zu untersuchen.
WARNUNG — Die Anwendung dieser Norm kann den Umgang mit Gefahrstoffen, gefährlichen Tätigkeiten und Apparaturen einschließen. Diese Norm erhebt nicht den Anspruch, alle Sicherheitsrisiken, die mit ihrer Anwendung verbunden sind, explizit zu behandeln. Es liegt im Verantwortungsbereich des Anwenders dieser Norm, vor ihrer Anwendung geeignete Maßnahmen für Gesundheits- und Arbeitsschutz zu ergreifen, zu überprüfen, inwieweit gesetzliche Auflagen bestehen, und diese zu erfüllen.

Combustibles pour moteurs diesel et pour installations de chauffage domestique - Détermination de la température limite de filtrabilité - Méthode au bain refroidissant par pallier

Dizelsko gorivo in kurilno olje za gospodinjstvo - Določevanje točke filtrirnosti z ohlajanjem - Metoda postopnega hlajenja kopeli

Ta evropski standard določa metodo za določevanje točke filtrirnosti z ohlajanjem (CFPP) dizelskega goriva in kurilnega olja za gospodinjstvo (glej točko 3.1) z avtomatizirano preskusno opremo. Uporabi se lahko ročna preskusna oprema, vendar je za namene presojanja dovoljena le avtomatizirana preskusna oprema.
Ta evropski standard se uporablja za metilne estre maščobnih kislin (FAME) in destilatna goriva ter parafinska dizelska goriva, vključno s tistimi, ki vsebujejo metilne estre maščobnih kislin, izboljševalce pretočnosti in druge dodatke, namenjene za uporabo v dizelskih motorjih in kurilnih inštalacijah za gospodinjstvo.
Rezultati, pridobljeni z metodo iz tega evropskega standarda, so primerni za oceno najnižje temperature, pri kateri se bo gorivo brez težav pretakalo skozi sistem za gorivo.
OPOMBA: V primeru dizelskih goriv so rezultati običajno blizu temperature odpovedi delovanja, razen če sistem za gorivo vsebuje npr. papirnati filter, ki je nameščen na mestu, izpostavljenem vremenskim vplivom, ali če je temperatura filtrirnosti višja od 12 °C pod motniščem goriva. Kurilne inštalacije za gospodinjstvo so običajno manj kritične in pogosto zadovoljivo delujejo pri temperaturah, ki so nekoliko nižje od tistih v rezultatih preskušanja.
Razlika v rezultatih, pridobljenih na podlagi vzorca »kot je prejet« in po toplotni obdelavi pri 45 °C za 30 minut pred filtracijo, se lahko uporabi za raziskavo pritožb v zvezi z nezadovoljivim delovanjem pri nizkih temperaturah.
OPOZORILO: Pri uporabi tega standarda so lahko prisotni nevarni materiali, postopki in oprema. Ta standard ne obravnava vseh varnostnih težav, ki se nanašajo na njegovo uporabo. Za sprejetje ustreznih ukrepov za zagotavljanje varnosti in zdravja osebja pred uporabo standarda ter izpolnjevanje zakonskih in regulativnih zahtev za ta namen so odgovorni uporabniki tega standarda.

General Information

Status
Published
Publication Date
11-Aug-2015
Withdrawal Date
28-Feb-2016
ICS
75.160.20 - Liquid fuels
Technical Committee
CEN/TC 19 - Petroleum products, lubricants and related products
Drafting Committee
CEN/TC 19/WG 14 - Cold flow properties
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
23-Apr-2021
Completion Date
14-Apr-2025
Ref Project
SIST EN 116:2015 - Diesel and domestic heating fuels - Determination of cold filter plugging point - Stepwise cooling bath method

Relations

Replaces
EN 116:1997 - Diesel and domestic heating fuels - Determination of cold filter plugging point
Effective Date
19-Aug-2015
Replaces
EN 116:1997/AC:1999 - Diesel and domestic heating fuels - Determination of cold filter plugging point
Effective Date
19-Aug-2015

Overview

EN 116:2015 - "Diesel and domestic heating fuels - Determination of cold filter plugging point (CFPP) - Stepwise cooling bath method" (CEN) specifies a laboratory method to determine the Cold Filter Plugging Point (CFPP) of diesel and domestic heating fuels. The method uses automated test equipment (manual apparatus allowed only for referee use) and is applicable to distillate fuels, paraffinic diesel fuels and fatty-acid methyl esters (FAME) including blends and fuels containing flow‑improvers or other additives. Results estimate the lowest temperature at which a fuel will give trouble‑free flow in fuel systems.

Key topics and technical requirements

  • Test principle: A fuel sample is cooled stepwise and, at 1 °C intervals, drawn through a standardized wire‑mesh filter under a controlled vacuum. The temperature at which filtration fails (e.g., time to fill the pipette > 60 s or the sample fails to return before a further 1 °C drop) is recorded as the CFPP.
  • Automation requirement: Automated detection and vacuum regulation are described in detail; automated equipment is required for referee testing.
  • Critical parameters and components:
    • Vacuum control at approximately 2 kPa during aspiration.
    • Standardized pipette and 20 ml aspiration volume; automated sensors for the 20 ml and bottom‑fill marks.
    • Filter mesh: stainless steel wire gauze with a nominal aperture (standard referenced from ISO 3310‑1).
    • Thermometry: platinum resistance thermometers (digital) for sample and bath temperature measurement.
    • Cooling performed in a stepwise cooling bath; bath temperature ranges are specified for different CFPP levels.
  • Sample treatment: Comparison of “as received” results with results after heat treatment at 45 °C for 30 min may help investigate low‑temperature performance complaints.
  • Safety warning: The standard notes potential hazards and requires users to implement appropriate safety and regulatory measures.

Applications and who uses EN 116:2015

  • Fuel testing laboratories performing regulatory, quality control and referee analyses.
  • Refineries and fuel blenders evaluating pour behavior and blend stability, especially when using FAME or cold‑flow additives.
  • Fuel distributors and heating fuel suppliers ensuring supplied fuels meet required low‑temperature performance for diesel engines and domestic heating systems.
  • Equipment manufacturers and fleet operators assessing the risk of filter plugging in cold climates.

Practical value

  • Provides a reproducible, comparative measure (CFPP) to predict potential filter plugging in service.
  • Useful for product specification, batch release testing, blend optimization and troubleshooting low‑temperature flow issues.

Related standards

  • EN 16329 (linear cooling method) - alternative CFPP technique
  • EN ISO 3170 / EN ISO 3171 - sampling of petroleum liquids
  • ISO 3310‑1 - wire gauze/testing methods

Keywords: EN 116:2015, CFPP, cold filter plugging point, diesel fuels, domestic heating fuels, FAME, stepwise cooling bath, automated test equipment, fuel testing.

Frequently Asked Questions

EN 116:2015 is a standard published by the European Committee for Standardization (CEN). Its full title is "Diesel and domestic heating fuels - Determination of cold filter plugging point - Stepwise cooling bath method". This standard covers: This European Standard specifies a method for the determination of the cold filter plugging point (CFPP) of diesel and domestic heating fuels (see 3.1) using automated test equipment. Manual test equipment may be used, but for referee purposes only automated test equipment is allowed. This European Standard is applicable to fatty-acid methyl esters (FAME) and to distillate fuels as well as paraffinic diesel fuels, including those containing FAME, flow-improvers or other additives, intended for use in diesel engines and domestic heating installations. The results obtained from the method specified in this European Standard are suitable for estimating the lowest temperature at which a fuel will give trouble-free flow in the fuel system. NOTE In the case of diesel fuels the results are usually close to the temperature of failure in service except when the fuel system contains, for example, a paper filter installed in a location exposed to the weather or if the filter plugging temperature is more than 12 °C below the cloud point of the fuel. Domestic heating installations are usually less critical and often operate satisfactorily at temperatures somewhat lower than those indicated by the test results. The difference in results obtained from the sample "as received" and after heat treatment at 45°C for 30 min may be used to investigate complaints of unsatisfactory performance under low temperature conditions. WARNING - The use of this standard may involve hazardous materials, operations and equipment. This standard does not purport to address all of the safety problems associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

This European Standard specifies a method for the determination of the cold filter plugging point (CFPP) of diesel and domestic heating fuels (see 3.1) using automated test equipment. Manual test equipment may be used, but for referee purposes only automated test equipment is allowed. This European Standard is applicable to fatty-acid methyl esters (FAME) and to distillate fuels as well as paraffinic diesel fuels, including those containing FAME, flow-improvers or other additives, intended for use in diesel engines and domestic heating installations. The results obtained from the method specified in this European Standard are suitable for estimating the lowest temperature at which a fuel will give trouble-free flow in the fuel system. NOTE In the case of diesel fuels the results are usually close to the temperature of failure in service except when the fuel system contains, for example, a paper filter installed in a location exposed to the weather or if the filter plugging temperature is more than 12 °C below the cloud point of the fuel. Domestic heating installations are usually less critical and often operate satisfactorily at temperatures somewhat lower than those indicated by the test results. The difference in results obtained from the sample "as received" and after heat treatment at 45°C for 30 min may be used to investigate complaints of unsatisfactory performance under low temperature conditions. WARNING - The use of this standard may involve hazardous materials, operations and equipment. This standard does not purport to address all of the safety problems associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

EN 116:2015 is classified under the following ICS (International Classification for Standards) categories: 75.160.20 - Liquid fuels. The ICS classification helps identify the subject area and facilitates finding related standards.

EN 116:2015 has the following relationships with other standards: It is inter standard links to EN 116:1997, EN 116:1997/AC:1999. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

You can purchase EN 116:2015 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Dieselkraftstoffe und Haushaltsheizöle - Bestimmung des Temperaturgrenzwertes der Filtrierbarkeit - Verfahren mit einem stufenweise arbeitenden KühlbadCombustibles pour moteurs diesel et pour installations de chauffage domestique - Détermination de la température limite de filtrabilitéDiesel and domestic heating fuels - Determination of cold filter plugging point - Stepwise cooling bath method75.160.20Liquid fuelsICS:Ta slovenski standard je istoveten z:EN 116:2015SIST EN 116:2015en,fr,de01-oktober-2015SIST EN 116:2015SLOVENSKI
STANDARDSIST EN 116:1998/AC:1999SIST EN 116:19981DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 116
August 2015 ICS 75.160.20 Supersedes EN 116:1997English Version
Diesel and domestic heating fuels - Determination of cold filter plugging point - Stepwise cooling bath method
Combustibles pour moteurs diesel et pour installations de chauffage domestique - Détermination de la température limite de filtrabilité
Dieselkraftstoffe und Haushaltsheizöle - Bestimmung des Temperaturgrenzwertes der Filtrierbarkeit durch stufenweise Abkühlung This European Standard was approved by CEN on 15 February 2015.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 116:2015 ESIST EN 116:2015

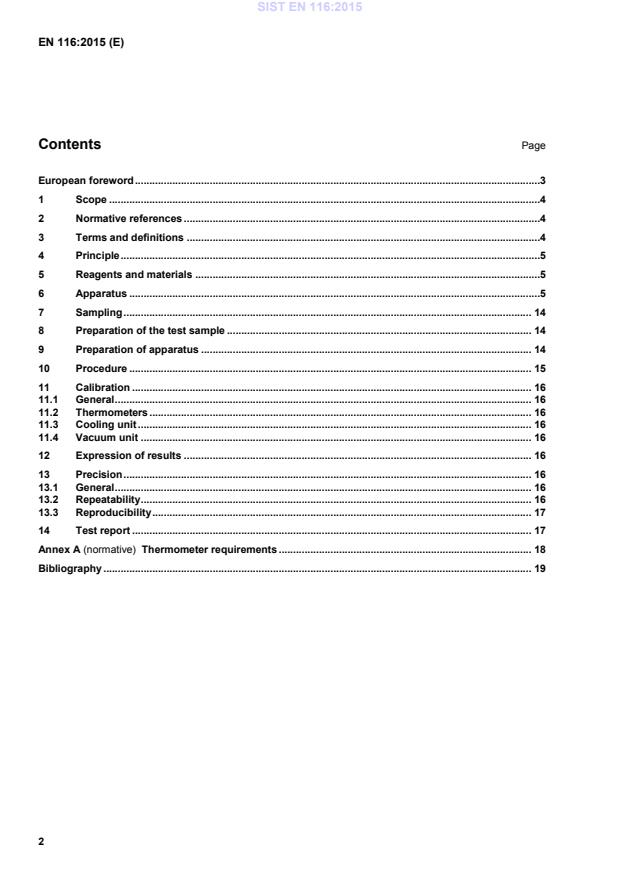

Thermometer requirements . 18 Bibliography . 19
Key 1 atmosphere (6.7) 6 jacket (6.2) 2 vacuum regulator (6.7) 7 filter unit (6.5.2) 3 valve unit (6.7) 8 cooling bath (6.9) 4 pipette (6.5.1) 9 test jar (6.1) 5 stopper (6.4) 10 thermometers (6.8) Figure 1 — General arrangement of apparatus 6.1 Test jar, cylindrical, of clear glass, flat bottomed, with an outside diameter of (34 ± 0,5) mm, a wall thickness of (1,25 ± 0,25) mm and a height of (120 ± 5) mm, having a permanent mark at the 45 ml level. SIST EN 116:2015

1) ISO 3016: Petroleum products – Determination of pour point 2) POM-C Polyoxymethylen Copolymer, Trade marks e.g. DELRIN. SIST EN 116:2015

Key a stainless steel wires ø 2 mm 1 spacer 2 insulating rings Figure 2 — Insulated ring (below) and spacer (above) SIST EN 116:2015

EN 116:201
...
