Standards Content (Sample)


SLOVENSKI STANDARD
01-januar-2019
Izvedba jeklenih in aluminijastih konstrukcij - 1. del: Ocenjevanje ter preverjanje
nespremenljivosti lastnosti jeklenih in aluminijastih konstrukcijskih elementov
Execution of steel structures and aluminium structures - Part 1: Assessment and
verification of constancy of performance of steel components and aluminium components
for structural use
Ausführung von Stahltragwerken und Aluminiumtragwerken - Teil 1: Bewertung und
Überprüfung der Leistungsbeständigkeit für tragende Bauteile aus Stahl und Aluminium
Exécution des structures en acier et des structures en aluminium - Partie 1 : Évaluation
et vérification de la constance des performances des éléments en acier et des éléments
en aluminium à usage structural
Ta slovenski standard je istoveten z: prEN 1090-1
ICS:
91.080.13 Jeklene konstrukcije Steel structures
91.080.17 Aluminijaste konstrukcije Aluminium structures
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2018
ICS 91.080.13; 91.080.17 Will supersede EN 1090-1:2009+A1:2011
English Version
Execution of steel structures and aluminium structures -
Part 1: Assessment and verification of constancy of
performance of steel components and aluminium
components for structural use
Ausführung von Stahltragwerken und
Aluminiumtragwerken - Teil 1: Bewertung und
Überprüfung der Leistungsbeständigkeit für tragende
Bauteile aus Stahl und Aluminium
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 135.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 1090-1:2018 E
worldwide for CEN national Members.

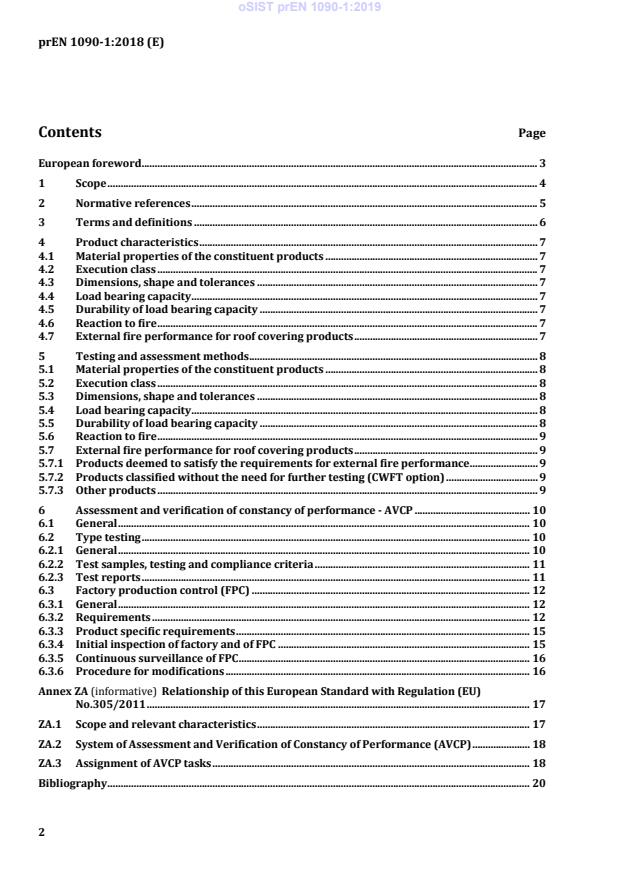

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 5
3 Terms and definitions . 6
4 Product characteristics . 7
4.1 Material properties of the constituent products . 7
4.2 Execution class . 7
4.3 Dimensions, shape and tolerances . 7
4.4 Load bearing capacity . 7
4.5 Durability of load bearing capacity . 7
4.6 Reaction to fire . 7
4.7 External fire performance for roof covering products . 7
5 Testing and assessment methods . 8
5.1 Material properties of the constituent products . 8
5.2 Execution class . 8
5.3 Dimensions, shape and tolerances . 8
5.4 Load bearing capacity . 8
5.5 Durability of load bearing capacity . 8
5.6 Reaction to fire . 9
5.7 External fire performance for roof covering products . 9
5.7.1 Products deemed to satisfy the requirements for external fire performance . 9
5.7.2 Products classified without the need for further testing (CWFT option) . 9
5.7.3 Other products . 9
6 Assessment and verification of constancy of performance - AVCP . 10
6.1 General . 10
6.2 Type testing . 10
6.2.1 General . 10
6.2.2 Test samples, testing and compliance criteria . 11
6.2.3 Test reports . 11
6.3 Factory production control (FPC) . 12
6.3.1 General . 12
6.3.2 Requirements . 12
6.3.3 Product specific requirements . 15
6.3.4 Initial inspection of factory and of FPC . 15
6.3.5 Continuous surveillance of FPC . 16
6.3.6 Procedure for modifications . 16
Annex ZA (informative) Relationship of this European Standard with Regulation (EU)
No.305/2011 . 17
ZA.1 Scope and relevant characteristics . 17
ZA.2 System of Assessment and Verification of Constancy of Performance (AVCP) . 18
ZA.3 Assignment of AVCP tasks . 18
Bibliography . 20
European foreword
This document (prEN 1090-1:2018) has been prepared by Technical Committee CEN/TC 135
“Execution of steel structures and aluminium structures”, the secretariat of which is held by SN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 1090-1:2009+A1:2011.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
This harmonized European Standard has been prepared to satisfy Mandate M 120 – Structural metallic
products and ancillaries (2/4) – issued by the European Commission.

1 Scope
This document specifies the product characteristics and performance criteria for steel components and
aluminium components manufactured from steel or aluminium constituent products to be used for
structural purposes in buildings and civil engineering works where their characteristic affects the
mechanical resistance and stability of these construction works or parts thereof. This document only
applies for components manufactured according to EN 1090-2:2018, FprEN 1090-3:2018,
EN 1090-4:2018 and EN 1090-5:2017.
This document also gives methods for assessing the performance and specifies requirements for the
assessment and verification of constancy of performance for these components.
This document covers series and non-series produced structural components including kits as well as
steel parts of composite components.
This document does not cover (components for)
— Aluminium structural composite components,
— Amusement rides and devices which are machines or not permanently installed,
— Anchor channels for use in concrete,
— Balustrades unless fulfilling the function of a barrier,
— Blind rivets,
— Cabinets for cables and power supply installations,
— Cables, ropes and wires,
— Castings,
— Circulation fixtures except sign gantry and cantilevers,
— Components for suspended ceilings,
— Fasteners glued to timber structures,
— Fasteners for use in timber,
— Fasteners and anchors for use in concrete and masonry,
— Fastening plates and other cast into concrete fastenings,
— Flagpoles,
— Forgings,
— Foundation bolts, column shoes and pile joints cast into concrete,
— Joining devices for rail track isolation systems,
— Non-structural fences and railings,
— Ornamentations,
— Piles if non-fabricated,
— Pipelines and pipes,
— Playground equipment,
— Powder actuated fasteners,
— Prefabricated steel and stainless steel wire rope systems with end connectors,
— Prefabricated tension rod systems with end connectors,
— Racking and shelving systems, if not integral part of the load bearing structure of the
construction works,
— Rails or sleepers for railway systems,
— Raised floors,
— Rebar connections,
— Reinforcing steel for concrete or masonry,
— Roof safety products incl. roof ladders and walkways,
— Scaffoldings,
— Sculptures (Metal Art),
— Self-drilling and self-tapping screws,
— Steel and aluminium components and elements produced on site,
— Steel and aluminium stairs, walkways and fences forming integral part of a machine, silo,
tank, etc.,
— Steel spring elements,
— Structural components for offshore structures,
— Structural double skin metal faced sandwich panels,
— Temporary structures (e.g. tents, fairground and amusement park machinery and structures)
— Traditional craft type and non-structural components (e.g. weather cocks, letter boxes,
bicycle racks, fences),
— Tuned mass damper systems,
— Wind turbine towers.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 1090-2:2018, Execution of steel structures and aluminium structures - Part 2: Technical requirements
for steel structures
FprEN 1090-3:2018, Execution of steel structures and aluminium structures — Part 3: Technical
requirements for aluminium structures
EN 1090-4:2018, Execution of steel structures and aluminium structures — Part 4: Technical
requirements for cold-formed structural steel elements and cold-formed structures for roof, ceiling, floor
and wall applications
EN 1090-5:2017, Execution of steel structures and alum
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
