EUROPEAN STANDARD
EN 14622
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2005
ICS 13.060.20; 91.140.60
English version
Devices to prevent pollution by backflow of potable water - Air
gap with circular overflow (restricted) - Family A, type F
Dispositifs de protection contre la pollution de l'eau potable Sicherungseinrichtungen zum Schutz des Trinkwassers
par retour - Surverse avec trop plein circulaire (limitée) - gegen Verschmutzung durch Rückfließen - Freier Auslauf
Famille A, type F mit kreisförmigem Überlauf (eingeschränkt) - Familie A,
Typ F
This European Standard was approved by CEN on 25 March 2005.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14622:2005: E
worldwide for CEN national Members.

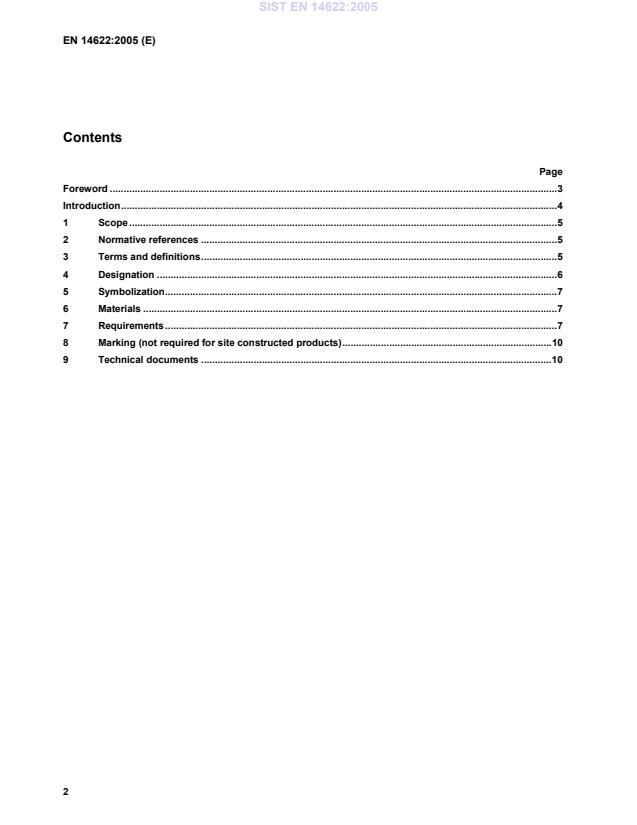

Contents
Page
Foreword .3
Introduction.4
1 Scope .5
2 Normative references .5
3 Terms and definitions.5
4 Designation .6
5 Symbolization.7
6 Materials .7
7 Requirements .7
8 Marking (not required for site constructed products).10
9 Technical documents .10

Foreword
This European Standard (EN 14622:2005) has been prepared by Technical Committee CEN/TC 164 "Water
supply", the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by November 2005, and conflicting national standards shall be withdrawn at the latest
by November 2005.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Introduction
In respect of potential adverse effects on the quality of water intended for human consumption, caused by the
product covered by this European Standard:
a) this European Standard provides no information as to whether the produce may be used without restriction in
any of the Member state of the EU or EFTA;
b) it should be noted that, while awaiting the adoption of verifiable European criteria, existing national regulations
concerning the use and/or the characteristics of this product remain in force.
1 Scope
This European Standard specifies the characteristics and the requirements of air gaps with circular overflow
(restricted) family A, type F for nominal flow velocity not exceeding 3 m/s. Air gaps are devices for protection of
potable water in water installations from pollution. This document applies to air gaps in factory assembled products
and to constructed air gaps in situ, and defines the physicochemical characteristics of materials of construction
used for the purpose and application to ensure compliance with this document during normal working use.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references,
only the edition cited applies. For undated references, the latest edition of the referenced document (including any
amendments) applies.
EN 1717:2000, Protection against pollution of potable water in water installations and general requirements of
devices to prevent pollution by backflow.
3 Terms and definitions
For the purposes of this European Standard, the terms and definitions of EN 1717:2000 and the following apply.
3.1
air gap with circular overflow (restricted) family A, type F
a permanent and vertical distance between the lowest point of the feed orifice and the critical water level or the top
of the overflow having a circular overflow capable of draining the maximum inflow of water under fault condition
NOTE See Figure 1 for the design principle.

Figure 1 — Design princi
...
