EN 14353:2007

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Metal beads and feature profiles for use with gypsum plasterboards - Definitions, requirements and test methodsCornières et profilés métalliques pour plaques de plâtre - Définitions, spécifications et méthodes d'essaiHilfs- und Zusatzprofile aus Metall zur Verwendung mit Gipsplatten - Begriffe, Anforderungen und PrüfverfahrenTa slovenski standard je istoveten z:EN 14353:2007SIST EN 14353:2008en,fr,de91.100.10ICS:SLOVENSKI
STANDARDSIST EN 14353:200801-marec-2008

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14353December 2007ICS 91.100.10 English VersionMetal beads and feature profiles for use with gypsumplasterboards - Definitions, requirements and test methodsCornières et profilés métalliques pour plaques de plâtre -Définitions, spécifications et méthodes d'essaiHilfs- und Zusatzprofile aus Metall zur Verwendung mitGipsplatten - Begriffe, Anforderungen und PrüfverfahrenThis European Standard was approved by CEN on 18 November 2007.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14353:2007: E

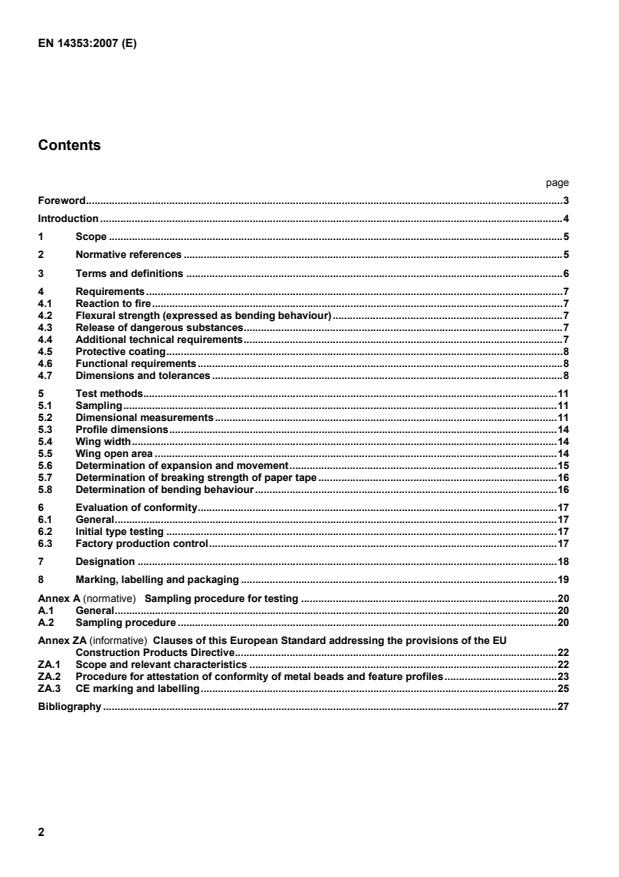

Sampling procedure for testing.20 A.1 General.20 A.2 Sampling procedure.20 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive.22 ZA.1 Scope and relevant characteristics.22 ZA.2 Procedure for attestation of conformity of metal beads and feature profiles.23 ZA.3 CE marking and labelling.25 Bibliography.27

Figure 1 — Family of gypsum products

Products from secondary processing Thermal/acoustic Composites EN 13950 Gypsum plasterboard products from reprocessing EN 14190 Prefabricated partition panels EN 13915 Ancillary products Gypsum based adhesives EN 14496 Preformed cornices EN 14209 Jointing materials EN 13963 Metal components EN 14195 Metal beads and feature profiles EN 14353 Mechanical fasteners EN 14566 Gypsum Plasterboard
EN 520 Gypsum boards with fibrous reinforcement EN 15283-1 and EN 15283-2 Figure 2 — Family of ancillary products 1 Scope This European Standard specifies the characteristics and performance of metal beads, metal beads combined with paper tape and metal feature profiles designed for use in systems made with gypsum plasterboards, gypsum boards with fibrous reinforcement and products from secondary processing complying with the ENs shown in Figure 2, intended to be used in building construction works. Metal beads and feature profiles, depending upon their material and type, can be featured without decoration, decorated or finished with jointing compounds to receive decoration. It covers the following performance characteristics: reaction to fire and flexural strength (bending behaviour) to be measured according to the corresponding European test methods. It provides for the evaluation of conformity of the product to this EN. This European Standard covers also additional technical characteristics that are of importance for the use and acceptance of the product by the construction industry and the reference tests for these characteristics. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 520, Gypsum plasterboards — Definitions, requirements and test methods EN 755 (all parts), Aluminium and aluminium alloys — Extruded rod/bar, tube and profiles

EN 10327. Aluminium beads and featured profiles manufactured according to EN 755 shall have a surface finish free from marks and imperfections to satisfy their exposed function.
1) See Commission Decision 96/603/EC, as amended.

EN 520, prEN 15283-1 and prEN 15283-2. NOTE Feature profiles can have tapered fins for jointing. They can be painted to provide protection, as undercoat for further decoration and to provide adequate adhesion for jointing materials. 4.6.2 Movement and expansion beads 4.6.2.1 Movement beads Movement beads shall provide the maximum differential movement stated by the manufacturer without damage. When determined in accordance with 5.6, this shall be at least 52+− mm and shall apply in both length and width directions. 4.6.2.2 Expansion beads Expansion beads shall provide the maximum differential movement stated by the manufacturer without damage. When determined in accordance with 5.6, this shall be at least ± 3 mm. 4.7 Dimensions and tolerances 4.7.1 General The nominal dimensions of beads and feature profiles shall be declared by the producer. Significant tolerances, other than those given in Table 2, shall also be declared by the producer.

Sizes and tolerances
Profile number Note Angle bead
Wmin = 18 mm D = (1,5 ± 0,5) mm A = 85° ± 2° L = length 1 - Stop bead
Wmin = 18 mm L = length
X = t + (1,5 ± 0,5) mm t = board thickness 2 a : t = 9,5 mm
d : t = 18 mmb : t = 12,5 mm e : t = 20 mmc : t = 15 mm
f : t = 25 mm (see NOTE) Feature bead 1
W1min = 15 mm W2min = 20 mm L = length
X = t + (1,5 ± 0,5) mm t = board thickness 3 a : t = 9,5 mm
d : t = 18 mm b : t = 12,5 mm
e : t = 20 mm c : t = 15 mm
f : t = 25 mm (see NOTE) Feature bead 2
W1min = 15 mm W2min = 20 mm L = length
X = t + (1,5 ± 0,5) mm t = board thickness 4 a : t = 9,5 mm
d : t = 18 mm b : t = 12,5 mm
e : t = 20 mm c : t = 15 mm
f : t = 25 mm (see NOTE) Edge bead
Wmin = 20 mm A = 5° ± 0,5° L = length
X = t + (1,5 ± 0,5) mm t = board thickness 5 a : t = 9,5 mm
d : t = 18 mm b : t = 12,5 mm
e : t = 20 mm c : t = 15 mm
f : t = 25 mm (see NOTE) Corner tape 1
Wmin = 50 mm GS = 12,5 mm G = 1,6 mm L = length 6/1 – with gap or 6/2 – with continuous strip preformed to 90° - (to be continued)

Wmin = 50 mm ALmin = 12,5 mm Rg = 1,6 mm G = 1,6 mm L = length 7/1 – with gap
or 7/2 – with rolled groove
Expansion bead
Wmin = 45 mm G = 3 mm X = (9 ± 0,025) mm L = length 8
Allows movement of at least: ± 3 mm Movement bead
W1 = 70 mm W2 = 45 mm G = 15 mm L = length X = t + (1,5 ± 0,5) mm t = board thickness 9 a : t = 9,5 mm b : t = 12,5 mm c : t = 15 mm Allows movement of at least: + 5 mm/- 2 mm NOTE a, b, c, d, e and f are designations given to section indicating compatibility to board thickness (ranging from 9,5 mm to 25 mm). 4.7.2 Thickness of metal The thickness of the metal shall be measured as described in 5.2.1 and compared with the nominal thickness and tolerances given in EN 10326, EN 10327 and EN 755, as relevant. The uncoated steel strip shall have a minimum thickness of 0,35 mm for galvanized and AZ/ZA coated steel and 0,4 mm for aluminium. The uncoated steel strip is calculated as nominal thickness minus tolerance and thickness of the protective coating. The thickness of the coating shall be obtained from EN 10326 or EN 10327, when appropriate. 4.7.3 Length The length shall be measured as described in 5.2.2 and compared with the nominal length. The tolerance shall be for beads ± 10 mm and for feature profiles 05− mm. 4.7.4 Straightness The straightness shall be measured as described in 5.2.3. It shall not be more than:  L/400 for angle beads;  L/600 for feature beads

is the length. 4.7.5 Beads The dimensions and angles of beads shall be measured as described in 5.3 and compared with the nominal dimension stated by the producer. See Table 2. 4.7.6 Feature profiles The cross sections of feature profiles are not dimensionally defined as they vary widely depending upon the decorative and aesthetic considerations. Manufacturers shall supply, on request, a dimensioned drawing of the cross section to enable design work to take place. When dimensions are measured in accordance with the method given in 5.3 the tolerance shall be ± 5 % on any individual measurement. 4.7.7 Wing width The minimum width of wings shall be measured as described in 5.4 and compared with the nominal dimensions stated by the producer. Examples of minimum wing widths are:  18 mm for angle bead;  20 mm for edge bead;  20 mm for feature bead;  18 mm for stop bead. 4.7.8 Wing open area The open area of each wing shall be determined as described in 5.5 and compared with the nominal percentage open area stated by the producer. The open area of each wing shall not be less than 5 % when determined as described in 5.5. 5 Test methods 5.1 Sampling Testing requires three specimens of each type of bead or feature profile on which tests 5.2 to 5.8 shall be applied, where appropriate, to the product. 5.2 Dimensional measurements 5.2.1 Thickness 5.2.1.1 Principle The distance between the two faces is measured in three separate positions per specimen. 5.2.1.2 Apparatus A micrometer permitting a reading to 0,01 mm.

Key 1 deviation of straightness 2 angle bead
3 stop bead
Section A-A: specifying bead position for test Figure 3 — Measurement of straightness
...
