EN 14411:2016

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.R]QDþHYDQMHKeramische Fliesen und Platten - Definitionen, Klassifizierung, Eigenschaften, Konformitätsbewertung und KennzeichnungCarreaux céramiques - Définitions, classification, caractéristiques, évaluation de la conformité et marquageCeramic tiles - Definition, classification, characteristics, evaluation of conformity and marking91.100.23Ceramic tilesICS:Ta slovenski standard je istoveten z:EN 14411:2016SIST EN 14411:2016en,fr,de01-september-2016SIST EN 14411:2016SLOVENSKI
STANDARDSIST EN 14411:20131DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14411
July
t r s x ICS
{ sä s r rä t u Supersedes EN
s v v s sã t r s tEnglish Version
Ceramic tiles æ Definitioná classificationá characteristicsá assessment and verification of constancy of performance and marking Carreaux céramiques æ Définitionsá classificationá caractéristiquesá évaluation et vérification de la constance de performance et marquage
Keramische Fliesen und Platten æ Definitionená Klassifizierungá Eigenschaftená Konformitätsbewertung und Kennzeichnung This European Standard was approved by CEN on
s u May
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s v v s sã t r s x ESIST EN 14411:2016

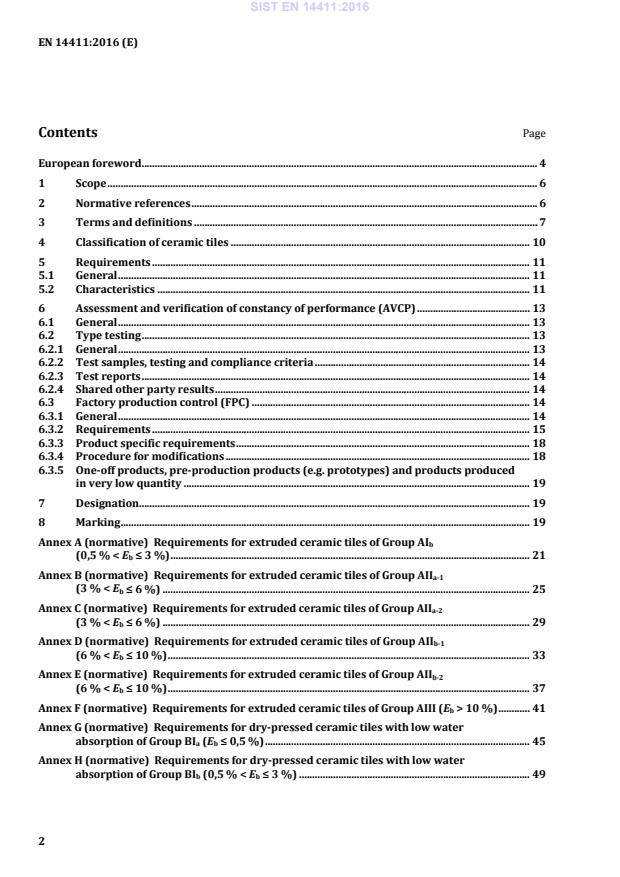

Requirements for extruded ceramic tiles of Group AIb (0,5 % < Eb
¶ 3 %) . 21 Annex B (normative)
Requirements for extruded ceramic tiles of Group AIIa-1 (3 % < Eb
¶ 6 %) . 25 Annex C (normative)
Requirements for extruded ceramic tiles of Group AIIa-2 (3 % < Eb
¶ 6 %) . 29 Annex D (normative)
Requirements for extruded ceramic tiles of Group AIIb-1 (6 % < Eb
¶ 10 %) . 33 Annex E (normative)
Requirements for extruded ceramic tiles of Group AIIb-2 (6 % < Eb
¶ 10 %) . 37 Annex F (normative)
Requirements for extruded ceramic tiles of Group AIII (Eb > 10 %) . 41 Annex G (normative)
Requirements for dry-pressed ceramic tiles with low water absorption of Group BIa (Eb
¶ 0,5 %) . 45 Annex H (normative)
Requirements for dry-pressed ceramic tiles with low water absorption of Group BIb (0,5 % < Eb
¶ 3 %) . 49 SIST EN 14411:2016

Requirements for dry-pressed ceramic tiles of Group BIIa (3 % < Eb
¶ 6 %) . 53 Annex K (normative)
Requirements for dry-pressed ceramic tiles of Group BIIb (6 % < Eb
¶ 10 %) . 57 Annex L (normative)
Requirements for dry-pressed ceramic tiles of Group BIII (Eb > 10 %) . 61 Annex M (normative)
Requirements of extruded ceramic tiles with low water absorption of Group AIa (Eb
¶ 0,5 %) . 65 Annex N (informative)
Classification of glazed ceramic tiles for floorings according to their resistance to surface abrasion . 69 Annex O (informative)
Additional information on applicability of certain characteristics . 70 O.1 General . 70 O.2 Characteristics . 70 Annex P (informative)
Symbols for indication of intended use and of performances of some characteristics of ceramic tiles . 71 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Regulation . 73 Bibliography . 84
Figure 1 illustrates a ceramic tile without spacer lugs and Figure 2 ceramic tile with spacer lugs. 3.9 water absorption (Eb) percentage (by mass) of water absorbed by the ceramic body 3.10 nominal size (N) size used to describe the ceramic tile Note 1 to entry: This and the following sizes are only defined for rectangular tiles. If the sizes of non-rectangular tiles are required, they are defined by the smallest rectangle into which they fit.
Key coordinating size (C)
=
work size (W) + joint (J) work size (W)
=
dimension of the visible face (a), (b) and thickness (d) Figure 1 — Ceramic tile SIST EN 14411:2016

Key 1 spacer lugs
coordinating size (C)
=
work size (W) + joint (J) work size (W)
=
dimension of the visible face (a), (b) and thickness (d) Figure 2 — Ceramic tile with spacer lug 3.11 work size (W) size of a tile specified for manufacturing to which the actual size conforms within specified permissible deviations 3.12 actual size size obtained by measuring the face of the tile 3.13 coordinating size (C) work size plus the joint width 3.14 modular size dimensions based on the modules M, and also their multiples or subdivisions, except for tiles with a surface area of less than 9 000 mm2 Note 1 to entry: See ISO 1006, where 1 M = 100 mm. 3.15 non-modular size size not based on module M Note 1 to entry: See ISO 1006, where 1 M = 100 mm. 3.16 tolerance permissible deviation from work size 3.17 product group ceramic tiles manufactured through a defined process (extrusion or dry pressing) and featuring a specific water absorption (see Table 1) 3.18 family in a product group ceramic tiles manufactured for which the test results of any tile within the family are valid for all other tiles within the family SIST EN 14411:2016

¶ 3 % Group IIa 3 % < Eb
¶ 6 % Group IIb 6 % < Eb
¶ 10 % Group III Eb > 10 % Method A Extruded Group AIa Eb
0,5 % (see Annex M) Group AIb 0,5 % < Eb
3 % (see Annex A) Group AIIa-1 a (see Annex B) Group AIIa-2 a (see Annex C) Group AIIb-1 a (see Annex D) Group AIIb-2 a (see Annex E) Group AIII (see Annex F) Method B Dry-pressed Group BIa Eb
0,5 % (see Annex G) Group BIb 0,5 % < Eb
3 % (see Annex H) Group BIIa (see Annex J) Group BIIb (see Annex K) Group BIII b (see Annex L) a Groups AIIa and AIIb are divided into two parts (Parts 1 and 2) with different product specification. Part 1 covers most of the tiles in the group; Part 2 covers certain specific products, which are manufactured under different names (e.g. terre cuite in France and Belgium, cotto in Italy and baldosin catalán in Spain). b Group BIII covers glazed ceramic tiles only. There is a low quantity of dry-pressed unglazed tiles produced with water absorption greater than 10 % that are not covered by this European Standard. SIST EN 14411:2016

Characteristics a Floorings Walls Test method A) Dimensions and surface quality Interior Exterior Interior Exterior Reference A.1 Length and width X X X X EN ISO 10545-2 A.2 Thickness X X X X EN ISO 10545-2 A.3 Straightness of sides (i.e. facial sides) b X X X X EN ISO 10545-2 A.4 Rectangularity b X X X X EN ISO 10545-2 A.5 Surface flatness (curvature and warpage) X X X X EN ISO 10545-2 A.6 Surface quality X X X X EN ISO 10545-2 B) Physical properties Interior Exterior Interior Exterior Reference B.1 Water absorption X X X X EN ISO 10545-3 B.2 Breaking strength X X X X EN ISO 10545-4 B.3 Flexural tensile strength or Modulus of rupture X X X X EN ISO 10545-4 B.4 a) Resistance to deep abrasion – unglazed tiles X X
EN ISO 10545-6 B.4 b) Resistance to surface abrasion – glazed tiles X X
EN ISO 10545-7 B.5 Linear thermal expansion c X X X X EN ISO 10545-8 B.6 Resistance to thermal shock d X X X X EN ISO 10545-9 B.7 Resistance to crazing e X X X X EN ISO 10545-11 B.8 Freeze–thaw resistance f
X
X EN ISO 10545-12 B.9 Slipperiness g X X
CEN/TS 16165 h B.10 a) Bond strength/adhesion i – cementitious adhesives
X X EN 12004:2007+A1:2012, 4.1 B.10 b) Bond strength/adhesion i – dispersion adhesives
X X EN 12004:2007+A1:2012, 4.2 B.10 c) Bond strength/adhesion i – reaction resin
X X EN 12004:2007+A1:SIST EN 14411:2016

Characteristics a Floorings Walls Test method adhesives 2012, 4.3 B.11 Moisture expansion j X X X X EN ISO 10545-10 B.12 Small colour differences k X X X X EN ISO 10545-16 B.13 Impact resistance l X X
EN ISO 10545-5 B.14 Reaction to fire m X
X X WT B.15 Tactility n X X
CEN/TS 15209 g C) Chemical properties Interior Exterior Interior Exterior Reference C.1 a) Resistance to staining – glazed tiles o X X X X EN ISO 10545-14 C.1 b) Resistance to staining – unglazed tiles o X X X X EN ISO 10545-14 C.2 a) Resistance to acids and alkalis of low concentration p X X X X EN ISO 10545-13 C.2 b) Resistance to acids and alkalis of high concentration p X X X X EN ISO 10545-13 C.2 c) Resistance to household cleaning agents and swimming pool chemicals p X X X X EN ISO 10545-13 C.3 a) Release of cadmium – glazed tiles r X X X X EN ISO 10545-15 C.3 b) Release of lead – glazed tiles r X X X X EN ISO 10545-15 C.3 c) Release of other dangerous substances q X X X X As relevant a Requirements for these characteristics are given in Annexes A to M. b Not applicable for ceramic tiles having curved shapes. c See O.2.2.
d For ceramic tiles, whose intended use is subject to localized thermal shock. e For glazed ceramic tiles only. f For ceramic tiles that are intended to be used where frost may apply. g For floorings on pedestrian circulation areas (where required by regulations). h Unless a different test method is required by national regulations in the market of the relevant Member State(s) for the intended use, in which case the test method and results shall be declared as given therein. i For walls when performing the test with actual ceramic tiles and suitable adhesive(s) only. j See O.2.3. k See O.2.6. l See O.2.1. m For ceramic tiles intended to be used for internal floorings and for internal and external walls only. n For tactile paving surfaces only i.e. when required for blind or vision impaired persons. o See O.2.5. p See O.2.4.
q When relevant, see Tables ZA.1.1 and ZA.1.2, note b, for release of other dangerous substances, if any. r For glazed ceramic tiles only, when intended to be used on worktops and on wall surfaces where food preparation takes place and food may be in direct contact with the glazed tile surface. As indicative limits, reference could be made to Directive 2005/31/CE. SIST EN 14411:2016

Products may be grouped in different families for different characteristics. Reference to the assessment method standards should be made to allow the selection of a suitable representative sample. In addition, type testing shall be performed for the declared characteristics: — at the beginning of the production of a new or modified ceramic tile (unless a member of the same family), or — at the beginning of a new or modified manufacturing process (where this may affect the stated properties); or they shall be repeated for the appropriate characteristic(s), whenever a change occurs in the ceramic tile design, in the raw material or in the supplier of the components, or in the method of production (subject to the definition of a family), which would affect significantly one or more of the characteristics. Where components are used whose characteristics have already been determined, by the component manufacturer, on the basis of assessment methods of other product standards, these characteristics need not be re-assessed. The specifications of these components shall be documented. Products bearing regulatory marking in accordance with Annex ZA of this harmonized standard may be presumed to have the performances declared in the DoP, although this does not replace the responsibility on the ceramic tile manufacturer to ensure that the ceramic tile as a whole is correctly manufactured. SIST EN 14411:2016

frequency Breaking strength c EN ISO 10545-4 B.2 Once a month Resistance to thermal shock b EN ISO 10545-9 B.6 Once a year Freeze–thaw resistance b EN ISO 10545-12 B.8 Once a year Slipperiness d CEN/TS 16165 e B.9 Once a year f Tactility d CEN/TS 15209 e B.15 Once a year g Bond strength/adhesion b, for:
a) cementitious adhesives b) dispersion adhesives c) reaction resin adhesives EN 12004 B.10 a) B.10 b) B.10 c) Once per
product group Reaction to fire – B.14 – Release of other dangerous substances d of: - Lead and Cadmium EN ISO 10545–15 C.3 a), b) Once a year a For reference to the requirement see relevant Tables A.1 to M.1 b Testing for a product group. c Testing for a family in a group of products (group of absorption, dimensions and thickness). d Testing for a family in a group of products (finish surface characteristics, same composition and properties). e Unless a different test method is required by national regulations in the market of the relevant Member State(s) for the intended use, in which case the test method and results shall be declared as given therein (as long as a consolidated European test method is not available). f For floorings on pedestrian circulation areas (where required by regulation). g For tactile paving surfaces only i.e. when required for blind or vision impaired persons 6.3.2.6 Non-complying products The manufacturer shall have written procedures which specify how non-complying products shall be dealt with. Any such events shall be recorded as they occur and these records shall be kept for the period defined in the manufacturer’s written procedures. Where the ceramic tile fails to satisfy the acceptance criteria, the provisions for non-complying products shall apply, the necessary corrective action(s) shall immediately be taken and the ceramic tile or batches not complying shall be isolated and properly identified. Once the fault has been corrected, the test or verification in question shall be repeated. The results of controls and tests shall be properly recorded. The product description, date of manufacture, test method adopted, test results and acceptance criteria shall be entered in the records under the signature of the person responsible for the control/test. With regard to any control result not meeting the requirements of this European standard, the corrective measures taken to rectify the situation (e.g. a further test carried out, modification of manufacturing process, and throwing away or putting right of product) shall be indicated in the records. SIST EN 14411:2016
...
