prEN 1340

SLOVENSKI STANDARD
01-oktober-2010
Betonski robniki - Zahteve in preskusne metode
Concrete kerb units - Requirements and test methods
Bordsteine aus Beton - Anforderungen und Prüfverfahren
Eléments pour bordures de trottoir en béton - Prescriptions et méthodes d'essai
Ta slovenski standard je istoveten z: prEN 1340
ICS:
91.100.30 Beton in betonski izdelki Concrete and concrete
products
93.080.20 Materiali za gradnjo cest Road construction materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2010
ICS 93.080.20 Will supersede EN 1340:2003
English Version
Concrete kerb units - Requirements and test methods
Eléments pour bordures de trottoir en béton - Prescriptions Bordsteine aus Beton - Anforderungen und Prüfverfahren
et méthodes d'essai
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 178.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the
same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2010 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 1340:2010: E
worldwide for CEN national Members.

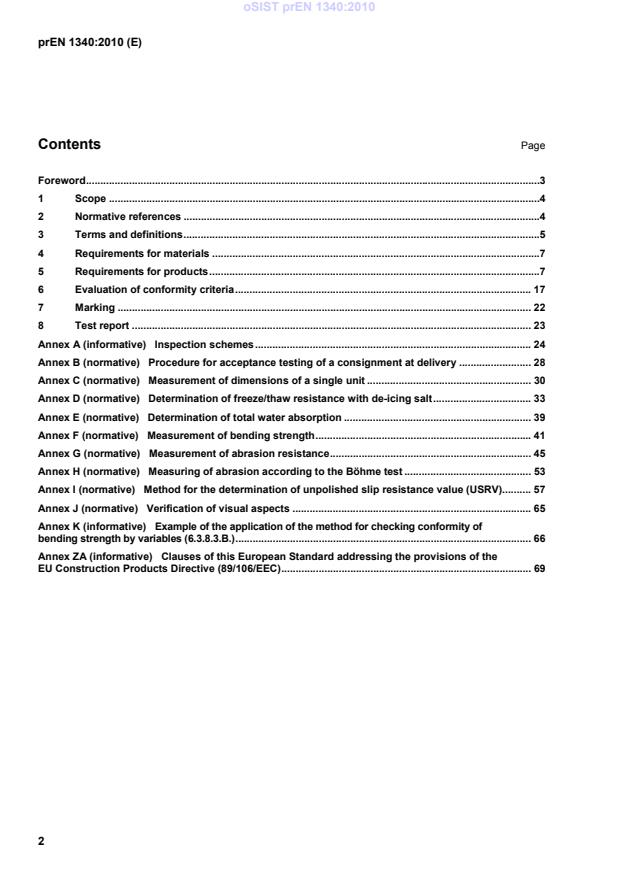

Contents Page
Foreword .3
1 Scope .4
2 Normative references .4
3 Terms and definitions .5
4 Requirements for materials .7
5 Requirements for products .7
6 Evaluation of conformity criteria . 17
7 Marking . 22
8 Test report . 23
Annex A (informative)  Inspection schemes . 24
Annex B (normative)  Procedure for acceptance testing of a consignment at delivery . 28
Annex C (normative)  Measurement of dimensions of a single unit . 30
Annex D (normative)  Determination of freeze/thaw resistance with de-icing salt . 33
Annex E (normative)  Determination of total water absorption . 39
Annex F (normative)  Measurement of bending strength . 41
Annex G (normative)  Measurement of abrasion resistance . 45
Annex H (normative)  Measuring of abrasion according to the Böhme test . 53
Annex I (normative)  Method for the determination of unpolished slip resistance value (USRV). 57
Annex J (normative)  Verification of visual aspects . 65
Annex K (informative)  Example of the application of the method for checking conformity of
bending strength by variables (6.3.8.3.B.) . 66
Annex ZA (informative)  Clauses of this European Standard addressing the provisions of the
EU Construction Products Directive (89/106/EEC) . 69

Foreword
This document (prEN 1340:2010) has been prepared by Technical Committee CEN/TC 178 “Paving units and
kerbs”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 1340:2003.
1 Scope
This European Standard specifies materials, properties, requirements and test methods for unreinforced, cement
bound precast concrete kerb units, channels and complementary fittings, that are for use in trafficked paved
areas and roof coverings.
The units are used to fulfil one or more of the following:
Separation, physical or visual delineation, the provision of drainage or the containment of paved areas or other
surfacing.
In case of regular use of studded tyres, additional requirements are sometimes needed.
This standard provides for the product marking and the evaluation of conformity of the product to this European
standard.
Apart from the tolerances, this standard does not include requirements for cross-sections, shapes and dimensions.
This standard does not deal with the tactility or visibility of kerbs.
2 Normative references
This European Standard incorporates by dated and undated references, provisions from other publications. These
normative references are cited at the appropriate places in the text, and the publications are listed hereafter. For
dated references subsequent amendments to or revisions of any of these publications apply to this European
Standard only when incorporated in it by amendment or revision. For undated references, the latest edition of the
publication referred to applies (including amendments).
EN 10083-2, Quenched and tempered steels — Part 2: Technical delivery conditions for unalloyed quality
steels.
EN 13369, Common rules for precast concrete products.
EN ISO 4288, Geometric product specification (GPS) - Surface texture - Profile method: Rules and
procedures for the assessment of surface texture (ISO 4288:1996).
EN ISO 6506-1, Metallic materials - Brinell hardness test - Part 1: Test method.
EN ISO 6506-2, Metallic materials - Brinell hardness test - Part 2: Verification and calibration of testing
machines.
EN ISO 6506-3, Metallic materials - Brinell hardness test - Part 3: Calibration of reference blocks.
ISO 48, Rubber, vulcanised or thermoplastic — Determination of hardness (hardness between 10 IRHD and
100 IRHD).
ISO 4662, Rubber — Determination of rebound resilience of vulcanizates.
ISO 7619, Rubber — Determination of indentation hardness by means of pocket hardness meters.
ISO 7873, Control charts for arithmetic average with warning limits.
ISO 7966, Acceptance control charts.
ISO 8486-1:1996, Bond abrasives — Determination and designation of grainsize distribution — Macrogrits F4
to F220.
3 Terms and definitions
For the purposes of this European Standard, the following terms and definitions apply.
3.1
concrete kerb unit
precast concrete unit, intended to separate surfaces of the same or different levels to provide:
 physical or visual delineation or containment;
 individually or in combination with other kerbs, drainage channels;
 separation between surfaces submitted to different kinds of traffic.
3.2
complementary fitting
unit, sometimes a part of a kerb, channel etc, which is used as a transition piece for changes in direction,
shape or height or a small piece to complete a line
3.3
overall length
length of a kerb excluding any interlocking features or spacers
3.4
height
distance between the bed face and the top of the kerb
3.5
bed face
lower surface in contact with the ground after laying
3.6
face
surface intended by the manufacturer to be seen when laid and in use
3.7
facing layer
layer of concrete on the face, or part of a face, of different materials and/or properties to the main body or
backing layer
NOTE To be distinguished from wipe, being a fine cement mortar or slurry applied to the surface of the kerb.
3.8
draw
intended angle of the side face from the vertical plane over the full height of a kerb as shown in Figure 1
3.9
chamfer
bevelled arris, as shown in Figure 1
3.10
arris
part of a kerb where two faces meet. It can be bevelled, rounded, chamfered, radiussed or splayed

α
Key
1 Chamfer 2 Height
α Draw
Figure 1 — Example of chamfer and draw

3.11
work dimension
dimension of a kerb specified for its manufacture to which the actual dimension should conform within
specified permissible deviations
3.12
secondary processing
manufacturing process carried out after basic manufacture before or after hardening on the whole kerb or any
surface
3.13
actual dimension
dimension of a kerb as measured
3.14
chased side face
side face of a concrete kerb, having a recessed profile
3.15
skid resistance
ability to resist relative movement between a vehicle tyre and the trafficked concrete kerb surface
3.16
slip resistance
ability to resist relative movement between a pedestrian foot and the trafficked concrete kerb surface
3.17
reference line
kerb or channel line to which the unit is intended to be laid
3.18
traffic face
face of a kerb intended by the manufacturer to be above a road surface and which provides containment of
traffic
3.19
wipe
fine cement mortar or slurry applied to the surface of the units
4 Requirements for materials
4.1 General
Only materials with suitability established in terms of their properties and performance shall be used in the
manufacture of concrete kerb units. The suitability requirements of the materials used shall be given in the
manufacturer’s production control documentation.
Where, by conformity with relevant specifications, the properties and performance of materials have been
demonstrated, further testing need not be performed.
A reference scheme for materials inspection is given in annex A.
4.2 Asbestos
Asbestos, or materials containing asbestos, shall not be used.
5 Requirements for products
5.1 General
The performance requirements of concrete kerb units are defined by classes which have associated marking
designations.
Kerbs may be produced with a single concrete throughout or with different facing and backing layers.
A wipe shall only be carried out on a unit prior to curing; the constituents used shall be the same as in the
body of the block.
When kerbs are produced with a facing layer this layer shall have a minimum thickness of 4.0 mm over that area
claimed by the manufacturer to be faced, when measured in accordance with annex C. Isolated particles of
aggregate protruding into the facing layer shall be ignored. The facing layer shall be an integral part of the kerb.
A bevelled arris exceeding 2 mm shall be described as chamfered. Its dimensions shall be declared by the
manufacturer.
Kerbs may be produced with functional and/or decorative profiles, which shall not be included in the work
dimensions of a kerb.
The surface of kerbs may be textured, secondary processed or treated chemically; these finishes or treatments
shall be described and declared by the manufacturer.
5.2 Shape and dimensions
5.2.1 General
All references to dimensions in this subclause are to work dimensions.
The conformity criteria corresponding to each requirement taken separately are given in 6.3.8.1. The dimensions
and deviations shall be measured according to annex C.
National standards may specify kerb cross-sections and lengths.
NOTE The size of the space allocated to the kerb should include an allowance for joints and deviations.
5.2.2 Work dimensions
The work dimensions shall be stated by the manufacturer.
NOTE The recommended length of a straight kerb including joint is 1 000 mm.
5.2.3 Unit geometry
5.2.3.1 End treatment
Kerbs may be produced with plain ends or with end features to facilitate interlocking or laying. These features
shall be declared by the manufacturer.
Figures 2, 3 and 4 show examples.
Z Z
y
x
L
Key
Y ≤ X – 3 mm and Z ≤ Z – 3 mm
y x
X minimum : ≥ 1/5 b and ≥ 20 mm
X maximum : ≤ 1/3 b and ≤ 70 mm
Z maximum : Y/2
y
Tolerance on X and Z - 1, + 2 mm
x
Tolerance on Y and Z - 2, + 1 mm
y
L Length
b Width
Figure 2 — Example of interlocking feature; requirement of dimensions and permissible deviations
X
Y
b
Key
L Length
Figure 3 — Example of dimensions of chase and draw
Key
H Height of kerb unit
h Height of recess or cut out
W Width
L Length
Figure 4 — Example of a recess or cut-out on the bottom end of a kerb

5.2.3.2 Radiussed kerbs
Radiussed kerbs shall be described as convex or concave. The description shall refer to the reference line. The
radius of a kerb and its overall length shall be measured to and along its reference line.
The preferred radii of the kerb are 0,5; 1; 2; 3; 4; 5; 6; 8; 10 and 15 m. The recommended length is 780 mm.
National standards may specify other radii and length.
L
W
H
h
3 3
a) b)
Key
1 Kerb 4 Radius
2 Carriageway 5 Channel
3 Length
Figure 5 — Examples of radiussed kerbs, a) concave and b) convex
5.2.3.3 Permissible deviations
The values for the permissible deviations on the manufacturer's declared work dimensions are as given below:
Length:  ± 1 % to the nearest millimetre with a minimum of4 mm, not exceeding 10 mm.
Other dimensions, except radius:
for faces: ± 3 % to the nearest millimetre with a minimum of 3.0m, not exceeding 5.0 mm.
for other parts: ± 5 % to the nearest millimetre with a minimum of 3.0 mm, not exceeding 10.0 mm.
The difference between any two measurements of a single dimension of a single kerb shall be < 5.0 mm.
For faces described as flat and edges described as straight, the permissible deviations on flatness and
straightness are given in Table 1.
Table 1 — Permissible deviations of flatness and straightness
Length of gauge Permissible deviation of flatness and
straightness
mm mm
300 ± 1,5
400 ± 2,0
500 ± 2,5
800 ± 4,0
5.3 Physical and mechanical properties
5.3.1 General
The kerbs shall conform to the following requirements at the time they are declared suitable for use by the
manufacturer.
When complementary fittings or kerbs, because of their geometry, cannot be tested according to this standard,
they are considered to conform to this standard, provided they have at least the same concrete quality as kerbs
conforming to this standard.
5.3.2 Weathering resistance
5.3.2.1 Test methods
The weathering resistance is determined by tests according to annex D for freeze-thaw resistance or annex E
for water absorption and to the conformity criteria of 6.3.8.2.
5.3.2.2 Performances and classes
The kerbs shall conform to the requirements in Tables 2.1 or 2.2.
Recommendations as to the class(es) of weathering resistance required to ensure durability for that country,
for the uses for which the product is put on the market, may be made at a national level.
Table 2.1 — Water absorption
Class Marking Water absorption
% by mass
1 A no performance measured
2 B
≤ 6.5 as a mean
Where specific conditions exist such as frequent contact of surfaces with de-icing salts under frost conditions,
the requirements defined in Table 2.2 may have to be fulfilled.

Table 2.2 — Resistance to freeze-thaw with de-icing salts
Class Marking Mass loss after freeze/thaw test
kg/m²
3 D
≤ 1,0 as a mean
as a mean with no individual value > 1,5

5.3.3 Bending strength
5.3.3.1 Test method
The characteristic bending strength shall be determined by testing according to annex F and to the conformity
criteria given in 6.3.8.3.
5.3.3.2 Performance and classes
The characteristic bending strength shall not be less than the value corresponding to the class in Table 3.
None of the individual results shall be less than the corresponding minimum bending strength in Table 3.
When kerbs, due to their geometry, cannot be tested according to this standard they shall be considered to be
in the same class as tested kerbs provided they have at least the same concrete strength.
Table 3 — Bending strength classes
Class Marking Characteristic bending strength Minimum bending strength
MPa MPa
1 S 3,5 2,8
2 T 5,0 4,0
3 U 6,0 4,8
Guidance on application may be provided at a national level.
5.3.3.3 Durability of strength
Under normal exposure conditions of use precast concrete kerbs will continue to provide satisfactory strength
during the working life of the product, provided they conform to 5.3.3.2 and are subject to normal maintenance.
5.3.4 Abrasion resistance
5.3.4.1 Test method
Abrasion resistance is determined by the Wide Wheel Abrasion test (see annex G), or as an alternative by the
Böhme test (see annex H). The Wide Wheel Abrasion test is the reference test.
5.3.4.2 Performance
Requirements for abrasion resistance are given in Table 4.
No individual result shall be greater than the required value.

Table 4 — Abrasion resistance classes
Class Marking Requirement
Measured in accordance with Alternatively measured in accordance
the test method described in with the test method described in
annex G annex H
1 F No performance measured No performance measured
3 H < 23 mm < 20 000 mm³/5 000 mm
3 2
4 I < 20 mm < 18 000 mm /5 000 mm

5.3.5 Slip/skid resistance
5.3.5.1 Conditions
Slip /skid resistance is determined by testing in accordance with the test method as described in ENV 12633
NB If ENV 12633  is published separately as a CEN TS, the reference will need to be changed editorially
before final publication
5.3.5.2 Performance and classes
Requirements for slip/skid resistance are given in Table 5.3. Both the unpolished and polished values shall,
satisfy the requirements for the class
Table 5.3 Skid Resistance classes

Class Marking Slip/skid resistance values
5.3.5.2 Test method
1 P No performance measured
2 Q > 35
3 R > 45
4 S > 55
Note 1 If the surface of a kerb contains ridges, grooves or other surface features which prevent testing by the pendulum
friction equipment, the product is deemed to satisfy the requirements of this standard without testing. Where the kerb is
too small to provide a test area, the manufacturer shall test a larger kerb having the same surface finish as the kerb in
question.
NOTE 2 The slip/skid resistance value relates to kerbs as manufactured and helps to ensure adequate slip/skid
resistance on installation.
5.3.5.3 Durability of slip/skid resistance
Under normal conditions of use precast concrete kerbs provide satisfactory slip/skid resistance during the
working life of the product, provided they are subjected to normal maintenance and unless a major proportion
of aggregates which polish excessively have been exposed on the upper face.
NOTE The development of a performance based test method for the durability of slip/skid resistance is proceeding in
TC 178 WG4.
5.3.6 Fire performance
5.3.6.1 Reaction to fire
1)
Concrete kerb units are Class A1 reaction to fire without testing .

1)
Reference is made to the Commission Decision 96/603/EC as amended.
5.3.6.2 External fire performance
Concrete kerbs used as roof covering are deemed to satisfy the requirements for external fire performance
2)
without the need for testing .
5.3.7 Thermal conductivity
If concrete kerbs are intended to contribute to the thermal performance of an element, then the manufacturer
shall declare the thermal conductivity using design data from EN 13369.
5.4 Visual aspects
5.4.1 Appearance
The face of the kerb shall not exhibit defects such as cracking or flaking when examined in accordance
with annex J.
In the case of two-layer kerbs examined in accordance with annex J, there shall be no delamination
(i.e. separation) between the layers.
NOTE When efflorescence occurs it is not deleterious to the performance of the kerbs in use and is not considered
significant.
5.4.2 Texture
In the case of kerbs manufactured with a special surface texture, this texture shall be described by the
manufacturer.
If examined in accordance with annex J, compliance shall be established if there are no significant differences in
texture to any samples supplied by the manufacturer and approved by the purchaser.
NOTE Variations in the texture consistency of the kerbs can be caused by unavoidable variations in the properties of
the raw materials and by variations in curing and are not considered significant.
5.4.3 Colour
Colours may be provided in a facing layer or throughout the unit at the manufacturer's discretion.
If examined in accordance with annex J, compliance shall be established if there are no significant differences in
colour to any samples supplied by the manufacturer and approved by the purchaser.
NOTE Variations in the colour consistency of the kerbs can be caused by unavoidable variations in the shade and
properties of the raw materials and by variations in hardening and are not considered significant.

2)
See Commission Decision 2000/553/EC.
6 Evaluation of conformity criteria
6.1 General
For the purpose of testing, the manufacturer may group products into families, where it is considered that the
value of a selected property is common to all products within that family. Such families are:
1) strength family: kerbs manufactured using the same mix design and production methods, irrespective
of dimensions and colours;
2) surface family: kerbs with face mixes having the same main aggregate used in the mix (e.g. natural
river gravel, crushed granite, porphyr, basalt or limestone) and the same surface treatment of the
finished product, irrespective of dimensions and pigmentation.
6.1.1 Demonstration of conformity
Compliance of the product with the requirements of this standard and with the declared values (levels or
classes) for the product properties shall be demonstrated by carrying out both:
 type testing of the product (see 6.2);
 factory production control (see 6.3), including product testing.
6.1.2 Assessment of conformity
In addition, compliance of the product with this standard may be assessed:
 either by a third party inspecting the manufacturer’s type testing and factory production control
procedures;
 or by acceptance testing of a consignment at delivery (e.g. in the case of dispute, see annex B).
6.2 Type testing of the product
6.2.1 Initial type testing
Initial type testing shall be performed to demonstrate conformity with this standard at the beginning of the
manufacture of a new product type or a family of product types or setting up a new production line to confirm that
the achieved properties of the product meet the requirements of this standard and the values declared for it by the
manufacturer.
6.2.2 Further type testing
Whenever a change occurs in the raw materials, the proportions used or the production equipment or process,
which would change significantly some or all of the properties of the finished product, the type tests shall be
repeated for the selected property or properties.
NOTE Examples of major changes:
1) change from natural river gravel to crushed rock aggregates or change of cement type or class;
2) partial substitution of cement by additions.
For abrasion and weathering resistance, type testing shall be repeated periodically with the frequency given in
Table 5 even when no change occurs.
Table 5 — Periodically repeated type testing
Property Frequency
Abrasion (only classes 3 and 4) Once per year per surface family
1)
Weathering resistance (only class 3) Once per year per surface family
1)
If for a surface family the result of a type test (mass loss) is lower than 50 % of the required value
the test frequency may be reduced to once per two years.
If for a surface family, routine water absorption testing at the frequency for class 2 products
(see 6.3.8.2.) is carried out to demonstrate consistency with kerbs submitted to freeze/thaw testing,
the required test frequency may be reduced to once per two years.

6.2.3 Sampling, testing and compliance criteria
The number of kerbs to be tested shall be in accordance with Table 6 for the selected property.
Table 6 — Sampling plan and conformity criteria for initial and further type testing
Property Requirements Testing method Number of kerbs Conformity criteria
1)
Appearance 5.4 Annex J 8 No kerb shall show
cracking, flaking or
2)
delamination
Thickness of 5.1 C.6 8 Each kerb shall meet the
facing layer  requirements
2) 1)
Shape and 5.2 Annex C 8 Each kerb shall meet the
dimensions  requirements
Bending strength 5.3.2 - Table 3 Annex F 8 No kerb shall have a
bending strength less
than the characteristic
value for the declared
class
Abrasion resistance 5.3.3 Annex G or H 3 Each kerb shall meet the
(only classes 3 and  requirements
4)
Slip/skid resistance 5.3.4 Annex I 5 The mean value of the
(only where tested) five kerbs shall be
declared
Weathering
resistance
- class 2 5.3.1 Annex E 3 No kerb shall have a
water absorption
of greater than 6.5 % by
mass
- class 3 5.3.1 Annex D 3 The mean of the three
kerbs shall not be
greater than 1,0 kg/m
with no individual result
greater than 1,5 kg/m
1)
These kerbs may be used for subsequent tests.
2)
C.6 only applies for kerbs with a facing layer.

The type tests shall be carried out in accordance with the reference test methods called up in this standard.
Type testing is normally carried out with the manufacturer's test equipment.
The test results shall be recorded.
6.3 Factory production control
6.3.1 General
The manufacturer shall establish, document and maintain a factory production control system to ensure that the
products placed on the market will conform with the specified or declared values.
The factory production control system shall consist of procedures, regular inspection and tests and the utilisation
of the results to control raw and other incoming materials, equipment, the production process and the product.
An example of a suitable inspection scheme for factory production control is given in annex A.
The results of inspections requiring action and the results of tests shall be recorded.
The action to be taken when control values or criteria are not met shall be given.
6.3.2 Equipment
All weighing, measuring and testing equipment shall be calibrated and regularly inspected according to the
documented procedures, frequencies and criteria.
An inspection scheme for equipment is given in A.1.
6.3.3 Raw and other incoming materials
The specifications of all incoming materials shall be documented.
An inspection scheme for raw materials is given in A.2.
6.3.4 Production process
The relevant features of the plant and production process shall be defined giving the frequency of the inspection
checks and tests, together with the criteria required both on equipment and on work in progress.
An inspection scheme for the production process is given in A.3.
6.3.5 Product testing
A sampling and testing plan of products shall be prepared and implemented.
The sample shall be representative of production.
The tests shall be carried out in accordance with the methods called up in this standard or by applying alternative
test methods with a proven correlation to the standard methods.
When complementary fittings or kerbs, because of their geometry, cannot be tested according to this standard,
they are considered to conform to this standard, provided they have at least the same concrete quality as kerbs
conforming with this standard.
The results of testing shall meet the specified conformity criteria (see 6.3.8) and be recorded.
An example of an inspection scheme for product testing is given in A.4.1.
Switching rules for product testing are given in A.5.
6.3.6 Marking, storage and delivery of products
The marking, storage and delivery control, together with procedures for dealing with non-conforming products
(see 6.3.7) shall be documented.
Products may be released before the final results of factory production control testing are received, if they are
subject to a positive recall procedure.
An example of an inspection scheme for marking, storage and delivery is given in A.4.2.
6.3.7 Non-conforming products
If the results of the tests on a product are unsatisfactory, the manufacturer shall take the necessary steps in order
to rectify the shortcoming.
Products which do not conform to the requirements shall be set aside and marked accordingly.
If any non-conformity of the product is established after delivery, the customer shall be notified.
6.3.8 Product conformity criteria
For each characteristic, when the conformity criteria in this clause may be considered either by attributes or
variables, the method applied shall be at the manufacturer's discretion.
6.3.8.1 Shape and dimensions
A. Attributes
The conformity of the production with 5.2 shall be assessed for each production line per one to four production
days (see sampling according to A.4.1.3). Each of the requirements in 5.2 shall be considered separately.
a) If the sample consists of less than eight kerbs (see switching rules in A.5) and each of the requirements in
5.2 are complied with by all of the kerbs, then the sample and the corresponding production shall be
accepted. If not, this sample shall be increased to eight kerbs and the procedure given in b) shall apply.
b) If the sample consists of eight kerbs and not more than one of the kerbs does not conform to any one of
the requirements in 5.2 considered separately, the sample and the corresponding production shall be
accepted. If not, this sample shall be increased to 16 units and the procedure given in c) shall be applied.
c) If the sample consists of 16 kerbs and not more than two of the kerbs do not conform to any one of the
requirements in 5.2 considered separately, the sample and the corresponding production shall be
accepted. If more than two of the kerbs do not conform to any one of the requirements considered
separately, the sample and the corresponding production are not accepted and 6.3.7 applies.
B. Variables
When the standard deviation of a production line is known and regularly checked, the compliance of the
production with 5.2 shall be assessed for each production line per day or consecutive production days not
exceeding five (see sampling according to A.4.1.3). Each of the requirements in 5.2 shall be considered
separately.
The conformity is assessed on a 10 % fractile.
The acceptability of the samples considered shall be checked using a control chart conforming to either with
ISO 7966 or ISO 7873 and taking into account 5.2, provided the probability of acceptance is equivalent to that
resulting from assessment by attributes.
6.3.8.2 Weathering resistance (class 2 - water absorption)
The conformity of the production with 5.3.2 (class 2) shall be assessed for each family and for each five
production days, or more according to the switching rules (see sampling according to A.4.1.6)
If the sample consists of three or six kerbs (see switching rules in A.5) and the requirements in 5.3.2 (class 2)
are complied with, the sample and the corresponding production shall be accepted.
6.3.8.3 Bending strength
A. Attributes
The conformity of the production with 5.3.3 shall be assessed for each production line per one to four production
days (see sampling according to A.4.1.4).
a. If the sample consists of eight kerbs or fewer (see switching rules A.5) and the strength T of each of the kerbs
is not lower than the characteristic value of Table 3 for the declared class, the sample and the corresponding
production shall be accepted. If not, this sample shall be increased to 16 kerbs and the procedure given in b)
shall apply.
b. If the sample consists of 16 kerbs and the strength T of not more than one of the kerbs is lower than the
characteristic value of Table 3 for the declared class, the sample and the corresponding production shall be
accepted. If not, the sample and the corresponding production are not accepted and 6.3.7 applies.
B. Variables
When the standard deviation for a production line is known and regularly checked, the conformity of the
production with 5.3.3 shall be assessed for each production line per production day or consecutive production
days not exceeding five (see sampling according to A.4.1.4).
The compliance is assessed on a 5 % fractile.
The acceptability of the samples considered shall be checked using a control chart conforming either to ISO 7966
or to ISO 7873 and taking into account 5.3.3, provided the probability of acceptance is equivalent to that resulting
from assessment by attributes (see annex K).
If the sample and the corresponding production are not accepted, 6.3.7 applies.
6.3.8.4 Visual aspects
The conformity of the production with 5.4 shall be assessed in case of doubt (see sampling according to A.4.1.2).
The sample tested shall satisfy the requirements of the standard. If not, the sample and the corresponding
production are not accepted and 6.3.7 applies.
7 Marking
The following particulars relating to the units shall be supplied:
1 2
* * Identification of the manufacturer or the factory
* Identification of the date of production and,
* or * if delivered earlier than the date on which the kerbs are declared suitable
for use, the identification of this date
* * Identification of the class(es) where applicable (see below)
* * The number of this European Standard
* Identification of the product.

1: On the delivery note or on the invoice or on the manufacturer’s declaration or accompanying documents.

2: On 0,5 % of the units with a minimum of one marking per package or on the packaging itself if not reused.
Classes and their identification:
Requirement  Marking
weathering resistance A, B or D
abrasion resistance F, H or I
concrete strength  S, T or U
Where ZA.3 covers the same information as this clause 7, the requirements of this clause are met for CE marked
products.
8 Test report
The following particulars shall be supplied in the test report (other than for tests for factory production control):
1) the name of the organisation carrying out the test;
2) the name of the person carrying out the test;
3) the date of the test;
4) the name of the source providing the sample;
5) the sample reference including the date of production;
6) the name of the person taking the sample;
7) the relevant EN number and annex;
8) the name of the test;
9) the test result;
10) any pertinent remarks about the sample or test result.

Annex A
(informative)
Inspection schemes
A.1 Equipment inspection
Subject Aim Method Frequency
A.1.1 Testing and measuring equipment
All testing and Correct functioning Where applicable, calibrating On (re)installation,
measuring and accuracy against equipment which has been after major repair or
equipment calibrated traceable to national once per year
standards and is used exclusively
for this purpose except as indicated
in the test method.
A.1.2 Storage and production equipment
1 Storage of Absence of Visual inspection or other - On installation
materials contamination appropriate method - Weekly
2 Correct functioning Visual Inspection Daily
3 Weighing or Kerb manufacturer's Calibrating against equipment - On (re)installation
volumetric declared accuracy which has been calibrated - Weighing: once
tbl
batching to national standards and is used a year
equipment exclusively for this purpose. - Volumetric: twice a
year
- In case of doubt
4 Mixers Wear and correct Visual inspection Weekly
functioning
5 Moulds Cleanliness and Visual inspection Daily
condition
A.2 Materials inspection
Subject Aim Method Frequency
A.2.1 All materials
1 All materials To ascertain that the Inspection of delivery Each delivery
consignment is as ticket and/or label on the
ordered and from the package showing
correct source compliance with the order
1)
A.2.2 Materials not submitted to an assessment of conformity before delivery
1 Cement and Conformity with kerb Appropriate test method Each delivery
other manufacturer’s
cementitious requirements
materials
2 Aggregates Conformity with kerb Visual inspection Each delivery
manufacturer’s
requirements
3 For example:
- Particle grading Test by sieve analysis - First delivery
from new source
- In case of doubt
- Once per week
- Impurities or Appropriate test method - First delivery
contamination from new source
- In case of doubt
4 Admixture Conformity with Visual inspection Each delivery
normal appearance
5 Density Kerb manufacturer’s
method
6 Additions/ Conformity with Visual inspection Each delivery
pigments normal appearance
7 Density Kerb manufacturer’s
method
8 Water not taken Conformity with kerb Testing according to - First use of new source
from a Public manufacturer’s standard
- water from open water
distribution requirements
course: three times a
System
year, or more (depending
on local conditions)
- Other sources : once a
year
- In case of doubt
9 Recycled Check for solid Visual Weekly
Water content and other
10 contaminants Kerb manufacturer’s In case of doubt
method
1)
Materials not audited by the precast product manufacturer or by a third party acceptable to the

manufacturer.
A.3 Production process inspection
Subject Aim Method Frequency
1 Mixture Conformity with - Visual on weighing equipment Daily
composition intended composition - Checking against production
(weight or volumetric process documents
batched)
2 Conformity with intended Fresh concrete analysis Monthly
mixture values (only
volumetric batched)
3 Fresh concrete Correct mixing Visual check Daily for each mixer
4 Production Conformity with Checking actions against factory
documented factory Procedures Daily
procedures
A.4 Product inspection
1,2,3)
Subject Aim Method Frequency
A.4.1 Product testing
1 Visual aspects See 5.4 Visual check Daily
2  Annex J In case of doubt (sample of ten
kerbs).
3 Shape and See 5.2 Annex C Eight units per production line per

dimensions four production days
4 Bending See 5.3.3 - Table 3 Annex F Eight kerbs per strength family per
strength production line per four production
days irrespective of the size
5 Thickness of See 5.1 Annex C Eight kerbs per strength family per
facing layer production line per four production
days irrespective of the size
6 Weathering See 5.3.2 Annex E Once per surface family per five
resistance (only production days
class 2)
A.4.2 Marking, storage, delivery
1 Marking Marking of product Visual check Daily
according to clause 7
2 Storage Segregation of non- Visual check Daily
conforming product
3 Delivery Correct delivery age, Visual check Daily
loading and loading
documents
1)
Type testing according to 6.2 of this standard not included.
2)
The switching rules apply.
3)
See 6.1.
A.5 Switching rules
A.5.1 Normal inspection
The rate of sampling should be in accordance with A.4.1.
A.5.2 Normal to reduced inspection
1)
Reduced inspection corresponds to half the rate of normal inspection . It should be used where normal
inspection is effective and the preceding 10 successive samples have been accepted.
A supplementary reduced inspection is allowed if the same conditions as above are satisfied under
reduced inspection. This supplementary reduced inspection should correspond to half the rate of the
reduced inspection.
A.5.3 Reduced to normal inspection
When reduced inspection or supplementary reduced inspection is in effect, normal inspection should be
reinstated if any of the following occurs:
- a sample is not accepted;
- or the production becomes irregular or delayed;
- or other conditions warrant that normal inspection should be instituted.
A.5.4 Tightened inspection
Tightened inspection requires the number of kerbs in the sample to be doubled.
It should be used if during normal inspection two out of five
...
