EN 13394:2001
(Main)Packaging - Specification for non-metallic tensional strapping
Packaging - Specification for non-metallic tensional strapping
This European Standard specifies dimensions and physical properties for non-metallic strapping used to secure, to close, to unitise or to strengthen packages applied by hand tools or automatic machines.
NOTE For particular applications or specific requirements, other dimensions can be supplied by agreement between customer and supplier.
Verpackung - Spezifikation für nichtmetallische Umreifungsbänder
Diese Europäische Norm legt Maße und physikalische Eigenschaften für nichtmetallische Umrei-
fungsbänder fest, die zum Sichern, Verschließen und Verstärken von Packstücken verwendet und mit
Handgeräten oder automatischen Maschinen angelegt werden.
ANMERKUNG Für besondere Anwendungsfälle oder bei spezifischen Anforderungen können nach Vereinbarung
zwischen dem Kunden und Lieferanten andere Maße bereitgestellt werden.
Conditionnement - Caractéristiques des feuillards de cerclage non métalliques
1 Domaine d'application
La présente norme spécifie les dimensions et les propriétés physiques des feuillards de cerclage non métalliques utilisées pour attacher, fermer, réunir ou renforcer des paquets, et appliqués à l'aide d'outils manuels ou de machines automatiques.
NOTE Pour les applications particulières ou les prescriptions spécifiques, d'autres dimensions peuvent être convenues entre le client et le fournisseur.
Embalaža - Podrobni opis nekovinskih povezovalnih trakov
General Information
- Status
- Published
- Publication Date
- 10-Apr-2001
- Technical Committee
- CEN/TC 261 - Packaging
- Drafting Committee
- CEN/TC 261/SC 5 - Primary packaging and transport packaging
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Feb-2023
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
Overview
EN 13394:2001 is a European Standard developed by CEN that specifies the dimensions and physical properties for non-metallic tensional strapping used in packaging. This standard covers non-metallic strapping materials applied manually or via automatic machines to secure, close, unitise, or reinforce packages. Designed for wide use, the standard facilitates uniformity and quality assurance for suppliers and customers across Europe.
This specification applies to the commonly used non-metallic materials in strapping: polyamide, polypropylene, polyester, and textile polyester. The standard details their mechanical characteristics, dimensions, and testing methods to guarantee reliable performance in packaging applications.
Key Topics
Scope and Application
The standard applies to non-metallic strapping used on packages of varying sizes and types. For specific applications, custom dimensions can be agreed between customers and suppliers.Material Classification
- Thermoplastics:
- Polyamide (PA) - extruded and oriented
- Polypropylene (PP) - extruded and oriented
- Polyester (PET) - extruded and oriented polyethylene-terephthalate
- Textile Strapping:
- Polyester textile made of high tensile fibers bonded or woven
- Thermoplastics:
Dimensions and Physical Properties
Each strapping type is specified with nominal width ranges, minimum and maximum widths, thickness, and minimum break strength. These parameters ensure consistent quality and performance:- Polyamide strapping thickness ranges from 0.4 to 0.8 mm with break strengths from 870 to 1100 N
- Polypropylene strapping offers a wide width range (4.6 mm to 19.3 mm) with break strength up to 6000 N
- Polyester strapping has widths from 9.5 mm to 19.3 mm, with break strengths exceeding 7000 N in some cases
Mechanical Properties
Tensile strength and elongation values are standardized per material:- Polypropylene tensile strength ranges from 300 to 330 MPa with elongation 12% to 25%
- Polyester tensile strength between 390 and 510 MPa with elongation 8% to 20%
- Polyamide tensile strength around 380 MPa with elongation near 26%
Testing Methods
Break strength and elongation tests follow the strip test method from EN ISO 1421, using defined gauge lengths and conditioning per EN ISO 2233 for reproducibility.Additional Specifications
- Maximum camber (curvature) limits for different strapping widths ensure easy handling and machine compatibility
- Maximum two production welds per coil emphasize quality control in manufacturing
- Standard coil core dimensions align with industry machinery standards
Preferred Colours for Identification
- Polyamide: Blue
- Polypropylene: Black
- Polyester: Green
- Textile Polyester: White
Applications
EN 13394 non-metallic tensional strapping is widely used for:
- Securing transported goods in logistics and distribution
- Closing boxes and cartons in manufacturing packaging lines
- Unitizing multiple items into pallet loads for warehousing
- Strengthening packages to prevent shifting or damage during handling
- Use with hand tools or automatic strapping machines, supporting a variety of packaging setups
By following EN 13394, manufacturers and packagers ensure consistent performance, optimized safety, and compatibility with automated packaging equipment.
Related Standards
- EN ISO 1421 - Rubber or plastics-coated fabrics: determination of tensile strength and elongation at break, which informs test procedures for strapping tensile tests
- EN ISO 2233 - Packaging: conditioning of complete transport packages for testing, ensuring repeatable test conditions
- Other Packaging Material Standards - EN standards for metallic strapping and other packaging materials complement EN 13394 by covering different securing methods
Adhering to EN 13394:2001 enhances packaging integrity by providing a consistent framework for non-metallic strapping specifications, supporting diverse industrial packaging needs through a robust standard aligned with European requirements.
Get Certified
Connect with accredited certification bodies for this standard
BRCGS
Global food safety and quality certification programme owner.
Sponsored listings
Frequently Asked Questions
EN 13394:2001 is a standard published by the European Committee for Standardization (CEN). Its full title is "Packaging - Specification for non-metallic tensional strapping". This standard covers: This European Standard specifies dimensions and physical properties for non-metallic strapping used to secure, to close, to unitise or to strengthen packages applied by hand tools or automatic machines. NOTE For particular applications or specific requirements, other dimensions can be supplied by agreement between customer and supplier.
This European Standard specifies dimensions and physical properties for non-metallic strapping used to secure, to close, to unitise or to strengthen packages applied by hand tools or automatic machines. NOTE For particular applications or specific requirements, other dimensions can be supplied by agreement between customer and supplier.
EN 13394:2001 is classified under the following ICS (International Classification for Standards) categories: 55.040 - Packaging materials and accessories. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13394:2001 has the following relationships with other standards: It is inter standard links to EN 939:2009. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 13394:2001 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Embalaža - Podrobni opis nekovinskih povezovalnih trakovVerpackung - Spezifikation für nichtmetallische UmreifungsbänderConditionnement - Caractéristiques des feuillards de cerclage non métalliquesPackaging - Specification for non-metallic tensional strapping55.040SDNLUDQMHPackaging materials and accessoriesICS:Ta slovenski standard je istoveten z:EN 13394:2001SIST EN 13394:2002en01-januar-2002SIST EN 13394:2002SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13394April 2001ICS 55.040English versionPackaging - Specification for non-metallic tensional strappingConditionnement - Caractéristiques des feuillards decerclage non métalliquesVerpackung - Spezifikation für nichtmetallischeUmreifungsbänderThis European Standard was approved by CEN on 18 January 2001.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2001 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13394:2001 ESIST EN 13394:2002

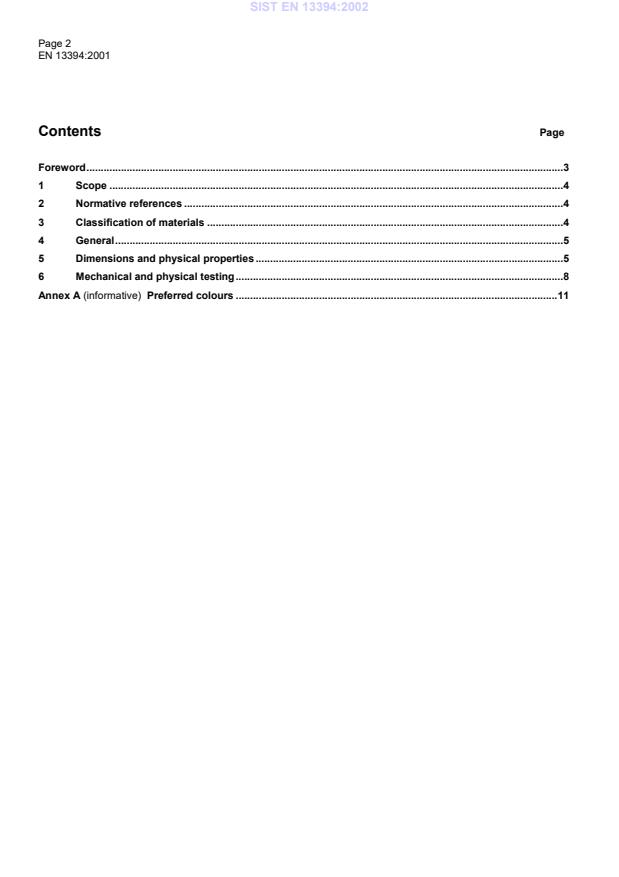

Page 2EN 13394:2001Contents PageForeword.31Scope.42Normative references.43Classification of materials.44General.55Dimensions and physical properties.56Mechanical and physical testing.8Annex A (informative)
Preferred colours.11SIST EN 13394:2002
Page 3EN 13394:2001ForewordThis European Standard has been prepared by Technical Committee CEN/TC 261 "Packaging", the secretariat ofwhich is held by AFNOR.This European Standard shall be given the status of a national standard, either by publication of an identical text orby endorsement, at the latest by October 2001, and conflicting national standards shall be withdrawn at the latestby October 2001.According to the CEN/CENELEC Internal Regulations, the national standards organizations of the followingcountries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland,France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden,Switzerland and the United Kingdom.SIST EN 13394:2002
Page 4EN 13394:20011 ScopeThis European Standard specifies dimensions and physical properties for non-metallic strapping used tosecure, to close, to unitise or to strengthen packages applied by hand tools or automatic machines.NOTEFor particular applications or specific requirements, other dimensions can be supplied by agreementbetween customer and supplier.2 Normative referencesThe following normative documents contain provisions which, through reference in this text, constitute provisionsof this European Standard. For dated references, subsequent amendments to, or revisions of, this publication,do not apply. However, parties to agreements based on this European Standard are encouraged to investigatethe possibility of applying the most recent edition of the normative document indicated below. For undatedreferences, the latest edition of the publication referred to applies (including amendments).EN ISO 1421, Rubber or plastics-coated fabrics - Determination of tensile strength and elongation at break(ISO 1421:1998)EN ISO 2233:1999, Packaging - Complete, filled transport packages - Conditioning for testing (ISO 2233:199
...
