EN 12642:2006

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Ladungssicherung auf Straßenfahrzeugen - Aufbauten an Nutzfahrzeugen - MindestanforderungenArrimage des charges a bord des véhicules routiers - Structure de la carrosserie des véhicules utilitaires - Exigences minimalesSecuring of cargo on road vehicles - Body structure of commercial vehicles - Minimum requirements55.180.99Drugi standardi v zvezi z distribucijo blaga s prevozomOther standards related to freight distribution of goods43.080.01Tovorna vozila na splošnoCommercial vehicles in generalICS:Ta slovenski standard je istoveten z:EN 12642:2006SIST EN 12642:2007en,fr,de01-januar-2007SIST EN 12642:2007SLOVENSKI
STANDARDSIST EN 12642:20041DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 12642October 2006ICS 43.080.10Supersedes EN 12642:2001
English VersionSecuring of cargo on road vehicles - Body structure ofcommercial vehicles - Minimum requirementsArrimage des charges à bord des véhicules routiers -Structure de la carrosserie des véhicules utilitaires -Exigences minimalesLadungssicherung auf Straßenfahrzeugen - Aufbauten anNutzfahrzeugen - MindestanforderungenThis European Standard was approved by CEN on 11 September 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 12642:2006: ESIST EN 12642:2007

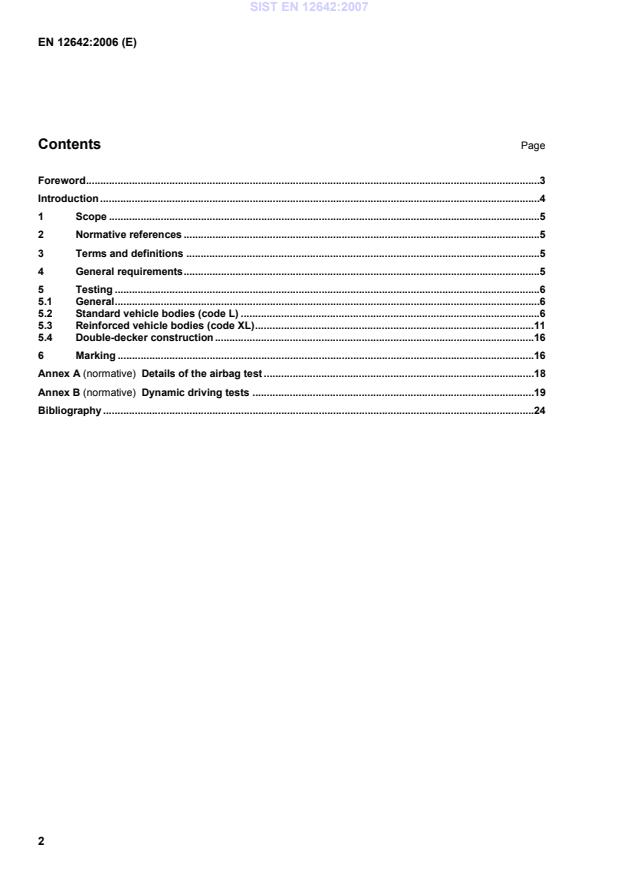

Details of the airbag test.18 Annex B (normative)
Dynamic driving tests.19 Bibliography.24
Table 1) which, depending on cargo weight and friction, requires additional securing of cargo using lashing equipment 3.2 reinforced vehicle body vehicle body, having a reinforced structure, and complying with the minimum requirements of 5.3 (performance code XL according to Table 1) 4 General requirements Verification of conformity to this standard shall be provided either by static testing or by dynamic driving tests or by calculation. Where the verification is carried out by testing and where body structures are produced in series (structures of the same design), type testing on one lorry or trailer, for which the structure has been designed is sufficient. Where body structures are produced individually a calculation or test of the complete structure is required. A calculation or test for the complete system consisting of front, rear and side walls, roof and floor is necessary for the entire structure even if individual components have been taken from sample structures SIST EN 12642:2007

5.2 Standard vehicle bodies (code L) 5.2.1 Test conditions 5.2.1.1 General The following outlines the test conditions for standard vehicle body structures. These test conditions are designated by performance code “L”. Vehicle body structures shall be tested in the condition in which they are designed to be used. Moreover, if they are equipped with removable components, these components shall be in position. In the following test requirements specified, the following letters shall have the following meanings:  P the weight force (in daN) of the vehicle to be tested at the authorised payload;  F the force of pressure (in MPa). In every test the test load shall be applied for at least 5 min. SIST EN 12642:2007

Key 1 tarpauline roof – frame
a
see Figures 1 and 2 2 inserted lath
b
see Figures 3 and 4 3 wall
c
see Figures 5 and 6 4 support in the floor structure Figure 1 — Test rig for a side wall consisting of a rigid side board and lathing
Key 5 no contact with stake allowed Figure 2 — Side wall consisting of 2 sections - test rig for testing a complete side wall
Figure 3 — Side wall consisting of 2 sections - test rig for testing only one section of the side wall
Key 1 contact of stake not permitted Figure 4 — Side wall consisting of 2 sections - test rig for testing a central stake (required as complementary test if testing is done in accordance with Figure 3)
Key 1 L1 = 0,6 LF (LF = section length) Figure 5 — Side wall consisting of 3 sections - test rig for testing only one section of the side wall
Key 1 contact of stake not permitted Figure 6 — Side wall consisting of 3 sections - test rig for testing a central stake (required as complementary test if testing is done in accordance with Figure 5) SIST EN 12642:2007
...
