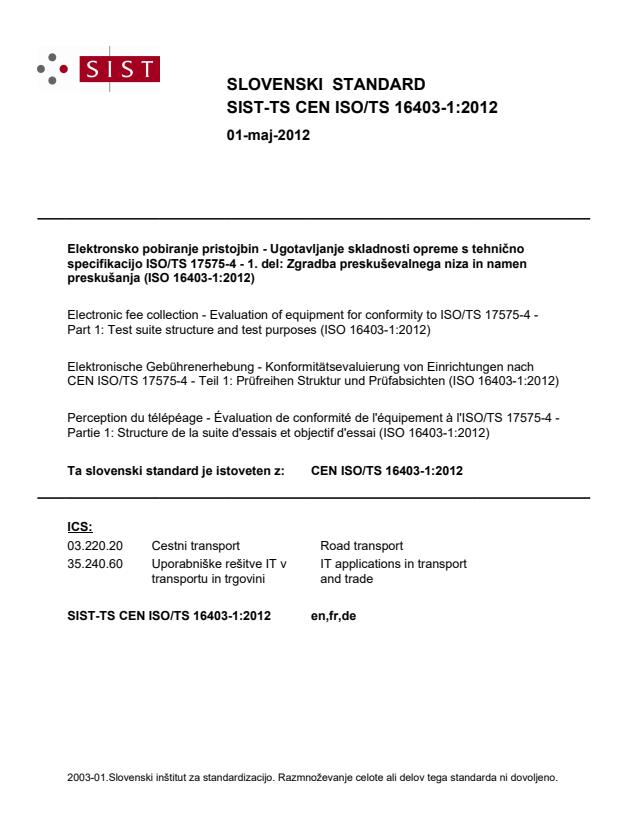

CEN ISO/TS 16403-1:2012

SLOVENSKI STANDARD
01-maj-2012
(OHNWURQVNRSRELUDQMHSULVWRMELQ8JRWDYOMDQMHVNODGQRVWLRSUHPHVWHKQLþQR
VSHFLILNDFLMR,6276GHO=JUDGEDSUHVNXãHYDOQHJDQL]DLQQDPHQ
SUHVNXãDQMD,62
Electronic fee collection - Evaluation of equipment for conformity to ISO/TS 17575-4 -
Part 1: Test suite structure and test purposes (ISO 16403-1:2012)
Elektronische Gebührenerhebung - Konformitätsevaluierung von Einrichtungen nach
CEN ISO/TS 17575-4 - Teil 1: Prüfreihen Struktur und Prüfabsichten (ISO 16403-1:2012)
Perception du télépéage - Évaluation de conformité de l'équipement à l'ISO/TS 17575-4 -
Partie 1: Structure de la suite d'essais et objectif d'essai (ISO 16403-1:2012)
Ta slovenski standard je istoveten z: CEN ISO/TS 16403-1:2012
ICS:
03.220.20 Cestni transport Road transport
35.240.60 Uporabniške rešitve IT v IT applications in transport
transportu in trgovini and trade
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

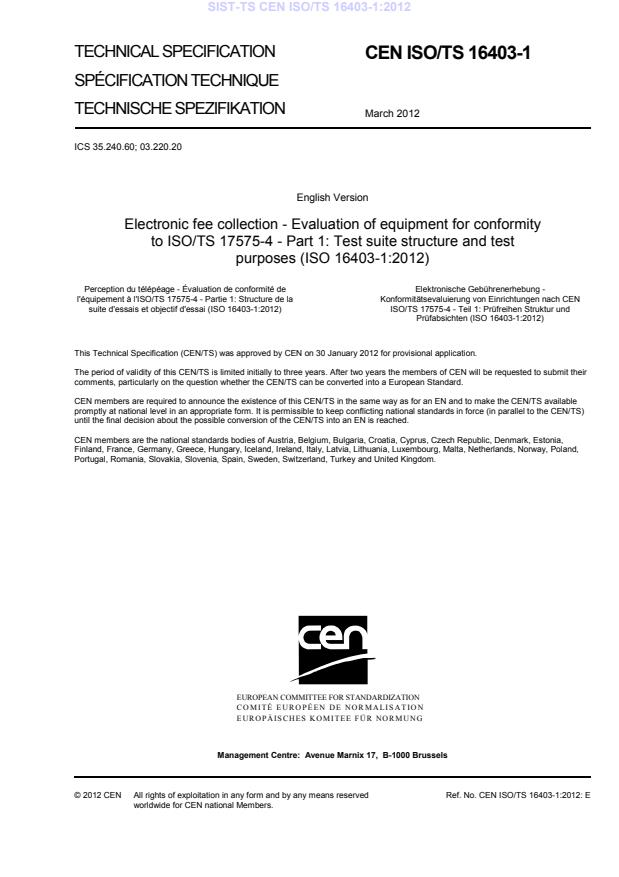

TECHNICAL SPECIFICATION
CEN ISO/TS 16403-1
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
March 2012
ICS 35.240.60; 03.220.20
English Version
Electronic fee collection - Evaluation of equipment for conformity
to ISO/TS 17575-4 - Part 1: Test suite structure and test
purposes (ISO 16403-1:2012)
Perception du télépéage - Évaluation de conformité de Elektronische Gebührenerhebung -
l'équipement à l'ISO/TS 17575-4 - Partie 1: Structure de la Konformitätsevaluierung von Einrichtungen nach CEN
suite d'essais et objectif d'essai (ISO 16403-1:2012) ISO/TS 17575-4 - Teil 1: Prüfreihen Struktur und
Prüfabsichten (ISO 16403-1:2012)
This Technical Specification (CEN/TS) was approved by CEN on 30 January 2012 for provisional application.

The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to submit their
comments, particularly on the question whether the CEN/TS can be converted into a European Standard.

CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS available
promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in parallel to the CEN/TS)
until the final decision about the possible conversion of the CEN/TS into an EN is reached.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN ISO/TS 16403-1:2012: E
worldwide for CEN national Members.

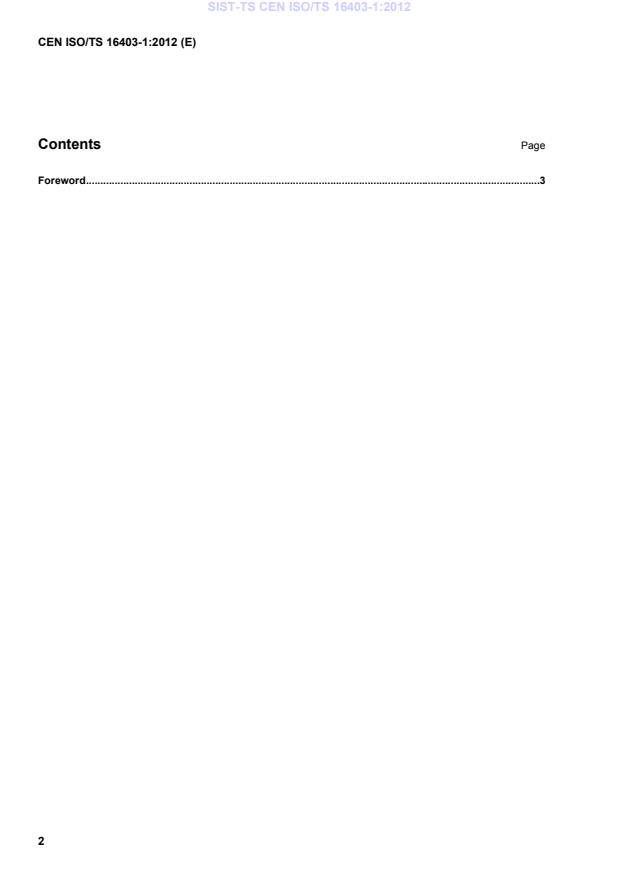

Contents Page
Foreword .3
Foreword
This document (CEN ISO/TS 16403-1:2012) has been prepared by Technical Committee CEN/TC 278 “Road
transport and traffic telematics", the secretariat of which is held by NEN, in collaboration with Technical
Committee ISO/TC 204 "Intelligent transport systems".
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria, Croatia, Cyprus,
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.
TECHNICAL ISO/TS
SPECIFICATION 16403-1
First edition
2012-03-01
Electronic fee collection — Evaluation of
equipment for conformity to
ISO/TS 17575-4 —
Part 1:
Test suite structure and test purposes
Perception du télépéage — Évaluation de conformité de l'équipement à
l'ISO/TS 17575-4 —
Partie 1: Structure de la suite d'essais et objectif d'essai

Reference number
ISO/TS 16403-1:2012(E)
©
ISO 2012
ISO/TS 16403-1:2012(E)
©  ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved

ISO/TS 16403-1:2012(E)
Contents Page
Foreword . iv
Introduction . v
1  Scope . 1
2  Normative references . 1
3  Terms and definitions . 2
4  Abbreviations . 2
5  Test Suite Structure (TSS) . 3
5.1  Structure . 3
5.2  Reference to conformance test specifications . 3
5.3  Test Purposes (TP) . 4
5.3.1  TP definition conventions. 4
5.3.2  TP naming conventions . 5
5.4  Protocol Conformance Test Report (PCTR) . 5
Annex A (normative) Test Purposes for Front End . 6
Annex B (normative) TP for Back End . 24
Annex C (normative) Data Structures . 31
Annex D (informative) PCTR Proforma for Front End . 40
Annex E (informative) PCTR Proforma for Back End . 44
Bibliography . 48

ISO/TS 16403-1:2012(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In other circumstances, particularly when there is an urgent market requirement for such documents, a
technical committee may decide to publish other types of document:
— an ISO Publicly Available Specification (ISO/PAS) represents an agreement between technical experts in
an ISO working group and is accepted for publication if it is approved by more than 50 % of the members
of the parent committee casting a vote;
— an ISO Technical Specification (ISO/TS) represents an agreement between the members of a technical
committee and is accepted for publication if it is approved by 2/3 of the members of the committee casting
a vote.
An ISO/PAS or ISO/TS is reviewed after three years in order to decide whether it will be confirmed for a
further three years, revised to become an International Standard, or withdrawn. If the ISO/PAS or ISO/TS is
confirmed, it is reviewed again after a further three years, at which time it must either be transformed into an
International Standard or be withdrawn.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TS 16403-1 was prepared by Technical Committee ISO/TC 204, Intelligent transport systems, in
collaboration with Technical Committee CEN/TC 278, Road transport and traffic telematics.
ISO/TS 16403 consists of the following parts, under the general title Electronic fee collection — Evaluation of
equipment for conformity to ISO/TS 17575-4:
— Part 1: Test suite structure and test purposes
— Part 2: Abstract test suite
iv © ISO 2012 – All rights reserved

ISO/TS 16403-1:2012(E)
Introduction
This part of ISO/TS 16403 is part of a set of standards that supports interoperability of autonomous EFC-
systems, which includes ISO/TS 17575 that defines the EFC context data, their charge reports and their use
of communication infrastructure.
Within the suite of EFC standards this conformance evaluation procedure defines the process and tests for
conformity evaluation of Front End and Back End that comply with the requirements in ISO/TS 17575-4.
This part of ISO/TS 16403 is intended to
 assess Front End and Back End capabilities,
 assess Front End and Back End behaviour,
 serve as a guide for Front End and Back End conformance evaluation and type approval,
 achieve comparability between the results of the corresponding tests applied in different places at
different times, and
 facilitate communications between parties.
This part of ISO/TS 16403 is based on ISO/TS 17575-4.

TECHNICAL SPECIFICATION ISO/TS 16403-1:2012(E)

Electronic fee collection — Evaluation of equipment for
conformity to ISO/TS 17575-4 —
Part 1:
Test suite structure and test purposes
1 Scope
This part of ISO/TS 16403 specifies the test suite structure (TSS) and test purposes (TP) to evaluate the
conformity of Front End and Back End to ISO/TS 17575-4.
The objective of the present document is to provide a basis for conformance tests for the Front End and the
Back End in Electronic Fee Collection based on autonomous on-board equipment (OBE) to enable
interoperability between different equipment supplied by different manufacturers.
Autonomous OBE operate without relying on dedicated road-side infrastructure by employing wide-area
technologies such as Global Navigation Satellite Systems (GNSS) and Cellular Communications Networks
(CN). These EFC systems are referred to by a variety of names. Besides the terms autonomous systems and
GNSS/CN systems, also the terms GPS/GSM systems, and wide-area charging systems are in use.
Autonomous systems use satellite positioning, often combined with additional sensor technologies such as
gyroscopes, odometers, and accelerometers, to localise the vehicle and to find its position on a map
containing the charged geographic objects, such as charged roads or charged areas. From the charged
objects, the vehicle characteristics, the time of day and other data that are relevant for describing road use,
the tariff and ultimately the road usage fee is determined.
Test Purposes applicable for the Back End focus on the output produced by the Back End, i.e. Roaming Rules
data element. Test Purposes related to Front End focus on the main scenarios defined in ISO/TS 17575-4
...
