EN 13166:2012+A1:2015

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz fenolne pene (PF) - SpecifikacijaWärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus Phenolharzschaum (PF) - SpezifikationProduits isolants thermiques pour le bâtiment - Produits manufacturés en mousse phénolique (PF) - SpécificationThermal insulation products for buildings - Factory made phenolic foam (PF) products - Specification91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 13166:2012+A1:2015SIST EN 13166:2013+A1:2015en,fr,de01-april-2015SIST EN 13166:2013+A1:2015SLOVENSKI
STANDARDSIST EN 13166:20131DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13166:2012+A1
February 2015 ICS 91.100.60 Supersedes EN 13166:2012English Version
Thermal insulation products for buildings - Factory made phenolic foam (PF) products - Specification
Produits isolants thermiques pour le bâtiment - Produits manufacturés en mousse phénolique (PF) - Spécification
Wärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus Phenolharzschaum (PF) - Spezifikation This European Standard was approved by CEN on 6 October 2012 and includes Amendment 1 approved by CEN on 15 December 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13166:2012+A1:2015 ESIST EN 13166:2013+A1:2015

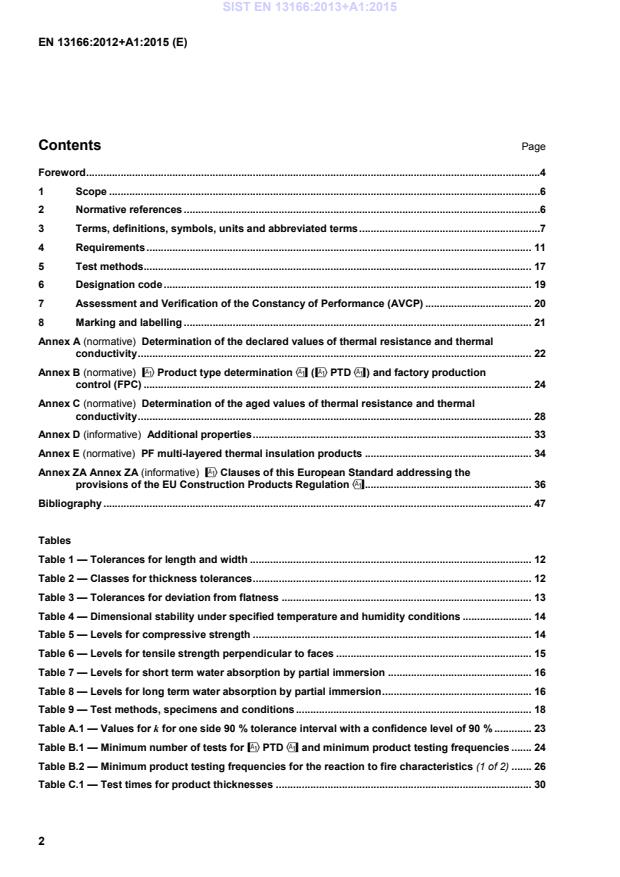

Determination of the declared values of thermal resistance and thermal conductivity . 22 Annex B (normative)
!Product type determination" (!PTD") and factory production control (FPC) . 24 Annex C (normative)
Determination of the aged values of thermal resistance and thermal conductivity . 28 Annex D (informative)
Additional properties . 33 Annex E (normative)
PF multi-layered thermal insulation products . 34 Annex ZA Annex ZA (informative)
!Clauses of this European Standard addressing the provisions of the EU Construction Products Regulation". 36 Bibliography . 47
Tables Table 1 — Tolerances for length and width . 12 Table 2 — Classes for thickness tolerances . 12 Table 3 — Tolerances for deviation from flatness . 13 Table 4 — Dimensional stability under specified temperature and humidity conditions . 14 Table 5 — Levels for compressive strength . 14 Table 6 — Levels for tensile strength perpendicular to faces . 15 Table 7 — Levels for short term water absorption by partial immersion . 16 Table 8 — Levels for long term water absorption by partial immersion . 16 Table 9 — Test methods, specimens and conditions . 18 Table A.1 — Values for k for one side 90 % tolerance interval with a confidence level of 90 % . 23 Table B.1 — Minimum number of tests for !PTD" and minimum product testing frequencies . 24 Table B.2 — Minimum product testing frequencies for the reaction to fire characteristics (1 of 2) . 26 Table C.1 — Test times for product thicknesses . 30 SIST EN 13166:2013+A1:2015

Figures Figure ZA.1 — Example CE marking information . 44
f) an addition to the foreword; g) replacement and additions in 3.2; h) a new subclause 4.3.11; i) modification of Clause 7; j) modification of Clause 8; SIST EN 13166:2013+A1:2015

is the water vapour diffusion resistance factor – N is the number of test results – R90/90 is the 90 % fractile with a confidence level of 90 % for the thermal resistance m2·K/W RD is the declared thermal resistance m2„K/W Ri is one test result of thermal resistance m2„K/W Ru Is the design thermal resistance m2·K/W Rmean is the mean thermal resistance m2„K/W a is the apparent density kg/m3 Sb is the deviation from squareness on length and width mm/m Sd is the deviation from squareness on thickness mm Smax is the deviation from flatness mm sR is the estimate of the standard deviation of the thermal resistance m2„K/W s is the estimate of the standard deviation of the thermal conductivity W/(m„K) s is the estimate of the standard deviation of the aged values of thermal conductivity W/(m„K) s is the estimate of the standard deviation of the initial values of thermal conductivity W/(m„K) 1b is the bending strength kPa 1c is the compressive stress kPa 1m is the compressive strength kPa 1mt is the tensile strength perpendicular to faces kPa Wlp is the long term water absorption by partial immersion kg/m2 SIST EN 13166:2013+A1:2015

AD is the symbol of the declared value of apparent density CC(i1/i2/y) 1c is the symbol of the declared level of compressive creep CS(Y) is the symbol of the declared level of compressive strength CV is the symbol of the declared value of closed cell content DS(N) is the symbol for the declared class for dimensional stability under constant normal laboratory conditions DS(T+) is the symbol of the declared value of dimensional stability at specified temperature DS(T–) is the symbol of the declared value of dimensional stability at –20 °C DS(TH) is the symbol of the declared value of dimensional stability under specified temperature and humidity conditions Li is the symbol for tolerance in length Wi is the symbol for tolerance in width MU is the symbol of the declared value of water vapour diffusion resistance factor T is the symbol of the declared class for thickness tolerance TR is the symbol of the declared level for tensile strength perpendicular to faces WL(P) is the symbol of the declared level for long term water absorption by partial immersion WS is the symbol of the declared level for short term water absorption Z is the symbol of the declared value for the water vapour resistance
Abbreviated terms used in this standard: PF is Phenolic Foam !PTD is Product Type Determination (previously named ITT for Initial Type Test)" FPC is Factory Production Control RtF is Reaction to Fire !AVCP is Assessment and Verification of Constancy of Performance (previously named attestation of conformity) DoP is Declaration of Performance ThIB is Thermal Insulation for Buildings VCP is Verification of Constancy of Performance (previously named evaluation of conformity)" SIST EN 13166:2013+A1:2015

shall exceed the declared value and no test result of Z shall be less than the declared value. Alternatively, the values quoted in EN ISO 10456 may be used. 4.3.9 Apparent density Apparent density, a, shall be determined in accordance with EN 1602. Test sample shall be conditioned in accordance with EN 12429. The manufacturer shall declare the measured value in kilograms per cubic metre. 4.3.10 Closed cell content Closed cell content (corrected), o, shall be determined in accordance with EN ISO 4590. Surface facings or natural skins shall be removed. No test result shall be less than 90 %. 4.3.11 Release of dangerous substances !National regulations on dangerous substances may require verification and declaration on release, and sometimes content, when construction products covered by this standard are placed on those markets. SIST EN 13166:2013+A1:2015

EN 12089:1997 3 Method B 4.3.7 Short term water absorption EN 1609 200 × 200 3 Method A Long term water absorption EN 12087 200 × 200 3 Method 1A 4.3.8 Water vapour transmission EN 12086 See 6.1 in EN 12086:1997 3 – 4.3.9 Apparent density EN 1602 200 × 200 3 – 4.3.10 Closed cell content EN ISO 4590 100 × 30 × 30 3 Method 2 4.3.11 Release of dangerous substances b – – – 4.3.12 Reaction to fire of the product in standardised assemblies simulating end-use applications See EN 13501-1 and EN 15715 See EN 15715 4.3.13 Continuous glowing combustion b - - - a Full size product thickness except for 4.2.7 when the limits of the test methods are exceeded and 4.3.10. b Not yet available. 6 Designation code A designation code for the product shall be given by the manufacturer. The following shall be included except when there is no requirement for a property described in 4.3: — The phenolic foam abbreviated term PF
— This document number EN 13166
— Length and width tolerance Li & Wi
— Thickness tolerance Ti
— Dimensional stability under normal laboratory temperature and humidity conditions DS(N)
— Dimensional stability at specified temperature DS(70,-)
— Dimensional stability under specified temperature and humidity conditions DS(23,90) or
(DS(70,90) — Dimensional stability at –20 °C DS(T-)
— Compressive strength CS(Y)i
— Tensile strength perpendicular to faces TRi
— Compressive creep CC(i1/i2/y)1c
— Short term water absorption WSi
— Long term water absorption WL(P)i
— Apparent density AD
— Closed cell content CV
where “i” shall be used to indicate the relevant class or level or the declared value and for compressive creep the term “1c” shall be used to indicate the compressive stress and “y” to indicate the number of years. The designation code for a product of phenolic foam is illustrated by the following example: EXAMPLE PF — EN 13166 — T2 — DS(T+) — DS(TH) — DS(T-) — CS(Y)150 — TR50 — WS 5 — WL(P) 4 — AD40 — CV NOTE The characteristics determined in 4.2 are not included in the designation code if a limit value (threshold value) is given for the product. ! 7 Assessment and Verification of the Constancy of Performance (AVCP) 7.1 General The manufacturer or his authorized representative shall be responsible for the conformity of his product with the requirements of this European Standard. The Assessment and Verification of Constancy of Performance (AVCP) shall be carried out in accordance with EN 13172 and shall be based on Product Type Determination (PTD), Factory Production Control (FPC) by the manufacturer, including product assessment and tests on samples taken at the factory. The compliance of the product with the requirements of this standard and with the stated values (including classes) shall be demonstrated by: — Product Type Determination (PTD), — Factory Production Control (FPC) by the manufacturer, including product assessment. If a manufacturer decides to group his products, it shall be done in accordance with EN 13172. 7.2 Product Type Determination (PTD) All characteristics defined in 4.2 and those in 4.3 if declared, shall be subject to Product Type Determination (PTD) in accordance with Annex B. For the relevant characteristics, PTD on products corresponding also to EN 14314 may be used for the purpose of PTD and Declaration of Performance (DoP) according to this standard. 7.3 Factory Production Control (FPC) The minimum frequencies of tests in the factory production control (FPC) shall be in accordance with Annex B. When indirect testing is used, the correlation to direct testing shall be established in accordance with EN 13172. For the relevant characteristics, FPC on products corresponding also to EN 14314 may be used for the purpose of FPC and DoP according to this standard." SIST EN 13166:2013+A1:2015
...
