EN ISO 307:2007

SLOVENSKI STANDARD
01-september-2007
1DGRPHãþD
SIST EN ISO 307:2003
3ROLPHUQLPDWHULDOL3ROLDPLGL'RORþDQMHãWHYLODYLVNR]QRVWL,62
Plastics - Polyamides - Determination of viscosity number (ISO 307:2007)
Kunststoffe - Polyamide - Bestimmung der Viskositätszahl (ISO 307:2007)
Plastiques - Polyamides - Détermination de l'indice de viscosité (ISO 307:2007)
Ta slovenski standard je istoveten z: EN ISO 307:2007
ICS:
83.080.20 Plastomeri Thermoplastic materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 307
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2007
ICS 83.080.20 Supersedes EN ISO 307:2003
English Version
Plastics - Polyamides - Determination of viscosity number (ISO
307:2007)
Plastiques - Polyamides - Détermination de l'indice de Kunststoffe - Polyamide - Bestimmung der Viskositätszahl
viscosité (ISO 307:2007) (ISO 307:2007)
This European Standard was approved by CEN on 14 May 2007.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2007 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 307:2007: E
worldwide for CEN national Members.

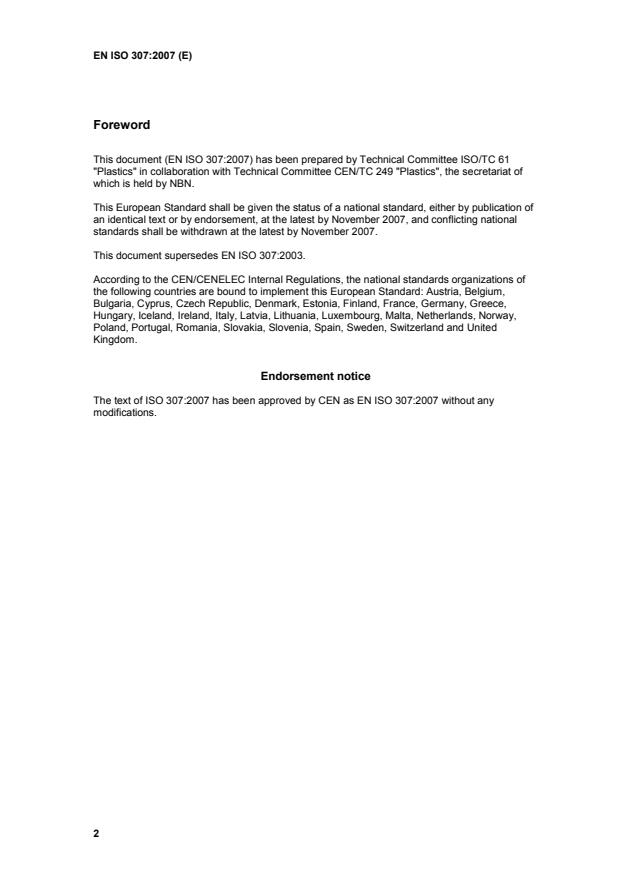

Foreword
This document (EN ISO 307:2007) has been prepared by Technical Committee ISO/TC 61
"Plastics" in collaboration with Technical Committee CEN/TC 249 "Plastics", the secretariat of
which is held by NBN.
This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by November 2007, and conflicting national
standards shall be withdrawn at the latest by November 2007.

This document supersedes EN ISO 307:2003.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United
Kingdom.
Endorsement notice
The text of ISO 307:2007 has been approved by CEN as EN ISO 307:2007 without any
modifications.
INTERNATIONAL ISO
STANDARD 307
Fifth edition
2007-05-15
Plastics — Polyamides — Determination
of viscosity number
Plastiques — Polyamides — Détermination de l'indice de viscosité

Reference number
ISO 307:2007(E)
©
ISO 2007
ISO 307:2007(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2007 – All rights reserved

ISO 307:2007(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Principle. 3
5 Reagents and materials . 3
5.1 Solvents and reagents. 3
5.2 Cleaning liquids . 4
6 Apparatus . 4
7 Preparation of test samples. 5
7.1 General. 5
7.2 Samples containing less than 98 % (by mass) polyamide . 5
8 Calculation of test portion . 6
9 Selection of solvent. 6
10 Procedure . 7
10.1 Cleaning of the viscometer. 7
10.2 Preparation of test solution . 7
10.3 Measurement of flow times. 9
11 Expression of results . 10
12 Repeatability and reproducibility. 10
13 Relationship between the viscosity number determined in 96 % (by mass) sulfuric acid
solution and the viscosity determined in various solvents . 11
14 Test report . 11
Annex A (informative) Determination of the concentration of commercial sulfuric acid (95 % to
98 %) and adjustment to 96 % by titration .13
Annex B (informative) Determination of the concentration of sulfuric acid (95 % to 98 %) and
adjustment to 96 % by flow time measurement in a small capillary viscometer . 16
Annex C (informative) Determination of the concentration of commercial formic acid and
adjustment to 90 % by titration . 18
Annex D (informative) Determination of the concentration of commercial formic acid and
adjustment to 90 % by density measurement. 20
Annex E (informative) Relationship between the viscosity number determined in 96 % (by mass)
sulfuric acid solution and the viscosity determined in various solvents. 23
Bibliography . 33

ISO 307:2007(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 307 was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 9, Thermoplastic
materials.
This fifth edition cancels and replaces the fourth edition (ISO 307:2003), which has been technically revised.
iv © ISO 2007 – All rights reserved

ISO 307:2007(E)
Introduction
This International Standard specifies a method for the determination of the viscosity number of dilute solutions
of polyamides in certain specified solvents. The determination of the viscosity number of a polyamide provides
a value that depends on the molecular mass of the polymer, but does not strictly correlate with the molecular
mass.
Additives such as flame-retardants and modifiers often interfere with the viscosity measurement and may
have an increasing effect on the viscosity number in one solvent and a decreasing effect in another solvent.
The extent of the effect depends among others on the additive, the quantity of the additive, the presence of
other additives and reactions.
The viscosity number of a polyamide sample containing additives that interfere with the viscosity
measurement, measured in a specific solvent, represents a specific viscosity number for the polyamide under
investigation and the actual measurement conditions. The measured viscosity number cannot, in principle, be
converted from one solvent to another and is only suitable for intra-product comparison.
The viscosity number of pure polyamides or polyamides containing additives that do not interfere with the
viscosity measurement can be converted from one solvent to another by a general relationship for that type of
polyamide.
Polyamide test samples for the determination of the viscosity number must be completely soluble in the
solvents mentioned. Additives contained in them, like glass and carbon fibres, must be separated from the
solution.
As it is not possible to distinguish between extractables such as caprolactam, its oligomers and other
extractable additives, these are considered as an essential part of the sample and therefore included in the
sample mass.
The test method is applicable for production control and intra-product comparison even if the polyamide
contains additives that do interfere with the viscosity measurement. However, it should be realised that
deviations of the viscosity number can be caused by either the polyamide itself, effects caused by the
additives present, or a combination of these.
The interference of additives with the viscosity determination can be checked by comparing the viscosity
results of dry blend mixtures and regular production samples at several concentrations of the additive under
investigation and in the solvents concerned. It should be noted that the other additives present also could
influence the viscosity result.
The repeatability and reproducibility of the test method are strongly influenced by the correctness of the
solvent concentration, the use of the Hagenbach correction if applicable and the temperature of the solvent on
diluting the sample solution.
In this International Standard two specific viscometers are recommended. Furthermore, other types of
viscometers listed in ISO 3105 may also be used, provided that the results are demonstrated to be equivalent
to those measured with the recommended viscometers. It is to be expected that in the next revision the use of
the other types of viscometers will be excluded.
INTERNATIONAL STANDARD ISO 307:2007(E)

Plastics — Polyamides — Determination of viscosity number
1 Scope
This International Standard specifies a method for the determination of the viscosity number of dilute solutions
of polyamides in certain specified solvents.
Polyamide samples must be completely soluble in the solvents mentioned. Additives such as flame-retardants
and modifiers often interfere with the viscosity measurement, having an increasing effect on the viscosity
number in formic acid and a decreasing effect on the viscosity number in sulfuric acid. The extent of the effect
for polyamide compounds depends on the additive, the quantity of the additive, the presence of other
additives and the compounding conditions.
For pure polyamides or polyamides containing additives that do not interfere with the viscosity measurement,
the determination of the viscosity number of a polyamide provides a measure of the molecular mass of the
polymer. The viscosity number of pure polyamides or polyamides which contain additives that do not interfere
with the viscosity measurement can be converted from one solvent to another.
The viscosity number of polyamides containing additives that do interfere with the viscosity measurement is
specific to the solvent used and the material composition. In this case, the measured viscosity number cannot
be converted from one solvent to another.
The method is applicable to the polyamides designated PA 46, PA 6, PA 66, PA 69, PA 610, PA 612, PA 11,
PA 12, PA 6T/66, PA 6I/6T, PA 6T/6I/66, PA 6T/6I, PA 6I/6T/66 and PA MXD6 as defined in ISO 1874-1, as
well as to copolyamides, compounds of polyamides and other polyamides that are soluble in one of the
specified solvents under the specified conditions.
The method is not applicable to polyamides produced by anionic polymerization of lactams or produced with
cross-linking agents; such polyamides are normally insoluble in the specified solvents.
The viscosity number is determined by the general procedure specified in ISO 1628-1, observing the particular
conditions specified in this International Standard.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 1042, Laboratory glassware — One-mark volumetric flasks
ISO 1628-1, Plastics — Determination of the viscosity of polymers in dilute solution using capillary
viscometers — Part 1: General principles
ISO 1874-1, Plastics — Polyamide (PA) moulding and extrusion materials — Part 1: Designation
ISO 3105, Glass capillary kinematic viscometers — Specifications and operating instructions
ISO 3451-4, Plastics — Determination of ash — Part 4: Polyamides
ISO 307:2007(E)
ISO 15512, Plastics — Determination of water content
ASTM D789, Standard test methods for determination of relative viscosity of polyamide (PA)
JIS K 6920-2:2000, Plastics — Polyamide (PA) moulding and extrusion materials — Part 2: Preparation of test
specimens and determination of properties
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 1628-1 and the following apply.
3.1
viscosity number of a polymer
number calculated by the following formula for the viscometers mentioned in this International Standard and
flow times long enough so that no kinetic energy correction need be applied:
⎛⎞
η 1
VN=−1× (1)
⎜⎟
η c
⎝⎠0
where
η is the viscosity of a solution of the polymer in a specified solvent, in Pascal seconds or N/m⋅s;
η is the viscosity of the solvent, expressed in the same units as η;
η
is the relative viscosity of a solution of the polymer in a specified solvent;
η
c is the concentration, in grams per millilitre, of the polymer in the solution;
VN is the viscosity number, expressed in millilitres per gram.
NOTE 1 For a particular viscometer used and with substantially equal densities of the solvent and solution, the
viscosity ratio is given by the flow time ratio for the solution concentration:
η
(2)
η
where
η
is the relative viscosity of a solution of the polymer in a specified solvent.
η
NOTE 2 As mentioned in ISO 3105, in case of flow times below 200 s and 60 s, for type 1 and type 2 Ubbelohde
viscometers respectively, a correction for kinetic correction has to be applied: the so-called Hagenbach correction. For
other types of viscometers, the kinetic energy correction has to be applied if the correction is W 0,15 %.
NOTE 3 The flow time of a liquid is related to its viscosity by the formula
η ⎛⎞A
vC==×t− (3)
⎜⎟
ρ
t
⎝⎠
2 © ISO 2007 – All rights reserved

ISO 307:2007(E)
where
v is the viscosity/density ratio, in metres squared per second;
ρ is the density of the liquid, in kilograms per cubic metre;
C is the constant of the viscometer, in metres squared per second squared;
t is the flow time, in seconds;
A is the parameter of the kinetic correction in metres squared seconds.
NOTE 3 For a particular viscometer used, with substantially equal densities of the solvent and solution and a given
kinetic factor, the viscosity ratio
η
(4)
η
is given by the flow time ratio for the solution concentration in this International Standard, each flow time reduced with the
so-called Hagenbach correction (in seconds) given by the manufacturer for the viscometer as a function of the flow time.
4 Principle
The times of flow of a solvent and a solution of the polyamide at a concentration of 0,005 g/ml in the solvent
are measured at 25 °C, the same viscometer being used for both measurements. The viscosity number is
calculated from these measurements and from the known concentration of the solution.
5 Reagents and materials
5.1 Solvents and reagents
Only reagents of recognised analytical grade and only distilled water or water of equivalent purity shall be
used.
WARNING — Some chemicals, for example 1,1,2,2-tetrachloroethane, are prohibited in some countries.
The user shall check on the national regulations before applying the chemicals mentioned in this
standard.
Avoid contact with the skin and inhalation of any vapours of the solvents and cleaning liquids.
5.1.1 Sulfuric acid, 96,00 % ± 0,20 % (by mass) solution.
For the determination of the concentration of commercial sulfuric acid (95 % to 98 %) and adjustment to
96,00 %, see Annexes A and B.
5.1.2 Formic acid, 90,00 % ± 0,15 % (by mass) solution.
The solvent shall be stored in a brown glass bottle. Its concentration shall be checked at least every 2 weeks.
It shall not contain more than 0,2 % acetic acid or methyl formate.
For the determination of the concentration of commercial formic acid (90 %) and adjustment to
90,00 % ± 0,15 %, see Annexes C and D.
5.1.3 m-Cresol, meeting the following specifications:
⎯ appearance: clear and colourless
⎯ m-cresol content: 99 % (by mass) min.
ISO 307:2007(E)
⎯ o-cresol content: 0,3 % (by mass) max.
⎯ water content: 0,13 % (by mass) max.
m-Cresol of the required purity can be obtained by distillation of chemically pure m-cresol, preferably in
vacuum.
To avoid oxidation, nitrogen shall be used for pressure compensation. Its purity may be checked by gas
chromatography. The solvent shall be stored in a brown glass bottle.
5.1.4 Phenol, 99 % (by mass) min.
5.1.5 1,1,2,2-tetrachloroethane, 99,5 % (by mass) min.
5.1.6 Phenol/1,1,2,2-tetrachloroethane.
Weigh out 6 parts by mass of phenol (5.1.4) and dissolve in 4 parts by mass of 1,1,2,2-tetrachloroethane
(5.1.5). Work to an accuracy of 1 % or better in the weighings. Stir the mixture in its original container at 23 °C
to prevent crystallization.
5.1.7 Orthophosphoric acid, 85 % (by mass), density 1,71 g/l.
5.1.8 m-Cresol/phosphoric acid.
Transfer 50 ml of m-Cresol (5.1.3) into a weighing flask (6.4) and add with a glass pipette (6.5) 0,14 ml of
orthophosphoric acid (5.1.7). Close the flask and stir with a magnetic stirrer for 30 min at 100 °C. Add the
solution to approximately 800 ml of m-cresol in a volumetric flask while continuously stirring. Rinse the
weighing flask several times with m-cresol and add this to the m-cresol solution. Remove the magnetic stirrer
and dilute to the mark. Stir the solution for 30 min.
5.2 Cleaning liquids
5.2.1 Chromic acid solution, prepared by mixing equal volumes of sulfuric acid (96 %, ρ = 1,84 g/ml,
industrial quality) and a saturated solution of potassium dichromate (99,5 %, industrial quality). If required, the
chromic acid solution may be replaced by other equally effective cleaning liquids.
5.2.2 Acetone (99,5 %, industrial quality), or any water-soluble low-boiling-point solvent (industrial quality).
6 Apparatus
6.1 Vacuum drying cabinet, with pressure less than 100 kPa.
6.2 Balance, accurate to 0,1 mg.
6.3 Volumetric flask, of capacity 50 ml or 100 ml, complying with the requirements of ISO 1042, fitted with
a ground-glass stopper.
6.4 Weighing flask, 100 ml, fitted with a ground-glass stopper.
6.5 Pipette, 0,2 ml, readable to 0,01 ml.
6.6 Shaking apparatus or magnetic stirrer.
6.7 Sintered-glass filter, with a pore size between 40 µm and 100 µm (grade P 100), or stainless-steel
sieve, with apertures of about 0,075 mm .
4 © ISO 2007 – All rights reserved

ISO 307:2007(E)
6.8 Viscometer, of the suspended-level Ubbelohde type, complying with the requirements of ISO 3105.
The essential dimensions of the viscometer are shown in Figure 1. For use with the formic acid solution (5.1.2),
the inside diameter of the capillary shall be 0,58 mm ± 2 % (complying with the requirements of size No. 1 of
ISO 3105). For use with the sulfuric acid solution (5.1.1) or m-cresol (5.1.3), the inside diameter of the
capillary shall be 1,03 mm ± 2 % (complying with the requirements of size No. 2 of ISO 3105).
Other types of viscometer listed in ISO 3105 may be used, provided that the results are demonstrated to be
equivalent to those of the Ubbelohde viscometers specified above. In cases of dispute, the recommended
viscometer shall be used.
ISO 1628-1 shall be followed on selecting other type(s) of viscometer.
NOTE In this International Standard, the No. 1 and No. 2 Ubbelohde viscometers according to ISO 3105 are
recommended. It is to be expected that at the next 5 year revision only these two viscometers will be allowed.
6.9 Thermometer, a liquid-in-glass, “total immersion” thermometer, reading to 0,05 °C in the range to be
used and in a known state of calibration, is suitable. Other thermometric devices of at least equal precision
may be used.
6.10 Thermostatic bath, capable of being maintained and controlled at 25,00 °C ± 0,05 °C.
6.11 Time device, for example a stop-watch, accurate to 0,1 s.
6.12 Centrifuge.
7 Preparation of test samples
7.1 General
Polyamide test samples for the determination of the viscosity number shall be soluble in the solvents
mentioned, except for additives present, such as reinforcement-fillers.
NOTE The dissolution time of some samples may be too long for adequate production control. In these cases the
material may be ground in order to shorten the dissolution time, provided that the results are demonstrated to be
equivalent.
7.2 Samples containing less than 98 % (by mass) polyamide
For samples containing more than 2 % additives, the amount of additives shall be either determined by a
specifically developed method or taken from the recipe. The method of determination will be mentioned in the
report.
The water content of the sample shall be determined according to ISO 15512. The ash content shall be
determined according to ISO 3451-4.
The correct amount of polyamide sample to be weighed out is calculated using the equation in Clause 8.
Some additives, e.g. antimony trioxide and zinc sulfide, are completely volatilized during the calcination
according ISO 3451-4. Materials reinforced with glass fibre contain flame-retardant antimony trioxide and/or other
volatilizable additives. If the total content of additives is more than 2 %, these shall be brought into account by
the formulation of the sample for calculating the exact test portion.
NOTE For production quality control purposes, the laboratory response time for determination of the additives may
be too long for adequate production control. In these cases the additive(s) content in the production recipe can be used for
calculating the amount of sample, if the total variation of the polymer content is less than 4 % (by mass), e.g. 65 % PA
would range from 63 % to 67 %.
ISO 307:2007(E)
8 Calculation of test portion
Calculate the mass m , in milligrams, of the test portion according to Equation (5):
c
m = (5)
c
ww++w
12 3
1−
where
w is the water content of the sample, expressed as a percentage by mass, determined in accordance
with ISO 15512;
w is the content of inorganic materials (for example fillers or glass fibres) in the sample, expressed as a
percentage by mass, determined in accordance with ISO 3451-4;
w is the content of other materials (for example other polymers, such as polyolefins, or additives, such
as flame-retardants), expressed as a percentage by mass, determined by appropriate methods.
For the content of the additive(s) which cannot be determined, the content according to the product recipe
shall be used.
9 Selection of solvent
The value of the viscosity number of a polyamide depends on the solvent used.
The solvent or solvents to be used for a particular polyamide are specified below.
a) For PA 6, PA 46, PA 66, PA 69, PA 610, PA MXD6 and corresponding copolyamides, formic acid solution
or sulfuric acid shall be used as solvent. For polyamides containing additives that liberate gases in acidic
solvents, m-cresol shall be used as the solvent. In cases of dispute, formic acid shall be used as a solvent.
b) For PA 612, the sulfuric acid solution or m-cresol shall be used as solvent. In cases of dispute, m-cresol
shall be used.
c) For PA 11, PA 12, PA 11/12 copolymers, m-cresol shall be used as a solvent. In cases of dispute about
ammonium carboxylate influencing viscosity through the formation of end-group associations, additional
measurements shall be made using m-cresol/phosphoric acid solution as a solvent (5.1.8).
d) For PA 6T/66, PA 6I/66, PA 6I/6T, PA 6T/6I/66, PA 6T/6I, PA 6I/6T/66, m-cresol or phenol/1,1,2,2-
tetrachloroethane shall be used as solvent. In cases of dispute, m-cresol shall be used.
e) For other polyamides, any of the mentioned solvents may be used.
NOTE 1 In the future revision of this International Standard, it is the intention that for a given PA only one solvent will
be allowed.
NOTE 2 Viscosity numbers of polyamides not containing additives that interfere with the viscosity measurement can be
converted from one solvent to another by a general interconversion formula. Graphs for interconversion are mentioned in
Clause 13 and presented in Annex E. The reliability of the conversions is discussed in Annex E.
6 © ISO 2007 – All rights reserved

ISO 307:2007(E)
10 Procedure
10.1 Cleaning of the viscometer
Clean the viscometer (6.8) prior to the first use, again after discordant readings (for example, when two
successive determinations of the efflux time of the solvent differ by more than 0,4 s) and, further, at intervals
during regular use. For this purpose allow it to stand for at least 12 h filled with a cleaning agent (5.2), for
example chromic acid solution (5.2.1). Remove the cleaning agent, rinse the viscometer with water then with
acetone (5.2.2) and dry, for example by a slow stream of filtered air or in the vacuum drying cabinet (6.1).
After each determination, drain the viscometer, rinse with the solvent, then with water, followed by, for
example, acetone (5.2.2) and dry as described above.
However, if the next solution to be measured is of a polyamide of the same type and of a similar viscosity, it is
permissible to drain the viscometer, wash it with the solution to be measured, and then fill it with this solution.
NOTE In the case of, for example, production control and automated flow time measurement the viscometer may be
filled with the solvent in anticipation of the next sample.
10.2 Preparation of test solution
10.2.1 General
Three different methods for preparing the test solution are described in this International Standard. The first
volumetric method (10.2.2), without correction for the volume of insoluble additives in the test portion, is equal
to the method described in the previous version (ISO 307:2003). For practical reasons, test portion masses of
(m ± 5) mg are allowed. For pure polyamide, this results in a concentration range of 0,004 9 g/ml to
c
0,005 1 g/ml. The actual polymer concentration is taken into account in the calculation of the viscosity number.
For samples containing insoluble additives, a test portion of exactly the calculated mass will give a solution
that is almost equal to 0,005 g/ml.
The second volumetric method (10.2.3) and the gravimetric method (10.2.4) take into account the insoluble
additives and the polyamide volume. The latter two methods are often used in combination with
(semi-)automatic viscosity measurement equipment.
NOTE For polyamide samples containing only insoluble additives, the concentration of the solution prepared
according to the volumetric or gravimetric method will be exactly 5 mg/ml.
10.2.2 Volumetric method
Weigh, to the nearest 0,2 mg, a test portion of (m ± 5) mg, where m is the mass calculated in accordance
c c
with Clause 8, working rapidly to minimize moisture pick-up by the polymer. If the weighing takes more than
2 min, reject the material and begin another weighing.
Transfer the test portion to the 50 ml volumetric flask (6.3) and add about 40 ml of the solvent (see Clause 9).
Close the flask and shake the contents, or stir with the magnetic stirrer (6.6), until the polymer has dissolved.
This may take from approximately half an hour to several hours, depending on the type of polyamide and the
particle size of the test portion. When sulfuric acid or formic acid solution is used as the solvent, the
temperature shall not exceed 30 °C. When m-cresol or phenol/1,1,2,2-tetrachloroethane is used as the solvent,
the temperature may be raised to 95 °C to 100 °C. If, in the latter case, dissolution takes more than 2 h, this
shall be reported. For PA 6T/66, suitable conditions have been found to be 2 h at 90 °C.
When dissolution is complete, cool the solution to 25 °C ± 2 °C, dilute to the mark with the solvent and mix
well. If the magnetic stirrer (6.6) is used, remove it from the solution before dilution and rinse it with the solvent,
adding the rinsings to the flask before further dilution
ISO 307:2007(E)
10.2.3 Volumetric method, in exact relation to the polymer content
Weigh, to the nearest 0,2 mg, a test portion of (m ± 10 %) mg, where m is the mass calculated in accordance
c c
with Clause 8, working rapidly to minimize moisture pick-up by the polymer. If the weighing takes more than
2 min, reject the material and begin another weighing.
Transfer the test portion to the 100 ml volumetric flask (6.3) or weighing bottle (6.4) and add the volume of the
solvent (see Clause 9) required to prepare a concentration of 0,50 g of sample per 100 ml of solution. The
volume of solvent to be added is corrected for the volume of the soluble mass of the sample. The solvent shall
be added by means of a suitable dosing device (e.g. a burette accurate to 0,01 ml). Close the flask and shake
the contents, or stir with the magnetic stirrer (6.6), until the polymer has dissolved. This may take from
approximately half an hour to several hours, depending on the type of polyamide and the particle size of the
test portion. When sulfuric acid or formic acid solution is used as the solvent, the temperature shall not exceed
30 °C. When m-cresol or phenol/1,1,2,2-tetrachloroethane is used as the solvent, the temperature may be
raised to 95 °C to 100 °C. If, in the latter case, dissolution takes more than 2 h, this shall be reported. For
PA 6T/66, suitable conditions have been found to be 2 h at 90 °C. When dissolution is complete, cool the
solution to 25 °C ± 2 °C.
EXAMPLE
Mass of polyamide in the sample 275 mg
Polyamide density 1,130 0 kg/dm
Volume of the polyamide mass 0,275 g/1,130 0 g/ml = 0,243 4 ml
Volume of solvent to be added (275/250) × 50 − 0,243 4 = 54,76 ml.
10.2.4 Gravimetric method, in exact relation to the polymer content
Weigh, to the nearest 0,2 mg, a test portion of (m ± 10 %) mg, where m is the mass calculated in accordance
c c
with Clause 8, working rapidly to minimize moisture pick-up by the polymer. If the weighing takes more than
2 min, reject the material and begin another weighing.
Transfer the test portion to a 100 ml volumetric flask (6.3) or weighing bottle (6.4) and add the mass of solvent
(see Clause 9) required to prepare a concentration of 0,50 g of sample per 100 ml of solution. The mass of
solvent to be added is corrected for the volume of the soluble mass of the sample. Close the flask and shake
the contents, or stir with the magnetic stirrer (6.6), until the polymer has dissolved. This may take from
approximately half an hour to several hours, depending on the type of polyamide and the particle size of the
test portion. When sulfuric acid or formic acid solution is used as the solvent, the temperature shall not exceed
30 °C. When m-cresol or phenol/1,1,2,2-tetrachloroethane is used as the solvent, the temperature may be
raised to 95 °C to 100 °C. If, in the latter case, dissolution takes more than 2 h, this shall be reported. For
PA 6T/66, suitable conditions have been found to be 2 h at 90 °C. When dissolution is complete, cool the
solution to 25 °C ± 2 °C.
EXAMPLE
Mass of polyamide in the sample 275 mg
Density of polyamide 1,130 0 kg/m
Density of solvent 1,204 4 kg/m
Volume of the polyamide mass 0,275 g/1,130 0 g/ml = 0,243 4 ml
Volume of solvent to be added (275/250) × 50 − 0,243 4 = 54,76 ml
Mass of solvent to be added 54,76 ml × 1,204 4 = 65,95 g.
NOTE 1 An automated weighing system for preparing the sample solution is often used in production control.
NOTE 2 In the case of polyamides with extremely high relative molecular masses, solutions free from the so-called
streaking phenomenon cannot always be obtained, in spite of prolonged periods of shaking or stirring. Such test solutions
may only be used for mutual comparison with similar products.
8 © ISO 2007 – All rights reserved

ISO 307:2007(E)
10.3 Measurement of flow times
Determine the mean flow time of the solvent in the same viscometer and in the same manner as that of the
solution. The flow times of the solvents shall be determined at least once each day that they are used, or at a
different frequency if statistically validated by the laboratory. If the flow time of a solvent differs by more than
0,5 % from the initial value at the time of preparation, the solvent shall be discarded and fresh solvent
prepared.
Filter the solution through the sintered-glass filter (6.7) or the metal sieve into tube L of the viscometer (see
−1
Figure 1). Alternatively, centrifuge the solution at a rotational frequency of approximately 50 s and pour the
clear supernatant liquid into the viscometer (6.8). The volume of liquid shall be such that, after draining, the
level lies between the filling marks. For hand-filled viscometers, the filling should preferably be done with the
viscometer out of the thermostatic bath (6.10) to avoid contamination of the bath in case of accidental spills.
Mount the viscometer in the thermostatic bath maintained at 25,00 °C ± 0,05 °C ensuring that tube N is
vertical and that the upper graduation mark E is at least 30 mm below the surface of the liquid in the bath.
Allow at least 15 min for the charged viscometer to attain the temperature of the bath.
Close tube M and blow or draw the liquid into the upper bulb of tube N using a rubber bulb or similar
equipment. Close tube N. Open tube M so that the liquid drops away from the lower end of the capillary tube.
Open tube N and measure the flow time, to the nearest 0,2 s, as the time taken for the bottom of the meniscus
to pass from mark E to mark F. With cloudy solutions, view the top of the meniscus. Repeat the measurement
of the flow time until two successive values agree within 0,25 %. Take the mean of these two values as the
flow time of the solution.
With each polyamide sample, carry out at least two determinations of the viscosity number, using a fresh
solution each time, until two successive values meet the repeatability requirement corresponding to the
solvent used (see Clause 12). Report the mean of these two values, rounded off to the nearest whole number,
as the viscosity number of the sample. If two successive determinations of the solution mean flow time differ
by more than 0,5 %, clean the viscometer (see 10.1).
NOTE 1 When necessary, filter the solution of the sample through a filter (6.7) before making the measurement. Any
glass fibres contained in the sample will sediment completely after 3 h to 4 h. In such cases, the test solution can be
decanted for the measurement and thus does not need to be filtered.
For automated solution-viscosity-measurement equipment, the procedure may differ from the described
method. However, the requirements concerning the measurement solution, the equipment, bath temperature
and the flow times shall be maintained in all respects.
For production quality control purposes, a single viscosity number determination is, in principle, permitted on
condition that the precision of the test method is known and permits the process variation to be identified
(precision < 30 % of the process variation, preferably < 10 %), and the process control limits and the process
warning limits are determined, based on a known precision interval, and statistically validated. It is strongly
recommended that the statistical model is incorporated in the quality manual, including written procedures on
how to handle the product and the actions that should be taken if the result of the single determination is
outside the warning limits but within the action limits or is outside the action limits. These procedures may
comprise activities such as
⎯ repeating the measurement (e.g. twofold),
⎯ in the case of random production control, measurement of the homogenized batch, or
⎯ acceptance of the product based on larger process limits.
NOTE 2 A general applicable statistical model on applying single determinations for production quality control purposes
is being developed within ISO/TC 61 and will be published in the ISO/TC 61 Plastics Guide.
ISO 307:2007(E)
11 Expression of results
Calculate the concentration of the polymer, in grams per millilitre, according to Equation (6):
m
c
C= (6)
⎛⎞
1000××50
⎜⎟
100−+(ww+w )
12 3
⎝⎠
where
C is the concentration of the polymer, in grams per millilitre of solution;
m is the mass, in milligrams;
c
w , w and w are as in Equation (5).
1 2 3
Calculate the viscosity number VN, in millilitres per gram, according to Equation (7).
In calculating the viscosity number of the polymer, it is assumed that the ratio of the viscosities of the solution
and the solvent may be replaced by the ratio of the corresponding times of flow. Furthermore, the
concentration of the polymer may be expressed as grams per millilitre of solvent instead of grams per millilitre
of solution without introducing appreciable error.
With kinetic energy correction:
⎛⎞tt−
c
VN=−1 (7)
⎜⎟
tt− C
⎝⎠00c
where
t is the flow time of the solution, in seconds;
t is the Hagenbach correction of the solution, in seconds, if applicable;
c
t is the flow time of the solvent, in seconds;
t is the Hagenbach correction of the solvent, in seconds, if applicable;
0c
C is the concentration of the polymer, in grams per millilitre of solution.
NOTE In the case of (automated) sample preparation in relation with the exact polymer content, the relative viscosity
is also suitable for production control purposes.
12 Repeatability and reproducibility
The precision of this revised test method is not known because interlaboratory data are not available.
However, the reproducibility is expected not to deviate significantly from the reproducibility given in
ISO 307:2003 and in Table E.1 of this International Standard.
Interlaboratory data are being obtained and will be added to this International Standard as an Amendment or
at the next revision.
10 © ISO 2007 – All rights reserved

ISO 307:2007(E)
13 Relationship between the viscosi
...
